Model Image
Manufacturer

Whirlpool

Model Number

WFE540H0EE1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10750011 W10750011 ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
241430 241430 ACCESSORY PARTS, ALUMINUM FOIL
W10275756 W10275756 ACCESSORY PARTS, CLEANER, GRANITE
31617A 31617A ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
W10355010 W10355010 ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
4396923 4396923 ACCESSORY PARTS, GRID, BROILER PAN AND
4396096RB 4396096RB ACCESSORY PARTS, GRIDDLE
31463A 31463A ACCESSORY PARTS, PROTECTANT, COOKTOP
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W10355049 W10355049 ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEANING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W11379357 W11379357 BAKE PAN
W10217758 W10217758 BEZEL, KEEP WARM (BLACK)
W10315960 W10315960 BEZEL, KEEP WARM (STAINLESS)
W10217760 W10217760 BEZEL, KEEP WARM (WHITE)
WPW10245259 WPW10245259 BLOCK-TERM
W10777210 W10777210 BOTTM-OVEN
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
W10607641 W10607641 BRACKET, COOKTOP (LEFT)
W10607642 W10607642 BRACKET, COOKTOP (RIGHT)
W10294853 W10294853 BRACKET, GLASS LINER
W10273002 W10273002 BRACKET, OVEN SUPPORT
WPW10333990 WPW10333990 BRKT-GLASS
WPW10318027 WPW10318027 BRKT-MNTG
W11230932 W11230932 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W11116956 W11116956 BRKT-SUPRT
W10918209 W10918209 BUTTN-PUSH
9758491 9758491 BUTTON, KEEP WARM (BLACK)
9757492 9757492 BUTTON, KEEP WARM (WHITE)
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10336909 W10336909 CLEANER
W10355051 W10355051 CLEANER, COOKTOP
W10137382 W10137382 CLIP, PANEL
WPW10281322 WPW10281322 CONNECTOR

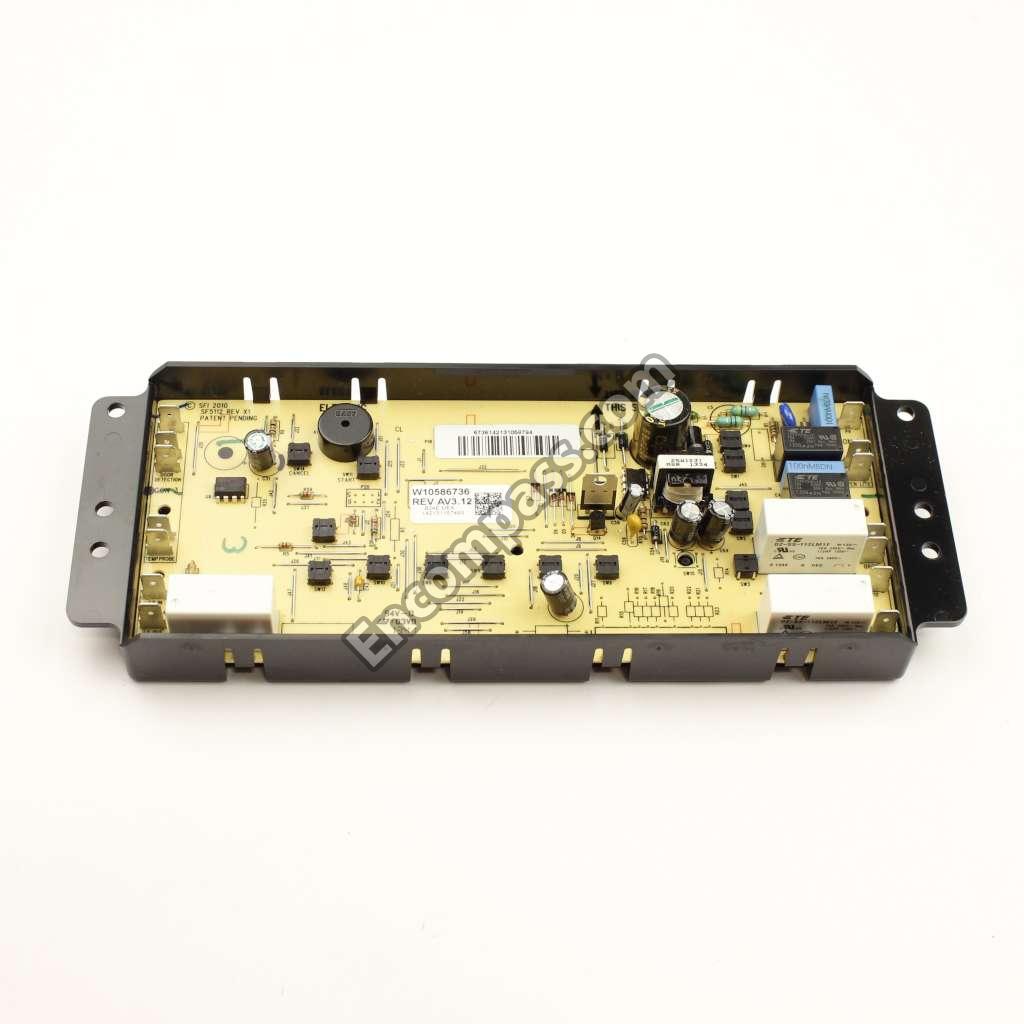

WPW10586737 WPW10586737 CONTROL BOARD
WPW10586736 WPW10586736 CONTROL BOARD
WPW10586735 WPW10586735 CONTROL BOARD
W11231393 W11231393 CONTROL PANEL
W11233269 W11233269 CONTROL PANEL
W11233270 W11233270 CONTROL PANEL
W10472035 W10472035 COOKTOP
W10472036 W10472036 COOKTOP
WPW10346154 WPW10346154 COVER
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
WPW10618239 WPW10618239 DOOR HANDLE
WPW10440013 WPW10440013 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W11321472 W11321472 ELEMENT, BROIL
W10779716 W10779716 ELMNT-BAKE
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11527111 W11527111 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WP3196548 WP3196548 FUSE-THRML
W11562931 W11562931 GASKT-DOOR
WPW10289144 WPW10289144 GLASS DOOR
WPW10289142 WPW10289142 GLASS DOOR
WPW10289141 WPW10289141 GLASS DOOR
WPW10333988 WPW10333988 GLASS DOOR
WPW10333987 WPW10333987 GLASS DOOR
WPW10300487 WPW10300487 GLASS DOOR
W10400064 W10400064 GUIDE, QUICK START (ENGLISH)
W10300490 W10300490 HANDLE, DOOR (BLACK)
W10300489 W10300489 HANDLE, DOOR (WHITE)
W11134596 W11134596 HARNESS, COOKTOP (LEFT)
W11134550 W11134550 HARNESS, COOKTOP (RIGHT)
W11134549 W11134549 HARNESS, MAIN
W11172424 W11172424 HARNESS, SENSOR
W11134594 W11134594 HARNESS, WARM ZONE
W10647259 W10647259 HINGE-RECV
W10911303 W10911303 INFINITE CONTROL SWITCH
W10857622 W10857622 INFINITE CONTROL SWITCH
W10403811 W10403811 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
W11688565 W11688565 INSULATION
WPW10225523 WPW10225523 INSULATION
WPW10194393 WPW10194393 INSULATION
WPW10225524 WPW10225524 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W10854249 W10854249 KNOB
W10676216 W10676216 KNOB (BLACK)

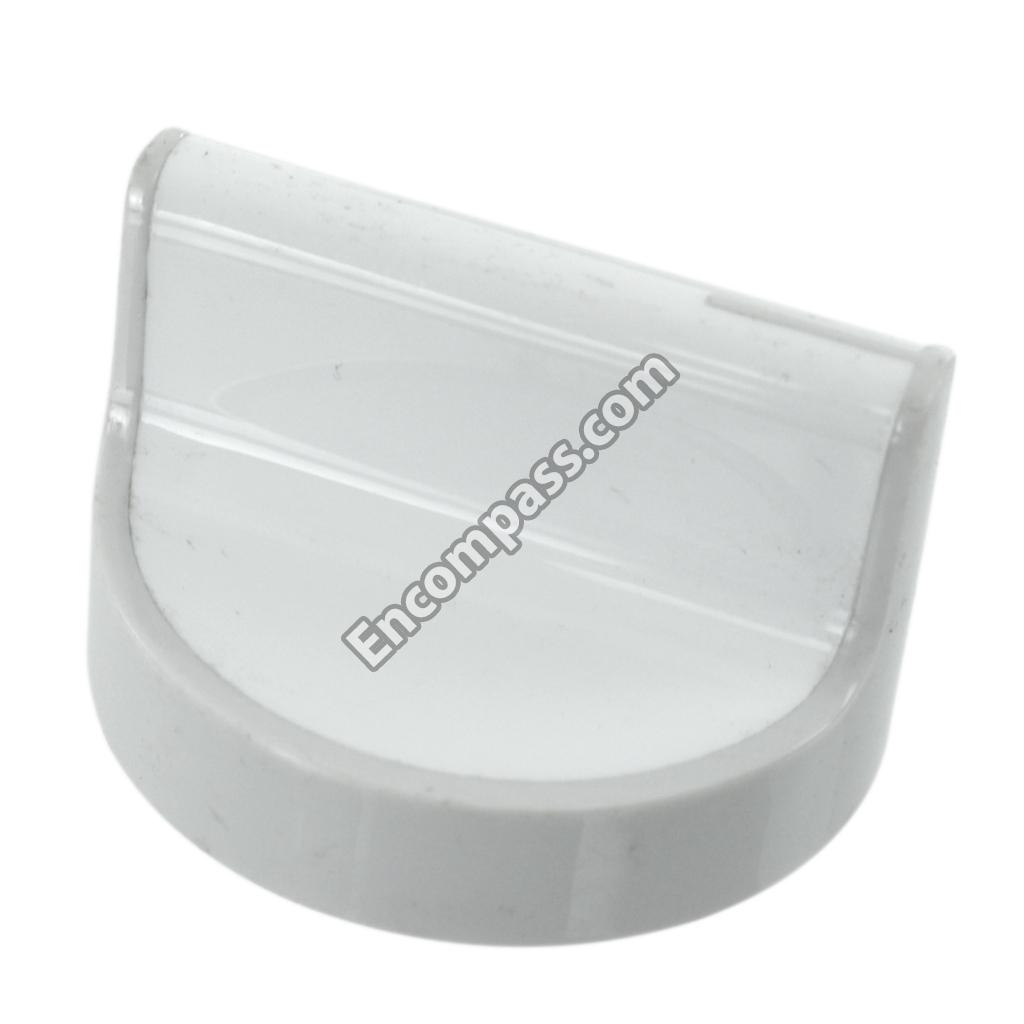

W10676217 W10676217 KNOB (WHITE)
8009 8009 LIGHT BULB
WP8523265 WP8523265 LIGHT-IND
WPW10297318 WPW10297318 LINER-DOOR
W11178521 W11178521 NAMEPLATE
WP3400029 WP3400029 NUT
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11244088 W11244088 PAN
W11280103 W11280103 PANEL-DRWR
W11297555 W11297555 PANEL-DRWR
W11297552 W11297552 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
WPW10575396 WPW10575396 PANEL-SIDE
WPW10289145 WPW10289145 RACK-OVEN
WPW10531060 WPW10531060 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10273192 W10273192 ROD, DOOR SWITCH
W10491985 W10491985 SCREW
WPW10031790 WPW10031790 SCREW
WPW10317886 WPW10317886 SCREW
W10777162 W10777162 SCREW
WP3400016 WP3400016 SCREW
3196172 3196172 SCREW
WPW10067840 WPW10067840 SCREW
W11233072 W11233072 SCREW
WP3400882 WP3400882 SCREW
WP3196557 WP3196557 SCREW
W10833885 W10833885 SENSOR
W10726740 W10726740 SHIELD, HEAT
W10134247 W10134247 SHIELD, HEAT
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
WPW10225448 WPW10225448 SPRING
W10035900 W10035900 SUPPORT, OVEN BOTTOM
W11047668 W11047668 SURFACE ELEMENT
W11517959 W11517959 SURFACE ELEMENT
W11171119 W11171119 SURFACE ELEMENT
W10823727 W10823727 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W10392959 W10392959 TECH SHEET (ENGLISH)
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10334031 W10334031 TRIM, BOTTOM (BLACK)
W10334004 W10334004 TRIM, SIDE (BLACK)
W10334003 W10334003 TRIM, SIDE (WHITE)
W10294855 W10294855 TRIM, TOP (BLACK)
W10335333 W10335333 TRIM, TOP (STAINLESS)
WPW10335331 WPW10335331 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
W10719729 W10719729 USE AND CARE GUIDE
