Model Image
Manufacturer

Whirlpool

Model Number

WFE550S0LB2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11692811 W11692811 ACCESSORY PARTS, BASKET, AIR FRY
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
4396096RB 4396096RB ACCESSORY PARTS, GRIDDLE
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W11135752 W11135752 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
WPW10245259 WPW10245259 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
W10856361 W10856361 BRACKET, CONTROL
W10607641 W10607641 BRACKET, COOKTOP (LEFT)
W10607642 W10607642 BRACKET, COOKTOP (RIGHT)
W11443964 W11443964 BRACKET, EYE BROW (BLACK)
W10134126 W10134126 BRACKET, FAN
WPW10462912 WPW10462912 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
W10646923 W10646923 CARD, INSULATOR
W10404688 W10404688 CLIP, OVEN SUPPORT
W10137382 W10137382 CLIP, PANEL
W10183541 W10183541 CLIP, SPRING STEEL
WPW10281322 WPW10281322 CONNECTOR

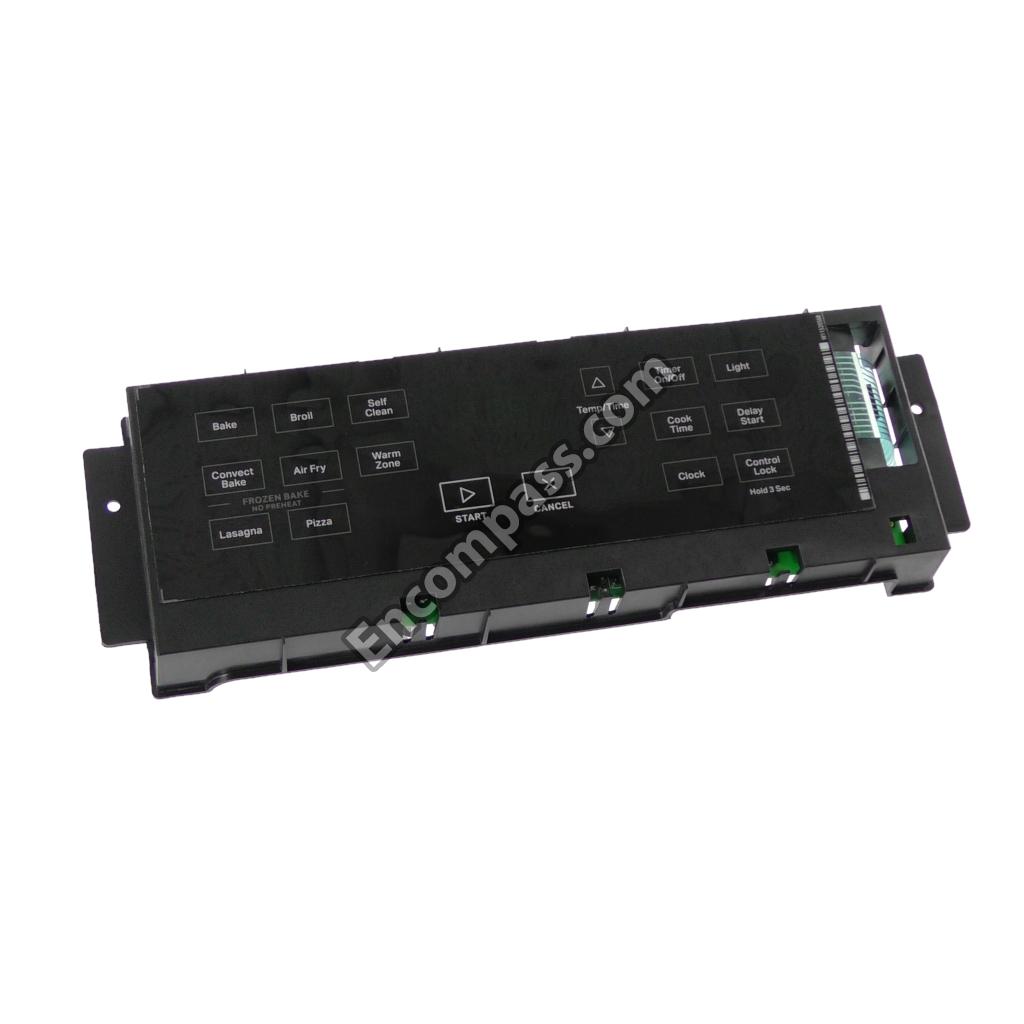

W11548749 W11548749 CONTROL BOARD
W11182819 W11182819 CONTROL PANEL
W11183708 W11183708 COOKTOP
WPW10326122 WPW10326122 COVER-BLCK
WPW10134124 WPW10134124 COVER-FAN
WP8272473 WP8272473 COVER-REAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W11553213 W11553213 DOOR HANDLE
WPW10299226 WPW10299226 DOOR HINGE
WPW10299227 WPW10299227 DOOR HINGE
W11569689 W11569689 DOOR TRIM
W10761014 W10761014 DOOR TRIM
W10761018 W10761018 DOOR TRIM
W10813962 W10813962 DRAWR-UTIL
WP9755770 WP9755770 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
W11213290 W11213290 ENDCAP (BLACK (LEFT))
W11213292 W11213292 ENDCAP (BLACK (RIGHT))
W11548753 W11548753 FAN-CONVCT
W11582241 W11582241 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
W11702167 W11702167 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
W10807828 W10807828 GLIDE-DRWR
W10807823 W10807823 GLIDE-DRWR
W11134845 W11134845 HARNESS, COOKTOP (RIGHT)
W11172528 W11172528 HARNESS, HIDDEN BAKE
W11134592 W11134592 HARNESS, WARM ZONE
W10647259 W10647259 HINGE-RECV
WP3149404 WP3149404 INFINITE CONTROL SWITCH
WPW10434452 WPW10434452 INFINITE CONTROL SWITCH
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11684918 W11684918 INSULATION
W11684917 W11684917 INSULATION
W11161831 W11161831 INSULATION
W11158169 W11158169 KNOB
WPW10571723 WPW10571723 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
W11178521 W11178521 NAMEPLATE
W11548755 W11548755 NUT
WP3400968 WP3400968 NUT
WP3400029 WP3400029 NUT
W11443025 W11443025 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11244088 W11244088 PAN
W10901802 W10901802 PANEL, BACKER
W11230488 W11230488 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
W11524742 W11524742 QUICK START GUIDE
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
WP3196813 WP3196813 RIVET
9757239 9757239 ROD, DOOR SWITCH
W11268772 W11268772 SCREEN
WP3196175 WP3196175 SCREW
WPW10200660 WPW10200660 SCREW
WP355214 WP355214 SCREW
WPW10031790 WPW10031790 SCREW
WP4449809 WP4449809 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
WP3400016 WP3400016 SCREW
3196172 3196172 SCREW
WPW10067840 WPW10067840 SCREW
WP3196174 WP3196174 SCREW
WP3196154 WP3196154 SCREW
WP3400882 WP3400882 SCREW
W11233072 W11233072 SCREW
WP3196557 WP3196557 SCREW
3400964 3400964 SCREW, GROUND
W11135756 W11135756 SCREW-TORX
WPW10181986 WPW10181986 SENSOR
W10134125 W10134125 SHIELD, HEAT
W10134247 W10134247 SHIELD, HEAT
W11594170 W11594170 SOCKT-LITE
WPW10225448 WPW10225448 SPRING
W11171119 W11171119 SURFACE ELEMENT
W11041453 W11041453 SURFACE ELEMENT
W11517959 W11517959 SURFACE ELEMENT
W10823727 W10823727 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W11523158 W11523158 TECH SHEET
W10183712 W10183712 TRAY, HIDDEN BAKE
W10134121 W10134121 TRAY, INSULATION
WPW10134285 WPW10134285 TUBE-VENT
511873 511873 WHITE PORCELAIN (2 OZ.)
W11675846 W11675846 WIRE HARNESS
W11529071 W11529071 WIRE HARNESS
