Whirlpool

Model Number

WFE775H0HB4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
4396096RB 4396096RB ACCESSORY PARTS, GRIDDLE
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W11135752 W11135752 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W11379357 W11379357 BAKE PAN
W10905964 W10905964 BEZEL (BLACK)
W10912200 W10912200 BEZEL (WHITE)
WPW10245259 WPW10245259 BLOCK-TERM
W10777210 W10777210 BOTTM-OVEN
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
W10856361 W10856361 BRACKET, CONTROL
W10607641 W10607641 BRACKET, COOKTOP (LEFT)
W10607642 W10607642 BRACKET, COOKTOP (RIGHT)
W11443964 W11443964 BRACKET, EYE BROW (BLACK)
W11443963 W11443963 BRACKET, EYE BROW (WHITE)
W11464548 W11464548 BRACKET, FRONT FRAME
W10294853 W10294853 BRACKET, GLASS LINER
W10273002 W10273002 BRACKET, OVEN SUPPORT
WPW10333990 WPW10333990 BRKT-GLASS
WPW10318027 WPW10318027 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W11116956 W11116956 BRKT-SUPRT
W10137382 W10137382 CLIP, PANEL
WPW10281322 WPW10281322 CONNECTOR

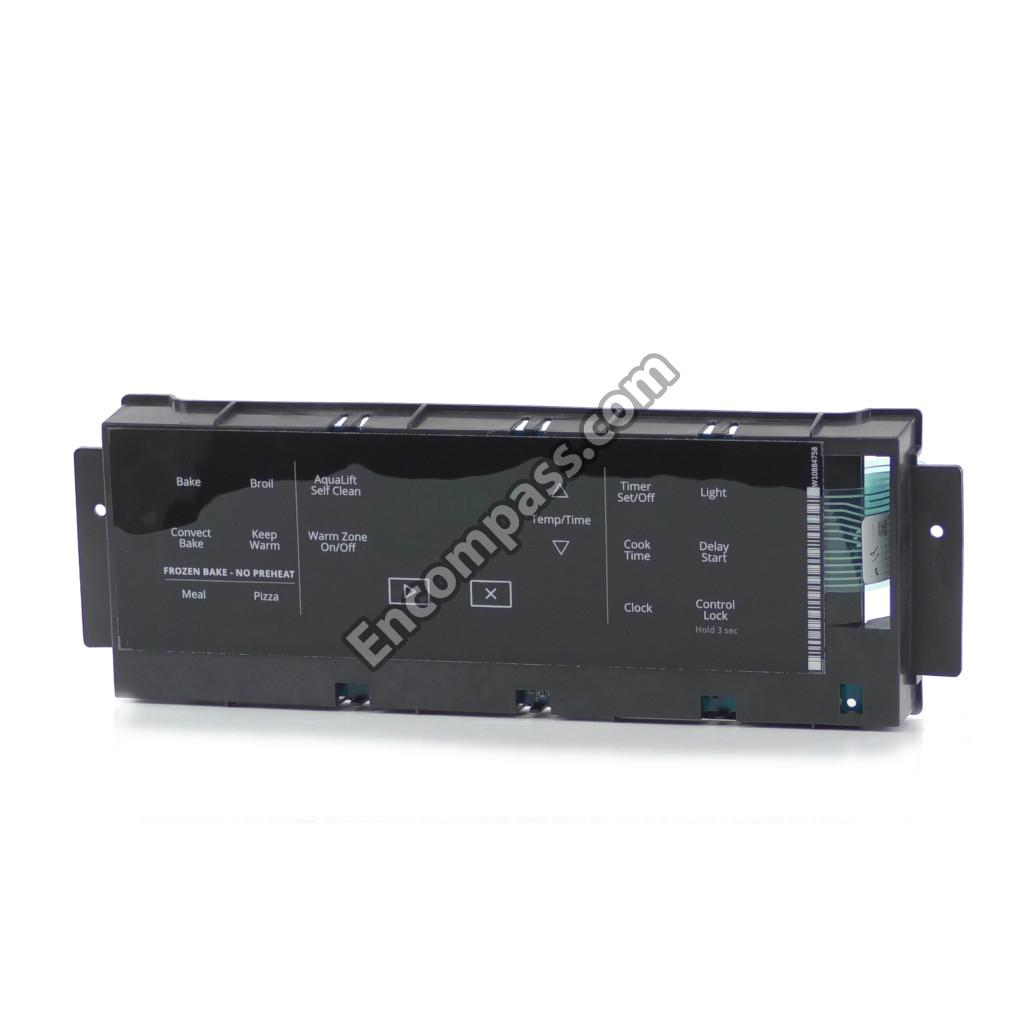

W11536793 W11536793 CONTROL BOARD
W11105827 W11105827 CONTROL PANEL
W11105836 W11105836 CONTROL PANEL
W11129394 W11129394 COOKTOP
W11129393 W11129393 COOKTOP
WPW10346154 WPW10346154 COVER
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
W11107407 W11107407 DOOR HANDLE
W11107394 W11107394 DOOR HANDLE
WPW10440013 WPW10440013 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W10779716 W10779716 ELMNT-BAKE
W11321472 W11321472 ELMNT-BROL
W11213290 W11213290 ENDCAP (BLACK (LEFT))
W11213292 W11213292 ENDCAP (BLACK (RIGHT))
W11259700 W11259700 ENDCAP-PNL
W11259041 W11259041 ENDCAP-PNL
W11527111 W11527111 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WP3196548 WP3196548 FUSE-THRML
W11562931 W11562931 GASKT-DOOR
W11107890 W11107890 GLASS DOOR
W11705268 W11705268 GLASS DOOR
WPW10300487 WPW10300487 GLASS DOOR
W11435580 W11435580 GUIDE, QUICK START (ENGLISH AND FRENCH)
W11176669 W11176669 HARNESS, COOKTOP (LEFT)
W11176668 W11176668 HARNESS, COOKTOP (RIGHT)
W11451584 W11451584 HARNESS, MAIN
W11134592 W11134592 HARNESS, WARM ZONE
W10647259 W10647259 HINGE-RECV
W10917724 W10917724 INFINITE CONTROL SWITCH
W10911303 W10911303 INFINITE CONTROL SWITCH
W10857622 W10857622 INFINITE CONTROL SWITCH
WPW10208653 WPW10208653 INSULATION
W11688565 W11688565 INSULATION
WPW10225523 WPW10225523 INSULATION
WPW10225524 WPW10225524 INSULATION
WPW10194393 WPW10194393 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W11613600 W11613600 KNOB
W11715915 W11715915 KNOB
WPW10571723 WPW10571723 LIGHT BULB
WPW10297318 WPW10297318 LINER-DOOR
W11178521 W11178521 NAMEPLATE
WP3400029 WP3400029 NUT
W11509589 W11509589 OWNER'S MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11244088 W11244088 PAN
W10901802 W10901802 PANEL, BACKER
W11190206 W11190206 PANEL, DRAWER FRONT (BLACK)
W11307294 W11307294 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
WPW10162245 WPW10162245 PANEL-SIDE
WPW10531060 WPW10531060 RACK-OVEN
WPW10289145 WPW10289145 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
W11594227 W11594227 RAIL-MTG
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11370463 W11370463 ROD, DOOR SWITCH
WPW10317886 WPW10317886 SCREW
WP355214 WP355214 SCREW
WPW10031790 WPW10031790 SCREW
W10896982 W10896982 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
WP3400016 WP3400016 SCREW
3196172 3196172 SCREW
WPW10067840 WPW10067840 SCREW
WP3196175 WP3196175 SCREW
7101P676-60 7101P676-60 SCREW
W11233072 W11233072 SCREW
WP3400882 WP3400882 SCREW
WP3196557 WP3196557 SCREW
W11135756 W11135756 SCREW-TORX
W10833885 W10833885 SENSOR
W10726740 W10726740 SHIELD, HEAT
W10134247 W10134247 SHIELD, HEAT
W10655441 W10655441 SHIELD, POWER CORD
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594170 W11594170 SOCKT-LITE
W10877054 W10877054 SPACER
WPW10225448 WPW10225448 SPRING
W10917796 W10917796 STANDOFF, HANDLE (BLACK)
W10917797 W10917797 STANDOFF, HANDLE (WHITE)
W10035900 W10035900 SUPPORT, OVEN BOTTOM
W10823727 W10823727 SURFACE ELEMENT
W11041453 W11041453 SURFACE ELEMENT
W11517959 W11517959 SURFACE ELEMENT
W11171119 W11171119 SURFACE ELEMENT
WPW10342780 WPW10342780 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W11326953 W11326953 TECH SHEET
W10334031 W10334031 TRIM, DOOR BOTTOM (BLACK)
W10334004 W10334004 TRIM, DOOR SIDE (BLACK)
W10334003 W10334003 TRIM, DOOR SIDE (WHITE)
W11106937 W11106937 TRIM-VENT
W11106938 W11106938 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
511873 511873 WHITE PORCELAIN (2 OZ.)
W11326954 W11326954 WIRING DIAGRAM
