Model Image
Manufacturer

Whirlpool

Model Number

WFE905C0ES0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241430 241430 ACCESSORIES, ALUMINUM FOIL
4396923 4396923 ACCESSORIES, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORIES, CLEANER, COOKTOP
W10275756 W10275756 ACCESSORIES, CLEANER, GRANITE
31617A 31617A ACCESSORIES, CLEANER, GRATE & DRIP PAN
W10355010 W10355010 ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
W10750011 W10750011 ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
W10123240 W10123240 ACCESSORIES, RACK, BROILER PAN & ROASTING
W10355049 W10355049 ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
W10705602 W10705602 ACTIVE OVERLAY ASSEMBLY (STAINLESS)
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W10273169 W10273169 BACK, MAIN
WPW10245259 WPW10245259 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
W10318546 W10318546 BRACKET, CONTROL
W10607641 W10607641 BRACKET, COOKTOP (LEFT)
W10607642 W10607642 BRACKET, COOKTOP (RIGHT)
W10134126 W10134126 BRACKET, FAN
W10838990 W10838990 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10646923 W10646923 CARD, INSULATOR
W10404688 W10404688 CLIP, OVEN SUPPORT
W10137382 W10137382 CLIP, PANEL
W10183541 W10183541 CLIP, SPRING STEEL
WPW10281322 WPW10281322 CONNECTOR
WPW10705788 WPW10705788 CONTROL BOARD
WPW10318550 WPW10318550 CONTROL PANEL

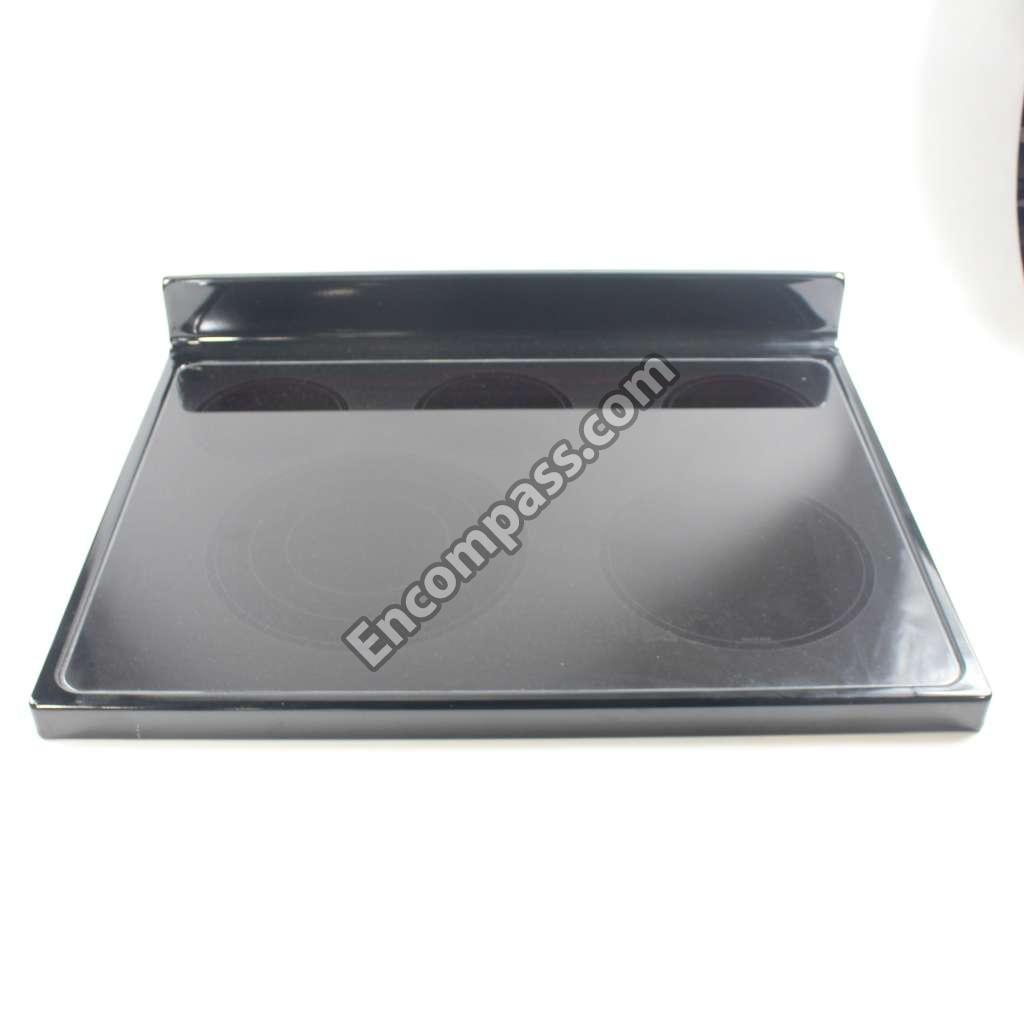

W10789362 W10789362 COOKTOP
WPW10326122 WPW10326122 COVER-BLCK
WPW10134124 WPW10134124 COVER-FAN
WP8272473 WP8272473 COVER-REAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
WPW10618239 WPW10618239 DOOR HANDLE
WPW10299224 WPW10299224 DOOR HINGE
WPW10299227 WPW10299227 DOOR HINGE
WP8523177 WP8523177 DOOR TRIM
W10761018 W10761018 DOOR TRIM
W10761014 W10761014 DOOR TRIM
W10701623 W10701623 DRAWER, FRONT (STAINLESS)
W10813962 W10813962 DRAWR-UTIL
WP9760769 WP9760769 ELEMENT
W10705791 W10705791 ELEMENT (3200W) (RF)
WP9755770 WP9755770 ELMNT-BAKE
WPW10583047 WPW10583047 ELMNT-BROL
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W10400349 W10400349 FAN BLADE, CONVECTION
W11582241 W11582241 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WPW10330077 WPW10330077 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR

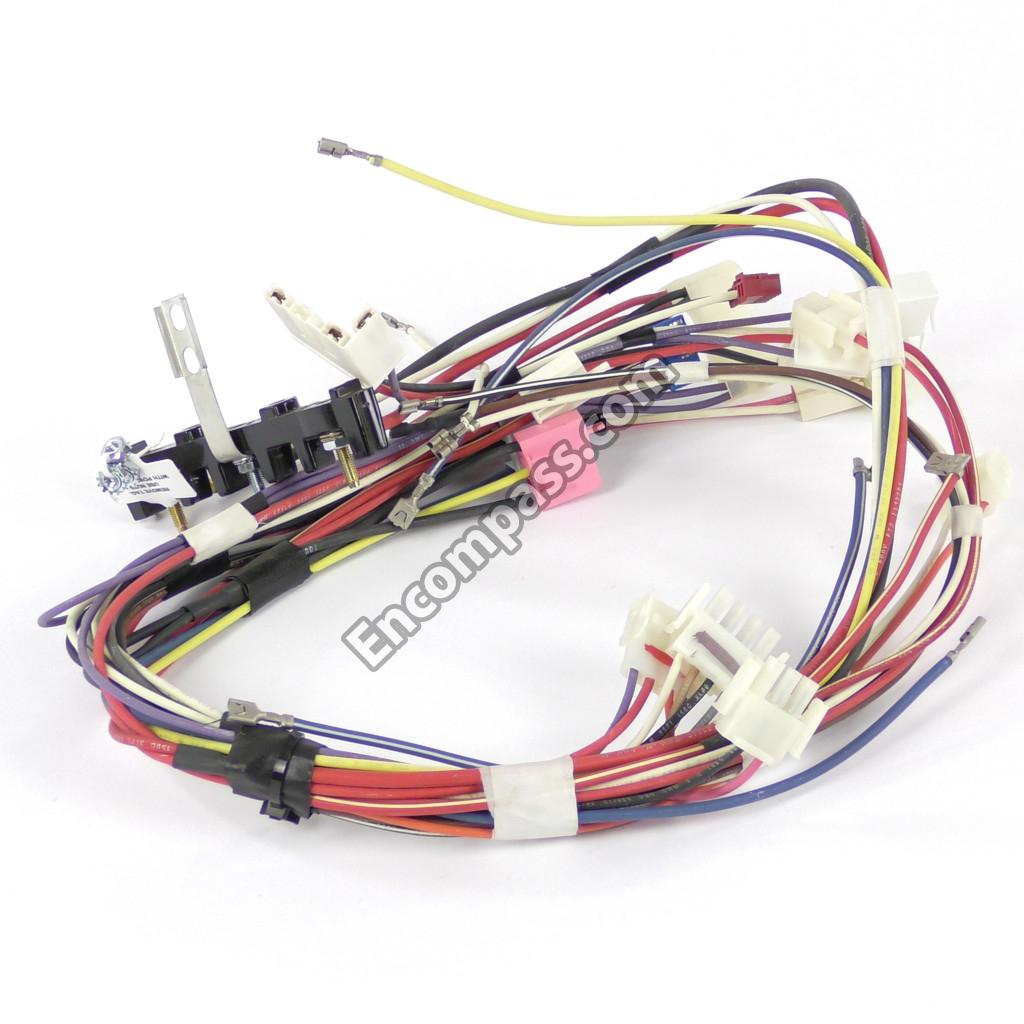

W10349734 W10349734 HARNESS, COOKTOP (LEFT)
W11134550 W11134550 HARNESS, COOKTOP (RIGHT)
W10465644 W10465644 HARNESS, HIDDEN BAKE
W10624512 W10624512 HARNESS, MAIN
W11134592 W11134592 HARNESS, WARM ZONE
W10157270 W10157270 HARNESS, WIRE (SENSOR/DR SWITCH)
W10647259 W10647259 HINGE-RECV
WP3149404 WP3149404 INFINITE CONTROL SWITCH
WPW10411934 WPW10411934 INFINITE CONTROL SWITCH
WPW10391743 WPW10391743 INFINITE CONTROL SWITCH
W10403811 W10403811 INSTRUCTIONS, INSTALLATION
WPW10278991 WPW10278991 INSULATION
W11684918 W11684918 INSULATION
WPW10208653 WPW10208653 INSULATION
W10326347 W10326347 INSULATION, BACK
W10720680 W10720680 KNOB, INFINITE (STAINLESS)
8009 8009 LIGHT BULB
WP8523265 WP8523265 LIGHT-IND
WP9761344 WP9761344 LINER-DOOR
W11178521 W11178521 NAMEPLATE
WP3400968 WP3400968 NUT
W11548755 W11548755 NUT
WP7103P027-60 WP7103P027-60 NUT
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11244088 W11244088 PAN
WPW10162245 WPW10162245 PANEL-SIDE
WPW10289145 WPW10289145 RACK-OVEN
WP8274022 WP8274022 RACK-OVEN
WP8274021 WP8274021 RACK-OVEN
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
W10450380 W10450380 RETAINER, INSULATION
WP3196813 WP3196813 RIVET
W10078380 W10078380 ROD, DOOR LATCH
9757239 9757239 ROD, DOOR SWITCH
W10465685 W10465685 ROD, INSULATION RETAINER
9761301 9761301 SCREEN, VENT
WP3400882 WP3400882 SCREW
W10777162 W10777162 SCREW
W10491985 W10491985 SCREW
WPW10200660 WPW10200660 SCREW
WP3400016 WP3400016 SCREW
WP3196174 WP3196174 SCREW
WP3196175 WP3196175 SCREW
3196172 3196172 SCREW
W11169708 W11169708 SCREW
WPW10067840 WPW10067840 SCREW
WP4449809 WP4449809 SCREW
W11233072 W11233072 SCREW
WP3196557 WP3196557 SCREW
3400964 3400964 SCREW, GROUND
WPW10181986 WPW10181986 SENSOR
W10134125 W10134125 SHIELD, HEAT
W10134247 W10134247 SHIELD, HEAT
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
WPW10410341 WPW10410341 SPACER
WPW10225448 WPW10225448 SPRING

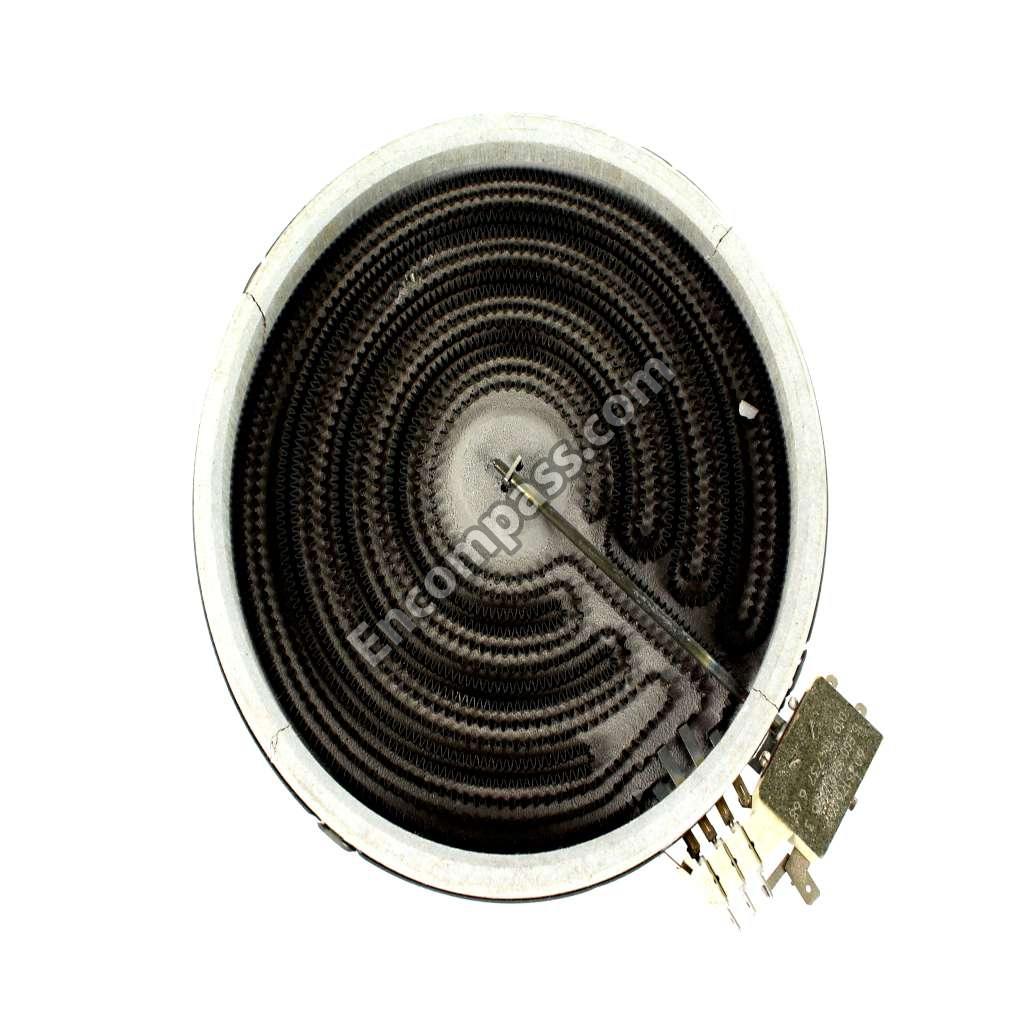

W11047668 W11047668 SURFACE ELEMENT
WPW10342780 WPW10342780 SURFACE ELEMENT
W11171119 W11171119 SURFACE ELEMENT
WPW10162041 WPW10162041 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W10720687 W10720687 TECH SHEET
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10183712 W10183712 TRAY, HIDDEN BAKE
W10134121 W10134121 TRAY, INSULATION
WPW10310922 WPW10310922 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
W10720686 W10720686 USE AND CARE GUIDE
