Whirlpool

Model Number

WFG114SWQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10477747 WPW10477747 ANCHOR-TIP
98015100 98015100 BACK, MAIN
98013777 98013777 BACK, OVEN
98006083 98006083 BACKGUARD, REAR
W10164109 W10164109 BAFFLE
98003847 98003847 BAFFLE, BASE
98007126 98007126 BASE, FOOT
WP98004449 WP98004449 BOTTM-OVEN
98007410 98007410 BRACKET, REGULATOR
98018144 98018144 BRACKET, TIMER (LEFT HAND)
98018143 98018143 BRACKET, TIMER (RIGHT HAND)
WP98017741 WP98017741 BRKT-MNTG
W10421119 W10421119 BRKT-MNTG
98004227 98004227 BUMPER
W10831827 W10831827 BUMPER
98004052 98004052 BUMPER, DOOR
WP98012138 WP98012138 BURNR-OVEN
WPW10243396 WPW10243396 BURNR-TOP
98007205 98007205 CAP, INSULATION
WP98017461 WP98017461 CAP-BURNER
549193 549193 CLAMP, POWER CORD
WPW10278150 WPW10278150 CLIP
W11229684 W11229684 CLIP
98004952 98004952 CLIP, GLASS (LEFT HAND)
98004953 98004953 CLIP, GLASS (RIGHT HAND)
98005502 98005502 CLIP, OVEN BOTTON
98005026 98005026 CLIP, TUBING
WPW10312660 WPW10312660 CONTROL BOARD
WPW10335164 WPW10335164 CONTROL BOARD
WPW10335166 WPW10335166 CONTROL BOARD
WPW10181005 WPW10181005 CONTROL PANEL
WP98017619W WP98017619W COOKTOP
WP98017619T WP98017619T COOKTOP (BISCUIT)
WP98017619B WP98017619B COOKTOP (BLACK)
98006710 98006710 COUNTERWEIGHT
98007192 98007192 COVER, MODULE
W10544168 W10544168 COVR-ACESS
W10544177 W10544177 COVR-LIGHT
W10120794 W10120794 DEFLECTOR
WP98017790W WP98017790W DOOR HANDLE
WP98017790B WP98017790B DOOR HANDLE
WP98017875 WP98017875 DOOR HINGE
WP98010185 WP98010185 DOOR TRIM
WP98010187 WP98010187 DOOR TRIM
WP98017767B WP98017767B DOOR TRIM
WP98017767W WP98017767W DOOR TRIM
98017784 98017784 DRAWER, BROILER
98008274 98008274 ENDCAP (BISCUIT (LEFT HAND))
98008275 98008275 ENDCAP (BISCUIT (RIGHT HAND))
98004632 98004632 ENDCAP (BLACK (LEFT HAND))
98004633 98004633 ENDCAP (BLACK (RIGHT HAND))
98005336 98005336 ENDCAP (WHITE (LEFT HAND))
98005337 98005337 ENDCAP (WHITE (RIGHT HAND))
98007431 98007431 FITTING 3/8TO9/16
WPW10116396 WPW10116396 FLUE-BOX
98015346 98015346 FOIL, SIDE
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
W10166434 W10166434 FRAME-FRNT
WP98014893 WP98014893 GAS VALVE
WPW10217472 WPW10217472 GASKT-DOOR
WP98006801 WP98006801 GLASS DOOR

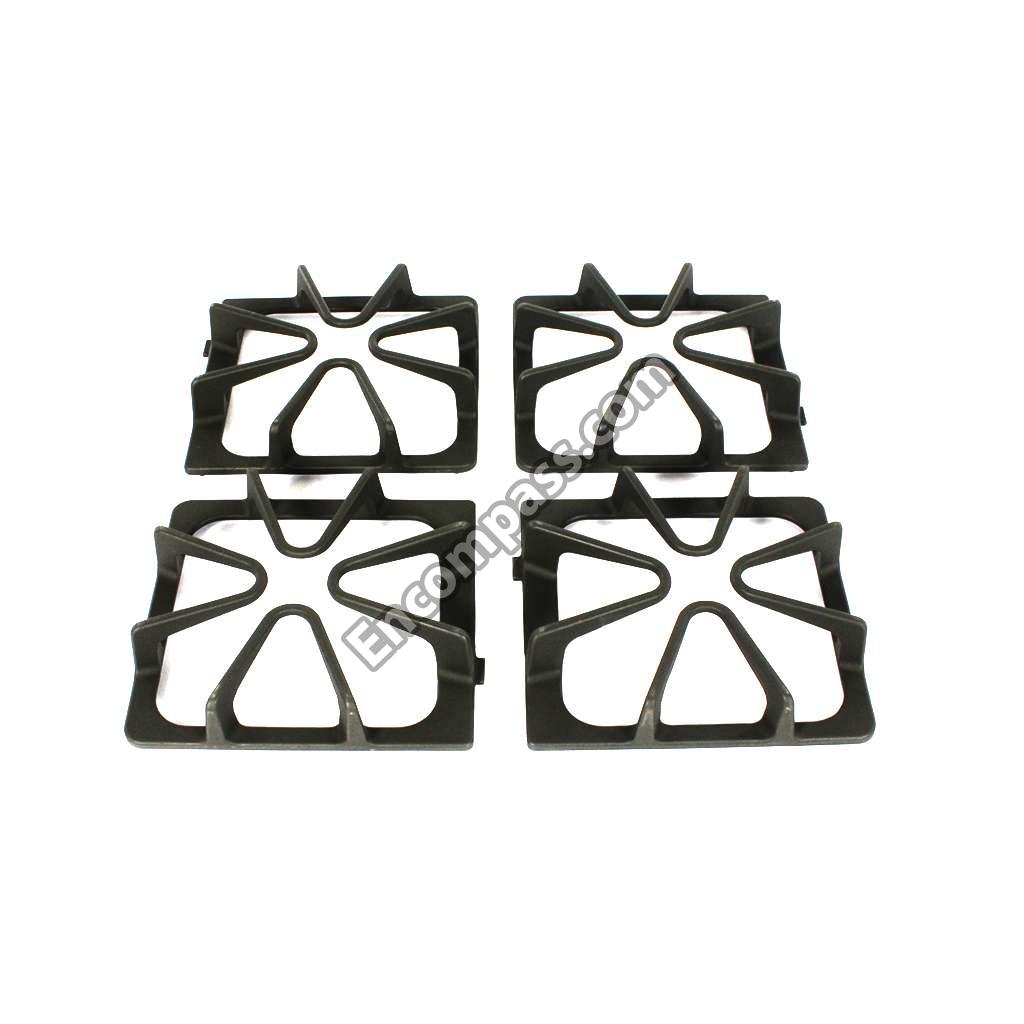

W10333861A W10333861A GRATE-KIT
WP98003480 WP98003480 GRID-PAN
W10203462 W10203462 GUIDE, USE & CARE
WPW10206641 WPW10206641 GUIDE-DRWR
WPW10206639 WPW10206639 GUIDE-DRWR
WPW10206640 WPW10206640 GUIDE-DRWR
W10206642 W10206642 GUIDE-DRWR
WP3405189 WP3405189 HANDLE
WP3405184 WP3405184 HANDLE
WP3405190 WP3405190 HANDLE
98017790T 98017790T HANDLE, OVEN DOOR (BISCUIT)
W10141515 W10141515 HARNS-WIRE
W10918546 W10918546 IGNTR-OVEN
WPW10209657 WPW10209657 IGNTR-SURF
WPW10209656 WPW10209656 IGNTR-SURF
W10477538 W10477538 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
W10137230 W10137230 INSULATION
W10137238 W10137238 INSULATION
W10137233 W10137233 INSULATION
W11706555 W11706555 INSULATION
98012904 98012904 INSULATION, RETAINER-BOTTOM
98004938 98004938 INSULATION, RETAINER-TOP
98012220 98012220 KIT, DOOR PIN
WPW10483312 WPW10483312 KNOB
WPW10483313 WPW10483313 KNOB
W10483314 W10483314 KNOB, BURNER (BISCUIT)
8009 8009 LIGHT BULB
98010182 98010182 LINER, DOOR
W10162118 W10162118 LINER-DOOR
98013314 98013314 LOCATOR, BURNER
98010184 98010184 LOWER TRIM, DOOR (BISCUIT)
WPY703856 WPY703856 NUT
WP98017349 WP98017349 ORIFICE
WP98017348 WP98017348 ORIFICE
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP98016005 WP98016005 PAN-BROILR
98009341 98009341 PANEL, BROILER DRAWER (BISCUIT)
98009343 98009343 PANEL, BROILER DRAWER (BLACK)
WP98017961T WP98017961T PANEL, OUTER DOOR (BISCUIT)
WP98017961B WP98017961B PANEL, OUTER DOOR (BLACK)
WP98017961W WP98017961W PANEL, OUTER DOOR (WHITE)
98010045 98010045 PANEL, SIDE (BISCUIT)
WP98009342 WP98009342 PANEL-DRWR
WP98010042 WP98010042 PANEL-SIDE
WP98010043 WP98010043 PANEL-SIDE
W10181007 W10181007 PANL-CNTRL
W10181006 W10181006 PANL-CNTRL
W10205698 W10205698 PANL-MNFLD
W10205699 W10205699 PANL-MNFLD
W10205696 W10205696 PANL-MNFLD
98017556 98017556 PIPE, MANIFOLD
W11173616 W11173616 POWER CORD
WPW10312013 WPW10312013 RACK-OVEN
98003830 98003830 RAIL, BASE
W11590249 W11590249 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11346659 W11346659 REGULATOR
W10544222 W10544222 RETAINER
98004629 98004629 RETAINER (LEFT HAND)
98004564 98004564 RETAINER (RIGHT HAND)
3196166 3196166 SCREW
WP3400832 WP3400832 SCREW
WP98008544 WP98008544 SCREW
WP59002061 WP59002061 SCREW
WP8533842 WP8533842 SCREW
W10856125 W10856125 SCREW
W11676351 W11676351 SCREW
98013634 98013634 SCREW
W10837674 W10837674 SCREW
98017517 98017517 SCREW
W10837731 W10837731 SCREW
WP3400805 WP3400805 SCREW
W10850756 W10850756 SCREW
W11233072 W11233072 SCREW
WP98007225 WP98007225 SCREW
98008169 98008169 SCREW (BISCUIT)
W10560205 W10560205 SEAL
WPW10181986 WPW10181986 SENSOR
W10164111 W10164111 SHIELD
98007191 98007191 SHIELD, HEAT (LOWER)
98016787T 98016787T SIDE TRIM, DOOR (BISCUIT (LEFT HAND))
98016795T 98016795T SIDE TRIM, DOOR (BISCUIT (RIGHT HAND))
98016787B 98016787B SIDE TRIM, DOOR (BLACK (LEFT HAND))
98016795B 98016795B SIDE TRIM, DOOR (BLACK (RIGHT HAND))
98016787W 98016787W SIDE TRIM, DOOR (WHITE (LEFT HAND))
98016795W 98016795W SIDE TRIM, DOOR (WHITE (RIGHT HAND))
98004451 98004451 SIDE, OVEN (LEFT HAND)
98004452 98004452 SIDE, OVEN (RIGHT HAND)
W10856866 W10856866 SOCKT-LITE
98015099 98015099 SPREAD, FLAME (BAKE)
98013690 98013690 SPRING, TORSION (FLUE BOX)
WPW10032030 WPW10032030 SPUD-ORFCE
98012175 98012175 SUPPORT, BURNER
98015363 98015363 SUPPORT, REAR
98016664 98016664 SUPPORT, TRAY (LEFT HAND)
98016666 98016666 SUPPORT, TRAY (RIGHT HAND)
W10142327 W10142327 TECH SHEET
WP3391018 WP3391018 TIE-WIRE
98007130 98007130 TIPS, SAFE COOKING (ENGLISH)
98004447 98004447 TOP, OVEN
98017767T 98017767T TRIM, TOP DOOR (BISCUIT)
WP98017171 WP98017171 TUBING-GAS
WPW10469571 WPW10469571 TUBING-GAS
98009179 98009179 U - NUT
WPW10141709 WPW10141709 VALVE-BRNR
WP98017359 WP98017359 VENTURI
WP98017582 WP98017582 VENTURI
WP98017583 WP98017583 VENTURI
WPW10361492 WPW10361492 WIRE HARNESS
98006739 98006739 WIRE, COUNTERWEIGHT
3184020 3184020 WIRE, GROUND
98015022 98015022 WIRING HARNESS PARTS, BUSHING, SNAP
3196696 3196696 WIRING HARNESS PARTS, CLIP, HARNESS
98005896 98005896 WIRING HARNESS PARTS, CLIP, WIRE
