Model Image
Manufacturer

Whirlpool

Model Number

WFG530S0EB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W10275756 W10275756 ACCESSORY PARTS, CLEANER, GRANITE
31617A 31617A ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
4396096RB 4396096RB ACCESSORY PARTS, GRIDDLE
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
W10355049 W10355049 ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEANING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W10783318 W10783318 ASSEMBLY, MANIFOLD
W10474170 W10474170 ASSEMBLY, ORIFICE HOLDER (8K) (CENTER)
WPW10184491 WPW10184491 BAFFL-BRNR
8053967 8053967 BAFFLE, BURNER OVEN
WP3195097 WP3195097 BOTTM-OVEN
W11457094 W11457094 BOX, FLUE
W11379351 W11379351 BOX-BURNER, GAS SEALED
W10435470 W10435470 BRACE, MAIN BACK
W10901176 W10901176 BRACKET
W10224921 W10224921 BRACKET, AEGIS
W10516123 W10516123 BRACKET, CONSOLE MOUNTING
W10134126 W10134126 BRACKET, FAN
8523249 8523249 BRACKET, MANIFOLD
W10762981 W10762981 BRACKET, MOUNTING
W10462911 W10462911 BRACKET, MOUNTING (BLACK AND WHITE MODELS)
W10462909 W10462909 BRACKET, MOUNTING (FOR STAINLESS MODEL ONLY)
8523412 8523412 BRACKET, REAR COOKTOP
W10949105 W10949105 BRACKET, SADDLE VALVE
W11230932 W11230932 BRKT-MNTG
W11502236 W11502236 BRKT-SUPRT
WP8054078 WP8054078 BURNR-BRLR
WPW10515453 WPW10515453 BURNR-HEAD
WPW10515454 WPW10515454 BURNR-HEAD
WPW10515455 WPW10515455 BURNR-HEAD
WP9758078 WP9758078 BURNR-OVEN
WPW10183374 WPW10183374 CAP-BURNER
W10334923 W10334923 CLIP, GAS WIRING
16515 16515 CLIP, HARNESS
W10137382 W10137382 CLIP, PANEL

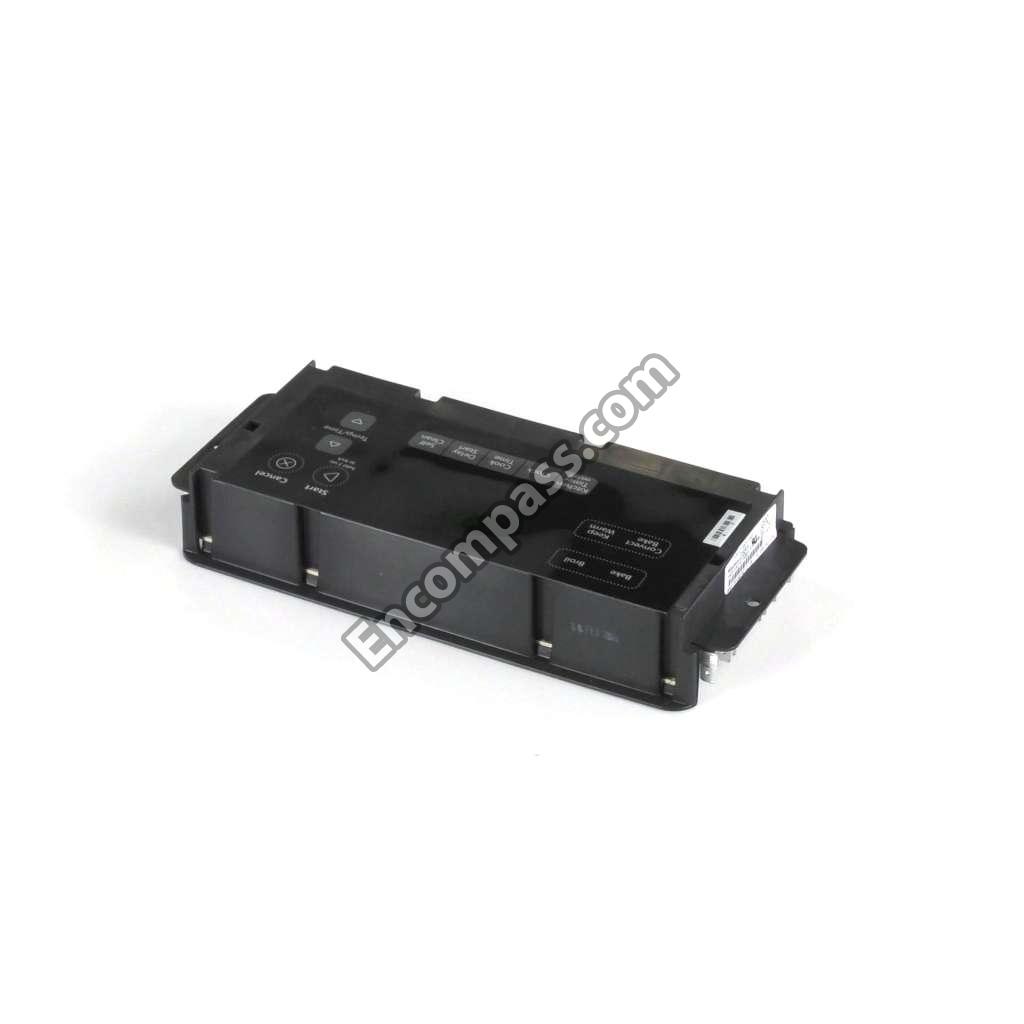

W11122562 W11122562 CONTROL BOARD
W11122561 W11122561 CONTROL BOARD

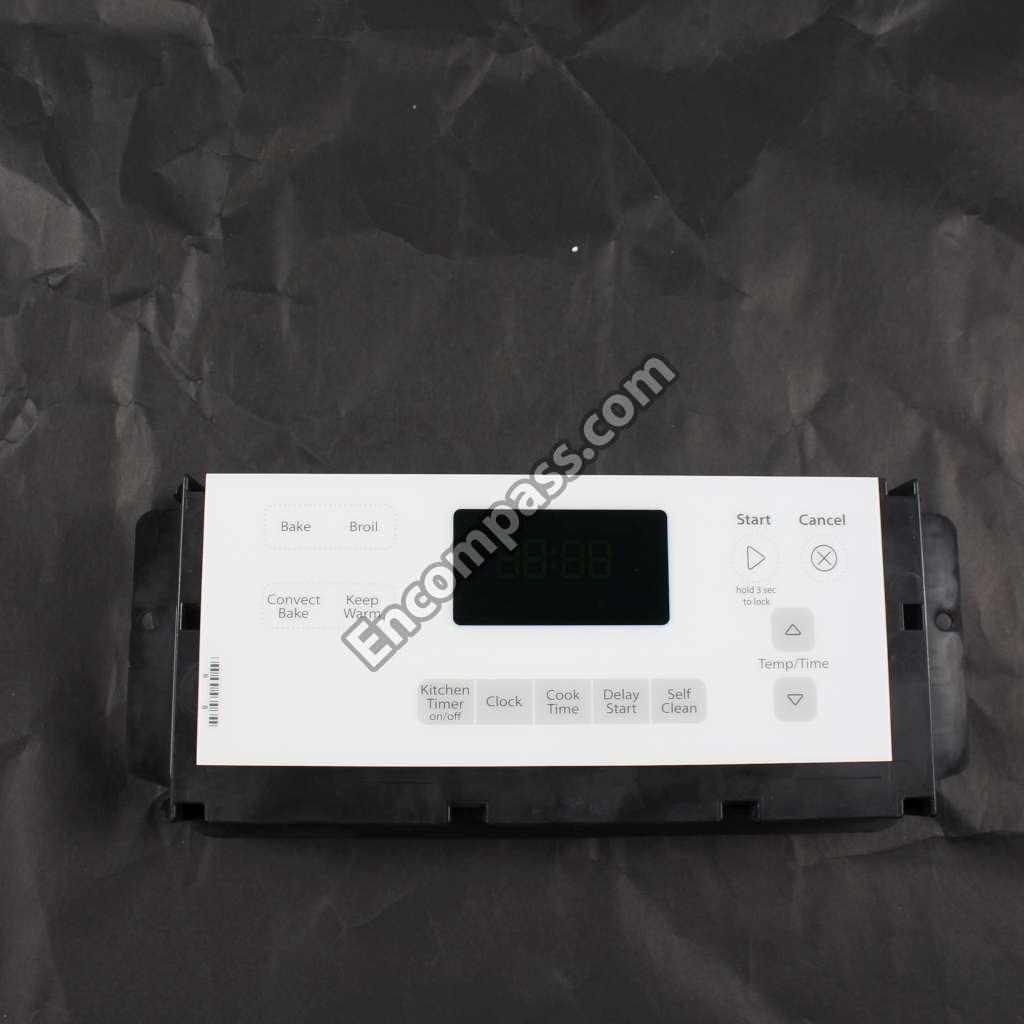

W11250166 W11250166 CONTROL PANEL
W11252094 W11252094 CONTROL PANEL
W10457322 W10457322 COOKTOP
W10457321 W10457321 COOKTOP
W10184251 W10184251 COVER, BACK
W10158780 W10158780 COVER, REAR FAN
W10198745 W10198745 COVER, UPPER
WPW10134124 WPW10134124 COVER-FAN
WPW10107830 WPW10107830 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
WPW10618239 WPW10618239 DOOR HANDLE
WPW10299227 WPW10299227 DOOR HINGE
WPW10299224 WPW10299224 DOOR HINGE
WP8523175 WP8523175 DOOR TRIM
WP8523177 WP8523177 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
W10761014 W10761014 DOOR TRIM
W10761018 W10761018 DOOR TRIM
W10813962 W10813962 DRAWR-UTIL
W11219370 W11219370 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W10758272 W10758272 FAN-CONVCT
W11676354 W11676354 FAN-CONVCT
W10592836 W10592836 FITTING, BROILER
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WPW10602001 WPW10602001 GAS VALVE
W11542153 W11542153 GASKT-DOOR
WPW10330077 WPW10330077 GLASS DOOR
WPW10409945 WPW10409945 GLASS DOOR
WPW10409946 WPW10409946 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
W10807828 W10807828 GLIDE-DRWR
W10807823 W10807823 GLIDE-DRWR
W11394363 W11394363 GRATE-KIT
W10719737 W10719737 GUIDE, USE AND CARE
W10300490 W10300490 HANDLE, DOOR (BLACK)
W10300489 W10300489 HANDLE, DOOR (WHITE)
W10809928 W10809928 HARNESS, COOKTOP
W10519920 W10519920 HARNESS, DSI GROUND
W10647259 W10647259 HINGE-RECV
W11700304 W11700304 HOLDER-ORF
W11234417 W11234417 HOLDER-ORF
W11700294 W11700294 HOLDER-ORF
W11197500 W11197500 HOLDER-ORF
WP8054129 WP8054129 IGNTR-OVEN
WP9758079 WP9758079 IGNTR-OVEN
WPW10515459 WPW10515459 IGNTR-SURF
W10545337 W10545337 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11684915 W11684915 INSULATION
W11688737 W11688737 INSULATION

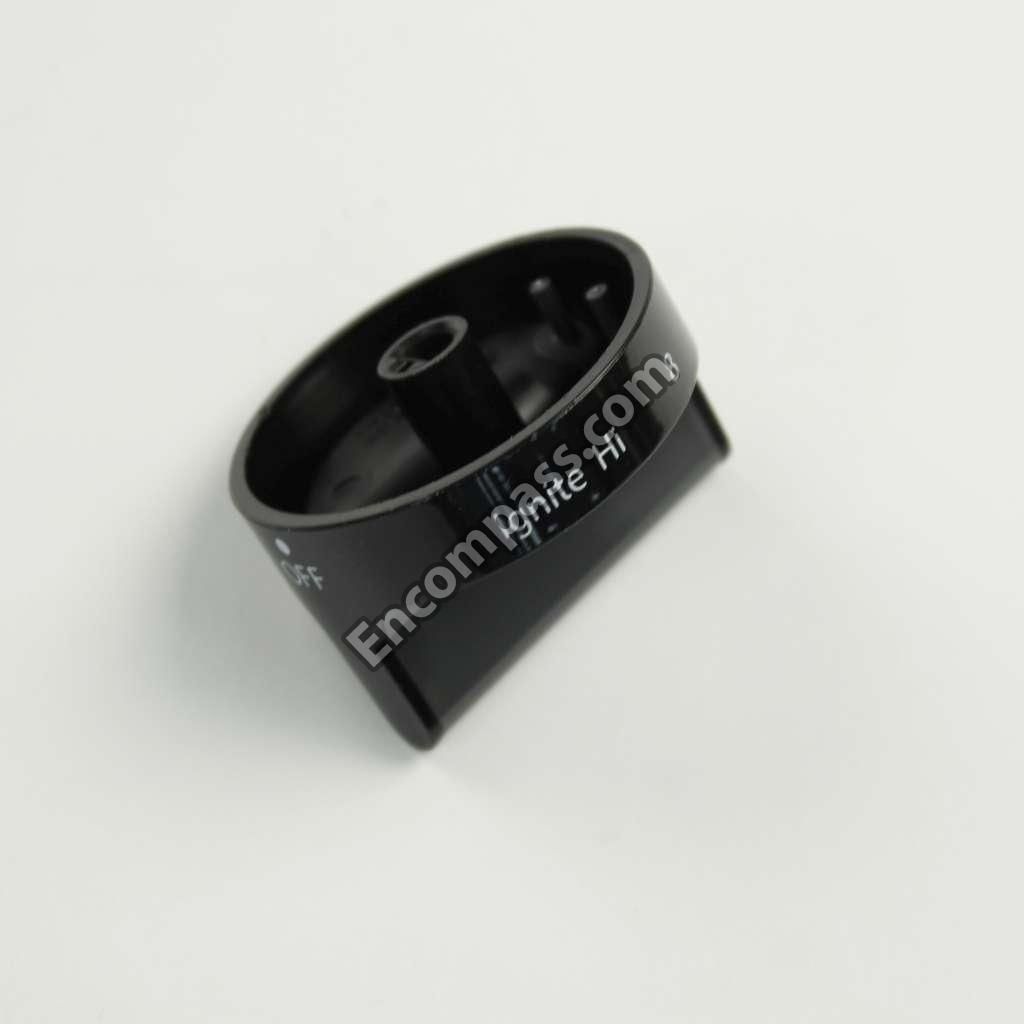

W10909673 W10909673 KNOB
W10819917 W10819917 KNOB
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
W10416099 W10416099 MAIN, BACK
W11548755 W11548755 NUT
W11126051 W11126051 ORIFICE
WPW10170507 WPW10170507 ORIFICE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10725472 W10725472 PANEL, CONTROL (BLACK)
W10444453 W10444453 PANEL, MANIFOLD (BLACK)
W10444452 W10444452 PANEL, MANIFOLD (WHITE)
W11256444 W11256444 PANEL-DRWR
W11230486 W11230486 PANEL-DRWR
W11230490 W11230490 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
WPW10162245 WPW10162245 PANEL-SIDE
W11582239 W11582239 POWER CORD
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
WPW10475149 WPW10475149 RANGE SPARK MODULE
WPW10511278 WPW10511278 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
9761449 9761449 RETAINER, INSULATION (LEFT)
9761448 9761448 RETAINER, INSULATION (RIGHT)
WP3196814 WP3196814 RIVET
WP3196813 WP3196813 RIVET
9757239 9757239 ROD, DOOR SWITCH
W10078370 W10078370 ROD, PUSH DOOR LATCH
WP355214 WP355214 SCREW
WPW10031790 WPW10031790 SCREW
W10896982 W10896982 SCREW
WPW10465148 WPW10465148 SCREW
WP4449809 WP4449809 SCREW
W11684512 W11684512 SCREW
W10379120 W10379120 SCREW
W10777162 W10777162 SCREW
W11169708 W11169708 SCREW
3196265 3196265 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
W11233072 W11233072 SCREW
WP8273062 WP8273062 SCREW
WP3196557 WP3196557 SCREW
3400964 3400964 SCREW, GROUND
W10295997 W10295997 SCREW, VALVE
WP3368921 WP3368921 SCREW-TORX
W10833885 W10833885 SENSOR
W10538793 W10538793 SHEET, TECH (ENGLISH)
W10538794 W10538794 SHEET, TECH (FRENCH)
8053969 8053969 SHIELD, HEAT
W10192841 W10192841 SHIELD, HEAT
8053505 8053505 SHIELD, HEAT
8053968 8053968 SHIELD, LOWER
WP8272747 WP8272747 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
WPW10410341 WPW10410341 SPACER
W10137062 W10137062 SPREADER, FLAME (BROILER)
WPW10170516 WPW10170516 SPUD-ORFCE
WPW10170506 WPW10170506 SPUD-ORFCE
WPW10170508 WPW10170508 SPUD-ORFCE
WPW10347414 WPW10347414 SPUD-ORFCE
3149360 3149360 SWITCH, ROCKER (WHITE)
W11243424 W11243424 SWTCH-LITE
WP4314961 WP4314961 SWTCH-LITE
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
W10817433 W10817433 TRIM-VENT
WPW10310922 WPW10310922 TRIM-VENT
W10420040 W10420040 TUBE, BROILER SUPPLY
W11680399 W11680399 TUBING-GAS
WPW10247744 WPW10247744 VALVE-BRNR
WPW10279614 WPW10279614 VALVE-BRNR
WPW10279615 WPW10279615 VALVE-BRNR
W10906162 W10906162 WIRE HARNESS
W10906161 W10906161 WIRE HARNESS
W11161843 W11161843 WIRE HARNESS
