Model Image
Manufacturer

Whirlpool

Model Number

WFG540H0EH1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10275756 W10275756 ACCESSORY PARTS, CLEANER, GRANITE
31617A 31617A ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
W11042467 W11042467 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
4396923 4396923 ACCESSORY PARTS, GRID, BROILER PAN AND
4396096RB 4396096RB ACCESSORY PARTS, GRIDDLE
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
W10355049 W10355049 ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEANING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W10314347 W10314347 ASSEMBLY, FLUE
W10783318 W10783318 ASSEMBLY, MANIFOLD
W10732139 W10732139 ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
W10732141 W10732141 ASSEMBLY, ORIFICE HOLDER (8K) (CENTER)
W10416099 W10416099 BACK, MAIN
3601P356-45 3601P356-45 BAFFLE, BAKE BURNER
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER
WPW10211368 WPW10211368 BOTTM-OVEN

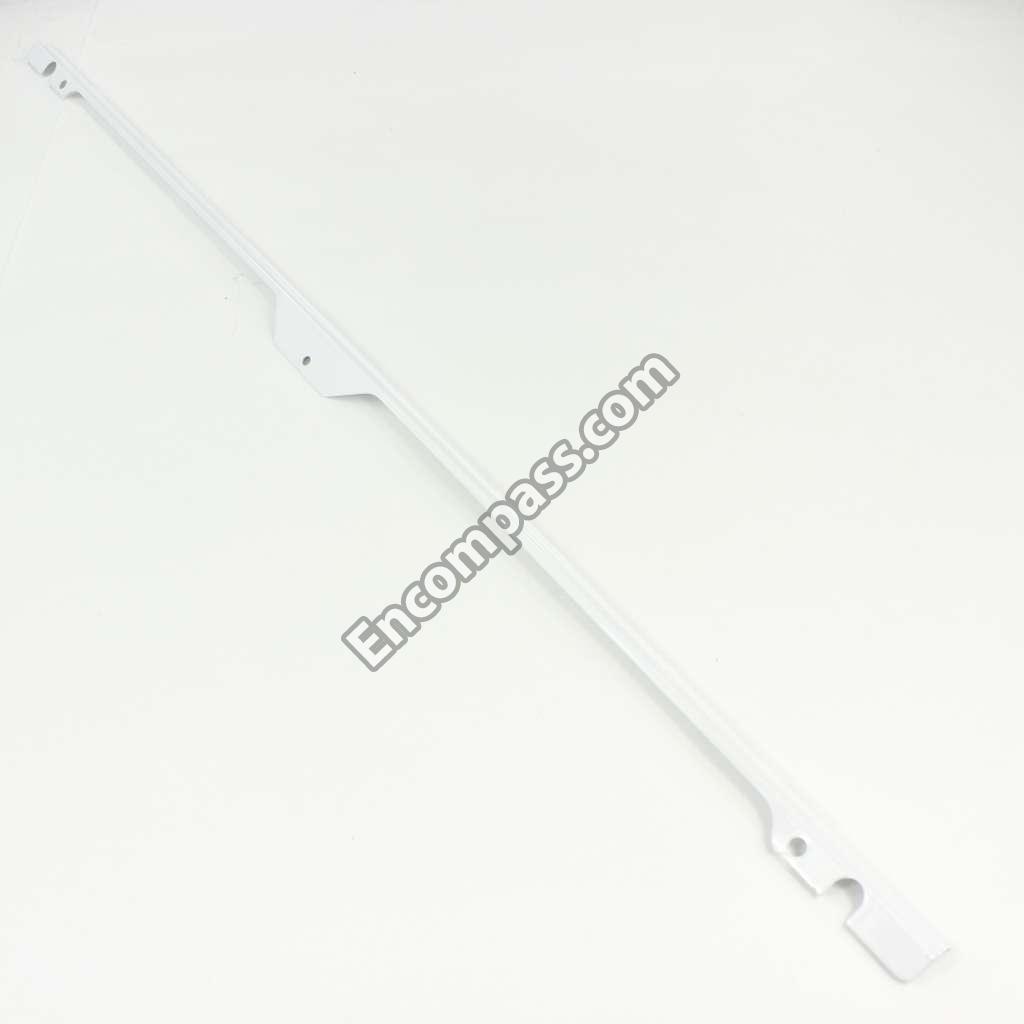

W10435470 W10435470 BRACE, MAIN BACK
W10901176 W10901176 BRACKET
W10224921 W10224921 BRACKET, AEGIS
W10516123 W10516123 BRACKET, CONSOLE MOUNTING
W10294853 W10294853 BRACKET, GLASS LINER
W10534174 W10534174 BRACKET, MANIFOLD PANEL
W10762981 W10762981 BRACKET, MOUNTING
W10273002 W10273002 BRACKET, OVEN SUPPORT
W10530070 W10530070 BRACKET, REAR GAS COOKTOP
W10949105 W10949105 BRACKET, SADDLE VALVE
WPW10333990 WPW10333990 BRKT-GLASS
WPW10318026 WPW10318026 BRKT-MNTG
W11230932 W11230932 BRKT-MNTG
W11116956 W11116956 BRKT-SUPRT
W11676566 W11676566 BURNR-BRLR
WPW10515453 WPW10515453 BURNR-HEAD
WPW10515454 WPW10515454 BURNR-HEAD
WPW10515455 WPW10515455 BURNR-HEAD
W10764654 W10764654 BURNR-OVEN

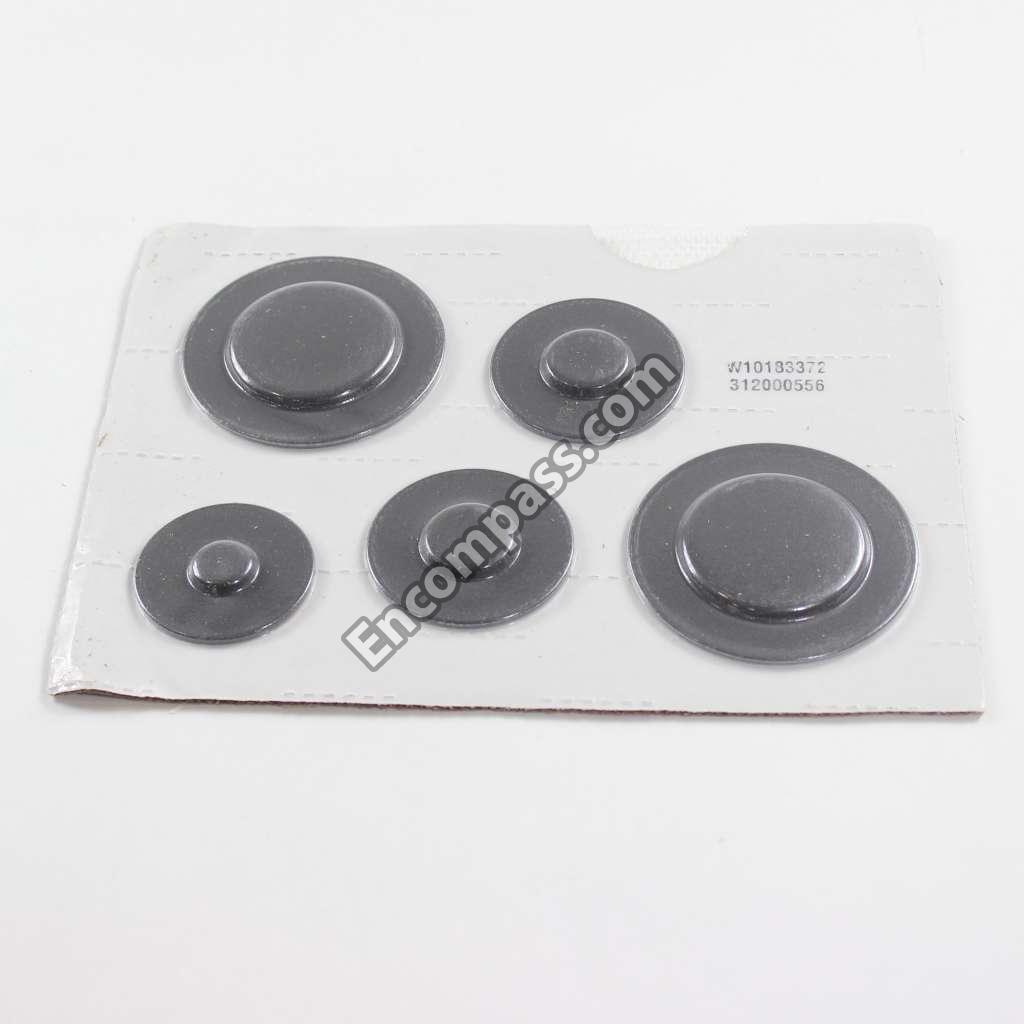

WPW10183372 WPW10183372 CAP-BURNER
WPW10183374 WPW10183374 CAP-BURNER
W10501599 W10501599 CLIP, FRONT FRAME COVER
W10334923 W10334923 CLIP, GAS WIRING
16515 16515 CLIP, HARNESS
3196696 3196696 CLIP, HARNESS
W10137382 W10137382 CLIP, PANEL
3196896 3196896 CLIP, WIRE

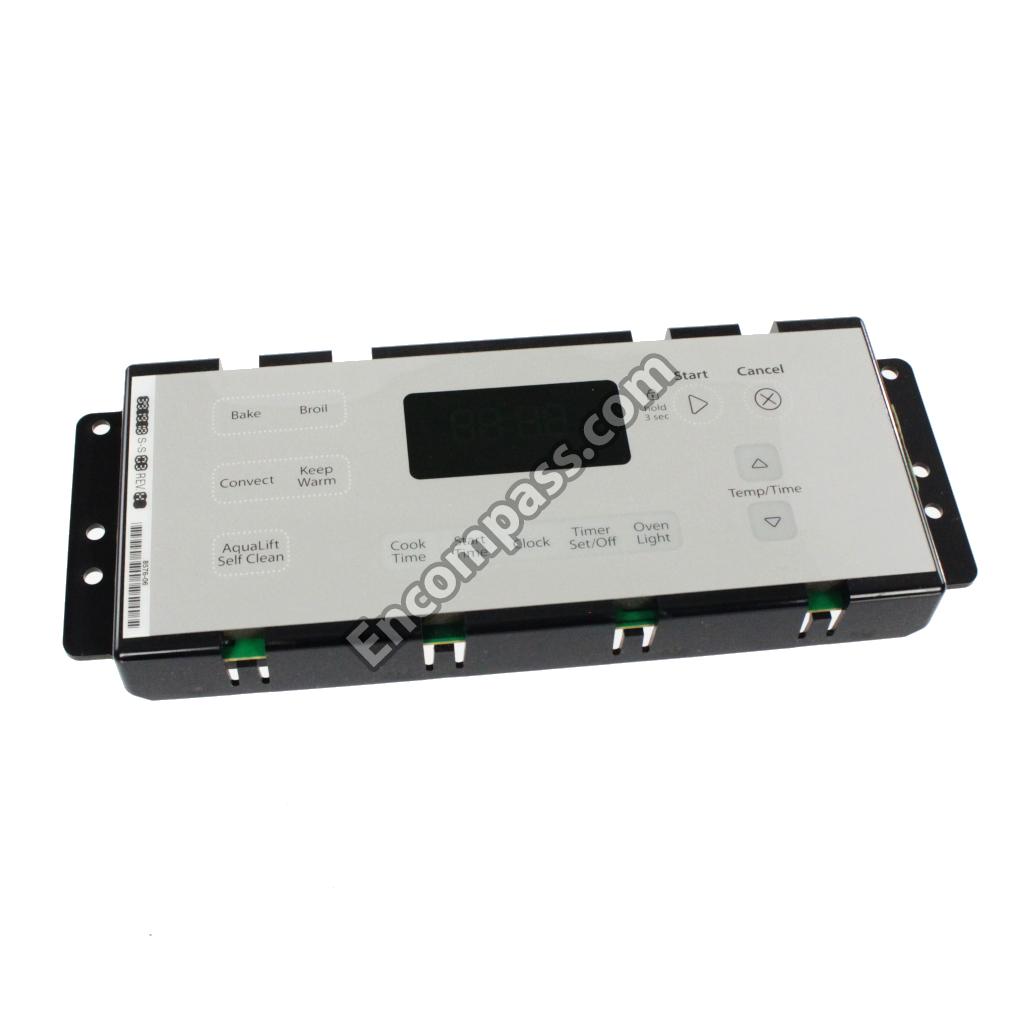

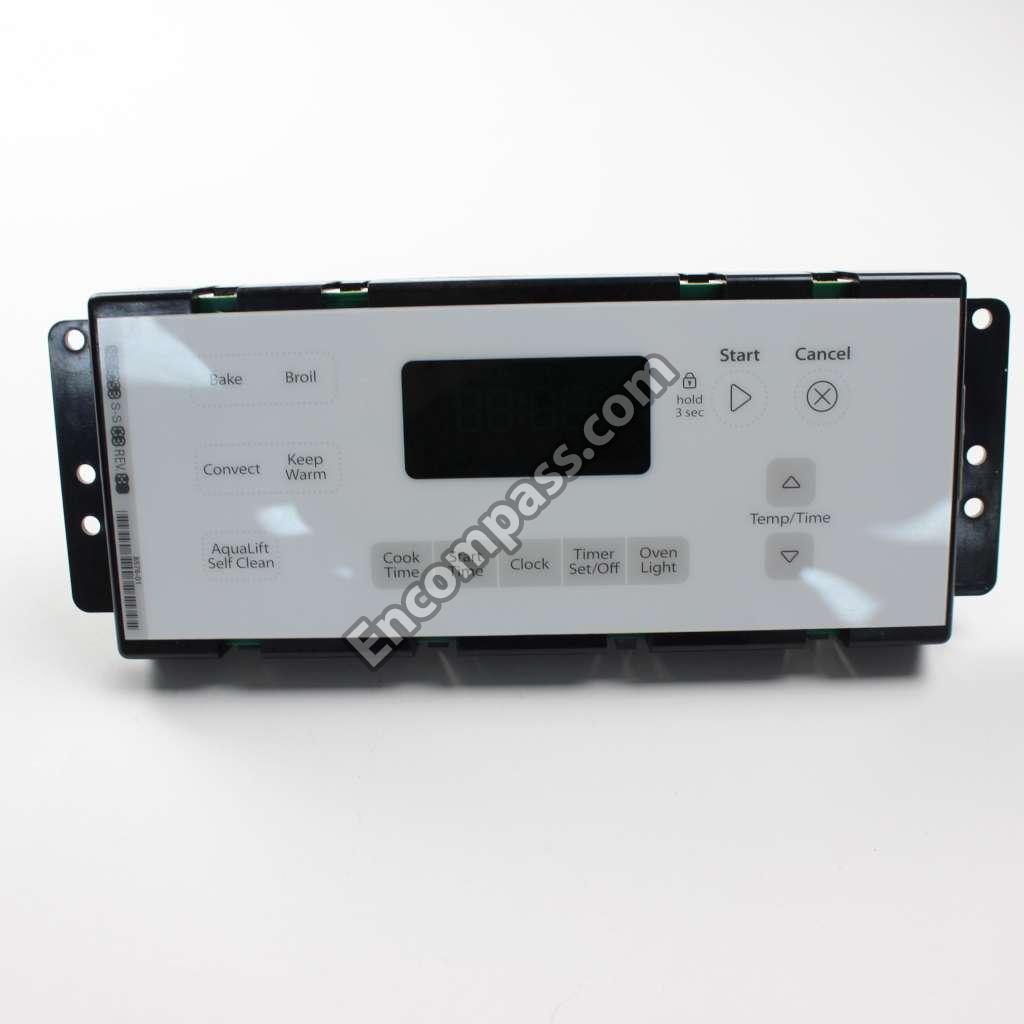

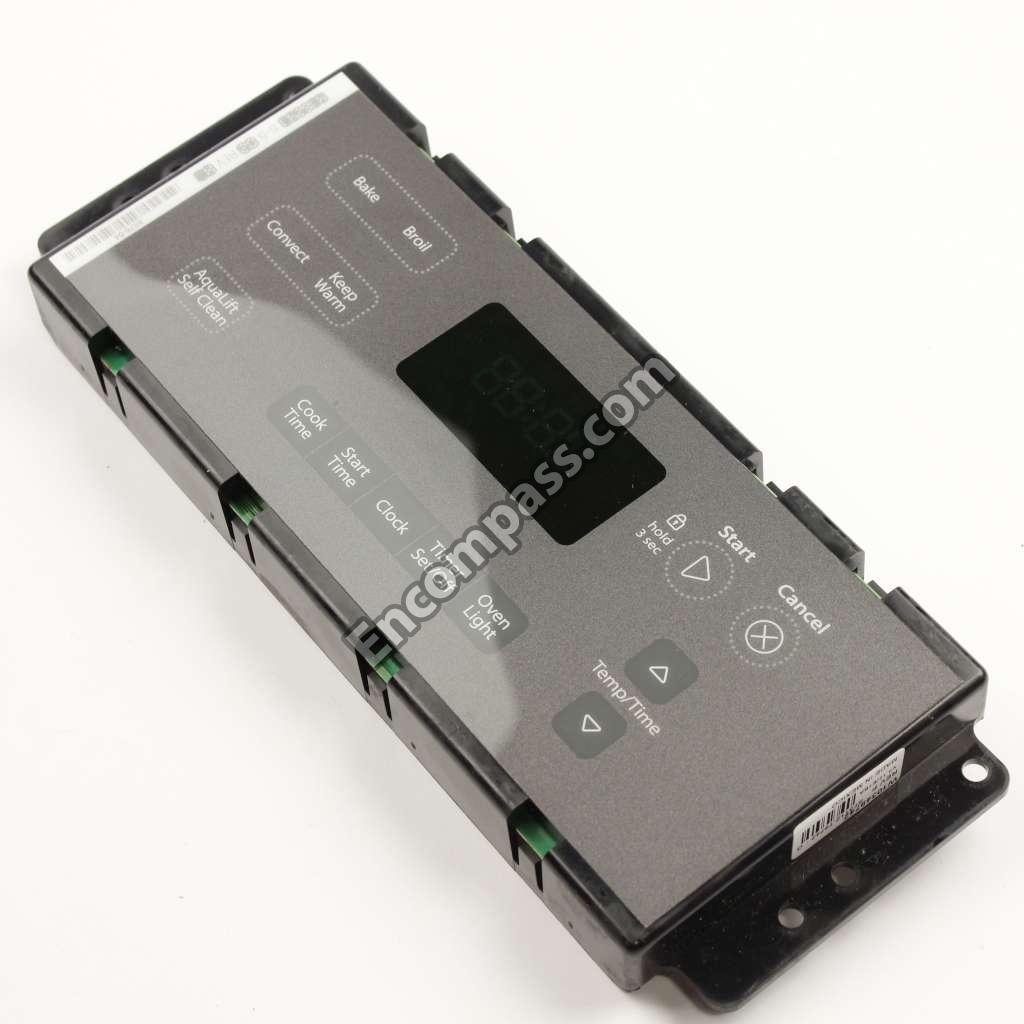

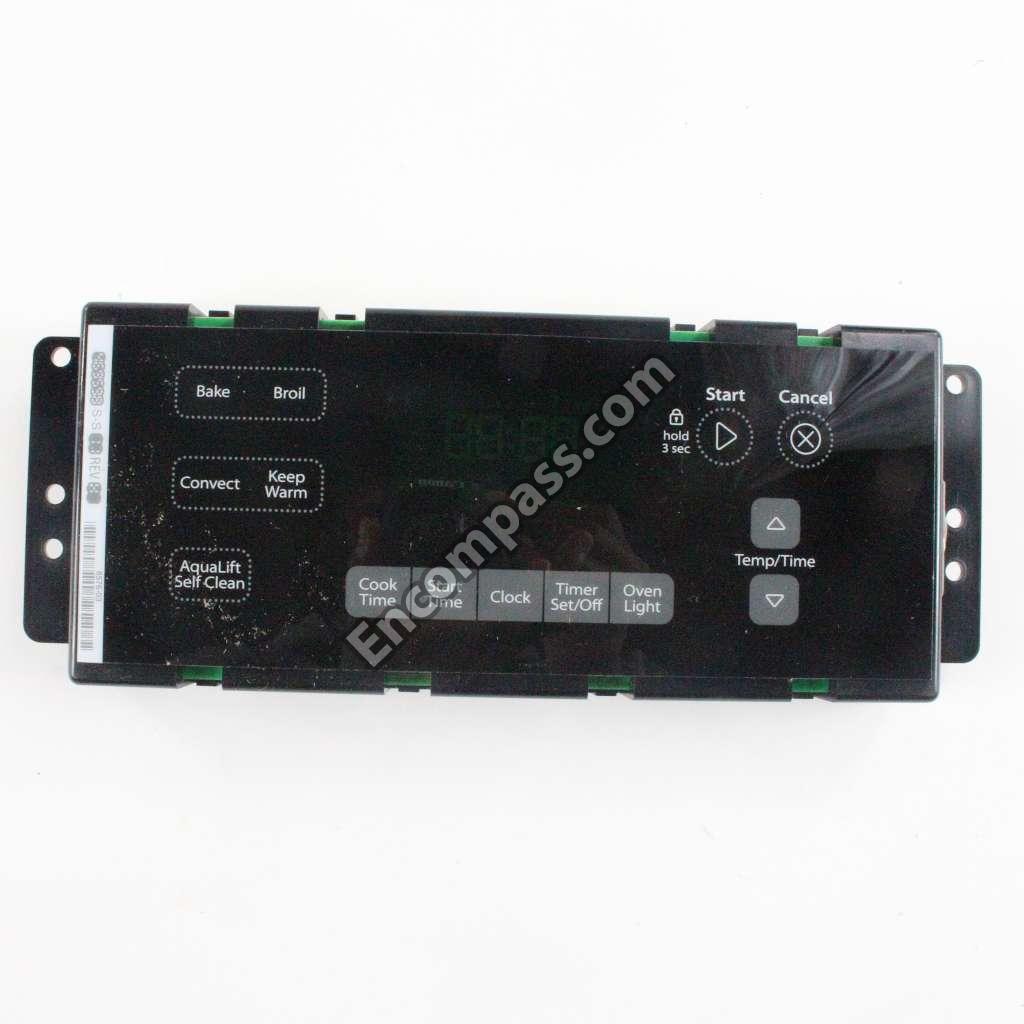

WPW10475745 WPW10475745 CONTROL BOARD
WPW10349742 WPW10349742 CONTROL BOARD
WPW10348713 WPW10348713 CONTROL BOARD
WPW10348712 WPW10348712 CONTROL BOARD
W11231628 W11231628 CONTROL PANEL
W11234436 W11234436 CONTROL PANEL
W11234434 W11234434 CONTROL PANEL
W10457322 W10457322 COOKTOP
W10457321 W10457321 COOKTOP
WPW10346154 WPW10346154 COVER
W10184251 W10184251 COVER, BACK
W10158780 W10158780 COVER, REAR FAN
W10198745 W10198745 COVER, UPPER
W10323077 W10323077 DIFFUSER, FLAME
WPW10618239 WPW10618239 DOOR HANDLE
WPW10440013 WPW10440013 DOOR HINGE
W10813962 W10813962 DRAWR-UTIL
W11219370 W11219370 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
WPW10389555 WPW10389555 FAN-CONVCT
W10776437 W10776437 FITTING, BROIL
W11243157 W11243157 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
W11562931 W11562931 GASKT-DOOR
WPW10289141 WPW10289141 GLASS DOOR
WPW10289142 WPW10289142 GLASS DOOR
WPW10289144 WPW10289144 GLASS DOOR
WPW10333987 WPW10333987 GLASS DOOR
WPW10333988 WPW10333988 GLASS DOOR
WPW10300487 WPW10300487 GLASS DOOR

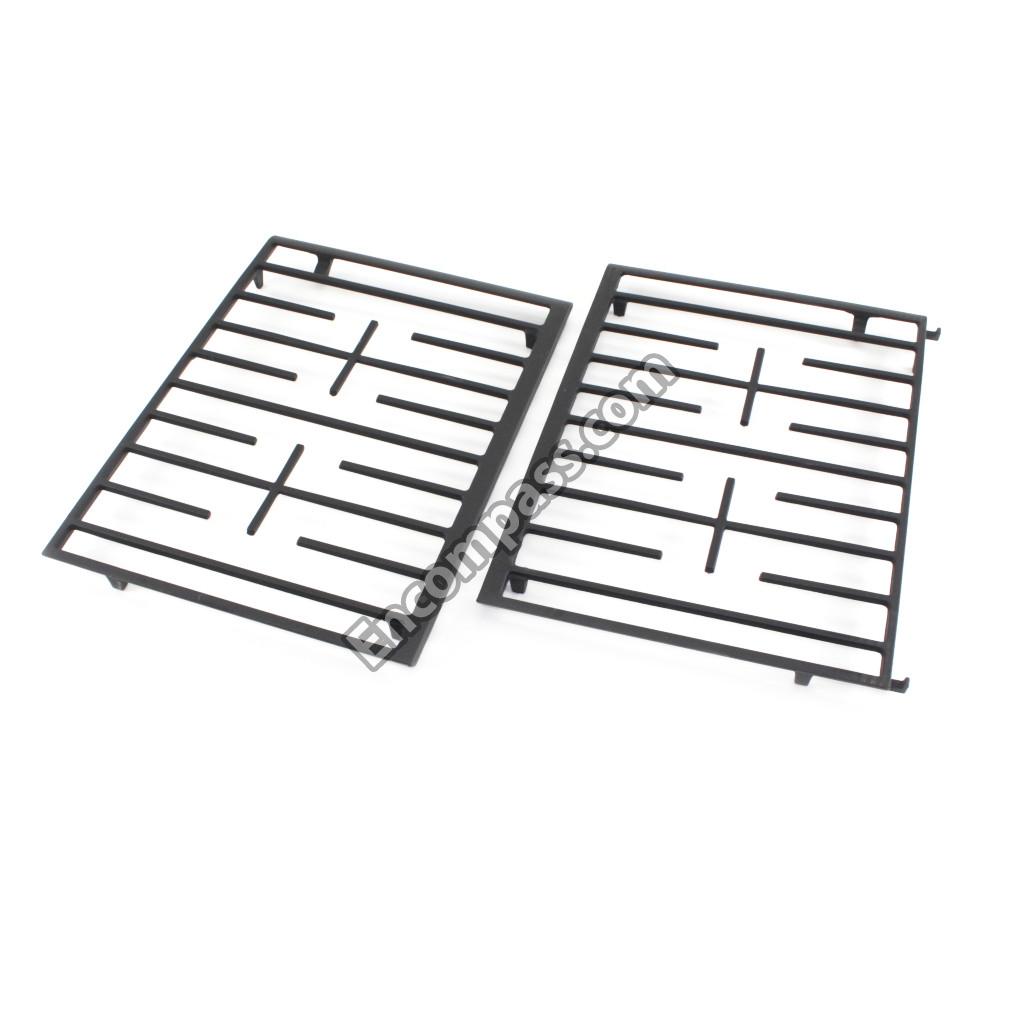

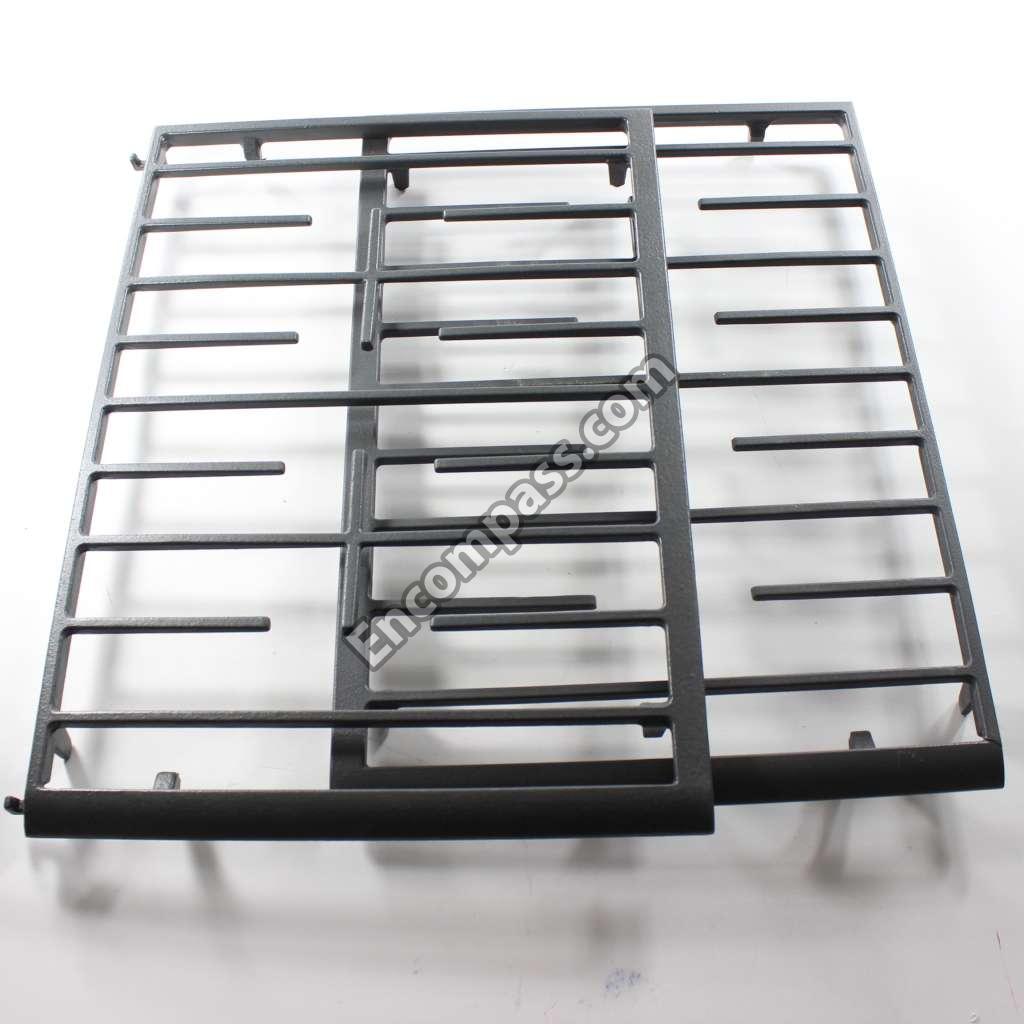

W11394363 W11394363 GRATE-KIT
W10400066 W10400066 GUIDE, QUICK START (ENGLISH)
W10400067 W10400067 GUIDE, QUICK START (FRENCH)
W10392927 W10392927 GUIDE, USE & CARE
W10300490 W10300490 HANDLE, DOOR (BLACK)
W10300489 W10300489 HANDLE, DOOR (WHITE)
W10809928 W10809928 HARNESS, COOKTOP
W10519920 W10519920 HARNESS, DSI GROUND
W10797420 W10797420 HARNESS, MAIN
W10647259 W10647259 HINGE-RECV
W11661950 W11661950 HOLDER-ORF
W11643127 W11643127 HOLDER-ORF
W11197500 W11197500 HOLDER-ORF
WPW10333842 WPW10333842 IGNTR-OVEN
WPW10324262 WPW10324262 IGNTR-OVEN
WPW10515459 WPW10515459 IGNTR-SURF
W10553363 W10553363 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
W11688565 W11688565 INSULATION
W11688362 W11688362 INSULATION
W11688566 W11688566 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W10913665 W10913665 KIT, GRATE (WETSTONE (WHITE ICE MODELS))

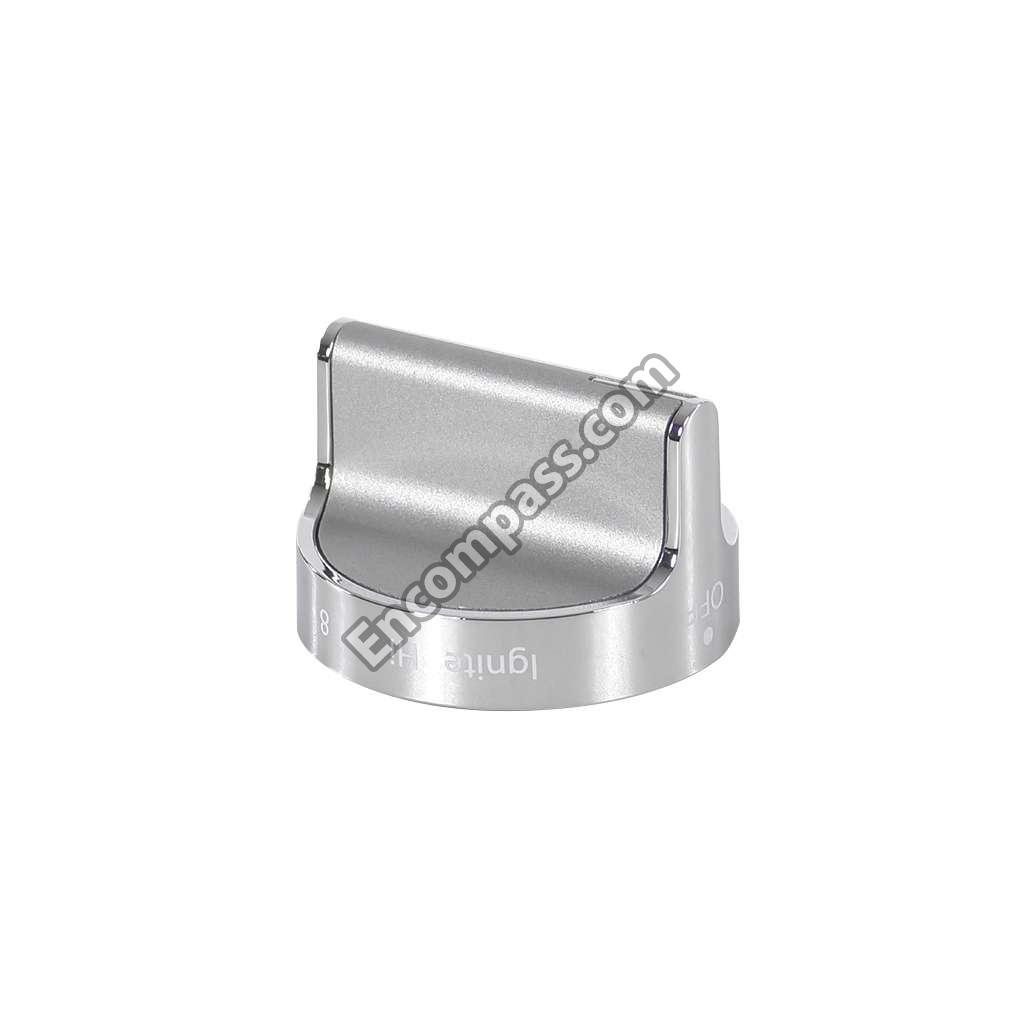

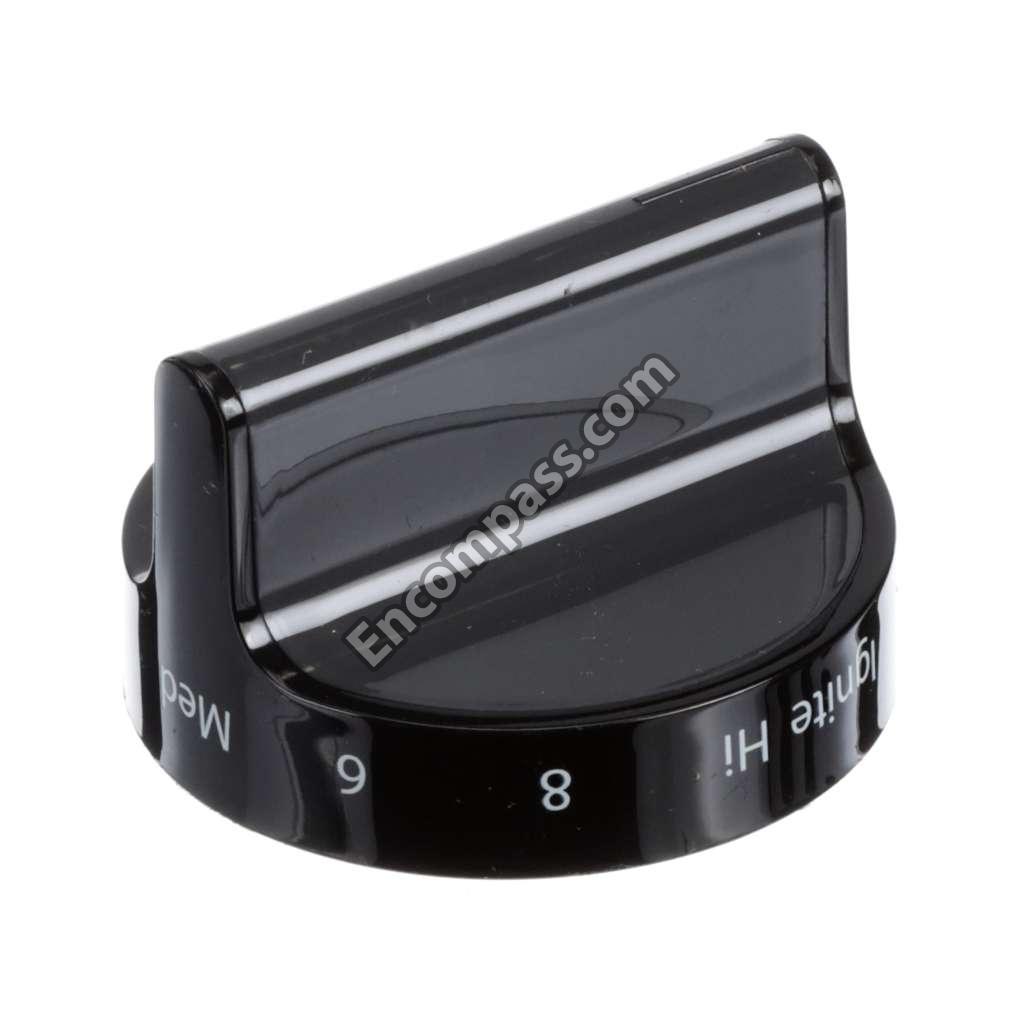

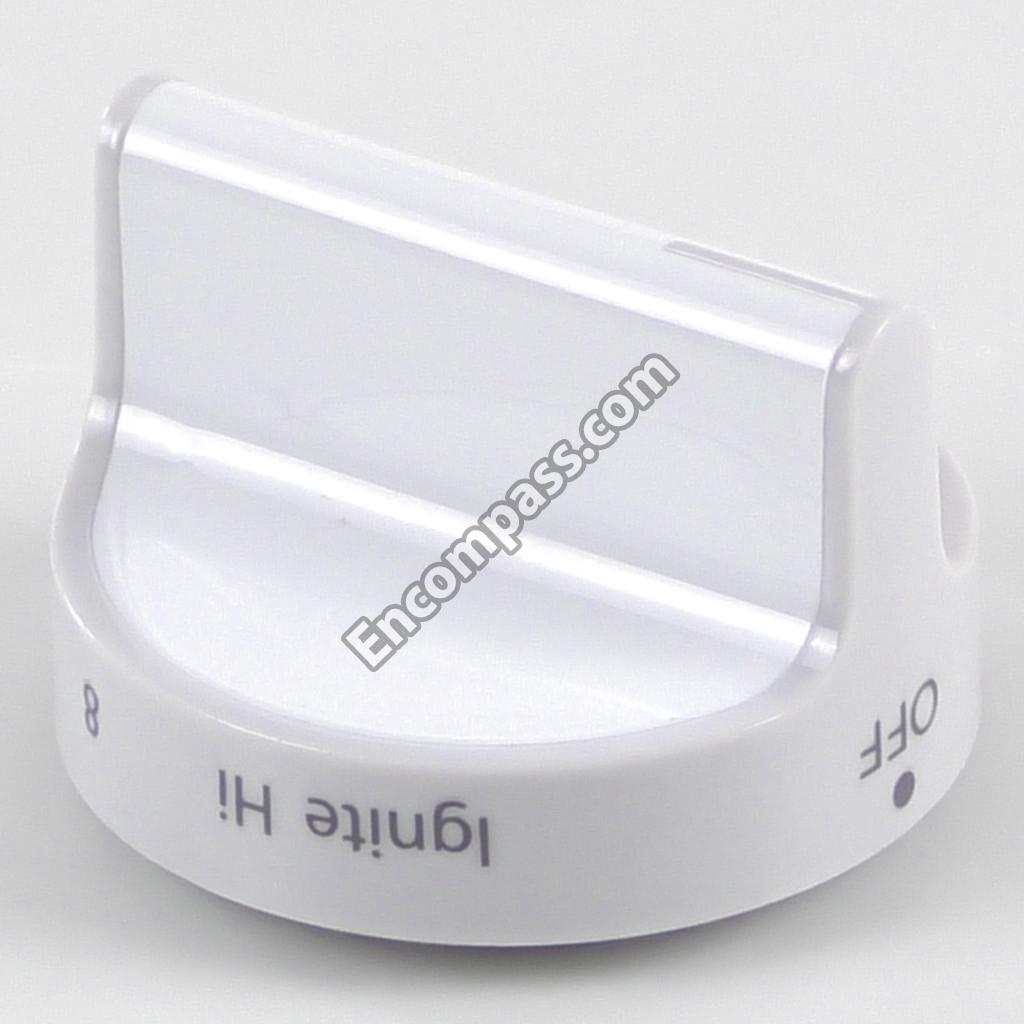

W10766544 W10766544 KNOB
W11164681 W11164681 KNOB
W11127716 W11127716 KNOB
8009 8009 LIGHT BULB
WPW10297318 WPW10297318 LINER-DOOR
W11178521 W11178521 NAMEPLATE
WPW10170507 WPW10170507 ORIFICE
W10178934 W10178934 ORIFICE (12K) (RIGHT FRONT)
W10732136 W10732136 ORIFICE (5K) (RIGHT REAR)
W10251991 W10251991 ORIFICE (7K) (CENTER)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11379356 W11379356 PAN, BAKE
W10330042 W10330042 PANEL, DRAWER FRONT (BLACK)
W10330041 W10330041 PANEL, DRAWER FRONT (WHITE)
W10444453 W10444453 PANEL, MANIFOLD (BLACK)
W10330066 W10330066 PANEL, MANIFOLD (STAINLESS)
W10444452 W10444452 PANEL, MANIFOLD (WHITE)
WPW10330044 WPW10330044 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
WPW10162245 WPW10162245 PANEL-SIDE
W11582239 W11582239 POWER CORD
W11520287 W11520287 RACK-OVEN
WPW10531060 WPW10531060 RACK-OVEN
WPW10289145 WPW10289145 RACK-OVEN

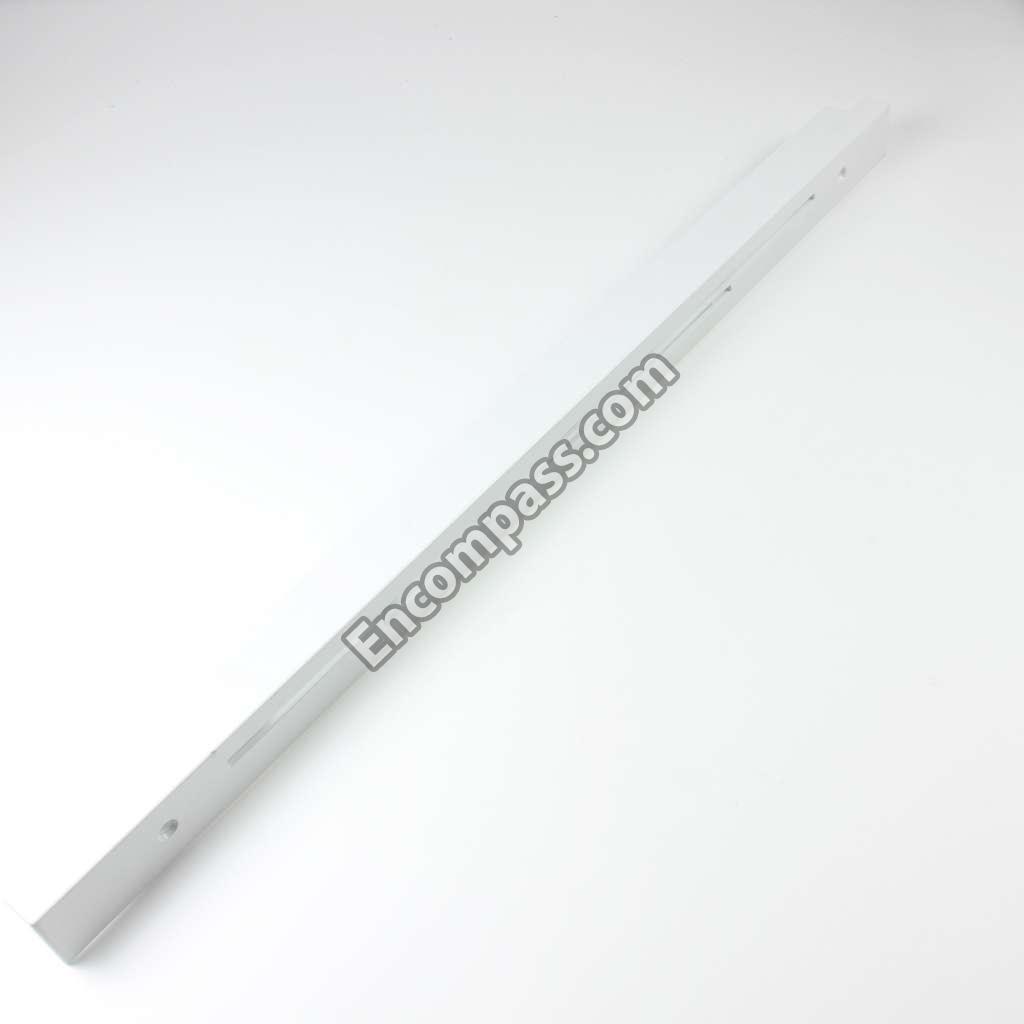

WPW10306546 WPW10306546 RAIL-BASE
WPW10475149 WPW10475149 RANGE SPARK MODULE
WPW10511278 WPW10511278 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))

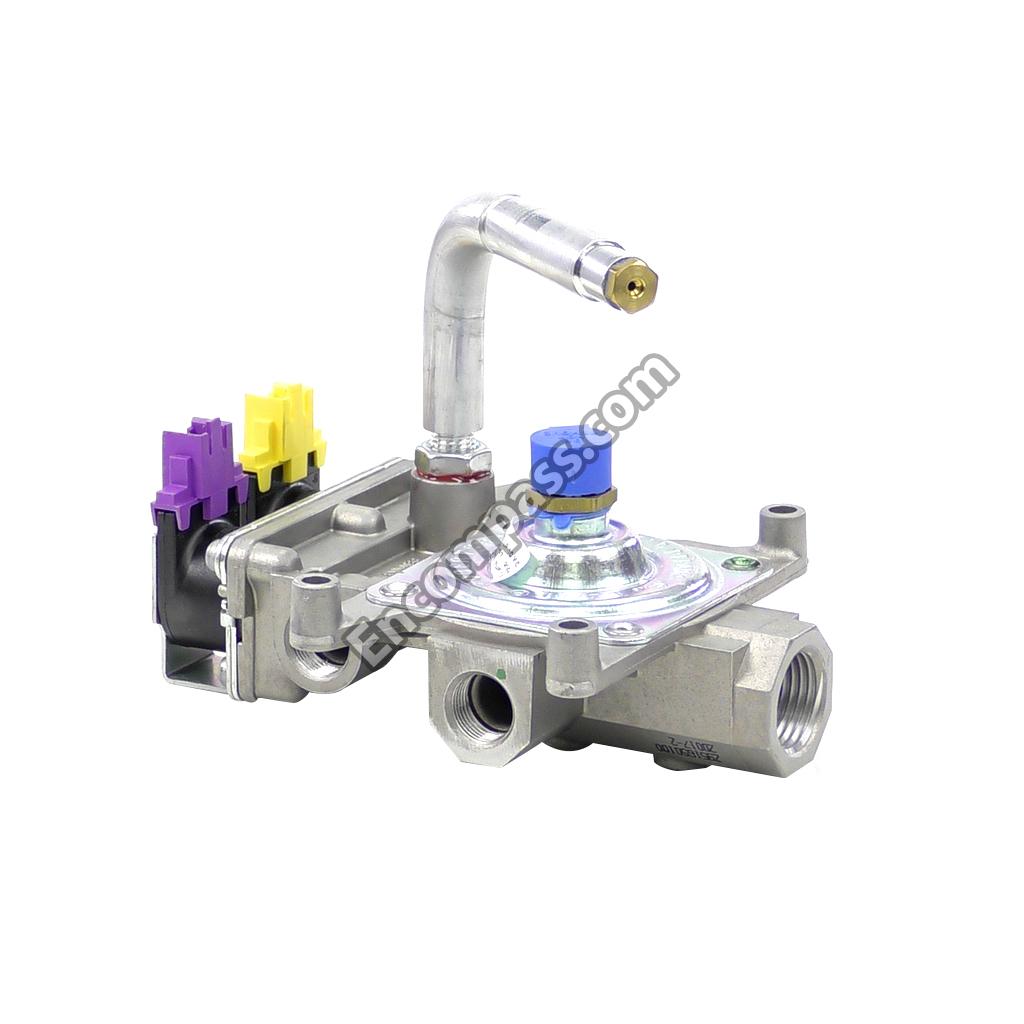

W10919226 W10919226 REGULATOR
W10273192 W10273192 ROD, DOOR SWITCH
WP3196557 WP3196557 SCREW
WP355214 WP355214 SCREW
W11396735 W11396735 SCREW
WPW10317886 WPW10317886 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
W11233072 W11233072 SCREW
WP8273062 WP8273062 SCREW
WPW10067840 WPW10067840 SCREW
3400964 3400964 SCREW, GROUND
W10295997 W10295997 SCREW, VALVE
WP3368921 WP3368921 SCREW-TORX
W10833885 W10833885 SENSOR
W10538795 W10538795 SHEET, TECH (ENGLISH)
W10538796 W10538796 SHEET, TECH (FRENCH)
W10192841 W10192841 SHIELD, HEAT
WPW10273195 WPW10273195 SHIELD-HT
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
WPW10429492 WPW10429492 SPACER
WPW10410341 WPW10410341 SPACER
WPW10254688 WPW10254688 SPACER
W10877054 W10877054 SPACER
W11087486 W11087486 SPUD-ORFCE
WPW10170516 WPW10170516 SPUD-ORFCE
WPW10347414 WPW10347414 SPUD-ORFCE
W10035900 W10035900 SUPPORT, OVEN BOTTOM
WP9757262 WP9757262 SWTCH-LITE
WPW10182767 WPW10182767 TIE-WIRE
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
W10334031 W10334031 TRIM, DOOR BOTTOM (BLACK)
W10334004 W10334004 TRIM, DOOR SIDE (BLACK)
W10334003 W10334003 TRIM, DOOR SIDE (WHITE)
W10294855 W10294855 TRIM, VENT (BLACK)
W10335333 W10335333 TRIM, VENT (STAINLESS)
WPW10335331 WPW10335331 TRIM-VENT
W10306050 W10306050 TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE)
W10510125 W10510125 TUBING, MAIN SUPPLY
WPW10247744 WPW10247744 VALVE-BRNR
WPW10279614 WPW10279614 VALVE-BRNR
WPW10279615 WPW10279615 VALVE-BRNR
W10906162 W10906162 WIRE HARNESS
W11161843 W11161843 WIRE HARNESS
