Model Image
Manufacturer

Whirlpool

Model Number

WFW7590FW0

Description

4.2 Cu.ft Compact Front Load Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10869845 W10869845 ACCESSORY PARTS, KIT, STACK
W10135699 W10135699 AFFRESH WASHER CLEANER
WP596669 WP596669 APPLIANCE HOSE CLAMP
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W10237498 W10237498 BRACKET
WPW10467483 WPW10467483 BRACKET
W10467484 W10467484 BRACKET
W10208197 W10208197 BRACKET
8572266 8572266 BUMPER
W10128586 W10128586 CLAMP
W10239910 W10239910 CLAMP
W10273034 W10273034 CLAMP
31682 31682 CLEANER
WPW10181028 WPW10181028 CLIP
W10316388 W10316388 CLIP
W11218392 W11218392 CONSOLE SHELL ASSEMBLY

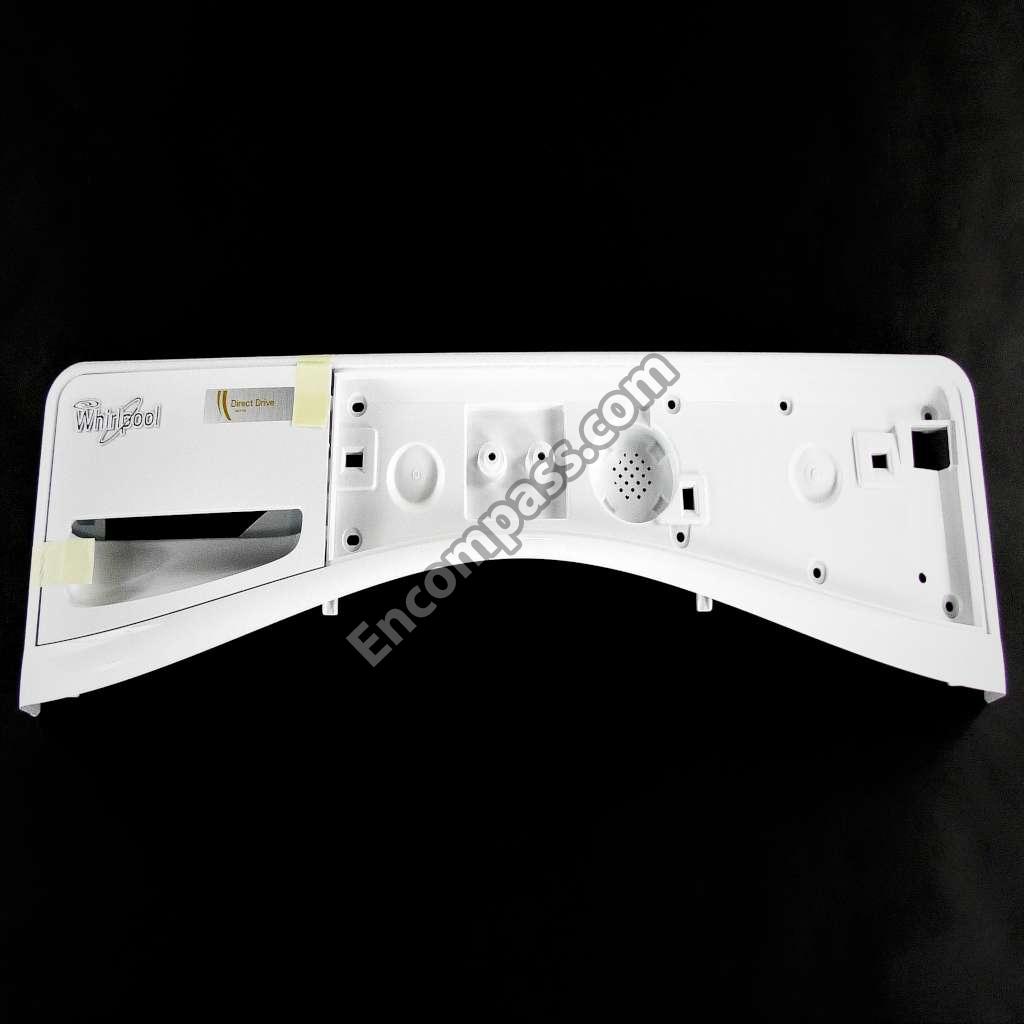

W10911022 W10911022 CONTROL PANEL
W10452855 W10452855 COUNTERWEIGHT
W10452854 W10452854 COUNTERWEIGHT
W10854051 W10854051 COVER
W10838078 W10838078 DRYER CLIP
WPW10208419 WPW10208419 DRYER DOOR HINGE SUPPORT

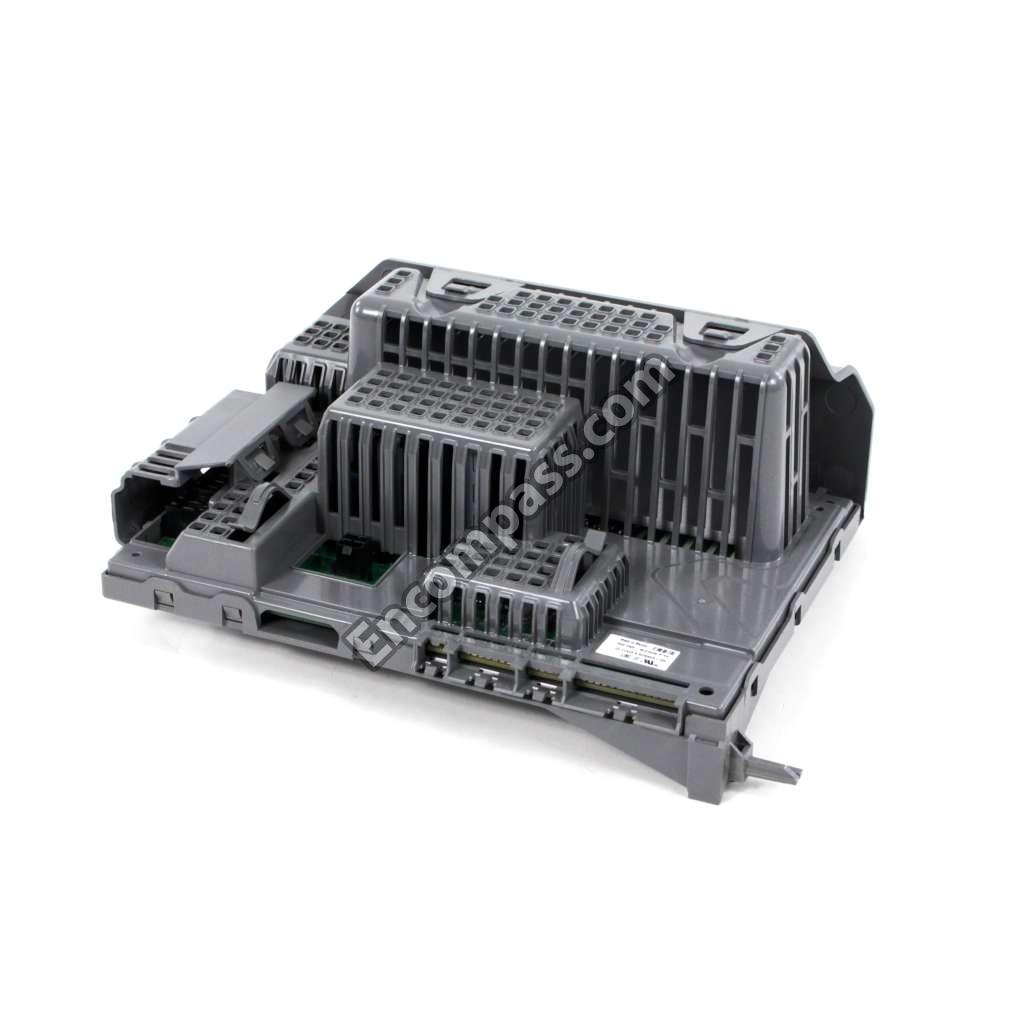

W11201273 W11201273 ELECTRONIC CONTROL BOARD
W10628719 W10628719 ENCLOSURE
W10868662 W10868662 ENERGY GUIDE
W11568579 W11568579 FILTER CAP
W11712579 W11712579 FLUID ELEMENT

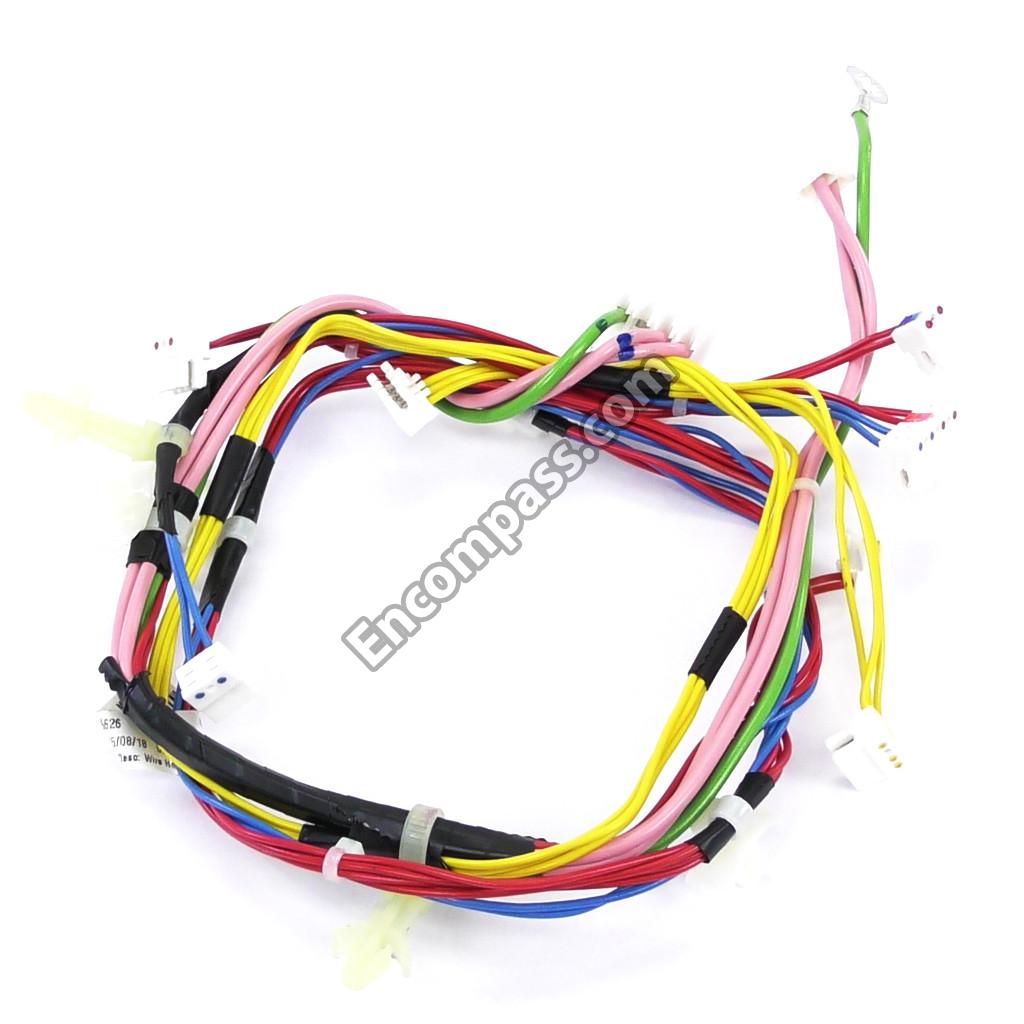

W11229597 W11229597 HARNS-WIRE
W11044558 W11044558 HOSE
WPW10577770 WPW10577770 HOSE
WPW10577787 WPW10577787 HOSE
WPW10239966 WPW10239966 HOSE
WP356138 WP356138 HOSE CLAMP
W10775528 W10775528 INSTALLATION INSTRUCTIONS
8212452 8212452 LAUNDRY APPLIANCE BACKGUARD KIT, 2-PACK
WPW10208398 WPW10208398 LAUNDRY APPLIANCE HINGE PIN CAP
WP8534022 WP8534022 LAUNDRY APPLIANCE SCREW
1903WH 1903WH LAUNDRY APPLIANCE STORAGE CART (WHITE)
W10875909 W10875909 LAUNDRY APPLIANCE TIMER KNOB (CHROME)
W11673307 W11673307 O-RING CAP
W10753047 W10753047 PANEL
WP489464 WP489464 REFRIGERATOR SCREW
W10245452 W10245452 RETAINER
WP8540282 WP8540282 SCREW
W11661566 W11661566 SCREW
W11230114 W11230114 SCREW
W10589828 W10589828 SCREW
WPW10253476 WPW10253476 SCREW
W11253212 W11253212 SCREW
W10261496 W10261496 SCREW
W10306501 W10306501 SCREW
W11208385 W11208385 SENSOR
W10870753 W10870753 SHIELD
W10323182 W10323182 SPACER WASHER
W10602465 W10602465 TECHNICAL SHEET
W10903220 W10903220 TRAP
W10793364 W10793364 TUB CLAMP
W10775514 W10775514 USE AND CARE GUIDE
W11183219 W11183219 VENT PIPE
WPW10352818 WPW10352818 VENT PIPE
371499 371499 WASHER AIR TRAP HOSE CLAMP

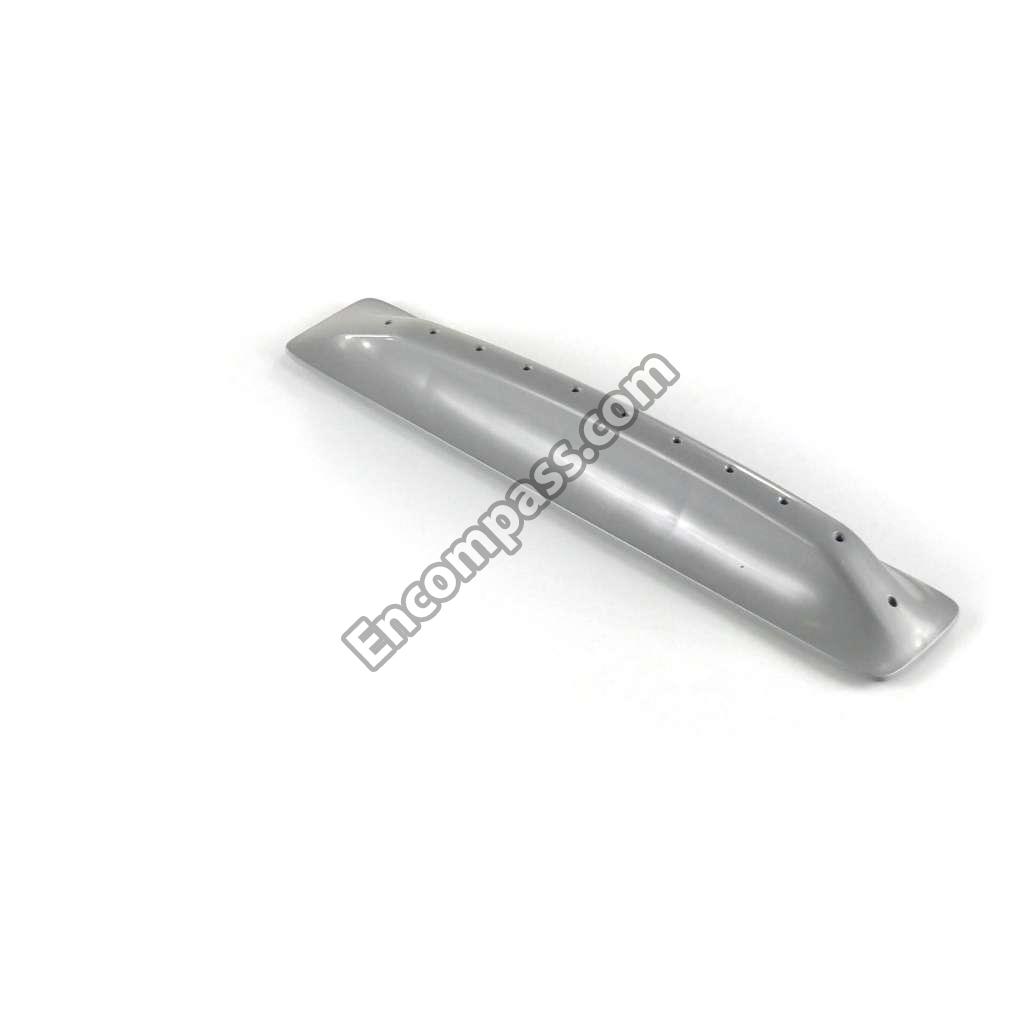

WPW10597205 WPW10597205 WASHER BAFFLE
W11166595 W11166595 WASHER CABINET (WHITE)
WPW10339879 WPW10339879 WASHER CABLE TIE
WPW10653575 WPW10653575 WASHER CONTROL PANEL WATER CHANNEL
W10304004 W10304004 WASHER COVER
W10575334 W10575334 WASHER DISPENSER DRAWER ASSEMBLY
WPW10365885 WPW10365885 WASHER DISPENSER DRAWER ASSEMBLY
W11084830 W11084830 WASHER DISPENSER DRAWER DIVIDER
W11223724 W11223724 WASHER DISPENSER DRAWER HANDLE (WHITE)
WPW10365887 WPW10365887 WASHER DISPENSER HOUSING COVER
W11106747 W11106747 WASHER DOOR BOOT
W11266654 W11266654 WASHER DOOR BOOT SPRING CLAMP
W11218344 W11218344 WASHER DOOR BOOT SPRING CLAMP

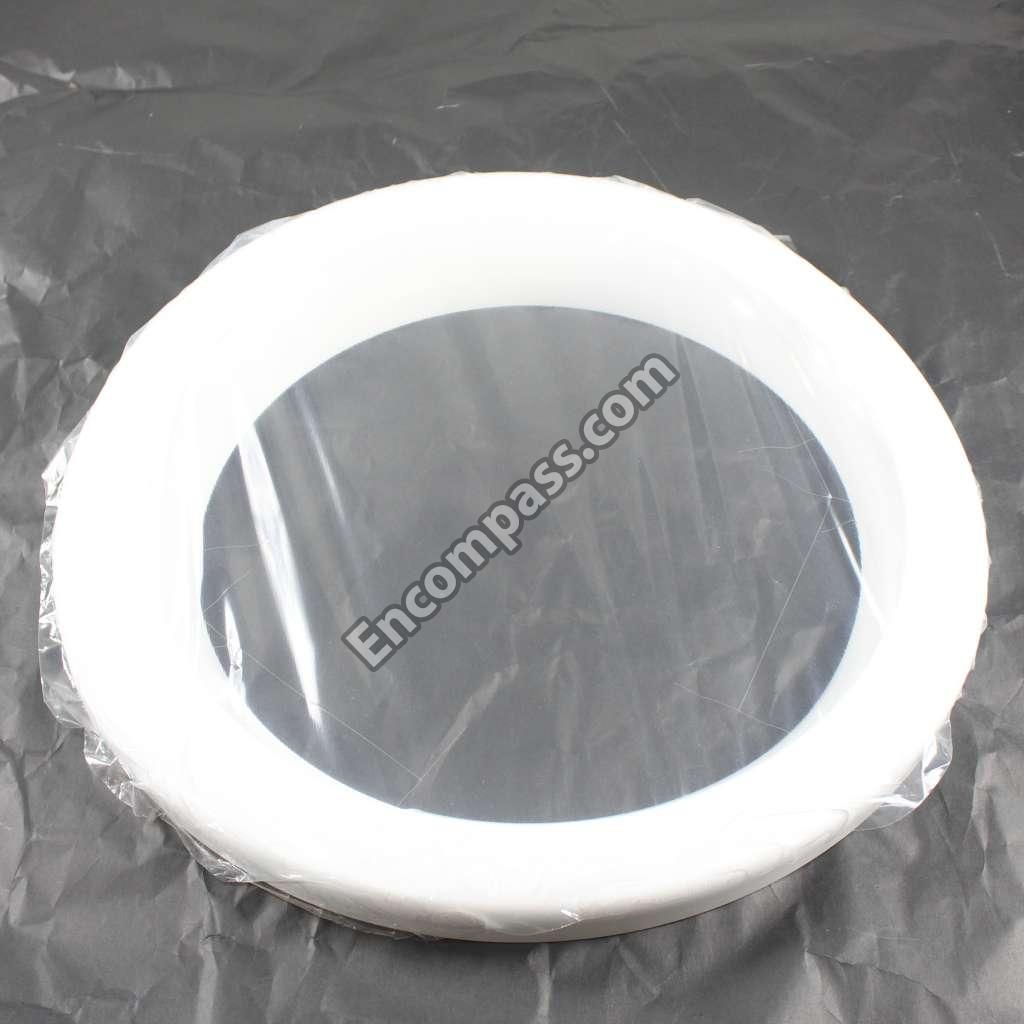

W11222029 W11222029 WASHER DOOR GLASS
W10295703 W10295703 WASHER DOOR GLASS RETAINER
WPW10208415 WPW10208415 WASHER DOOR HINGE
WPW10208275 WPW10208275 WASHER DOOR INNER PANEL
WPW10443885 WPW10443885 WASHER DOOR LOCK
WPW10424942 WPW10424942 WASHER DOOR OUTER PANEL (WHITE)
WPW10488048 WPW10488048 WASHER DOOR STRIKE
W11281268 W11281268 WASHER DRAIN HOSE
285863 285863 WASHER DRAIN HOSE
WPW10280024 WPW10280024 WASHER DRAIN HOSE U-BEND BRACKET
WPW10605427 WPW10605427 WASHER DRAIN PUMP
8212526 8212526 WASHER DRIP TRAY
8212638RP 8212638RP WASHER FILL HOSE, 2-PACK
WPW10441116 WPW10441116 WASHER FRONT PANEL
W10353599 W10353599 WASHER HOSE CLAMP
WP285655 WP285655 WASHER HOSE CLAMP

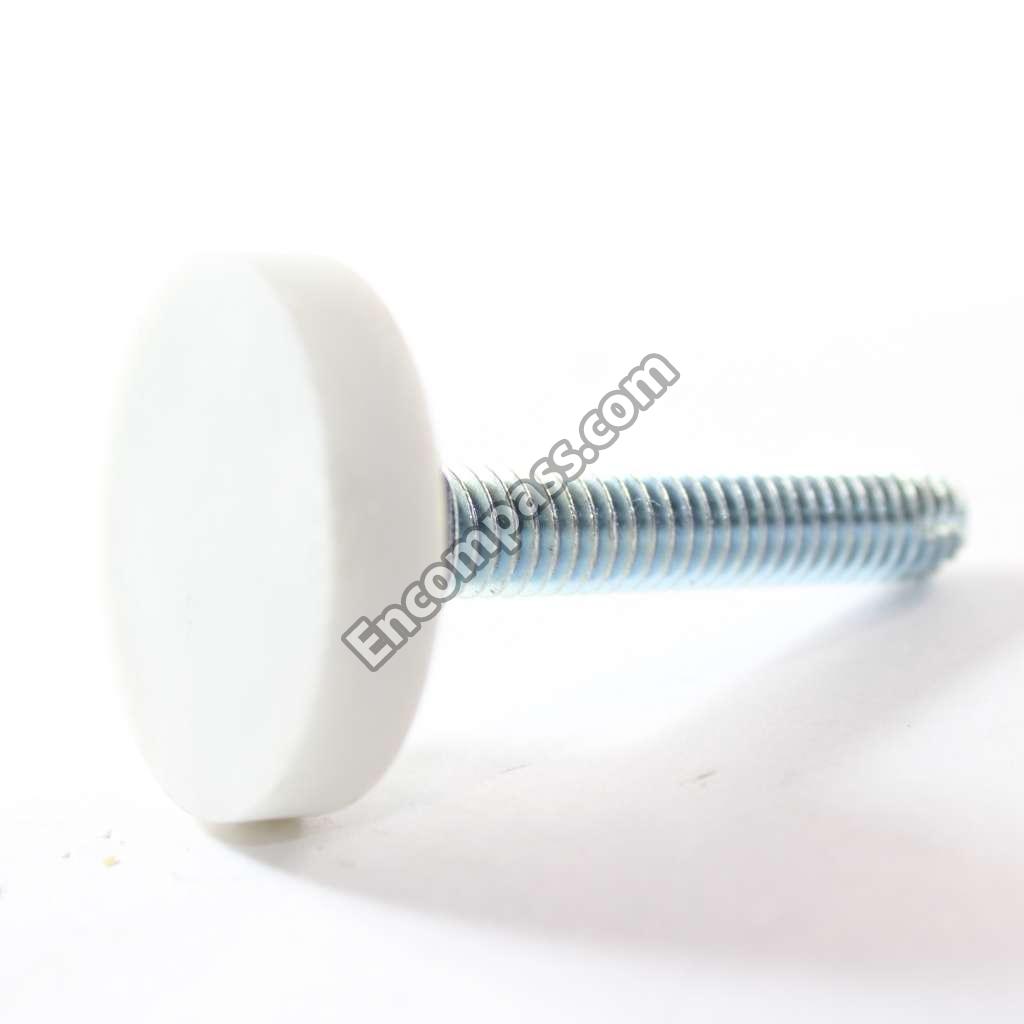

W10888529 W10888529 WASHER LEVELING LEG
WP3359452 WP3359452 WASHER LEVELING LEG LOCK NUT

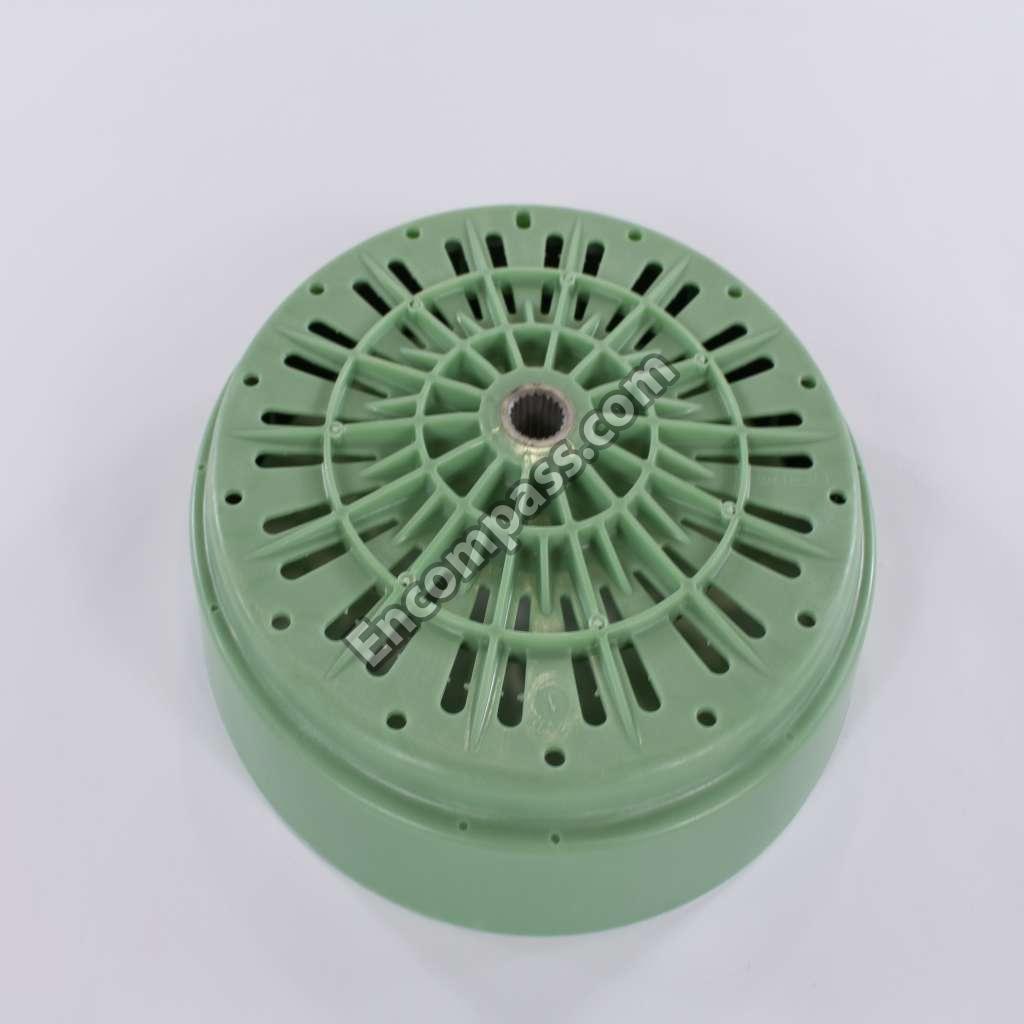

WPW10453673 WPW10453673 WASHER MOTOR ROTOR

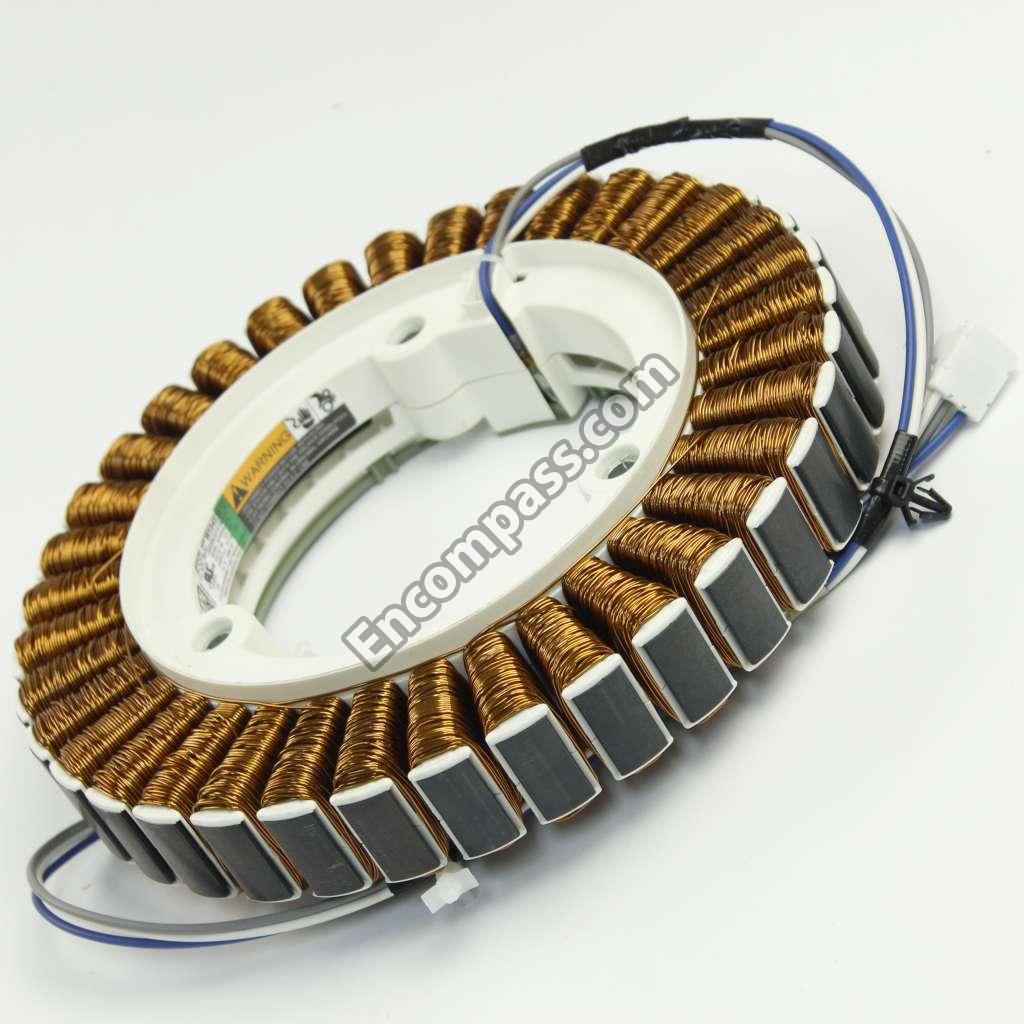

W10870752 W10870752 WASHER MOTOR STATOR

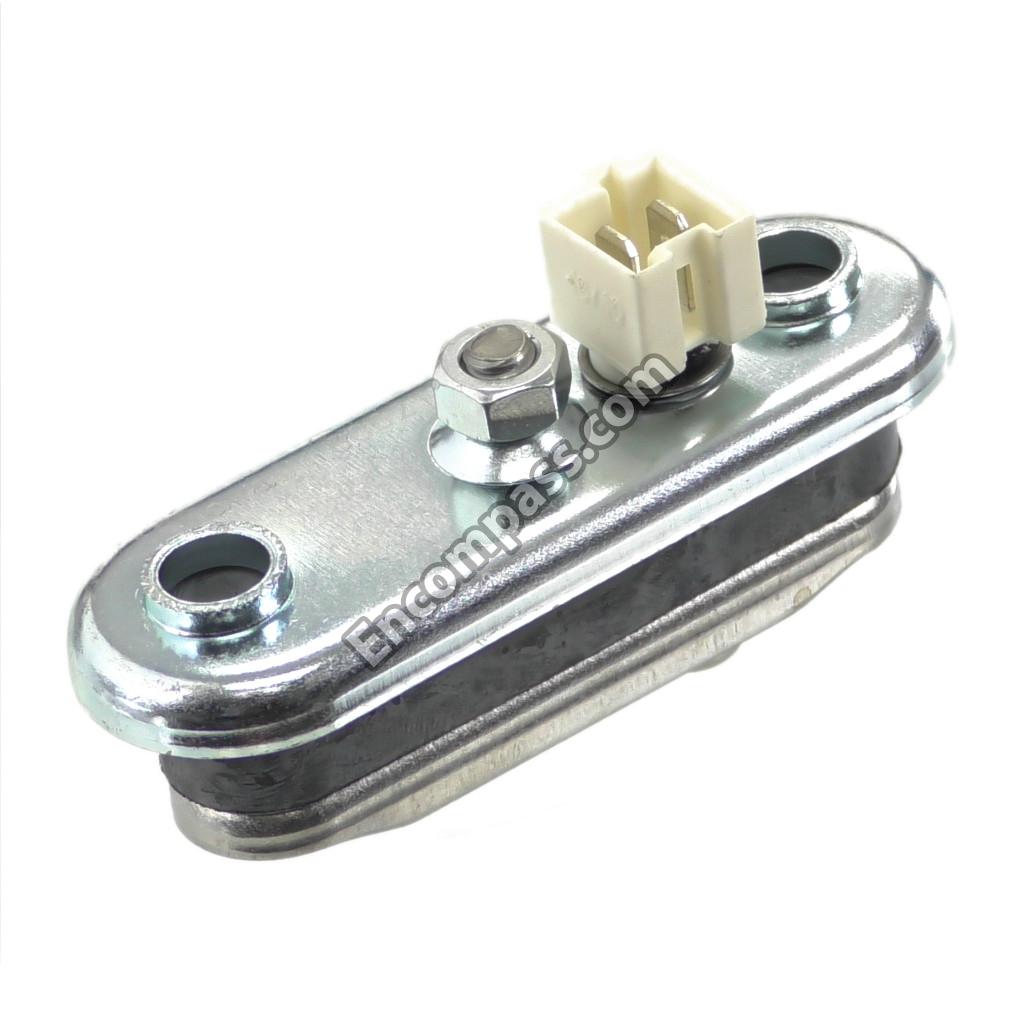

WPW10367632 WPW10367632 WASHER NOISE FILTER
WPW10737541 WPW10737541 WASHER OUTER TUB AND BASKET ASSEMBLY
W11035353 W11035353 WASHER POWER CORD
WP8540268 WP8540268 WASHER POWER CORD COVER
WPW10562025 WPW10562025 WASHER PUMP DRAIN HOSE
WP8182512 WP8182512 WASHER PUSH NUT
WP3351614 WP3351614 WASHER SCREW, #10-24 X 3/8-IN
W10763470 W10763470 WASHER SHIPPING BOLT KIT
W11415987 W11415987 WASHER SHOCK ABSORBER
W11266650 W11266650 WASHER SUSPENSION SPRING
WPW10208373 WPW10208373 WASHER TOP PANEL
W10208380 W10208380 WASHER TOP PANEL SCREW
WPW10568614 WPW10568614 WASHER VENT BELLOWS
8212487RP 8212487RP WASHER WATER INLET HOSE, 2-PACK

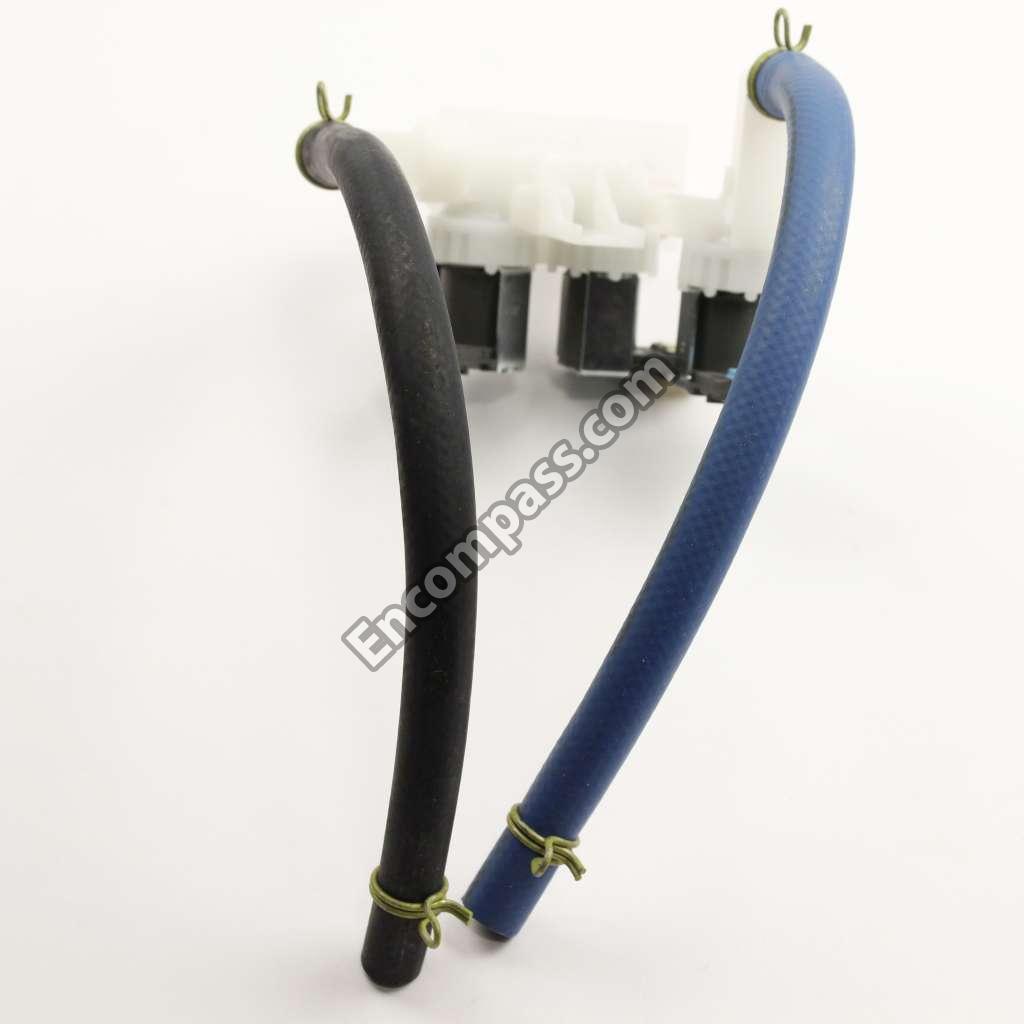

W10599356 W10599356 WASHER WATER INLET VALVE
WPW10448876 WPW10448876 WASHER WATER-LEVEL PRESSURE SWITCH

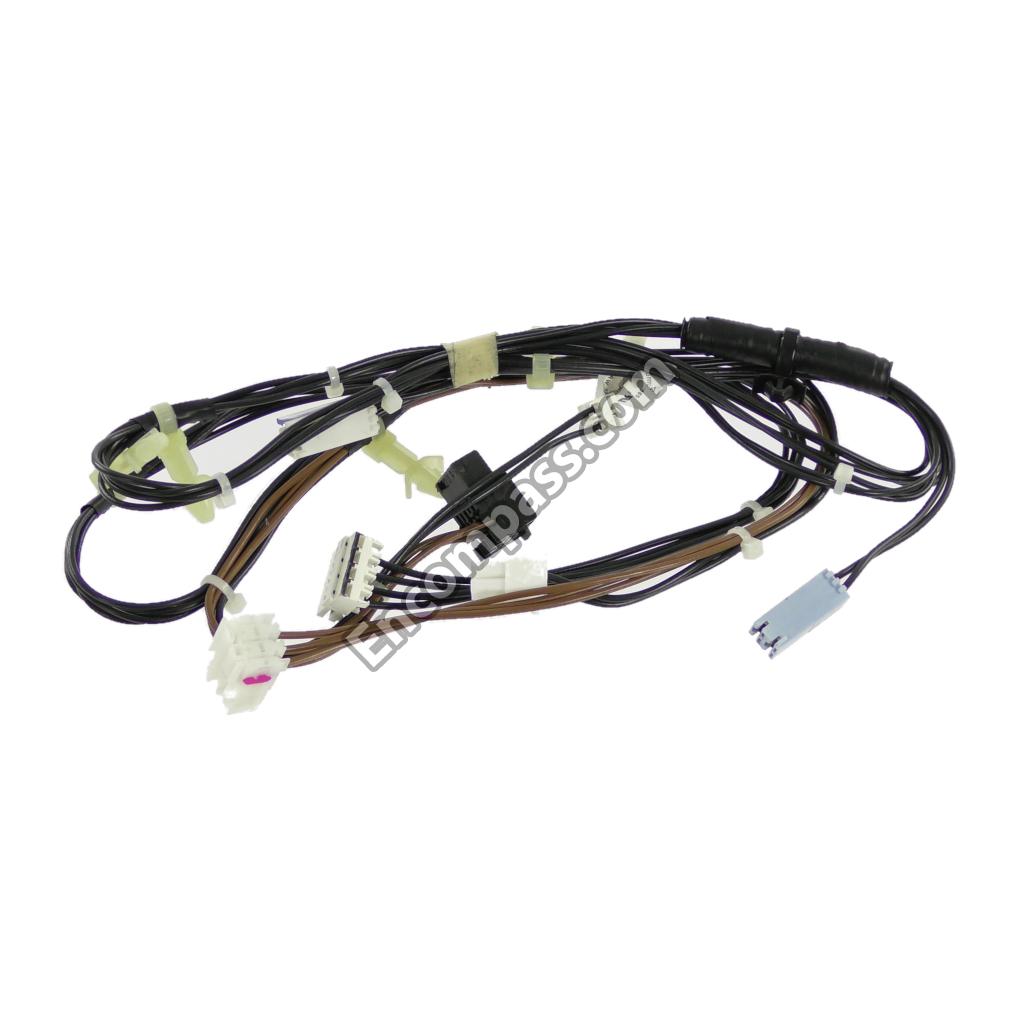

W10746377 W10746377 WASHER WIRE HARNESS
WPW10442440 WPW10442440 WASHER WIRE HARNESS
