Model Image
Manufacturer

Whirlpool

Model Number

WFW92HEFU0

Description

4.5 Cu. Ft. 12-cycle Front Load Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10869845 W10869845 ACCESSORY PARTS, KIT, STACK
W10135699 W10135699 AFFRESH WASHER CLEANER
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
W10446202 W10446202 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (CHROME SHADOW)
W10268217 W10268217 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (LUNAR SILVER)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W11222328 W11222328 BOLT
W10237498 W10237498 BRACKET
WPW10467483 WPW10467483 BRACKET
W10467484 W10467484 BRACKET
W10208197 W10208197 BRACKET
8572266 8572266 BUMPER
W11166594 W11166594 CABINET (BLACK)
W11166600 W11166600 CABINET (CHROME SHADOW)
W11166598 W11166598 CABINET (SILVER)
W11172160 W11172160 CHANNEL
WP356138 WP356138 CLAMP
W10128586 W10128586 CLAMP
W10239910 W10239910 CLAMP
W10273034 W10273034 CLAMP
W11222029 W11222029 CLEAR PLASTIC, DOOR
W10316388 W10316388 CLIP
W10784650 W10784650 CNSL SHELL A

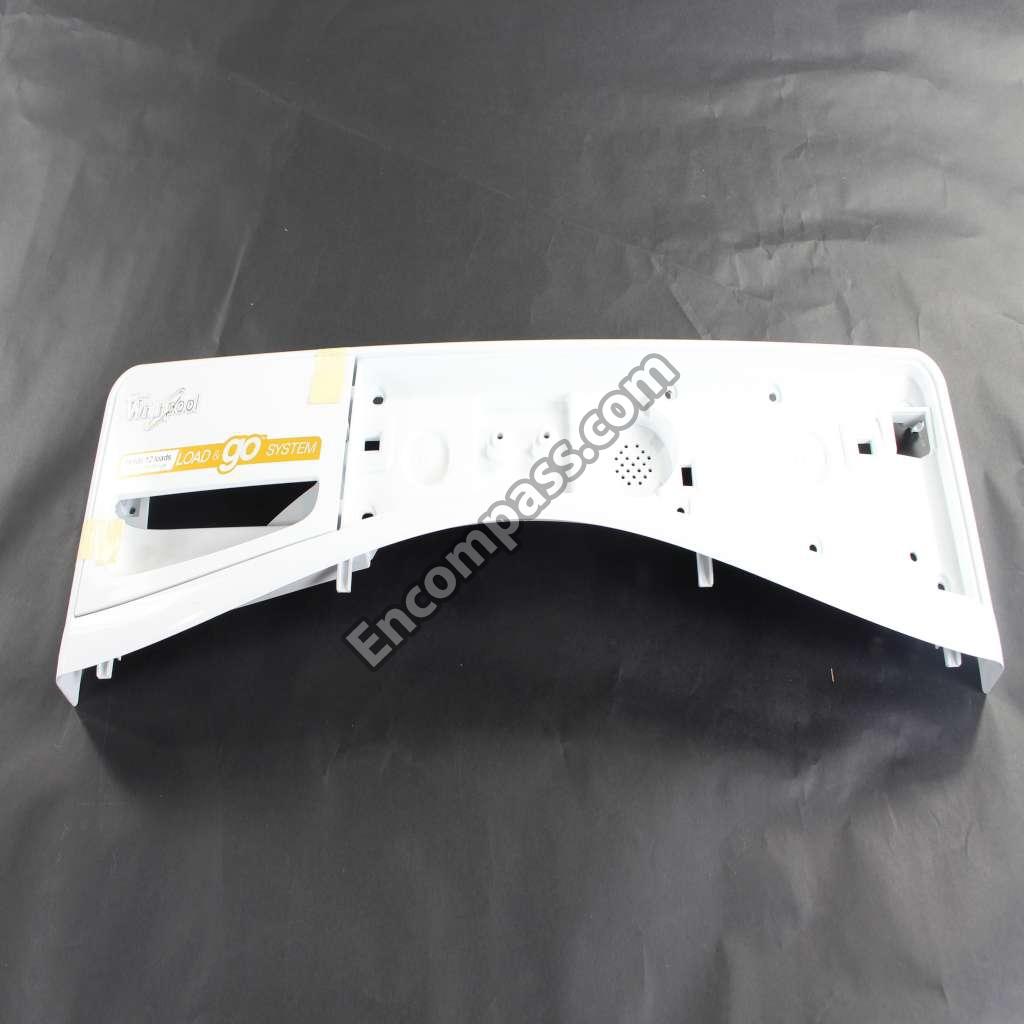

W11218415 W11218415 CONSOLE
W10784651 W10784651 CONSOLE SHELL ASSEMBLY
W10784652 W10784652 CONSOLE SHELL ASSEMBLY
W10911023 W10911023 CONTROL PANEL

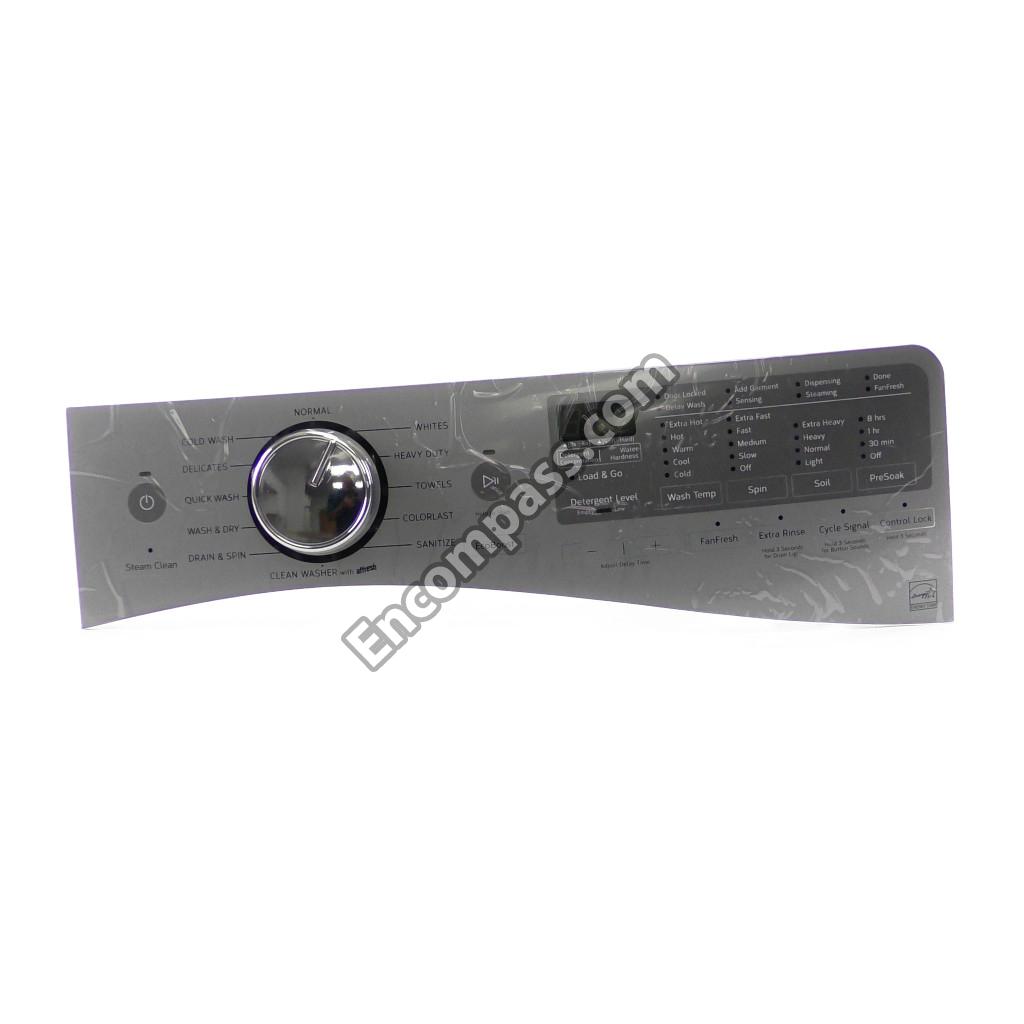

W10911024 W10911024 CONTROL PANEL

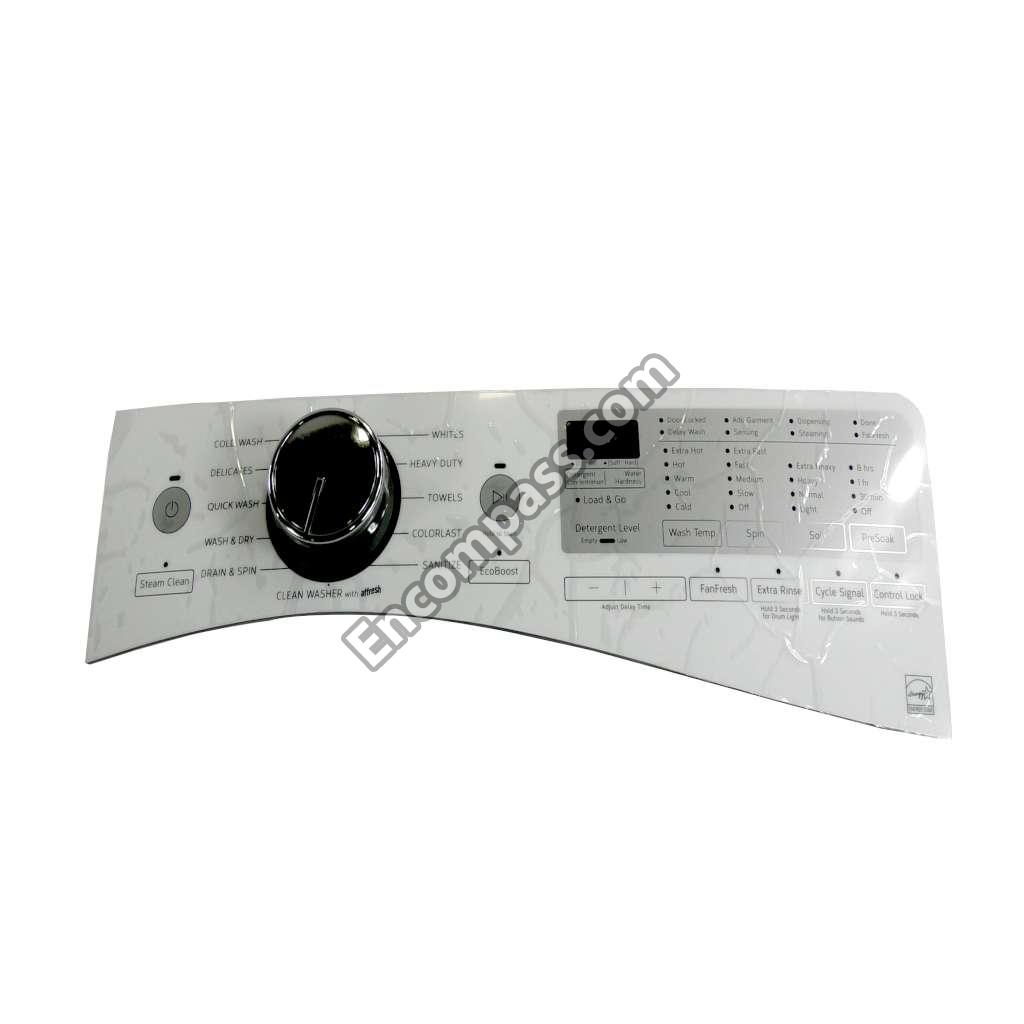

W10911029 W10911029 CONTROL PANEL
W10911026 W10911026 CONTROL PANEL
W10237535 W10237535 COUNTERWEIGHT
W10253014 W10253014 COUNTERWEIGHT
W10854051 W10854051 COVER
WP596669 WP596669 DISHWASHER DRAIN HOSE CLAMP
W10250743A W10250743A DISPENSER
W11221961 W11221961 DOOR-OUTER

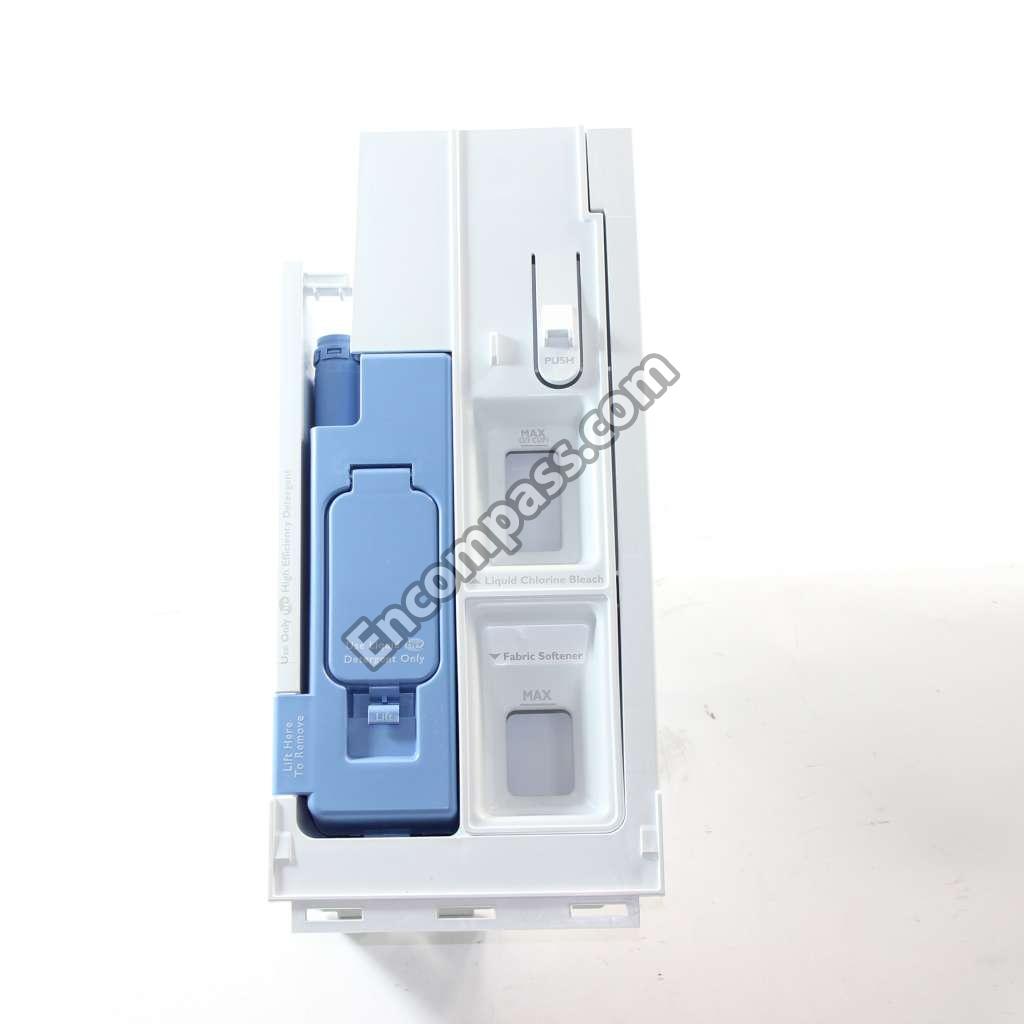

WPW10250742 WPW10250742 DRAWER
W10853942 W10853942 DRUM LIGHT ASSEMBLY
W10838078 W10838078 DRYER CLIP
WPW10208419 WPW10208419 DRYER DOOR HINGE SUPPORT
W10912021 W10912021 ENERGY GUIDE
WPW10261587 WPW10261587 FAN
W11568579 W11568579 FILTER CAP
W11712579 W11712579 FLUID ELEMENT
W11033849 W11033849 HARNS-WIRE
W10576399 W10576399 HEATER ASSEMBLY
W11281268 W11281268 HOSE
W10239949 W10239949 HOSE
WPW10239966 WPW10239966 HOSE
W10744048 W10744048 HOSE - PRESS
W10580186 W10580186 IML ASM - WP
W11134874 W11134874 INSTALLATION INSTRUCTIONS
8212452 8212452 LAUNDRY APPLIANCE BACKGUARD KIT, 2-PACK
WPW10208398 WPW10208398 LAUNDRY APPLIANCE HINGE PIN CAP
WP8534022 WP8534022 LAUNDRY APPLIANCE SCREW
W11568617 W11568617 LAUNDRY APPLIANCE SCREW, #8-18 X 1/2-IN
1903WH 1903WH LAUNDRY APPLIANCE STORAGE CART (WHITE)
W10875909 W10875909 LAUNDRY APPLIANCE TIMER KNOB (CHROME)
W10746378 W10746378 MAIN HARNESS
WP8183181 WP8183181 NOZZLE
W11673307 W11673307 O-RING CAP
W10901175 W10901175 OUTER TUB
W10635316 W10635316 PANEL-TOP, L
W10433059 W10433059 PNL-FRT ASM,
W10245452 W10245452 RETAINER
WPW10544980 WPW10544980 ROTOR
W11661566 W11661566 SCREW
W11230114 W11230114 SCREW
W10589828 W10589828 SCREW
WPW10253476 WPW10253476 SCREW
W11253212 W11253212 SCREW
W10261496 W10261496 SCREW
W10306501 W10306501 SCREW
W11096092 W11096092 SENSOR
W10870753 W10870753 SHIELD
W10323182 W10323182 SPACER WASHER
W10870751 W10870751 STATOR
W10775510 W10775510 TECHNICAL SHEET
WPW10316283 WPW10316283 TOP
W10903220 W10903220 TRAP
W10793364 W10793364 TUB CLAMP
W10891955 W10891955 USE AND CARE GUIDE
W11183219 W11183219 VENT PIPE
WPW10352818 WPW10352818 VENT PIPE
371499 371499 WASHER AIR TRAP HOSE CLAMP
WPW10597205 WPW10597205 WASHER BAFFLE
W11166595 W11166595 WASHER CABINET (WHITE)
W11199206 W11199206 WASHER CABINET BACK PANEL
WPW10339879 WPW10339879 WASHER CABLE TIE
W10318155 W10318155 WASHER COVER
WPW10352973 WPW10352973 WASHER DISPENSER ACTUATOR
WP8183184 WP8183184 WASHER DISPENSER ACTUATOR CAM
WPW10250723 WPW10250723 WASHER DISPENSER DRAWER
W10862190 W10862190 WASHER DISPENSER DRAWER ASSEMBLY
W10784648 W10784648 WASHER DISPENSER DRAWER HANDLE (BLACK)
W10784647 W10784647 WASHER DISPENSER DRAWER HANDLE (CHROME SHADOW)
W10784646 W10784646 WASHER DISPENSER DRAWER HANDLE (SILVER)
W10784645 W10784645 WASHER DISPENSER DRAWER HANDLE (WHITE)
W10256661 W10256661 WASHER DISPENSER DRAWER INSERT
W10003140 W10003140 WASHER DISPENSER DRAWER LOWER COVER
W11173364 W11173364 WASHER DOOR BOOT
W11266654 W11266654 WASHER DOOR BOOT SPRING CLAMP
W11218344 W11218344 WASHER DOOR BOOT SPRING CLAMP
W10295703 W10295703 WASHER DOOR GLASS RETAINER
WPW10208415 WPW10208415 WASHER DOOR HINGE
WPW10208275 WPW10208275 WASHER DOOR INNER PANEL
WPW10443885 WPW10443885 WASHER DOOR LOCK
WPW10488048 WPW10488048 WASHER DOOR STRIKE
285863 285863 WASHER DRAIN HOSE
WPW10280024 WPW10280024 WASHER DRAIN HOSE U-BEND BRACKET
WPW10605427 WPW10605427 WASHER DRAIN PUMP
8212526 8212526 WASHER DRIP TRAY
W10864049 W10864049 WASHER ELECTRONIC CONTROL BOARD

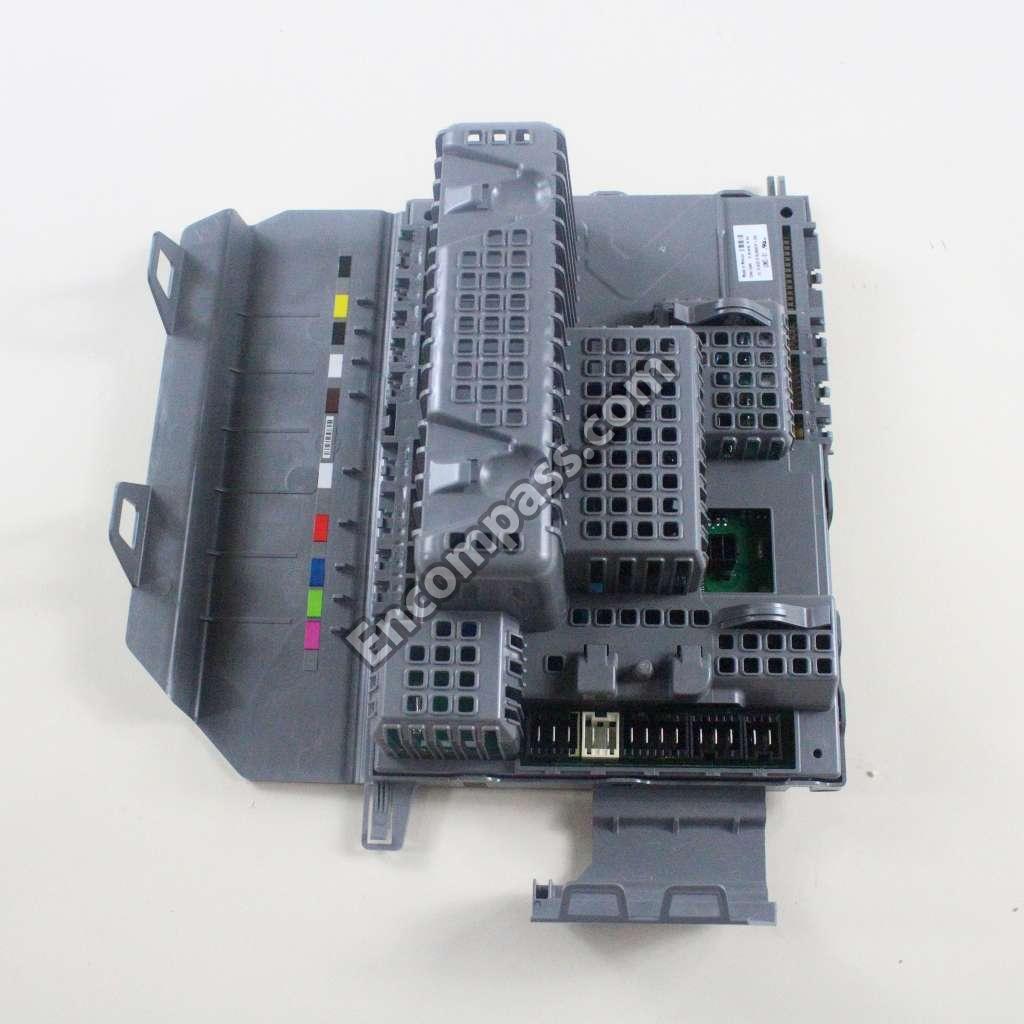

W11201293 W11201293 WASHER ELECTRONIC CONTROL BOARD
8212638RP 8212638RP WASHER FILL HOSE, 2-PACK
WPW10441116 WPW10441116 WASHER FRONT PANEL
WPW10441111 WPW10441111 WASHER FRONT PANEL
WPW10460695 WPW10460695 WASHER FRONT PANEL
W10353599 W10353599 WASHER HOSE CLAMP
WP285655 WP285655 WASHER HOSE CLAMP
W10888529 W10888529 WASHER LEVELING LEG
WP3359452 WP3359452 WASHER LEVELING LEG LOCK NUT
WPW10367632 WPW10367632 WASHER NOISE FILTER
W11035353 W11035353 WASHER POWER CORD
WPW10562025 WPW10562025 WASHER PUMP DRAIN HOSE
WP8182512 WP8182512 WASHER PUSH NUT
WP8540282 WP8540282 WASHER SCREW
WPW10004910 WPW10004910 WASHER SCREW
WP3351614 WP3351614 WASHER SCREW, #10-24 X 3/8-IN
W11415987 W11415987 WASHER SHOCK ABSORBER
W11266650 W11266650 WASHER SUSPENSION SPRING
WPW10208373 WPW10208373 WASHER TOP PANEL
WPW10460693 WPW10460693 WASHER TOP PANEL (CHROME SHADOW)
W10208380 W10208380 WASHER TOP PANEL SCREW
WPW10568614 WPW10568614 WASHER VENT BELLOWS
WP8183183 WP8183183 WASHER WATER DISTRIBUTION LEVER
WPW10183517 WPW10183517 WASHER WATER DISTRIBUTION LEVER
8212487RP 8212487RP WASHER WATER INLET HOSE, 2-PACK
WPW10247306 WPW10247306 WASHER WATER INLET VALVE ASSEMBLY
WPW10467289 WPW10467289 WASHER WATER TEMPERATURE SENSOR
WPW10448876 WPW10448876 WASHER WATER-LEVEL PRESSURE SWITCH
W11044559 W11044559 WASHER WATER-LEVEL PRESSURE SWITCH HOSE
