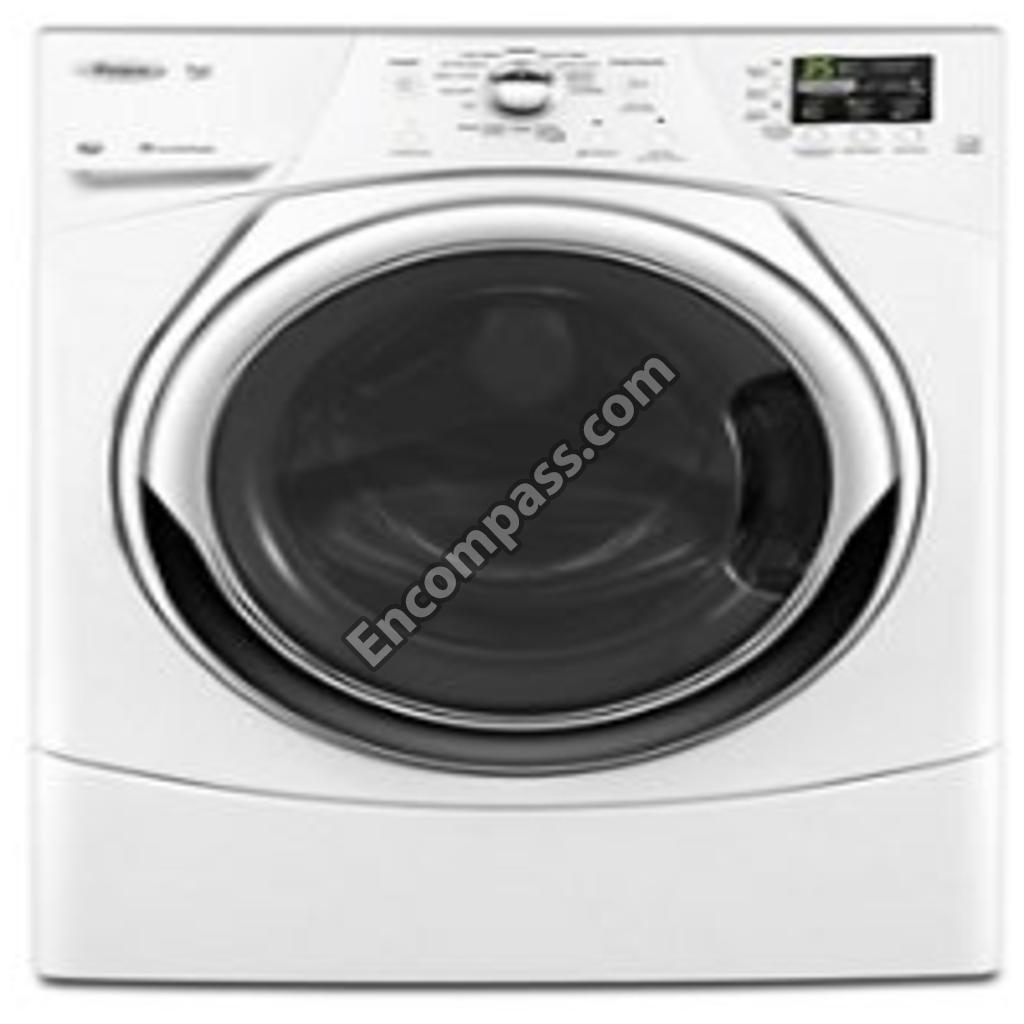

Model Image
Manufacturer

Whirlpool

Model Number

WFW9351YW00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10135699 W10135699 AFFRESH WASHER CLEANER
WP8540360 WP8540360 BAFFLE
8540013 8540013 BALL
WPW10202459 WPW10202459 BASKET
WP8540101 WP8540101 BELT
W10763471 W10763471 BOLT
8540134 8540134 BOLT, MOTOR
WP8540721 WP8540721 BRACE
W10189657 W10189657 BRACE
W10244560 W10244560 BRACE
W10846488 W10846488 BRACKET, CONSOLE
8540669 8540669 BRACKET, CONSOLE RETAINER
8540322 8540322 BRACKET, HEATING ELEMENT
8540644 8540644 BRACKET-SUSPENSION ROD KIT SPRING
238614 238614 BUMPER
WPW10410323 WPW10410323 CABINET
W10410294 W10410294 CABINET
8540033 8540033 CAP, LOCK FOOT
WP8540839 WP8540839 CHANNEL, WATER
WP8540092 WP8540092 CLAMP
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
WP696392 WP696392 CLAMP
W11622908 W11622908 CLAMP
WP596669 WP596669 CLAMP
WP8540115 WP8540115 CLAMP
W11032829 W11032829 CLAMP
WP8540108 WP8540108 CLAMP
WP356138 WP356138 CLAMP
8540010 8540010 CLAMP, VENT HOSE
W10355010 W10355010 CLEANER
WP8181738 WP8181738 CONNECTOR

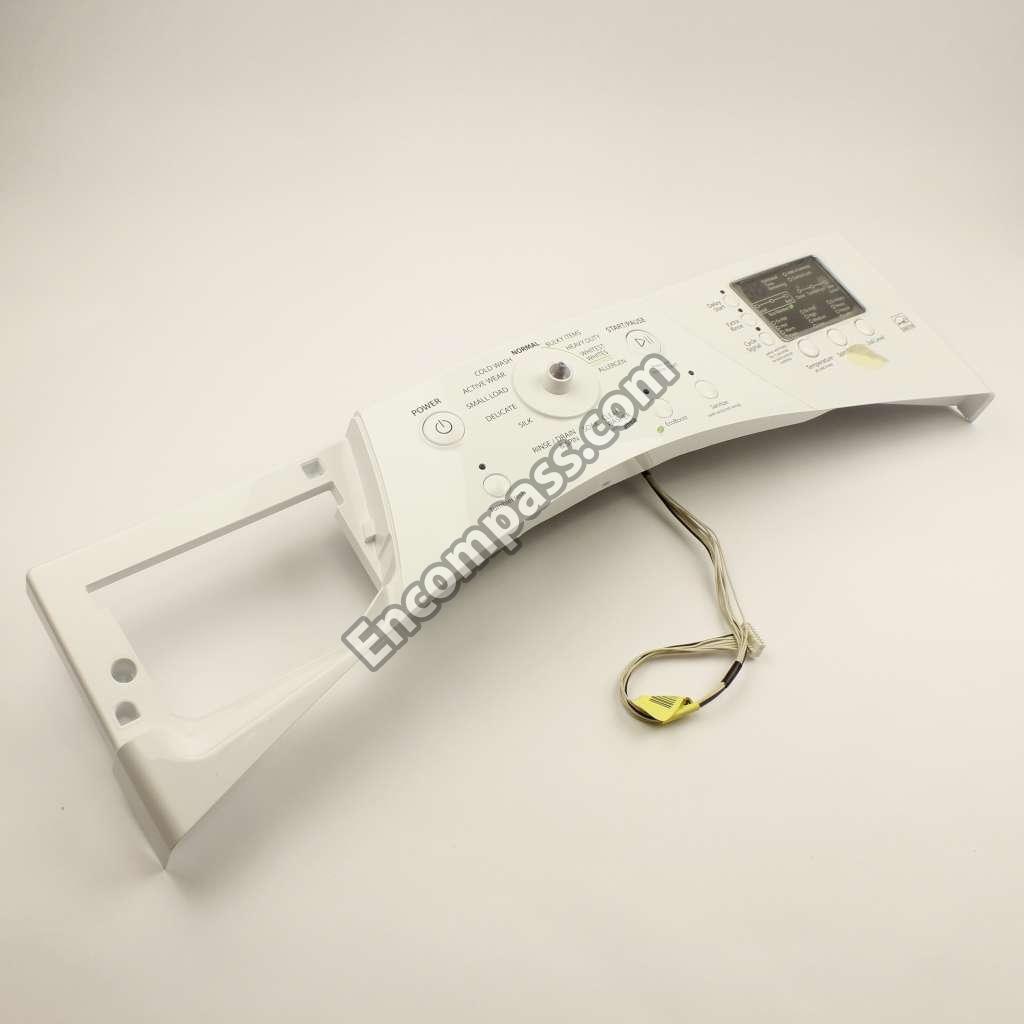

WPW10370315 WPW10370315 CONSOLE
WPW10370317 WPW10370317 CONSOLE (SILVER)

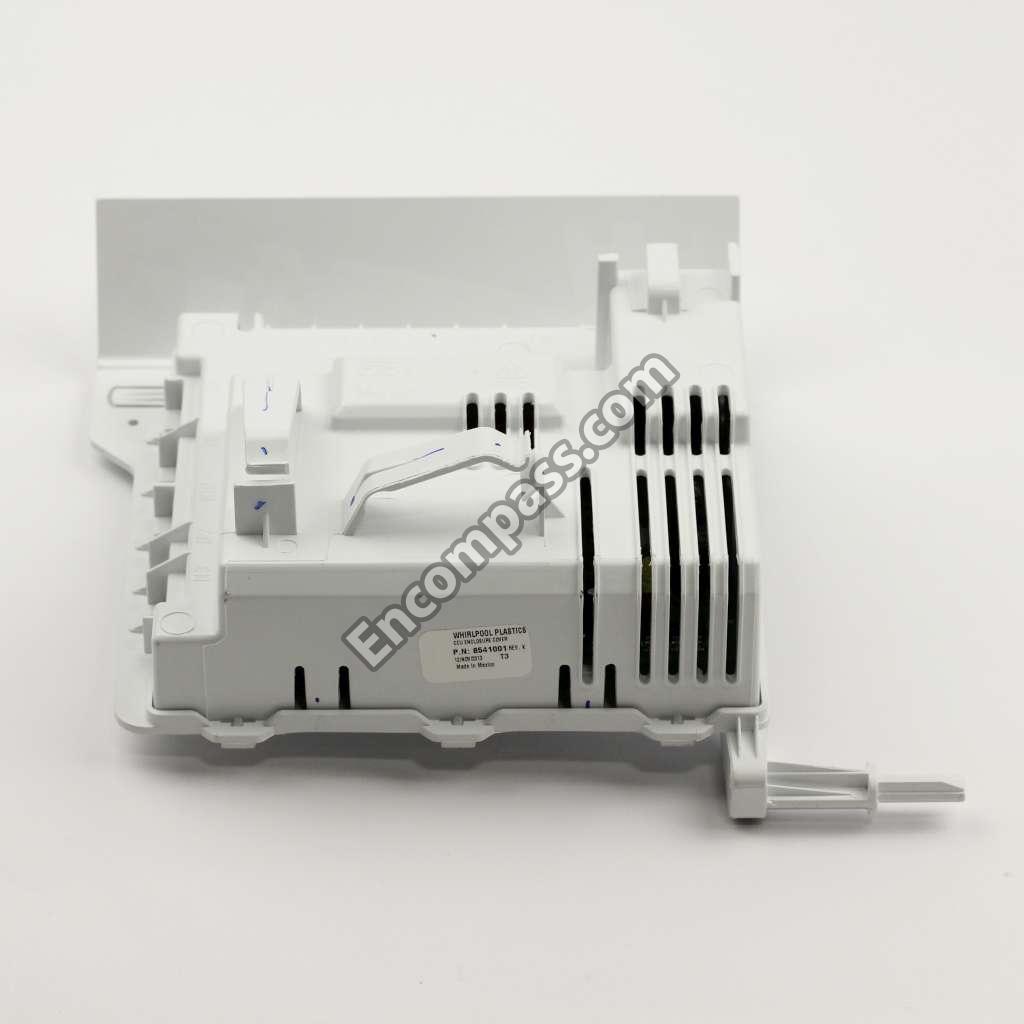

WPW10525373 WPW10525373 CONTROL BOARD
WPW10223198 WPW10223198 COUNTERWGT
WPW10200747 WPW10200747 COUNTERWGT
WP8540399 WP8540399 COVER
WP8540268 WP8540268 COVER
W10202464 W10202464 CROSSPIECE ASM
WPW10399327 WPW10399327 DISPENSER
WP8540429 WP8540429 DISPENSER
WPW10253483 WPW10253483 DOOR LATCH
WPW10388315 WPW10388315 DOOR-GLASS

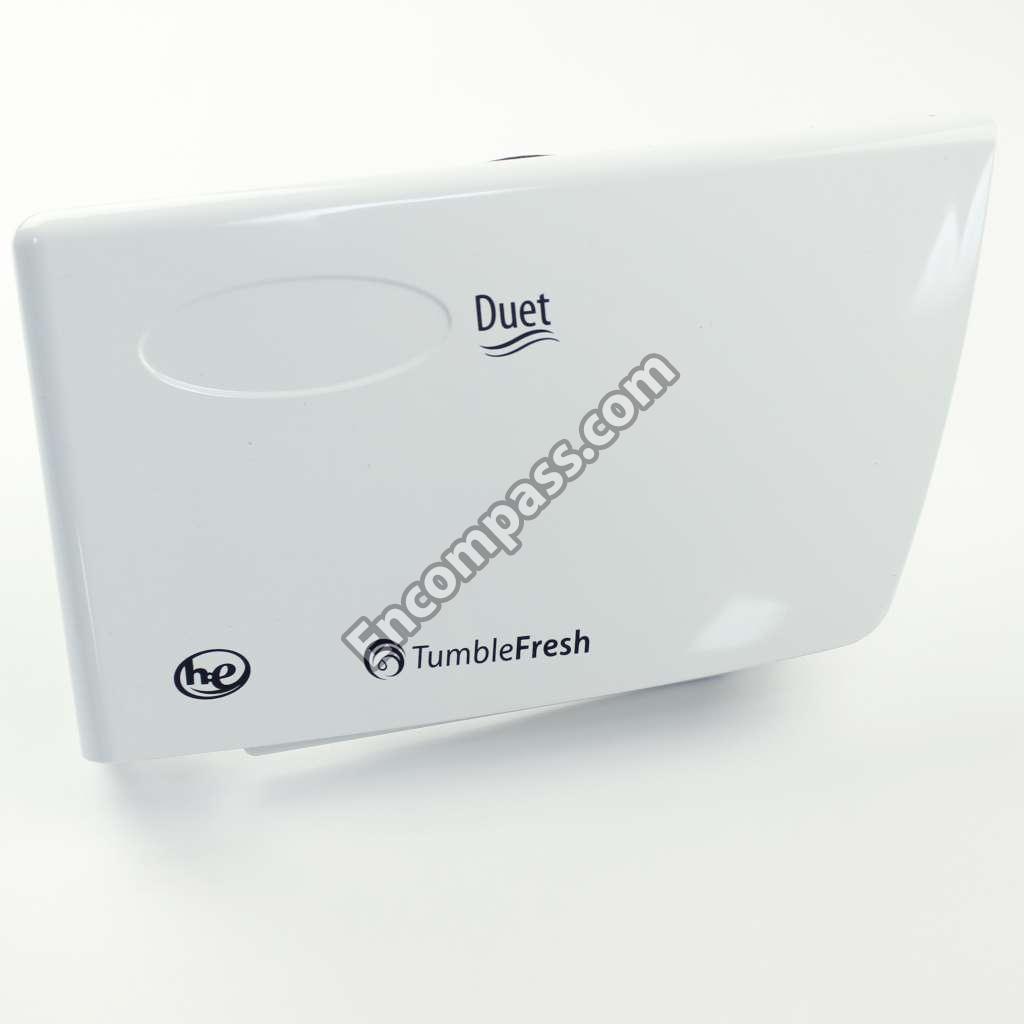

WP8540402 WP8540402 DRAWER
WPW10315848 WPW10315848 DRIVE MOTOR
W10404646 W10404646 ENERGY GUIDE
W10862938 W10862938 FEET-LVLNG
WPW10367632 WPW10367632 FILTER
WPW10323462 WPW10323462 FRAME, DOOR BACK SUPPORT
WPW10323478 WPW10323478 FRAME, DOOR FRONT ASSEMBLY
WPW10111158 WPW10111158 GASKET
W11116978 W11116978 GROMMET
W10034820 W10034820 GROMMET
W10034830 W10034830 GROMMET
W10394868 W10394868 HANDLE
WPW10394867 WPW10394867 HANDLE, DRAWER (WHITE)

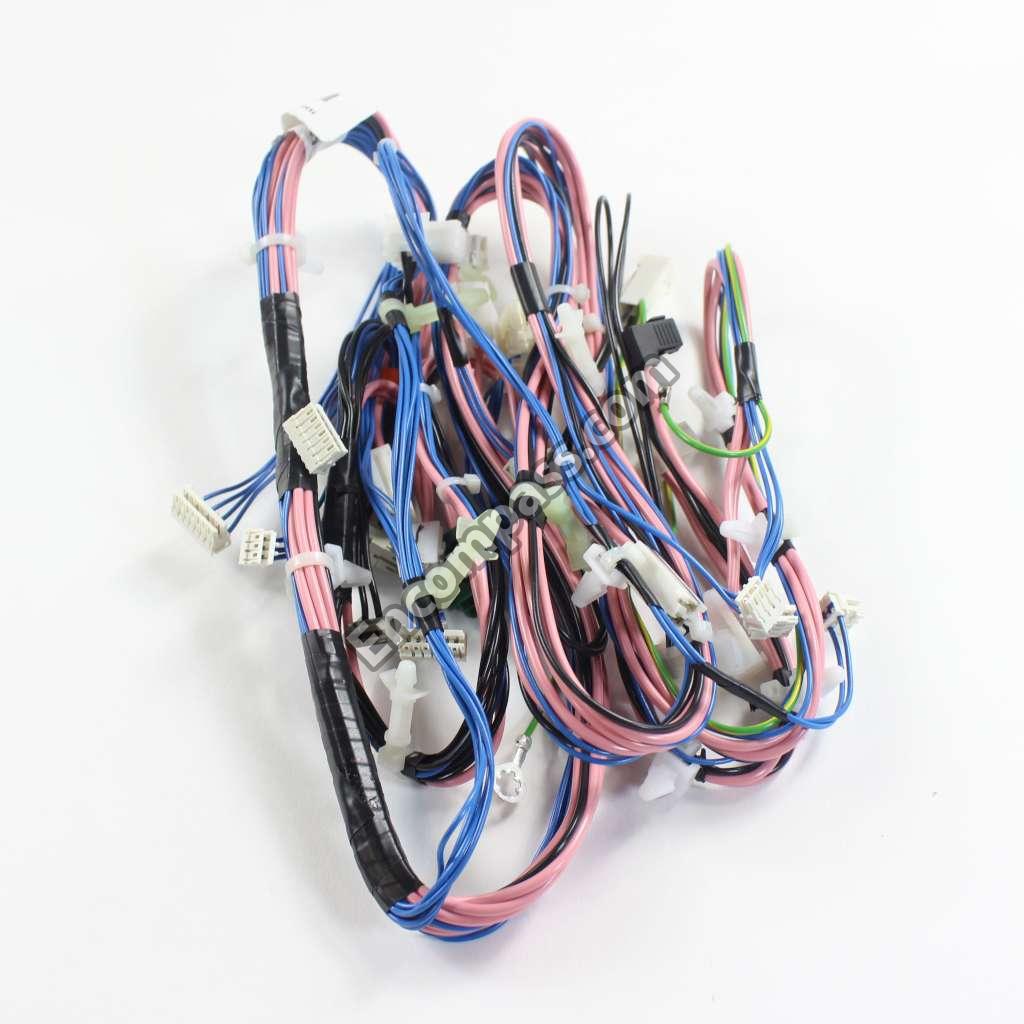

W10323100 W10323100 HARNS-WIRE
WPW10426377 WPW10426377 HEATER
WPW10323475 WPW10323475 HINGE, DOOR
W11398765 W11398765 HOSE
WPW10272563 WPW10272563 HOSE
W11366249 W11366249 HOSE
W11366227 W11366227 HOSE
W10803052 W10803052 HOSE
W11252474 W11252474 HOSE
WP8181737 WP8181737 HOSE
DRNEXT4 DRNEXT4 HOSE
285452A 285452A HOSE SCREEN (PACKAGE OF 2)
285448A 285448A HOSE WASHERS (PACKAGE OF 4)
8212656RP 8212656RP INLET HOSES, 10 FT TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212546RP 8212546RP INLET HOSES, 4 FT. (TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212545RP 8212545RP INLET HOSES, 5 FT. ONE RED HOSE & ONE BLUE HOSE W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212641RP 8212641RP INLET HOSES, 5 FT. TWO BLACK HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212487RP 8212487RP INLET HOSES, 5 FT. TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212638RP 8212638RP INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
W10408696 W10408696 INSTALLATION INSTRUCTIONS
WPW10251394 WPW10251394 KNOB

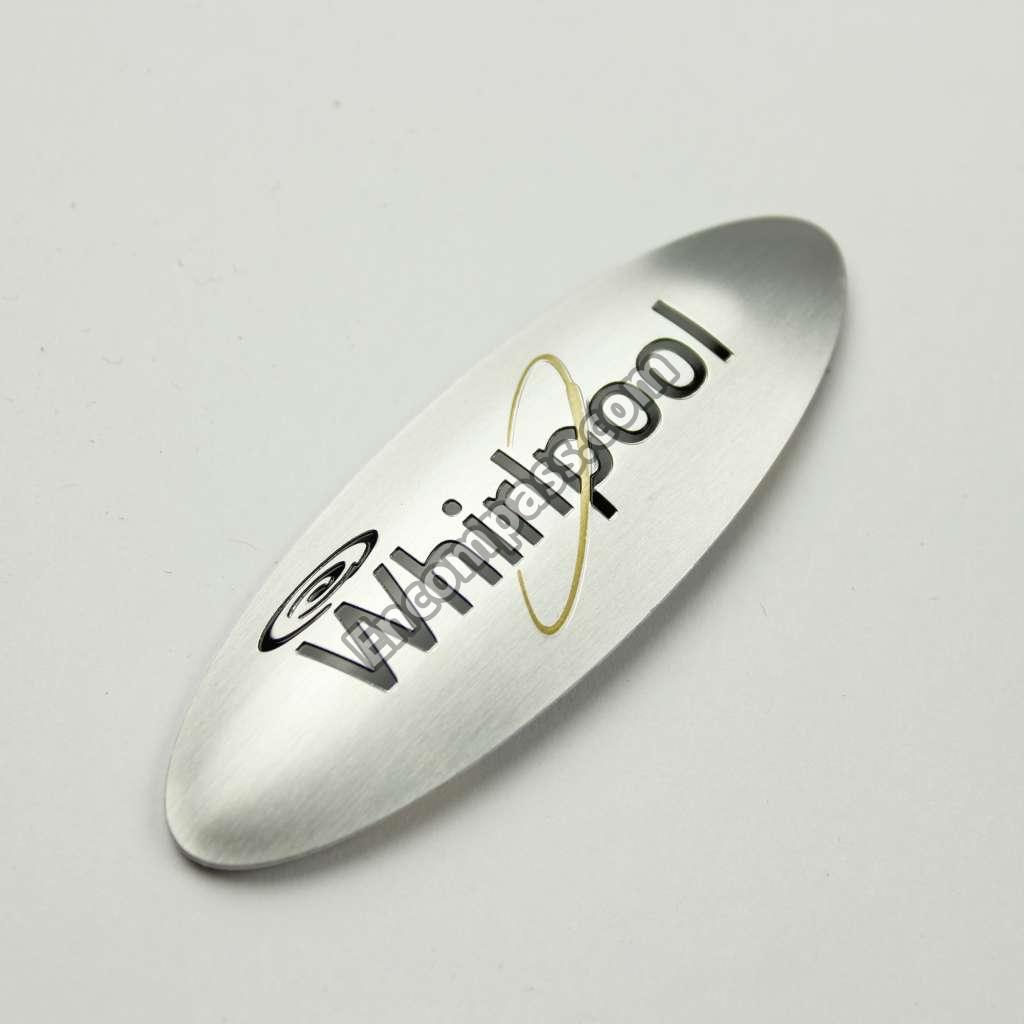

W10338425 W10338425 MEDALLION
WP8183181 WP8183181 NOZZLE
WP8182512 WP8182512 NUT
WPW10283361 WPW10283361 NUT
WP3359452 WP3359452 NUT
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10258341 WPW10258341 PANEL
WP8540664 WP8540664 PANEL
WP8540746 WP8540746 PANEL
W10254153 W10254153 PANEL
W10255251 W10255251 PANEL
WPW10205499 WPW10205499 POWER CORD
WP8540088C WP8540088C PULLEY
WP8181721 WP8181721 RETAINER
WPW10280024 WPW10280024 RETAINER
8182209 8182209 RETAINER, DRAIN HOSE
8518891 8518891 RIVET
WP8540382 WP8540382 SCREW
W11685857 W11685857 SCREW
WPW10259288 WPW10259288 SCREW
W11230114 W11230114 SCREW
WP8540282 WP8540282 SCREW
WP8540725 WP8540725 SCREW
WP98006631 WP98006631 SCREW
8540329 8540329 SCREW
WP489442 WP489442 SCREW
W10006580 W10006580 SCREW
W11028021 W11028021 SCREW
8533964 8533964 SCREW, 10-16 X 1.25
8182201 8182201 SCREW, 3 X 8 MM
8540479 8540479 SCREW, GROUNDING
WP8318396A WP8318396A SEAL
WPW10467289 WPW10467289 SENSOR
W10822553 W10822553 SHOCK-ABSR
W11661094 W11661094 SLEEVE
280159 280159 SPRING
8572546 8572546 STACK KIT
1903WH 1903WH STORAGE CART
8182635 8182635 STRAIN RELIEF
WP8540221 WP8540221 STRIKE
WPW10085220 WPW10085220 SWITCH
W10385295 W10385295 TECH SHEET
WP2262071 WP2262071 TIE-WIRE
WPW10339879 WPW10339879 TIE-WIRE
WPW10303994 WPW10303994 TOP
WPW10303995 WPW10303995 TOP (SILVER)
WPW10405608 WPW10405608 TRAP

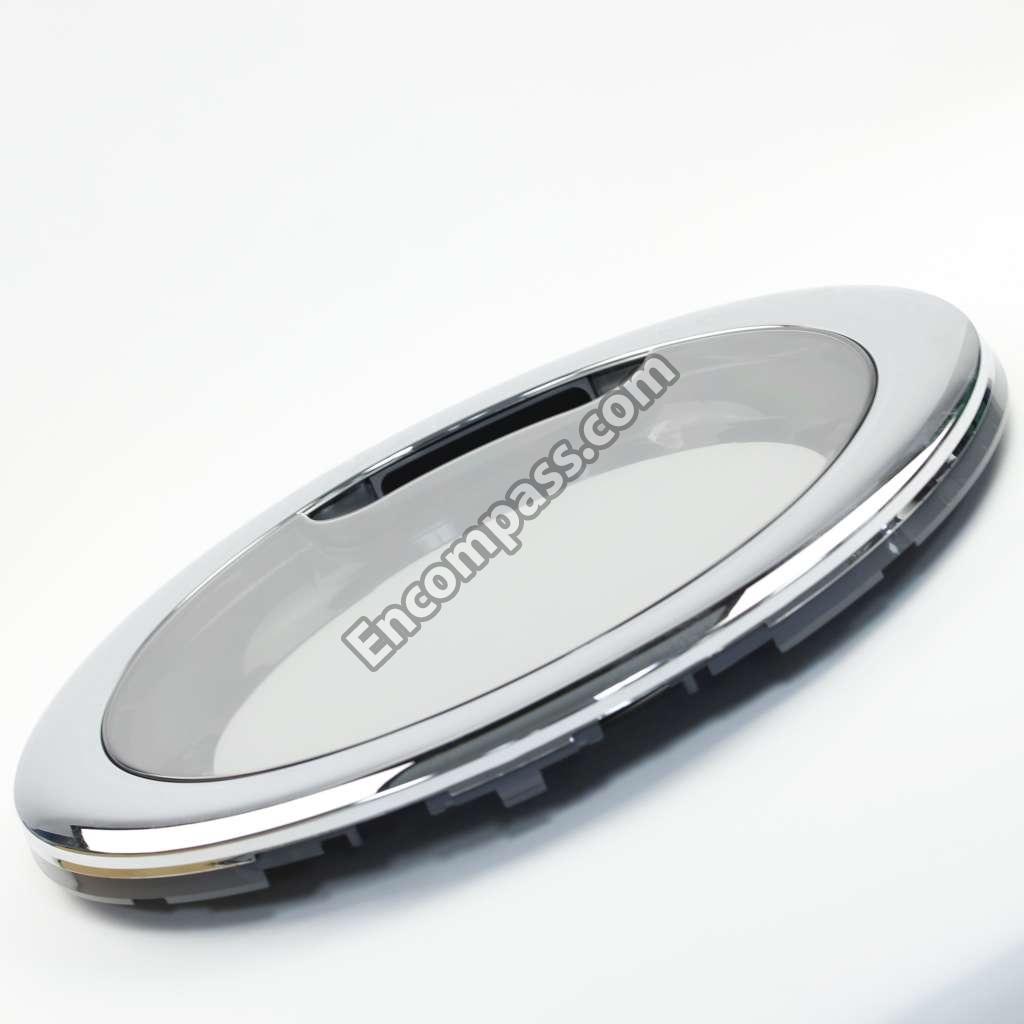

WPW10248151 WPW10248151 TRIM RING, OUTER DOOR (SILVER)

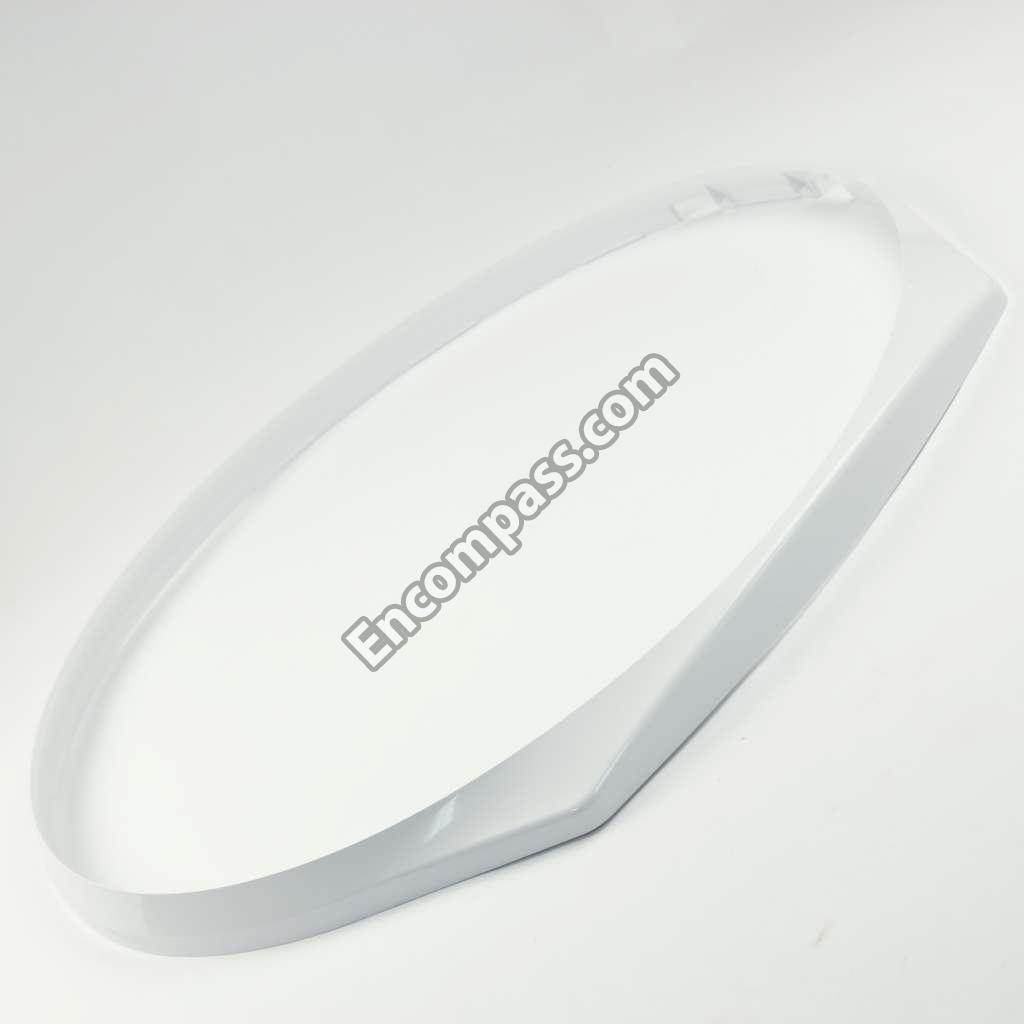

WPW10209545 WPW10209545 TRIM RING, OUTER DOOR (WHITE)

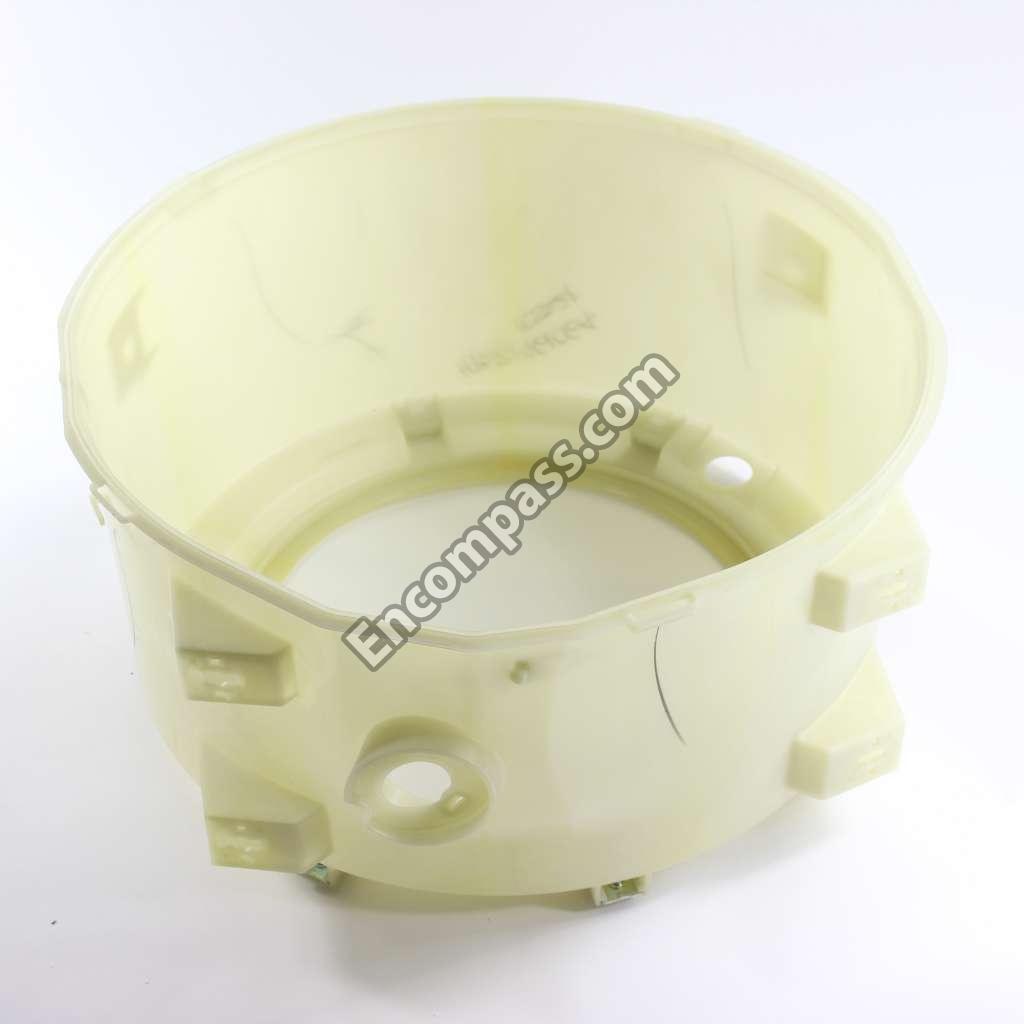

W10305749 W10305749 TUB-OUTER
W11239041 W11239041 TUB-OUTER
W10268217 W10268217 TUCHUP
W10394278 W10394278 USE & CARE GUIDE

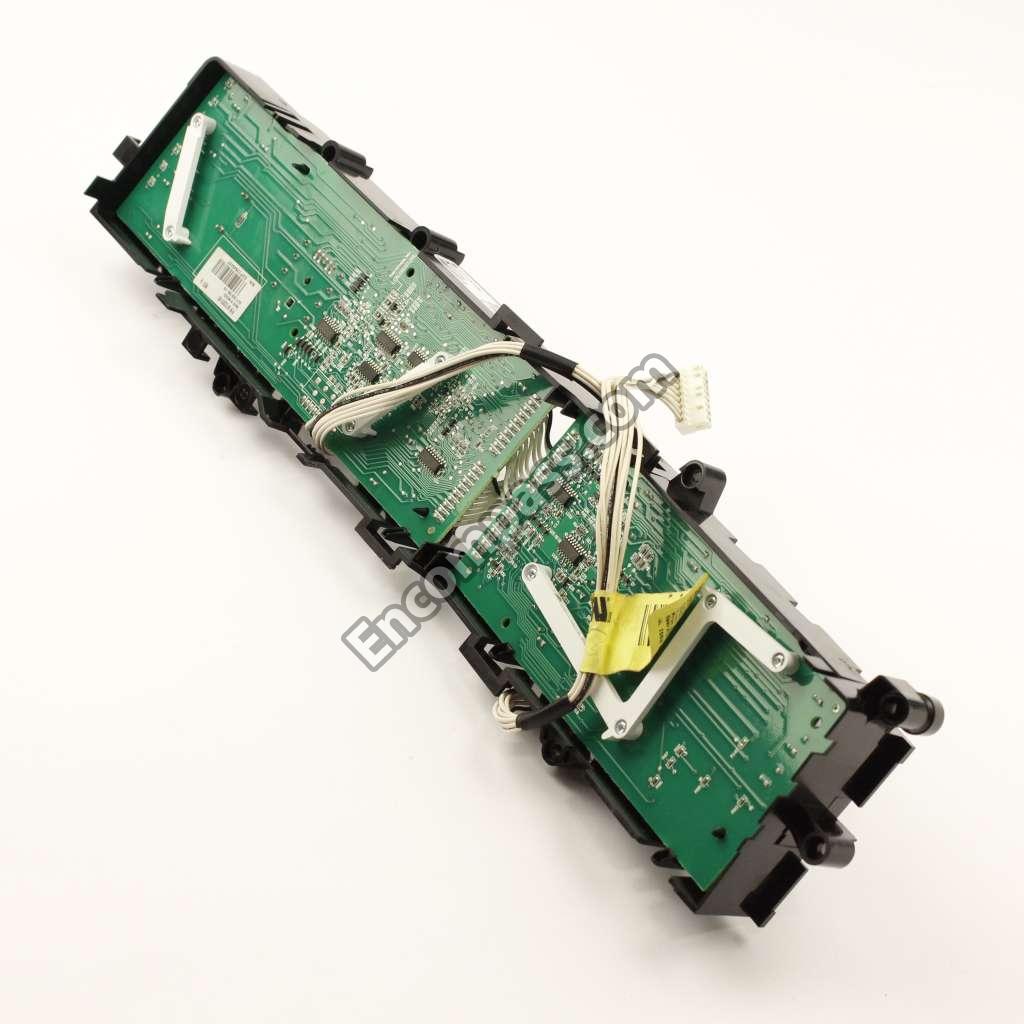

WPW10370329 WPW10370329 USER INTERFACE
WPW10212598 WPW10212598 VALVE
WPW10212596 WPW10212596 VALVE
W10142720 W10142720 VENT-PIPE
WPW10381562 WPW10381562 WASHER DOOR BELLOW
8212526 8212526 WASHER, DRIP TRAY
W11417623 W11417623 WATER LEVEL SWITCH
WPW10730972 WPW10730972 WATER PUMP
