Model Image
Manufacturer

Whirlpool

Model Number

WFW95HEDU0

Description

27 Inch 7.4 Cu. Ft. Gas Dryer (stainless)

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10135699 W10135699 ACCESSORY PARTS, AFFRESH ODOR REMOVER
31682 31682 ACCESSORY PARTS, APPLIANCE CLEANER
285863 285863 ACCESSORY PARTS, DRAIN HOSE W/CLAMP
8212487RP 8212487RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
W10869845 W10869845 ACCESSORY PARTS, KIT, STACK
1903WH 1903WH ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART
8212526 8212526 ACCESSORY PARTS, WASHER, DRIP TRAY
W10903220 W10903220 AIRTRAP ASSEMBLY
WPW10463516 WPW10463516 ASSEMBLY, CONSOLE (CHROME SHADOW)
W10858319 W10858319 ASSEMBLY, CONSOLE (SILVER)

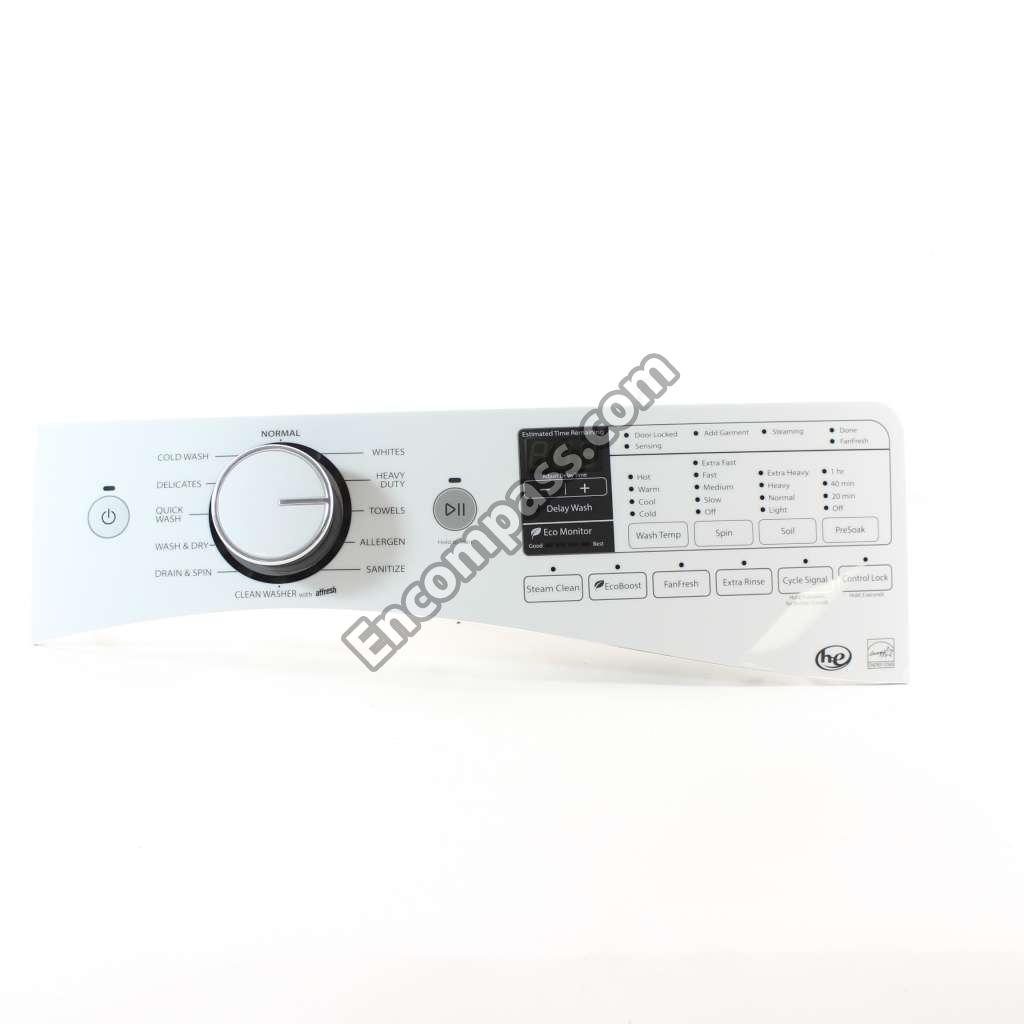

WPW10446408 WPW10446408 ASSEMBLY, CONSOLE (WHITE)
W10750482 W10750482 ASSEMBLY, IML (CHROME SHADOW)
W10750483 W10750483 ASSEMBLY, IML (SILVER)
W10814583 W10814583 ASSEMBLY, IML (WHITE)
WPW10631127 WPW10631127 ASSEMBLY, TIMER KNOB (GRAY)
W10631128 W10631128 ASSEMBLY, TIMER KNOB (SILVER)
W10875909 W10875909 ASSEMBLY, TIMER KNOB (WHITE)
W10510982 W10510982 BADGE (GREY)
W11178521 W11178521 BADGE (WHITE)
WPW10597205 WPW10597205 BAFFLE, TUB
W11106747 W11106747 BELLOW
W10763470 W10763470 BOLT, SHIPPING
WPW10467483 WPW10467483 BRACE, REAR
W10467484 W10467484 BRACE, TOP
W10237498 W10237498 BRACE, TRANSPORT
W10208197 W10208197 BRACKET, CONSOLE
W10838078 W10838078 BRACKET, MOUNTING
8572266 8572266 BUMPER, DOOR
W11166600 W11166600 CABINET (CHROME SHADOW)
W11166598 W11166598 CABINET (SILVER)
W10441107 W10441107 CABINET (SILVER)
W11166595 W11166595 CABINET (WHITE)
W11568579 W11568579 CAP, FILTER
WPW10208398 WPW10208398 CAP, HINGE
W10295703 W10295703 CLAMP, GLASS
W10128586 W10128586 CLAMP, GLASS SUPPORT
WP356138 WP356138 CLAMP, HOSE
WP596669 WP596669 CLAMP, HOSE
W10239910 W10239910 CLAMP, HOSE
W10353599 W10353599 CLAMP, HOSE
371499 371499 CLAMP, HOSE
WP285655 WP285655 CLAMP, HOSE
WP8540092 WP8540092 CLAMP, TUB
W10273034 W10273034 CLAMP, VENT HOSE
W10316388 W10316388 CLIP, HARNESS DIVERTER
WPW10181028 WPW10181028 CLIP, PRESSURE SWITCH HOSE
W10317566 W10317566 CLIP, SPRING

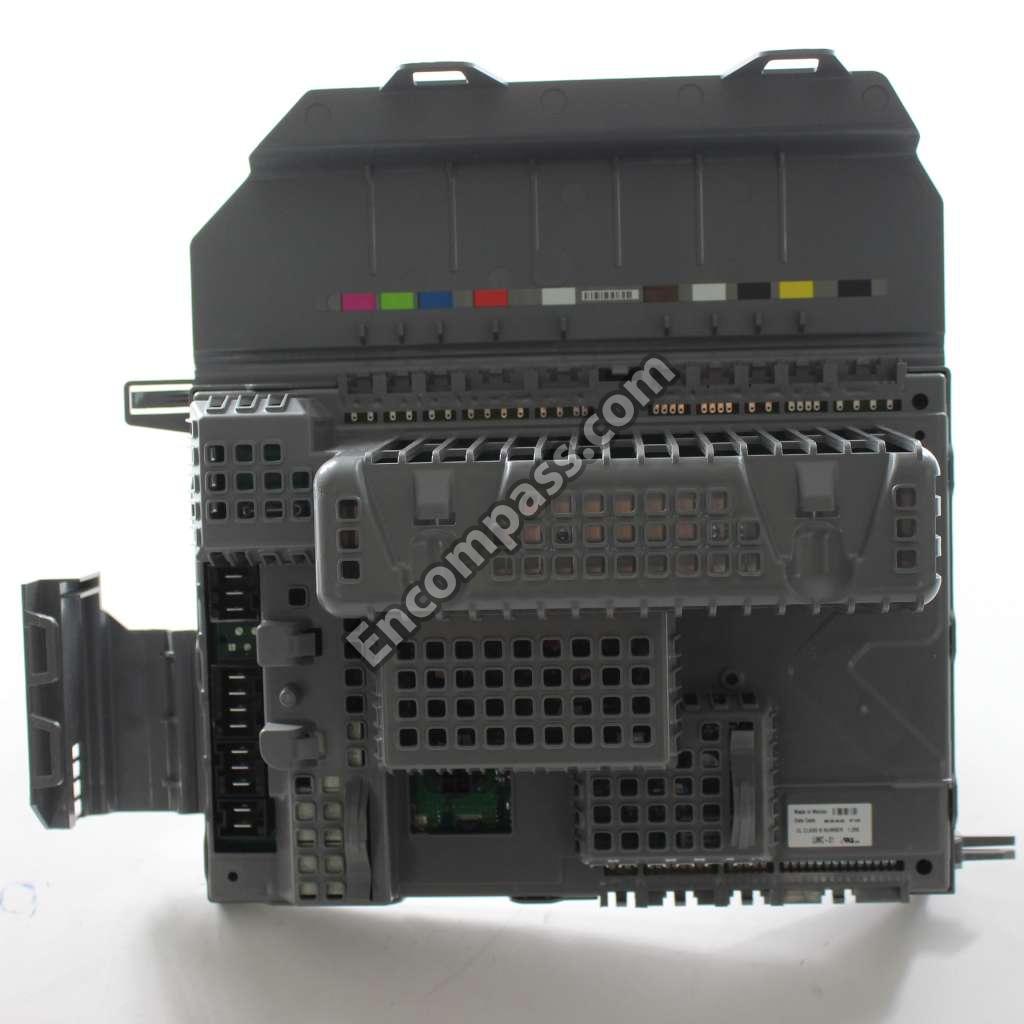

W11032117 W11032117 CONTROL UNIT, APPLIANCE
W10237535 W10237535 COUNTERWEIGHT, BOTTOM
W10253014 W10253014 COUNTERWEIGHT, TOP
W10304004 W10304004 COVER, POWER CORD
W10854051 W10854051 COVER, POWER CORD- TRANSPORT
WP8540268 WP8540268 COVER, TRANSPORT
W10208411 W10208411 DOOR HANDLE
W10636276 W10636276 DOOR INTERMEDIATE
W10860446 W10860446 DOOR, OUTER ASSEMBLY
WPW10562025 WPW10562025 DRAIN HOSE (INTERNAL)
WPW10365885 WPW10365885 DRAWER, DETERGENT (COMPLETE)
W10661542 W10661542 ENERGY GUIDE
WPW10261587 WPW10261587 FAN, VENTILATION ASSEMBLY
W11712579 W11712579 FILTER, ELEMENT
WPW10367632 WPW10367632 FILTER, INTERFERENCE
WPW10001130 WPW10001130 FOOT, FRONT
WPW10208275 WPW10208275 FRAME, DOOR BACK SUPPORT
W11222029 W11222029 GLASS, DOOR
8212452 8212452 GUARD-REAR
WPW10446405 WPW10446405 HANDLE, DRAWER (INCLUDES ITEM 4) (CHROME SHADOW)
W10502248 W10502248 HANDLE, DRAWER (INCLUDES ITEM 4) (SILVER)
WPW10446403 WPW10446403 HANDLE, DRAWER (INCLUDES ITEM 4) (WHITE)
W10685628 W10685628 HARNESS, MAIN (UPPER)
W10580186 W10580186 HARNESS, UI
W10746378 W10746378 HARNESS, WIRING (LOWER MAIN)
W10576399 W10576399 HEATER
WPW10208415 WPW10208415 HINGE, BASE
WPW10577787 WPW10577787 HOSE, BLACK
WPW10239966 WPW10239966 HOSE, DISPENSER TO BELLOW
W11281268 W11281268 HOSE, DRAIN (EXTERNAL)
WPW10577770 WPW10577770 HOSE, GREY
W11044559 W11044559 HOSE, PRESSURE SWITCH
W10435238 W10435238 HOSE, STEAM
W10575334 W10575334 HOUSING, DISPENSER ASSEMBLY (INCLUDES ITEMS 2, 3 AND 7)
W10631155 W10631155 INSTALLATION INSTRUCTIONS
WPW10443885 WPW10443885 LOCK, DOOR
WP3359452 WP3359452 NUT, HEX
WP8182512 WP8182512 NUT, PUSH-IN
W10656458 W10656458 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
W10268217 W10268217 PAINT, TOUCH-UP (1/2OZ. MERCURY SILVER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10441111 WPW10441111 PANEL, FRONT (CHROME SHADOW)
WPW10460695 WPW10460695 PANEL, FRONT (SILVER)
WPW10441116 WPW10441116 PANEL, FRONT (WHITE)
W11199206 W11199206 PANEL, REAR
W11183219 W11183219 PIPE, VENTILATION ASSEMBLY
WPW10208419 WPW10208419 PLATE, HINGE RETAINER
W11035353 W11035353 POWER CORD
WPW10605427 WPW10605427 PUMP (COMPLETE)
W11266654 W11266654 RETAINER, BELLOW (TO FRONT PANEL)
W11218344 W11218344 RETAINER, BELLOW TO TUB
W10245452 W10245452 RETAINER, SPRING
WPW10544980 WPW10544980 ROTOR, MOTOR
WPW10208270 WPW10208270 SCREEN, DOOR
WP8540282 WP8540282 SCREW
WP489464 WP489464 SCREW
WP3351614 WP3351614 SCREW
W11661566 W11661566 SCREW
W11230114 W11230114 SCREW
WP8534022 WP8534022 SCREW
W10589828 W10589828 SCREW
W10306501 W10306501 SCREW
W10208380 W10208380 SCREW, BUSH ASSEMBLY
W10261496 W10261496 SCREW, COUNTERWEIGHT
W11253212 W11253212 SCREW, ROTOR MOUNTING
WPW10253476 WPW10253476 SCREW, STATOR MOUNTING
W11673307 W11673307 SEAL, FILTER CAP
WPW10448876 WPW10448876 SENSOR, PRESSURE
WPW10467289 WPW10467289 SENSOR, TEMP
W11084830 W11084830 SEPARATOR, WITH SELECTION SLIDER
W10318155 W10318155 SHIELD, HEATER
W10870753 W10870753 SHIELD, MOTOR
W11415987 W11415987 SHOCK ABSORBER
WPW10365887 WPW10365887 SIPHON, BLEACH/SOFTENER
W10323182 W10323182 SPACER, FRONT PANEL
W11266650 W11266650 SPRING, SUSPENSION (SET OF 2)
WPW10657810 WPW10657810 STATOR, MOTOR
WPW10488048 WPW10488048 STRIKE, DOOR
W10602465 W10602465 TECH SHEET
WPW10339879 WPW10339879 TIE, CABLE
WPW10460693 WPW10460693 TOP (CHROME SHADOW)
WPW10316283 WPW10316283 TOP (SILVER)
WPW10208373 WPW10208373 TOP (WHITE)
W11099174 W11099174 TRIM RING, OUTER DOOR
WPW10409997 WPW10409997 TUB ASSEMBLY, DRUM
WPW10280024 WPW10280024 U-BEND, DRAIN HOSE
WPW10435242 WPW10435242 VALVE, INLET ASSEMBLY
WPW10568614 WPW10568614 VENT HOSE COUPLING ASSEMBLY
WPW10352818 WPW10352818 VENT TUBE AND COVER
WPW10653575 WPW10653575 WATER CHANNEL
