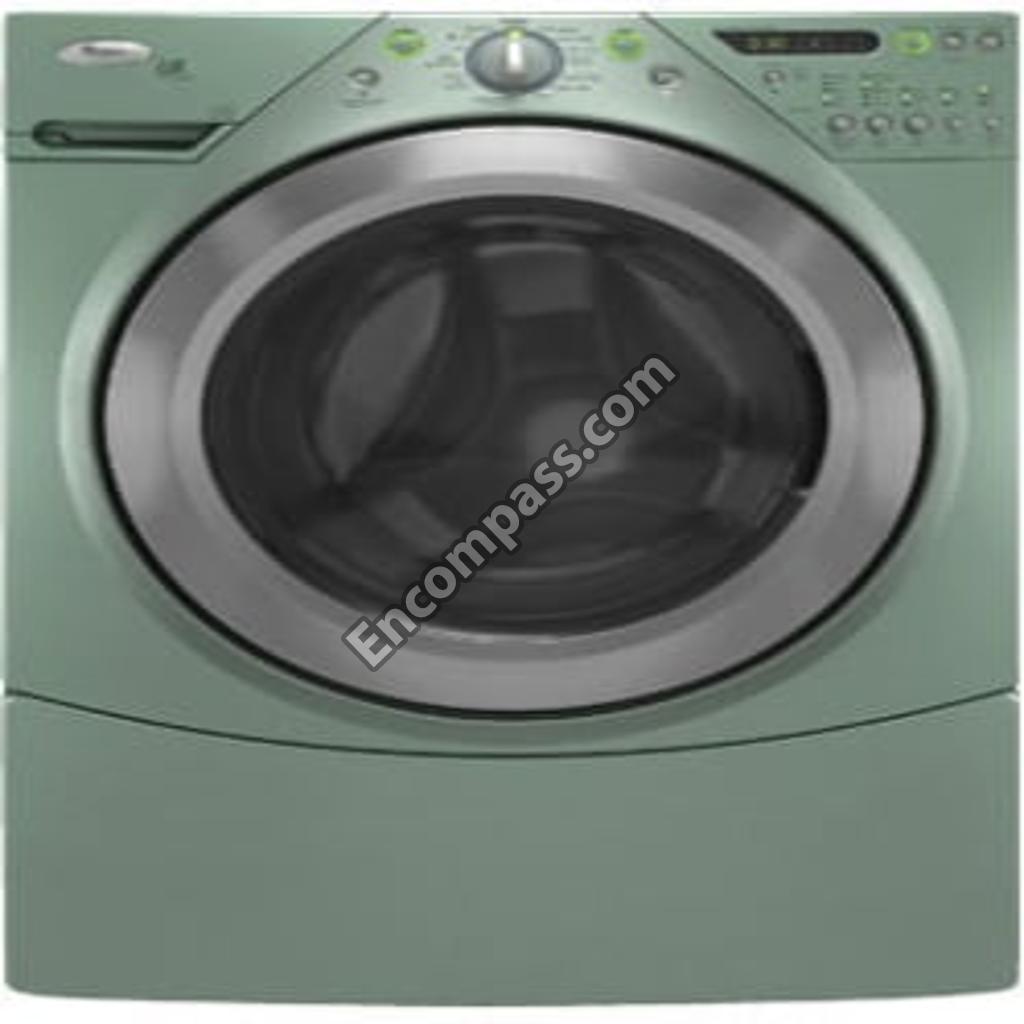

Model Image
Manufacturer

Whirlpool

Model Number

WFW9600TA02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
100000 100000 ACCESSORY PARTS
8183177 8183177 ADAPTER, ENCODER WHEEL
W10135699 W10135699 AFFRESH WASHER CLEANER
WP8181731 WP8181731 AIRTRAP
WPW10250572 WPW10250572 BAFFLE
W10121657 W10121657 BALL
WPW10269756 WPW10269756 BASKET, COMPLETE
WPW10388414 WPW10388414 BELT
W10289554A W10289554A BOLT
WPW10003040 WPW10003040 BRACE
W10250578 W10250578 BRACE
W10059240 W10059240 BRACE, FRONT TOP
8181632 8181632 BRACE, TOP
WPW10156617 WPW10156617 BRACKET
WP8181763 WP8181763 BRACKET
W10250558 W10250558 BRACKET
8183208 8183208 BRACKET, TRIM FIXATION (LEFT)
8183209 8183209 BRACKET, TRIM FIXATION (RIGHT)
W10250656 W10250656 CABINET
W10250659 W10250659 CABINET
WP8183184 WP8183184 CAM
8183027 8183027 CAP, FILTER
WP285655 WP285655 CLAMP
WP696392 WP696392 CLAMP
WP8540092 WP8540092 CLAMP
WP489503 WP489503 CLAMP
W10902779 W10902779 CLAMP
WP8182210 WP8182210 CLAMP
WP3367052 WP3367052 CLAMP
8540010 8540010 CLAMP
W10295703 W10295703 CLAMP, GLASS (2)
W10128586 W10128586 CLAMP, GLASS SUPPORT
WP8183210 WP8183210 CLIP
8182701 8182701 CLIP, OUTER HOSE HOLDER
8182702 8182702 CLIP, OUTER HOSE HOLDER
WP8181738 WP8181738 CONNECTOR
W10157776 W10157776 CONSOLE
W10157801 W10157801 CONSOLE
WP8183196 WP8183196 CONTROL BOARD

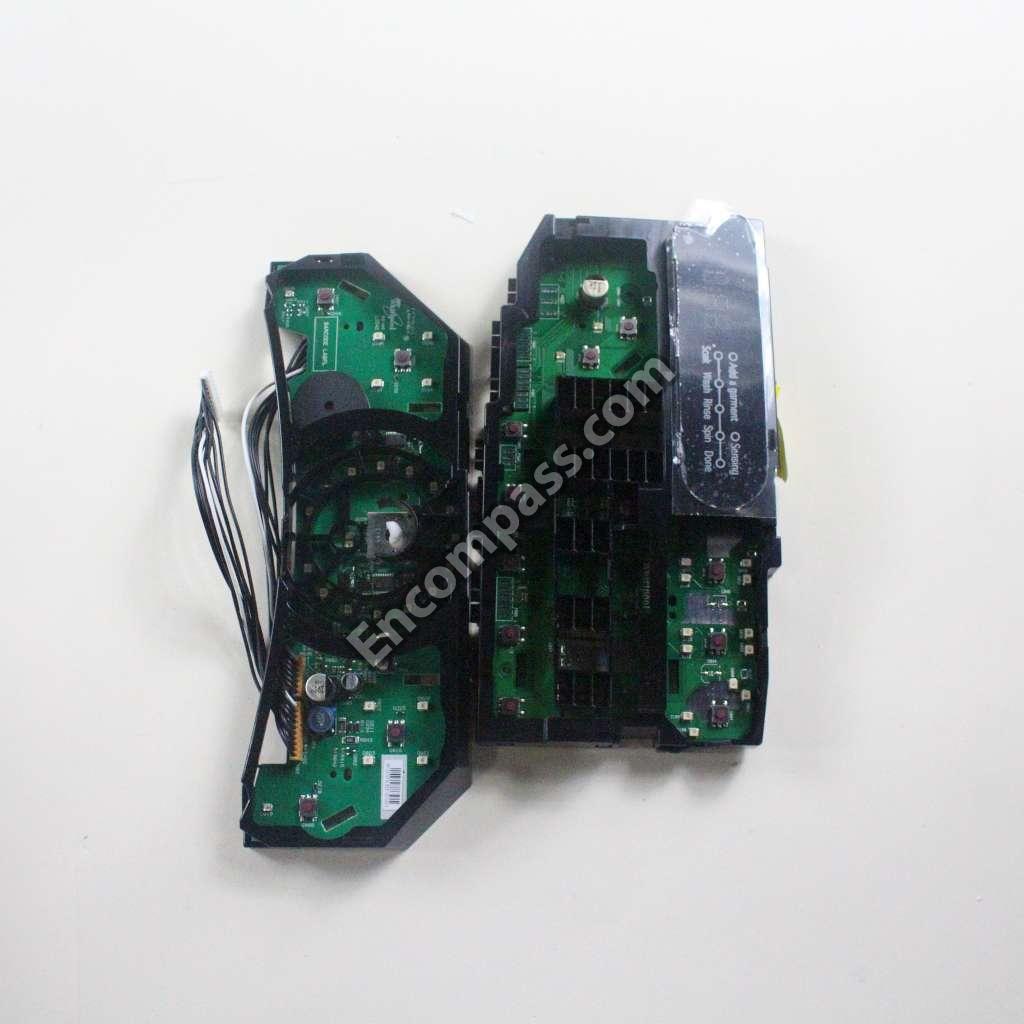

W10319814 W10319814 CONTROL BOARD
WP8181644 WP8181644 COUNTERWEIGHT, REAR
WPW10008880 WPW10008880 COUNTERWGT
WP8540268 WP8540268 COVER
W10003140 W10003140 COVER, DETERGENT DRAWER
W10157775 W10157775 DISPENSER
WPW10157759 WPW10157759 DISPENSER, COMPLETE (INCLUDES ITEM 9)
WP8183204 WP8183204 DIVERTER
WPW10121596 WPW10121596 DIVIDER
WP8183270 WP8183270 DOOR LATCH
WPW10135912 WPW10135912 DOOR-GLASS
285863 285863 DRAIN EXTENSION
WPW10157760 WPW10157760 DRAWER, DETERGENT (COMPLETE)
WP8182793 WP8182793 DRIVE MOTOR
W10222190 W10222190 ENERGY GUIDE
WP8181636 WP8181636 FEET-LVLNG
WPW10367632 WPW10367632 FILTER
WPW10110225 WPW10110225 FLOWMETER
WP8183256 WP8183256 FRAME
WPW10003370 WPW10003370 FRAME
WPW10526202 WPW10526202 GROMMET
W11116978 W11116978 GROMMET
W10338326 W10338326 GROMMET, DAMPER (REAR)
8212452 8212452 GUARD-REAR
W10156628 W10156628 HANDLE
W10156625 W10156625 HANDLE
W10250574 W10250574 HARNS-WIRE
W10250575 W10250575 HARNS-WIRE
WPW10249844 WPW10249844 HEATER
WP8183202 WP8183202 HINGE
WPW10003250 WPW10003250 HOSE
WPW10467168 WPW10467168 HOSE
WP8540015 WP8540015 HOSE
WP8181743 WP8181743 HOSE
WP8181710 WP8181710 HOSE
WPW10005300 WPW10005300 HOSE
WP8181737 WP8181737 HOSE
WPW10004260 WPW10004260 HOSE
8183182 8183182 HOSE, FLOWMETER (L-SHAPED)
8183180 8183180 HOSE, INLET NOZZLE
WP89503 WP89503 HOSE-FILL
WPW10131369 WPW10131369 KNOB
W10166961 W10166961 KNOB
WPW10161052 WPW10161052 LEVER
WP8183183 WP8183183 LEVER
8183253 8183253 MEDALLION
W10249839 W10249839 MICROCOMPUTER, MACHINE CONTROL
WP8181712 WP8181712 NOZZLE
WP8183181 WP8183181 NOZZLE
WP8182512 WP8182512 NUT
WPW10283361 WPW10283361 NUT
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
8181635 8181635 PAN, BOTTOM
W10166920 W10166920 PANEL
8183151 8183151 PANEL, FRONT (WHITE)
WPW10242507 WPW10242507 PANEL, REAR
W11193815 W11193815 PLATE
WP8183009 WP8183009 POWER CORD
WP8182650 WP8182650 PULLEY
WP8181721 WP8181721 RETAINER
WPW10012440 WPW10012440 RETAINER
WPW10280024 WPW10280024 RETAINER
W10121609 W10121609 RETAINER
W10121610 W10121610 RETAINER
8182209 8182209 RETAINER, DRAIN HOSE
WPW10012410 WPW10012410 RING
WPW10250553 WPW10250553 RING-O
WPW10069120 WPW10069120 RING-TRIM
W10160019 W10160019 RING-TRIM
W10160030 W10160030 RING-TRIM
WP8183255 WP8183255 SCREEN, DOOR
8181785 8181785 SCREW
WP8181660 WP8181660 SCREW
WP8540282 WP8540282 SCREW
W11230114 W11230114 SCREW
WP8540725 WP8540725 SCREW
WP488729 WP488729 SCREW
W10157885 W10157885 SCREW
W10128585 W10128585 SCREW
8182201 8182201 SCREW, 3 X 8 MM
W10182109 W10182109 SCREW-KIT
WP8181736 WP8181736 SEAL
WP8181747 WP8181747 SEAL
W10249843 W10249843 SEAL
8181829 8181829 SEAL, NTC
WPW10467289 WPW10467289 SENSOR
W10822553 W10822553 SHOCK-ABSR
W10138249 W10138249 SPACER
W10135004 W10135004 SPRING
38005 38005 STACK KIT
8182635 8182635 STRAIN RELIEF
WPW10488048 WPW10488048 STRIKE
WPW10085220 WPW10085220 SWITCH
WPW10352973 WPW10352973 SWITCH-DIS
W10250503 W10250503 TECH SHEET
WPW10166921 WPW10166921 TOE PANEL (ASPEN)
8181643 8181643 TOE PANEL (WHITE)
WPW10166922 WPW10166922 TOP (ASPEN)
8181799 8181799 TOP (WHITE)

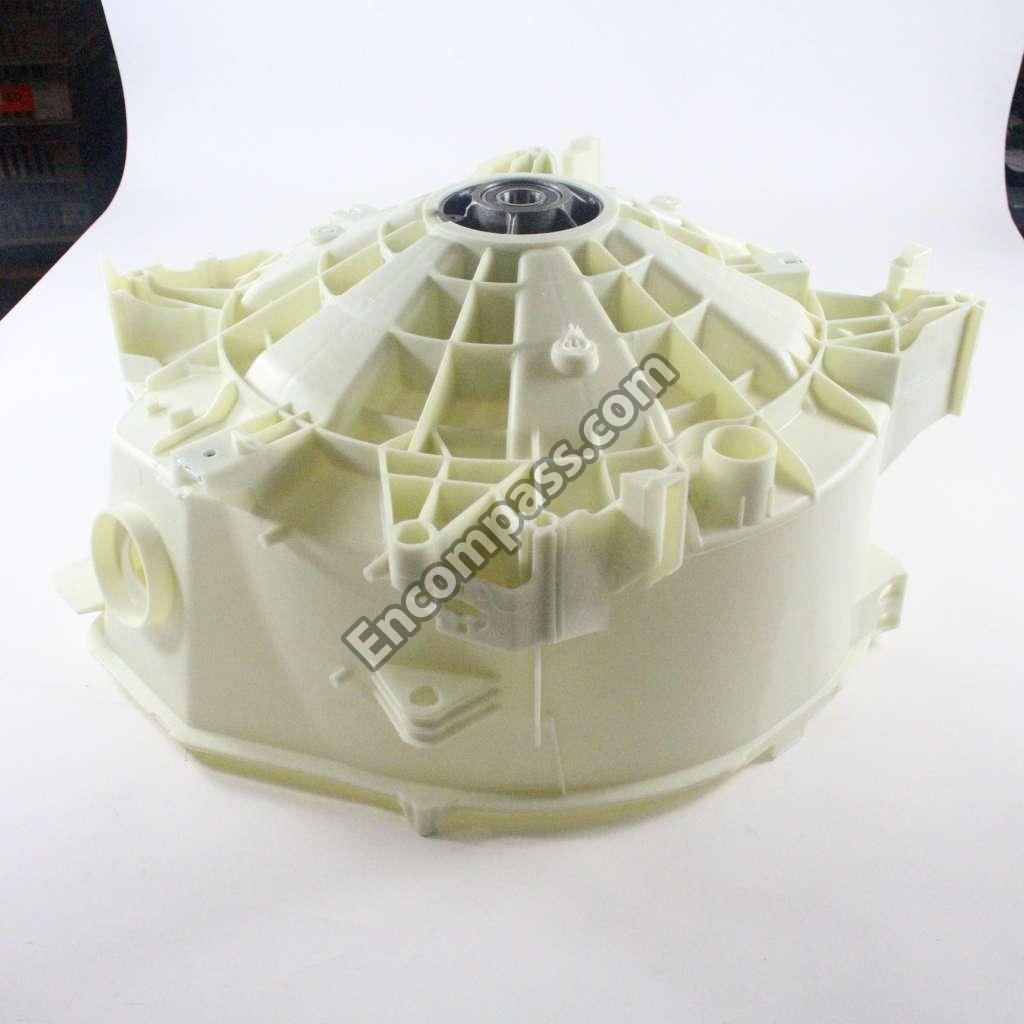

W10772613 W10772613 TUB-OUTER
W10772615 W10772615 TUB-OUTER
W10157756 W10157756 TUCHUP
W10158198 W10158198 USE & CARE GUIDE
W10164402 W10164402 USER INTERFACE, CENTER

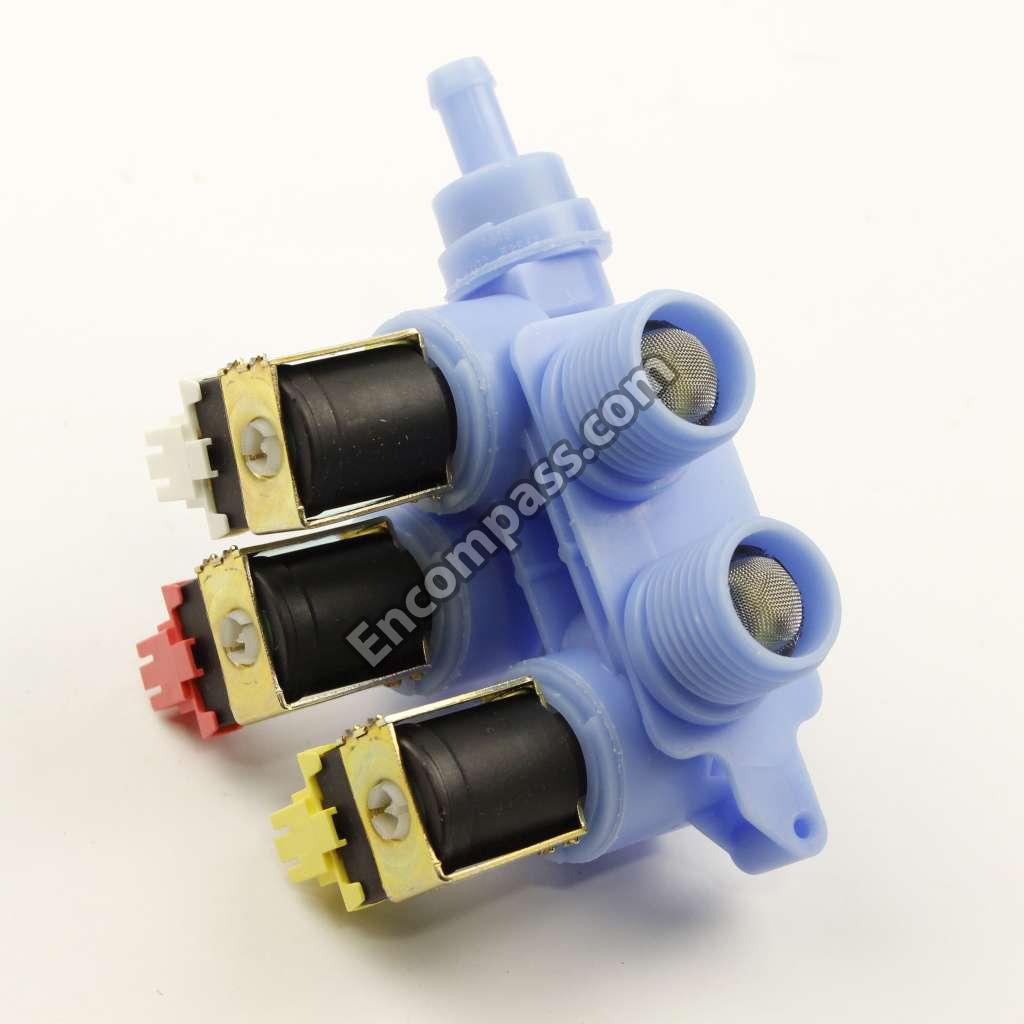

WPW10247305 WPW10247305 VALVE
W10249838 W10249838 VENT-PIPE
WP8182119 WP8182119 WASHER DOOR BELLOW
WPW10249845 WPW10249845 WATER LEVEL SWITCH
280187 280187 WATER PUMP
W10131381 W10131381 WHEEL
W10133927 W10133927 WHEEL
WPW10189680 WPW10189680 WIRE HARNESS
WPW10250577 WPW10250577 WIRE HARNESS
