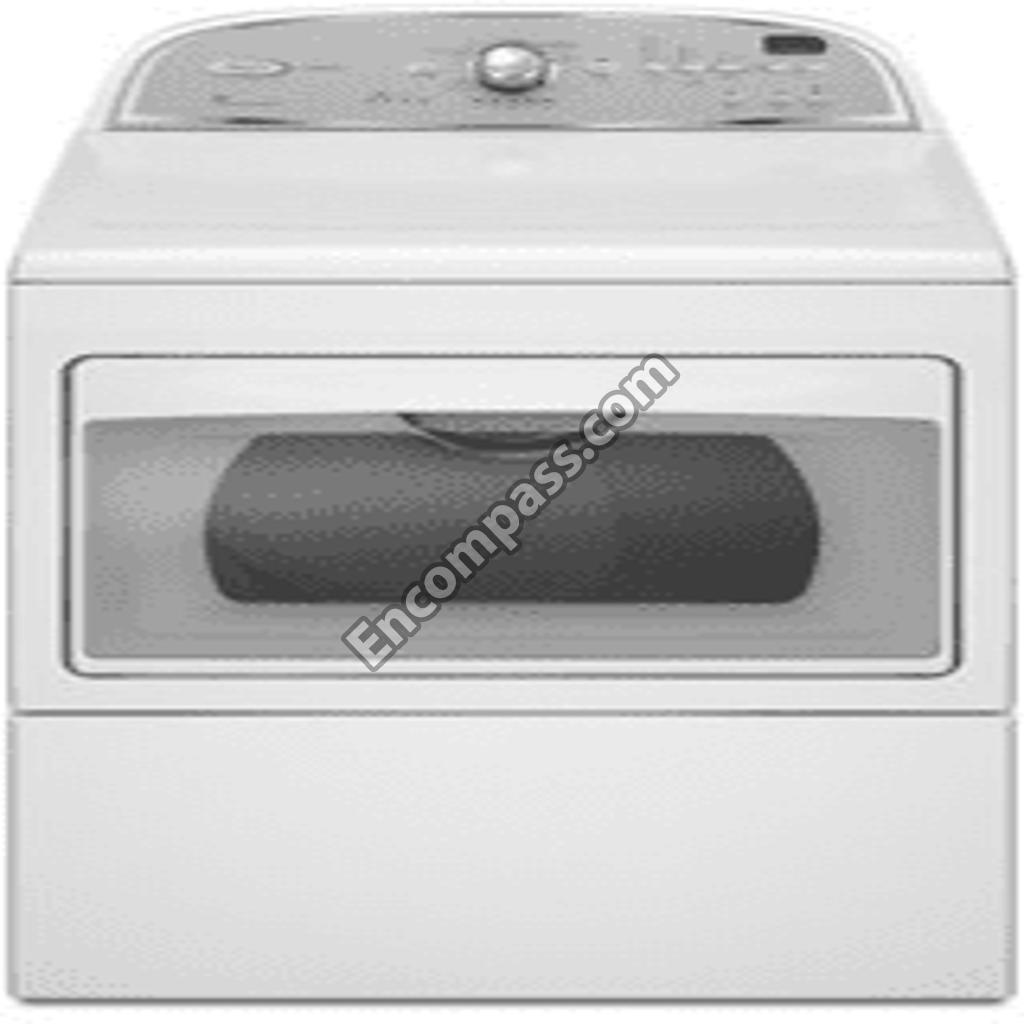

Model Image
Manufacturer

Whirlpool

Model Number

WGD5700XW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10545923 W10545923 ASSEMBLY, DRUM
WPW10113136 WPW10113136 BAFFLE-DRM
3389871 3389871 BASE, BURNER
661570 661570 BELT
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
W10837240 W10837240 BRACKET
W11481730 W11481730 BRACKET
W10181903 W10181903 BRACKET, BURNER
8541400 8541400 BRACKET, CABINET
694538 694538 BRACKET, COIL
8578825 8578825 BRACKET, LIGHT
WP697557 WP697557 BULKHEAD
W11299301 W11299301 BULKHEAD
693152 693152 BUMPER
WP693140 WP693140 BURNER
280119 280119 BURNER-GAS
W11417441 W11417441 CABINET
W10292891 W10292891 CABINET
W11226088 W11226088 CAMERA LENS
WP660658 WP660658 CLAMP
3387561 3387561 CLAMP, PIPE
W11684573 W11684573 CLIP
WPW10291934 WPW10291934 CLIP
WP8536939 WP8536939 CLIP
WP8312709 WP8312709 CLIP
WP3394427 WP3394427 CLIP
279834 279834 COIL-VALVE
WPW10293251 WPW10293251 CONSOLE
W10269611 W10269611 CONSOLE
WPW10214008 WPW10214008 CONTROL BOARD
WPW10269626 WPW10269626 CONTROL BOARD
WPW10354249 WPW10354249 COVER
W10297565 W10297565 COVER
WP8573713 WP8573713 CUTOFF-TML
W11376676 W11376676 DOOR
W11222846 W11222846 DOOR
W10284124 W10284124 DOOR
W10284142 W10284142 DOOR
W10284133 W10284133 DOOR
279570 279570 DOOR LATCH
279787 279787 DRIVE MOTOR
WPW10293765 WPW10293765 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
49621 49621 FEET-LVLNG
WP8573824 WP8573824 FUNNEL
WP3392519 WP3392519 FUSE-THRML
WPW10118347 WPW10118347 GAS VALVE
W11086603 W11086603 GRILL-OUT
W11219327 W11219327 GRILL-OUT
W10274524 W10274524 GROMMET
W10096985 W10096985 GUIDE, USE & CARE
WPW10284093 WPW10284093 HANDLE
W10285494 W10285494 HARNS-WIRE
W10287253 W10287253 HARNS-WIRE
W10305870 W10305870 HARNS-WIRE
W11371722 W11371722 HINGE
W11376139 W11376139 HINGE
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
W10096984 W10096984 INSTALLATION (INSTRUCTIONS)
346764A 346764A KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
W11581317 W11581317 KIT, LP GAS DRYER CONVERSION
WPW10251394 WPW10251394 KNOB
WP22002263 WP22002263 LIGHT BULB
WP694424 WP694424 LIMITER
W10271580 W10271580 MOUNT
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
W11213336 W11213336 NUT
WP15418 WP15418 ORIFCE-GAS
WP229742 WP229742 ORIFCE-GAS
15422 15422 ORIFICE, BURNER (TYPE 4) (BUTANE)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
279659 279659 PANEL
W10292893 W10292893 PANEL
W10096969 W10096969 PANEL-REAR
W10295523 W10295523 PIPE PLUG
279936 279936 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
W10279552 W10279552 PLUG
WPW10404617 WPW10404617 PLUG
W11222083 W11222083 POWER CORD
279640 279640 PULLEY-IDR
W10837625 W10837625 PULLEY-MTR
WP3391912 WP3391912 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
4392067 4392067 REPAIR-DYR
WP3388229 WP3388229 RETAINER
W10284119 W10284119 RETAINER
W10284120 W10284120 RETAINER
WPW10512946 WPW10512946 RING
W10120998 W10120998 SCREEN
WP3373329 WP3373329 SCREW
WPW10366705 WPW10366705 SCREW
WP489463 WP489463 SCREW
WP3387230 WP3387230 SCREW
WP308685 WP308685 SCREW
W10891954 W10891954 SCREW
W10850756 W10850756 SCREW
WP681414 WP681414 SCREW
WP3389420 WP3389420 SCREW
WP3395530 WP3395530 SCREW
W10853898 W10853898 SCREW
WP90767 WP90767 SCREW
WP488729 WP488729 SCREW
WP693995 WP693995 SCREW
694421 694421 SCREW, 8-32 X 1/2 (2)
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
W10280079 W10280079 SEAL
W10312811 W10312811 SEAL
W10336128 W10336128 SEAL
W11676508 W11676508 SEAL
WPW10354795 WPW10354795 SEAL-DOOR
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11222979 W11222979 SOCKET
W10123956 W10123956 SOUND ABSR
W10325119 W10325119 SPACER
WP694422 WP694422 SPRING
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
WP3387565 WP3387565 SPRNG-DOOR
WPW10314173 WPW10314173 SUPPORT
WPW10411937 WPW10411937 SWITCH
WP3406107 WP3406107 SWITCH-DOR
W10097034 W10097034 TECH SHEET
WP94614 WP94614 TERMINAL
WP8577274 WP8577274 THERMISTOR
WP3391018 WP3391018 TIE-WIRE
WP3406797 WP3406797 TOEPNL
W10292896 W10292896 TOEPNL
W11641121 W11641121 TOP
W10268729 W10268729 TOP
W10268217 W10268217 TUCHUP
W10470674 W10470674 VENT KIT
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
WP697772 WP697772 WHEEL
WPW10284121 WPW10284121 WINDOW
W10284116 W10284116 WINDOW, OUTER WINDOW
WP3401707 WP3401707 WIRE
WPW10298258 WPW10298258 WIRE HARNESS
