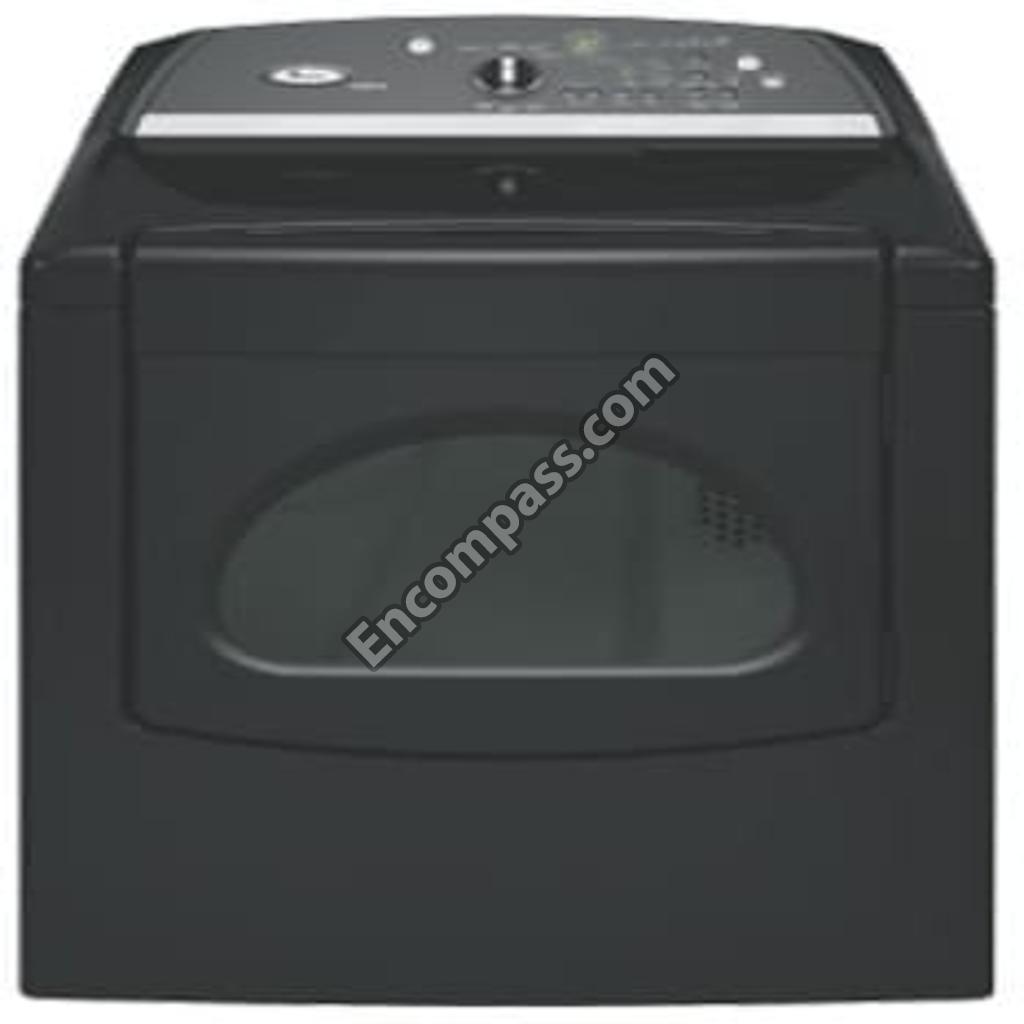

Model Image
Manufacturer

WHI

Model Number

WGD6400SB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part W11224254
Whirlpool
W11224254
ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
Checking…
View Product
Part 8565688
Whirlpool
8565688
BAFFLE, DRUM (3)
Checking…
View Product
Part WP8547166
Whirlpool
WP8547166
BASE
Checking…
View Product
Part 8544751
Whirlpool
8544751
BASE, BURNER
Checking…
View Product
Part WP8547168
Whirlpool
WP8547168
BELT
Checking…
View Product
Part 8578538
Whirlpool
8578538
BELT RESTRAINER
Checking…
View Product
Part WP8544803
Whirlpool
WP8544803
BOX, HEATER
Checking…
View Product
Part WP694298
Whirlpool
WP694298
BRACKET
Checking…
View Product
Part W10053480
Whirlpool
W10053480
BRACKET
Checking…
View Product
Part 8182790
Whirlpool
8182790
BRACKET, COIL
Checking…
View Product
Part 8558863
Whirlpool
8558863
BRACKET, CONSOLE
Checking…
View Product
Part 3977373
Whirlpool
3977373
BRACKET, DRUM LIGHT
Checking…
View Product
Part 8563853
Whirlpool
8563853
BRACKET, MACHINE CONTROLLER
Checking…
View Product
Part 8564011
Whirlpool
8564011
BRACKET, SWITCH
Checking…
View Product
Part WP8557242
Whirlpool
WP8557242
BULKHEAD
Checking…
View Product
Part 8558890
Whirlpool
8558890
BULKHEAD, FRONT
Checking…
View Product
Part WP693140
Whirlpool
WP693140
BURNER
Checking…
View Product
Part WP8557890
Whirlpool
WP8557890
BURNER, ASSEMBLY 60 HZ (SEE PAGES 7 & FOR FURTHER BURNER BREAKDOWN)
Checking…
View Product
Part 8563673
Whirlpool
8563673
CABINET
Checking…
View Product
Part W10110409
Whirlpool
W10110409
CABINET
Checking…
View Product
Part WP8563672
Whirlpool
WP8563672
CABINET (WHITE)
Checking…
View Product
Part W11226088
Whirlpool
W11226088
CAMERA LENS
Checking…
View Product
Part WPW10111905
Whirlpool
WPW10111905
CATCH
Checking…
View Product
Part WP660658
Whirlpool
WP660658
CLAMP
Checking…
View Product
Part W10854425
Whirlpool
W10854425
CLIP
Checking…
View Product
Part WP3394427
Whirlpool
WP3394427
CLIP
Checking…
View Product
Part 8546149
Whirlpool
8546149
CLIP-HEATER BOX
Checking…
View Product
Part 279834
Whirlpool
279834
COIL-VALVE
Checking…
View Product
Part 8544810
Whirlpool
8544810
COLLAR, LINT CHUTE
Checking…
View Product
Part WP3403498
Whirlpool
WP3403498
CONNECTOR
Checking…
View Product
Part WP3403499
Whirlpool
WP3403499
CONNECTOR
Checking…
View Product
Part 3936144
Whirlpool
3936144
CONNECTOR
Checking…
View Product
Part 3395683
Whirlpool
3395683
CONNECTOR (MOTOR)
Checking…
View Product
Part 3347243
Whirlpool
3347243
CONNECTOR 6-CIRCUIT
Checking…
View Product
Part 3401144
Whirlpool
3401144
CONNECTOR, (PTS RELAY)
Checking…
View Product
Part 353424
Whirlpool
353424
CONNECTOR, SENSOR
Checking…
View Product
Part W10110328
Whirlpool
W10110328
CONSOLE
Checking…
View Product
Part WPW10111617
Whirlpool
WPW10111617
CONTROL BOARD
Checking…
View Product
Part WP8563974
Whirlpool
WP8563974
CONTROL BOARD
Checking…
View Product
Part 49572A
Whirlpool
49572A
CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
Checking…
View Product
Part W11736322
Whirlpool
W11736322
COVER
Checking…
View Product
Part W10168229
Whirlpool
W10168229
COVER
Checking…
View Product
Part W10044360
Whirlpool
W10044360
COVER
Checking…
View Product
Part W10168227
Whirlpool
W10168227
COVER, LINT SCREEN
Checking…
View Product
Part 8564265
Whirlpool
8564265
COVER, REAR (UI ASSEMBLY)
Checking…
View Product
Part 677818L
Whirlpool
677818L
DIY
Checking…
View Product
Part W10116926
Whirlpool
W10116926
DOOR
Checking…
View Product
Part W10116925
Whirlpool
W10116925
DOOR
Checking…
View Product
Part W10116927
Whirlpool
W10116927
DOOR
Checking…
View Product
Part WP8565037
Whirlpool
WP8565037
DOOR INNER (WHITE)
Checking…
View Product
Part W10702726
Whirlpool
W10702726
DOOR SWITCH ASSEMBLY
Checking…
View Product
Part WPW10463866
Whirlpool
WPW10463866
DRIVE MOTOR
Checking…
View Product
Part W10549615
Whirlpool
W10549615
DRUM
Checking…
View Product
Part W10071550
Whirlpool
W10071550
DRY RACK
Checking…
View Product
Part 49621
Whirlpool
49621
FEET-LVLNG
Checking…
View Product
Part 100000
Whirlpool
100000
FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
Checking…
View Product
Part WP8066049
Whirlpool
WP8066049
FUNNEL
Checking…
View Product
Part WP3392519
Whirlpool
WP3392519
FUSE-THRML
Checking…
View Product
Part WP8573072
Whirlpool
WP8573072
GAS VALVE
Checking…
View Product
Part W10076060
Whirlpool
W10076060
GASKET
Checking…
View Product
Part WP8565015
Whirlpool
WP8565015
GLASS, INNER DOOR
Checking…
View Product
Part W10054090
Whirlpool
W10054090
GUIDE, QUICK START
Checking…
View Product
Part W10119087
Whirlpool
W10119087
HANDLE
Checking…
View Product
Part W10111247
Whirlpool
W10111247
HANDLE
Checking…
View Product
Part W10111248
Whirlpool
W10111248
HANDLE
Checking…
View Product
Part 8539889
Whirlpool
8539889
HARNESS, FLAME SWITCH
Checking…
View Product
Part W10111432
Whirlpool
W10111432
HARNS-WIRE
Checking…
View Product
Part WP8066217
Whirlpool
WP8066217
HINGE
Checking…
View Product
Part WP8565018
Whirlpool
WP8565018
HINGE
Checking…
View Product
Part WPW10044470
Whirlpool
WPW10044470
HINGE
Checking…
View Product
Part WPW10044480
Whirlpool
WPW10044480
HINGE
Checking…
View Product
Part W10050050
Whirlpool
W10050050
HINGE
Checking…
View Product
Part W10050090
Whirlpool
W10050090
HINGE
Checking…
View Product
Part 8578560
Whirlpool
8578560
HOLE, PLUG
Checking…
View Product
Part WP8577230
Whirlpool
WP8577230
HOUSING
Checking…
View Product
Part 279311
Whirlpool
279311
IGNITOR
Checking…
View Product
Part 8539897
Whirlpool
8539897
JUMPER, (BELT SWITCH)
Checking…
View Product
Part 4392065
Whirlpool
4392065
KIT, DRYER REPAIR
Checking…
View Product
Part 346764A
Whirlpool
346764A
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
Checking…
View Product
Part W11050897
Whirlpool
W11050897
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
Checking…
View Product
Part WP8574957
Whirlpool
WP8574957
KNOB
Checking…
View Product
Part WP22002263
Whirlpool
WP22002263
LIGHT BULB
Checking…
View Product
Part WP694424
Whirlpool
WP694424
LIMITER
Checking…
View Product
Part WP8544805
Whirlpool
WP8544805
LINT CHUTE ASSEMBLY
Checking…
View Product
Part W10054080
Whirlpool
W10054080
LIT-U GUIDE GAS **NLA*
Checking…
View Product
Part WP8576625
Whirlpool
WP8576625
LOCK
Checking…
View Product
Part WP8568303
Whirlpool
WP8568303
LOCK
Checking…
View Product
Part WPW10080190
Whirlpool
WPW10080190
NUT
Checking…
View Product
Part WPW10080210
Whirlpool
WPW10080210
NUT
Checking…
View Product
Part WP308499
Whirlpool
WP308499
NUT
Checking…
View Product
Part W10007520
Whirlpool
W10007520
NUT
Checking…
View Product
Part WP229742
Whirlpool
WP229742
ORIFCE-GAS
Checking…
View Product
Part WP234826
Whirlpool
WP234826
ORIFCE-GAS
Checking…
View Product
Part WP234868
Whirlpool
WP234868
ORIFCE-GAS
Checking…
View Product
Part 18849
Whirlpool
18849
PAD, TOP HINGE
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT, BULK (1 QT.) (WHITE (UNCUT))
Checking…
View Product
Part 285006
Whirlpool
285006
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
Checking…
View Product
Part 350930
Whirlpool
350930
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
Checking…
View Product
Part 4392901
Whirlpool
4392901
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
Checking…
View Product
Part 350938
Whirlpool
350938
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GREY)
Checking…
View Product
Part 72032
Whirlpool
72032
PAINT, TOUCH-UP (1/2OZ. BLACK)
Checking…
View Product
Part 72017
Whirlpool
72017
PAINT, TOUCH-UP (1/2OZ. WHITE)
Checking…
View Product
Part 4392899
Whirlpool
4392899
PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
Checking…
View Product
Part W10174289
Whirlpool
W10174289
PANEL
Checking…
View Product
Part WPW10110330
Whirlpool
WPW10110330
PANEL, CONSOLE (BLACK)
Checking…
View Product
Part WPW10110325
Whirlpool
WPW10110325
PANEL, CONSOLE (WHITE)
Checking…
View Product
Part W10174290
Whirlpool
W10174290
PANEL, FRONT (INCLUDES ILLUS. 34) (BLACK)
Checking…
View Product
Part W10174287
Whirlpool
W10174287
PANEL, FRONT (INCLUDES ILLUS. 34) (WHITE)
Checking…
View Product
Part WP8558830
Whirlpool
WP8558830
PANEL-REAR
Checking…
View Product
Part W10811916
Whirlpool
W10811916
PLUG
Checking…
View Product
Part WP3404413
Whirlpool
WP3404413
PLUG
Checking…
View Product
Part 717252
Whirlpool
717252
PLUG, 2-WAY TERMINAL
Checking…
View Product
Part 8573005
Whirlpool
8573005
PLUG, FRONT PANEL (BISCUIT)
Checking…
View Product
Part 8573008
Whirlpool
8573008
PLUG, FRONT PANEL (BLACK)
Checking…
View Product
Part WP3404415
Whirlpool
WP3404415
PLUG-HOLE (BISCUIT)
Checking…
View Product
Part WP3404416
Whirlpool
WP3404416
PLUG-HOLE (BLACK)
Checking…
View Product
Part W11222083
Whirlpool
W11222083
POWER CORD
Checking…
View Product
Part 8547174
Whirlpool
8547174
PULLEY-IDR
Checking…
View Product
Part WP8066184
Whirlpool
WP8066184
PULLEY-MTR
Checking…
View Product
Part WP694423
Whirlpool
WP694423
REGULATOR
Checking…
View Product
Part WPW10512946
Whirlpool
WPW10512946
RING
Checking…
View Product
Part WP8572270
Whirlpool
WP8572270
SCREEN
Checking…
View Product
Part WPW10366705
Whirlpool
WPW10366705
SCREW
Checking…
View Product
Part WPW10109200
Whirlpool
WPW10109200
SCREW
Checking…
View Product
Part WP488729
Whirlpool
WP488729
SCREW
Checking…
View Product
Part WP90767
Whirlpool
WP90767
SCREW
Checking…
View Product
Part WP489463
Whirlpool
WP489463
SCREW
Checking…
View Product
Part WP488627
Whirlpool
WP488627
SCREW
Checking…
View Product
Part WP3389420
Whirlpool
WP3389420
SCREW
Checking…
View Product
Part WP693995
Whirlpool
WP693995
SCREW
Checking…
View Product
Part WP3390631
Whirlpool
WP3390631
SCREW
Checking…
View Product
Part W10850756
Whirlpool
W10850756
SCREW
Checking…
View Product
Part WP681414
Whirlpool
WP681414
SCREW
Checking…
View Product
Part WP3196557
Whirlpool
WP3196557
SCREW
Checking…
View Product
Part WP33001882
Whirlpool
WP33001882
SCREW
Checking…
View Product
Part WP4449745
Whirlpool
WP4449745
SCREW
Checking…
View Product
Part W10002600
Whirlpool
W10002600
SCREW
Checking…
View Product
Part W10100830
Whirlpool
W10100830
SCREW
Checking…
View Product
Part 694421
Whirlpool
694421
SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
Checking…
View Product
Part 8558853
Whirlpool
8558853
SCREW, GROMMET (2)
Checking…
View Product
Part 280140
Whirlpool
280140
SEAL
Checking…
View Product
Part W11415783
Whirlpool
W11415783
SEAL
Checking…
View Product
Part W10044490
Whirlpool
W10044490
SEAL
Checking…
View Product
Part 8544813
Whirlpool
8544813
SEAL, LINT CHUTE
Checking…
View Product
Part W10239307
Whirlpool
W10239307
SEAL-DOOR
Checking…
View Product
Part WP338906
Whirlpool
WP338906
SENSOR
Checking…
View Product
Part WP8576468
Whirlpool
WP8576468
SENSOR
Checking…
View Product
Part WPW10359272
Whirlpool
WPW10359272
SHAFT
Checking…
View Product
Part WPW10359271
Whirlpool
WPW10359271
SHAFT
Checking…
View Product
Part 8573836
Whirlpool
8573836
SHIELD, EXHAUST
Checking…
View Product
Part W11700522
Whirlpool
W11700522
SOCKET
Checking…
View Product
Part WP694422
Whirlpool
WP694422
SPRING
Checking…
View Product
Part WPW10446781
Whirlpool
WPW10446781
SPRING
Checking…
View Product
Part W10295405
Whirlpool
W10295405
STRIKE
Checking…
View Product
Part WPW10314173
Whirlpool
WPW10314173
SUPPORT
Checking…
View Product
Part WP8566208
Whirlpool
WP8566208
SWITCH-PLG
Checking…
View Product
Part WP596797
Whirlpool
WP596797
TERMINAL
Checking…
View Product
Part WP94614
Whirlpool
WP94614
TERMINAL
Checking…
View Product
Part WP8577274
Whirlpool
WP8577274
THERMISTOR
Checking…
View Product
Part 8565027
Whirlpool
8565027
TOP (BISCUIT)
Checking…
View Product
Part 8565028
Whirlpool
8565028
TOP (BLACK)
Checking…
View Product
Part 8565025
Whirlpool
8565025
TOP (WHITE)
Checking…
View Product
Part W11236646
Whirlpool
W11236646
WASHER
Checking…
View Product
Part 487596
Whirlpool
487596
WASHER (TOP/CHUTE)
Checking…
View Product
Part WP694089
Whirlpool
WP694089
WHEEL
Checking…
View Product
Part 8575050
Whirlpool
8575050
WINDOW OUTER (BISCUIT)
Checking…
View Product
Part 8575049
Whirlpool
8575049
WINDOW OUTER (BLACK)
Checking…
View Product
Part WP8575030
Whirlpool
WP8575030
WINDOW OUTER (WHITE)
Checking…
View Product
Part W10054160
Whirlpool
W10054160
WIRING DIAGRAM
Checking…
View Product
    Main Menu x
