Model Image
Manufacturer

Whirlpool

Model Number

WGD8000BW0

Description

7.6 Cu. Ft. Cabrio Platinum Series Gas Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
49611 49611 ACCESSORY PARTS, KIT, SIDE VENTING
8563860 8563860 BAFFLE, DRUM
WP8544742 WP8544742 BELT
WP8547157 WP8547157 BELT
WP694298 WP694298 BRACKET
W10183823 W10183823 BRACKET
W10201446 W10201446 BRACKET
W10211337 W10211337 BRACKET
8544741 8544741 BRACKET, BLOWER HOUSING
8544753 8544753 BRACKET, BURNER SUPPORT
8182790 8182790 BRACKET, COIL
8558863 8558863 BRACKET, CONSOLE
3977373 3977373 BRACKET, DRUM LIGHT
8547158 8547158 BRACKET, MOTOR
WP8557234 WP8557234 BULKHEAD
WP8557244 WP8557244 BULKHEAD
WPW10536683 WPW10536683 BURNER
WP8557891 WP8557891 BURNER-GAS
W10223154 W10223154 CABINET
W11226088 W11226088 CAMERA LENS
WPW10111905 WPW10111905 CATCH
WP660658 WP660658 CLAMP
W10854425 W10854425 CLIP
W10112673 W10112673 CLIP
W10303825 W10303825 CLIP
8573070 8573070 CLIP, LINT DUCT
279834 279834 COIL-VALVE
WPW10562305 WPW10562305 CONSOLE
WPW10532427 WPW10532427 CONTROL BOARD

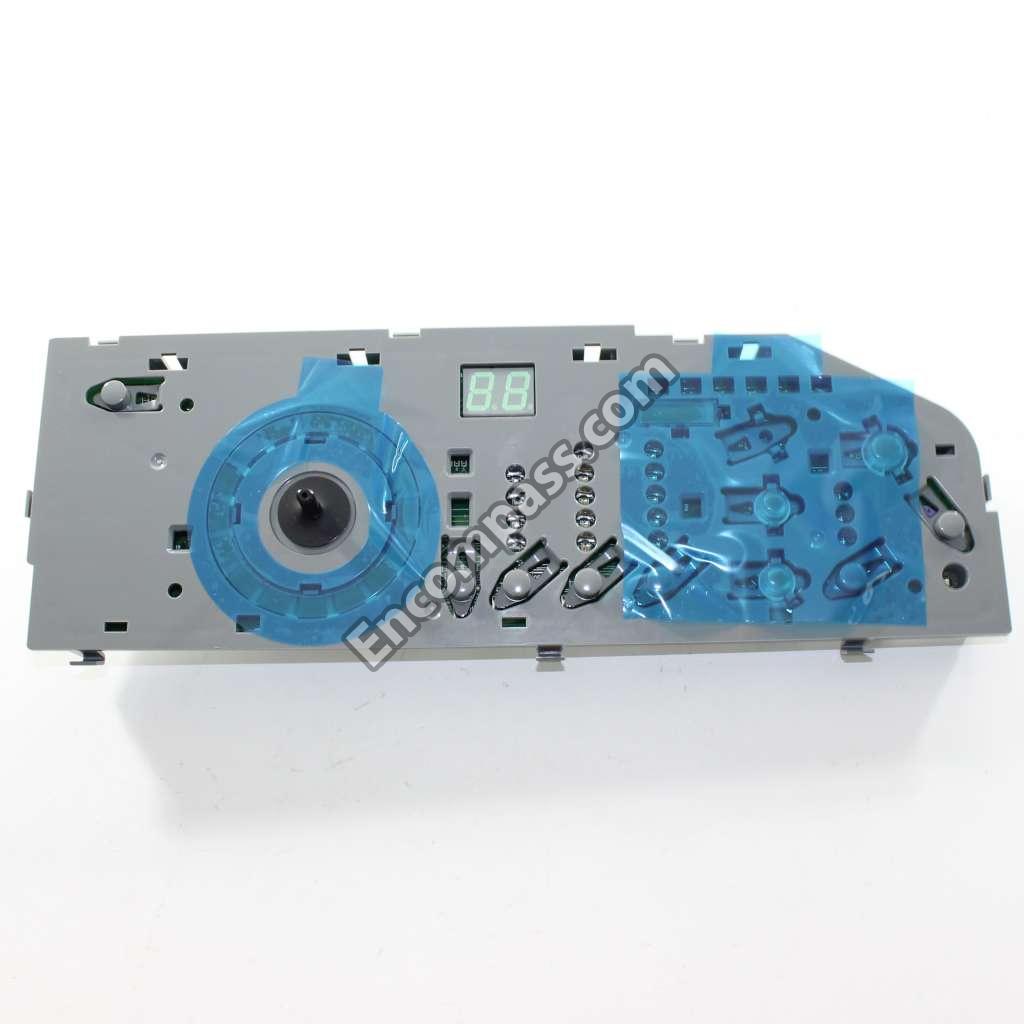

WPW10566876 WPW10566876 CONTROL BOARD
WP8544719 WP8544719 COVER
W11736322 W11736322 COVER
8564265 8564265 COVER, REAR- USER INTERFACE
WP8573713 WP8573713 CUTOFF-TML
W11222846 W11222846 DOOR
WP8571361 WP8571361 DOOR
WP8571356 WP8571356 DOOR INNER
WPW10448896 WPW10448896 DRIVE MOTOR
W10549614 W10549614 DRUM
WP8544718 WP8544718 DUCT, INLET BLOWER
W10385948 W10385948 DUCT-AIR
WP8544786 WP8544786 DUCT-LINT
WP3387223 WP3387223 ELECTRODE
8544761A 8544761A EXTEN-EXHT
49621 49621 FEET-LVLNG
W11025920 W11025920 FEET-LVLNG
W10448737 W10448737 FILLER
3350013 3350013 FOAM
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP8573824 WP8573824 FUNNEL
WP3390719 WP3390719 FUSE-THRML
WP8573071 WP8573071 GAS VALVE
W11117302 W11117302 GRILL-OUT
W10562333 W10562333 GUIDE, USE AND CARE
W10393458 W10393458 HARNS-WIRE
WP8066217 WP8066217 HINGE
WP8565018 WP8565018 HINGE
W10432680 W10432680 HOLDDOWN
WPW10256512 WPW10256512 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
W10562336 W10562336 INSTRUCTIONS, INSTALLATION
W11581317 W11581317 KIT, LP GAS DRYER CONVERSION
WPW10576632 WPW10576632 KNOB
WP22002263 WP22002263 LIGHT BULB
WP694424 WP694424 LIMITER
WP8576625 WP8576625 LOCK
WP8568303 WP8568303 LOCK
WPW10393264 WPW10393264 NAMEPLATE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
WP98234 WP98234 NUT
WP15418 WP15418 ORIFCE-GAS
WP229742 WP229742 ORIFCE-GAS
15422 15422 ORIFICE, BURNER (TYPE 4) (BUTANE)
799344 799344 PAINT, BULK (1 QT. WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10594754 W10594754 PANEL
WP8558830 WP8558830 PANEL-REAR
WPW10533417 WPW10533417 PIPE, EXHAUST
WPW10111888 WPW10111888 PLATE
W10811916 W10811916 PLUG
WPW10144494 WPW10144494 PLUG
W11222083 W11222083 POWER CORD
8544743 8544743 PULLEY, BLOWER
WPW10547292 WPW10547292 PULLEY-IDR
WP8544739 WP8544739 PULLEY-MTR
WP8547171 WP8547171 PULLEY-MTR
WP3391912 WP3391912 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
4392067 4392067 REPAIR-DYR
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WP681414 WP681414 SCREW
WPW10366705 WPW10366705 SCREW
WP3387230 WP3387230 SCREW
3350424 3350424 SCREW
WP693995 WP693995 SCREW
WP488729 WP488729 SCREW
W10853898 W10853898 SCREW
WP90767 WP90767 SCREW
WP488627 WP488627 SCREW
WP3400805 WP3400805 SCREW
W10850756 W10850756 SCREW
WP3389420 WP3389420 SCREW
WP3390631 WP3390631 SCREW
WP33001882 WP33001882 SCREW
W10131402 W10131402 SCREW
WP4449745 WP4449745 SCREW
694421 694421 SCREW, COIL
280140 280140 SEAL
WP8544721 WP8544721 SEAL
WP8573068 WP8573068 SEAL
WP697813 WP697813 SEAL
W10044490 W10044490 SEAL
W10185554 W10185554 SEAL
W10645577 W10645577 SEAL, USER INTERFACE
W10239307 W10239307 SEAL-DOOR
WPW10157932 WPW10157932 SEAL-FOAM
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W10475158 W10475158 SHIELD
W11222979 W11222979 SOCKET
W10123956 W10123956 SOUND ABSR
WP694422 WP694422 SPRING
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
W10295405 W10295405 STRIKE
WPW10314173 WPW10314173 SUPPORT
WPW10411937 WPW10411937 SWITCH
WPW10350907 WPW10350907 SWITCH-DOR
W10403269 W10403269 TECH SHEET
WPW10419068 WPW10419068 THERMISTOR
WP8577274 WP8577274 THERMISTOR
WPW10613794 WPW10613794 TOP
W11236646 W11236646 WASHER
WP8544737 WP8544737 WHEEL
W10393445 W10393445 WIRING DIAGRAM
