Whirlpool

Model Number

WGD8000DW4

Description

8.8 Cu. Ft. 120-volt Gas Vented Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10718190 W10718190 8-18 X .375
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
WP488729 WP488729 APPLIANCE SCREW
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
W10446202 W10446202 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (CHROME SHADOW)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W10767074 W10767074 BAFFLE HIG
W10722502 W10722502 BRACE CABINET
W10181903 W10181903 BRACKET
3389871 3389871 BRACKET
3389888 3389888 BRACKET SUPPORT
W11135007 W11135007 BULKHEAD
W10861007 W10861007 BULKHEAD
W10651902 W10651902 BULKHEAD BRACKET, REAR PANEL
W11233069 W11233069 BURNER-GAS
W10613683 W10613683 CABINET BASE
WPW10344699 WPW10344699 COLLAR

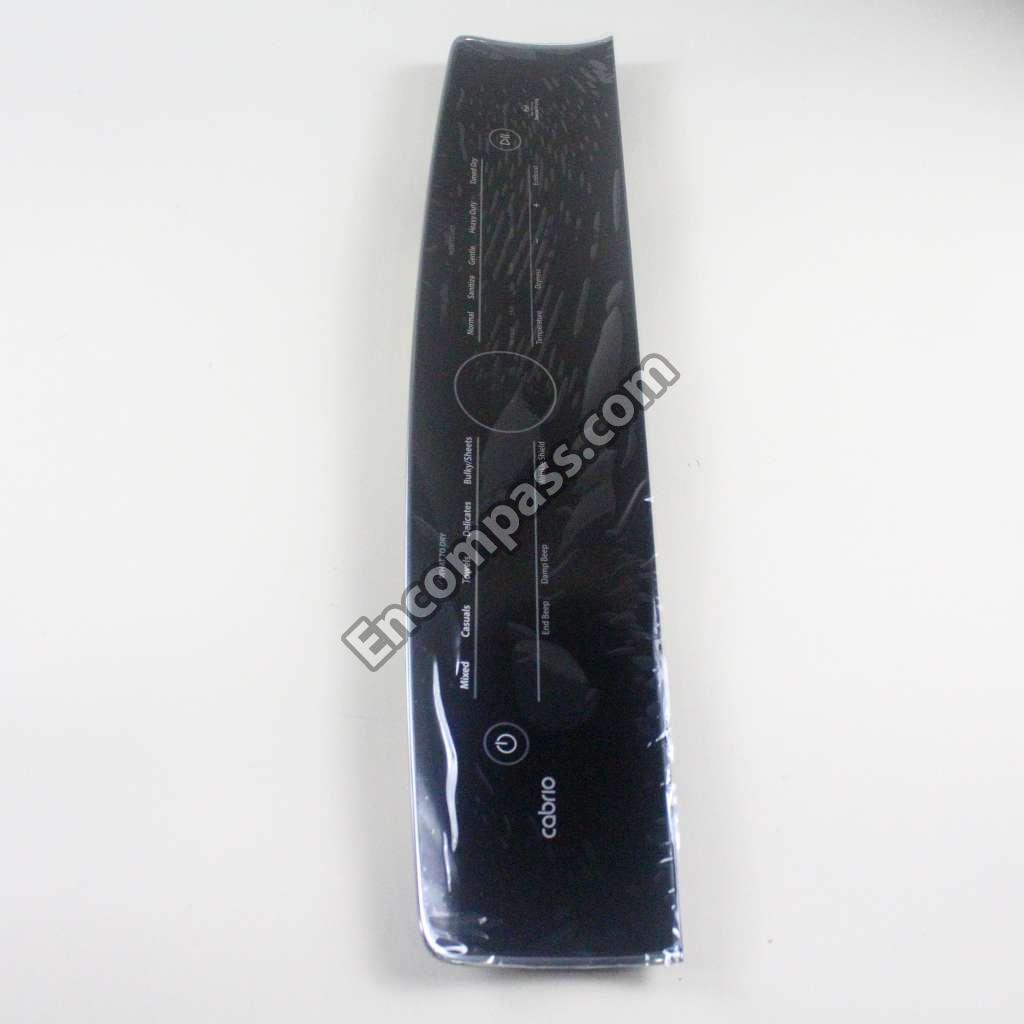

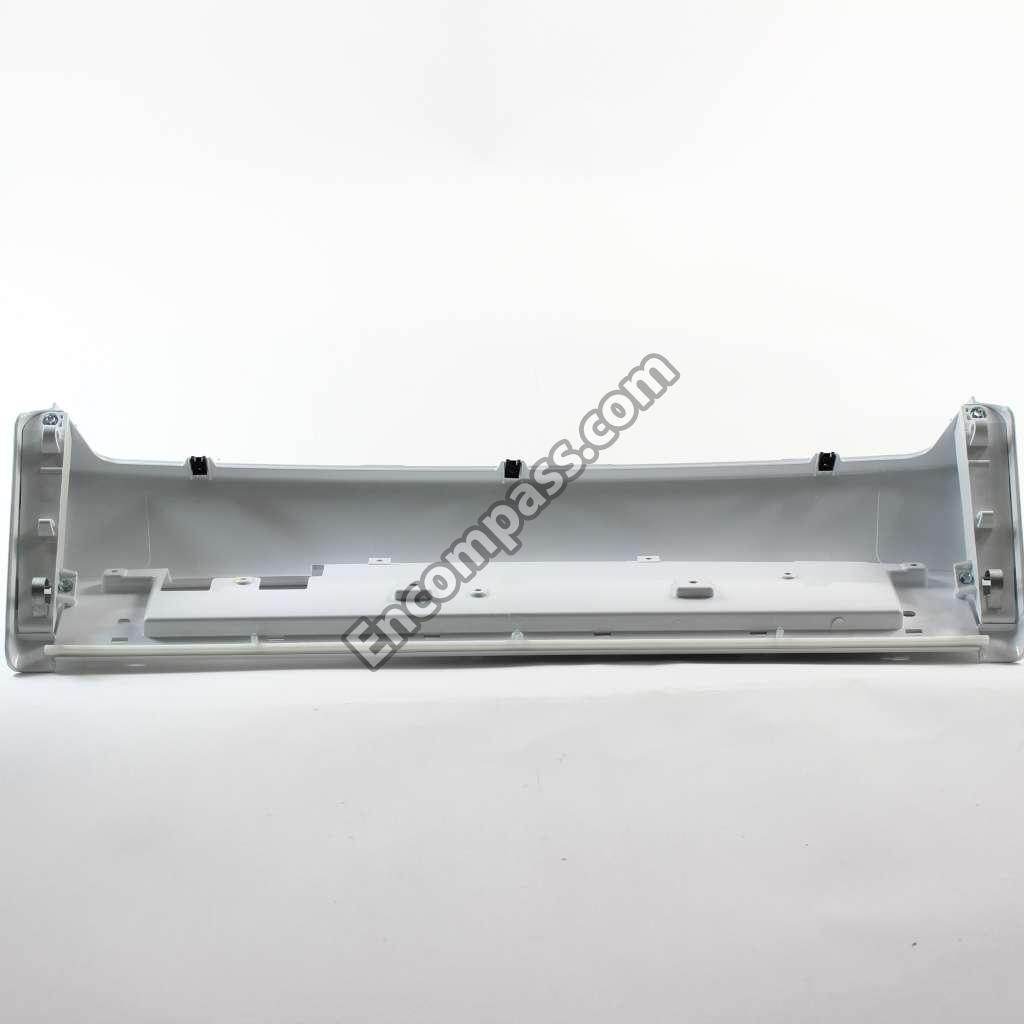

W11050696 W11050696 CONSOLE
W10631629 W10631629 CONSOLE INTERFACE
W10631630 W10631630 CONSOLE INTERFACE
W11721376 W11721376 CONSOLE SEAL
W10819767 W10819767 COVER
WP9740848 WP9740848 DISHWASHER SCREW
WP681414 WP681414 DISHWASHER SCREW

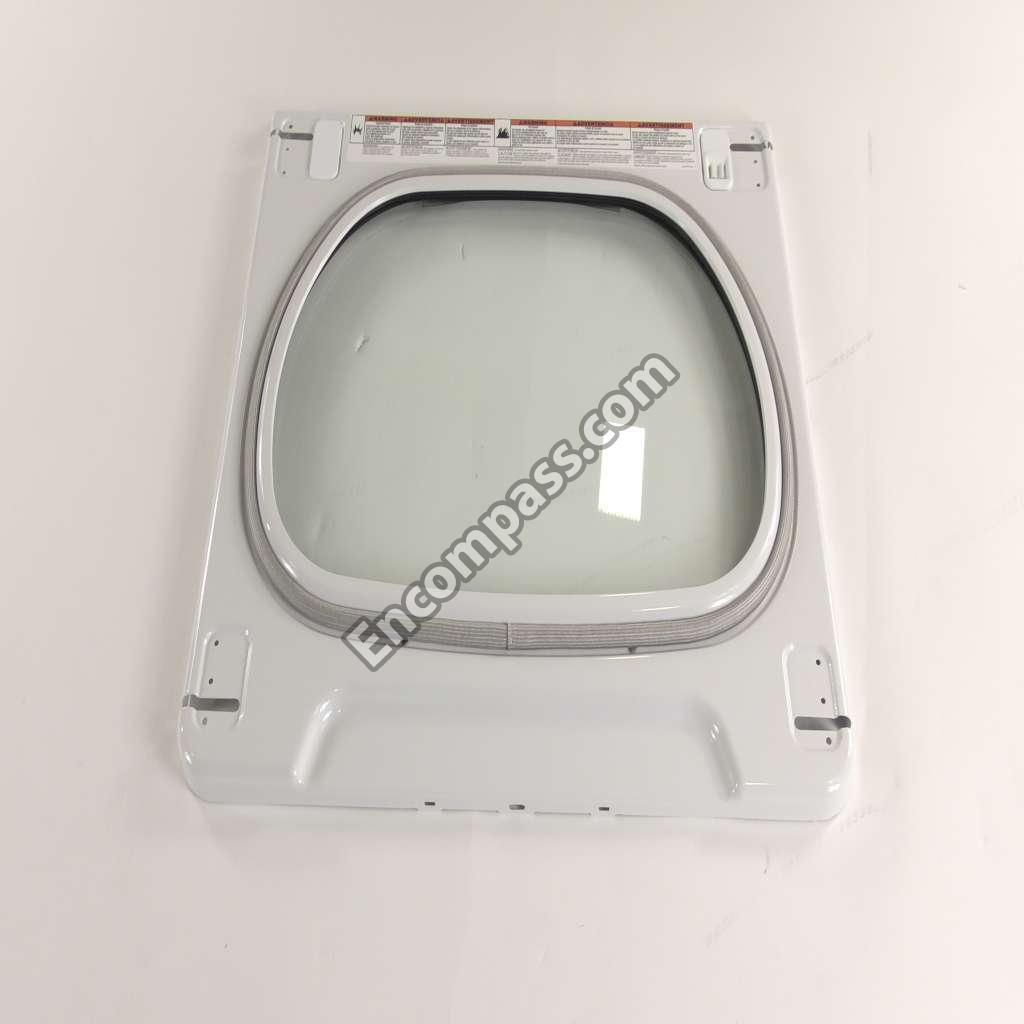

W11133036 W11133036 DOOR
W10631410 W10631410 DOOR COMPLETE COVER
W10614976 W10614976 DOOR OUTER A
W10763835 W10763835 DOOR SEAL
W10626460 W10626460 DRUM ASSEMBLY
WPW10629046 WPW10629046 DRUM LIGHT
PT400L PT400L DRYER 4-PRONG POWER CORD, 4-FT, 30-AMP
WP697772 WP697772 DRYER BLOWER WHEEL
WP693140 WP693140 DRYER BURNER
WP8573824 WP8573824 DRYER BURNER DUCT
WP694298 WP694298 DRYER BURNER IGNITER BRACKET
279311 279311 DRYER BURNER IGNITER KIT
WP15418 WP15418 DRYER BURNER ORIFICE
W10811916 W10811916 DRYER BURNER SIGHT PLUG
W11429587 W11429587 DRYER DOOR CATCH

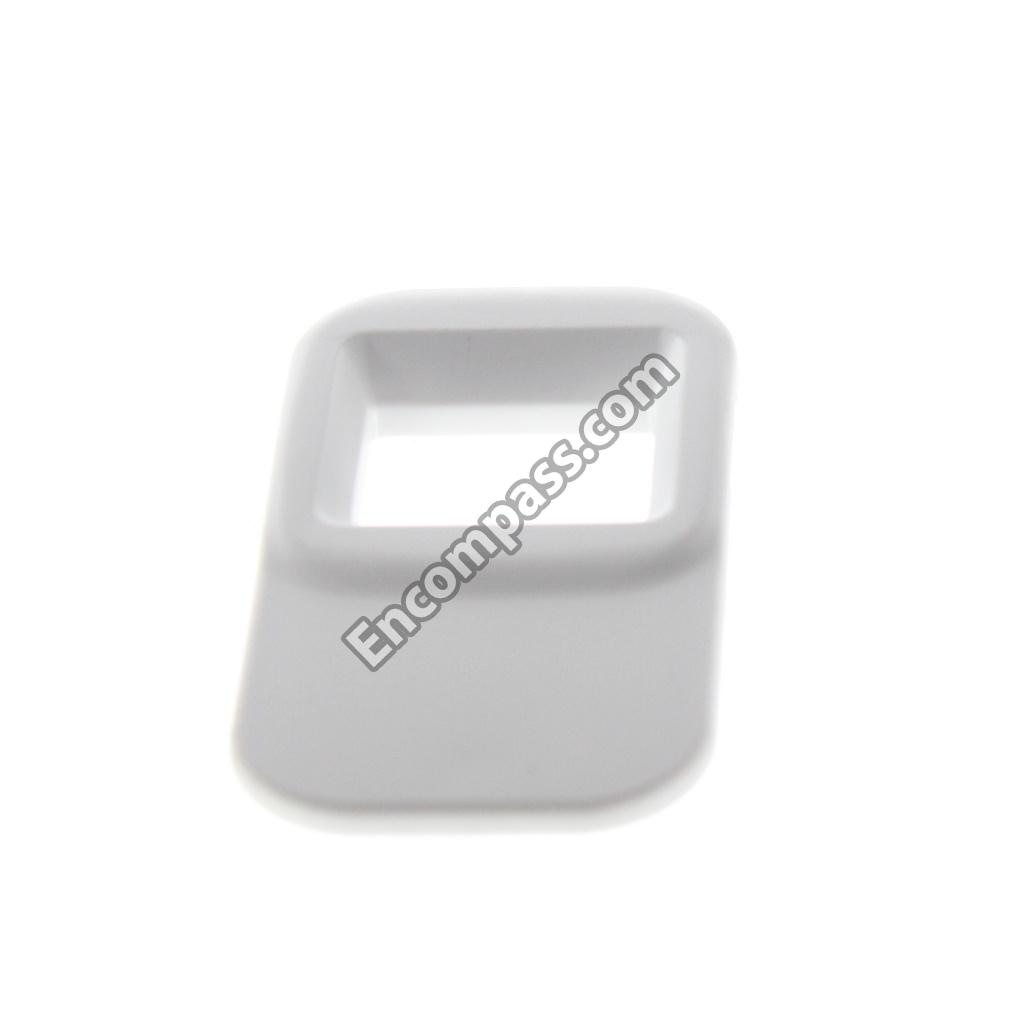

W11103932 W11103932 DRYER DOOR CATCH BEZEL
W10849499 W10849499 DRYER DRUM BELT
WP3387242 WP3387242 DRYER DRUM FELT SEAL
WPW10314173 WPW10314173 DRYER DRUM SUPPORT ROLLER
WPW10359271 WPW10359271 DRYER DRUM SUPPORT ROLLER SHAFT
WPW10359272 WPW10359272 DRYER DRUM SUPPORT ROLLER SHAFT
W10864105 W10864105 DRYER DRYING RACK
W10608817 W10608817 DRYER EXHAUST DUCT
WP694423 WP694423 DRYER GAS PRESSURE REGULATOR
WP694422 WP694422 DRYER GAS PRESSURE REGULATOR SPRING
3978776 3978776 DRYER GAS SUPPLY PIPE BRACKET
WPW10118347 WPW10118347 DRYER GAS VALVE
W10850024 W10850024 DRYER HINGE
W10850044 W10850044 DRYER HINGE
346764A 346764A DRYER HOLD-DOWN KIT
279640 279640 DRYER IDLER PULLEY
W10837240 W10837240 DRYER IDLER PULLEY
WPW10446781 WPW10446781 DRYER IDLER SPRING
WPW10336486 WPW10336486 DRYER INLET HOSE Y-CONNECTOR
WP694424 WP694424 DRYER LEAK LIMITER
49621 49621 DRYER LEVELING LEG
W10859086 W10859086 DRYER LINT SCREEN (WHITE)
W11581317 W11581317 DRYER LP CONVERSION KIT
W11105178 W11105178 DRYER MOTOR ASSEMBLY
WPW10121316 WPW10121316 DRYER MOTOR CLAMP
WPW10080210 WPW10080210 DRYER NUT
WPW10080190 WPW10080190 DRYER NUT, 3/8-IN
WP3391914 WP3391914 DRYER OPERATING THERMOSTAT
PT600L PT600L DRYER POWER CORD
PT220L PT220L DRYER POWER CORD, 4-FT
WP338906 WP338906 DRYER RADIANT SENSOR
4392065 4392065 DRYER REPAIR KIT
6-920119 6-920119 DRYER SCREW
WP3387230 WP3387230 DRYER SCREW
WPW10366705 WPW10366705 DRYER SCREW
W10850046 W10850046 DRYER SCREW
W10316616 W10316616 DRYER SEAL
W10704365 W10704365 DRYER SIDE VENT KIT
WP3397659 WP3397659 DRYER TERMINAL BLOCK
279393 279393 DRYER TERMINAL BLOCK SCREW AND NUT SET
279318 279318 DRYER TERMINAL BLOCK WIRE SET
WP8573713 WP8573713 DRYER THERMAL CUT-OFF FUSE
W10909685 W10909685 DRYER THERMAL FUSE
WP8577274 WP8577274 DRYER THERMISTOR
WPW10512946 WPW10512946 DRYER TRI-RING RETAINER
694538 694538 DRYER VALVE COIL BRACKET
279834 279834 DRYER VALVE COIL KIT
WPW10121334 WPW10121334 DRYER WASHER
W11236646 W11236646 DRYER WASHER
W11129538 W11129538 DUCT-AIR
W11165163 W11165163 ELECTRODE

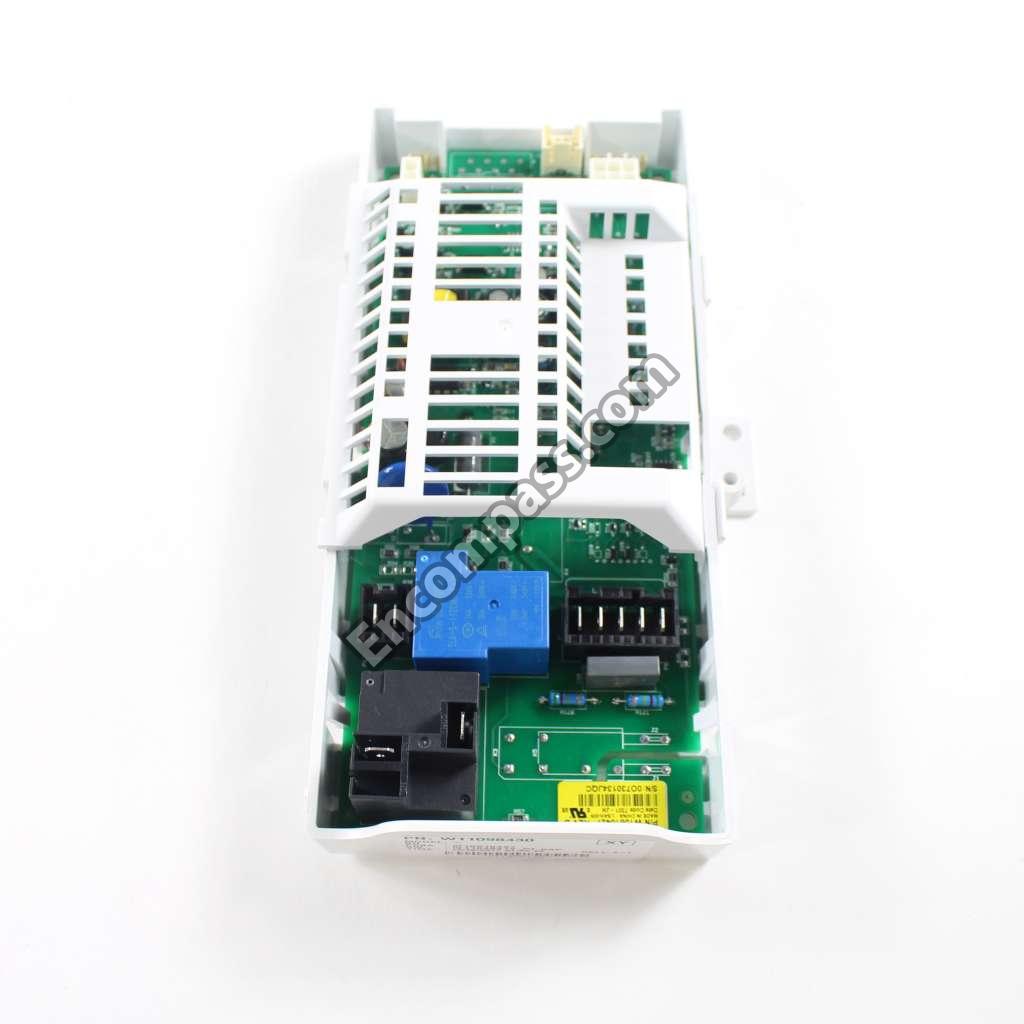

W11133021 W11133021 ELECTRONIC CONTROL BOARD
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10608813 W10608813 GRILLE
W11089270 W11089270 GUIDE, USE AND CARE
W10837032 W10837032 HARNESS, USER INTERFACE
W10596959 W10596959 HIGH BRACKET
W10631396 W10631396 HINGE COVER
W10631395 W10631395 HINGE COVER
W10590953 W10590953 HINGE PLUG
W11246350 W11246350 HOUSING
W10725269 W10725269 INSTRUCTIONS
WP8312709 WP8312709 LAUNDRY APPLIANCE END CAP CLIP
W10636208 W10636208 LAUNDRY APPLIANCE SCREW, #8-18 X 1/2-IN
W10868982 W10868982 LINT DUCT ASSEMBLY
W10767090 W10767090 LOW BAFFLE
W10777444 W10777444 MAIN HARNESS
W10578053 W10578053 MOTOR BRACKET
W11568637 W11568637 MOTOR PULLEY
W11213336 W11213336 NUT
W11242876 W11242876 OUTER HOUSING
W11133029 W11133029 OVERLAY
W10824895 W10824895 PANEL
W10645768 W10645768 PANEL
W10633648 W10633648 PANEL
W10875869 W10875869 PANEL
W10295523 W10295523 PIPE PLUG
WPW10111888 WPW10111888 PLATE
W11628810 W11628810 POWER CORD
W11089274 W11089274 QUICKSTART GUIDE
W10850756 W10850756 RANGE SCREW
WP308685 WP308685 RANGE SCREW
WP3391912 WP3391912 RANGE THERMOSTAT
W10622402 W10622402 REAR PANEL
W10622391 W10622391 REAR PANEL U
WPW10661886 WPW10661886 REFRIGERATOR DOOR HANDLE MOUNTING SCREW
WP8281250 WP8281250 REFRIGERATOR DOOR TRIM SCREW
WPW10393264 WPW10393264 REFRIGERATOR NAMEPLATE
WP489463 WP489463 REFRIGERATOR SCREW
WP488627 WP488627 REFRIGERATOR SCREW
W11631670 W11631670 SCREW
W10853898 W10853898 SCREW
W10916641 W10916641 SCREW
W10891954 W10891954 SCREW
694421 694421 SCREW, 8-32 X 1
W11189144 W11189144 SEAL
W10868675 W10868675 SEAL-DUCT-FI
W11282908 W11282908 SPACER BRACKET
W10632347 W10632347 SPACER BRACKET
W11123146 W11123146 SPEAKER
W11163826 W11163826 STRIKE
W11662087 W11662087 SWITCH
W11036551 W11036551 SWITCH-DOR
W11089260 W11089260 TECH SHEET
W11744013 W11744013 THERMISTOR
W10491983 W10491983 TINE TIP
W11227373 W11227373 TOP
WP693995 WP693995 WASHER SCREW
WP3389420 WP3389420 WASHER SCREW
WP90767 WP90767 WASHER SCREW
WP16123 WP16123 WASHING MACHINE WASHER
W11161899 W11161899 WIRE
WPW10155270 WPW10155270 WIRE TIE
