Model Image
Manufacturer

Whirlpool

Model Number

WGD8500DR0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10864105 W10864105 ACCESSORY PARTS, DRYER RACK
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
346764A 346764A ACCESSORY PARTS, KIT, HOLD DOWN
W10767074 W10767074 BAFFLE-DRM
W10767090 W10767090 BAFFLE-DRM
W10613683 W10613683 BASE
W10578053 W10578053 BASE
3389871 3389871 BASE, BURNER
W10849499 W10849499 BELT
W10669023 W10669023 BEZEL
WP3397659 WP3397659 BLOCK-TERM
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
W10837240 W10837240 BRACKET
W10631629 W10631629 BRACKET
W10631630 W10631630 BRACKET
W10722502 W10722502 BRACKET
W10622391 W10622391 BRACKET
W11282908 W11282908 BRACKET
W10181903 W10181903 BRACKET, BURNER
694538 694538 BRACKET, COIL
3978776 3978776 BRACKET, GAS PIPE
W10861007 W10861007 BULKHEAD
W11135006 W11135006 BULKHEAD
WP693140 WP693140 BURNER
W11233069 W11233069 BURNER-GAS
W10573723 W10573723 CABINET
W10614985 W10614985 CAP
W11429587 W11429587 CATCH
WPW10121316 WPW10121316 CLAMP
WP8312709 WP8312709 CLIP
W10044599 W10044599 CLIP
W10632347 W10632347 CLIP
W11242876 W11242876 CLIP
279834 279834 COIL-VALVE
WPW10344699 WPW10344699 COLLAR
WPW10336486 WPW10336486 CONNECTOR
W10573719 W10573719 CONSOLE

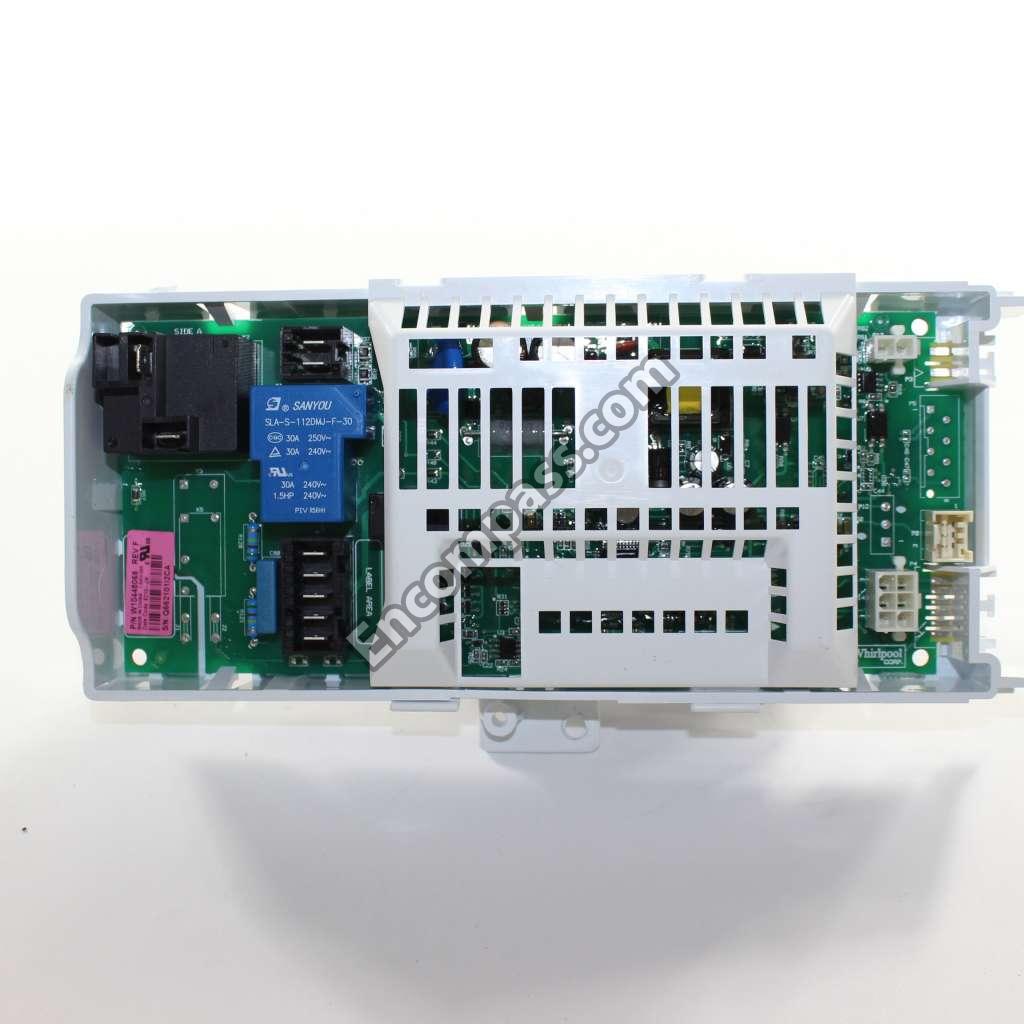

W10802082 W10802082 CONTROL, ELECTRONIC
PT220L PT220L CORD-POWER
PT600L PT600L CORD-POWER
PT400L PT400L CORD-POWER
W10622383 W10622383 COUNTERWGT
WPW10354249 WPW10354249 COVER
W10819767 W10819767 COVER
W10614963 W10614963 COVER
W10614964 W10614964 COVER
W10631412 W10631412 COVER
W10631413 W10631413 COVER
W10669024 W10669024 COVER, DOOR CATCH (CHROME SHADOW)
WP8573713 WP8573713 CUTOFF-TML
W10916628 W10916628 DOOR
W10614960 W10614960 DOOR
W10615000 W10615000 DOOR
W10614999 W10614999 DOOR
W11105178 W11105178 DRIVE MOTOR
W10646770 W10646770 DRUM
W11129538 W11129538 DUCT-AIR
W10868982 W10868982 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
W11165163 W11165163 ELECTRODE
49621 49621 FEET-LVLNG
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP8573824 WP8573824 FUNNEL
W10909685 W10909685 FUSE-THRML
WPW10118347 WPW10118347 GAS VALVE
W10608813 W10608813 GRILL-OUT
W10680139 W10680139 GUIDE, USE AND CARE
W10593673 W10593673 HARNS-WIRE
W10706041 W10706041 HARNS-WIRE
W10596959 W10596959 HINGE
W10638152 W10638152 HOSE
W10819173 W10819173 HOSE-FILL
W11246350 W11246350 HOUSING
279311 279311 IGNITOR
W10725269 W10725269 INSTALLATION INSTRUCTIONS
W11581317 W11581317 KIT, LP GAS DRYER CONVERSION
W10323246 W10323246 KIT-EXHST
W10869845 W10869845 KIT-STACK
WPW10629046 WPW10629046 LIGHT BULB
WP694424 WP694424 LIMITER
WPW10393264 WPW10393264 NAMEPLATE
W10363169 W10363169 NOZZLE STREAM
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
W10044628 W10044628 NUT
W11213336 W11213336 NUT
WP229742 WP229742 ORIFCE-GAS
WP15418 WP15418 ORIFCE-GAS
15422 15422 ORIFICE, BURNER (TYPE 4 (BUTANE))
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
W10446202 W10446202 PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10573721 W10573721 PANEL
W10573724 W10573724 PANEL
W10622402 W10622402 PANEL-REAR
W10573722 W10573722 PANEL-REAR
W10824896 W10824896 PANEL-REAR
W10641312 W10641312 PIPE
W10295523 W10295523 PIPE PLUG
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
W10608817 W10608817 PIPE-EXHST
WPW10111888 WPW10111888 PLATE
W10665050 W10665050 PLUG
WPW10404617 WPW10404617 PLUG
W10596965 W10596965 PLUG
W10337788 W10337788 PLUG
W11628810 W11628810 POWER CORD
279640 279640 PULLEY-IDR
W11568637 W11568637 PULLEY-MTR
W10720369 W10720369 QUICKSTART GUIDE
W10322470A W10322470A RACK-DRY
WP3391912 WP3391912 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
4392067 4392067 REPAIR-DYR
W10621182 W10621182 RETAINER
WPW10512946 WPW10512946 RING
W10859086 W10859086 SCREEN
WPW10366705 WPW10366705 SCREW
WP90767 WP90767 SCREW
WPW10348409 WPW10348409 SCREW
WP308685 WP308685 SCREW
WP3387230 WP3387230 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP3400805 WP3400805 SCREW
WP681414 WP681414 SCREW
W11661566 W11661566 SCREW
WPW10139210 WPW10139210 SCREW
WP3389420 WP3389420 SCREW
WP693995 WP693995 SCREW
W10850756 W10850756 SCREW
WP9740848 WP9740848 SCREW
W10853898 W10853898 SCREW
W10728156 W10728156 SCREW
W10636208 W10636208 SCREW
W11568617 W11568617 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
694421 694421 SCREW, COIL
WP697770 WP697770 SEAL
WP3387242 WP3387242 SEAL
W11721376 W11721376 SEAL
W11189144 W11189144 SEAL
W10726214 W10726214 SEAL
W10701355 W10701355 SEAL, HOUSING OUTLET TO LINT DUCT
W10763835 W10763835 SEAL-DOOR
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W10123956 W10123956 SOUND ABSR
WP694422 WP694422 SPRING
WPW10446781 WPW10446781 SPRING
W10725916 W10725916 STRIKE
WPW10314173 WPW10314173 SUPPORT
W10847984 W10847984 SWITCH
W11036551 W11036551 SWITCH-DOR
W10680150 W10680150 TECH SHEET
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
WP8577274 WP8577274 THERMISTOR
W11744013 W11744013 THERMISTOR
WP3391018 WP3391018 TIE-WIRE
W10573725 W10573725 TOP
W10614965 W10614965 TRIM
W10614966 W10614966 TRIM
W10268217 W10268217 TUCHUP
W11245113 W11245113 VALVE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
W10044579 W10044579 WASHER
WP697772 WP697772 WHEEL
W11161899 W11161899 WIRE
