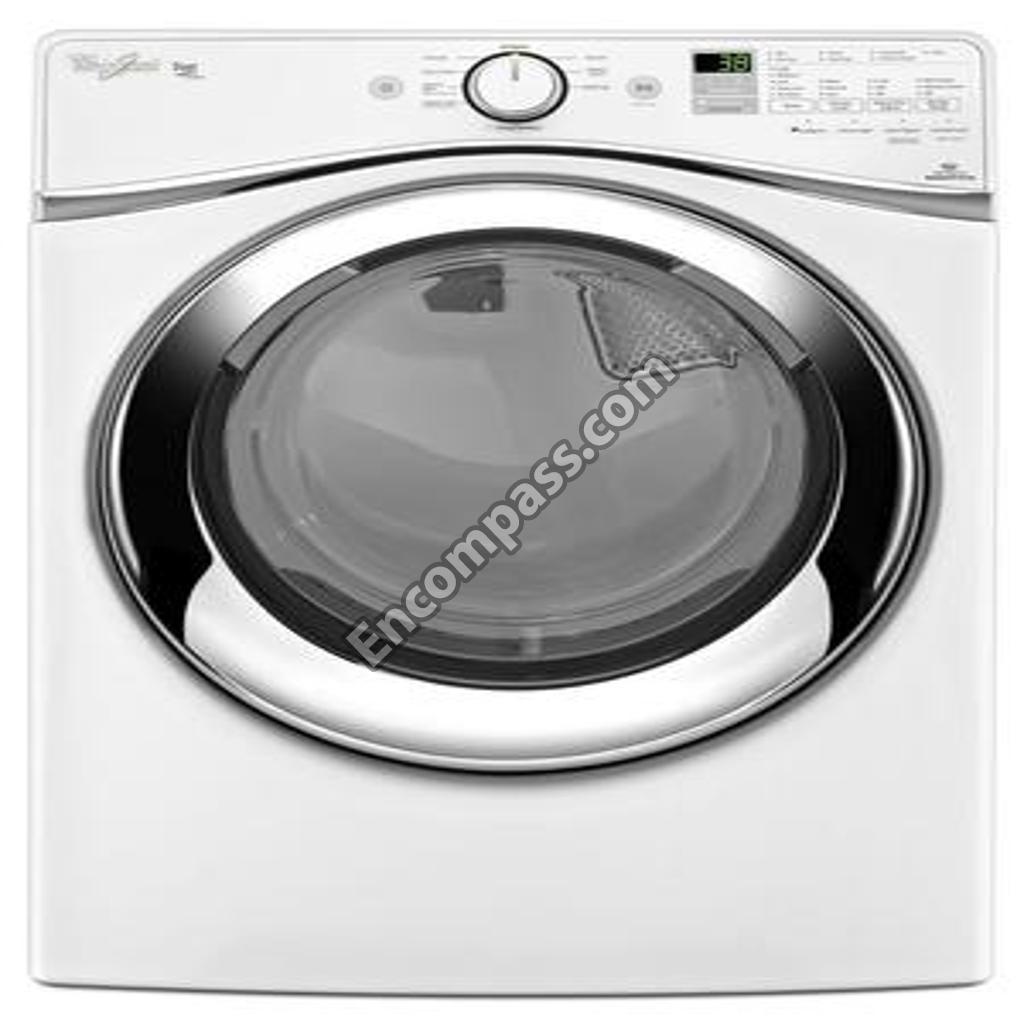

Model Image
Manufacturer

Whirlpool

Model Number

WGD8740DW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10044609A W10044609A Whirlpool ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
346764A 346764A Whirlpool ACCESSORY PARTS, KIT, HOLD DOWN
W10416098 W10416098 Whirlpool BAFFLE-DRM
W11215531 W11215531 Whirlpool BASE
3389871 3389871 Whirlpool BASE, BURNER
661570 661570 Whirlpool BELT
3389888 3389888 Whirlpool BRACKET
WP694298 WP694298 Whirlpool BRACKET
WPW10656504 WPW10656504 Whirlpool BRACKET
W10837240 W10837240 Whirlpool BRACKET
WPW10208382 WPW10208382 Whirlpool BRACKET
W11481730 W11481730 Whirlpool BRACKET
W10259611 W10259611 Whirlpool BRACKET
W11480682 W11480682 Whirlpool BRACKET
W10181903 W10181903 Whirlpool BRACKET, BURNER
W10208218 W10208218 Whirlpool BRACKET, DOOR HINGE
3978776 3978776 Whirlpool BRACKET, GAS PIPE
W11299301 W11299301 Whirlpool BULKHEAD
W10673491 W10673491 Whirlpool BULKHEAD, FRONT
WP693140 WP693140 Whirlpool BURNER
W10353165 W10353165 Whirlpool BURNER-GAS
WPW10208398 WPW10208398 Whirlpool CAP
WPW10208254 WPW10208254 Whirlpool CATCH
W11240283 W11240283 Whirlpool CATCH
WPW10653575 WPW10653575 Whirlpool CHANNEL
WPW10121316 WPW10121316 Whirlpool CLAMP
WP8536939 WP8536939 Whirlpool CLIP
W10044599 W10044599 Whirlpool CLIP
W10414388 W10414388 Whirlpool CLIP
WPW10328463 WPW10328463 Whirlpool COIL-VALVE
WPW10344699 WPW10344699 Whirlpool COLLAR
WPW10336486 WPW10336486 Whirlpool CONNECTOR
WPW10463687 WPW10463687 Whirlpool CONSOLE
WPW10446407 WPW10446407 Whirlpool CONSOLE
WPW10654006 WPW10654006 Whirlpool CONTROL BOARD
W10861218 W10861218 Whirlpool CONTROL PANEL
WPW10208422 WPW10208422 Whirlpool COVER
WPW10354249 WPW10354249 Whirlpool COVER
W10819767 W10819767 Whirlpool COVER
W10772469 W10772469 Whirlpool COVER
W10211901 W10211901 Whirlpool COVER
WP8573713 WP8573713 Whirlpool CUTOFF-TML
W11188529 W11188529 Whirlpool DOOR
W11156832 W11156832 Whirlpool DOOR
W10905013 W10905013 Whirlpool DOOR
W10267837 W10267837 Whirlpool DOOR
W11364931 W11364931 Whirlpool DRIVE MOTOR
W10381481 W10381481 Whirlpool DRUM
WPW10293765 WPW10293765 Whirlpool DUCT-AIR
WPW10211896 WPW10211896 Whirlpool DUCT-LINT
WPW10416072 WPW10416072 Whirlpool ELBOW
WP3387223 WP3387223 Whirlpool ELECTRODE
49621 49621 Whirlpool FEET-LVLNG
N_P N_P Whirlpool FOLLOWING PARTS NOT ILLUSTRATED
WP8573824 WP8573824 Whirlpool FUNNEL
WP3392519 WP3392519 Whirlpool FUSE-THRML
WPW10118347 WPW10118347 Whirlpool GAS VALVE
W11125442 W11125442 Whirlpool GRILL-OUT
W10708958 W10708958 Whirlpool HARNESS, GAS
W10637537 W10637537 Whirlpool HARNS-WIRE
WPW10208415 WPW10208415 Whirlpool HINGE
W11051465 W11051465 Whirlpool HINGE
WPW10347739 WPW10347739 Whirlpool HOSE
W10819173 W10819173 Whirlpool HOSE-FILL
WPW10211911 WPW10211911 Whirlpool HOUSING
W11242876 W11242876 Whirlpool HOUSNG-OUT
W10906551 W10906551 Whirlpool HOUSNG-OUT
279311 279311 Whirlpool IGNITOR
W10676163 W10676163 Whirlpool INSTALLATION INSTRUCTIONS
W11581317 W11581317 Whirlpool KIT, LP GAS DRYER CONVERSION
W10323246 W10323246 Whirlpool KIT-EXHST
W10869845 W10869845 Whirlpool KIT-STACK
WPW10631127 WPW10631127 Whirlpool KNOB
W10875909 W10875909 Whirlpool KNOB
W10460935 W10460935 Whirlpool LIGHT
W11178521 W11178521 Whirlpool NAMEPLATE
WPW10277503 WPW10277503 Whirlpool NOZZLE
WPW10080190 WPW10080190 Whirlpool NUT
WPW10080210 WPW10080210 Whirlpool NUT
WP15418 WP15418 Whirlpool ORIFCE-GAS
W11409002 W11409002 Whirlpool PAD
799344 799344 Whirlpool PAINT, BULK (1 QT. WHITE)
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10363953 WPW10363953 Whirlpool PANEL
WPW10463309 WPW10463309 Whirlpool PANEL
W11233548 W11233548 Whirlpool PANEL
W11315726 W11315726 Whirlpool PANEL
W11310043 W11310043 Whirlpool PANEL
W11321018 W11321018 Whirlpool PANEL
W10639907 W10639907 Whirlpool PANEL-CNTL
W10487430 W10487430 Whirlpool PANEL-REAR
WPW10342188 WPW10342188 Whirlpool PIPE-EXHST
WP8563749 WP8563749 Whirlpool PIPE-EXHST
WPW10331278 WPW10331278 Whirlpool PIPE-EXHST
WP8563747 WP8563747 Whirlpool PIPE-EXHST
WPW10208419 WPW10208419 Whirlpool PLATE
W10811916 W10811916 Whirlpool PLUG
WPW10404617 WPW10404617 Whirlpool PLUG
W10665050 W10665050 Whirlpool PLUG
W10391496 W10391496 Whirlpool PLUG
W10295523 W10295523 Whirlpool PLUG
8529007 8529007 Whirlpool PLUG, REAR BULKHEAD
W11628810 W11628810 Whirlpool POWER CORD
279640 279640 Whirlpool PULLEY-IDR
WP8066184 WP8066184 Whirlpool PULLEY-MTR
W10678959 W10678959 Whirlpool QUICK START GUIDE
W10322470A W10322470A Whirlpool RACK-DRY
WP3391912 WP3391912 Whirlpool RANGE THERMOSTAT
4392067 4392067 Whirlpool REPAIR-DYR
W10208252 W10208252 Whirlpool RETAINER
WPW10512946 WPW10512946 Whirlpool RING
WPW10516085 WPW10516085 Whirlpool SCREEN
326049536 326049536 Whirlpool SCREW
WPW10366705 WPW10366705 Whirlpool SCREW
W10850046 W10850046 Whirlpool SCREW
WP3387230 WP3387230 Whirlpool SCREW
W10853898 W10853898 Whirlpool SCREW
WP681414 WP681414 Whirlpool SCREW
WP90767 WP90767 Whirlpool SCREW
W11661566 W11661566 Whirlpool SCREW
WP3389420 WP3389420 Whirlpool SCREW
WP308685 WP308685 Whirlpool SCREW
W10850756 W10850756 Whirlpool SCREW
WP488729 WP488729 Whirlpool SCREW
WP693995 WP693995 Whirlpool SCREW
WP489463 WP489463 Whirlpool SCREW
WP697770 WP697770 Whirlpool SEAL
280114 280114 Whirlpool SEAL
WP3387242 WP3387242 Whirlpool SEAL
W10211899 W10211899 Whirlpool SEAL
W11676493 W11676493 Whirlpool SEAL
W11193479 W11193479 Whirlpool SEAL
W11126230 W11126230 Whirlpool SEAL
WP338906 WP338906 Whirlpool SENSOR
WPW10359272 WPW10359272 Whirlpool SHAFT
WPW10359271 WPW10359271 Whirlpool SHAFT
W11257251 W11257251 Whirlpool SHIELD
W10123956 W10123956 Whirlpool SOUND ABSR
WPW10446781 WPW10446781 Whirlpool SPRING
WPW10208250 WPW10208250 Whirlpool STRIKE
WPW10314173 WPW10314173 Whirlpool SUPPORT
W10847984 W10847984 Whirlpool SWITCH
WPW10350906 WPW10350906 Whirlpool SWITCH-DOR
W10606148 W10606148 Whirlpool TECH SHEET
W11396709 W11396709 Whirlpool THERMISTOR
WP8577274 WP8577274 Whirlpool THERMISTOR
WP3391018 WP3391018 Whirlpool TIE-WIRE
WPW10460919 WPW10460919 Whirlpool TOP
WPW10208383 WPW10208383 Whirlpool TOP
W10596019 W10596019 Whirlpool USE AND CARE GUIDE
W10815373 W10815373 Whirlpool VALVE
WP16123 WP16123 Whirlpool WASHER
W11236646 W11236646 Whirlpool WASHER
WPW10121334 WPW10121334 Whirlpool WASHER
WP697772 WP697772 Whirlpool WHEEL
W11310036 W11310036 Whirlpool WINDOW
W10877391 W10877391 Whirlpool WINDOW
W10525140 W10525140 Whirlpool WIRE
WPW10298258 WPW10298258 Whirlpool WIRE HARNESS
W10837344 W10837344 Whirlpool WIRE HARNESS
W10504395 W10504395 Whirlpool WIRING DIAGRAM
