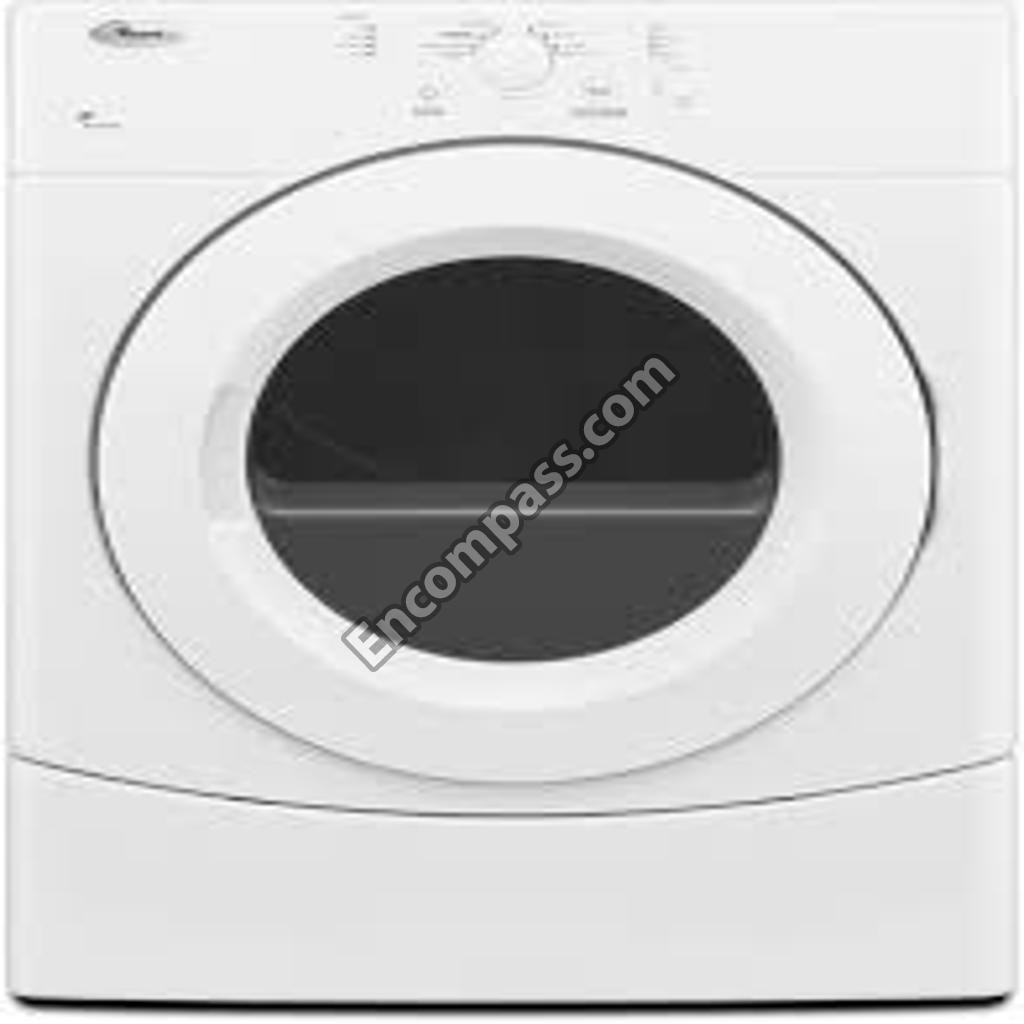

Model Image
Manufacturer

Whirlpool

Model Number

WGD9051YW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
WPW10318609 WPW10318609 ASSEMBLY, DOOR SWITCH
W10865330 W10865330 ASSEMBLY, DRUM (COMPLETE)
W10854980 W10854980 BADGE
W10852390 W10852390 BAFFLE-DRM
W11215531 W11215531 BASE
W11676491 W11676491 BASE
3389871 3389871 BASE, BURNER
WPW10131172 WPW10131172 BELT
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
WP8563727 WP8563727 BRACKET
WP8565237 WP8565237 BRACKET
W10181903 W10181903 BRACKET, BURNER
694538 694538 BRACKET, COIL
8578825 8578825 BRACKET, DRUM LIGHT
3978776 3978776 BRACKET, GAS PIPE
8564011 8564011 BRACKET, SWITCH
WPW10080170 WPW10080170 BULKHEAD
8565061 8565061 BULKHEAD, FRONT
WP693140 WP693140 BURNER
W11676916 W11676916 BURNER-GAS
W11226088 W11226088 CAMERA LENS
WPW10266747 WPW10266747 CHANNEL
WP660658 WP660658 CLAMP
3387561 3387561 CLAMP, PIPE
WP8066208 WP8066208 CLIP
W11684573 W11684573 CLIP
W11295573 W11295573 CLIP
279834 279834 COIL-VALVE
WPW10444970 WPW10444970 CONSOLE
WPW10450081 WPW10450081 CONTROL BOARD
WPW10444971 WPW10444971 CONTROL BOARD
WPW10354249 WPW10354249 COVER
W10819767 W10819767 COVER
WP8573713 WP8573713 CUTOFF-TML
W11222846 W11222846 DOOR
W10215753 W10215753 DOOR
W11690171 W11690171 DOOR
W10270216 W10270216 DOOR
W10215742 W10215742 DOOR
279570 279570 DOOR LATCH
W11234001 W11234001 DRIVE MOTOR
8212450A 8212450A DRY RACK
WPW10293765 WPW10293765 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
49621 49621 FEET-LVLNG
WP8573824 WP8573824 FUNNEL
WP3392519 WP3392519 FUSE-THRML
WPW10141728 WPW10141728 GAS VALVE
W11086603 W11086603 GRILL-OUT
W11219327 W11219327 GRILL-OUT
W10215754 W10215754 HANDLE
W10251443 W10251443 HARNS-WIRE
W10259049 W10259049 HARNS-WIRE
W10110975 W10110975 HARNS-WIRE
WPW10304672 WPW10304672 HINGE
346764A 346764A HOLD DOWN KIT
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
W10443045 W10443045 INSTALLATION INSTRUCTIONS
8572546 8572546 KIT, STACK ASSEMBLY
WPW10256915 WPW10256915 LABEL
W10085210 W10085210 LABEL
WP22002263 WP22002263 LIGHT BULB
WP694424 WP694424 LIMITER
W10402145 W10402145 LP GAS CON
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
233076 233076 NUT, COMPRESSION
WP234868 WP234868 ORIFCE-GAS
234870 234870 ORIFICE, BURNER (TYPE 1)
W11113654 W11113654 PAD
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10251264 W10251264 PANEL
8565059 8565059 PANEL, REAR
W10542714 W10542714 PANEL, SIDE (WHITE)
W10110395 W10110395 PIPE
W10295523 W10295523 PIPE PLUG
3393767 3393767 PIPE, TAIL
WP8563728 WP8563728 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
WPW10404617 WPW10404617 PLUG
W11222083 W11222083 POWER CORD
WPW10344192 WPW10344192 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
W10212800 W10212800 PUSHBUTTON
8565083 8565083 RAMP, DOOR
WP3391912 WP3391912 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
4392067 4392067 REPAIR-DYR
W10822054 W10822054 RETAINER
8519356 8519356 RETAINER, UPPER
WPW10512946 WPW10512946 RING
W10120998 W10120998 SCREEN
WP355515 WP355515 SCREW
WP3373329 WP3373329 SCREW
WPW10159996 WPW10159996 SCREW
W10850046 W10850046 SCREW
WPW10366705 WPW10366705 SCREW
WP3387230 WP3387230 SCREW
W10853898 W10853898 SCREW
WP489463 WP489463 SCREW
W11693756 W11693756 SCREW
WP308685 WP308685 SCREW
WP693995 WP693995 SCREW
WP681414 WP681414 SCREW
WP3389420 WP3389420 SCREW
W10850756 W10850756 SCREW
WP90767 WP90767 SCREW
WP488729 WP488729 SCREW
W10006580 W10006580 SCREW
W10002600 W10002600 SCREW
694421 694421 SCREW, 8-32 X 1/2 (2)
W11706993 W11706993 SEAL
WP3387242 WP3387242 SEAL
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL
WPW10163915 WPW10163915 SEAL-DOOR
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11222979 W11222979 SOCKET
WP694422 WP694422 SPRING
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
W10215807 W10215807 SPRING
WP8565122 WP8565122 STRIKE
WPW10314173 WPW10314173 SUPPORT
W11247665 W11247665 SWITCH
WP8564010 WP8564010 SWITCH-PLG
W10443109 W10443109 TECH SHEET
WP8577274 WP8577274 THERMISTOR
WP8540621 WP8540621 TOEPNL
WPW10336080 WPW10336080 TOP
W10296184 W10296184 USE & CARE GUIDE
697441 697441 VALVE & UNION SHUT-OFF
W10470674 W10470674 VENT KIT
W11236646 W11236646 WASHER
WPW10349492 WPW10349492 WHEEL
WPW10286878 WPW10286878 WINDOW
W10215741 W10215741 WINDOW
W10283424 W10283424 WINDOW
WP3401707 WP3401707 WIRE
W10167613 W10167613 WIRE
WP3401850 WP3401850 WIRE HARNESS
WP3406653 WP3406653 WIRE HARNESS
8539892 8539892 WIRE, MOTOR TO BELT SWITCH
