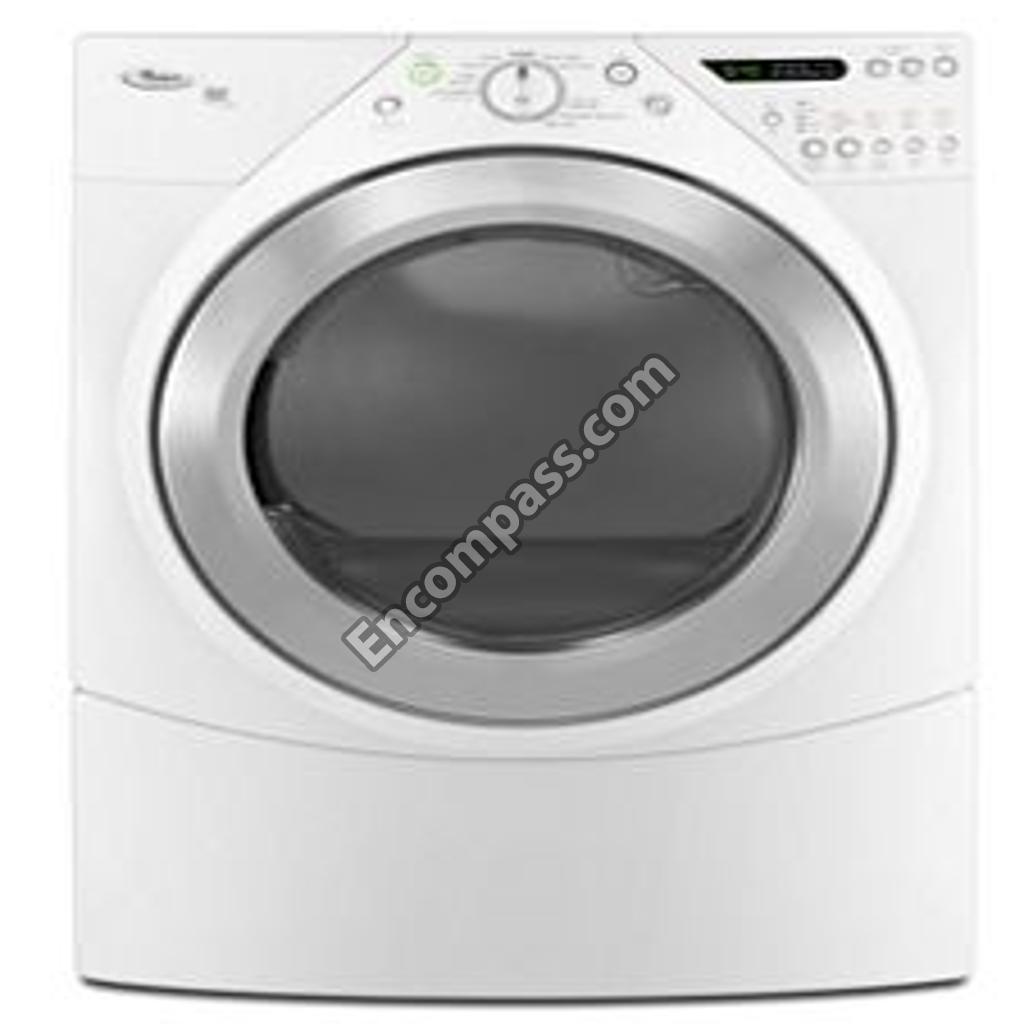

Model Image
Manufacturer

Whirlpool

Model Number

WGD9500TW3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10318609 WPW10318609 ASSEMBLY, DOOR SWITCH
W10854980 W10854980 BADGE
WPW10113136 WPW10113136 BAFFLE-DRM
WPW10239098 WPW10239098 BASE
3389871 3389871 BASE, BURNER
661570 661570 BELT
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
W10837240 W10837240 BRACKET
W11481730 W11481730 BRACKET
WP8563727 WP8563727 BRACKET
W10215656 W10215656 BRACKET
W10044597 W10044597 BRACKET
W10181903 W10181903 BRACKET, BURNER
694538 694538 BRACKET, COIL
8578825 8578825 BRACKET, DRUM LIGHT
3978776 3978776 BRACKET, GAS PIPE
W10133857 W10133857 BULKHEAD
WPW10252304 WPW10252304 BULKHEAD, FRONT (INCLUDES ILLUS. 28 & 32)
WP693140 WP693140 BURNER
280119 280119 BURNER-GAS
W11226088 W11226088 CAMERA LENS
WPW10121316 WPW10121316 CLAMP
3387561 3387561 CLAMP, PIPE
WPW10129065 WPW10129065 CLIP
W11684573 W11684573 CLIP
WP8066208 WP8066208 CLIP
W11295573 W11295573 CLIP
W10112268 W10112268 CLIP
W10044599 W10044599 CLIP
62825 62825 CLIP-S TYPE
279834 279834 COIL-VALVE
3395683 3395683 CONNECTOR (MOTOR)
2203186 2203186 CONNECTOR, 5-CIRCUIT
3936150 3936150 CONNECTOR, 7-CIRCUIT
WPW10246745 WPW10246745 CONSOLE
WPW10174746 WPW10174746 CONTROL BOARD
WPW10206049 WPW10206049 CONTROL BOARD
W10859554 W10859554 COUPLER
WPW10354249 WPW10354249 COVER
W10819767 W10819767 COVER
W10184825 W10184825 COVER
W10909036 W10909036 COVER
W10181197 W10181197 COVER
WP8573713 WP8573713 CUTOFF-TML
WP8577819 WP8577819 DOOR
WP8578229 WP8578229 DOOR
W11222846 W11222846 DOOR
W10180118 W10180118 DOOR
279570 279570 DOOR LATCH
W10171571 W10171571 DOOR SCREEN
279787 279787 DRIVE MOTOR
W10545924 W10545924 DRUM
8212450A 8212450A DRY RACK
W11168650 W11168650 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
W10012480 W10012480 ENCODER, WHEEL KIT. (INCLUDES ITEM: 17, 18, & 20 )
280230 280230 ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & 26)
49621 49621 FEET-LVLNG
WP8573824 WP8573824 FUNNEL
WP3392519 WP3392519 FUSE-THRML
WPW10118347 WPW10118347 GAS VALVE
8579662 8579662 GASKET, WINDOW
W11086603 W11086603 GRILL-OUT
WPW10180115 WPW10180115 HANDLE, RING DOOR (SILVER)
W10111069 W10111069 HARNS-WIRE
W10242906 W10242906 HARNS-WIRE
W10242903 W10242903 HARNS-WIRE
WPW10310366 WPW10310366 HINGE
WPW10179730 WPW10179730 HOSE
WP76314 WP76314 HOSE-FILL
W10044603 W10044603 HOSE-FILL
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
W10253353 W10253353 HOUSNG-OUT
279311 279311 IGNITOR
W10255469 W10255469 INSTALLATION INSTRUCTIONS
3401710 3401710 JUMPER, TCO HI-LIMIT
W10294832 W10294832 KIT
346764A 346764A KIT, HOLD DOWN
W11581317 W11581317 KIT, LP GAS DRYER CONVERSION
8541503 8541503 KIT, STACK ASSEMBLY
8579666ARP 8579666ARP KIT-DOOR
W10470674 W10470674 KIT-EXHST
WPW10116702 WPW10116702 KNOB, CONTROL (INCLUDES: ITEM. 21) (WHITE)
W10085210 W10085210 LABEL
WP22002263 WP22002263 LIGHT BULB
WP694424 WP694424 LIMITER
49586 49586 MIXER
303776 303776 NO DESCRIPTION AVALIABLE
W10044629 W10044629 NOZZLE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
W10044628 W10044628 NUT
WP15418 WP15418 ORIFCE-GAS
WP229742 WP229742 ORIFCE-GAS
15422 15422 ORIFICE, BURNER (TYPE 4) (BUTANE)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED (12 OZ.) (BISCUIT)
350938 350938 PAINT, PRESSURIZED (12 OZ.) (PRIMER, GRAY)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
8212605 8212605 PAINT, TOUCH-UP (1/2OZ.) (ULTIMATE SILVER)
WPW10180423 WPW10180423 PANEL
W11233548 W11233548 PANEL
W10244142 W10244142 PANEL-REAR
W10295523 W10295523 PIPE PLUG
279936 279936 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
WPW10404617 WPW10404617 PLUG
W10665050 W10665050 PLUG
W10048910 W10048910 PLUG
3936144 3936144 PLUG, TERMINAL
W11628810 W11628810 POWER CORD
279640 279640 PULLEY-IDR
W10837625 W10837625 PULLEY-MTR
8529053 8529053 RAMP, DOOR
WP8573028 WP8573028 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
4392067 4392067 REPAIR-DYR
W10822054 W10822054 RETAINER
WPW10012440 WPW10012440 RETAINER
8519356 8519356 RETAINER, WINDOW (UPPER)
WPW10512946 WPW10512946 RING
WPW10012410 WPW10012410 RING
W10120998 W10120998 SCREEN
WP3373329 WP3373329 SCREW
WP355515 WP355515 SCREW
W10850046 W10850046 SCREW
WPW10159996 WPW10159996 SCREW
WPW10366705 WPW10366705 SCREW
WP3387230 WP3387230 SCREW
WP489463 WP489463 SCREW
W10853898 W10853898 SCREW
WP681414 WP681414 SCREW
WP693995 WP693995 SCREW
WP3389420 WP3389420 SCREW
WP308685 WP308685 SCREW
W10850756 W10850756 SCREW
WP90767 WP90767 SCREW
WP488729 WP488729 SCREW
WP3400224 WP3400224 SCREW, 10-16 X 1/2
694421 694421 SCREW, 8-32 X 1/2 (2)
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
W10112267 W10112267 SEAL
WPW10139457 WPW10139457 SEAL-DOOR
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W10139322 W10139322 SHEET, TIP STEAM DRY
W11257251 W11257251 SHIELD
W10180120 W10180120 SHIELD
W11222979 W11222979 SOCKET
W10123956 W10123956 SOUND ABSR
WP694422 WP694422 SPRING
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
WPW10314173 WPW10314173 SUPPORT
WPW10411937 WPW10411937 SWITCH
W10258369 W10258369 TECH SHEET
WP94614 WP94614 TERMINAL
WP8577274 WP8577274 THERMISTOR
WP3391018 WP3391018 TIE-WIRE
WPW10246269 WPW10246269 TOEPNL
WPW10117263 WPW10117263 TOP
W10209905 W10209905 TRIM
W10162090 W10162090 TUCHUP
W10224575 W10224575 USE & CARE GUIDE
WPW10044608 WPW10044608 VALVE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
W10044579 W10044579 WASHER
WP697772 WP697772 WHEEL
W10012430 W10012430 WHEEL
W10212928 W10212928 WHEEL
WP8566254 WP8566254 WINDOW
W10180117 W10180117 WINDOW
WP3406653 WP3406653 WIRE HARNESS
