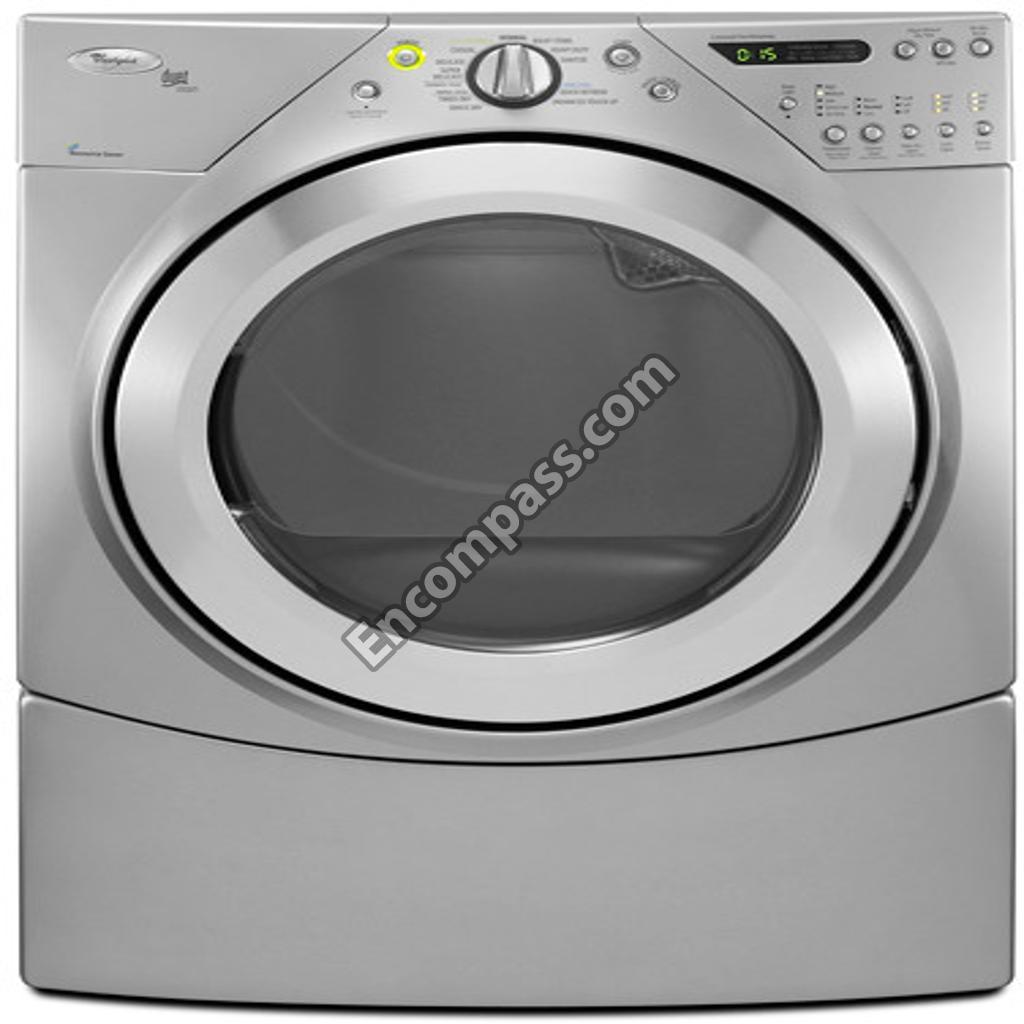

Model Image
Manufacturer

Whirlpool

Model Number

WGD9550WL3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10044609A W10044609A Whirlpool ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
W10012480 W10012480 Whirlpool ADAPTER
WPW10318609 WPW10318609 Whirlpool ASSEMBLY, DOOR SWITCH
W10854980 W10854980 Whirlpool BADGE
WPW10113136 WPW10113136 Whirlpool BAFFLE-DRM
WPW10239098 WPW10239098 Whirlpool BASE
3389871 3389871 Whirlpool BASE, BURNER
661570 661570 Whirlpool BELT
3389888 3389888 Whirlpool BRACKET
WP694298 WP694298 Whirlpool BRACKET
W10837240 W10837240 Whirlpool BRACKET
W11481730 W11481730 Whirlpool BRACKET
WP8563727 WP8563727 Whirlpool BRACKET
W10215656 W10215656 Whirlpool BRACKET
W10044597 W10044597 Whirlpool BRACKET
W10181903 W10181903 Whirlpool BRACKET, BURNER
8578825 8578825 Whirlpool BRACKET, DRUM LIGHT
3978776 3978776 Whirlpool BRACKET, GAS PIPE
W10133857 W10133857 Whirlpool BULKHEAD
WPW10252304 WPW10252304 Whirlpool BULKHEAD, FRONT (INCLUDE ITEMS. 28 & 32)
WP693140 WP693140 Whirlpool BURNER
280119 280119 Whirlpool BURNER-GAS
W11226088 W11226088 Whirlpool CAMERA LENS
WPW10121316 WPW10121316 Whirlpool CLAMP
WPW10129065 WPW10129065 Whirlpool CLIP
W11684573 W11684573 Whirlpool CLIP
WP8066208 WP8066208 Whirlpool CLIP
W11295573 W11295573 Whirlpool CLIP
W10112268 W10112268 Whirlpool CLIP
W10044599 W10044599 Whirlpool CLIP
62825 62825 Whirlpool CLIP-S TYPE
WPW10328463 WPW10328463 Whirlpool COIL-VALVE
WPW10256719 WPW10256719 Whirlpool CONTROL BOARD
WPW10279709 WPW10279709 Whirlpool CONTROL BOARD
WPW10279773 WPW10279773 Whirlpool CONTROL BOARD
W10859554 W10859554 Whirlpool COUPLER
WPW10354249 WPW10354249 Whirlpool COVER
W10819767 W10819767 Whirlpool COVER
W10184825 W10184825 Whirlpool COVER
W10909036 W10909036 Whirlpool COVER
WP8573713 WP8573713 Whirlpool CUTOFF-TML
W10133763 W10133763 Whirlpool DETENT WHEEL (SERVICE ONLY WITH ITEM. 19 )
WP8577819 WP8577819 Whirlpool DOOR
WP8578229 WP8578229 Whirlpool DOOR
W11222846 W11222846 Whirlpool DOOR
W10180118 W10180118 Whirlpool DOOR
279570 279570 Whirlpool DOOR LATCH
W10171571 W10171571 Whirlpool DOOR SCREEN
279787 279787 Whirlpool DRIVE MOTOR
W10545924 W10545924 Whirlpool DRUM
8212450A 8212450A Whirlpool DRY RACK
W11168650 W11168650 Whirlpool DUCT-AIR
WPW10128606 WPW10128606 Whirlpool DUCT-LINT
WPW10416072 WPW10416072 Whirlpool ELBOW
WP3387223 WP3387223 Whirlpool ELECTRODE
280230 280230 Whirlpool ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & 26)
49621 49621 Whirlpool FEET-LVLNG
WP8573824 WP8573824 Whirlpool FUNNEL
WP3392519 WP3392519 Whirlpool FUSE-THRML
WPW10118347 WPW10118347 Whirlpool GAS VALVE
8579662 8579662 Whirlpool GASKET, WINDOW
W11086603 W11086603 Whirlpool GRILL-OUT
W11219327 W11219327 Whirlpool GRILL-OUT
WPW10180115 WPW10180115 Whirlpool HANDLE, RING DOOR
W10111069 W10111069 Whirlpool HARNS-WIRE
W10242906 W10242906 Whirlpool HARNS-WIRE
W10242903 W10242903 Whirlpool HARNS-WIRE
WPW10310366 WPW10310366 Whirlpool HINGE
W10410307 W10410307 Whirlpool HOSE
WP89503 WP89503 Whirlpool HOSE-FILL
49583 49583 Whirlpool HOSE-FILL
W10888146 W10888146 Whirlpool HOUSING
W11129408 W11129408 Whirlpool HOUSNG-OUT
W10253353 W10253353 Whirlpool HOUSNG-OUT
279311 279311 Whirlpool IGNITOR
W10471645 W10471645 Whirlpool INSTALLATION INSTRUCTIONS
3401710 3401710 Whirlpool JUMPER, TCO HI-LIMIT
346764A 346764A Whirlpool KIT, HOLD DOWN
W11581317 W11581317 Whirlpool KIT, LP GAS DRYER CONVERSION
8541503 8541503 Whirlpool KIT, STACK ASSEMBLY
8579666ARP 8579666ARP Whirlpool KIT-DOOR
W10190685 W10190685 Whirlpool KNOB
WPW10085230 WPW10085230 Whirlpool LABEL
WP22002263 WP22002263 Whirlpool LIGHT BULB
49586 49586 Whirlpool MIXER
WPW10277503 WPW10277503 Whirlpool NOZZLE
WPW10080190 WPW10080190 Whirlpool NUT
WPW10080210 WPW10080210 Whirlpool NUT
W10044628 W10044628 Whirlpool NUT
WP15418 WP15418 Whirlpool ORIFCE-GAS
799344 799344 Whirlpool PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10180423 WPW10180423 Whirlpool PANEL
W11233548 W11233548 Whirlpool PANEL
WPW10468499 WPW10468499 Whirlpool PANEL
W10249726 W10249726 Whirlpool PANEL
WPW10255230 WPW10255230 Whirlpool PANEL, CONSOLE (INCLUDE ITEMS, (MERCURY)
WPW10255229 WPW10255229 Whirlpool PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
W10244142 W10244142 Whirlpool PANEL-REAR
279936 279936 Whirlpool PIPE-EXHST
WP8563749 WP8563749 Whirlpool PIPE-EXHST
WPW10331278 WPW10331278 Whirlpool PIPE-EXHST
WP8563747 WP8563747 Whirlpool PIPE-EXHST
WPW10404617 WPW10404617 Whirlpool PLUG
W10665050 W10665050 Whirlpool PLUG
W10048910 W10048910 Whirlpool PLUG
W10295523 W10295523 Whirlpool PLUG
W11222083 W11222083 Whirlpool POWER CORD
279640 279640 Whirlpool PULLEY-IDR
W10837625 W10837625 Whirlpool PULLEY-MTR
8529053 8529053 Whirlpool RAMP, DOOR
WP3391912 WP3391912 Whirlpool RANGE THERMOSTAT
4392067 4392067 Whirlpool REPAIR-DYR
W10822054 W10822054 Whirlpool RETAINER
WPW10012440 WPW10012440 Whirlpool RETAINER
8519356 8519356 Whirlpool RETAINER, WINDOW (UPPER)
WPW10512946 WPW10512946 Whirlpool RING
W10250089 W10250089 Whirlpool RING
W10120998 W10120998 Whirlpool SCREEN
WP3373329 WP3373329 Whirlpool SCREW
WP355515 WP355515 Whirlpool SCREW
W10850046 W10850046 Whirlpool SCREW
WPW10159996 WPW10159996 Whirlpool SCREW
WPW10366705 WPW10366705 Whirlpool SCREW
WP3387230 WP3387230 Whirlpool SCREW
WP489463 WP489463 Whirlpool SCREW
W10853898 W10853898 Whirlpool SCREW
WP681414 WP681414 Whirlpool SCREW
WP90767 WP90767 Whirlpool SCREW
WP3389420 WP3389420 Whirlpool SCREW
WP308685 WP308685 Whirlpool SCREW
W10850756 W10850756 Whirlpool SCREW
WP3390631 WP3390631 Whirlpool SCREW
WP693995 WP693995 Whirlpool SCREW
WP488729 WP488729 Whirlpool SCREW
WP3400224 WP3400224 Whirlpool SCREW, 10-16 X 1/2
326049536 326049536 Whirlpool SCREW, COIL
WP697770 WP697770 Whirlpool SEAL
280114 280114 Whirlpool SEAL
WP697813 WP697813 Whirlpool SEAL
WP3387242 WP3387242 Whirlpool SEAL
W10112267 W10112267 Whirlpool SEAL
WPW10139457 WPW10139457 Whirlpool SEAL-DOOR
WP338906 WP338906 Whirlpool SENSOR
WPW10359272 WPW10359272 Whirlpool SHAFT
WPW10359271 WPW10359271 Whirlpool SHAFT
W10180120 W10180120 Whirlpool SHIELD
W11222979 W11222979 Whirlpool SOCKET
WP3394986 WP3394986 Whirlpool SPRING
WPW10446781 WPW10446781 Whirlpool SPRING
WPW10314173 WPW10314173 Whirlpool SUPPORT
W10847984 W10847984 Whirlpool SWITCH
W10298850 W10298850 Whirlpool TECH SHEET
WP8577274 WP8577274 Whirlpool THERMISTOR
WP3391018 WP3391018 Whirlpool TIE-WIRE
WPW10259606 WPW10259606 Whirlpool TOE PANEL (MERCURY)
WPW10246269 WPW10246269 Whirlpool TOEPNL
WPW10117263 WPW10117263 Whirlpool TOP
WPW10249739 WPW10249739 Whirlpool TOP (MERCURY)
W10246600 W10246600 Whirlpool TRIM
W10249765 W10249765 Whirlpool TRIM
W10218245 W10218245 Whirlpool TUCHUP
W10268217 W10268217 Whirlpool TUCHUP
W10477028 W10477028 Whirlpool USE & CARE GUIDE
WPW10044608 WPW10044608 Whirlpool VALVE
W10470674 W10470674 Whirlpool VENT KIT
WP16123 WP16123 Whirlpool WASHER
W11236646 W11236646 Whirlpool WASHER
WPW10121334 WPW10121334 Whirlpool WASHER
W10044579 W10044579 Whirlpool WASHER
WP697772 WP697772 Whirlpool WHEEL
W10012430 W10012430 Whirlpool WHEEL
WP8566254 WP8566254 Whirlpool WINDOW
W10180117 W10180117 Whirlpool WINDOW
WP3406653 WP3406653 Whirlpool WIRE HARNESS
