            [modelID] => WHIWGD96HEAU2
            [mfgCode] => WHI
            [modelNumber] => WGD96HEAU2
            [description] =>
            [modelImage] => https://encompass-11307.kxcdn.com/imageDisplay?id=WGD96HEAU2&mfgCode=WHI&type=m&size=t
            [mfgName] => Whirlpool
            [numberOfParts] => 179
        )

)

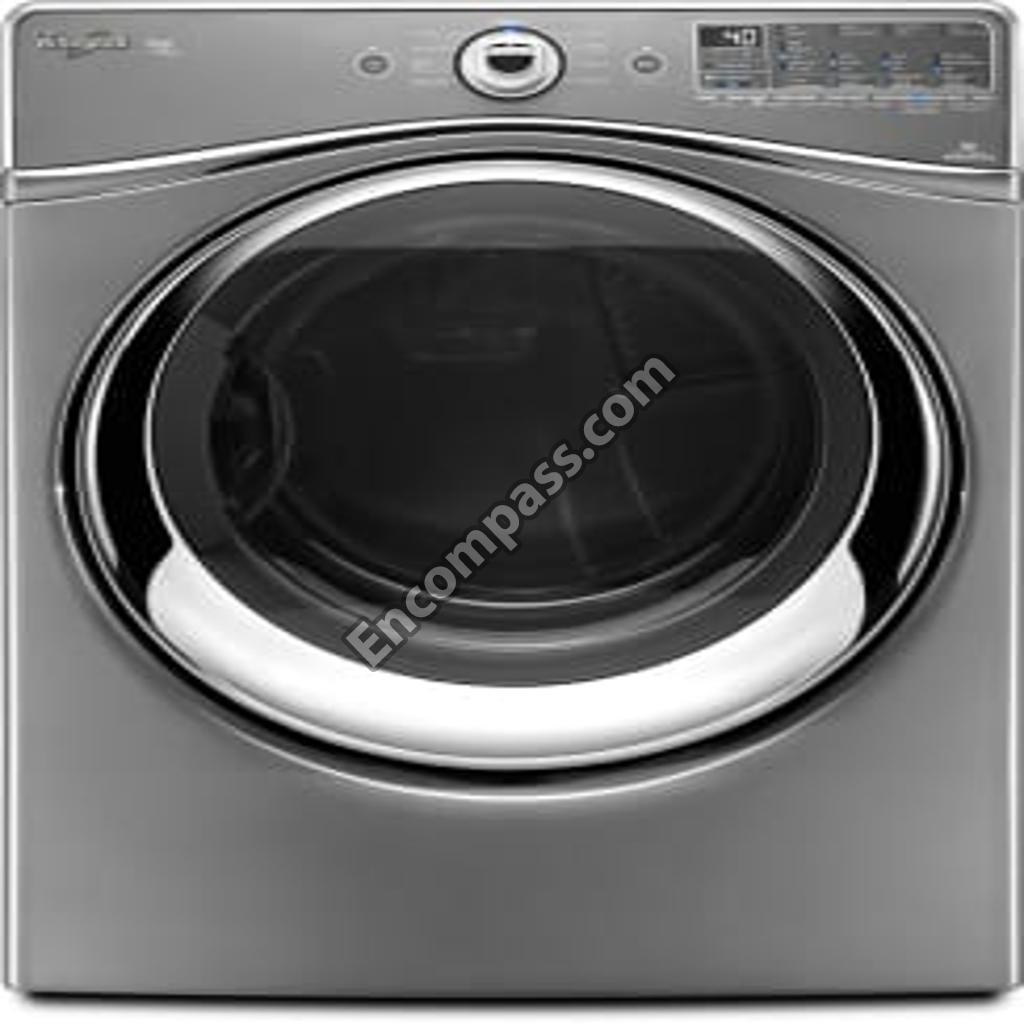

Model Image
Manufacturer

Whirlpool

Model Number

WGD96HEAU2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
346764A 346764A ACCESSORY PARTS, KIT, HOLD DOWN
W10280771 W10280771 BAFFLE-DRM
W11215531 W11215531 BASE
3389871 3389871 BASE, BURNER
661570 661570 BELT
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
WPW10656504 WPW10656504 BRACKET
W10837240 W10837240 BRACKET
WPW10208382 WPW10208382 BRACKET
W11481730 W11481730 BRACKET
W10259611 W10259611 BRACKET
W11480682 W11480682 BRACKET
W10181903 W10181903 BRACKET, BURNER
694538 694538 BRACKET, COIL
3978776 3978776 BRACKET, GAS PIPE
W11299301 W11299301 BULKHEAD
W10673491 W10673491 BULKHEAD, FRONT
WP693140 WP693140 BURNER
280119 280119 BURNER-GAS
WPW10208398 WPW10208398 CAP
WPW10208254 WPW10208254 CATCH
W11240283 W11240283 CATCH
WPW10653575 WPW10653575 CHANNEL
WPW10121316 WPW10121316 CLAMP
3387561 3387561 CLAMP, PIPE
WP8536939 WP8536939 CLIP
W10044599 W10044599 CLIP
W10414388 W10414388 CLIP
279834 279834 COIL-VALVE
WPW10344699 WPW10344699 COLLAR
WPW10336486 WPW10336486 CONNECTOR
WPW10463687 WPW10463687 CONSOLE
WPW10446407 WPW10446407 CONSOLE
WPW10542001 WPW10542001 CONTROL BOARD
WPW10446445 WPW10446445 CONTROL PANEL
WPW10446446 WPW10446446 CONTROL PANEL
WPW10208422 WPW10208422 COVER
WPW10354249 WPW10354249 COVER
W10819767 W10819767 COVER
W10772469 W10772469 COVER
W10211901 W10211901 COVER
W10530670 W10530670 COVER
WP8573713 WP8573713 CUTOFF-TML
W10853454 W10853454 DOOR
W11188529 W11188529 DOOR
W11156832 W11156832 DOOR
W10905013 W10905013 DOOR
W10267837 W10267837 DOOR
W10636276 W10636276 DOOR
W10772471 W10772471 DOOR, TRIM RING
279787 279787 DRIVE MOTOR
W10541656 W10541656 DRUM
WPW10293765 WPW10293765 DUCT-AIR
WPW10211896 WPW10211896 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
49621 49621 FEET-LVLNG
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP8573824 WP8573824 FUNNEL
WP3392519 WP3392519 FUSE-THRML
WPW10118347 WPW10118347 GAS VALVE
W11125442 W11125442 GRILL-OUT
W10208411 W10208411 HANDLE
W10708958 W10708958 HARNESS, GAS
W10526661 W10526661 HARNS-WIRE
WPW10208415 WPW10208415 HINGE
W11051465 W11051465 HINGE
WPW10347739 WPW10347739 HOSE
WP89503 WP89503 HOSE-FILL
W10819173 W10819173 HOSE-FILL
W10044609A W10044609A HOSE-KIT
WPW10211911 WPW10211911 HOUSING
W11242876 W11242876 HOUSNG-OUT
W10906551 W10906551 HOUSNG-OUT
279311 279311 IGNITOR
W10558994 W10558994 INSTALLATION INSTRUCTIONS
W11581317 W11581317 KIT, LP GAS DRYER CONVERSION
W10323246 W10323246 KIT-EXHST
W10869845 W10869845 KIT-STACK
WPW10391535 WPW10391535 KNOB
W10460935 W10460935 LIGHT
WP694424 WP694424 LIMITER
W11178521 W11178521 NAMEPLATE
WPW10393264 WPW10393264 NAMEPLATE
WPW10277503 WPW10277503 NOZZLE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
WP229742 WP229742 ORIFCE-GAS
WP15418 WP15418 ORIFCE-GAS
15422 15422 ORIFICE, BURNER (TYPE 4) (BUTANE)
W10524376 W10524376 OWNERS MANUAL
W11409002 W11409002 PAD
799344 799344 PAINT, BULK (1 QT. WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10463309 WPW10463309 PANEL
WPW10363953 WPW10363953 PANEL
WPW10460923 WPW10460923 PANEL
W11233548 W11233548 PANEL
W11315726 W11315726 PANEL
WPW10468499 WPW10468499 PANEL
W11310043 W11310043 PANEL
W10469592 W10469592 PANEL
W11321018 W11321018 PANEL
W10504272 W10504272 PANEL-CNTL
W10446448 W10446448 PANEL-CNTL
W10487430 W10487430 PANEL-REAR
W10295523 W10295523 PIPE PLUG
WPW10342188 WPW10342188 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
WPW10208419 WPW10208419 PLATE
W10811916 W10811916 PLUG
WPW10404617 WPW10404617 PLUG
W10249704 W10249704 PLUG
W10391496 W10391496 PLUG
8529007 8529007 PLUG, REAR BULKHEAD
W11222083 W11222083 POWER CORD
W10837625 W10837625 PULLEY-MTR
W10322470A W10322470A RACK-DRY
WP3391912 WP3391912 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
4392067 4392067 REPAIR-DYR
W10208252 W10208252 RETAINER
WPW10512946 WPW10512946 RING
WPW10516085 WPW10516085 SCREEN
WPW10366705 WPW10366705 SCREW
W10850046 W10850046 SCREW
WP3387230 WP3387230 SCREW
W10853898 W10853898 SCREW
WP681414 WP681414 SCREW
WP90767 WP90767 SCREW
W11661566 W11661566 SCREW
WP3389420 WP3389420 SCREW
WP308685 WP308685 SCREW
W10850756 W10850756 SCREW
WP488729 WP488729 SCREW
WP693995 WP693995 SCREW
W11501418 W11501418 SCREW
694421 694421 SCREW, COIL
WP697770 WP697770 SEAL
280114 280114 SEAL
WP3387242 WP3387242 SEAL
W10211899 W10211899 SEAL
W11676493 W11676493 SEAL
W11193479 W11193479 SEAL
W11126230 W11126230 SEAL
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11257251 W11257251 SHIELD
W10123956 W10123956 SOUND ABSR
WP694422 WP694422 SPRING
WPW10446781 WPW10446781 SPRING
WPW10208250 WPW10208250 STRIKE
WPW10314173 WPW10314173 SUPPORT
W10847984 W10847984 SWITCH
WPW10350906 WPW10350906 SWITCH-DOR
W10097114 W10097114 TECH SHEET
WPW10419068 WPW10419068 THERMISTOR
WP8577274 WP8577274 THERMISTOR
WP3391018 WP3391018 TIE-WIRE
WPW10460919 WPW10460919 TOP
WPW10316282 WPW10316282 TOP
WPW10208383 WPW10208383 TOP
W10268217 W10268217 TUCHUP
W10815373 W10815373 VALVE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
WP697772 WP697772 WHEEL
WPW10208270 WPW10208270 WINDOW
W11310036 W11310036 WINDOW
W10525140 W10525140 WIRE
WPW10298258 WPW10298258 WIRE HARNESS
W10837344 W10837344 WIRE HARNESS
W10504395 W10504395 WIRING DIAGRAM
