Whirlpool

Model Number

WGG745S0FH00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORIES, BROILER PAN AND GRID
W10355051 W10355051 ACCESSORIES, CLEANER, COOKTOP
W10275756 W10275756 ACCESSORIES, CLEANER, GRANITE
31617A 31617A ACCESSORIES, CLEANER, GRATE & DRIP PAN
W10355010 W10355010 ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
W10391473 W10391473 ACCESSORIES, PAD, COOKTOP CLEANING
31463A 31463A ACCESSORIES, PROTECTANT, COOKTOP
W10123240 W10123240 ACCESSORIES, RACK, BROILER PAN AND ROASTING
WA906B WA906B ACCESSORIES, SCRAPER, COOKTOP
W10355049 W10355049 ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W10272519 W10272519 ASSEMBLY, FLUE (LOWER)
W10321445 W10321445 ASSEMBLY, OUTLET FLUE (LOWER)
W10321446 W10321446 ASSEMBLY, OUTLET FLUE (UPPER)
W10668728 W10668728 BACK, MAIN
W10272528 W10272528 BAFFLE, BAKE
3601F358-45 3601F358-45 BAFFLE, BROIL BURNER

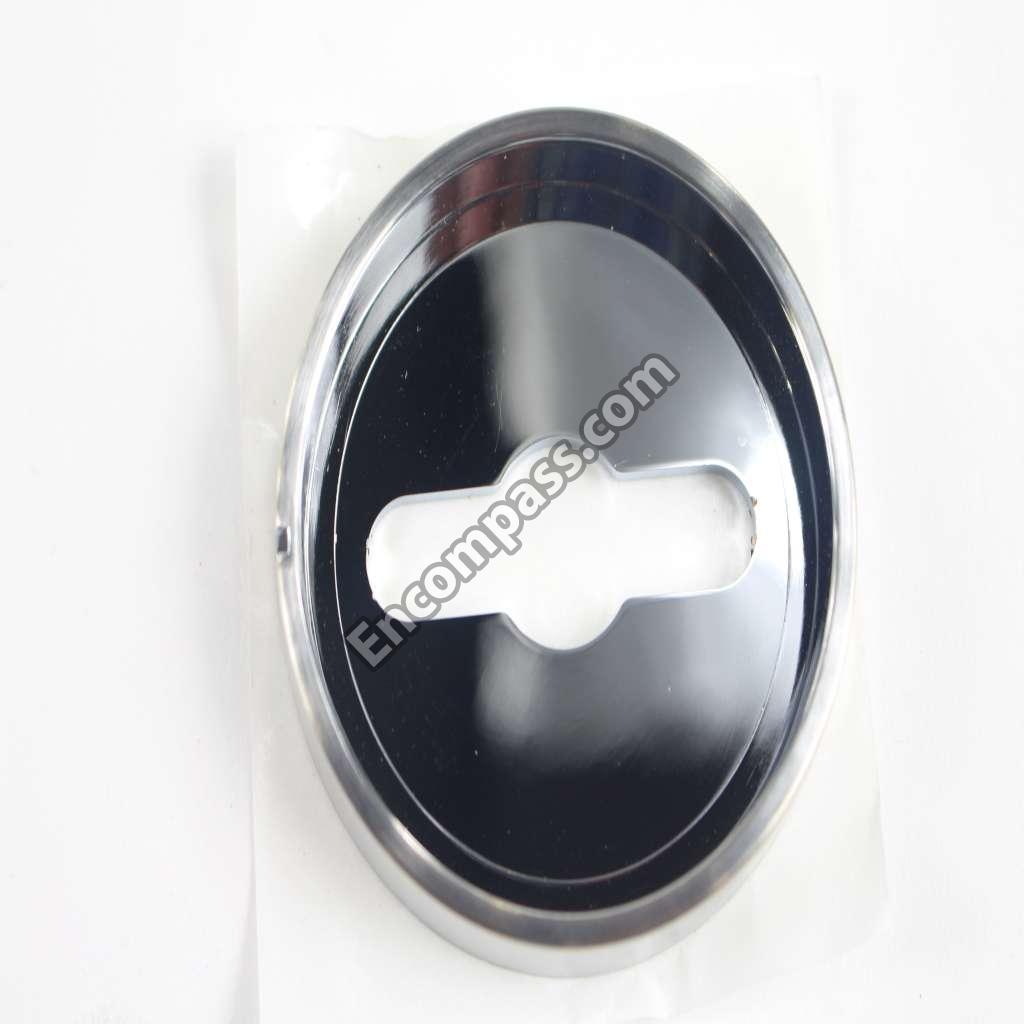

W11188712 W11188712 BEZEL-KNOB
WP3801F656-51 WP3801F656-51 BRACKET
W10518258 W10518258 BRACKET, COOKTOP SUPPORT
W10575689 W10575689 BRACKET, HANDLE (STAINLESS MODELS ONLY)
W10949105 W10949105 BRACKET, SADDLE VALVE
W10357697 W10357697 BRACKET, SIDE PANEL
W10319059 W10319059 BRACKET, SPARK MODULE
W10319087 W10319087 BRACKET, U CHANNEL
WPW10294695 WPW10294695 BRKT-MNTG
W11756017 W11756017 BRKT-MNTG
WPW10276466 WPW10276466 BRKT-SUPRT
W10105790 W10105790 BUMPER & SCREW
WPW10333445 WPW10333445 BURNR-BASE
W11245221 W11245221 BURNR-BRLR
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
W11174122 W11174122 BURNR-OVEN
WPW10336094 WPW10336094 BURNR-TOP
WPW10171140 WPW10171140 CAP-BURNER
WPW10299236 WPW10299236 CAP-BURNER
W10336909 W10336909 CLEANER
W10841090 W10841090 CLIP
W10878844 W10878844 CONTROL BOARD
WPW10318550 WPW10318550 CONTROL PANEL
WPW10318552 WPW10318552 CONTROL PANEL
WPW10318551 WPW10318551 CONTROL PANEL
W10878908 W10878908 COOKTOP
W10878907 W10878907 COOKTOP
W10776098 W10776098 COVER, BACKGUARD
8285593 8285593 COVER, CONNECTOR
W10410463 W10410463 COVER, HINGE (LEFT)
W10410461 W10410461 COVER, HINGE (RIGHT)
4005F421-45 4005F421-45 COVER, IGNITOR WIRE
W10268558 W10268558 COVER, LOWER WIRE
WPW10160821 WPW10160821 COVER-FAN
WPW10261387 WPW10261387 COVR-WIRE
W11166856 W11166856 DOOR DOOR LATCH
WPW10618239 WPW10618239 DOOR HANDLE
WPW10335433 WPW10335433 DOOR HINGE
WPW10335434 WPW10335434 DOOR HINGE
WPW10485732 WPW10485732 DOOR HINGE
WPW10485733 WPW10485733 DOOR HINGE
W10637673 W10637673 ELECTRODE, FISH
W10249980 W10249980 ELEMENT, CONVECTION (120 VAC)
W10719582 W10719582 ENDCAP, MANIFOLD (BLACK (LEFT))
W10719581 W10719581 ENDCAP, MANIFOLD (BLACK (RIGHT))
W10823301 W10823301 ENDCAP, MANIFOLD (STAINLESS (LEFT))
W10823299 W10823299 ENDCAP, MANIFOLD (STAINLESS (RIGHT))
W10719580 W10719580 ENDCAP, MANIFOLD (WHITE (LEFT))
W10719579 W10719579 ENDCAP, MANIFOLD (WHITE (RIGHT))
W10636384 W10636384 EXTENSION, ELECTRODE
W10819914 W10819914 FAN-CONVCT
W10292293 W10292293 FITTING, BROILER
W11243157 W11243157 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11665456 W11665456 FOOT-LEVEL
WPW10272594 WPW10272594 FRAME-WNDW
WPW10272708 WPW10272708 FRAME-WNDW
WPW10546238 WPW10546238 GAS VALVE
W10319000 W10319000 GASKET, GEMINI OVEN SHIELD
W10318928 W10318928 GASKET, OVEN DOOR (UPPER)
WPW10269069 WPW10269069 GASKT-DOOR
W10877566 W10877566 GLASS DOOR
WP9757706 WP9757706 GLASS DOOR
W10677245 W10677245 GLASS DOOR
W10677248 W10677248 GLASS DOOR
W10878897 W10878897 GLASS DOOR
W10677221 W10677221 GLASS DOOR
W10677228 W10677228 GLASS DOOR
W11132120 W11132120 GLASS DOOR
8016P022- 8016P022- GLIDE, MAIN TOP
W11449099 W11449099 GRATE-KIT
W10841342 W10841342 GUIDE, USE & CARE
W11172428 W11172428 HARNESS, EOL (DOFSR)
W10745674 W10745674 HARNESS, MAIN
W11172531 W11172531 HARNESS, SENSOR & LOCKS
W10408058 W10408058 HARNESS, SPARK
WPW10272328 WPW10272328 HINGE-RECV
WPW10272329 WPW10272329 HINGE-RECV
W10647259 W10647259 HINGE-RECV
W10324366 W10324366 HOLDER, ELECTRODE EXTENSION
W10643269 W10643269 HOLDER, ORIFICE (5K) (LEFT REAR)
W10643271 W10643271 HOLDER, ORIFICE (5K) (RIGHT REAR)
W10643272 W10643272 HOLDER, ORIFICE (7K) (CENTER)
W11685612 W11685612 HOLDER-ORF
W11230935 W11230935 HOLDER-ORF
W11596211 W11596211 IGNTR-OVEN
WPW10324738 WPW10324738 IGNTR-OVEN
W11208293 W11208293 IGNTR-SURF
W10776010 W10776010 INSERT, GRILL PAN
W10575961 W10575961 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
WPW10321285 WPW10321285 INSULATION
WPW10321271 WPW10321271 INSULATION
W11688777 W11688777 INSULATION
W11685611 W11685611 INSULATION
W11684919 W11684919 INSULATION
W11684769 W11684769 INSULATION
W11688385 W11688385 INSULATION
W11684874 W11684874 INSULATION
W10274268 W10274268 INSULATION, CONVECTION MOTOR
W10324646 W10324646 INSULATION, ORIFICE
W11188749 W11188749 KNOB
8009 8009 LIGHT BULB
WPW10272698 WPW10272698 LINER-DOOR
W11051040 W11051040 LINING, DOOR
W11684563 W11684563 MANIFOLD
W10879587 W10879587 MEMBRANE SWITCH
W10879584 W10879584 MEMBRANE SWITCH
W10879583 W10879583 MEMBRANE SWITCH
74009098 74009098 MODULE, SPARK
W10794440 W10794440 MOTOR-FAN
W11178521 W11178521 NAMEPLATE
W10794042 W10794042 NUT
74007451 74007451 NUT, MOUNTING
7103P030-60 7103P030-60 NUT, WING
W10342661 W10342661 ORIFICE, BAKE (LOWER)
W10342662 W10342662 ORIFICE, BAKE (UPPER)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350956 350956 PAINT, SPRAY (ALMOND)
4392901 4392901 PAINT, SPRAY (BISCUIT/BISQUE)
285006 285006 PAINT, SPRAY (BLACK)
350938 350938 PAINT, SPRAY (GRAY PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10272546 WPW10272546 PAN-BROILR
W10828392 W10828392 PANEL, MANIFOLD (BLACK)
W10823297 W10823297 PANEL, MANIFOLD (STAINLESS)
W10828396 W10828396 PANEL, MANIFOLD (WHITE)
WPW10330376 WPW10330376 PANEL-SIDE
WPW10330375 WPW10330375 PANEL-SIDE
W10339476 W10339476 PLATE, INSULATION
WPW10179152 WPW10179152 RACK-OVEN
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10340464 W10340464 RETAINER, INSULATION
W10485723 W10485723 RETAINER, INSULATION
W10850807 W10850807 SCREW
WPW10317886 WPW10317886 SCREW
WPW10292297 WPW10292297 SCREW
WP4449040 WP4449040 SCREW
WPW10267456 WPW10267456 SCREW
WP3387230 WP3387230 SCREW
W10217535 W10217535 SCREW
WPY706189 WPY706189 SCREW
WP4159193 WP4159193 SCREW
WP90767 WP90767 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP98008545 WP98008545 SCREW
W11233072 W11233072 SCREW
W10491985 W10491985 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
W10295997 W10295997 SCREW, VALVE
W10647745 W10647745 SHEET, TECH
W10298865 W10298865 SHIELD, BAKE
W10319038 W10319038 SHIELD, GEMINI
W10538516 W10538516 SHIELD, SIDE INSULATION
W10278697 W10278697 SHIELD, VENT
W11594027 W11594027 SOCKT-LITE
WPW10429492 WPW10429492 SPACER
WPW10410341 WPW10410341 SPACER
WPW10237689 WPW10237689 SPACER-PNL
W11674161 W11674161 SPUD-ORFCE
W10319109 W10319109 SUPPORT, BACKGUARD (BLACK (LEFT))
W10319111 W10319111 SUPPORT, BACKGUARD (BLACK (RIGHT))
W10319110 W10319110 SUPPORT, BACKGUARD (WHITE (LEFT))
W10319112 W10319112 SUPPORT, BACKGUARD (WHITE (RIGHT))
W10324643 W10324643 SUPPORT, INSULATION
W10863342 W10863342 SUPPORT, LOWER OVEN
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
WP7430P044-60 WP7430P044-60 TOP-OVEN
W10524331 W10524331 TUBING (SUPPLY REGULATOR TO SHUTOFF)
W10642388 W10642388 TUBING (SUPPLY SHUTOFF TO MANIFOLD)
W10319002 W10319002 TUBING, BROIL
W10718181 W10718181 VALVE (10K)
W10718182 W10718182 VALVE (5K) (LEFT REAR & RIGHT REAR)
W11740802 W11740802 VALVE-BRNR
W10911971 W10911971 VALVE-SOLN
7109P084-60 7109P084-60 WASHER, FIBER
W11241684 W11241684 WIRE HARNESS
