Model Image
Manufacturer

Whirlpool

Model Number

WHD862CHC0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10869845 W10869845 ACCESSORY OTHER, KIT, STACK
W10322470A W10322470A ACCESSORY PARTS, DRY RACK
W10782875 W10782875 ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER)
W10315283RP W10315283RP ACCESSORY PARTS, KIT, DOOR REVERSING
W10623830 W10623830 ACCESSORY PARTS, KIT, DRYER - PREMIUM STEAM HOSE (INCLUDES (1) 2' HOSE AND (1) 5' HOSE, (1) Y ADAPTER AND (5) RUBBER WAS
W10044609A W10044609A ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
4392067 4392067 ACCESSORY PARTS, KIT, DRYER REPAIR
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
346764A 346764A ACCESSORY PARTS, KIT, HOLD DOWN
W10670373 W10670373 ASSEMBLY, DOOR HOUSING OUTLET
W10541657 W10541657 ASSEMBLY, DRUM (COMPLETE)
W10739609 W10739609 ASSEMBLY, HANDLE - SECONDARY LINT
W10660495 W10660495 ASSEMBLY, INLET DUCT
W10280771 W10280771 BAFFLE, DRUM
661570 661570 BELT
W11194427 W11194427 BEZEL, SECONDARY LINT ASSEMBLY (CHROME SHADOW)
WP3397659 WP3397659 BLOCK-TERM
W10837240 W10837240 BRACKET
W11310030 W11310030 BRACKET
WPW10208382 WPW10208382 BRACKET
W11310027 W11310027 BRACKET
W11480682 W11480682 BRACKET, CONSOLE
W10578065 W10578065 BRACKET, MOTOR
W10668463 W10668463 BRACKET, TERMINAL CROSS BAR
W10574749 W10574749 BRACKET, THERMISTER
W10645092 W10645092 BRACKET, VALVE
W11299300 W11299300 BULKHEAD
W10673491 W10673491 BULKHEAD, FRONT
W10724418 W10724418 CAPACITOR, COMPRESSOR
W10724414 W10724414 CAPACITOR, MOTOR RUN
W10442513 W10442513 CAPACITOR, MOTOR START
W11240283 W11240283 CATCH
WPW10121316 WPW10121316 CLAMP
W11406521 W11406521 CONDENSER
WPW10336486 WPW10336486 CONNECTOR
W11368759 W11368759 CONTROL BOARD
W11347420 W11347420 CONTROL BOARD
W11701949 W11701949 COVER
W11310039 W11310039 COVER
W10608831 W10608831 COVER, HEAT EXCHANGE
W11120174 W11120174 COVER, HINGE
WPW10316167 WPW10316167 COVER-TERM
W11676807 W11676807 CUTOFF-TML
W11701947 W11701947 DOOR
W11156832 W11156832 DOOR
W11108732 W11108732 DOOR, SECONDARY LINT (CHROME SHADOW)
W11318810 W11318810 DOOR-OUTER
W11209428 W11209428 DRIVE MOTOR
W10709255 W10709255 EDGE COVER, INLET DUCT
WP3387223 WP3387223 ELECTRODE
W11678121 W11678121 ELEMENT
W11406520 W11406520 EVAPORATOR
W11342035 W11342035 FAN-BLADE
49621 49621 FEET-LVLNG

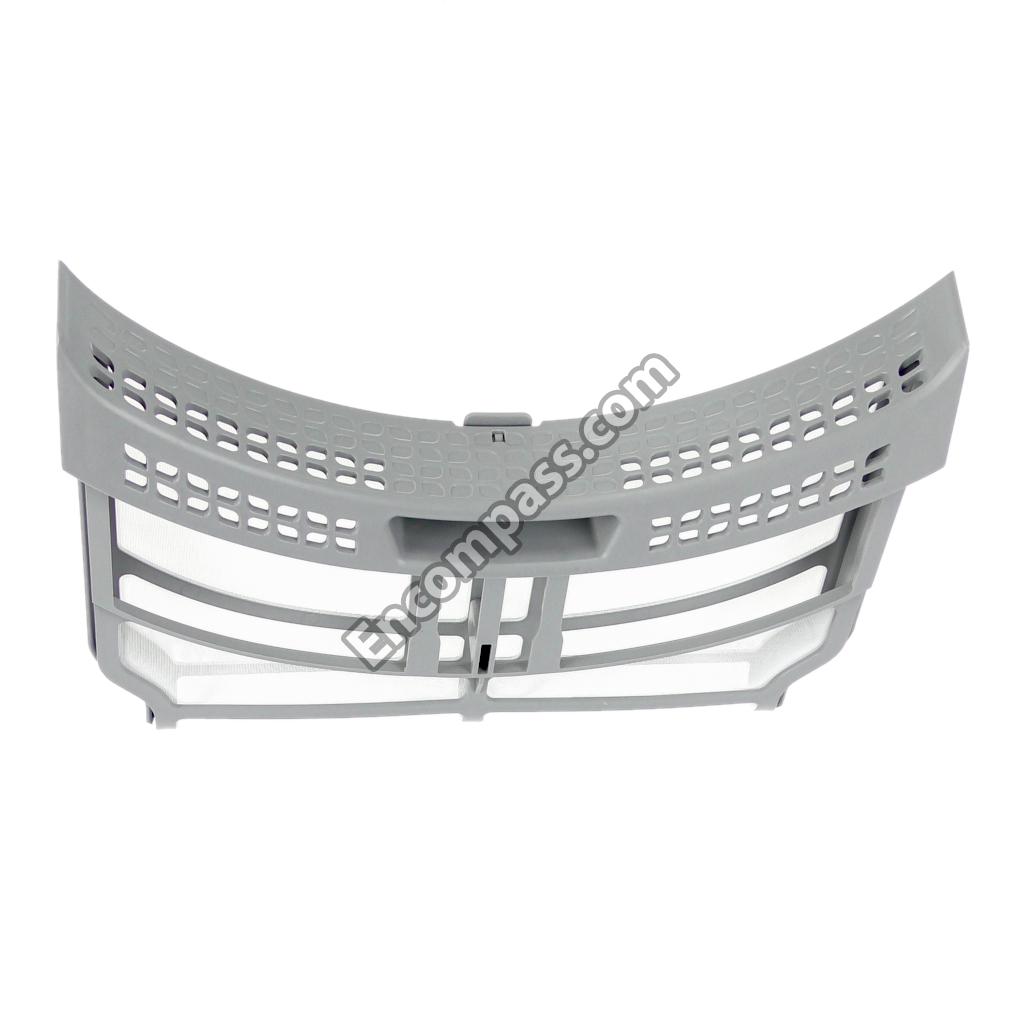

W11715723 W11715723 FILTER
W11573366 W11573366 FLYWHEEL
W10333355 W10333355 FOOT, OPTIONAL (EXTENDED LENGTH) (NOT INCLUDED)
W10810480 W10810480 GUARD, FAN
W11318815 W11318815 HINGE
W11169712 W11169712 HOSE
W10819173 W10819173 HOSE-FILL
W10837311 W10837311 HOUSING, AUXILLARY FAN
W11211470 W11211470 HOUSNG-OUT
W10897399 W10897399 HOUSNG-OUT
W10897401 W10897401 HOUSNG-OUT
W11184511 W11184511 INSTALLATION INSTRUCTIONS
W11310048 W11310048 LIGHT
W10642437 W10642437 LINT DUCT
W11223753 W11223753 NAMEPLATE
W11368564 W11368564 NOT SERVICED (TV STAND ASSEMBLY (NOT SERVICED))
WPW10080210 WPW10080210 NUT
WPW10080190 WPW10080190 NUT
W10759923 W10759923 NUT
W10684400 W10684400 OUTLET GRILL
W11409002 W11409002 PAD
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
W10446202 W10446202 PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11347433 W11347433 PANEL
W11315726 W11315726 PANEL
W10524494 W10524494 PANEL, REAR
279640 279640 PULLEY-IDR
W11551760 W11551760 PUMP
W11184896 W11184896 QUICK START GUIDE
W11310037 W11310037 RETAINER
WPW10512946 WPW10512946 RING
W11483547 W11483547 SCREEN
W11199484 W11199484 SCREEN
W10850046 W10850046 SCREW
WP3389420 WP3389420 SCREW
WP90767 WP90767 SCREW
W10709795 W10709795 SCREW
W11661566 W11661566 SCREW
WP308685 WP308685 SCREW
W10850756 W10850756 SCREW
WP3390631 WP3390631 SCREW
WP693995 WP693995 SCREW
W10853898 W10853898 SCREW
WP488729 WP488729 SCREW
W11686675 W11686675 SCREW
WP681414 WP681414 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
8540479 8540479 SCREW, GROUNDING
W11310035 W11310035 SEAL
W11193479 W11193479 SEAL
280114 280114 SEAL
W11676493 W11676493 SEAL
WP3387242 WP3387242 SEAL
W11318819 W11318819 SEAL
W10608849 W10608849 SEAL - STRIP
W10686117 W10686117 SEAL - STRIP
W10459416 W10459416 SEAL STRIP
WPW10467289 WPW10467289 SENSOR

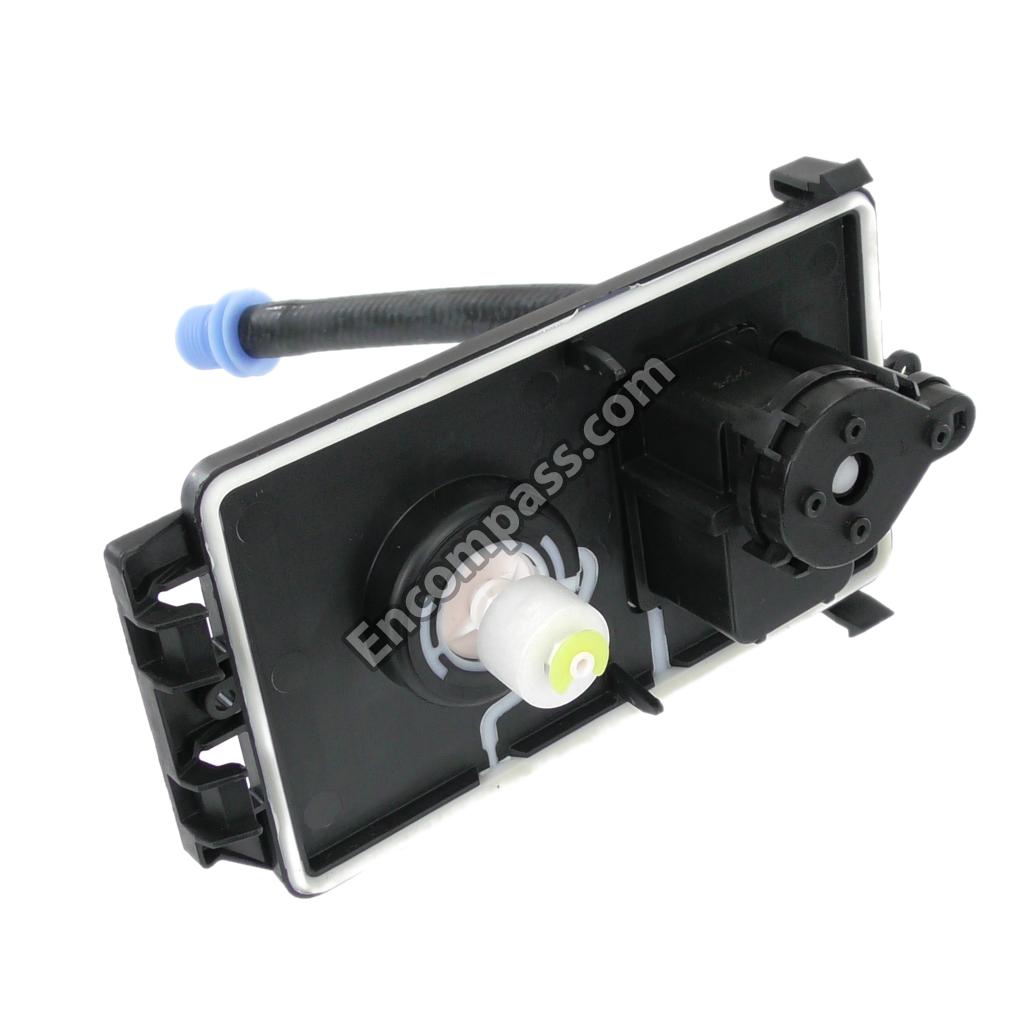

W11176272 W11176272 SENSOR ASSEMBLY, WATER LEVEL
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
W11123146 W11123146 SPEAKER
WPW10446781 WPW10446781 SPRING
W10834437 W10834437 SPRING, LINT SCREEN DOOR
W10374142 W10374142 SPRING, NTC
W11310031 W11310031 STRIKE
WPW10314173 WPW10314173 SUPPORT
W10651558 W10651558 SWITCH, LINT SCREEN
W11427601 W11427601 SWITCH-DOR
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
WP8577274 WP8577274 THERMISTOR
WP3391018 WP3391018 TIE-WIRE
WPW10460919 WPW10460919 TOP
W11184587 W11184587 USE AND CARE GUIDE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
W11310036 W11310036 WINDOW
WPW10298258 WPW10298258 WIRE HARNESS
W11459337 W11459337 WIRE HARNESS
W11241397 W11241397 WIRING DIAGRAM
W11109746 W11109746 WIRING HARNESS (LOWER)
W11157870 W11157870 WIRING HARNESS (UPPER)
