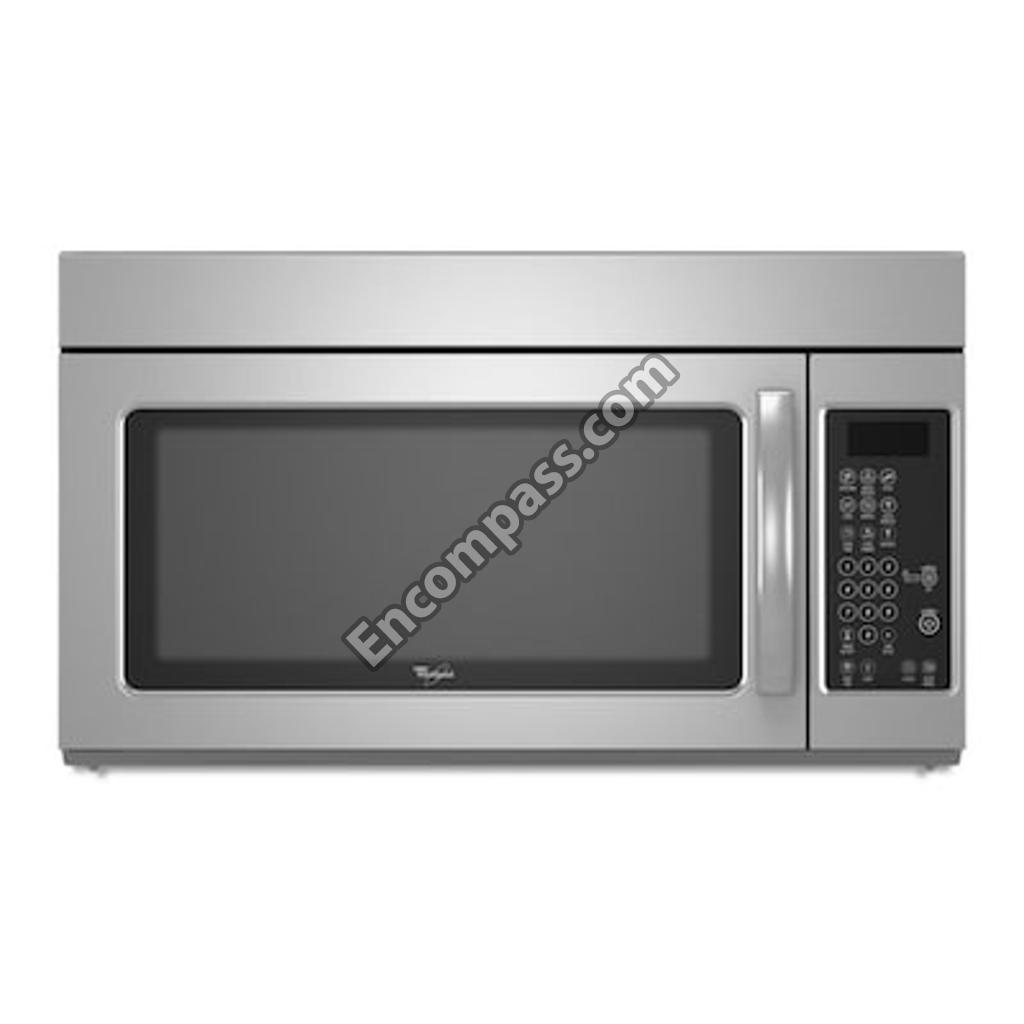

Model Image
Manufacturer

Whirlpool

Model Number

WMH1164XWS2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10210832 W10210832 ADAPTER
W10596040 W10596040 ASSEMBLY, MOUNTING NUT
W10245196 W10245196 BASE
W10269456 W10269456 BASE
W10313269 W10313269 BASE
W10315759 W10315759 BASE
W10532063 W10532063 BRACKET, CAPACITOR
W10364232 W10364232 BRKT-CNTRL
W10532064 W10532064 BRKT-MOUNT
W10313274 W10313274 BRKT-MOUNT
W10313275 W10313275 BRKT-SUPPT
W11405832 W11405832 CAPACTR-DM
W10850446 W10850446 CAPACTR-MG
WPW10269454 WPW10269454 CASE, OUTER
W10292071 W10292071 COOK GUIDE LABEL
W10708076 W10708076 CORD, POWER
8206382 8206382 COVER, LAMP
W10342991 W10342991 COVER-SIDE
W10269469 W10269469 COVR-DUCT
W10313272 W10313272 COVR-INLET
W10210873 W10210873 COVR-LIGHT
W11523261 W11523261 CUSHION
W10843943 W10843943 DAMPER
8206340 8206340 DEFLECTOR, AIR
W11256462 W11256462 DIODE
W10247773 W10247773 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
W10269468 W10269468 DUCT-AIR
W10422269 W10422269 FILTER
8206230A 8206230A FILTER
W10208631A W10208631A FILTER
W11707984 W11707984 FUSE-THRML
WPW10210875 WPW10210875 GLASS-LAMP
W10245216 W10245216 GRILL-VENT
W10138800 W10138800 GUIDE-AIR
W10364230 W10364230 GUIDE-AIR
W10539842 W10539842 HARNS-WIRE
W10539841 W10539841 HARNS-WIRE
W10540464 W10540464 HARNS-WIRE
W10346136 W10346136 HARNS-WIRE
W10540465 W10540465 HARNS-WIRE
W10210887 W10210887 HNDLE-DOOR
WPW10210878 WPW10210878 HOUSNG-LMP
W10210871 W10210871 HOUSNG-LMP
W10238252 W10238252 INSTALL,INSTRUCT.
WP8206419 WP8206419 INTERLOCK
WPW10156813 WPW10156813 INTERLOCK
8206232A 8206232A LIGHT BULB
W10754299 W10754299 MAGNETRON
WPW10350619 WPW10350619 MICROCOMPUTER
W10821385 W10821385 MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
W10539840 W10539840 MISCELLANEOUS, HARNESS, PRINTED CIRCUIT BOARD ASSEMBLY GROUND WIRE
WPW10416638 WPW10416638 MOTOR-FAN
WPW10466420 WPW10466420 MOTOR-TURN
W10182518 W10182518 OWNERS MANUAL
W10315773 W10315773 PANL-CNTRL
W11381953 W11381953 PLATE
W10562613 W10562613 PLATE, CAM
WPW10269225 WPW10269225 PLATE-MTNG
W10315274 W10315274 RACK-MEAL
W11252182 W11252182 RING-TURN
W11319886 W11319886 RIVET-STIR
W10138802 W10138802 SCREW
8184109 8184109 SEAL, WATERPROOF
W10117846 W10117846 SOCKET, MOTOR WIRE
W10156812 W10156812 SPRING
W10840795 W10840795 SUPPORT
W10840794 W10840794 SUPPORT
W10840759 W10840759 SUPPORT
8206385 8206385 SUPPORT, WIRE CLIP
W10269460 W10269460 SWITCH
W10269458 W10269458 SWITCH
W10325269 W10325269 TECH SHEET
8205871 8205871 TEMPLATE, UPPER
W10163422 W10163422 THERMISTOR
W10598693 W10598693 THERMOSTAT, MICROWAVE MAGNETRON
W10269232 W10269232 THRMST-FIX
WPW10698343 WPW10698343 TRANSFORMR
4393799 4393799 TURNTABLE
