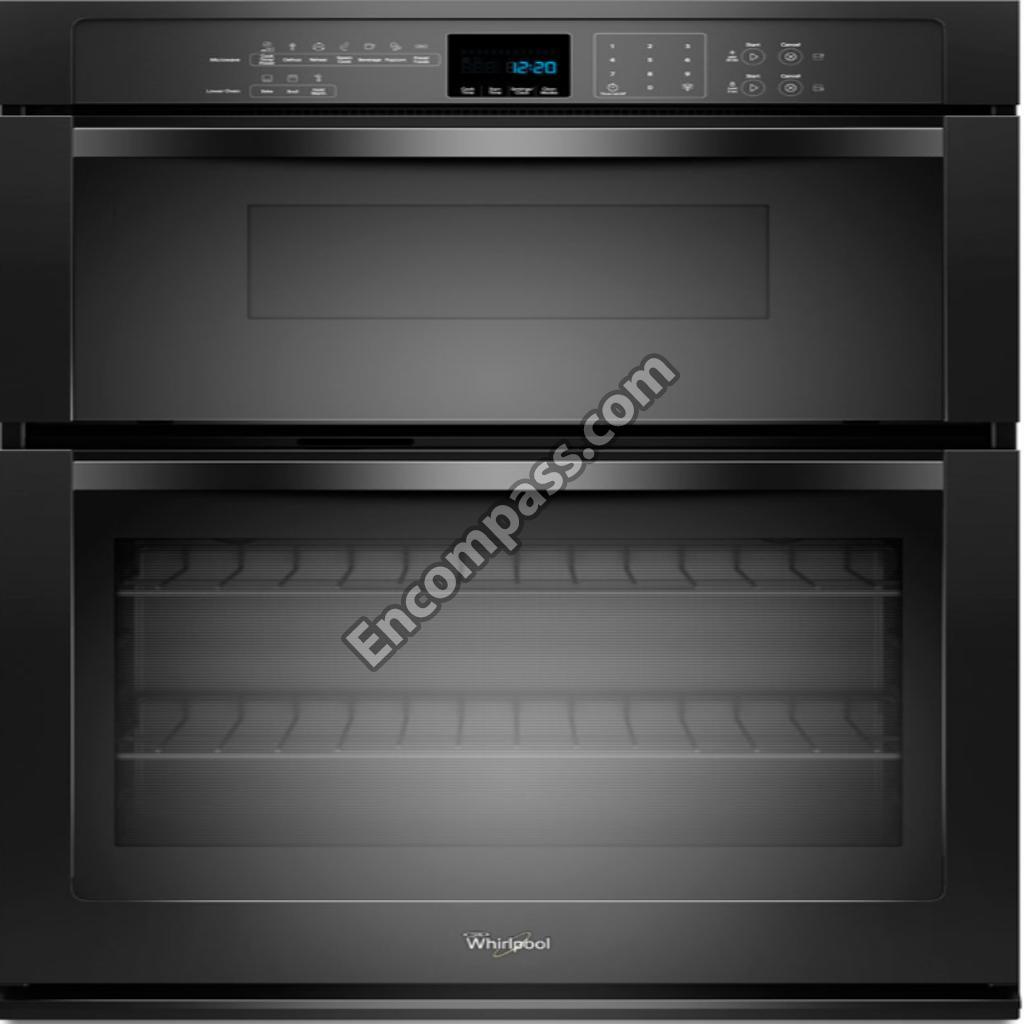

Model Image
Manufacturer

Whirlpool

Model Number

WOC54EC7AB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10587374 W10587374 ACCESSORY PARTS, PLATE, BAKING
WP482338 WP482338 ADHESIVE
W11214480 W11214480 ARM
WPW10128850 WPW10128850 ARM
W10813734 W10813734 BACK, CHASSIS
WPW10245259 WPW10245259 BLOCK-TERM
WPW10661038 WPW10661038 BLOWER
W10853628 W10853628 BRKT-GLASS
W10812024 W10812024 BRKT-GLASS
W10283078 W10283078 BRKT-MNTG
W10351257 W10351257 BRKT-MNTG
W10509164 W10509164 BRKT-MNTG
W10360516 W10360516 BRKT-MNTG
W10283025 W10283025 BRKT-MNTG
W10360518 W10360518 BRKT-MNTG
W10407601 W10407601 BRKT-MNTG
W10351308 W10351308 BRKT-SUPRT
W10282957 W10282957 BRKT-SUPRT
WPW10392683 WPW10392683 BUMPER
WPW10351278 WPW10351278 BUMPER
W11193483 W11193483 CAMERA LENS-LAMP
WPW10412722 WPW10412722 CAMERA LENS-LIGHT
8304588BL 8304588BL CAP, SCREW
W10190263 W10190263 CLIP
W10120231 W10120231 CLIP

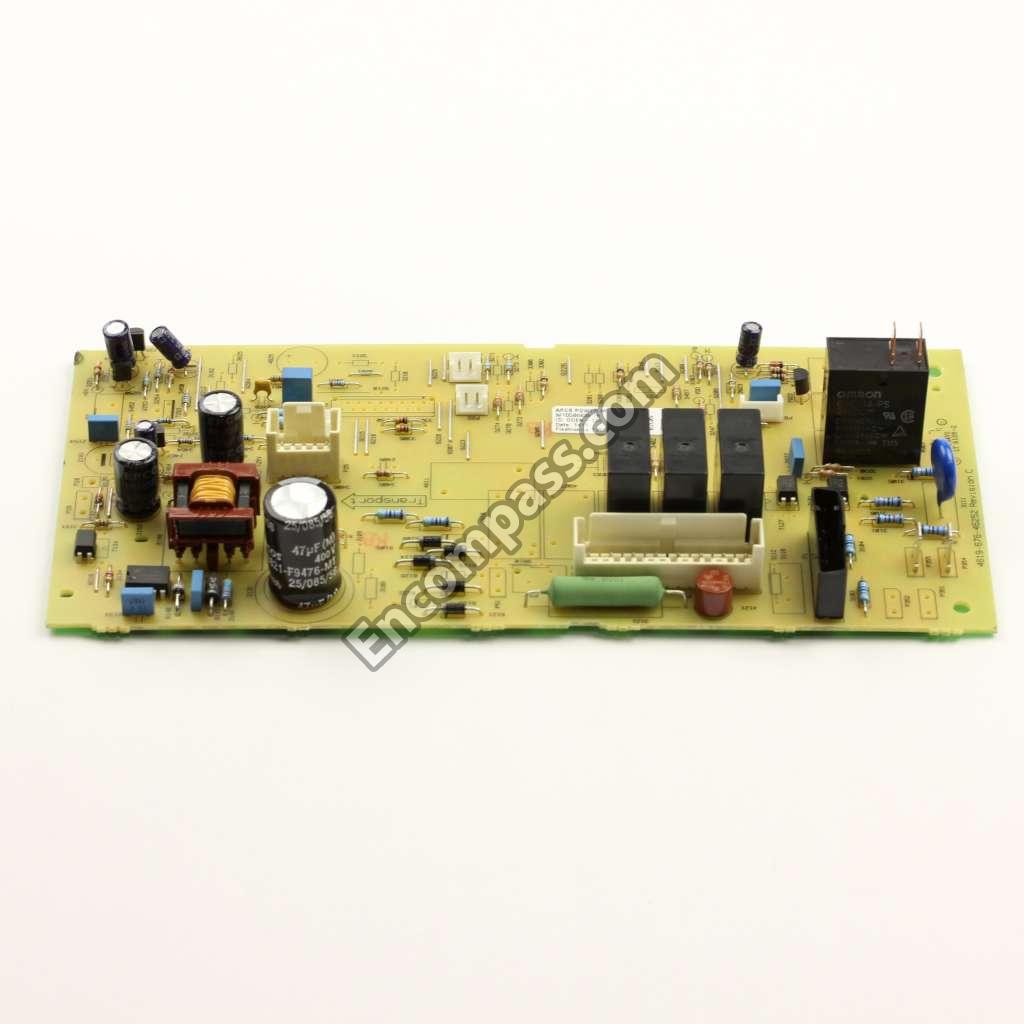

WPW10486188 WPW10486188 CONTROL BOARD

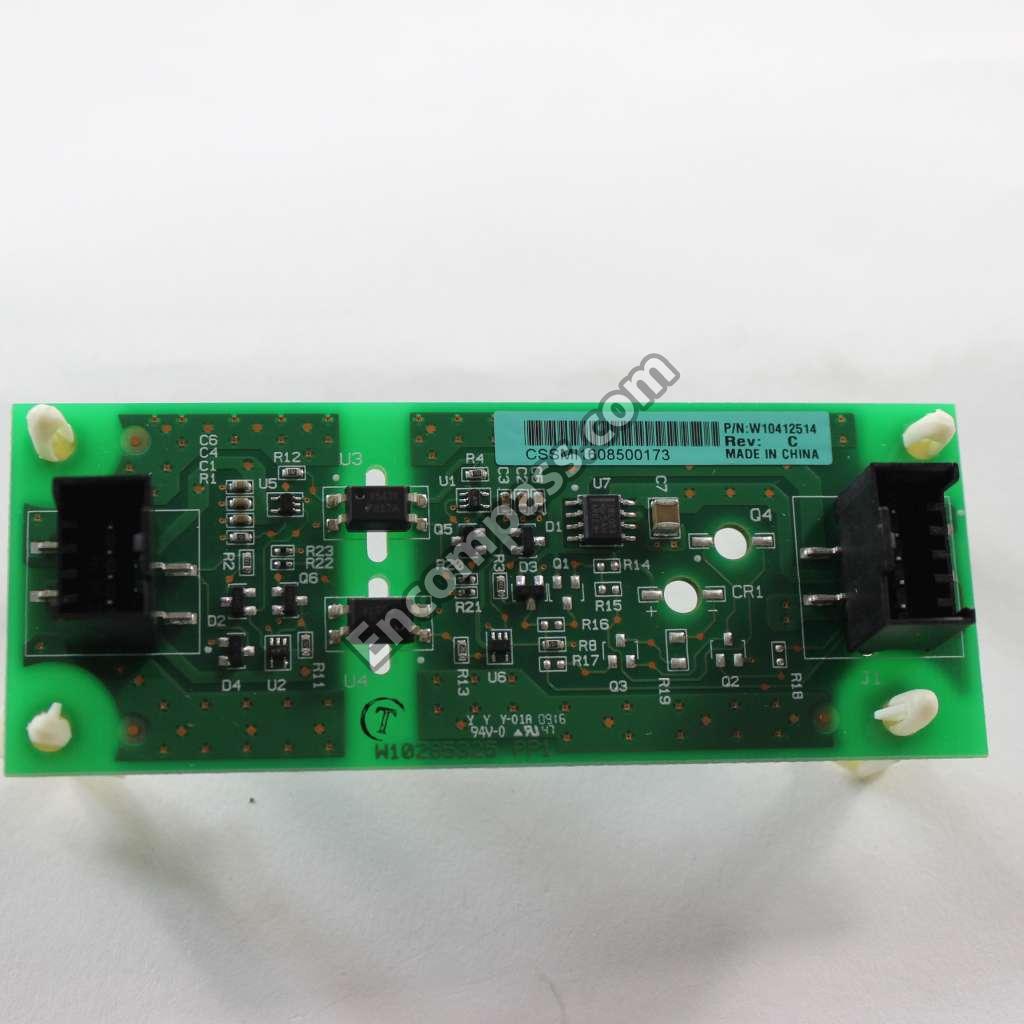

WPW10412514 WPW10412514 CONTROL BOARD

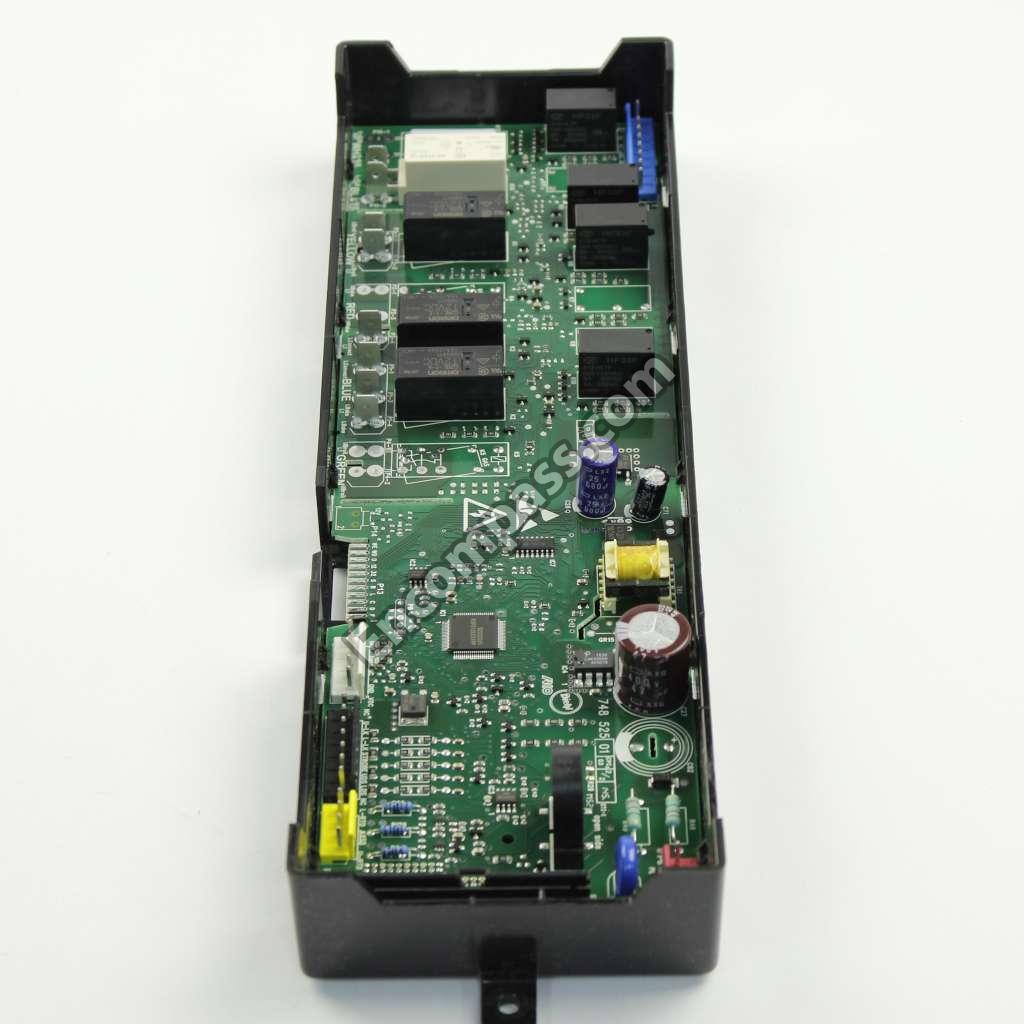

WPW10632435 WPW10632435 CONTROL BOARD
WPW10532438 WPW10532438 CONTROL BOARD
8285593 8285593 COVER, CONNECTOR
W10915651 W10915651 COVER-PLT
W10519707 W10519707 COVER-REAR
W10519703 W10519703 COVER-REAR
W10283033 W10283033 COVER-SIDE
W10351301 W10351301 COVER-SIDE
W10283028 W10283028 COVER-SIDE
WPW10283008 WPW10283008 COVR-ACESS
W10282901 W10282901 COVR-ACESS
W10283032 W10283032 COVR-ACESS
W10318159 W10318159 COVR-ACESS
W10356437 W10356437 COVR-ACESS
W10616810 W10616810 COVR-EXHST
W10904163 W10904163 DEFLCTR-VT
W10883049 W10883049 DOOR DOOR LATCH
WPW10317140 WPW10317140 DOOR HANDLE
W10874474 W10874474 DOOR HINGE
W10737653 W10737653 DOOR/MW
W11545804 W11545804 ELMNT-BAKE
WPW10260252 WPW10260252 ELMNT-BROL
W10853613 W10853613 FILTER
WPW10320793 WPW10320793 FRAME-GLAS
WPW10017410 WPW10017410 FUSE
WP4375321 WP4375321 FUSE
W10359769 W10359769 GASKET-DOR
W10856596 W10856596 GASKET-OVN
W10868921 W10868921 GLASS DOOR
WPW10361811 WPW10361811 GLASS DOOR
W10582021 W10582021 GLASS DOOR
WPW10284902 WPW10284902 GLASS DOOR
W10583268 W10583268 GLASS DOOR
W10583267 W10583267 GLASS DOOR
W10577913 W10577913 GLASS DOOR
WPW10347597 WPW10347597 GLASS DOOR
W10759525 W10759525 GROMMET
W10851464 W10851464 HANDLE-PAN

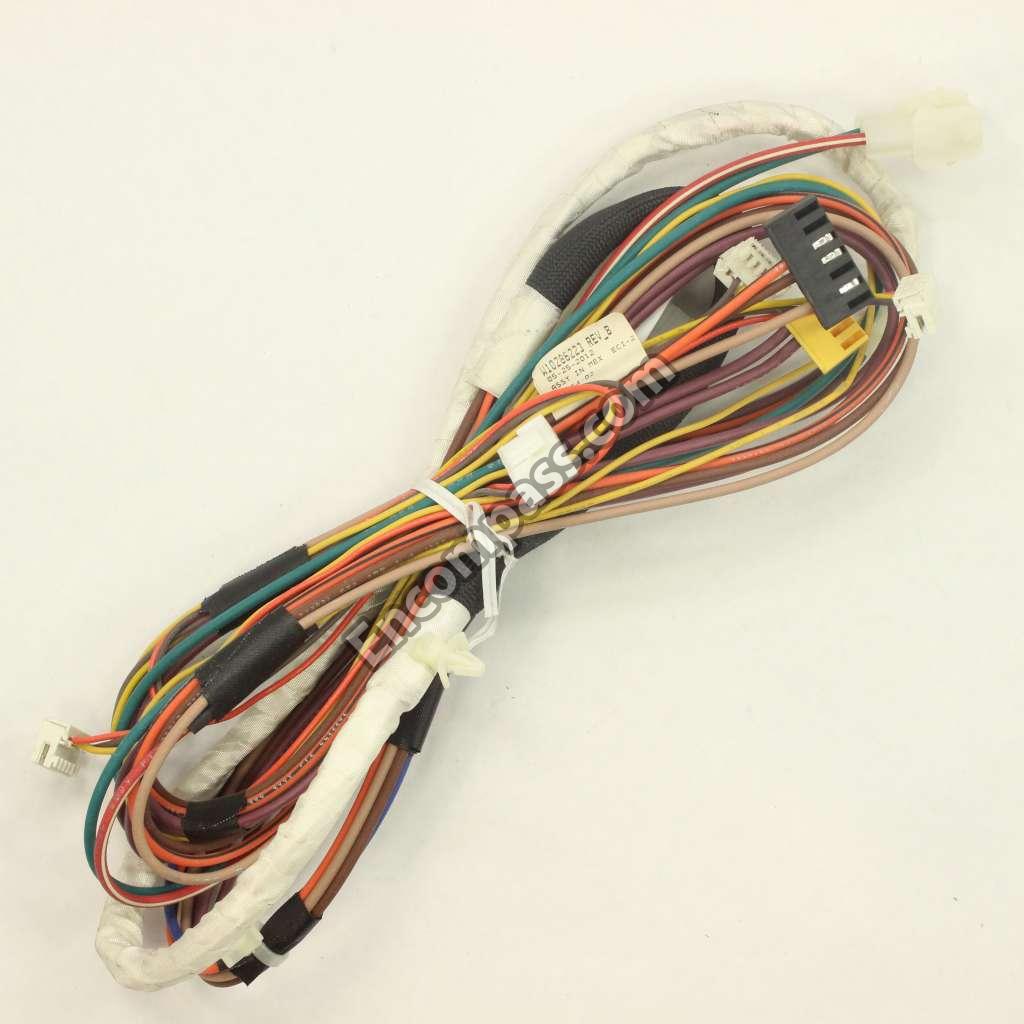

W11226264 W11226264 HARNS-WIRE
W10286223 W10286223 HARNS-WIRE
W10573327 W10573327 HARNS-WIRE
W10601518 W10601518 HARNS-WIRE
W10639070 W10639070 HINGE, DOOR
W11613828 W11613828 HINGE-RECV
W10344485 W10344485 HNDLE-DOOR
W10344486 W10344486 HNDLE-DOOR
4454949 4454949 HOLDER, FUSE
W10245194 W10245194 HOLDER, FUSE
WPW10490593 WPW10490593 HOUSNG-LMP
W10351241 W10351241 INSTALLATION INSTRUCTIONS
W11688333 W11688333 INSULATION
W10520716 W10520716 INSULATION
W11033422 W11033422 INTERLOCK
WP8205683 WP8205683 INTERLOCK
W10217711 W10217711 INVERTER
WPW10412711 WPW10412711 LIGHT BULB
WPW10734063 WPW10734063 LIGHT-IND
N_P N_P LINER, OVEN (NOT SERVICEABLE)
W10886919 W10886919 LMP-BASLES
W11346197 W11346197 MICROWAVE MAGNETRON
W11344874 W11344874 MOTOR-FAN
W10911403 W10911403 MOTOR-TURN
W11178521 W11178521 NAMEPLATE
WP7103P027-60 WP7103P027-60 NUT
WP488130 WP488130 NUT
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
350930 350930 PAINT, SPRAY (WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10120480 WPW10120480 PAN-CRISP
W10318190 W10318190 PANEL-SIDE
W10861744 W10861744 PANL-CNTRL
W10861741 W10861741 PANL-CNTRL
W10861743 W10861743 PANL-CNTRL
W11175831 W11175831 RACK
WPW10317431 WPW10317431 RACK-OVEN
WP4449751 WP4449751 RANGE THERMOSTAT
423107022541 423107022541 REFLECTOR
W11110134 W11110134 RING-TURN
WPW10120235 WPW10120235 ROD-REL
WP4449809 WP4449809 SCREW
WP4448950 WP4448950 SCREW
W11233072 W11233072 SCREW
WP4449040 WP4449040 SCREW
WP3400832 WP3400832 SCREW
W11684512 W11684512 SCREW
WP4449154 WP4449154 SCREW
461967825321 461967825321 SCREW
W11347848 W11347848 SCREW
WP98008545 WP98008545 SCREW
WP3196183 WP3196183 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP12990527 WP12990527 SCREW
WPW10254050 WPW10254050 SCREW
WP90767 WP90767 SCREW
461967825971 461967825971 SCREW
W10491987 W10491987 SEAL-FOAM
W11699906 W11699906 SENSOR
W11233913 W11233913 SENSOR
WP74008369 WP74008369 SENSOR- OV
WPW10776938 WPW10776938 SHAFT-TURN
WPW10318220 WPW10318220 SPACER
W10347649 W10347649 SPACER
W10363824 W10363824 SPACER
W11700292 W11700292 SPRING
W10475855 W10475855 SPRING
W10660052 W10660052 STEAMER
W11684510 W11684510 SUPPORT
W10213759 W10213759 SUPPORT
W10283020 W10283020 SUPPORT
W10283021 W10283021 SUPPORT
W10283023 W10283023 SUPPORT
W10356644 W10356644 SUPPORT
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
W10425195 W10425195 TECH SHEET
W11568584 W11568584 THRMST-FIX
W10641574 W10641574 TOP-CABNT
W11238401 W11238401 TRANSFORMR
W10318198 W10318198 TRAY-BAKE
W10818723 W10818723 TRAY-COOK
461967017511 461967017511 TRIM
W11044584 W11044584 TRIM
461968973251 461968973251 TRIM-DOOR
W11240525 W11240525 TUBE-VENT
W10616809 W10616809 TUBE-VENT
W10354188 W10354188 USE & CARE GUIDE (MICROWAVE OVEN)
W10354187 W10354187 USE & CARE GUIDE (OVEN)
WPW10327375 WPW10327375 VENT-OVEN
WPW10351280 WPW10351280 VENT-OVEN
W10283043 W10283043 VENT-OVEN
4448664 4448664 WIRING HARNESS PARTS, CLAMP. CONDUIT
4450950 4450950 WIRING HARNESS PARTS, CONDUIT, COMBO
4450800 4450800 WIRING HARNESS PARTS, SCREW, GROUNDING
