Model Image
Manufacturer

Whirlpool

Model Number

WOS11EM4EW01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORIES, BROILER PAN AND GRID
W10275756 W10275756 ACCESSORIES, CLEANER, GRANITE
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
W10355049 W10355049 ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE, LOCTITE
W10339572 W10339572 ASSEMBLY, BOTTOM VENT TRIM (BLACK)
W10339573 W10339573 ASSEMBLY, BOTTOM VENT TRIM (WHITE)
W10702189 W10702189 ASSEMBLY, CONTROL PANEL SKIN (BLACK)
W10704698 W10704698 ASSEMBLY, CONTROL PANEL SKIN (WHITE)
W10684321 W10684321 ASSEMBLY, DOOR HANDLE (WHITE)

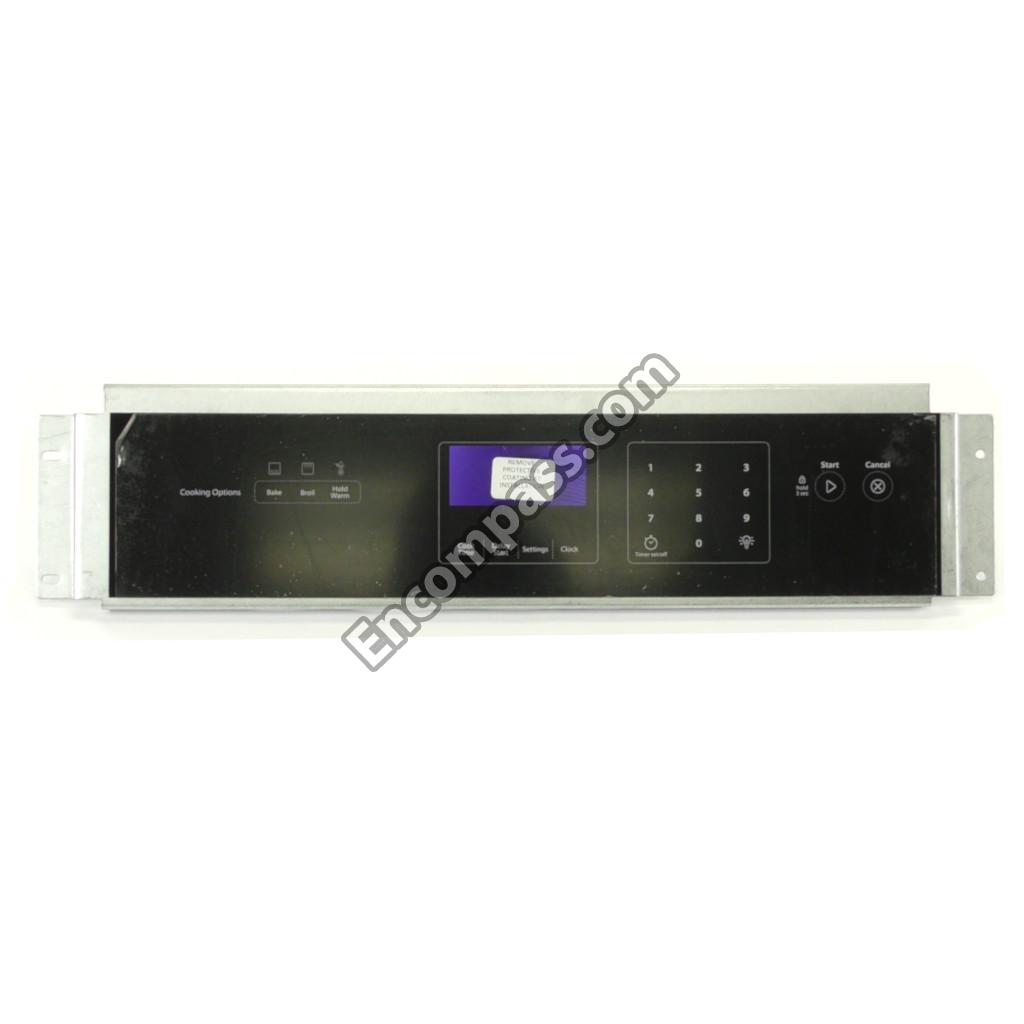

W10694998 W10694998 ASSEMBLY, MEMBRANE (BLACK)
W10694999 W10694999 ASSEMBLY, MEMBRANE (WHITE)
W10784207 W10784207 BACK, CHASSIS
8303100 8303100 BACK, CONTROL
4450525 4450525 BASE, CHASSIS
WPW10176670 WPW10176670 BLOWER
4452152 4452152 BRACKET, BOTTOM VENT
W10708952 W10708952 BRACKET, HANDLE
W10804302 W10804302 BRACKET, POWER CONTROL BOARD SUPPORT
W10105790 W10105790 BUMPER & SCREW
4448520 4448520 BUMPER, DOOR
WPW10412722 WPW10412722 CAMERA LENS-LIGHT
4451605 4451605 CAP, SPACER
W10784377 W10784377 CHASSIS, TOP
4448664 4448664 CLAMP, CONDUIT
W10789031 W10789031 CLIP, RETAINER (BLACK)
W10789030 W10789030 CLIP, RETAINER (WHITE)

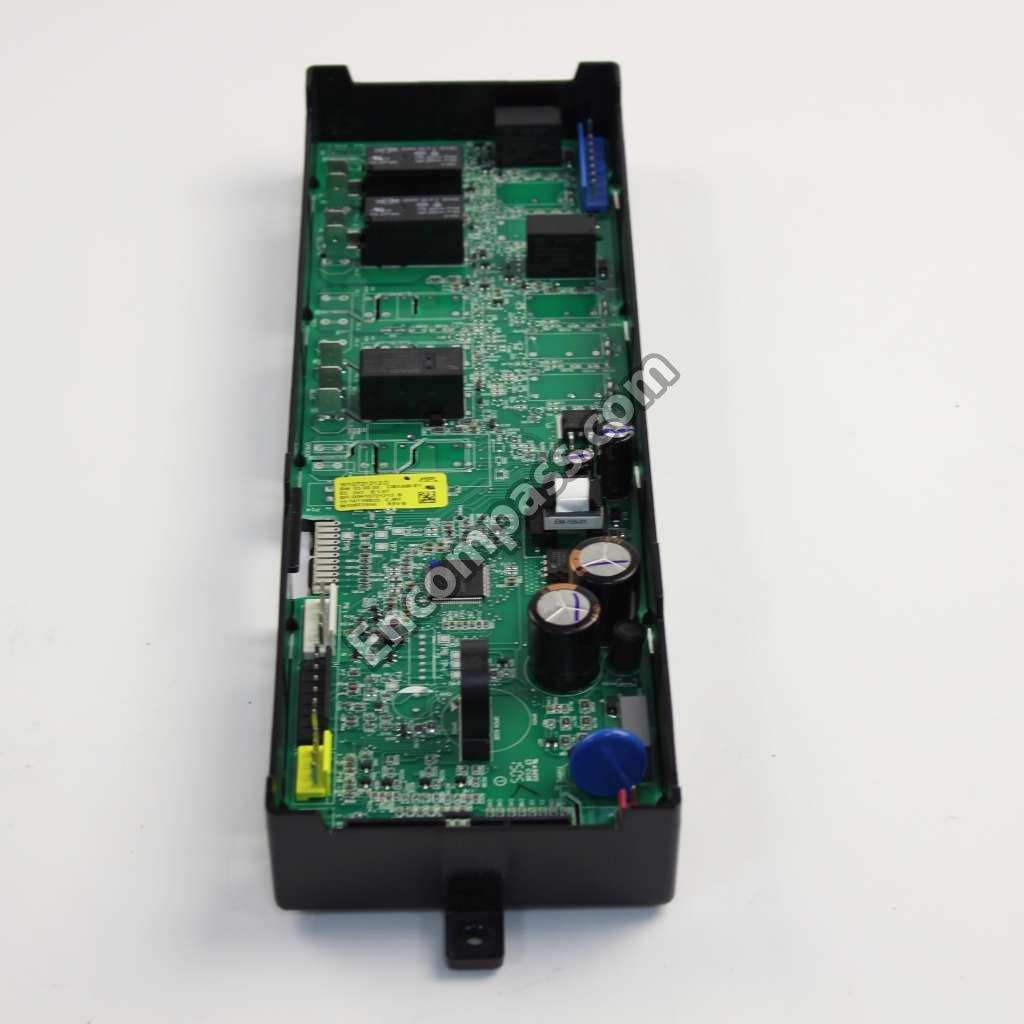

W10807577 W10807577 CONTROL BOARD
W10803991 W10803991 CONTROL BOARD
8285593 8285593 COVER, CONNECTOR
4452365 4452365 COVER, TOP FRONT
4450549 4450549 COVER, TOP REAR
WP4451747 WP4451747 COVER-REAR
4455807 4455807 DEFLECTOR, VENT BOX (BLACK)
W10767149 W10767149 DIAGRAM, WIRING
W11544132 W11544132 DOOR HANDLE
WP9760563 WP9760563 DOOR HINGE
4455177 4455177 ELBOW, BOTTOM VENT
4455178 4455178 ELBOW, TOP VENT
W10685631 W10685631 ELEMENT, BROIL
W11628765 W11628765 ELMNT-BAKE
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
9760754 9760754 FRAME, FRONT
W11025102 W11025102 FUSE-THRML
WP4455380 WP4455380 GASKT-DOOR
W10804163 W10804163 GLASS DOOR
W10804159 W10804159 GLASS DOOR
WP4449247 WP4449247 GLASS DOOR
WP4448444 WP4448444 GROMMET
W10758337 W10758337 GUIDE, USE & CARE
W11157913 W11157913 HARNESS, DOOR DOOR LATCH
W11157775 W11157775 HARNESS, EOL (MRC)
W11157780 W11157780 HARNESS, MAIN
9760564 9760564 HINGE, DOOR (LEFT)
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
W10758285 W10758285 INSTRUCTIONS, INSTALLATION
WP4450363 WP4450363 INSULATION
WP4449314 WP4449314 INSULATION
W11688415 W11688415 INSULATION
WPW10412711 WPW10412711 LIGHT BULB
WPW10734063 WPW10734063 LIGHT-IND
WP8303698 WP8303698 LINER-DOOR
W11178521 W11178521 NAMEPLATE
WP488130 WP488130 NUT
WP4450118 WP4450118 NUT
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
350930 350930 PAINT, SPRAY (WHITE)
WP4448716 WP4448716 RACK, OVEN
814371 814371 RAIL-MTG
814372 814372 RAIL-MTG
W11034459 W11034459 RANGE THERMOSTAT
WP4448933 WP4448933 RETAINER
4457130 4457130 RETAINER, GLASS
W10772943 W10772943 RETAINER, SIDE RAIL INSULATION
WP3400832 WP3400832 SCREW
WPW10292297 WPW10292297 SCREW
WP694091 WP694091 SCREW
WP7101P434-60 WP7101P434-60 SCREW
W10850807 W10850807 SCREW
WP4450038 WP4450038 SCREW
WP4449154 WP4449154 SCREW
WP4449040 WP4449040 SCREW
WP4449743 WP4449743 SCREW
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
4450800 4450800 SCREW, GROUNDING
8300853 8300853 SEAL, DOOR TOP
W10491987 W10491987 SEAL-FOAM
W10859573 W10859573 SENSOR
W10776932 W10776932 SHEET, TECH
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4451476 4451476 SUPPORT, INSULATION
4451761 4451761 SUPPORT, WIRING
W10784805 W10784805 SWITCH, DOOR LIGHT
WPW10339879 WPW10339879 TIE-WIRE
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10756499 W10756499 TRIM, SIDE (BLACK (LEFT))
W10756500 W10756500 TRIM, SIDE (BLACK (RIGHT))
W10756495 W10756495 TRIM, SIDE (WHITE (LEFT))
W10756496 W10756496 TRIM, SIDE (WHITE (RIGHT))
W10861715 W10861715 TUBE-VENT
4448547 4448547 VENT, CONTROL PANEL
4451759 4451759 VENT, EXHAUST
