Model Image
Manufacturer

Whirlpool

Model Number

WRB329DFBW01

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
67006434 67006434 AXLE, ROLLER (2)
W10480107 W10480107 BASEPAN
W11281080 W11281080 BASKET-FZR
W11281077 W11281077 BASKET-FZR
WPW10371194 WPW10371194 BIN CONTROL LEVER
WPW10351081 WPW10351081 BIN CONTROL LEVER
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WPW10284685 WPW10284685 BRACKET
WPW10284684 WPW10284684 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
WP12246608 WP12246608 BUTTON- PL
WP67001130 WP67001130 BUTTON- PL
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10350564 WPW10350564 CAPACITOR
W11673433 W11673433 CLIP
W11092534 W11092534 CLIP
W10815863 W10815863 CLIP, CONDENSER
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10233960 W10233960 COMPRESSOR
W10346423 W10346423 CONDENSER
WPW10594330 WPW10594330 CONTROL
WPW10503278 WPW10503278 CONTROL BOARD
W11284721 W11284721 COVER
67003485 67003485 COVER, CORNER (BLK)
12587703W 12587703W COVER, CORNER (WHITE)
67001012 67001012 COVER, TOP HINGE (BLK)
67001014 67001014 COVER, TOP HINGE (WHT)
W10210978 W10210978 COVER, UNIT
WP67003924 WP67003924 COVER- FZ
WP12806701 WP12806701 COVER-BOX
WPW10308414 WPW10308414 COVER-EVAP
W11281081 W11281081 COVER-TUBE
W11684617 W11684617 COVER-VALV
W10833528 W10833528 CRISPER PAN
W10847995 W10847995 DIVIDER
W10241046 W10241046 DIVIDER, BASKET (UPPER)
13109220BQ 13109220BQ DOOR ASSEMBLY BL
13109402BQ 13109402BQ DOOR ASSEMBLY BL
13109220WQ 13109220WQ DOOR ASSEMBLY WH
13109402WQ 13109402WQ DOOR ASSEMBLY WH
WP12566606ED WP12566606ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
WPW10143759 WPW10143759 DRIER-UV
W11306939 W11306939 ENERGY GUIDE

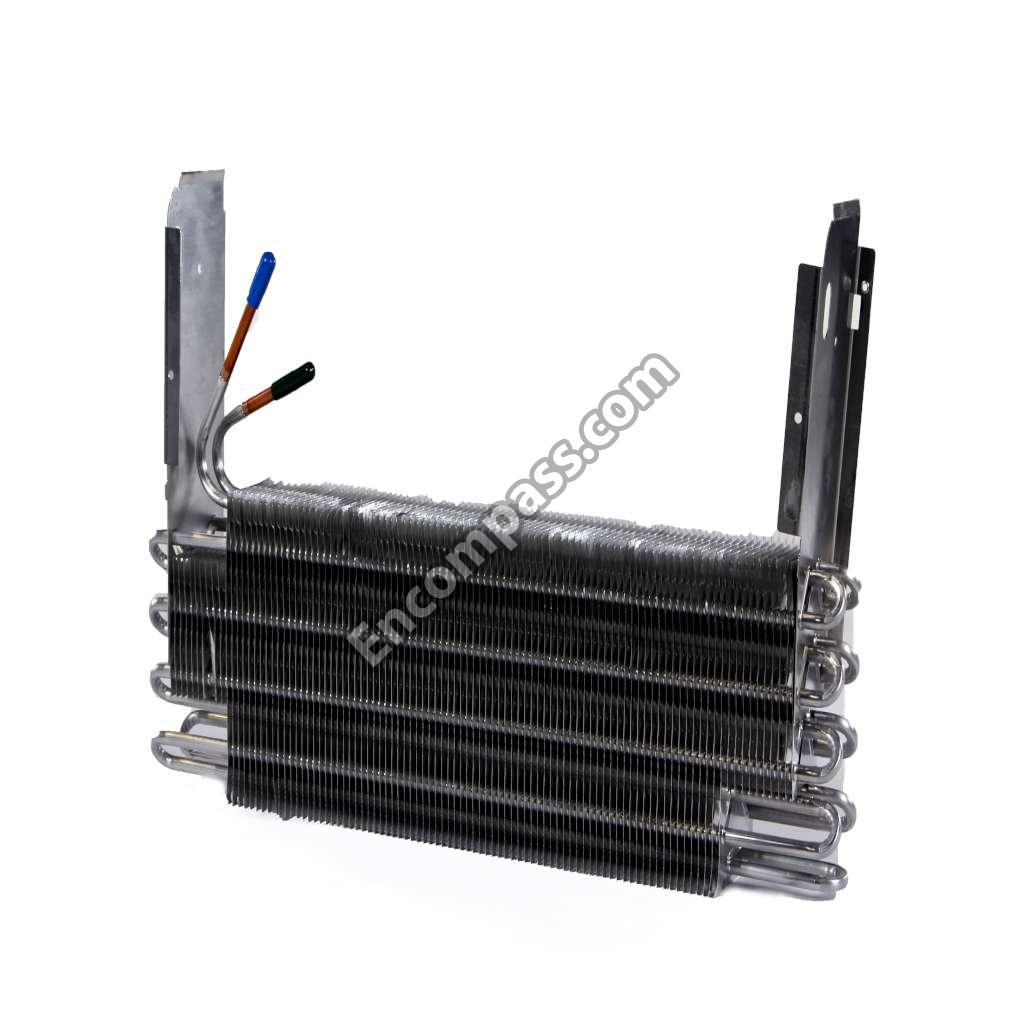

W10920993 W10920993 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11459724 W11459724 FIELD INSTALLABLE ICE MAKER, ICEMAKER ADD-ON KIT (INCLUDES VALVE & ICE BIN)
WPW10671240 WPW10671240 FRAME
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
W10856123 W10856123 GASKET
W11244177 W11244177 GASKET

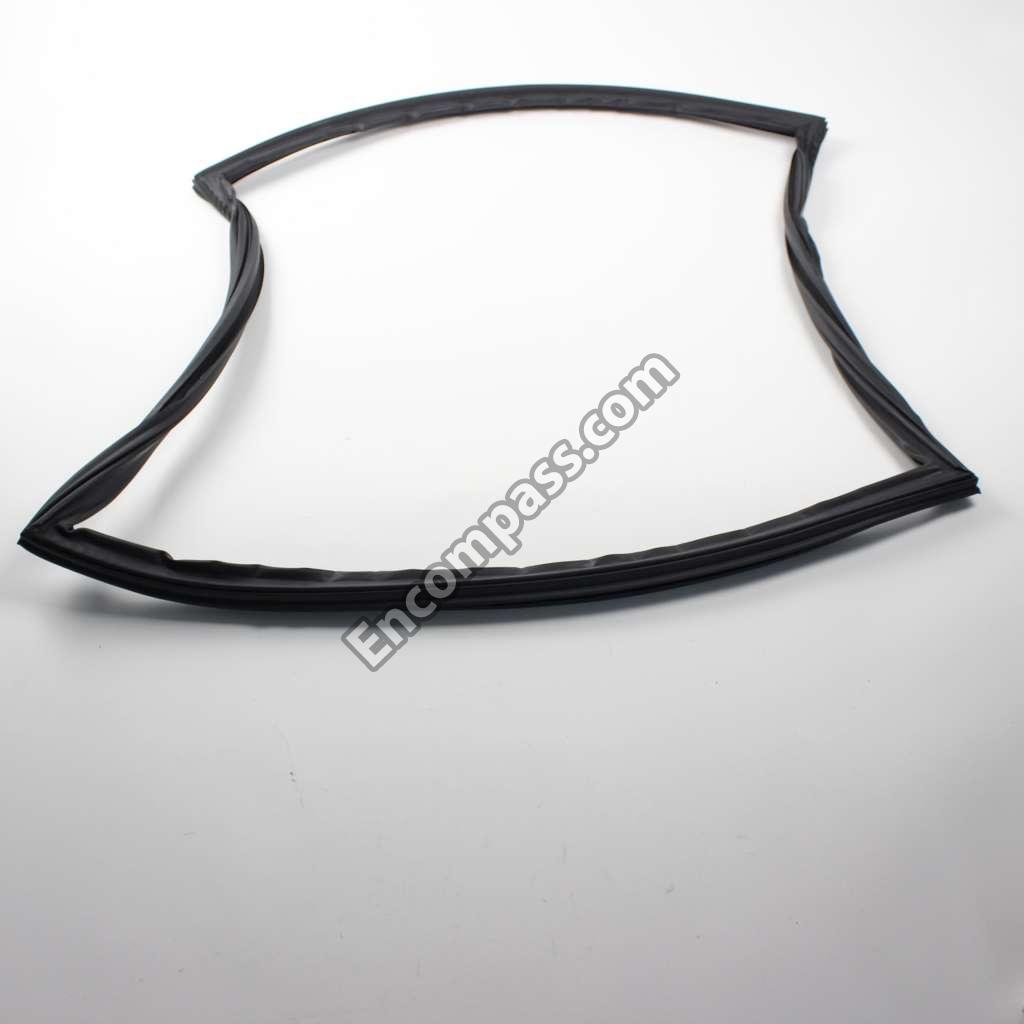

WPW10436247 WPW10436247 GASKET ASSEMBLY

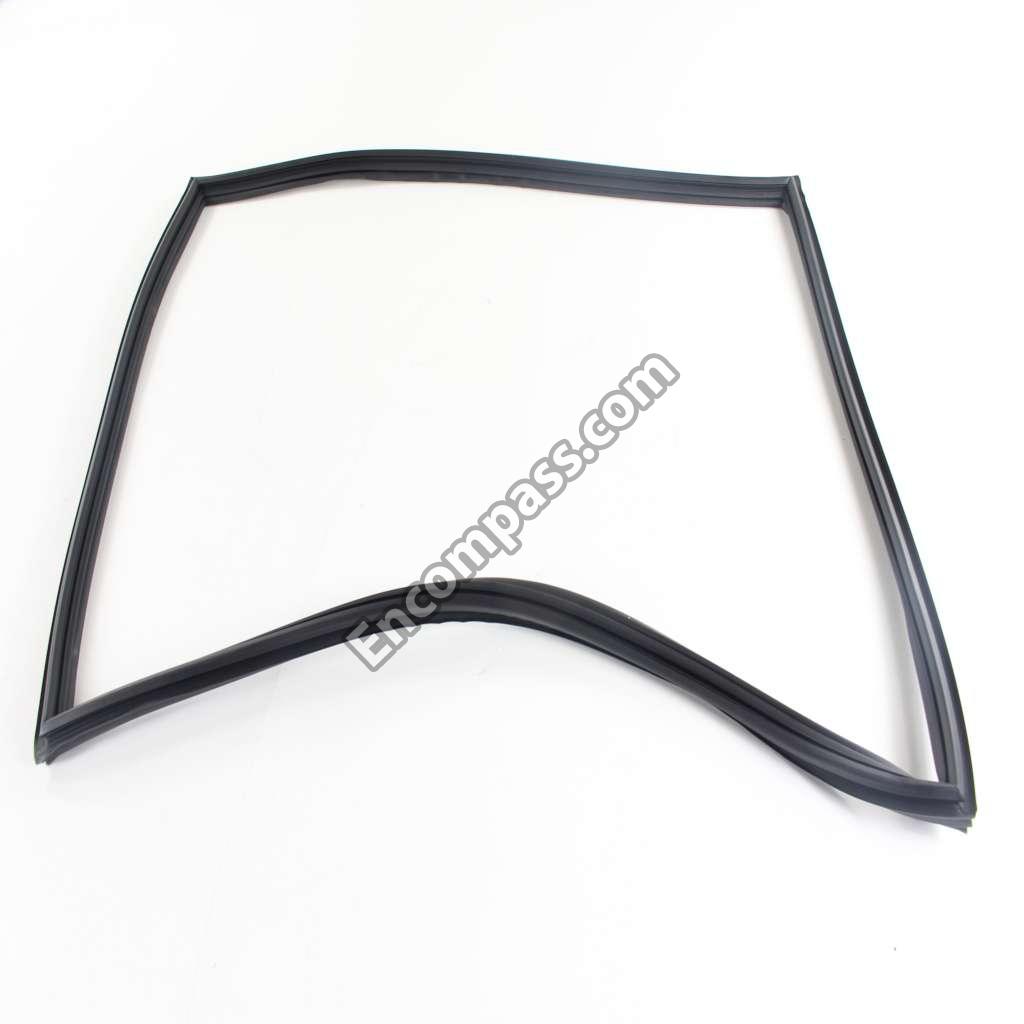

WPW10443311 WPW10443311 GASKET ASSEMBLY
WPW10436245 WPW10436245 GASKET ASSEMBLY
WPW10443309 WPW10443309 GASKET ASSEMBLY
A3189394 A3189394 GASKET, BOTTOM
WPB8381501 WPB8381501 GASKET- DR
WPW10474715 WPW10474715 GEAR
WPW10474716 WPW10474716 GEAR
12002497 12002497 GEAR

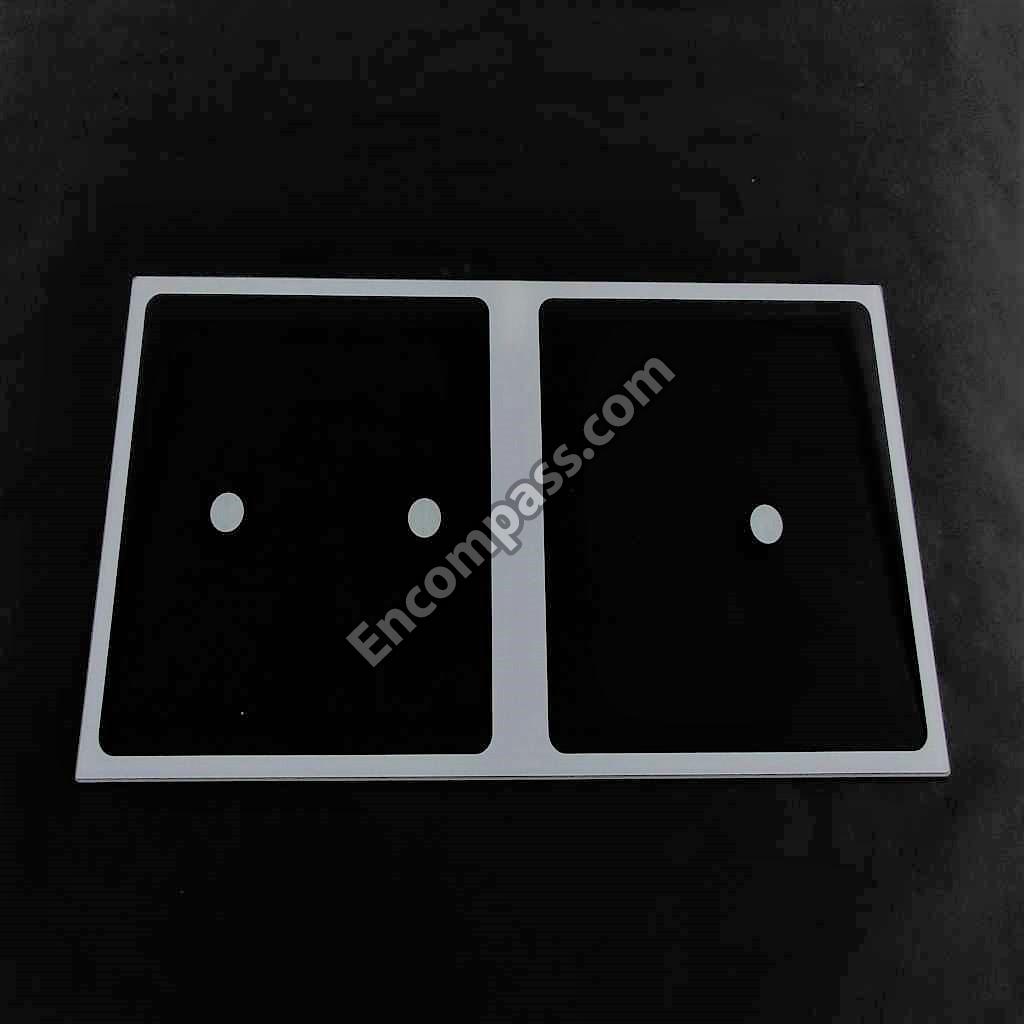

WP67006877 WP67006877 GLASS SHELF
W11402522 W11402522 GLASS SHELF
WP67001054 WP67001054 GLIDE LT
WP67001053 WP67001053 GLIDE RT
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE

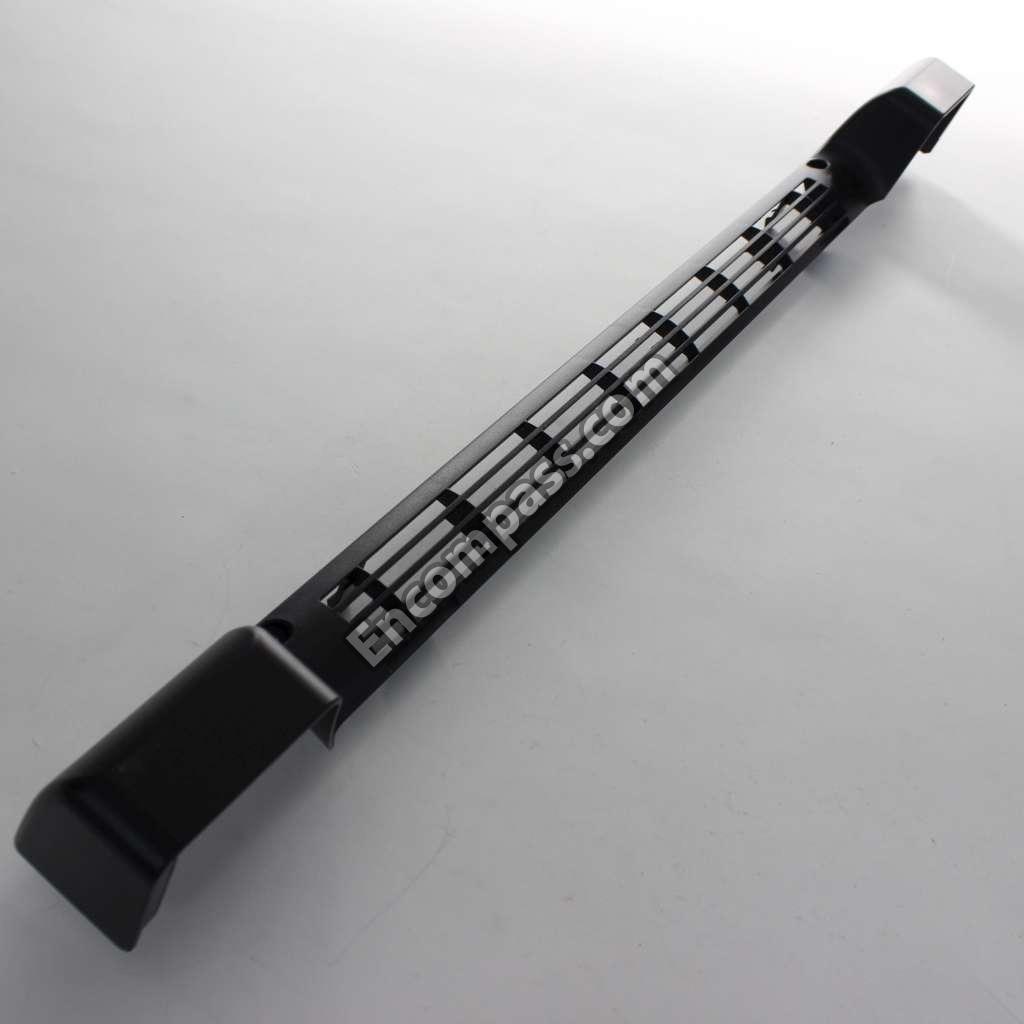

WPW10534167 WPW10534167 GRILLE-FRT
WPW10534166 WPW10534166 GRILLE-FRT
WPW10137529 WPW10137529 GROMMET
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET
W10121318 W10121318 GROMMET
W11448709 W11448709 GUIDE, FILL TUBE

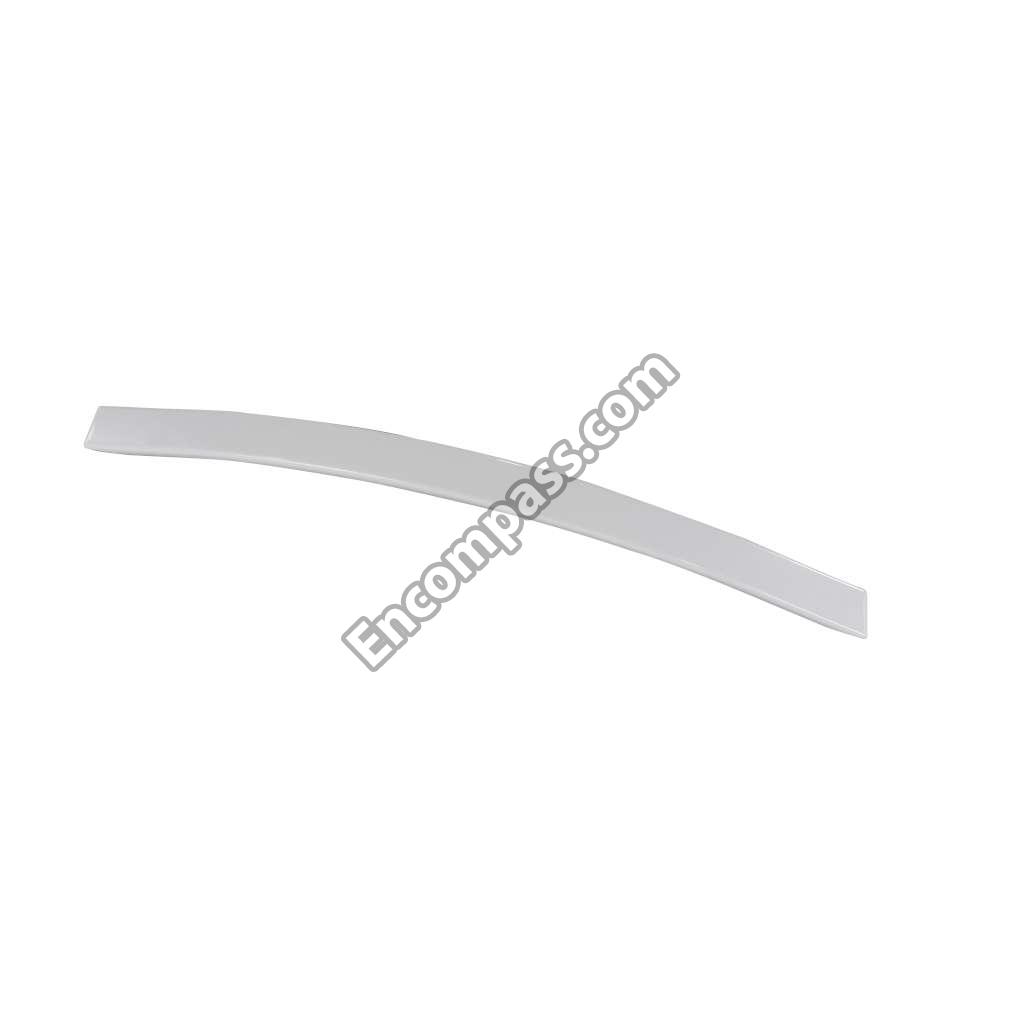

W10830130 W10830130 HANDLE
W10830136 W10830136 HANDLE
W10635688 W10635688 HANDLE, DOOR (BLACK)
W10601172 W10601172 HANDLE, DOOR (WHITE)
W11218258 W11218258 HARNESS, UNIT (INCLUDES POWER CORD)
WP12729127 WP12729127 HEATER
W11689473 W11689473 HINGE- CEN
WPW10277025 WPW10277025 HOUSING
WPW10464769 WPW10464769 HOUSING
W10443023 W10443023 HOUSING, LIGHT
67003900 67003900 INSERT, DAMPER COVER
W11553819 W11553819 INSULATION
WP13012402 WP13012402 INSULATION
W11685757 W11685757 LABEL
W10273463 W10273463 LADDER, CENTER
W10251970 W10251970 LADDER, SIDE
WPW10141622 WPW10141622 LEVELER
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11602886 W11602886 MODULE
W10464757 W10464757 MODULE, LIGHT
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT, GEAR (LEFT HAND)
W10348260 W10348260 MOUNT, GEAR (RIGHT HAND)
W11223753 W11223753 NAMEPLATE
W10593588 W10593588 OVERLAY
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
W10917540 W10917540 PAINT, TOUCH-UP (1/2OZ. MIDNIGHT GREY)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67001308 WP67001308 PAN- DELI
WPW10655367 WPW10655367 PAN-DRIP
WP67006642 WP67006642 PIN
WPA3076901 WPA3076901 PLUG, BUTTON

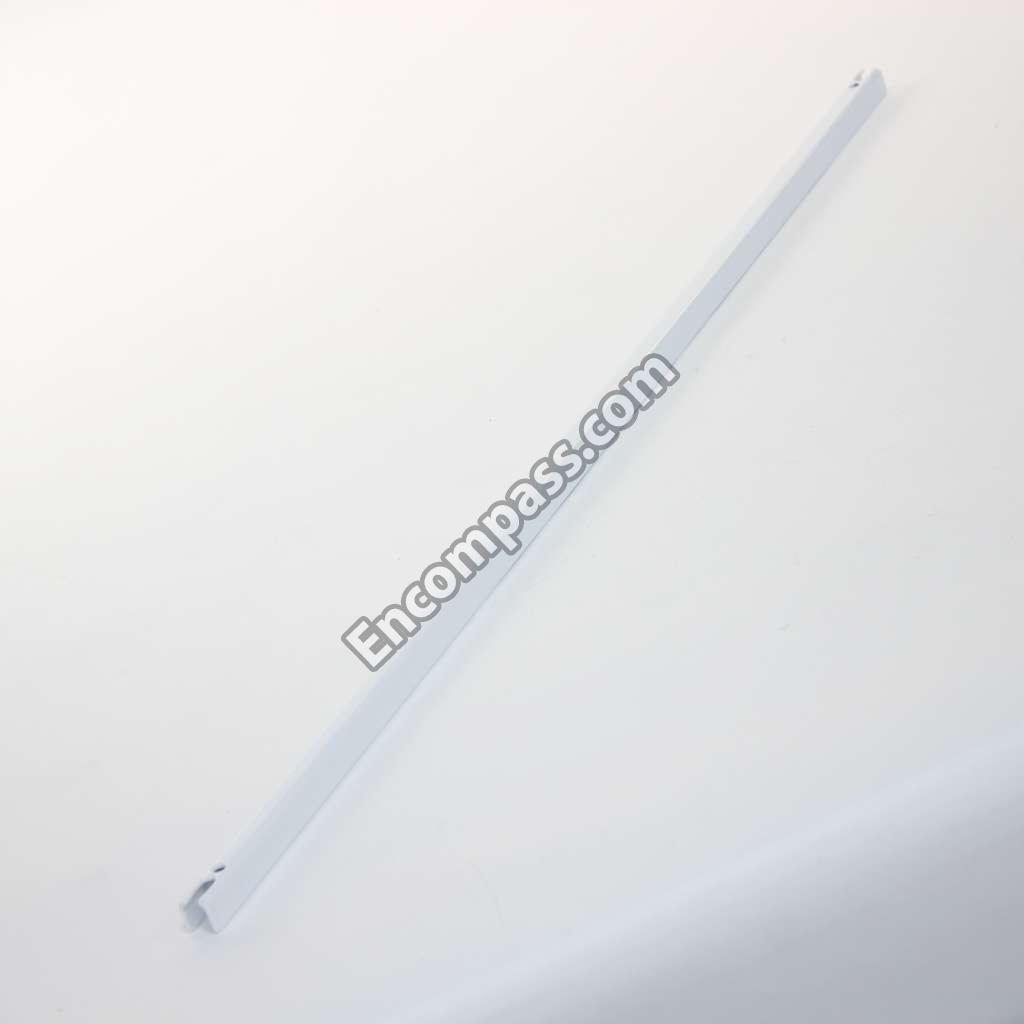

W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10671238 WPW10671238 RAIL-CENTR
67001139 67001139 RETAINER, DOOR
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W11233072 W11233072 SCREW
W10215666 W10215666 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WPW10661886 WPW10661886 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
WP400021-1 WP400021-1 SCREW
WP489349 WP489349 SCREW
W11573362 W11573362 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W10802340 W10802340 SHAFT, RACK
W10802329 W10802329 SHAFT, RACK
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
W10873801 W10873801 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11708403 W11708403 STOP-DOOR
W10236396 W10236396 STRAP, COMPRESSOR
WP12227302WD WP12227302WD SUPPORT
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W11297588 W11297588 TECH SHEET
12002355 12002355 THERMISTOR KIT
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11337775 W11337775 TRAY, DRIP
WPW10231481 WPW10231481 TRIM-SHELF
W10294014 W10294014 TUBE, DISCHARGE
W10619951 W10619951 TUBE-DRAIN
W11296635 W11296635 USE AND CARE GUIDE
WP978025 WP978025 VALVE
W11260592 W11260592 WIRE HARNESS
W11619328 W11619328 WIRE HARNESS
