Model Image
Manufacturer

Whirlpool

Model Number

WRF532SMHV00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
W11285509 W11285509 ARM-SHUT
67006434 67006434 AXLE, ROLLER (2)
W10165910 W10165910 BAR, TEMP CONT.
W10480110 W10480110 BASEPAN
WPW10348238 WPW10348238 BASKET, FREEZER (UPPER)
WPW10371194 WPW10371194 BIN CONTROL LEVER
WPW10289497 WPW10289497 BIN CONTROL LEVER
WP12918704 WP12918704 BIN CONTROL LEVER
WPW10351081 WPW10351081 BIN CONTROL LEVER
W11127323 W11127323 BIN-FREEZR
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
W10783763 W10783763 BRACE, CRISPER FRAME
WP12227303WD WP12227303WD BRACE- CRI
WPW10284685 WPW10284685 BRACKET
WPW10284684 WPW10284684 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10350564 WPW10350564 CAPACITOR
W11456069 W11456069 CLAMP
W11673433 W11673433 CLIP
W11092534 W11092534 CLIP
12996601 12996601 CLIP, BUSHING
W10815863 W10815863 CLIP, CONDENSER
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
WPM0114003 WPM0114003 CLIP- SPEE
W10918010 W10918010 CLOSER
W10918171 W10918171 CLOSER
W10918120 W10918120 CLOSER
W10918008 W10918008 CLOSER
W10918170 W10918170 CLOSER
W10918118 W10918118 CLOSER
WP12028505AP WP12028505AP CLOSER
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
WPW10507886 WPW10507886 COMPRESSOR
WPW10346420 WPW10346420 CONDENSER
WPW10594330 WPW10594330 CONTROL
WPW10637328 WPW10637328 CONTROL BOARD
W10827914 W10827914 COVER
W11284721 W11284721 COVER
WPW10191117 WPW10191117 COVER
WP67005956 WP67005956 COVER
WPW10337648 WPW10337648 COVER
WPW10337634 WPW10337634 COVER
67003485 67003485 COVER, CORNER (BLK)
12587703W 12587703W COVER, CORNER (WHITE)
W10308415 W10308415 COVER, EVAPORATOR
W10337647 W10337647 COVER, HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
W10445790 W10445790 COVER, ICEMAKER
67005958 67005958 COVER, RIGHT HINGE (WHITE)
W10208592 W10208592 COVER, VALVE
12726003 12726003 COVER, WATER LINE
WP67003924 WP67003924 COVER- FZ
WPW10210979 WPW10210979 COVER-BACK
WP12806701 WP12806701 COVER-BOX
WP67002633 WP67002633 CRISPER PAN
W10157765 W10157765 DIVERTER, AIR
WPW10165967 WPW10165967 DIVIDER
W10241046 W10241046 DIVIDER, BASKET (UPPER)
W10311695 W10311695 DIVIDER, BASKET (UPPER)
W11104480 W11104480 DOOR ASSEMBLY
W11104479 W11104479 DOOR ASSEMBLY
W10910855 W10910855 DOOR ASSEMBLY
W10919655 W10919655 DOOR ASSEMBLY
W10915644 W10915644 DOOR ASSEMBLY
W10919650 W10919650 DOOR ASSEMBLY
12977869BQ 12977869BQ DOOR ASSEMBLY BL
13107885BQ 13107885BQ DOOR ASSEMBLY BL
13107886BQ 13107886BQ DOOR ASSEMBLY BL
12977869WQ 12977869WQ DOOR ASSEMBLY WH
13107885WQ 13107885WQ DOOR ASSEMBLY WH
13107886WQ 13107886WQ DOOR ASSEMBLY WH
W10917992 W10917992 DOOR HINGE
W10918168 W10918168 DOOR HINGE
W10918117 W10918117 DOOR HINGE
W10917991 W10917991 DOOR HINGE
W10918166 W10918166 DOOR HINGE
W10918115 W10918115 DOOR HINGE
W11592374 W11592374 DOOR HINGE
W11592375 W11592375 DOOR HINGE
WP12722803AP WP12722803AP DRAWER SLIDE RAIL
WP12722803B WP12722803B DRAWER SLIDE RAIL
WP12722803W WP12722803W DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
W11197396 W11197396 ENDCAP
W11112928 W11112928 ENERGY GUIDE
W11459354 W11459354 EVAPORATOR
W11024089 W11024089 EVAPORATOR MOTOR
WP12587703AP WP12587703AP FILLER
W10858393 W10858393 FRAME
WP67005920 WP67005920 FRONT- CRI
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
W11159742 W11159742 GASKET
W10856123 W10856123 GASKET
WPW10436250 WPW10436250 GASKET ASSEMBLY
W11368721 W11368721 GASKET ASSEMBLY
W10443316 W10443316 GASKET, DOOR (GREY)
W10443315 W10443315 GASKET, DOOR (WHITE)
W10830289 W10830289 GASKET, DOOR LEFT HAND (BLACK)
W10830283 W10830283 GASKET, DOOR LEFT HAND (GREY)
W10830287 W10830287 GASKET, DOOR LEFT HAND (WHITE)
W10830162 W10830162 GASKET, DOOR RIGHT HAND (GREY)
W10830189 W10830189 GASKET, DOOR RIGHT HAND (WHITE)
W10165873 W10165873 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
WPW10474715 WPW10474715 GEAR
WPW10474716 WPW10474716 GEAR
12002497 12002497 GEAR
W10801691 W10801691 GLASS SHELF
WPW10165870 WPW10165870 GLASS SHELF
WP67006878 WP67006878 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534160 WPW10534160 GRILLE-FRT
WPW10534162 WPW10534162 GRILLE-FRT
WPW10534161 WPW10534161 GRILLE-FRT
W10852725 W10852725 GROMMET
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W11690160 W11690160 GROMMET
W11448709 W11448709 GUIDE, FILL TUBE
W10485986 W10485986 GUIDE, WATERLINE

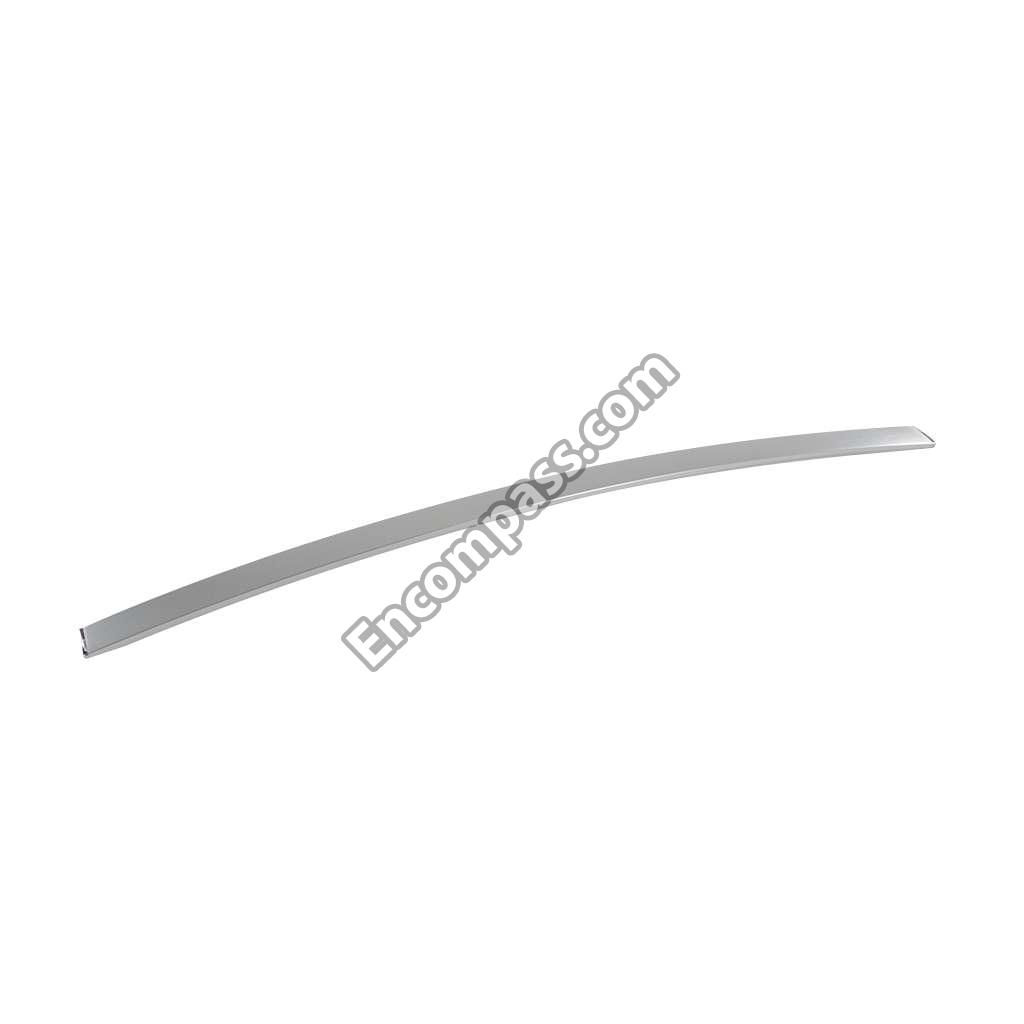

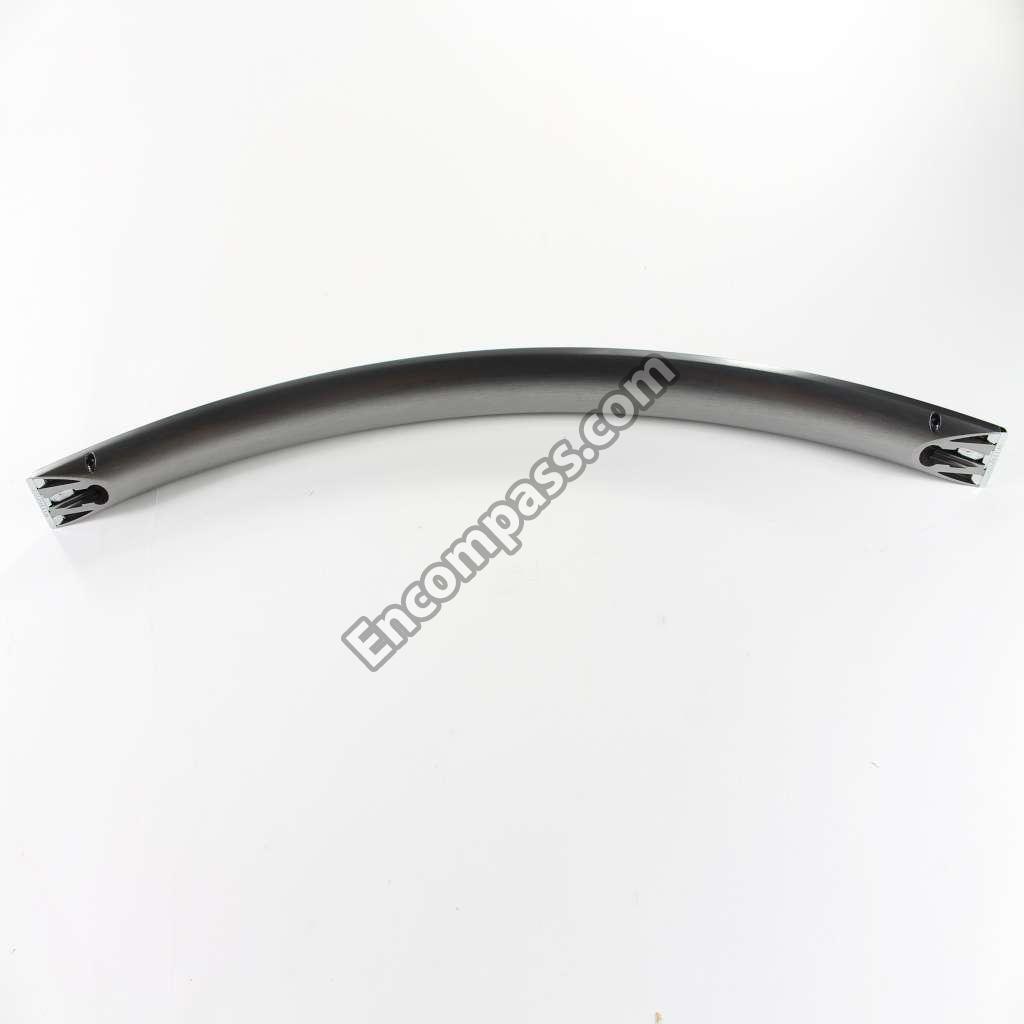

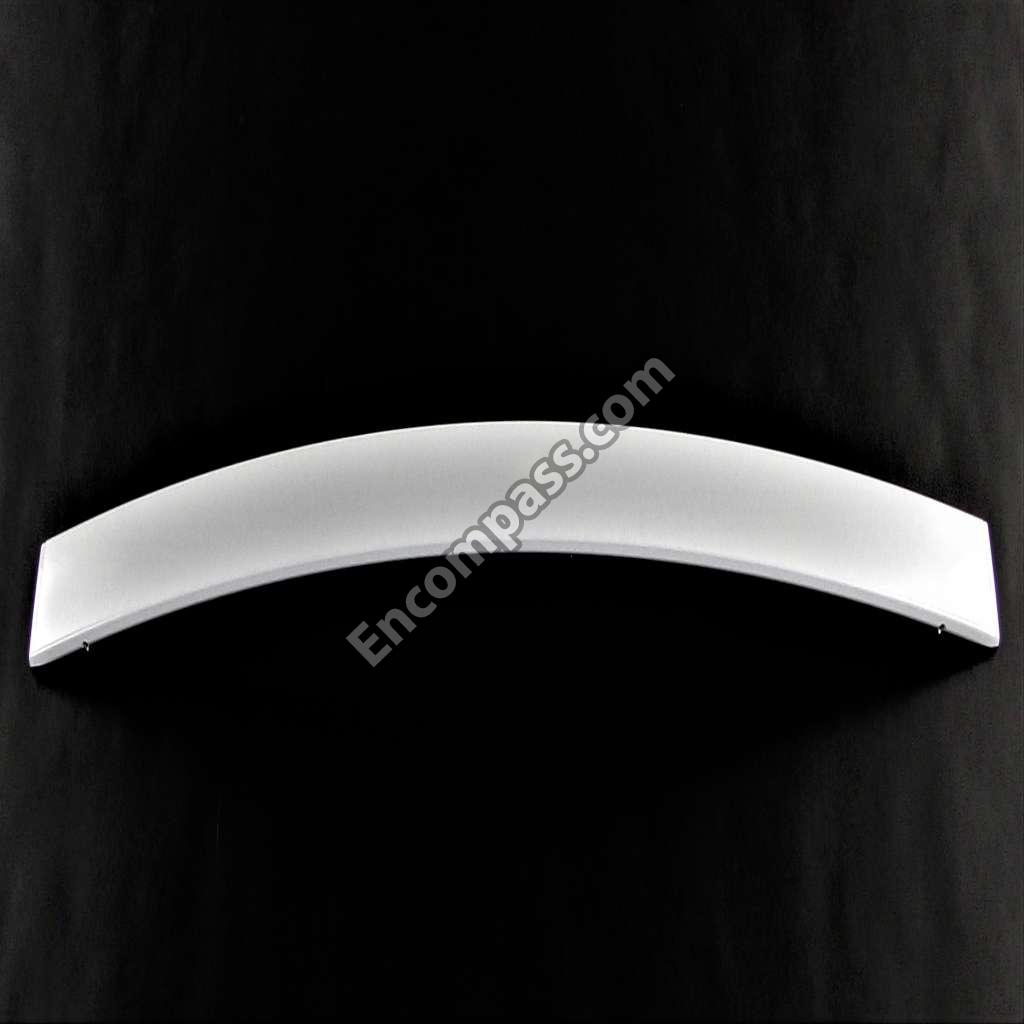

W11129822 W11129822 HANDLE
W11129821 W11129821 HANDLE
W11130176 W11130176 HANDLE
W11129819 W11129819 HANDLE
W11123099 W11123099 HANDLE
W11125624 W11125624 HANDLE
W11123097 W11123097 HANDLE
W11127179 W11127179 HANDLE
WP12729128 WP12729128 HEATER
WP67001716 WP67001716 HOOK- LADD
WPW10277025 WPW10277025 HOUSING
W11478401 W11478401 HOUSING
W10165876 W10165876 HOUSING, CONTROL
W10443023 W10443023 HOUSING, LIGHT
W10884390 W10884390 ICEMAKER
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
W11553819 W11553819 INSULATION
WP13012402 WP13012402 INSULATION
W11498983 W11498983 KNOB
W10273463 W10273463 LADDER, CENTER
W10251969 W10251969 LADDER, SIDE
WPW10141622 WPW10141622 LEVELER
W10149389 W10149389 LIFT, BAIL ARM
W11338583 W11338583 LIGHT BULB
W11107911 W11107911 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
8003RP 8003RP MISCELLANEOUS, KIT, TERMINAL CONNECTOR
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
F2WC9I1 F2WC9I1 MISCELLANEOUS, WATER FILTER
W10464766 W10464766 MODULE, LIGHT
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT, GEAR (LEFT HAND)
W10348260 W10348260 MOUNT, GEAR (RIGHT HAND)
W11223753 W11223753 NAMEPLATE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10655367 WPW10655367 PAN-DRIP
WPW10171529 WPW10171529 PAN-ICE
W11513151 W11513151 PAN-UTILTY
WPA3076901 WPA3076901 PLUG, BUTTON
P1KL6S1 P1KL6S1 PRO PRSERV
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10671238 WPW10671238 RAIL-CENTR
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W10215666 W10215666 SCREW
WP67006415 WP67006415 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WPW10661886 WPW10661886 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
WP400021-1 WP400021-1 SCREW
WP489349 WP489349 SCREW
W10854958 W10854958 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W11715937 W11715937 SHAFT
W10802339 W10802339 SHAFT, RACK
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
W10165882 W10165882 SLIDE, CONTROL
W11447232 W11447232 SOCKET
W10873801 W10873801 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11703060 W11703060 STOP-DOOR
W11708403 W11708403 STOP-DOOR
W10236396 W10236396 STRAP, COMPRESSOR
W10528936 W10528936 SUPPORT, GLASS
WP67001721 WP67001721 SUPPORT- L
WP67001722 WP67001722 SUPPORT- R
W11396033 W11396033 SWITCH
W11291138 W11291138 SWITCH
W11238399 W11238399 TAPE
W10787418 W10787418 TECH SHEET (ENGLISH)
W10787417 W10787417 TECH SHEET (FRENCH)
12002355 12002355 THERMISTOR KIT
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP67001719 WP67001719 TRACK
WPW10292802 WPW10292802 TRAY-DRIP
W11245261 W11245261 TRIM
WPW10231343 WPW10231343 TRIM-SHELF
WPW10233570 WPW10233570 TUBE
W10619951 W10619951 TUBE-DRAIN
W10597594 W10597594 USE AND CARE GUIDE
WP978025 WP978025 VALVE
WPW10498976 WPW10498976 VALVE
W11120581 W11120581 WATER TUBE
W11176463 W11176463 WATER TUBE
WPW10679216 WPW10679216 WIRE HARNESS
WPW10290745 WPW10290745 WIRE HARNESS
W10886932 W10886932 WIRE HARNESS
