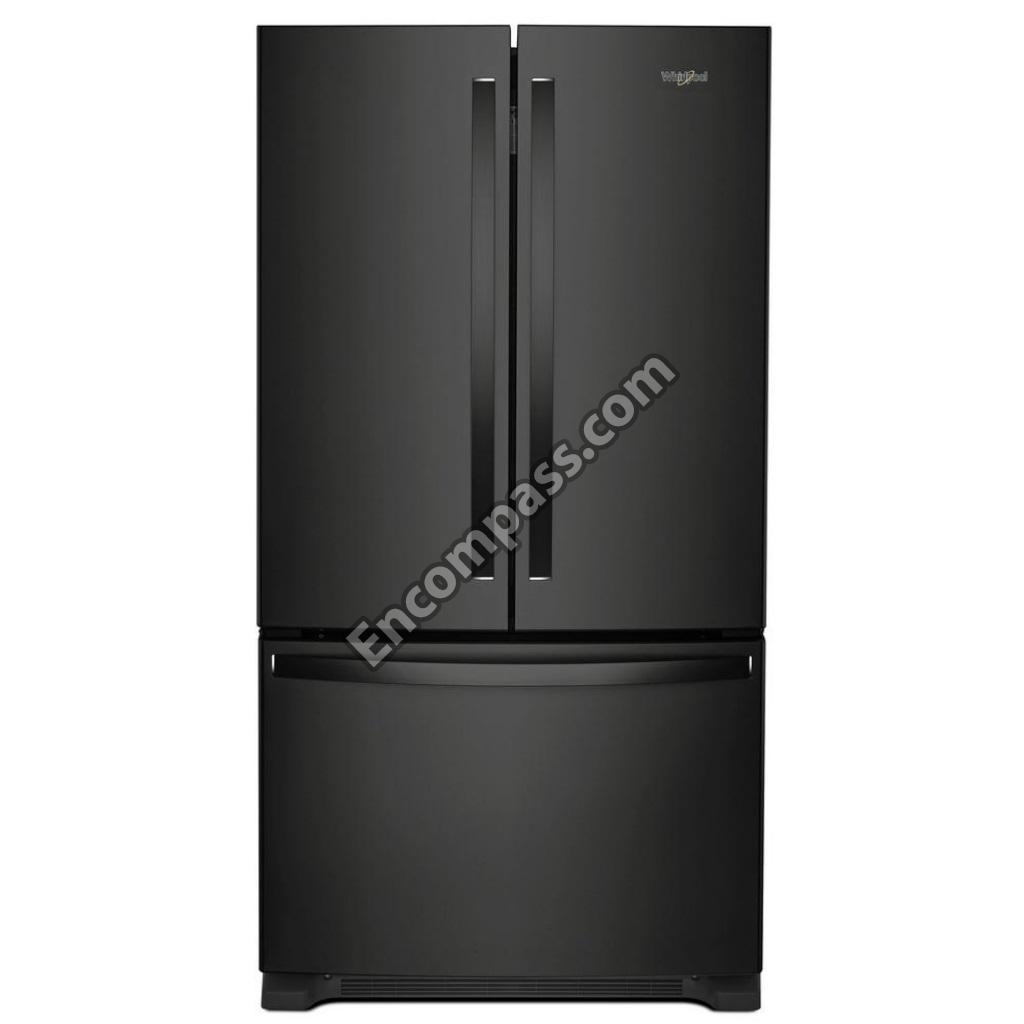

Model Image
Manufacturer

Whirlpool

Model Number

WRF535SWHB00

Description

Bottom Mount French Door Refrigerator (black)

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
WPW10284684 WPW10284684 ADAPTER, SLIDE (LEFT HAND)
WPW10284685 WPW10284685 ADAPTER, SLIDE (RIGHT HAND)
W11285509 W11285509 ARM, SHUT OFF
W10815413 W10815413 ASSEMBLY, DRAIN FUNNEL
WPW10739590 WPW10739590 ASSEMBLY, FIXED SHELF
W10884390 W10884390 ASSEMBLY, ICEMAKER (COMPLETE)
P1KL6S1 P1KL6S1 ASSEMBLY, PRODUCE PRESERVER
WPW10515763 WPW10515763 ASSEMBLY, ROLLER (LEFT HAND)
WPW10515762 WPW10515762 ASSEMBLY, ROLLER (RIGHT HAND)
67006434 67006434 AXLE, ROLLER
W11223753 W11223753 BADGE
WP67003795 WP67003795 BAR, CONTROL
W11727651 W11727651 BASEPAN
WPW10348246 WPW10348246 BASKET, FREEZER (UPPER)
WPW10293682 WPW10293682 BIN, LOWER
WP12825803 WP12825803 BLADE, FAN
WP2169142 WP2169142 BLADE, FAN
W11686793 W11686793 BLOCK, FILL TUBE
WP12642303WD WP12642303WD BRACE, CRISPER COVER
WP12227305WD WP12227305WD BRACE, PANTRY
WPW10330991 WPW10330991 BRACKET, DOOR (LEFT HAND)
WPW10330993 WPW10330993 BRACKET, DOOR (RIGHT HAND)
WPW10141622 WPW10141622 BRAKE, ROLLER
WPW10289497 WPW10289497 BUCKET, GALLON
WPW10371194 WPW10371194 BUCKET, MEDIUM
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10350564 WPW10350564 CAPACITOR
W11395888 W11395888 CARTRIDGE, BYPASS
W11456069 W11456069 CLAMP, TUBE
12996601 12996601 CLIP, BUSHING
W10815863 W10815863 CLIP, CONDENSER
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
W10819546 W10819546 CLIP, FACADE
W11673433 W11673433 CLIP, HEATER
WPM0114003 WPM0114003 CLIP, SPEED
67002816 67002816 CLIP, WATER TUBE
WP67003639 WP67003639 CLOSURE, DOOR (BLACK)
WP12028505AP WP12028505AP CLOSURE, DOOR (GREY)
WP67003638 WP67003638 CLOSURE, DOOR (WHITE)
W10233960 W10233960 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10503278 WPW10503278 CONTROL, ELECTRONIC
67003485 67003485 COVER, CORNER (BLACK)
WP12587703AP WP12587703AP COVER, CORNER (GREY)
12587703W 12587703W COVER, CORNER (WHITE)
WP12806701 WP12806701 COVER, DAMPER
W11727809 W11727809 COVER, EVAPORATOR
WP12568001 WP12568001 COVER, FILTER
W10445790 W10445790 COVER, ICEMAKER
W11284721 W11284721 COVER, LIGHT
WP67003924 WP67003924 COVER, THERMISTOR
W10337647 W10337647 COVER, TOP HINGE LEFT HAND (BLACK)
WPW10337648 WPW10337648 COVER, TOP HINGE LEFT HAND (GREY) (REPLACES: W10337648)
WPW10337634 WPW10337634 COVER, TOP HINGE LEFT HAND (WHITE)
WP67005956 WP67005956 COVER, TOP HINGE RIGHT HAND (BLACK)
WPW10191117 WPW10191117 COVER, TOP HINGE RIGHT HAND (GREY)
67005958 67005958 COVER, TOP HINGE RIGHT HAND (WHITE)
WPW10211855 WPW10211855 COVER, UNIT
12726003 12726003 COVER, WATER LINE
WPW10594330 WPW10594330 DAMPER, CONTROL
W10873801 W10873801 DEVICE, START
W10157765 W10157765 DIVERTER, AIR
W10241046 W10241046 DIVIDER, BASKET (UPPER)
W10171558 W10171558 DIVIDER, BASKET (UPPER)
W10919637 W10919637 DOOR, FREEZER (BLACK STAINLESS)
W10864992 W10864992 DOOR, FREEZER (BLACK)
W10910835 W10910835 DOOR, FREEZER (STAINLESS)
12977879WQ 12977879WQ DOOR, FREEZER (WHITE)
W10919641 W10919641 DOOR, REFRIGERATOR LEFT HAND (BLACK STAINLESS)
W10865014 W10865014 DOOR, REFRIGERATOR LEFT HAND (BLACK)
W10915640 W10915640 DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
13107888WQ 13107888WQ DOOR, REFRIGERATOR LEFT HAND (WHITE)
W10919633 W10919633 DOOR, REFRIGERATOR RIGHT HAND (BLACK STAINLESS)
W10865013 W10865013 DOOR, REFRIGERATOR RIGHT HAND (BLACK)
W10910852 W10910852 DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
13107887WQ 13107887WQ DOOR, REFRIGERATOR RIGHT HAND (WHITE)
WP67003531 WP67003531 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER
W11176463 W11176463 ELBOW, FILL TUBE
W10874836 W10874836 ENDCAP, PANTRY (LEFT HAND)
W10920562 W10920562 ENERGY GUIDE
W11256565 W11256565 EVAPORATOR
W10619951 W10619951 EXTENSION, DRAIN TUBE
WPW10585703 WPW10585703 FACADE, DISPENSER
W11519867 W11519867 FACADE, DISPENSER (TOP)
EDR4RXD1 EDR4RXD1 FILTER, WATER
W11469652 W11469652 FOIL, HOUSING
WPW10329866 WPW10329866 FRAME, CRISPER
WP67005923 WP67005923 FRONT, CRISPER PAN
W11159728 W11159728 GASKET
W11250029 W11250029 GASKET
W10436252 W10436252 GASKET, DOOR (BLACK)
W11368721 W11368721 GASKET, DOOR (BLACK)
W10443320 W10443320 GASKET, DOOR (GREY)
W10830162 W10830162 GASKET, DOOR (GREY)
W10443319 W10443319 GASKET, DOOR (WHITE)
W10830189 W10830189 GASKET, DOOR (WHITE)
WPB8381501 WPB8381501 GASKET, DRAIN
W11451451 W11451451 GASKET, FOAM
W10856123 W10856123 GASKET, FOAM
67002329 67002329 GASKET, PANTRY
WPW10130483 WPW10130483 GASKET, SEAL
12002497 12002497 GEAR
WPW10474716 WPW10474716 GEAR, SPUR (LEFT HAND)
WPW10474715 WPW10474715 GEAR, SPUR (RIGHT HAND)
WP67006704 WP67006704 GLASS, SHELF
W11033333 W11033333 GLASS, SHELF
WPW10235370 WPW10235370 GLIDE, PANTRY
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE, FREEZER AIR
WPW10534153 WPW10534153 GRILLE, TOE (BLACK)
WPW10534155 WPW10534155 GRILLE, TOE (GREY)
WPW10534154 WPW10534154 GRILLE, TOE (WHITE)
WPW10169124 WPW10169124 GROMMET
W10121318 W10121318 GROMMET
W10852725 W10852725 GROMMET, CONDENSER
WPW10137529 WPW10137529 GROMMET, CONDENSER
W10208593 W10208593 GUARD, DUAL WATER VALVE
W11448709 W11448709 GUIDE, FILL TUBE
W11677725 W11677725 GUIDE, WATERLINE
W11043768 W11043768 HANDLE, DOOR (BLACK STAINLESS)
W11043764 W11043764 HANDLE, DOOR (BLACK STAINLESS)
W11045122 W11045122 HANDLE, DOOR (BLACK)
W11099758 W11099758 HANDLE, DOOR (BLACK)
W11045125 W11045125 HANDLE, DOOR (STAINLESS)
W11044488 W11044488 HANDLE, DOOR (STAINLESS)
W11045121 W11045121 HANDLE, DOOR (WHITE)
W11127179 W11127179 HANDLE, DOOR (WHITE)
W11478401 W11478401 HARNESS, CONTROLS (REFRIGERATOR)
W11260592 W11260592 HARNESS, EVAPORATOR (INCLUDES HEATER)
W10886932 W10886932 HARNESS, ICEMAKER WIRE
WPW10679216 WPW10679216 HARNESS, UNIT (INCLUDES POWER CORD)
W11346623 W11346623 HEAD, WATER FILTER (INCLUDES BYPASS CARTRIDGE)
WP12729123 WP12729123 HEATER, DEFROST
W10918166 W10918166 HINGE, CENTER LEFT HAND (BLACK)
W10917991 W10917991 HINGE, CENTER LEFT HAND (GREY)
W10918115 W10918115 HINGE, CENTER LEFT HAND (WHITE)
W10918168 W10918168 HINGE, CENTER RIGHT HAND (BLACK)
W10917992 W10917992 HINGE, CENTER RIGHT HAND (GREY)
W10918117 W10918117 HINGE, CENTER RIGHT HAND (WHITE)
W11592375 W11592375 HINGE, TOP (LEFT HAND)
W11592374 W11592374 HINGE, TOP (RIGHT HAND)
12656202 12656202 HOUSING, CONTROL
W10443023 W10443023 HOUSING, LIGHT
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT, TUBE
WP13012402 WP13012402 INSULATION, DAMPER
W11714300 W11714300 INSULATION, WATER TANK
W11498983 W11498983 KNOB, TEMPERATURE CONTROL
W10273463 W10273463 LADDER, CENTER
WPW10569182 WPW10569182 LADDER, SIDE
W11338583 W11338583 LAMP, LED
W10827015 W10827015 LID, PANTRY
W10149389 W10149389 LIFT, BAIL ARM
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WPW10277025 WPW10277025 MODULE, LIGHT
W10464764 W10464764 MODULE, LIGHT
W11613295 W11613295 MOTOR, CONDENSER FAN
WPW10128551 WPW10128551 MOTOR, EVAPORATOR
W10348259 W10348259 MOUNT, GEAR (LEFT HAND)
W10348260 W10348260 MOUNT, GEAR (RIGHT HAND)
WP12722803B WP12722803B MULLION, DOOR (BLACK)
WP12722803AP WP12722803AP MULLION, DOOR (GREY)
WP12722803W WP12722803W MULLION, DOOR (WHITE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67004515 WP67004515 PAN, CRISPER
WPW10655368 WPW10655368 PAN, DRAIN
WPW10171529 WPW10171529 PAN, ICE
W11515355 W11515355 PLATE, DISPENSER
WP67001668 WP67001668 PLATE, FILTER
WP67003405 WP67003405 PLATE, PIVOT
WPW10326469 WPW10326469 RAIL, CENTER CRISPER
W11489993 W11489993 RAIL, SIDE (LEFT HAND)
W11489994 W11489994 RAIL, SIDE (RIGHT HAND)
WP67005149 WP67005149 ROLLER
W10215666 W10215666 SCREW
WP67006415 WP67006415 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WPW10661886 WPW10661886 SCREW
WP489474 WP489474 SCREW
WP400021-1 WP400021-1 SCREW
WP98165 WP98165 SCREW
67006425 67006425 SCREW
W10854958 W10854958 SCREW
67006564 67006564 SCREW
WP489349 WP489349 SCREW
WP8281196 WP8281196 SCREW
WPM0500703 WPM0500703 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W11553819 W11553819 SEALER, INSULATION
W11173556 W11173556 SHAFT, RACK
W11028221 W11028221 SHAFT, RACK
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD, CONDENSER FAN
WPW10167023 WPW10167023 SHROUD, EVAPORATOR FAN
W11658402 W11658402 SLIDE, DOOR
WP67005864 WP67005864 SLIDE, HUMIDITY CONTROL
WP67003793 WP67003793 SLIDE, TEMPERATURE CONTROL
W11447232 W11447232 SOCKET, LIGHT
W11708403 W11708403 STOP, DOOR (BLACK)
W11703060 W11703060 STOP, DOOR (GREY)
12968202W 12968202W STOP, DOOR (WHITE)
W11092534 W11092534 STRAP, BALE
W10236396 W10236396 STRAP, COMPRESSOR
WP13062602 WP13062602 SUPPORT, CRISPER FRAME
W10528513 W10528513 SWEEP, DUAL TUBE
W11396033 W11396033 SWITCH, LIGHT
W11384469 W11384469 SWITCH, LIGHT
WP12575501 WP12575501 SWITCH, LIMIT
W11229977 W11229977 TANK, WATER
W11238399 W11238399 TAPE
W10517966N W10517966N TECH SHEET
W10316760 W10316760 THERMISTOR
12002355 12002355 THERMISTOR KIT
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP67001719 WP67001719 TRACK, DELI DRAWER
W11547653 W11547653 TRAY, DRIP
WPW10231345 WPW10231345 TRIM, CRISPER
W11210956 W11210956 TRIM, PANTRY GLASS
WPW10233569 WPW10233569 TUBE, DISCHARGE
W11120581 W11120581 TUBING, PLASTIC
WP2300868 WP2300868 UNION, WATER
W10597594 W10597594 USE AND CARE GUIDE
WP978025 WP978025 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978026 978026 VALVE, ACCESS
WPW10420083 WPW10420083 VALVE, WATER INLET
