Model Image
Manufacturer

Whirlpool

Model Number

WRF535SWHV02

Description

Bottom-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11449276 W11449276 8-15 X 1.060
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
WP542638 WP542638 APPLIANCE SILICONE LUBRICANT
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
W10134625 W10134625 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (APOLLO GRAY)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
511873 511873 APPLIANCE TOUCH-UP PAINT, 2-OZ (WHITE)
W11251264 W11251264 BASKET-FZR
W11686793 W11686793 BLOCK-EPS FL
W11107911 W11107911 BULB-LIGHT
N_P N_P CABINET (NOT A SERVICABLE PART)
W11456069 W11456069 CLAMP-CABLE
10623002 10623002 CLIP EVAPORATOR
12996601 12996601 CLIP- BUSH
W10815863 W10815863 CLIP-BTM CON
W11478401 W11478401 CONTROL MODU
67003485 67003485 CORNER COVER
W10917991 W10917991 DOOR HINGE
W10918166 W10918166 DOOR HINGE
W10917992 W10917992 DOOR HINGE
W10918168 W10918168 DOOR HINGE
W11308945 W11308945 ENERGY GUIDE
WPW10585703 WPW10585703 FACADE DISPENSER
W11519867 W11519867 FACADE, DISP
876029 876029 FOAM SLAB
WPB8381501 WPB8381501 GASKET DRAIN TUBE
W11451451 W11451451 GASKET-FOAM
W10528933 W10528933 GLASS SUPPORT
W11677725 W11677725 GUIDE, WATERLINE
W11448709 W11448709 GUIDE-FILL T
W11218259 W11218259 HARN-MC JAZZ
W11602886 W11602886 HEMERA 30 DE
40083 40083 KENMORE STAINLESS STEEL CLEANER
W11498983 W11498983 KNOB-TEMP CO
W10917540 W10917540 MIDNIGHT GRE
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
W11613295 W11613295 MOTOR-COND
W11223753 W11223753 NAMEPLATE
W11515355 W11515355 PLATE
W11489993 W11489993 RACK-SIDE LH
W11489994 W11489994 RACK-SIDE RH
WPW10594330 WPW10594330 REFRIGERATOR AIR DAMPER ASSEMBLY
WP12806701 WP12806701 REFRIGERATOR AIR DAMPER COVER
67003900 67003900 REFRIGERATOR AIR DAMPER COVER INSERT
WP13012402 WP13012402 REFRIGERATOR AIR DUCT INSULATION
WP4317852 WP4317852 REFRIGERATOR ALUMILASTIC ADHESIVE
WPW10211855 WPW10211855 REFRIGERATOR BACK COVER
WP67003795 WP67003795 REFRIGERATOR BAR
WPW10330991 WPW10330991 REFRIGERATOR BRACKET
W11693756 W11693756 REFRIGERATOR CAPACITOR SCREW
W10281329 W10281329 REFRIGERATOR CLAMP
W10819546 W10819546 REFRIGERATOR CLIP
W11092534 W11092534 REFRIGERATOR CLIP
W10918008 W10918008 REFRIGERATOR CLOSER
W10918170 W10918170 REFRIGERATOR CLOSER
W10918010 W10918010 REFRIGERATOR CLOSER
W10918171 W10918171 REFRIGERATOR CLOSER
W10233960 W10233960 REFRIGERATOR COMPRESSOR
W10873801 W10873801 REFRIGERATOR COMPRESSOR START RELAY
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
WPW10346415 WPW10346415 REFRIGERATOR CONDENSER COIL
WP12825803 WP12825803 REFRIGERATOR CONDENSER FAN
W11556315 W11556315 REFRIGERATOR CONDENSER FAN SHROUD
W10337647 W10337647 REFRIGERATOR COVER
WP67005923 WP67005923 REFRIGERATOR CRISPER DRAWER
WP67004515 WP67004515 REFRIGERATOR CRISPER DRAWER
WPW10329866 WPW10329866 REFRIGERATOR CRISPER DRAWER COVER FRAME
WP12642303WD WP12642303WD REFRIGERATOR CRISPER DRAWER COVER SUPPORT
WP67005864 WP67005864 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL
WPW10326469 WPW10326469 REFRIGERATOR CRISPER DRAWER SLIDE RAIL
W10157765 W10157765 REFRIGERATOR DEFLECTOR
WP12729123 WP12729123 REFRIGERATOR DEFROST HEATER
WP67003531 WP67003531 REFRIGERATOR DELI DRAWER
WP67001719 WP67001719 REFRIGERATOR DELI DRAWER GUIDE TRACK
WP12575501 WP12575501 REFRIGERATOR DISPENSER SWITCH
W10171558 W10171558 REFRIGERATOR DIVIDER
W10241046 W10241046 REFRIGERATOR DIVIDER
W10919641 W10919641 REFRIGERATOR DOOR ASSEMBLY, LEFT (BLACK STAINLESS)
W11307258 W11307258 REFRIGERATOR DOOR ASSEMBLY, LEFT (STAINLESS)
W10919633 W10919633 REFRIGERATOR DOOR ASSEMBLY, RIGHT (BLACK STAINL...
W11307263 W11307263 REFRIGERATOR DOOR ASSEMBLY, RIGHT (STAINLESS)
WPW10371194 WPW10371194 REFRIGERATOR DOOR BIN
WPW10289497 WPW10289497 REFRIGERATOR DOOR BIN
WP12028505AP WP12028505AP REFRIGERATOR DOOR CLOSER CAM
W11368721 W11368721 REFRIGERATOR DOOR GASKET (BLACK)
W10830162 W10830162 REFRIGERATOR DOOR GASKET (GRAY)
W10149389 W10149389 REFRIGERATOR DOOR HANDLE
W11125624 W11125624 REFRIGERATOR DOOR HANDLE (BLACK STAINLESS)
W11163764 W11163764 REFRIGERATOR DOOR HANDLE (STAINLESS)
W11592375 W11592375 REFRIGERATOR DOOR HINGE
W11592374 W11592374 REFRIGERATOR DOOR HINGE
WPW10191117 WPW10191117 REFRIGERATOR DOOR HINGE COVER
WPW10337648 WPW10337648 REFRIGERATOR DOOR HINGE COVER
WP67005956 WP67005956 REFRIGERATOR DOOR HINGE COVER, UPPER (BLACK)
WP67006380 WP67006380 REFRIGERATOR DOOR HINGE SCREW
12999501 12999501 REFRIGERATOR DOOR HINGE SHIM
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
W11708403 W11708403 REFRIGERATOR DOOR STOP
W11384469 W11384469 REFRIGERATOR DOOR SWITCH
W11396033 W11396033 REFRIGERATOR DOOR SWITCH
W10815413 W10815413 REFRIGERATOR DRAIN FUNNEL
WPM0500703 WPM0500703 REFRIGERATOR DRAIN FUNNEL SEAL
W10619951 W10619951 REFRIGERATOR DRAIN TUBE
WPW10235370 WPW10235370 REFRIGERATOR DRAWER SLIDE RAIL
WPW10503278 WPW10503278 REFRIGERATOR ELECTRONIC CONTROL BOARD
W11256565 W11256565 REFRIGERATOR EVAPORATOR
W11727809 W11727809 REFRIGERATOR EVAPORATOR COVER
W11159728 W11159728 REFRIGERATOR EVAPORATOR COVER SEAL
WPW10655368 WPW10655368 REFRIGERATOR EVAPORATOR DRIP PAN
W11547653 W11547653 REFRIGERATOR EVAPORATOR DRIP PAN
WP2169142 WP2169142 REFRIGERATOR EVAPORATOR FAN BLADE
WPW10128551 WPW10128551 REFRIGERATOR EVAPORATOR FAN MOTOR
13058002 13058002 REFRIGERATOR EVAPORATOR FAN MOTOR CLIP
W11673433 W11673433 REFRIGERATOR EVAPORATOR HEATER CLIP
W10856123 W10856123 REFRIGERATOR FAN SHROUD SEAL
WP12587703AP WP12587703AP REFRIGERATOR FILLER
WP12722803AP WP12722803AP REFRIGERATOR FLIPPER ASSEMBLY
WP12722803B WP12722803B REFRIGERATOR FLIPPER ASSEMBLY
WP67003405 WP67003405 REFRIGERATOR FLIPPER PIVOT BLOCK
W10348259 W10348259 REFRIGERATOR FREEZER BASKET GEAR BRACKET, LEFT
WPW10284685 WPW10284685 REFRIGERATOR FREEZER BASKET SLIDE RAIL ADAPTER
W11301143 W11301143 REFRIGERATOR FREEZER DOOR ASSEMBLY (STAINLESS)
WPW10330993 WPW10330993 REFRIGERATOR FREEZER DOOR BRACKET
WP67003639 WP67003639 REFRIGERATOR FREEZER DOOR CLOSER
W10436252 W10436252 REFRIGERATOR FREEZER DOOR GASKET (BLACK)
W10443320 W10443320 REFRIGERATOR FREEZER DOOR GASKET (GRAY)
W11125509 W11125509 REFRIGERATOR FREEZER DOOR HANDLE
W11045125 W11045125 REFRIGERATOR FREEZER DOOR HANDLE (STAINLESS)
WP98165 WP98165 REFRIGERATOR FREEZER DOOR STOP SCREW
WPW10277025 WPW10277025 REFRIGERATOR FREEZER DOOR SWITCH HOUSING
WPW10293682 WPW10293682 REFRIGERATOR FREEZER DRAWER BIN
12002497 12002497 REFRIGERATOR FREEZER DRAWER GEAR
WPW10474716 WPW10474716 REFRIGERATOR FREEZER DRAWER GEAR
WPW10474715 WPW10474715 REFRIGERATOR FREEZER DRAWER GEAR
W10348260 W10348260 REFRIGERATOR FREEZER DRAWER ROLLER SUPPORT
WPW10284684 WPW10284684 REFRIGERATOR FREEZER DRAWER SLIDE RAIL ADAPTER,...
W11028221 W11028221 REFRIGERATOR FREEZER DRAWER SLIDE SHAFT
WPW10175909 WPW10175909 REFRIGERATOR FREEZER EVAPORATOR COVER LOUVER
WPW10130483 WPW10130483 REFRIGERATOR GASKET
W11033333 W11033333 REFRIGERATOR GLASS SHELF
W11107912 W11107912 REFRIGERATOR GLASS SHELF
WP67006704 WP67006704 REFRIGERATOR GLASS SHELF
W10121318 W10121318 REFRIGERATOR GROMMET
WPW10137529 WPW10137529 REFRIGERATOR GROMMET
WPW10169124 WPW10169124 REFRIGERATOR GROMMET
W10852725 W10852725 REFRIGERATOR GROMMET
W10464764 W10464764 REFRIGERATOR HOUSING
W10443023 W10443023 REFRIGERATOR HOUSING
WPW10171529 WPW10171529 REFRIGERATOR ICE BIN
W10884390 W10884390 REFRIGERATOR ICE MAKER ASSEMBLY
W11181718 W11181718 REFRIGERATOR ICE MAKER FILL TUBE
8003RP 8003RP REFRIGERATOR ICE MAKER INSTALLATION KIT
WPW10289690 WPW10289690 REFRIGERATOR ICE MAKER MODULE COVER
W11285509 W11285509 REFRIGERATOR ICE MAKER SHUT-OFF ARM
WP1117510 WP1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
W11714300 W11714300 REFRIGERATOR INSULATION
W11553819 W11553819 REFRIGERATOR INSULATION
W10273463 W10273463 REFRIGERATOR LADDER
WPW10569182 WPW10569182 REFRIGERATOR LADDER
WPW10141622 WPW10141622 REFRIGERATOR LEVELING LEG
W11284721 W11284721 REFRIGERATOR LIGHT COVER
W11447232 W11447232 REFRIGERATOR LIGHT SOCKET
W11250029 W11250029 REFRIGERATOR MACHINE COMPARTMENT COVER GASKET
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
67002329 67002329 REFRIGERATOR PANTRY DRAWER AIR DUCT GASKET
W10827015 W10827015 REFRIGERATOR PANTRY DRAWER DOOR
W10874836 W10874836 REFRIGERATOR PANTRY DRAWER END CAP SET
12656202 12656202 REFRIGERATOR PANTRY DRAWER TEMPERATURE CONTROL ...
WP67003793 WP67003793 REFRIGERATOR PANTRY DRAWER TEMPERATURE CONTROL ...
212643 212643 REFRIGERATOR PERMAGUM SEALER
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
W11727651 W11727651 REFRIGERATOR PLATE
WPW10515763 WPW10515763 REFRIGERATOR ROLLER
WPW10515762 WPW10515762 REFRIGERATOR ROLLER
WP67005149 WP67005149 REFRIGERATOR ROLLER
67006434 67006434 REFRIGERATOR ROLLER WHEEL AXLE PIN
WPW10350564 WPW10350564 REFRIGERATOR RUN CAPACITOR
WP8281196 WP8281196 REFRIGERATOR SCREW
WP489349 WP489349 REFRIGERATOR SCREW
67006564 67006564 REFRIGERATOR SCREW
67006425 67006425 REFRIGERATOR SCREW
WP400021-1 WP400021-1 REFRIGERATOR SCREW
WP489474 WP489474 REFRIGERATOR SCREW
W11311945 W11311945 REFRIGERATOR SCREW
W10829281 W10829281 REFRIGERATOR SCREW
W10709798 W10709798 REFRIGERATOR SCREW
WP67006415 WP67006415 REFRIGERATOR SCREW
W10215666 W10215666 REFRIGERATOR SCREW
W10919637 W10919637 REFRIGERATOR SERVICE KIT
978026 978026 REFRIGERATOR SERVICE VALVE
WP978025 WP978025 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978029 978029 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
W11173556 W11173556 REFRIGERATOR SHAFT
WP13062602 WP13062602 REFRIGERATOR SHELF SUPPORT
WPW10231345 WPW10231345 REFRIGERATOR SHELF TRIM, FRONT
12999502 12999502 REFRIGERATOR SHIM
WPW10167023 WPW10167023 REFRIGERATOR SHROUD
W11703060 W11703060 REFRIGERATOR STOP
W10236396 W10236396 REFRIGERATOR STRAP
W10517966 W10517966 REFRIGERATOR TECHNICAL SHEET
12002355 12002355 REFRIGERATOR TEMPERATURE SENSOR
WP67003924 WP67003924 REFRIGERATOR TEMPERATURE SENSOR
W10316760 W10316760 REFRIGERATOR TEMPERATURE SENSOR KIT
WPW10534153 WPW10534153 REFRIGERATOR TOE GRILLE (BLACK)
WPW10534155 WPW10534155 REFRIGERATOR TOE GRILLE (GRAY)
WPW10233569 WPW10233569 REFRIGERATOR TUBE
W10528513 W10528513 REFRIGERATOR TUBE CLAMP
WPW10143759 WPW10143759 REFRIGERATOR UV FILTER DRYER
W10208593 W10208593 REFRIGERATOR VALVE COVER
W11238399 W11238399 REFRIGERATOR VINYL TAPE
12726003 12726003 REFRIGERATOR WATER COVER
W11395888 W11395888 REFRIGERATOR WATER FILTER BYPASS
W11346623 W11346623 REFRIGERATOR WATER FILTER HEAD
WP12568001 WP12568001 REFRIGERATOR WATER FILTER HOUSING
WP67001668 WP67001668 REFRIGERATOR WATER FILTER HOUSING, LOWER
WPW10420083 WPW10420083 REFRIGERATOR WATER INLET VALVE ASSEMBLY
W11229977 W11229977 REFRIGERATOR WATER RESERVOIR
WP2300868 WP2300868 REFRIGERATOR WATER TUBE FITTING
67002816 67002816 REFRIGERATOR WATER TUBING CLIP
W11260592 W11260592 REFRIGERATOR WIRE HARNESS
W11573362 W11573362 SCREW
12992301 12992301 SCREW
WP33001882 WP33001882 SCREW SELF
W11658402 W11658402 SLIDE
W11296635 W11296635 USE AND CARE GUIDE
EDR4RXD1 EDR4RXD1 WHIRLPOOL EVERYDROP 4 REFRIGERATOR WATER FILTER

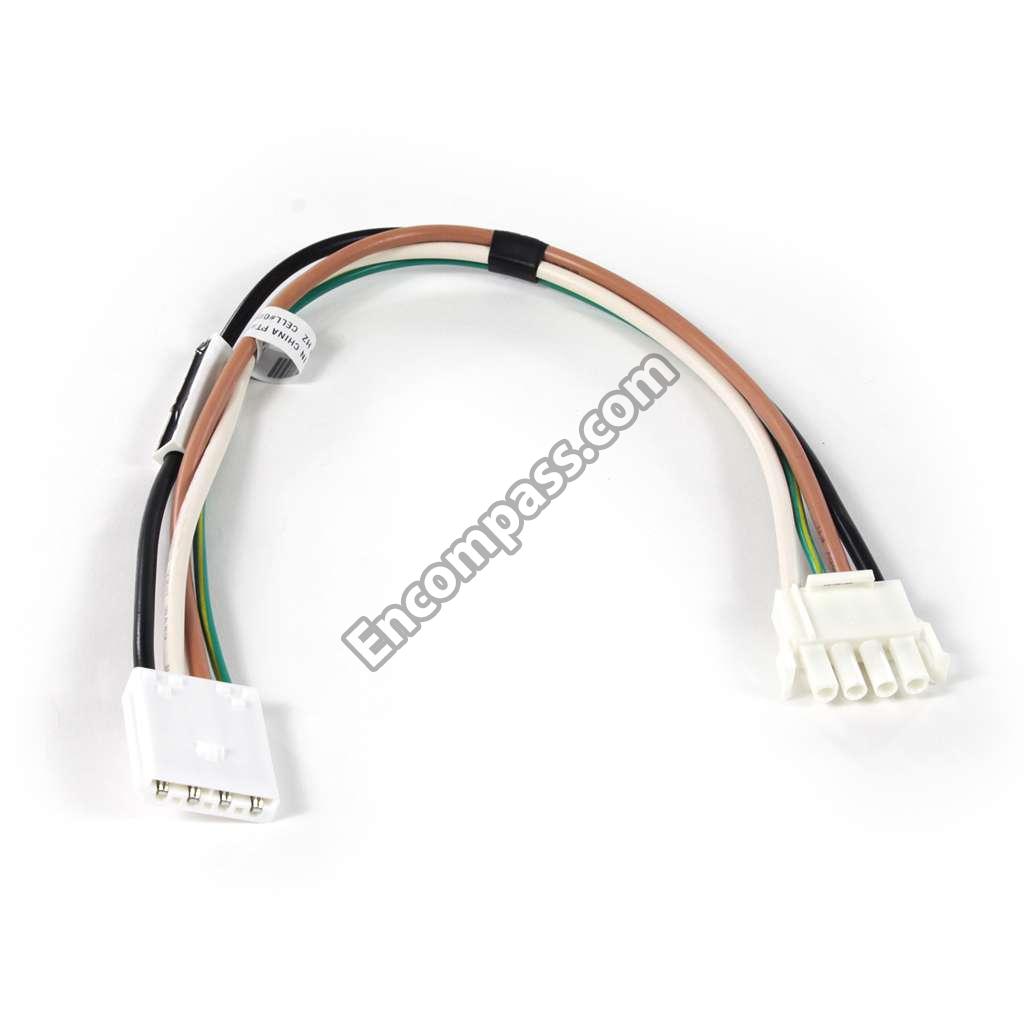

W10886932 W10886932 WIRE HARNESS
Main Menu x
