Model Image
Manufacturer

Whirlpool

Model Number

WRF540CWBW00

Description

Bottom-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10284692 WPW10284692 ADAPTER, SLIDE (LEFT HAND)
WPW10284693 WPW10284693 ADAPTER, SLIDE (RIGHT HAND)
W11559683 W11559683 ARM, SHUT OFF
WPW10534153 WPW10534153 ASSEMBLY, GRILLE (INCLUDES CLIPS) (BLACK)
WPW10534155 WPW10534155 ASSEMBLY, GRILLE (INCLUDES CLIPS) (GREY)
WPW10534154 WPW10534154 ASSEMBLY, GRILLE (INCLUDES CLIPS) (WHITE)
W10884390 W10884390 ASSEMBLY, ICEMAKER (COMPLETE)
WPW10281342 WPW10281342 ASSEMBLY, MODULE AND MOTOR
WPW10300025 WPW10300025 ASSEMBLY, MOLD AND HEATER
P1KL6S1 P1KL6S1 ASSEMBLY, PRODUCE PRESERVER
WPW10515763 WPW10515763 ASSEMBLY, ROLLER (LEFT HAND)
WPW10515762 WPW10515762 ASSEMBLY, ROLLER (RIGHT HAND)
67006434 67006434 AXLE, ROLLER
67003794 67003794 BAR, CONTROL
W11727651 W11727651 BASEPAN
W10348245 W10348245 BASKET, FREEZER (UPPER)
W10503185 W10503185 BASKET, LOWER
WP12825803 WP12825803 BLADE, FAN
WP2169142 WP2169142 BLADE, FAN
W11686793 W11686793 BLOCK, FILL TUBE
WPW10677146 WPW10677146 BOARD, CONTROL
WPW10317076 WPW10317076 BOARD, HV CONTROL
WP12227304WD WP12227304WD BRACE, CRISPER COVER
WP12227305WD WP12227305WD BRACE, PANTRY
WPW10330994 WPW10330994 BRACKET, DOOR (LEFT HAND)
WPW10330995 WPW10330995 BRACKET, DOOR (RIGHT HAND)
WP2256087 WP2256087 BRACKET, ICE MAKER
WPW10141622 WPW10141622 BRAKE, ROLLER
WPW10289497 WPW10289497 BUCKET, GALLON
WPW10371194 WPW10371194 BUCKET, MEDIUM
N_P N_P CABINET (NOT A SERVICEABLE PART)
WPW10350564 WPW10350564 CAPACITOR
W11395888 W11395888 CARTRIDGE, BYPASS
W11456069 W11456069 CLAMP-TUBE
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
W10819546 W10819546 CLIP, FACADE
W11673433 W11673433 CLIP, HEATER
WPM0114003 WPM0114003 CLIP, SPEED
WP628379 WP628379 CLIP, THERMAL FUSE
67002816 67002816 CLIP, WATER TUBE
WP67003639 WP67003639 CLOSURE, DOOR (BLACK)
WP12028505AP WP12028505AP CLOSURE, DOOR (GREY)
WP67003638 WP67003638 CLOSURE, DOOR (WHITE)
WPW10466675 WPW10466675 COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
WPW10346415 WPW10346415 CONDENSER
WPW10594329 WPW10594329 CONTROL, DAMPER
W11226688 W11226688 COVER
12961602 12961602 COVER, CONTROL BOX
67003485 67003485 COVER, CORNER (BLACK)
WP12587703AP WP12587703AP COVER, CORNER (GREY)
12587703W 12587703W COVER, CORNER (WHITE)
WP12806701 WP12806701 COVER, DAMPER
W11727809 W11727809 COVER, EVAPORATOR
WP12568001 WP12568001 COVER, FILTER
W10377174 W10377174 COVER, FRONT
W10337647 W10337647 COVER, LEFT HINGE (BLACK)
WPW10337648 WPW10337648 COVER, LEFT HINGE (GREY)
WPW10337634 WPW10337634 COVER, LEFT HINGE (WHITE)
W11284721 W11284721 COVER, LIGHT
WP67005956 WP67005956 COVER, RIGHT HINGE (BLACK)
WPW10191117 WPW10191117 COVER, RIGHT HINGE (GREY)
67005958 67005958 COVER, RIGHT HINGE (WHITE)
WP67003924 WP67003924 COVER, THERMISTOR
WPW10211855 WPW10211855 COVER, UT
12726003 12726003 COVER, WATER LINE
WPW10281115 WPW10281115 CRADLE, BASKET (LEFT HAND)
WPW10281116 WPW10281116 CRADLE, BASKET (RIGHT HAND)
W10410073 W10410073 CUP, WATER FILL
12225602 12225602 DAM (LEFT HAND)
12225702 12225702 DAM (RIGHT HAND)
WPW10197428 WPW10197428 DEVICE, COMBINATION START (START RELAY AND OVERLOAD)
W10157765 W10157765 DIVERTER, AIR
W10150061 W10150061 DIVIDER, BASKET (LOWER)
W10241046 W10241046 DIVIDER, BASKET (UPPER)
WP67002321 WP67002321 DIVIDER, PANTRY
12977865BQ 12977865BQ DOOR, FREEZER (BLACK)
12977864SQ 12977864SQ DOOR, FREEZER (STAINLESS)
12977864WQ 12977864WQ DOOR, FREEZER (WHITE)
13107881BQ 13107881BQ DOOR, LEFT (BLACK)
13107881SQ 13107881SQ DOOR, LEFT (STAINLESS)

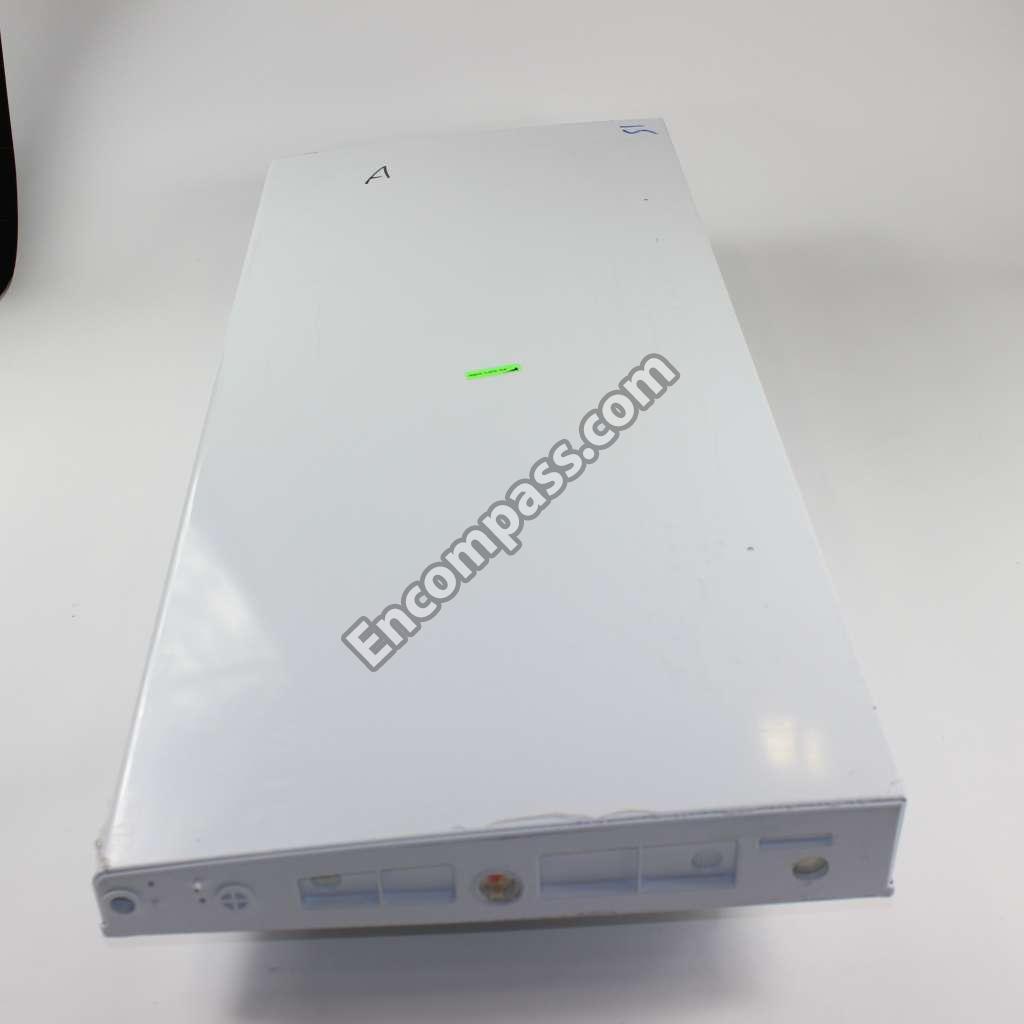

13107881WQ 13107881WQ DOOR, LEFT (WHITE)
13107855BQ 13107855BQ DOOR, RIGHT (BLACK)

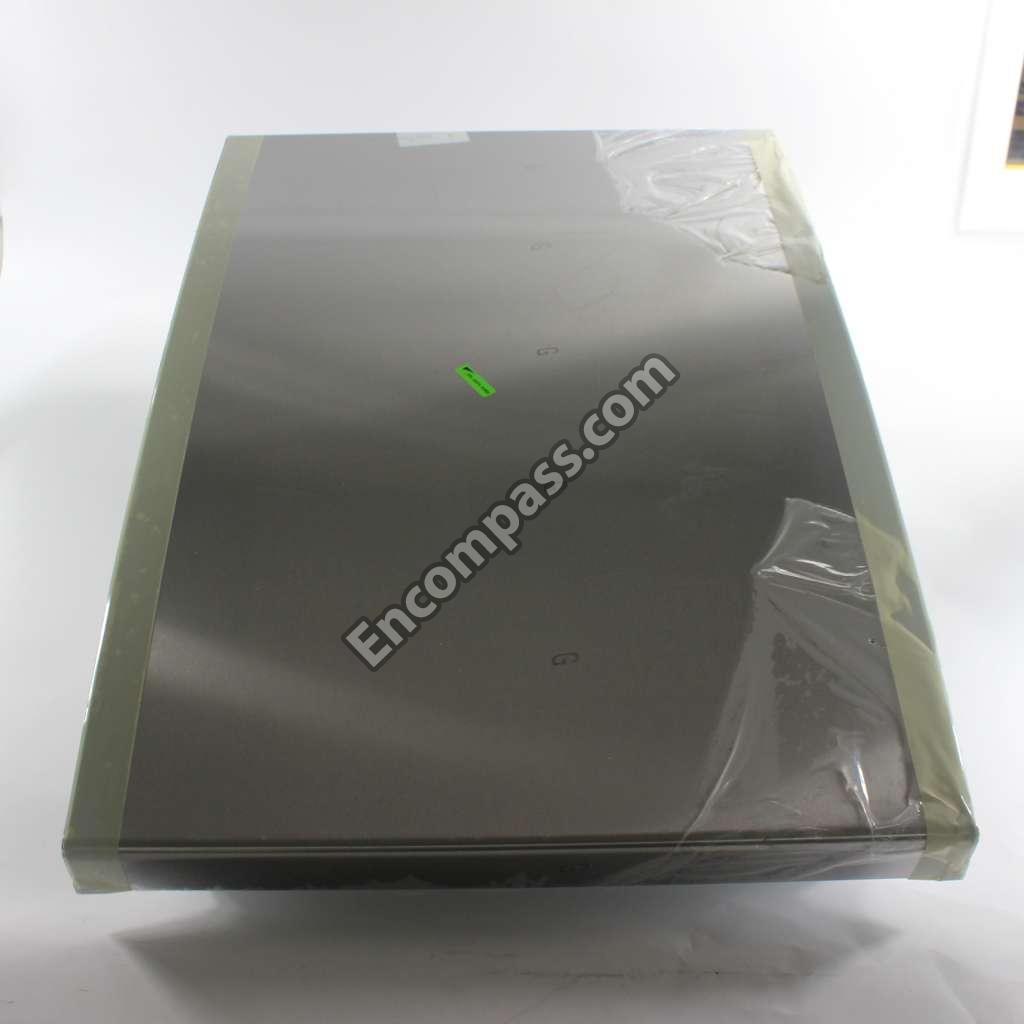

13107855SQ 13107855SQ DOOR, RIGHT (STAINLESS)
13107855WQ 13107855WQ DOOR, RIGHT (WHITE)
W11490183 W11490183 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER
W10318914 W10318914 EJECTOR
W11176463 W11176463 ELBOW, FILL TUBE
WP12656105 WP12656105 ENDCAP, PANTRY (LEFT HAND)
WP12656018 WP12656018 ENDCAP, PANTRY (RIGHT HAND)
W10648191 W10648191 ENERGY GUIDE
W11256565 W11256565 EVAPORATOR
W10619951 W10619951 EXTENSION, DRAIN TUBE
WPW10585703 WPW10585703 FACADE, DISPENSER
W11519867 W11519867 FACADE, DISPENSER (TOP)
EDR4RXD1 EDR4RXD1 FILTER, WATER
W11469652 W11469652 FOIL, HOUSING
WP67006185 WP67006185 FRAME, CRISPER
WP67005923 WP67005923 FRONT-CRISPER PAN
W10651961 W10651961 FUNNEL, DRAIN
W11159728 W11159728 GASKET
W11250029 W11250029 GASKET
W10436252 W10436252 GASKET, DOOR (BLACK)
W11368721 W11368721 GASKET, DOOR (BLACK)
W10443320 W10443320 GASKET, DOOR (GREY)
W10830162 W10830162 GASKET, DOOR (GREY)
W10443319 W10443319 GASKET, DOOR (WHITE)
W10830189 W10830189 GASKET, DOOR (WHITE)
WPB8381501 WPB8381501 GASKET, DRAIN
W10856123 W10856123 GASKET, FOAM
67006429 67006429 GASKET, HV BOX
67002329 67002329 GASKET, PANTRY
12002497 12002497 GEAR
WPW10474716 WPW10474716 GEAR (LEFT HAND)
WPW10474715 WPW10474715 GEAR (RIGHT HAND)
WP67006655 WP67006655 GLASS, CRISPER COVER
W11125512 W11125512 GLASS, PANTRY
WPW10235370 WPW10235370 GLIDE, PANTRY
WPW10175909 WPW10175909 GRILLE, FREEZER AIR
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET, CONDENSER
WPW10137529 WPW10137529 GROMMET, CONDENSER
W11690160 W11690160 GROMMET, FAN MOTOR
W10208593 W10208593 GUARD, DUAL WATER VALVE
W11677725 W11677725 GUIDE, WATERLINE
W10719668 W10719668 HANDLE, DOOR (BLACK)
W10830130 W10830130 HANDLE, DOOR (BLACK)
W10827046 W10827046 HANDLE, DOOR (STAINLESS)
W11459378 W11459378 HANDLE, DOOR (STAINLESS)
W10830089 W10830089 HANDLE, DOOR (WHITE)
W10830136 W10830136 HANDLE, DOOR (WHITE)
WPW10224292 WPW10224292 HARNESS, CONTROLS (REFRIGERATOR)
W10911102 W10911102 HARNESS, EVAPORATOR HEATER
WPW10458985 WPW10458985 HARNESS, ICE MAKER
W11224411 W11224411 HARNESS, UT (INCLUDES POWER CORD)
W11346623 W11346623 HEAD, WATER FILTER
W10825088 W10825088 HEATER, DEFROST
W10918164 W10918164 HINGE, CENTER LEFT HAND (BLACK)
W10917988 W10917988 HINGE, CENTER LEFT HAND (GREY)
W10918113 W10918113 HINGE, CENTER LEFT HAND (WHITE)
13000002WD 13000002WD HINGE, CENTER RIGHT HAND (WHITE)
W11592375 W11592375 HINGE, TOP (LEFT HAND)
W11592374 W11592374 HINGE, TOP (RIGHT HAND)
12656202 12656202 HOUSING, CONTROL
W10443023 W10443023 HOUSING, LIGHT
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT, TUBE
W11706807 W11706807 INSULATION
12820505 12820505 INSULATION
WP13012402 WP13012402 INSULATION, DAMPER
W10533034 W10533034 INSULATION, TANK
W11498983 W11498983 KNOB, TEMPERATURE CONTROL
W10273463 W10273463 LADDER, CENTER
WPW10569182 WPW10569182 LADDER, SIDE
W10827631 W10827631 LAMP, LED
W10827015 W10827015 LID, PANTRY
W10149389 W10149389 LIFT, BAIL ARM
W11338583 W11338583 LIGHT BULB
833938 833938 MISCELLANEOUS (KIT, TERMINAL CONNECTOR)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
WP503695 WP503695 MISCELLANEOUS, CORK, SEALER
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2OZ.)
876370 876370 MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2")
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS, TAPE, VINYL (3/4 X 108")
W11416469 W11416469 MODULE, CONTROL
WPW10277025 WPW10277025 MODULE, LIGHT
W10464764 W10464764 MODULE, LIGHT
W11024089 W11024089 MOTOR, EVAPORATOR
W11613295 W11613295 MOTOR, FAN
W10348259 W10348259 MOUNT, GEAR (LEFT HAND)
W10348260 W10348260 MOUNT, GEAR (RIGHT HAND)
WP12722803B WP12722803B MULLION, DOOR (BLACK)
WP12722803AP WP12722803AP MULLION, DOOR (GREY)
WP12722803W WP12722803W MULLION, DOOR (WHITE)
WPW10393265 WPW10393265 NAMEPLATE (GREY)
WPW10391355 WPW10391355 NAMEPLATE (WHITE)
W11721626 W11721626 OVERLAY
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67002659 WP67002659 PAN, CRISPER
WPW10655368 WPW10655368 PAN, DRAIN
WPW10171529 WPW10171529 PAN, ICE
W11515355 W11515355 PLATE, DISPENSER
WP67001668 WP67001668 PLATE, FILTER
WP67003405 WP67003405 PLATE, PIVOT
WPA3076901 WPA3076901 PLUG, BUTTON (BLACK)
W10516605 W10516605 RACK-SIDE (LEFT HAND)
W10516604 W10516604 RACK-SIDE (RIGHT HAND)
WP67005149 WP67005149 ROLLER
W11573362 W11573362 SCREW
WP489128 WP489128 SCREW
8533917 8533917 SCREW
WP489464 WP489464 SCREW
W10001240 W10001240 SCREW
W10215666 W10215666 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WPW10661886 WPW10661886 SCREW
W11311945 W11311945 SCREW
WP489474 WP489474 SCREW
WP67006415 WP67006415 SCREW
WP400021-1 WP400021-1 SCREW
W10854958 W10854958 SCREW
67006425 67006425 SCREW
WP98165 WP98165 SCREW
67006564 67006564 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
WPM0500703 WPM0500703 SEAL
W11173556 W11173556 SHAFT, RACK
W11028221 W11028221 SHAFT, RACK
WPW10629084 WPW10629084 SHELF, FIXED
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD, CONDENSER FAN
WPW10167023 WPW10167023 SHROUD, EVAPORATOR FAN
W11658403 W11658403 SLIDE, DRAWER
WP67005864 WP67005864 SLIDE, HUMIDITY CONTROL
WP67003793 WP67003793 SLIDE, TEMPERATURE CONTROL
W11447232 W11447232 SOCKET, LIGHT
W11708403 W11708403 STOP, DOOR (BLACK)
W11703060 W11703060 STOP, DOOR (GREY)
12968202W 12968202W STOP, DOOR (WHITE)
W10204187 W10204187 STRAP, BALE
W10236396 W10236396 STRAP, COMPRESSOR
WPW10122563 WPW10122563 STRIPPER, ICE
W10528513 W10528513 SWEEP, DUAL TUBE
W11396033 W11396033 SWITCH, LIGHT
W11384469 W11384469 SWITCH, LIGHT
WP12575501 WP12575501 SWITCH, LIMIT
WPW10553467 WPW10553467 TANK, WATER
W10636717 W10636717 TECH SHEET
W10316760 W10316760 THERMISTOR
WP627985 WP627985 THERMOSTAT
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
WP67001719 WP67001719 TRACK, DELI DRAWER
W11547653 W11547653 TRAY, DRIP
WP12727304 WP12727304 TRAY-LOWER BASKET
WPW10231485 WPW10231485 TRIM, CRISPER
W11210956 W11210956 TRIM, PANTRY GLASS
W10242974 W10242974 TUBE, DISCHARGE
W11120581 W11120581 TUBING, PLASTIC
WP2300868 WP2300868 UON, WATER
W10597594 W10597594 USE AND CARE GUIDE
978028 978028 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978026 978026 VALVE, ACCESS
WP978025 WP978025 VALVE, ACCESS (1/4")
WPW10420083 WPW10420083 VALVE, WATER INLET
