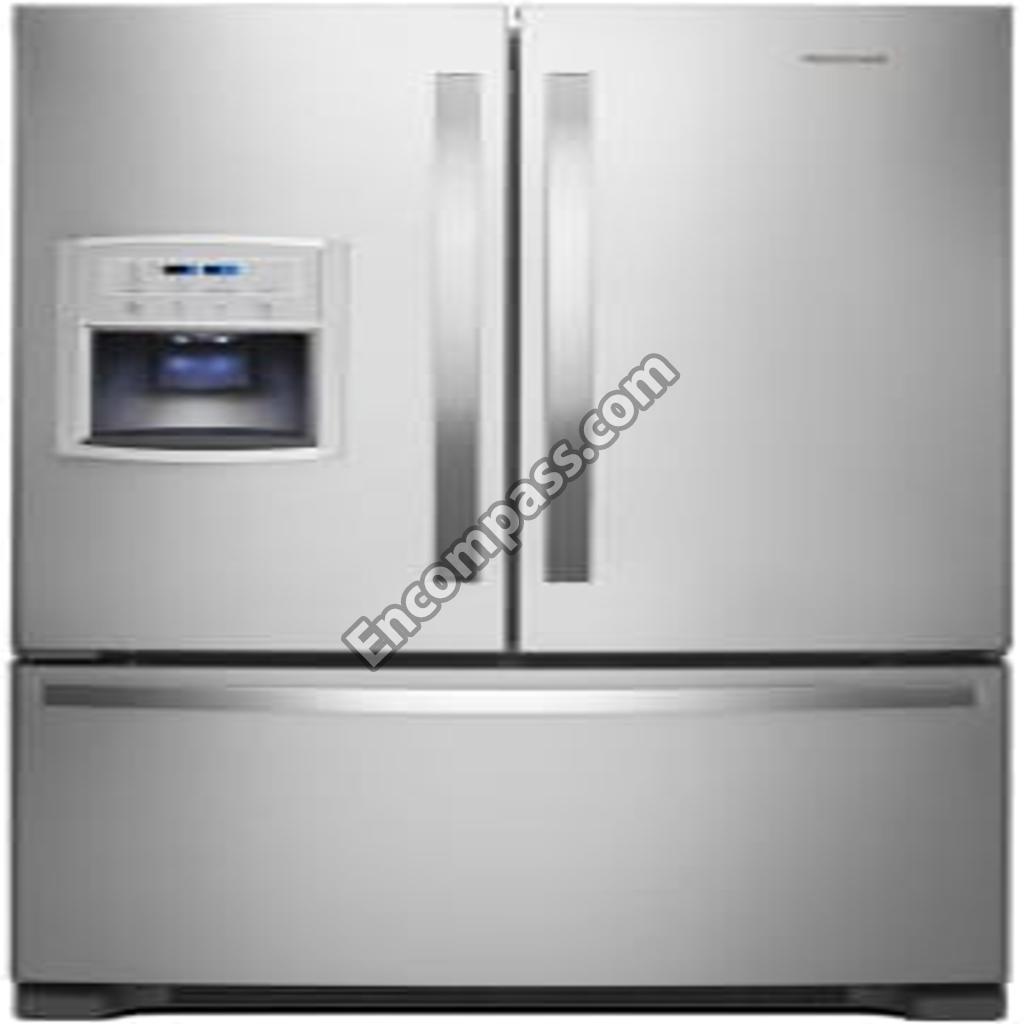

Model Image
Manufacturer

Whirlpool

Model Number

WRF550CDHZ03

Description

Bottom-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10832723 W10832723 36 PANTRY BR
W11449276 W11449276 8-15 X 1.060
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
WP542638 WP542638 APPLIANCE SILICONE LUBRICANT
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
W10134625 W10134625 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (APOLLO GRAY)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
511873 511873 APPLIANCE TOUCH-UP PAINT, 2-OZ (WHITE)
W11226459 W11226459 ARM-SHUT
W11686793 W11686793 BLOCK-EPS FL
W11107911 W11107911 BULB-LIGHT
N_P N_P CABINET (NOT A SERVICABLE PART)
W11456069 W11456069 CLAMP-CABLE
10623002 10623002 CLIP EVAPORATOR
12996601 12996601 CLIP- BUSH
W10815863 W10815863 CLIP-BTM CON
WPW10191117 WPW10191117 COVER
67006318 67006318 COVER- REF
12960101 12960101 COVER- WAT
W10917991 W10917991 DOOR HINGE
W10917992 W10917992 DOOR HINGE
876029 876029 FOAM SLAB
WPB8381501 WPB8381501 GASKET DRAIN TUBE
W11451451 W11451451 GASKET-FOAM
W10528933 W10528933 GLASS SUPPORT
W11666013 W11666013 HARN-MC ICEL
W11174743 W11174743 HARNESS, EVAPORATOR AND HEATER WIRE (INCLUDES T...
W11254853 W11254853 HARNESS, ICEMAKER
W11602886 W11602886 HEMERA 30 DE
40083 40083 KENMORE STAINLESS STEEL CLEANER
W11436982 W11436982 KIT-SERVICE
W11435348 W11435348 KIT-SERVICE
W11436981 W11436981 KIT-SERVICE
W11498983 W11498983 KNOB-TEMP CO
W10917540 W10917540 MIDNIGHT GRE
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
W11434460 W11434460 MODULE- FZ L
W11613295 W11613295 MOTOR-COND
W11368910 W11368910 MOTOR-EVAP
W11223753 W11223753 NAMEPLATE
WPW10127427 WPW10127427 REFRIGERATOR AIR DAMPER
WP4317852 WP4317852 REFRIGERATOR ALUMILASTIC ADHESIVE
WPW10317991 WPW10317991 REFRIGERATOR AUGER MOTOR
WP63052-2 WP63052-2 REFRIGERATOR AUGER MOTOR COUPLER
W11378860 W11378860 REFRIGERATOR AUGER MOTOR COUPLER SPACER
WPW10270394 WPW10270394 REFRIGERATOR BACK COVER
WPW10334463 WPW10334463 REFRIGERATOR BRACKET
WPW10330995 WPW10330995 REFRIGERATOR BRACKET
W10858097 W10858097 REFRIGERATOR BRACKET
W10857648 W10857648 REFRIGERATOR BRACKET
W10187469 W10187469 REFRIGERATOR BRACKET
W10184223 W10184223 REFRIGERATOR BRACKET
W10187463 W10187463 REFRIGERATOR CANTILEVER SHELF
W11693756 W11693756 REFRIGERATOR CAPACITOR SCREW
W10281329 W10281329 REFRIGERATOR CLAMP
W11092534 W11092534 REFRIGERATOR CLIP
W10165970 W10165970 REFRIGERATOR CLIP
W10918008 W10918008 REFRIGERATOR CLOSER
W10918010 W10918010 REFRIGERATOR CLOSER
W11209866 W11209866 REFRIGERATOR COMPRESSOR
W11678963 W11678963 REFRIGERATOR COMPRESSOR GROMMET
W11092533 W11092533 REFRIGERATOR COMPRESSOR START RELAY
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
WPW10346415 WPW10346415 REFRIGERATOR CONDENSER COIL
WP12825803 WP12825803 REFRIGERATOR CONDENSER FAN
W11556315 W11556315 REFRIGERATOR CONDENSER FAN SHROUD
WPW10334458 WPW10334458 REFRIGERATOR CONNECTOR
W10296536 W10296536 REFRIGERATOR COVER
W10118194 W10118194 REFRIGERATOR COVER
W10118193 W10118193 REFRIGERATOR COVER
W10191141 W10191141 REFRIGERATOR COVER TUBE
WP67002659 WP67002659 REFRIGERATOR CRISPER DRAWER
WP67005923 WP67005923 REFRIGERATOR CRISPER DRAWER
WP67006185 WP67006185 REFRIGERATOR CRISPER DRAWER COVER FRAME
WP67006655 WP67006655 REFRIGERATOR CRISPER DRAWER COVER INSERT
WP67005864 WP67005864 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL
WP67006387 WP67006387 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
WP12729123 WP12729123 REFRIGERATOR DEFROST HEATER
WP67001719 WP67001719 REFRIGERATOR DELI DRAWER GUIDE TRACK
W10795418 W10795418 REFRIGERATOR DISCHARGE TUBE
WPW10310690 WPW10310690 REFRIGERATOR DISPENSER COVER (APOLLO GRAY AND S...
W11676505 W11676505 REFRIGERATOR DISPENSER DRIP TRAY (MIDNIGHT GRAY)
WPW10287601 WPW10287601 REFRIGERATOR DISPENSER ICE CHUTE CAP GASKET
WP12565502 WP12565502 REFRIGERATOR DISPENSER ICE CHUTE DOOR HINGE SPRING
67006295 67006295 REFRIGERATOR DISPENSER ICE CHUTE FUNNEL EXTENSION
WPW10185234 WPW10185234 REFRIGERATOR DISPENSER LEVER
WP13005706 WP13005706 REFRIGERATOR DISPENSER MODULE
WPW10451500 WPW10451500 REFRIGERATOR DOOR BIN
W10450033 W10450033 REFRIGERATOR DOOR BIN LINER, LARGE
WP12977502 WP12977502 REFRIGERATOR DOOR BIN, LOWER
WP12977402 WP12977402 REFRIGERATOR DOOR BIN, UPPER
WP12028505AP WP12028505AP REFRIGERATOR DOOR CLOSER CAM
WPW10451501 WPW10451501 REFRIGERATOR DOOR GALLON BIN
W10830055 W10830055 REFRIGERATOR DOOR GASKET, RIGHT (GRAY)
W11163764 W11163764 REFRIGERATOR DOOR HANDLE (STAINLESS)
W11592375 W11592375 REFRIGERATOR DOOR HINGE
W11592374 W11592374 REFRIGERATOR DOOR HINGE
WPW10337648 WPW10337648 REFRIGERATOR DOOR HINGE COVER
WP67006380 WP67006380 REFRIGERATOR DOOR HINGE SCREW
12999501 12999501 REFRIGERATOR DOOR HINGE SHIM
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
WP12656105 WP12656105 REFRIGERATOR DOOR SHELF RAIL
WP12656018 WP12656018 REFRIGERATOR DOOR SHELF RAIL
W11396033 W11396033 REFRIGERATOR DOOR SWITCH
W11445850 W11445850 REFRIGERATOR DOOR SWITCH
W10815413 W10815413 REFRIGERATOR DRAIN FUNNEL
WPM0500703 WPM0500703 REFRIGERATOR DRAIN FUNNEL SEAL
W10619951 W10619951 REFRIGERATOR DRAIN TUBE
WPW10235368 WPW10235368 REFRIGERATOR DRAWER SLIDE RAIL
WPW10235370 WPW10235370 REFRIGERATOR DRAWER SLIDE RAIL
W10901007 W10901007 REFRIGERATOR ELECTRONIC CONTROL
WPW10312695 WPW10312695 REFRIGERATOR ELECTRONIC CONTROL BOARD
W10740218 W10740218 REFRIGERATOR ELECTRONIC CONTROL BOARD
W11536253 W11536253 REFRIGERATOR EVAPORATOR
W10308421 W10308421 REFRIGERATOR EVAPORATOR COVER
W11159728 W11159728 REFRIGERATOR EVAPORATOR COVER SEAL
WPW10655368 WPW10655368 REFRIGERATOR EVAPORATOR DRIP PAN
W11547653 W11547653 REFRIGERATOR EVAPORATOR DRIP PAN
WP67006337 WP67006337 REFRIGERATOR EVAPORATOR FAN BLADE
W11673433 W11673433 REFRIGERATOR EVAPORATOR HEATER CLIP
W11712696 W11712696 REFRIGERATOR FAN MOTOR CLIP
W10856123 W10856123 REFRIGERATOR FAN SHROUD SEAL
WP12587703AP WP12587703AP REFRIGERATOR FILLER
67006325 67006325 REFRIGERATOR FILTER BRACKET
WP12722813AP WP12722813AP REFRIGERATOR FLIPPER ASSEMBLY
WP67003405 WP67003405 REFRIGERATOR FLIPPER PIVOT BLOCK
W10184227 W10184227 REFRIGERATOR FREEZER BIN
WPW10714545 WPW10714545 REFRIGERATOR FREEZER DOOR GASKET (GRAY)
W11045125 W11045125 REFRIGERATOR FREEZER DOOR HANDLE (STAINLESS)
W10235358 W10235358 REFRIGERATOR FREEZER DRAWER CENTER SLIDE RAIL S...
12002497 12002497 REFRIGERATOR FREEZER DRAWER GEAR
WPW10330994 WPW10330994 REFRIGERATOR FREEZER DRAWER LEFT SLIDE RAIL
W11658403 W11658403 REFRIGERATOR FREEZER DRAWER SLIDE RAIL
W11028221 W11028221 REFRIGERATOR FREEZER DRAWER SLIDE SHAFT
WPW10121444 WPW10121444 REFRIGERATOR FRONT COVER
67006429 67006429 REFRIGERATOR GASKET
W11125512 W11125512 REFRIGERATOR GLASS SHELF
W10555984 W10555984 REFRIGERATOR GRILLE
W11176847 W11176847 REFRIGERATOR GRILLE
WPW10137529 WPW10137529 REFRIGERATOR GROMMET
W10852725 W10852725 REFRIGERATOR GROMMET
W10151687 W10151687 REFRIGERATOR GROMMET
W11676465 W11676465 REFRIGERATOR GROMMET FAN
W10443023 W10443023 REFRIGERATOR HOUSING
W10356558 W10356558 REFRIGERATOR ICE BOX DIVIDER
WPW10324088 WPW10324088 REFRIGERATOR ICE CONTAINER
13033601 13033601 REFRIGERATOR ICE COVER
WPW10300024 WPW10300024 REFRIGERATOR ICE MAKER ASSEMBLY
WPW10312691 WPW10312691 REFRIGERATOR ICE MAKER BAFFLE
WPW10162697 WPW10162697 REFRIGERATOR ICE MAKER FAN MOTOR
8003RP 8003RP REFRIGERATOR ICE MAKER INSTALLATION KIT
WPW10351019 WPW10351019 REFRIGERATOR ICE MAKER SHUT-OFF ARM LEVER
WP1117510 WP1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
WP67006341 WP67006341 REFRIGERATOR ICE ROOM DAMPER GASKET
W10121282 W10121282 REFRIGERATOR INSERT
W11676504 W11676504 REFRIGERATOR INSERT
W11553819 W11553819 REFRIGERATOR INSULATION
W10251966 W10251966 REFRIGERATOR LADDER
W10251967 W10251967 REFRIGERATOR LADDER
W10273464 W10273464 REFRIGERATOR LADDER
WPW10141622 WPW10141622 REFRIGERATOR LEVELING LEG
12921801 12921801 REFRIGERATOR LIGHT COVER
W10464777 W10464777 REFRIGERATOR LIGHT MODULE
W11447232 W11447232 REFRIGERATOR LIGHT SOCKET
67006981 67006981 REFRIGERATOR LOWER BIN
W11250029 W11250029 REFRIGERATOR MACHINE COMPARTMENT COVER GASKET
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
W10450032 W10450032 REFRIGERATOR MAT
W11490183 W11490183 REFRIGERATOR PANTRY DRAWER
67002329 67002329 REFRIGERATOR PANTRY DRAWER AIR DUCT GASKET
WP67002321 WP67002321 REFRIGERATOR PANTRY DRAWER DIVIDER
W10827015 W10827015 REFRIGERATOR PANTRY DRAWER DOOR
12656202 12656202 REFRIGERATOR PANTRY DRAWER TEMPERATURE CONTROL ...
WP67003793 WP67003793 REFRIGERATOR PANTRY DRAWER TEMPERATURE CONTROL ...
212643 212643 REFRIGERATOR PERMAGUM SEALER
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
W11727651 W11727651 REFRIGERATOR PLATE
WPW10515763 WPW10515763 REFRIGERATOR ROLLER
WPW10515762 WPW10515762 REFRIGERATOR ROLLER
WP67005149 WP67005149 REFRIGERATOR ROLLER
67006434 67006434 REFRIGERATOR ROLLER WHEEL AXLE PIN
WPW10350564 WPW10350564 REFRIGERATOR RUN CAPACITOR
WP8281196 WP8281196 REFRIGERATOR SCREW
67006425 67006425 REFRIGERATOR SCREW
WP489349 WP489349 REFRIGERATOR SCREW
67006564 67006564 REFRIGERATOR SCREW
WP489474 WP489474 REFRIGERATOR SCREW
WP98165 WP98165 REFRIGERATOR SCREW
W11311945 W11311945 REFRIGERATOR SCREW
W10829281 W10829281 REFRIGERATOR SCREW
W10709798 W10709798 REFRIGERATOR SCREW
WP67006415 WP67006415 REFRIGERATOR SCREW
876764 876764 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
WP978025 WP978025 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978029 978029 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
WPW10231486 WPW10231486 REFRIGERATOR SHELF TRIM
12999502 12999502 REFRIGERATOR SHIM
W10121281 W10121281 REFRIGERATOR SHROUD
W11700329 W11700329 REFRIGERATOR SHROUD EVAPORATOR
W11703060 W11703060 REFRIGERATOR STOP
W10236396 W10236396 REFRIGERATOR STRAP
WP67003924 WP67003924 REFRIGERATOR TEMPERATURE SENSOR
12002355 12002355 REFRIGERATOR TEMPERATURE SENSOR
WPW10534155 WPW10534155 REFRIGERATOR TOE GRILLE (GRAY)
WPW10143759 WPW10143759 REFRIGERATOR UV FILTER DRYER
W11238399 W11238399 REFRIGERATOR VINYL TAPE
67006329 67006329 REFRIGERATOR WATER COVER
W11395888 W11395888 REFRIGERATOR WATER FILTER BYPASS
WP67006331 WP67006331 REFRIGERATOR WATER FILTER HOUSING
WPW10312696 WPW10312696 REFRIGERATOR WATER INLET VALVE
W11346622 W11346622 REFRIGERATOR WATER RESERVOIR AND FILTER HEAD AS...
W11415785 W11415785 REFRIGERATOR WATER TUBING
WPW10123444K WPW10123444K REFRIGERATOR WHEEL
12961602 12961602 REFRIGERATOR WIRE COVER
W10826790 W10826790 RETAINER, GLIDE (LEFT HAND)
W10826791 W10826791 RETAINER, GLIDE (RIGHT HAND)
W11573362 W11573362 SCREW
12992301 12992301 SCREW
WP33001882 WP33001882 SCREW SELF
W11686675 W11686675 SCREW, SM/HE
W11402389 W11402389 SHELF-GLD OU
W11308957 W11308957 TECH SHEET (ENERGY GUIDE)
W10815842 W10815842 TECH SHEET (ENGLISH)
W10815844 W10815844 TECH SHEET (FRENCH)
W11295726 W11295726 TECH SHEET (USE & CARE GUIDE)
67003794 67003794 TEMPERATURE COMPLETE BAR
W11082078 W11082078 TUBE, WATER
W11518278 W11518278 WATERLINE, CABINET (W/NUT)
EDR4RXD1 EDR4RXD1 WHIRLPOOL EVERYDROP 4 REFRIGERATOR WATER FILTER
Main Menu x
