Model Image
Manufacturer

Whirlpool

Model Number

WRF555SDFZ12

Description

Bottom-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11449276 W11449276 8-15 X 1.060
WP542638 WP542638 APPLIANCE SILICONE LUBRICANT
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)

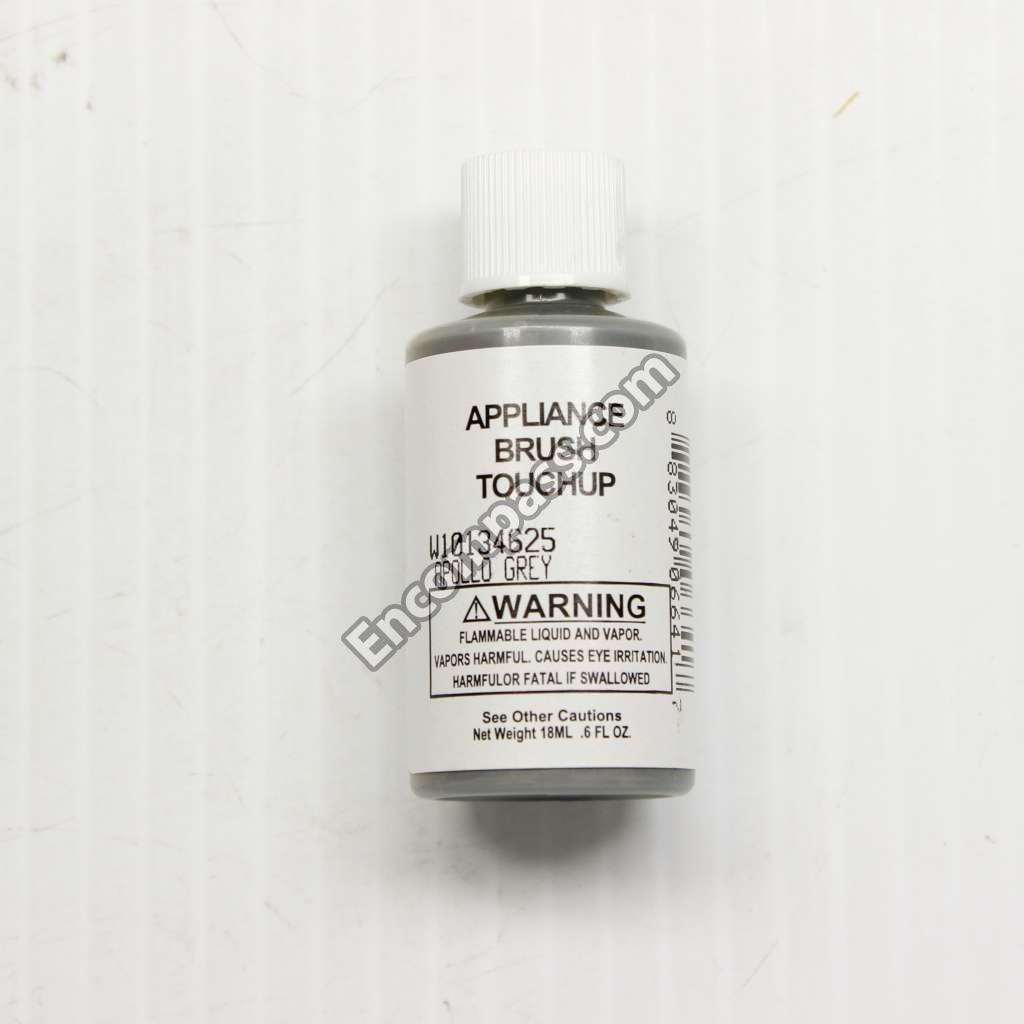

W10134625 W10134625 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (APOLLO GRAY)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
511873 511873 APPLIANCE TOUCH-UP PAINT, 2-OZ (WHITE)
W11226459 W11226459 ARM-SHUT

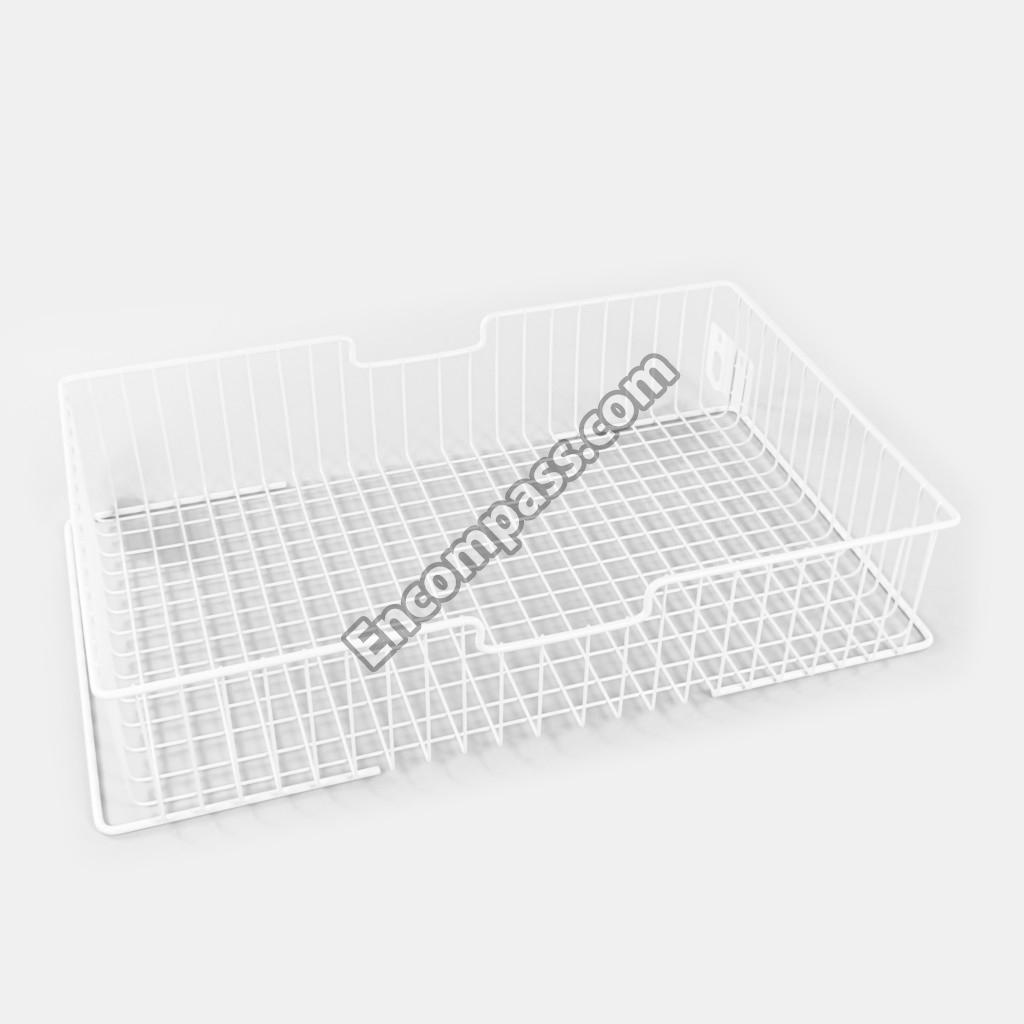

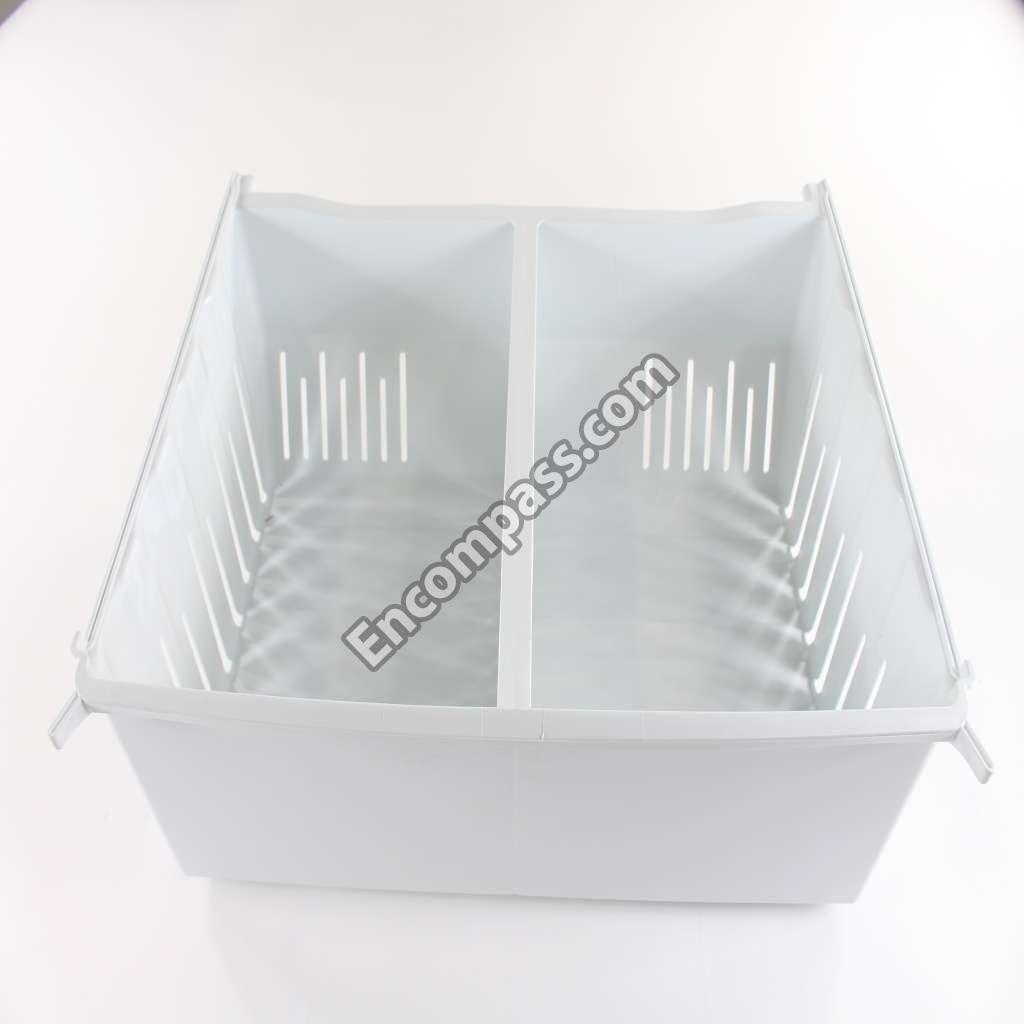

W11218042 W11218042 BASKET-FZR
W11686793 W11686793 BLOCK-EPS FL
W11456069 W11456069 CLAMP-CABLE
10623002 10623002 CLIP EVAPORATOR
12996601 12996601 CLIP- BUSH
W10815863 W10815863 CLIP-BTM CON

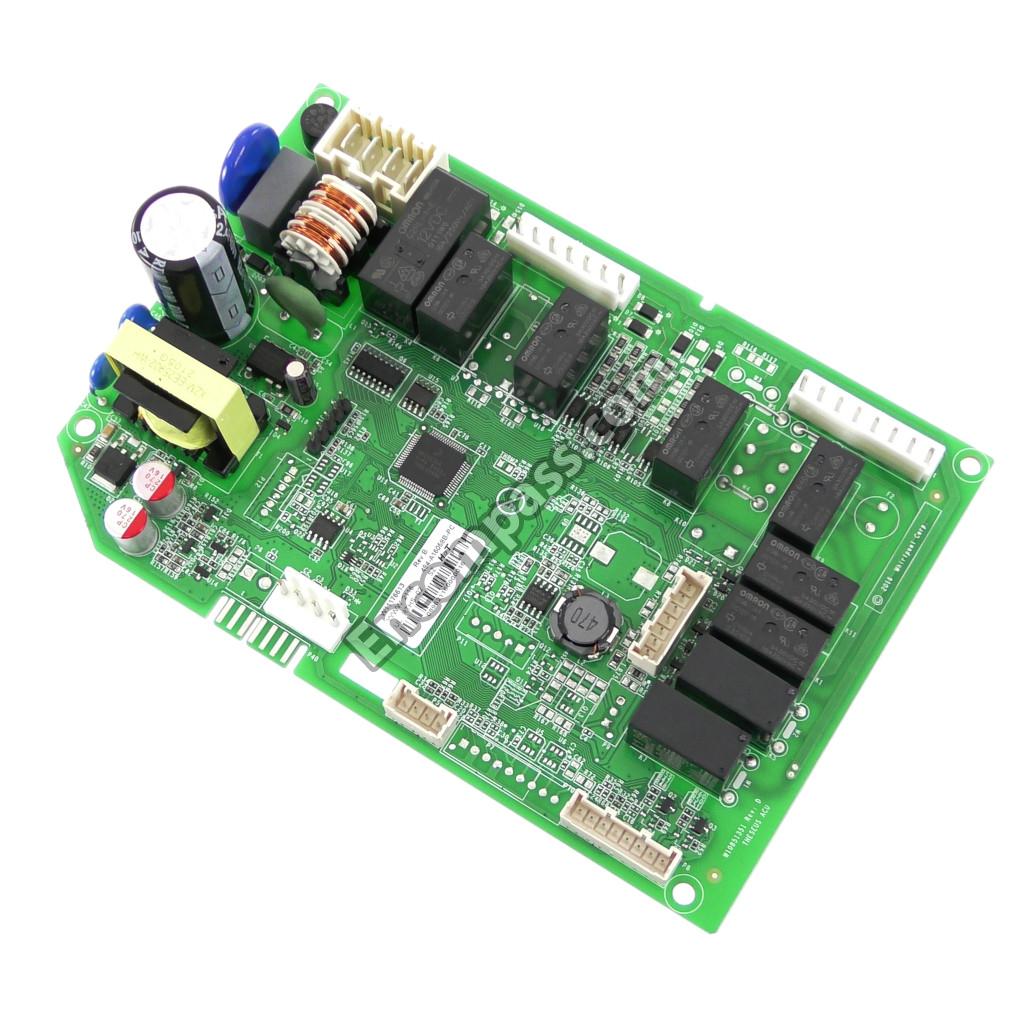

W11399844 W11399844 CNTL-ELEK,TH
WPW10191117 WPW10191117 COVER

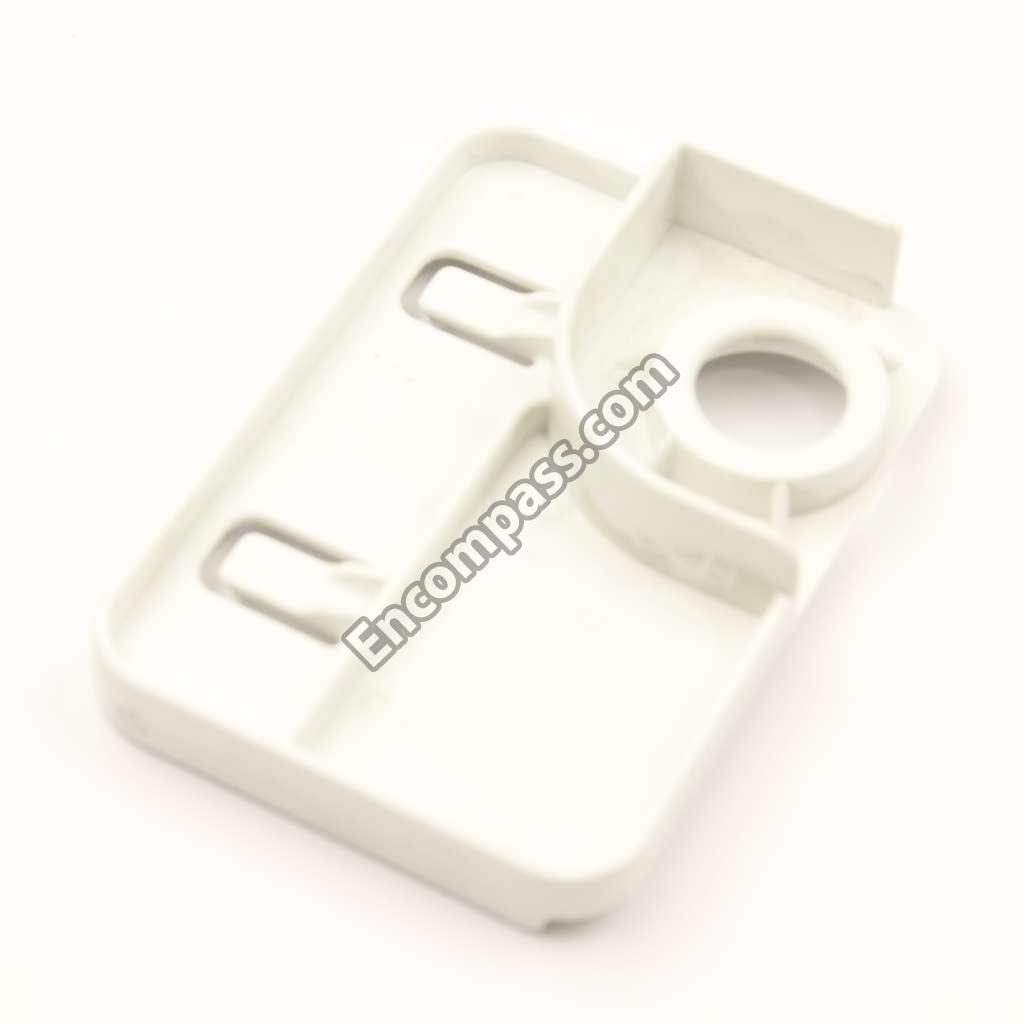

12960101 12960101 COVER- WAT

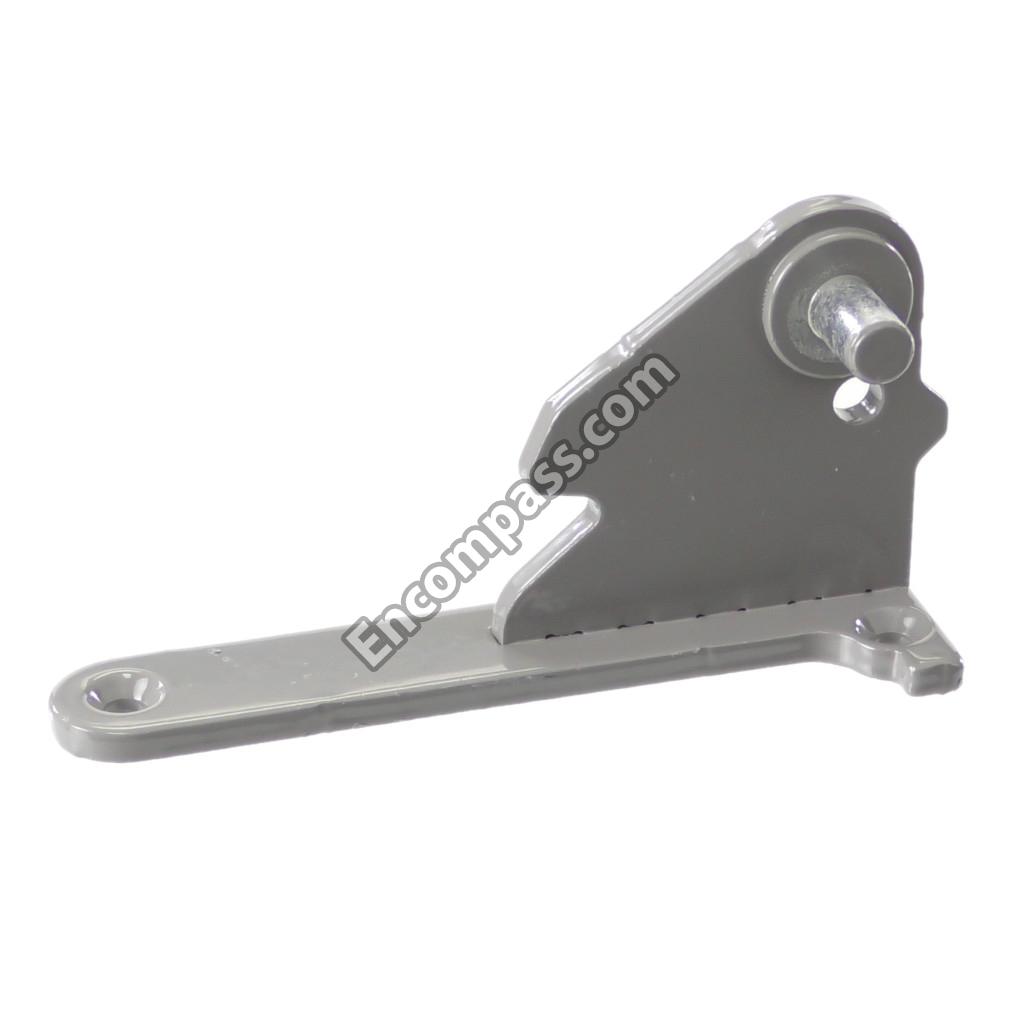

W10917991 W10917991 DOOR HINGE
W10917992 W10917992 DOOR HINGE
W11192301 W11192301 DRIP TRAY
W11308953 W11308953 ENERGY GUIDE
W11045978 W11045978 FALSE WALL-D
876029 876029 FOAM SLAB
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11250029 W11250029 GASKET
WPB8381501 WPB8381501 GASKET DRAIN TUBE
W10914798 W10914798 GASKET, CONTROL BOX
W11451451 W11451451 GASKET-FOAM
W10528933 W10528933 GLASS SUPPORT
W11249950 W11249950 GROMMET

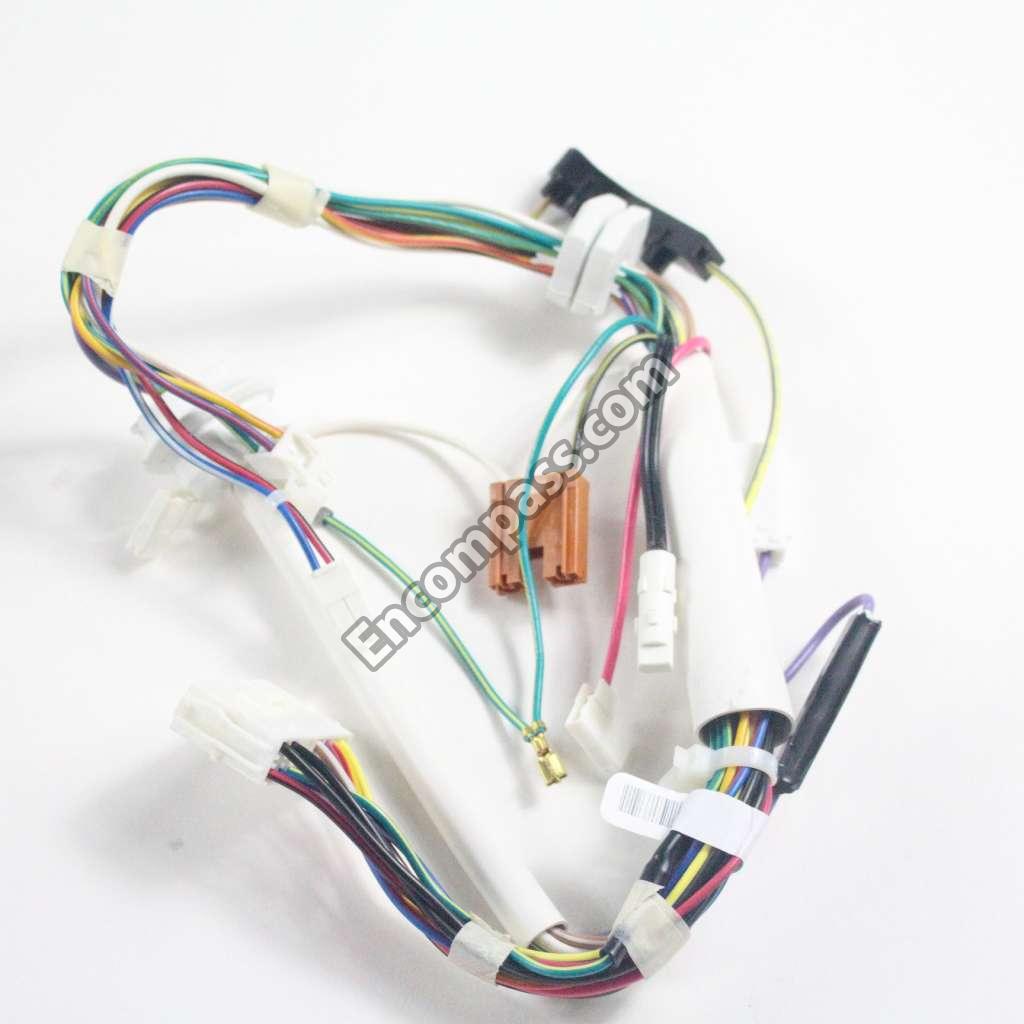

W11666013 W11666013 HARN-MC ICEL
W11602886 W11602886 HEMERA 30 DE
W10884720 W10884720 ICE MAKER WIRE HARNESS
W11435344 W11435344 KIT-SERVICE
W11435342 W11435342 KIT-SERVICE
W11498983 W11498983 KNOB-TEMP CO

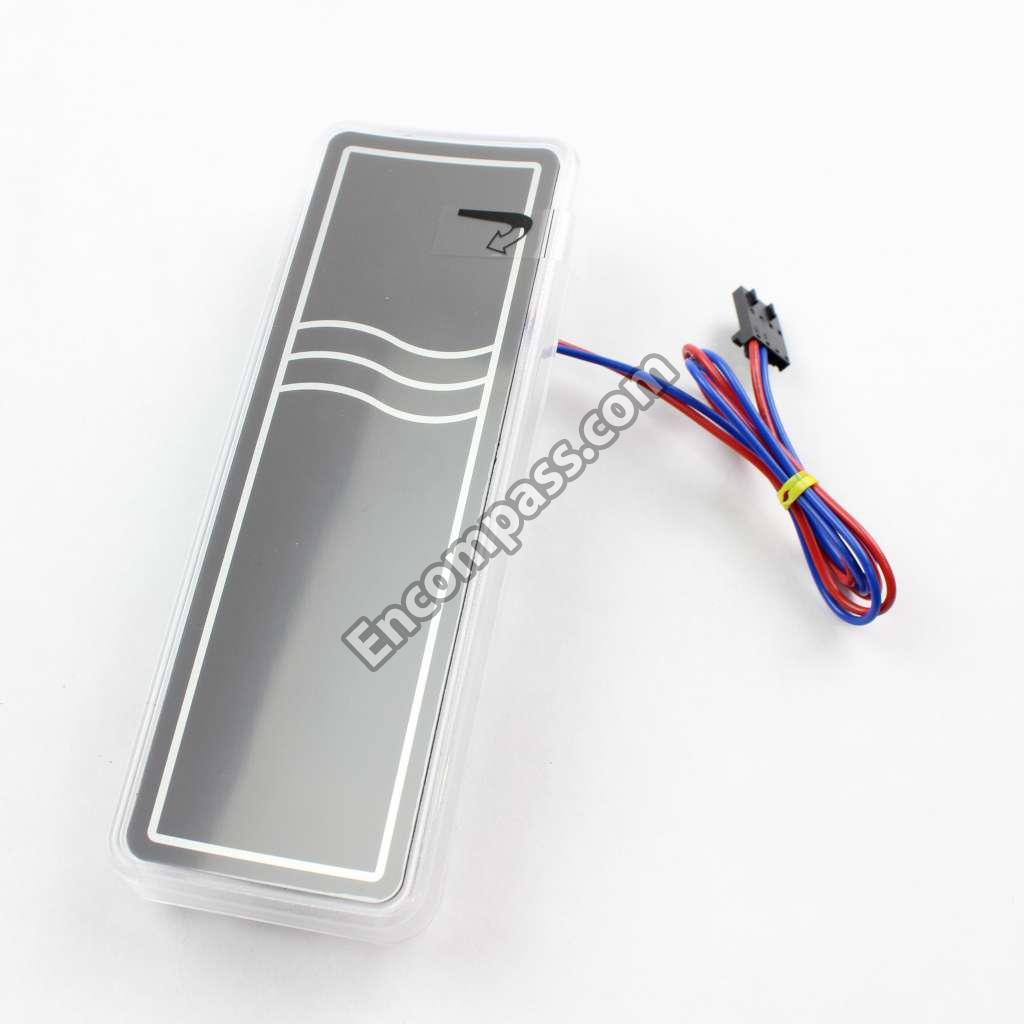

W11527432 W11527432 LIGHT ASSY-U
W11644420 W11644420 LOKRING,COND
W10917540 W10917540 MIDNIGHT GRE
W11434460 W11434460 MODULE- FZ L
W11671282 W11671282 MOTOR
W11613295 W11613295 MOTOR-COND

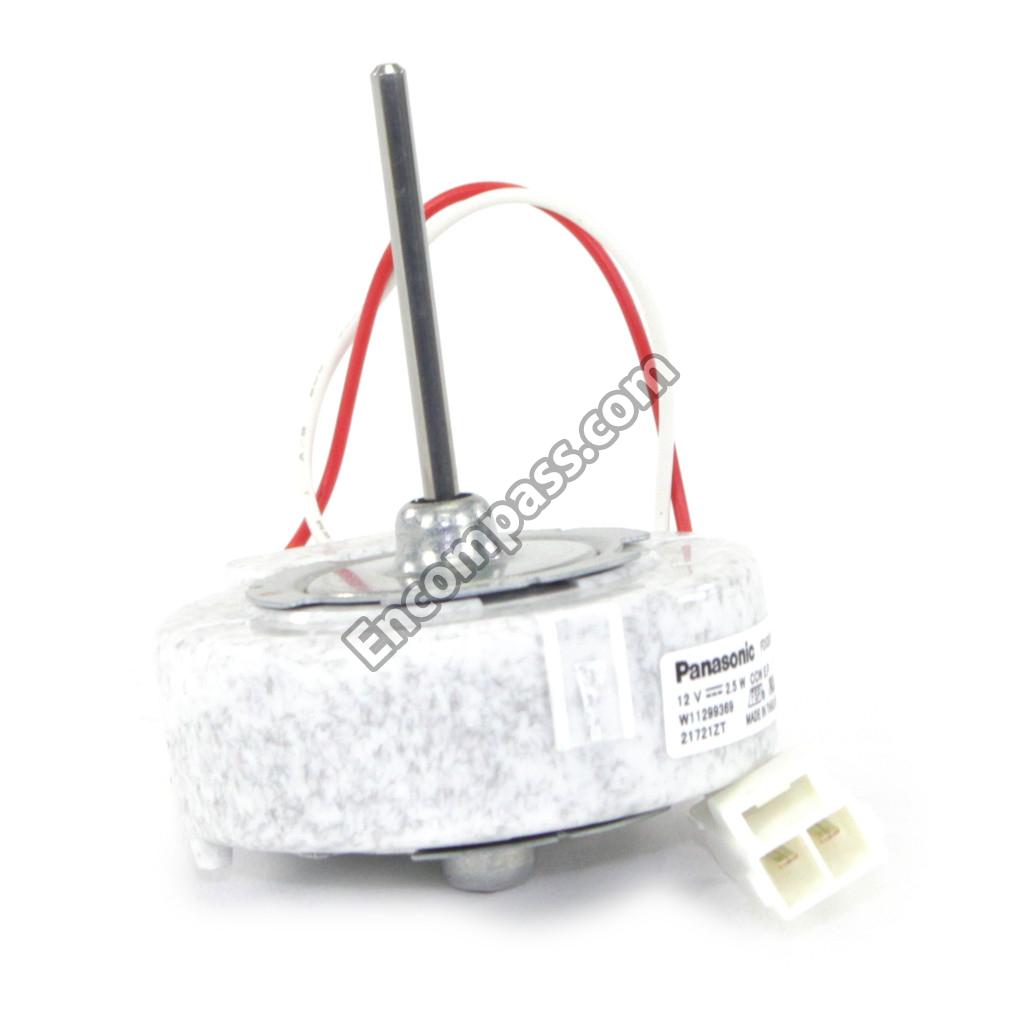

W11334745 W11334745 MOTOR-EVAP
W11223753 W11223753 NAMEPLATE
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11489993 W11489993 RACK-SIDE LH
W11489994 W11489994 RACK-SIDE RH

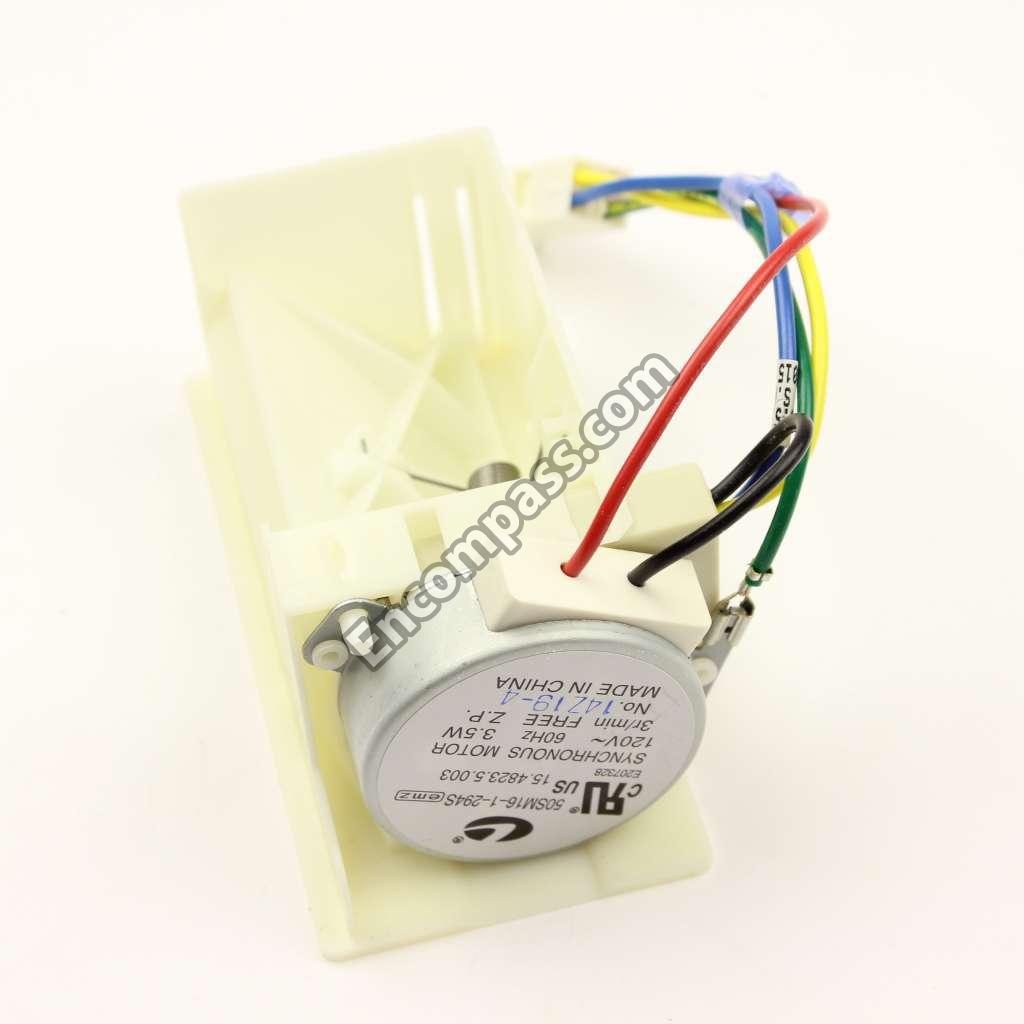

WPW10196393 WPW10196393 REFRIGERATOR AIR DAMPER CONTROL ASSEMBLY
WP4317852 WP4317852 REFRIGERATOR ALUMILASTIC ADHESIVE
WP63052-2 WP63052-2 REFRIGERATOR AUGER MOTOR COUPLER
W11378860 W11378860 REFRIGERATOR AUGER MOTOR COUPLER SPACER
WPW10270394 WPW10270394 REFRIGERATOR BACK COVER
WP67003795 WP67003795 REFRIGERATOR BAR
WPW10334463 WPW10334463 REFRIGERATOR BRACKET
WPW10330991 WPW10330991 REFRIGERATOR BRACKET
WPW10284682 WPW10284682 REFRIGERATOR BRACKET
W10346971 W10346971 REFRIGERATOR BRACKET
W11693756 W11693756 REFRIGERATOR CAPACITOR SCREW
W10281329 W10281329 REFRIGERATOR CLAMP
31462A 31462A REFRIGERATOR CLEANER
W11092534 W11092534 REFRIGERATOR CLIP
W10165970 W10165970 REFRIGERATOR CLIP
W10918008 W10918008 REFRIGERATOR CLOSER
W10918010 W10918010 REFRIGERATOR CLOSER

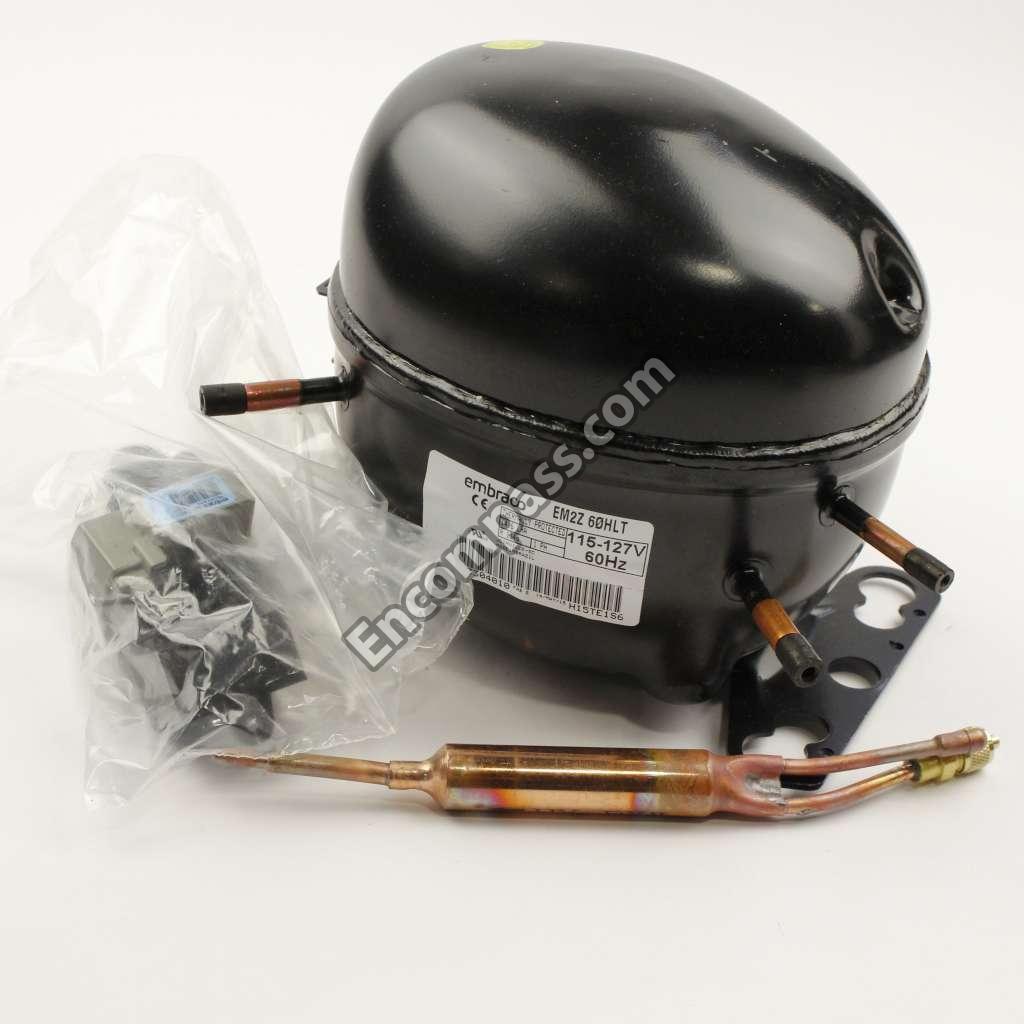

W10233960 W10233960 REFRIGERATOR COMPRESSOR
W10873801 W10873801 REFRIGERATOR COMPRESSOR START RELAY
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
WP12825803 WP12825803 REFRIGERATOR CONDENSER FAN
W11556315 W11556315 REFRIGERATOR CONDENSER FAN SHROUD
W10118194 W10118194 REFRIGERATOR COVER
W10118193 W10118193 REFRIGERATOR COVER
WPW10309869 WPW10309869 REFRIGERATOR COVER

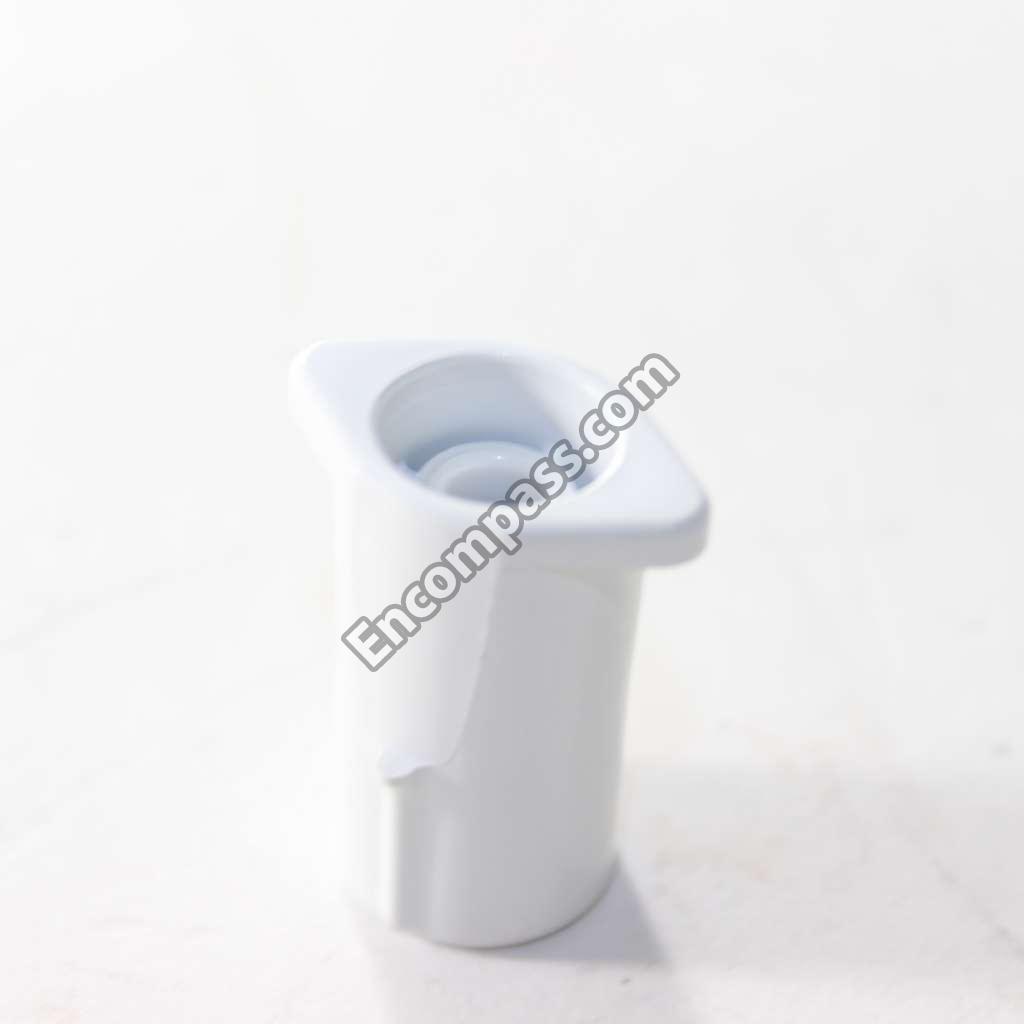

W10191141 W10191141 REFRIGERATOR COVER TUBE

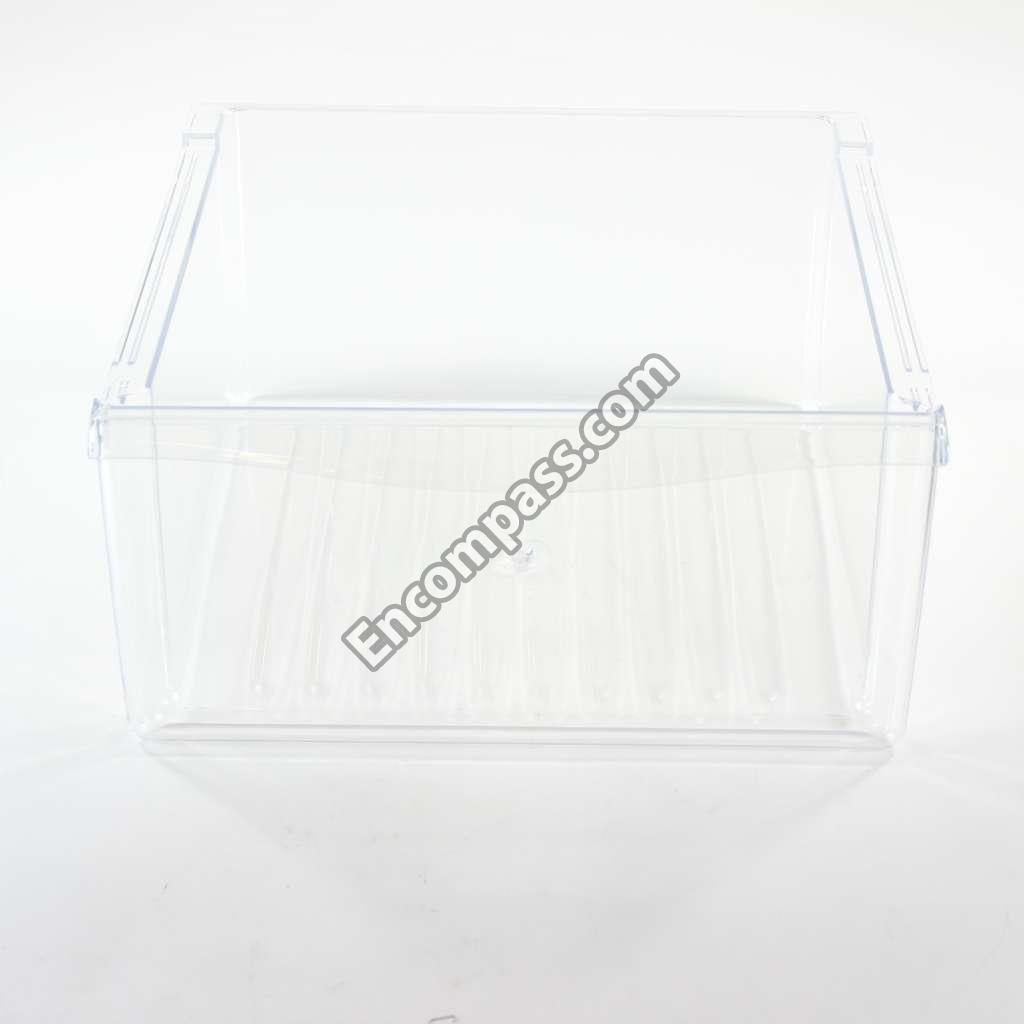

W11206718 W11206718 REFRIGERATOR CRISPER DRAWER
WP67004515 WP67004515 REFRIGERATOR CRISPER DRAWER

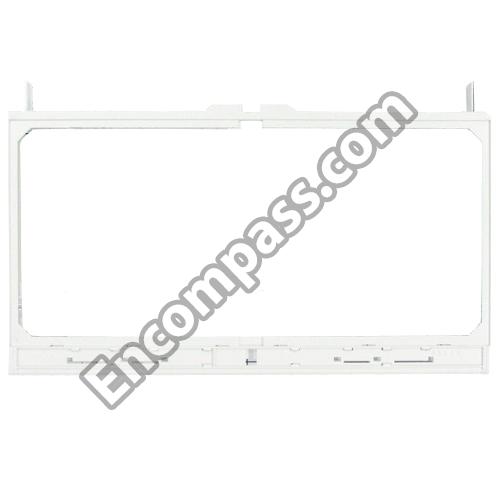

WPW10329866 WPW10329866 REFRIGERATOR CRISPER DRAWER COVER FRAME
WP12642303WD WP12642303WD REFRIGERATOR CRISPER DRAWER COVER SUPPORT
WP67005864 WP67005864 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL
WPW10326469 WPW10326469 REFRIGERATOR CRISPER DRAWER SLIDE RAIL

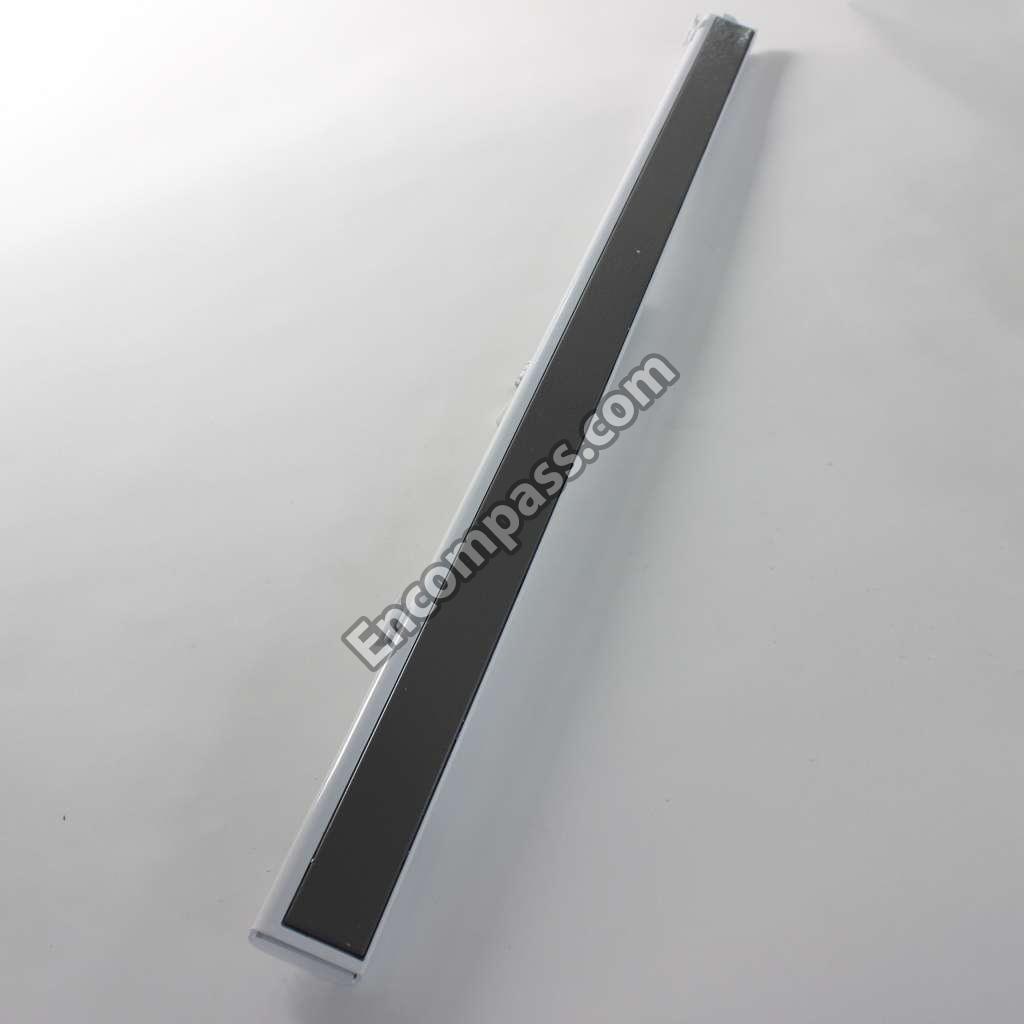

W10313178 W10313178 REFRIGERATOR CRISPER TRIM
WP12729123 WP12729123 REFRIGERATOR DEFROST HEATER
WP67003531 WP67003531 REFRIGERATOR DELI DRAWER
WP67001719 WP67001719 REFRIGERATOR DELI DRAWER GUIDE TRACK
WPW10368730 WPW10368730 REFRIGERATOR DISPENSER ACTUATOR PAD SET
WPW10267863 WPW10267863 REFRIGERATOR DISPENSER DRIP TRAY
WPW10287601 WPW10287601 REFRIGERATOR DISPENSER ICE CHUTE CAP GASKET

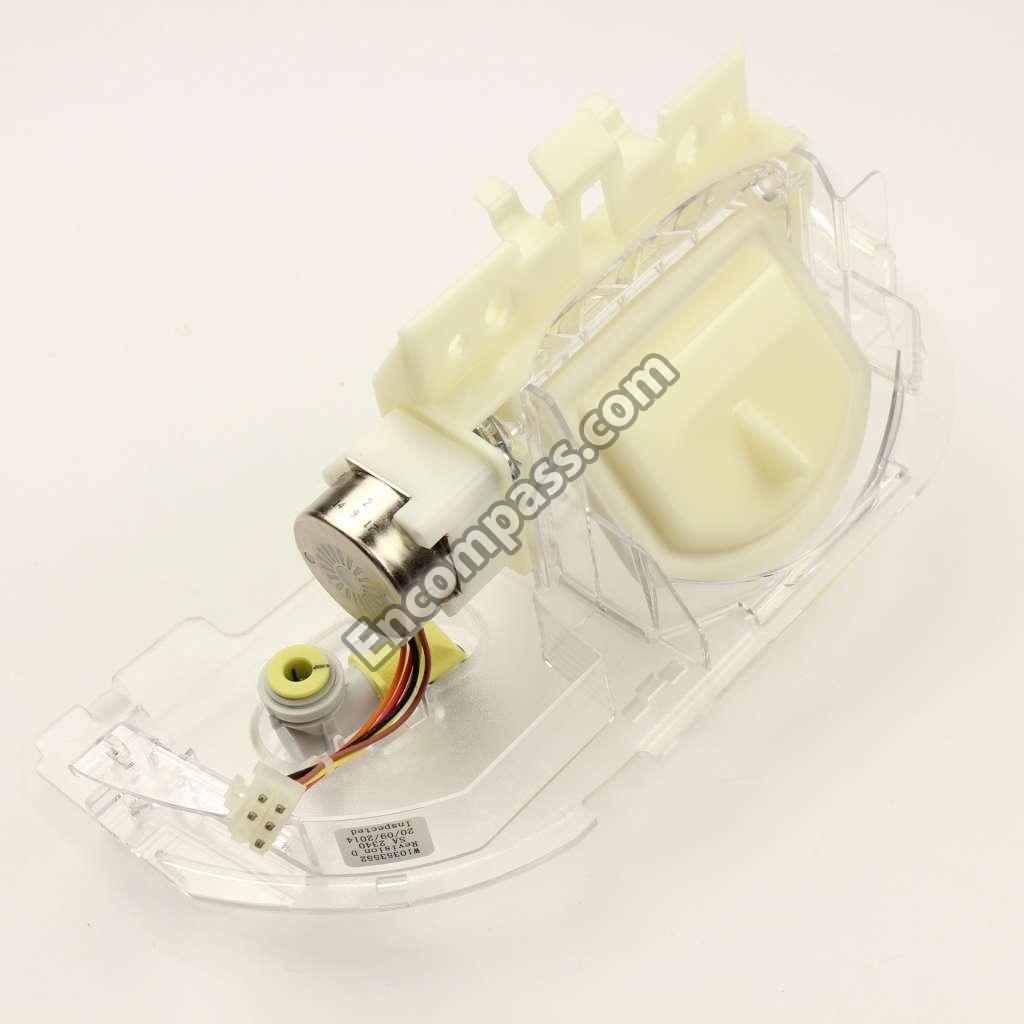

WPW10353552 WPW10353552 REFRIGERATOR DISPENSER ICE CHUTE DOOR AND FUNNE...

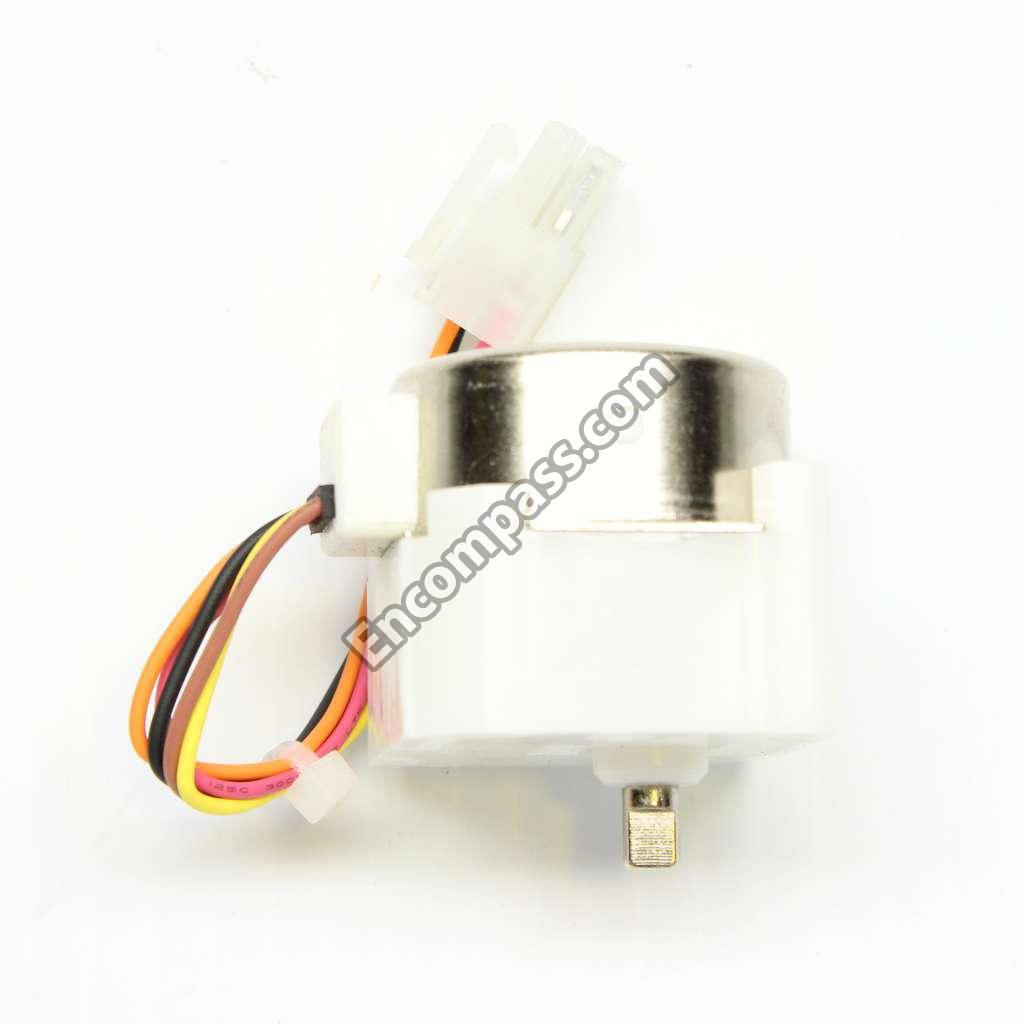

WPW10205979 WPW10205979 REFRIGERATOR DISPENSER ICE CHUTE DOOR MOTOR
WPW10435760 WPW10435760 REFRIGERATOR DISPENSER ICE CHUTE FUNNEL

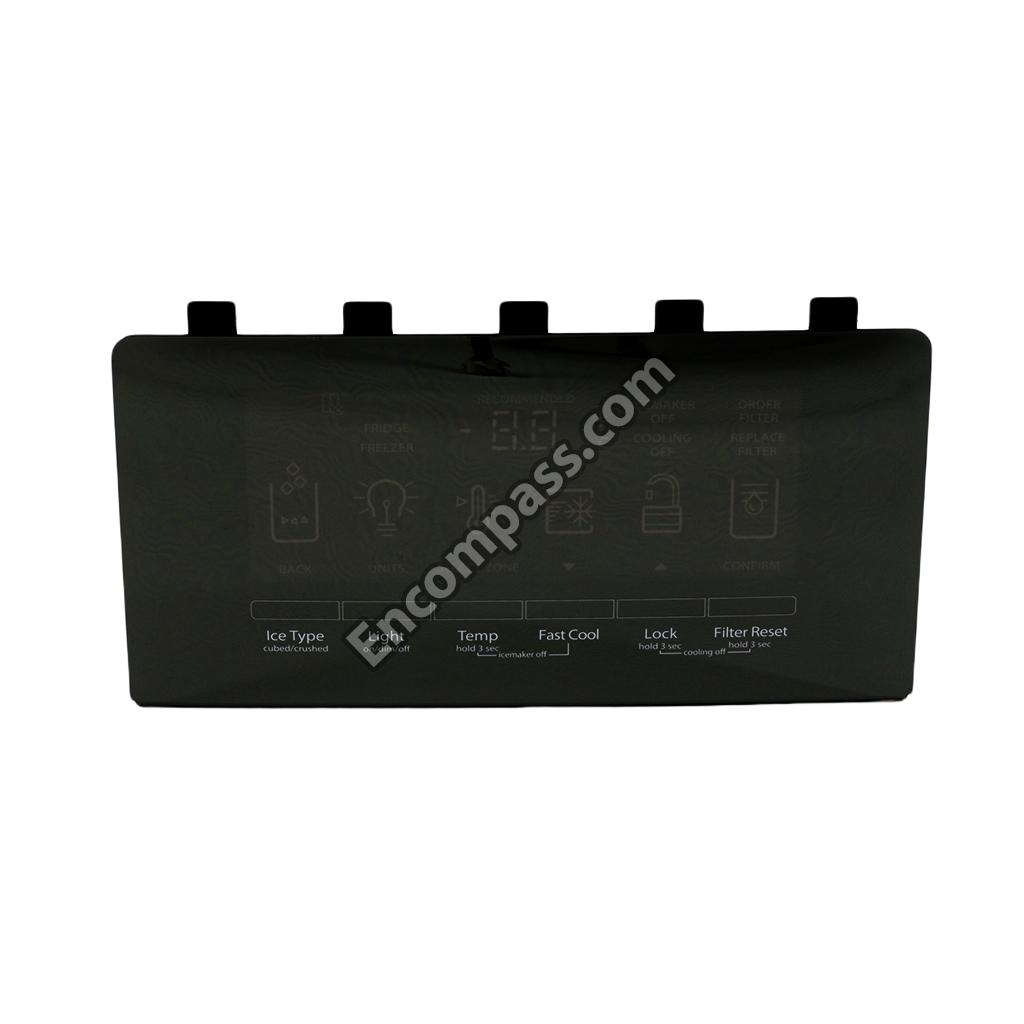

W11284720 W11284720 REFRIGERATOR DISPENSER USER INTERFACE CONTROL
W10146439 W10146439 REFRIGERATOR DIVIDER
WPW10309864 WPW10309864 REFRIGERATOR DIVIDER
W11435343 W11435343 REFRIGERATOR DOOR ASSEMBLY, RIGHT (STAINLESS)

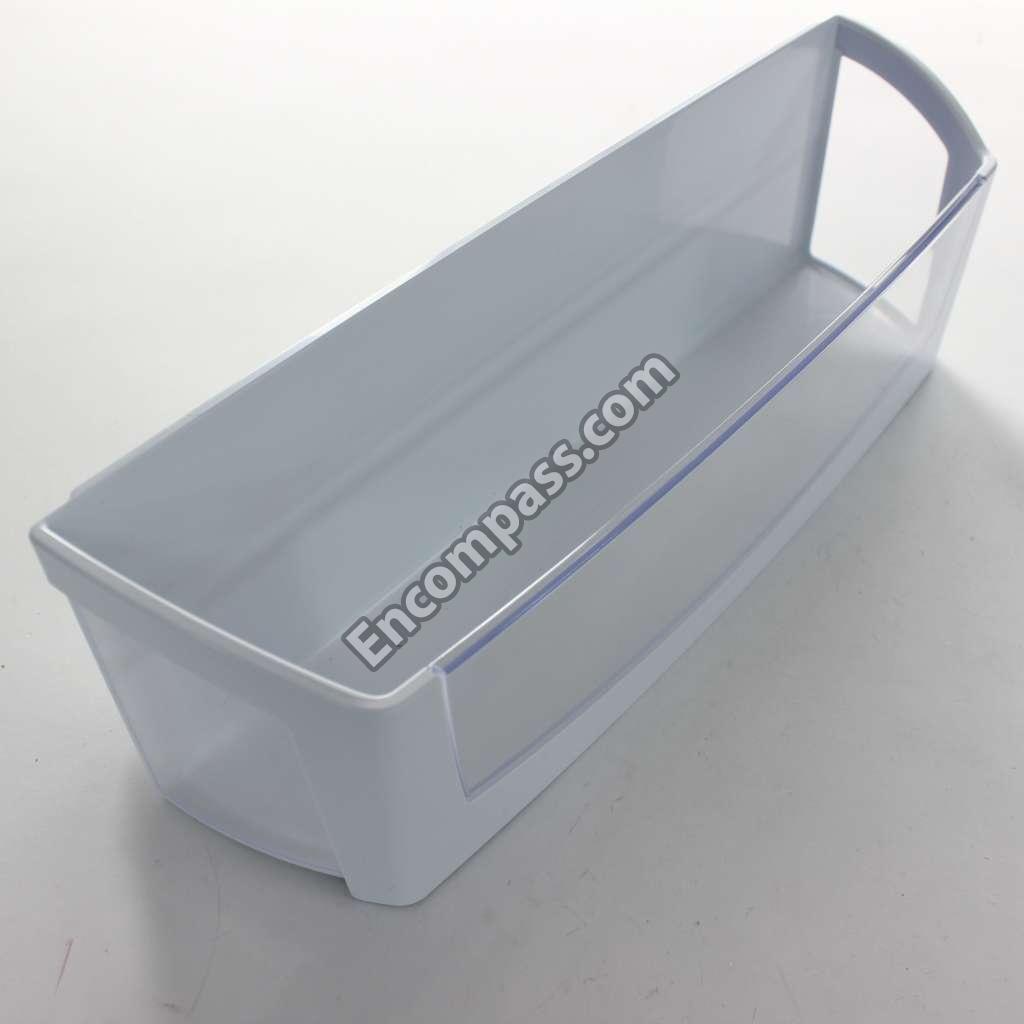

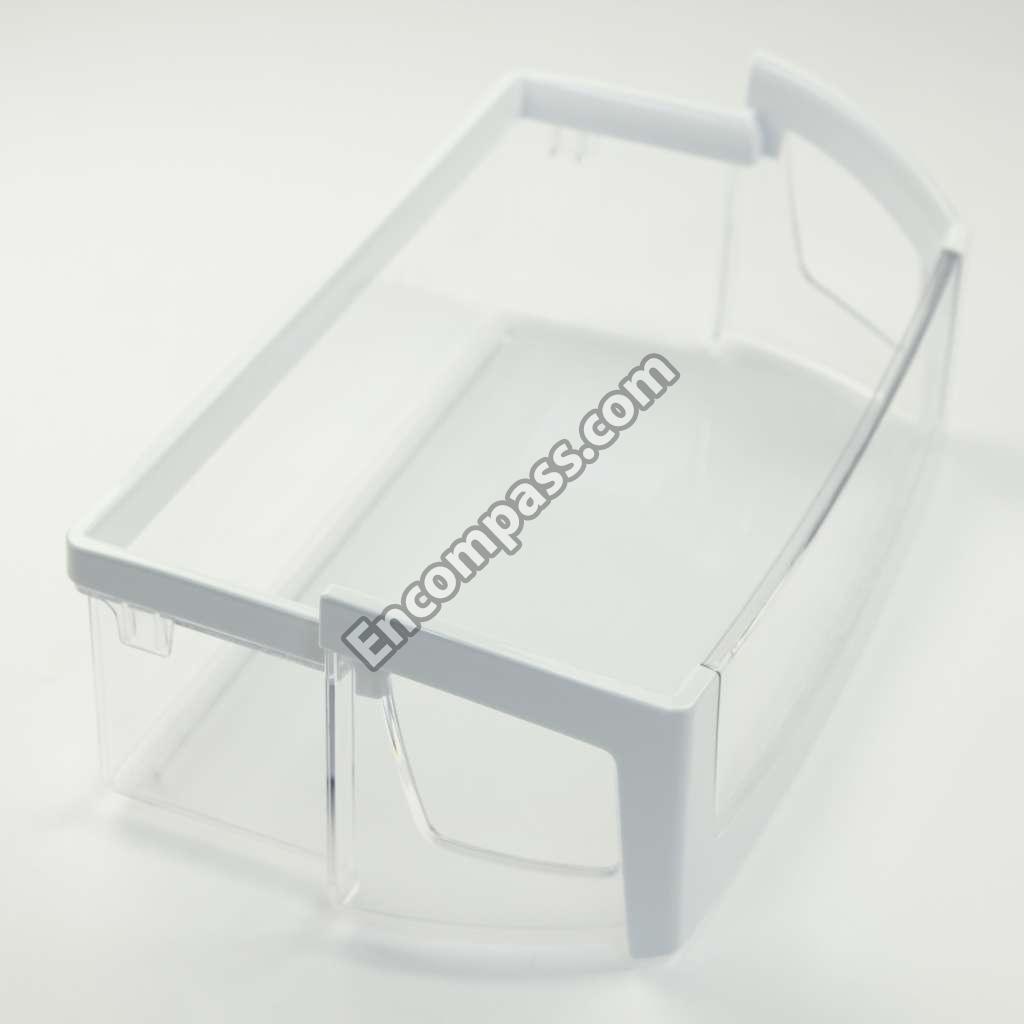

WPW10323808 WPW10323808 REFRIGERATOR DOOR BIN
WPW10212139 WPW10212139 REFRIGERATOR DOOR BIN
WPW10224961 WPW10224961 REFRIGERATOR DOOR BIN

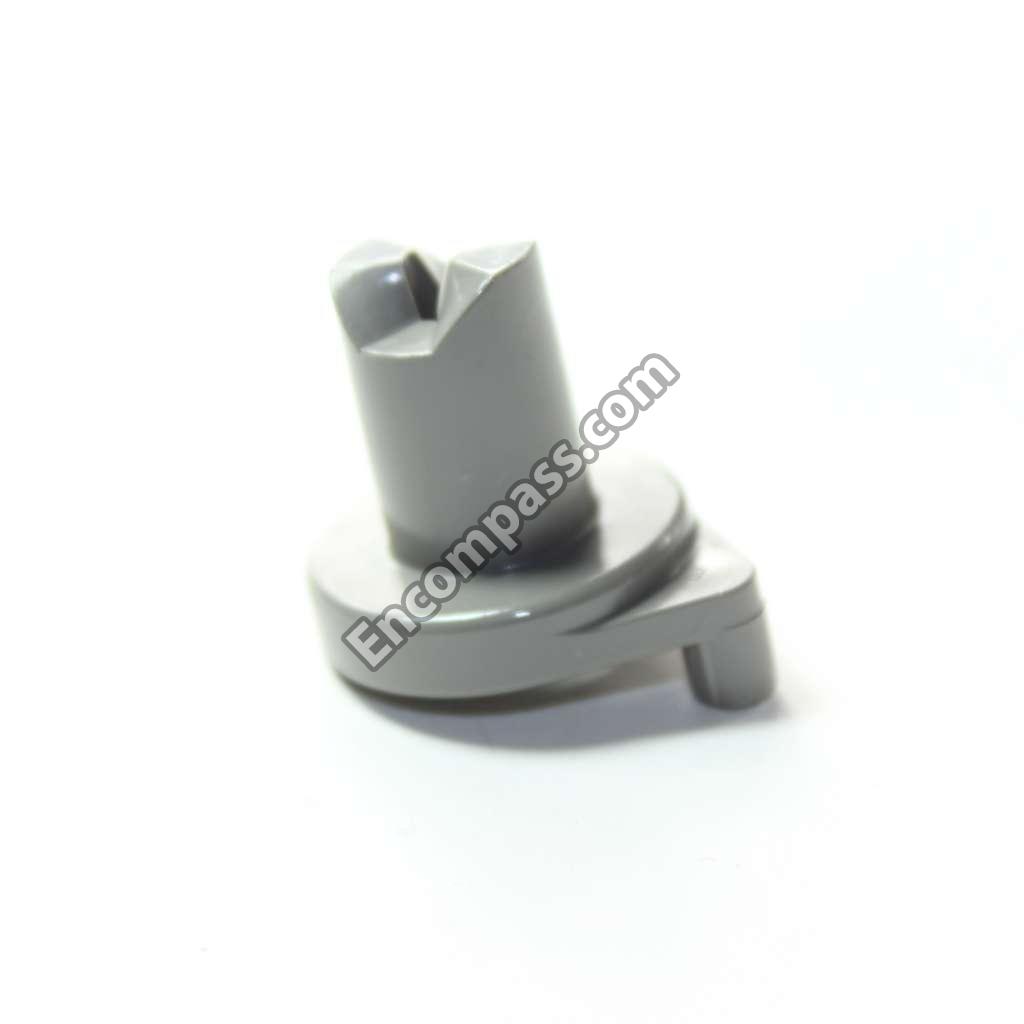

WP12028505AP WP12028505AP REFRIGERATOR DOOR CLOSER CAM

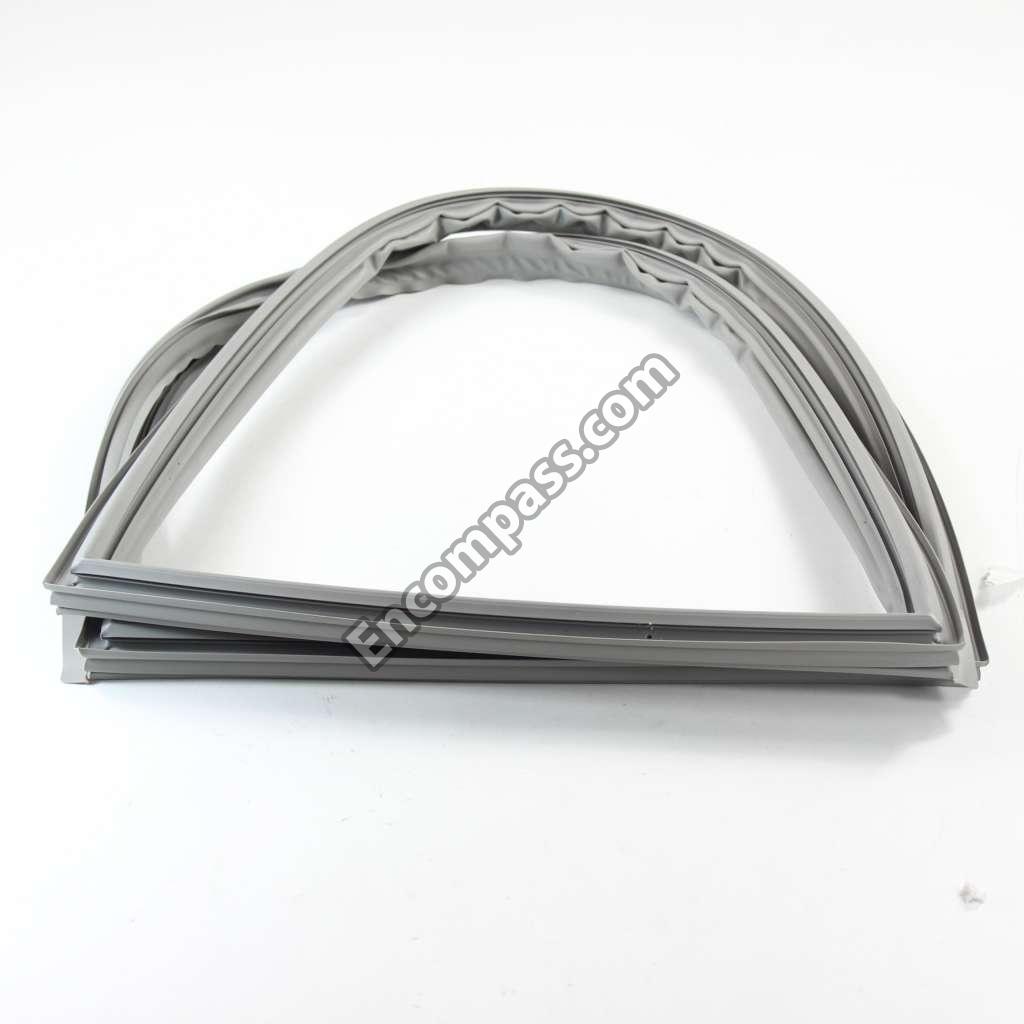

W10830055 W10830055 REFRIGERATOR DOOR GASKET, RIGHT (GRAY)
W10899551 W10899551 REFRIGERATOR DOOR HANDLE (STAINLESS)
W11592375 W11592375 REFRIGERATOR DOOR HINGE
W11592374 W11592374 REFRIGERATOR DOOR HINGE

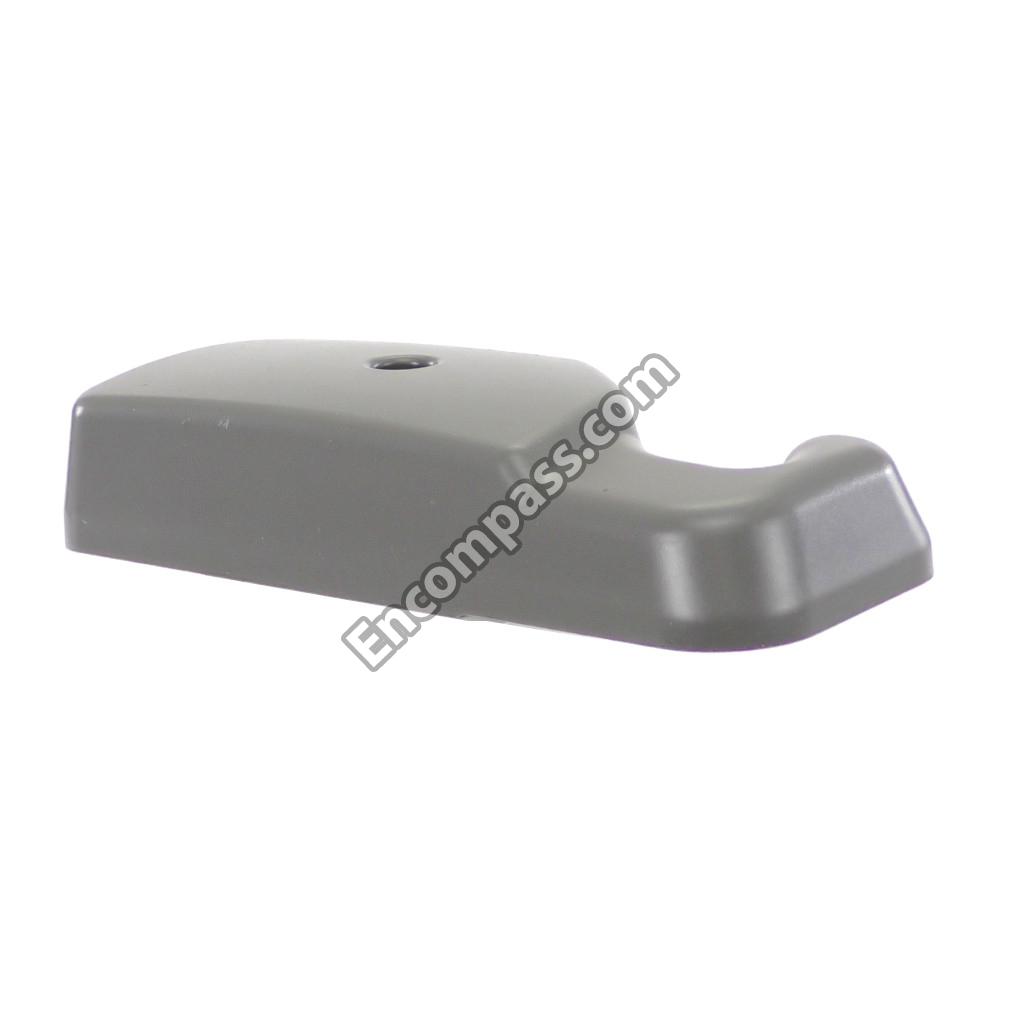

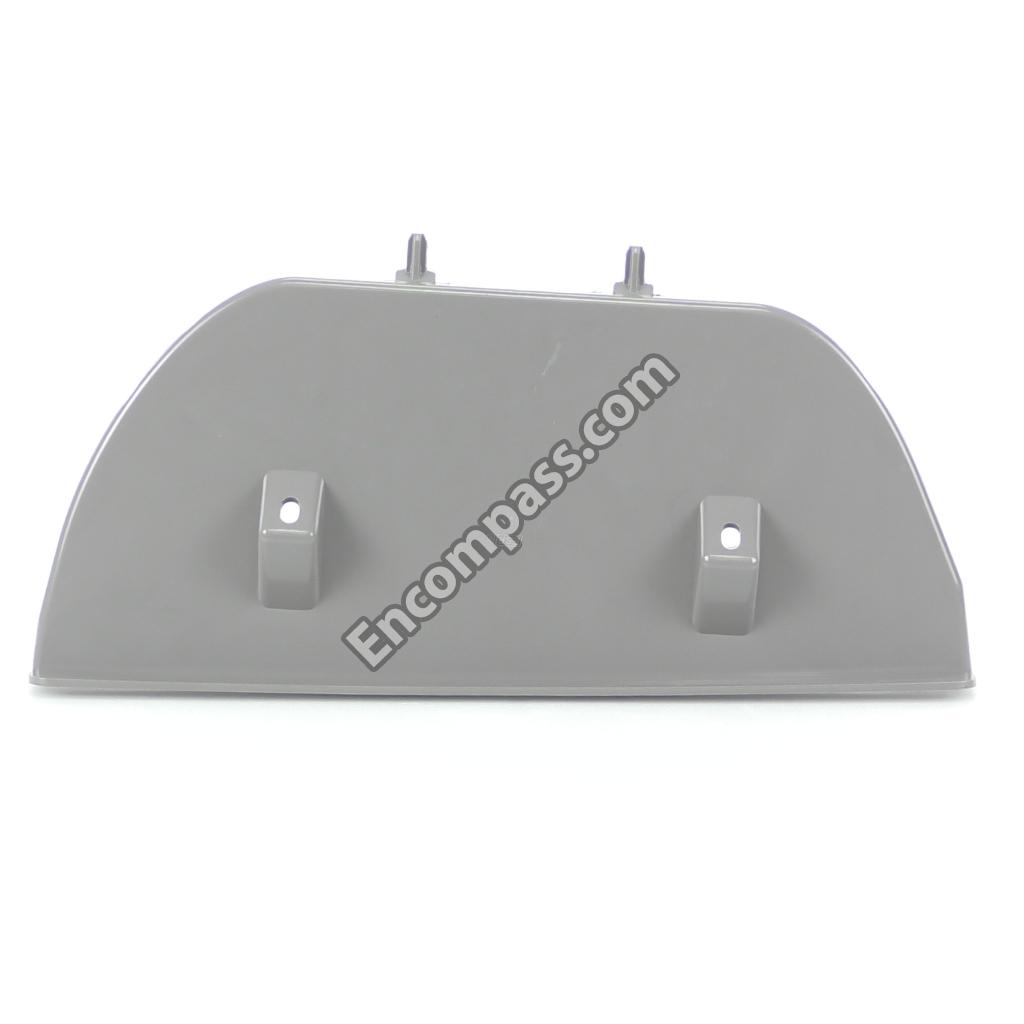

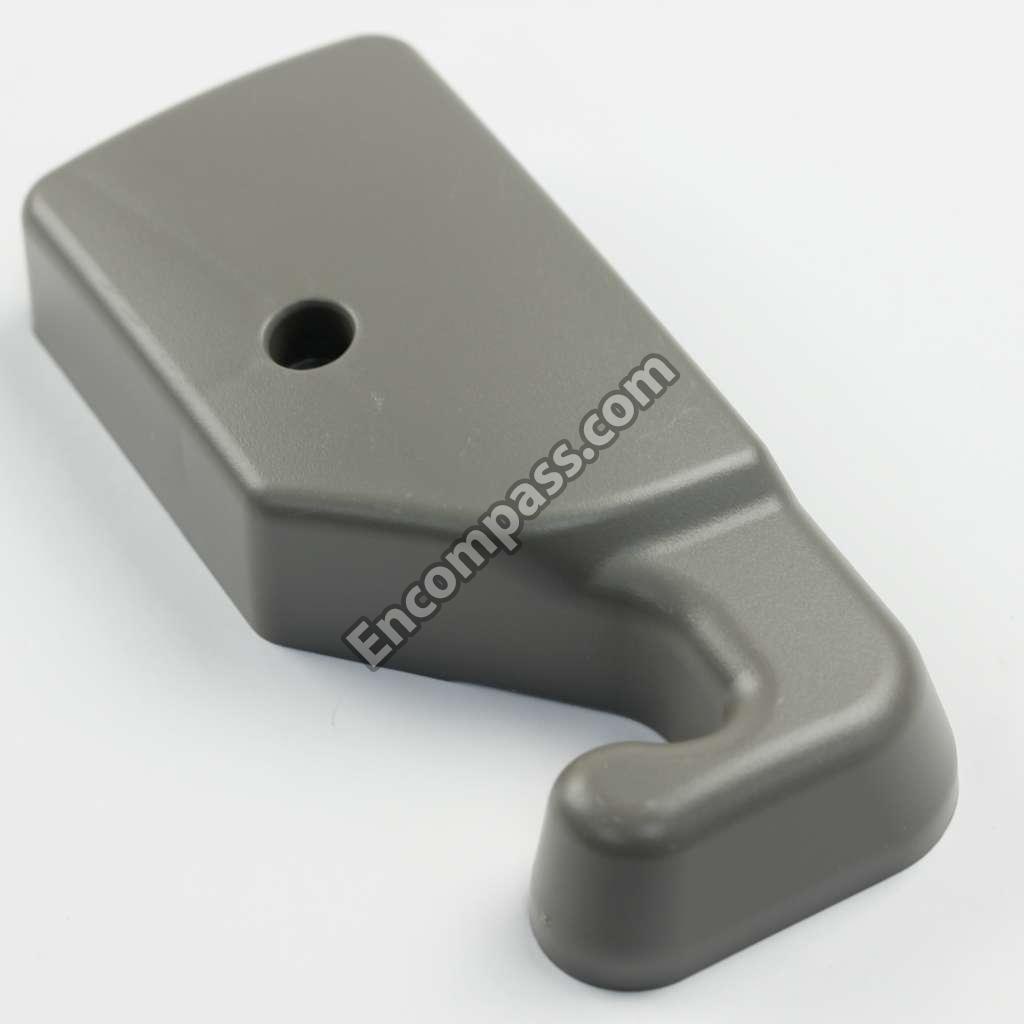

WPW10337648 WPW10337648 REFRIGERATOR DOOR HINGE COVER
WP67006380 WP67006380 REFRIGERATOR DOOR HINGE SCREW

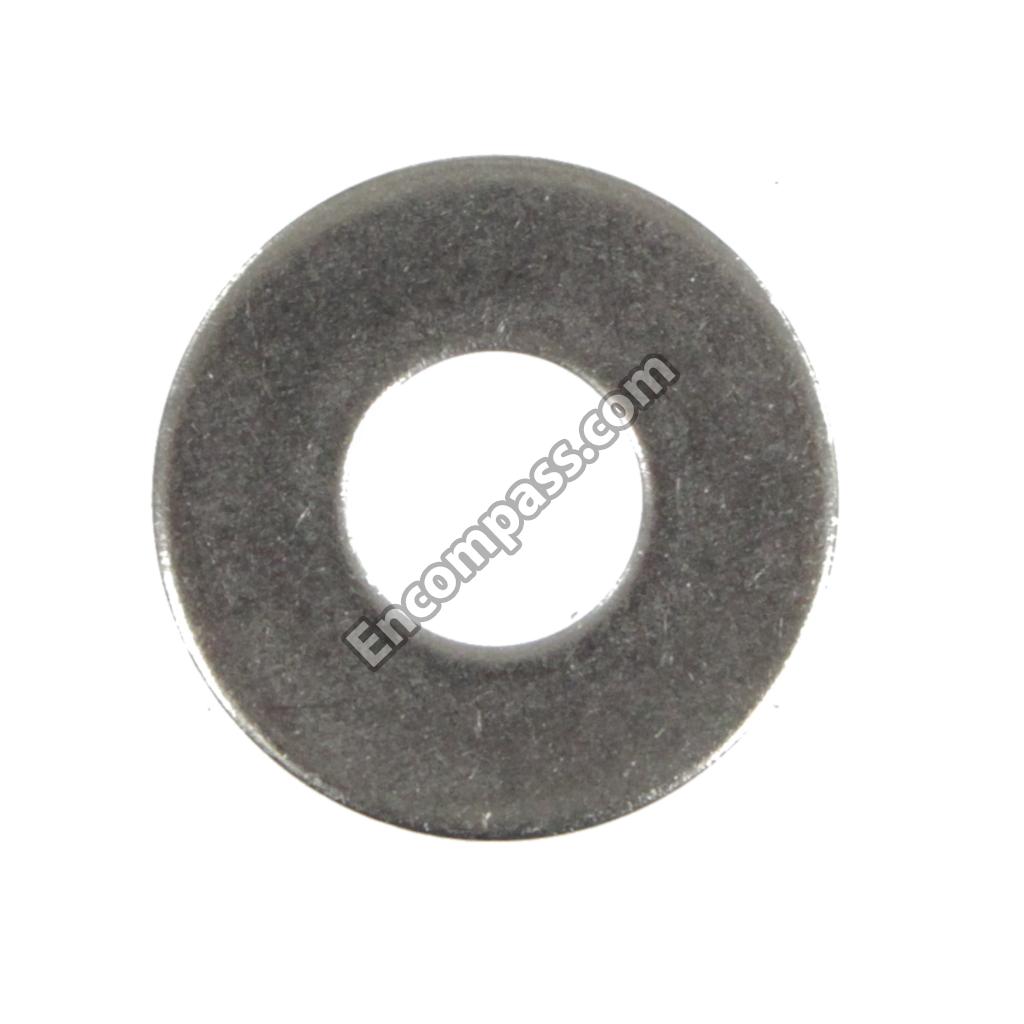

12999501 12999501 REFRIGERATOR DOOR HINGE SHIM
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
W11396033 W11396033 REFRIGERATOR DOOR SWITCH
W11445850 W11445850 REFRIGERATOR DOOR SWITCH
W10815413 W10815413 REFRIGERATOR DRAIN FUNNEL
WPM0500703 WPM0500703 REFRIGERATOR DRAIN FUNNEL SEAL
W10619951 W10619951 REFRIGERATOR DRAIN TUBE
WPW10235370 WPW10235370 REFRIGERATOR DRAWER SLIDE RAIL
W11536253 W11536253 REFRIGERATOR EVAPORATOR
W10308421 W10308421 REFRIGERATOR EVAPORATOR COVER
W11159728 W11159728 REFRIGERATOR EVAPORATOR COVER SEAL
WPW10655368 WPW10655368 REFRIGERATOR EVAPORATOR DRIP PAN
W11547653 W11547653 REFRIGERATOR EVAPORATOR DRIP PAN
WP67006337 WP67006337 REFRIGERATOR EVAPORATOR FAN BLADE
W11673433 W11673433 REFRIGERATOR EVAPORATOR HEATER CLIP
W11712696 W11712696 REFRIGERATOR FAN MOTOR CLIP
W10309863 W10309863 REFRIGERATOR FAN SCROLL
W10856123 W10856123 REFRIGERATOR FAN SHROUD SEAL
WP12587703AP WP12587703AP REFRIGERATOR FILLER
67006325 67006325 REFRIGERATOR FILTER BRACKET
WP67003405 WP67003405 REFRIGERATOR FLIPPER PIVOT BLOCK
W10348259 W10348259 REFRIGERATOR FREEZER BASKET GEAR BRACKET, LEFT
WPW10330993 WPW10330993 REFRIGERATOR FREEZER DOOR BRACKET

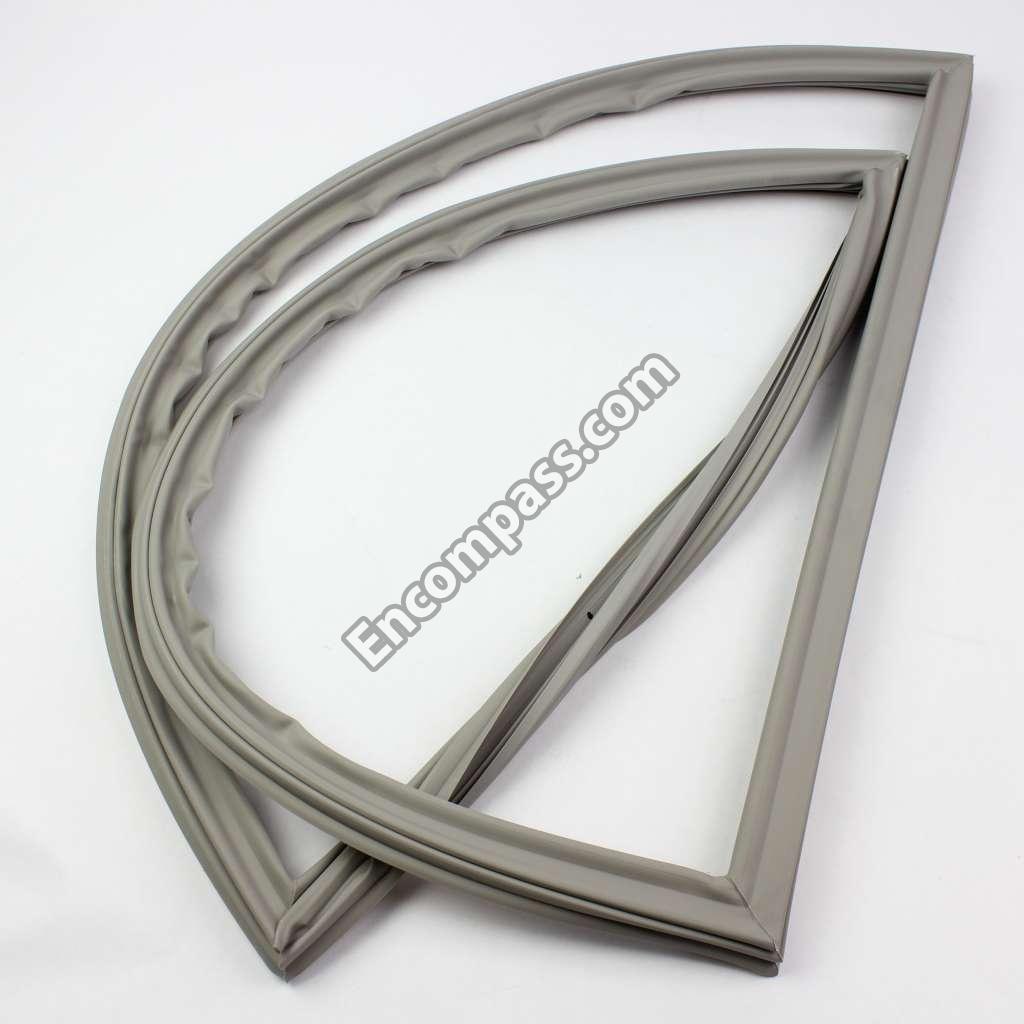

WPW10714545 WPW10714545 REFRIGERATOR FREEZER DOOR GASKET (GRAY)
W10827046 W10827046 REFRIGERATOR FREEZER DOOR HANDLE (STAINLESS)
WPW10293682 WPW10293682 REFRIGERATOR FREEZER DRAWER BIN

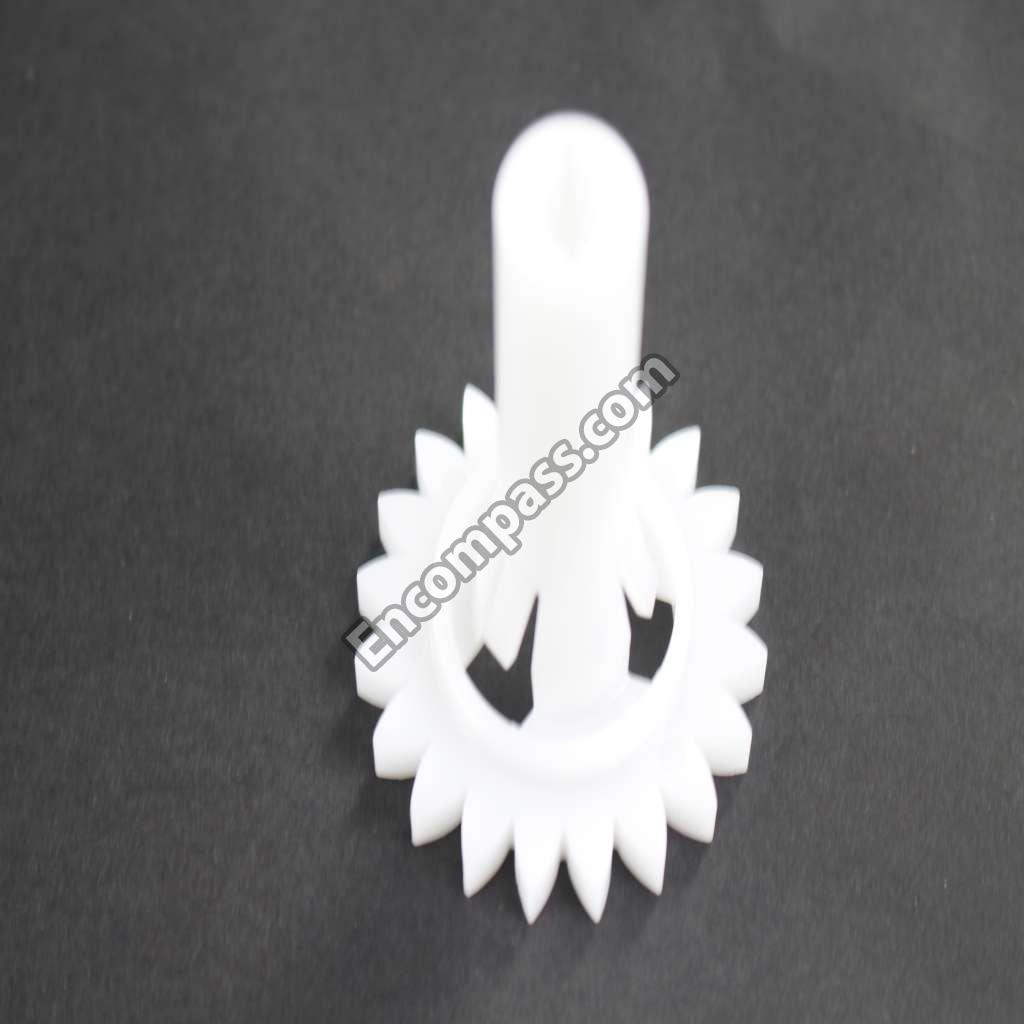

12002497 12002497 REFRIGERATOR FREEZER DRAWER GEAR

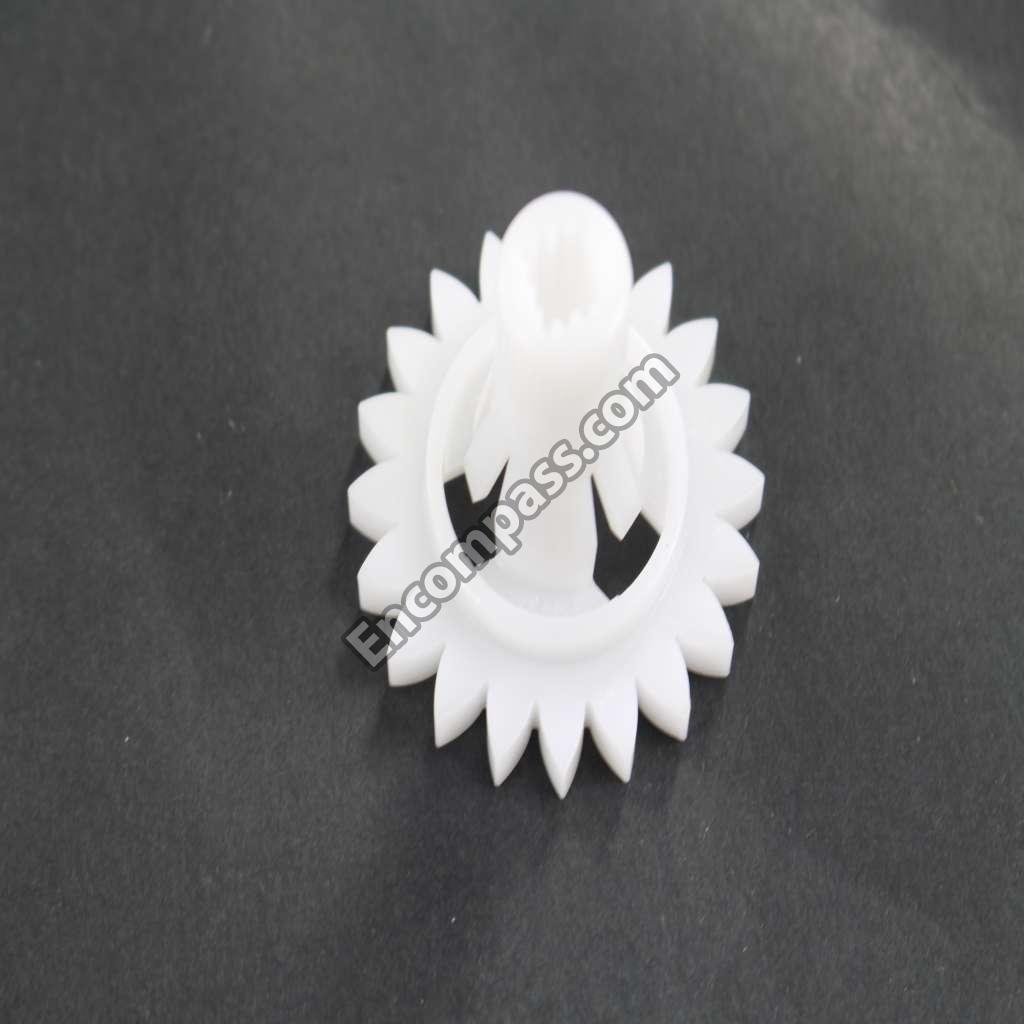

WPW10474716 WPW10474716 REFRIGERATOR FREEZER DRAWER GEAR
WPW10474715 WPW10474715 REFRIGERATOR FREEZER DRAWER GEAR
W10348260 W10348260 REFRIGERATOR FREEZER DRAWER ROLLER SUPPORT
WPW10284683 WPW10284683 REFRIGERATOR FREEZER DRAWER SLIDE RAIL ADAPTER
W11028221 W11028221 REFRIGERATOR FREEZER DRAWER SLIDE SHAFT
W11402525 W11402525 REFRIGERATOR GLASS SHELF
WP67006704 WP67006704 REFRIGERATOR GLASS SHELF
W11033333 W11033333 REFRIGERATOR GLASS SHELF
W10555984 W10555984 REFRIGERATOR GRILLE
W11176847 W11176847 REFRIGERATOR GRILLE
W10852725 W10852725 REFRIGERATOR GROMMET
WPW10137529 WPW10137529 REFRIGERATOR GROMMET
WPW10169124 WPW10169124 REFRIGERATOR GROMMET
W10151687 W10151687 REFRIGERATOR GROMMET

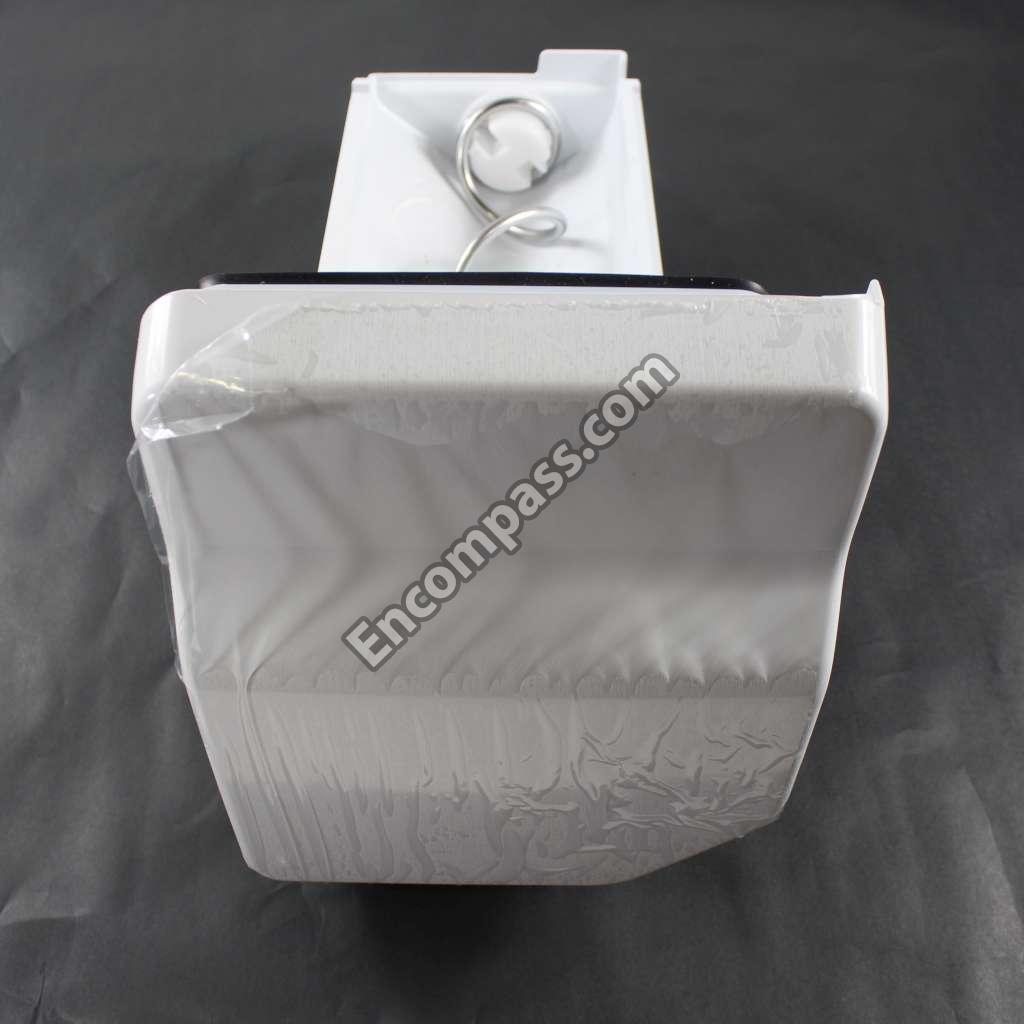

W11185686 W11185686 REFRIGERATOR ICE CONTAINER

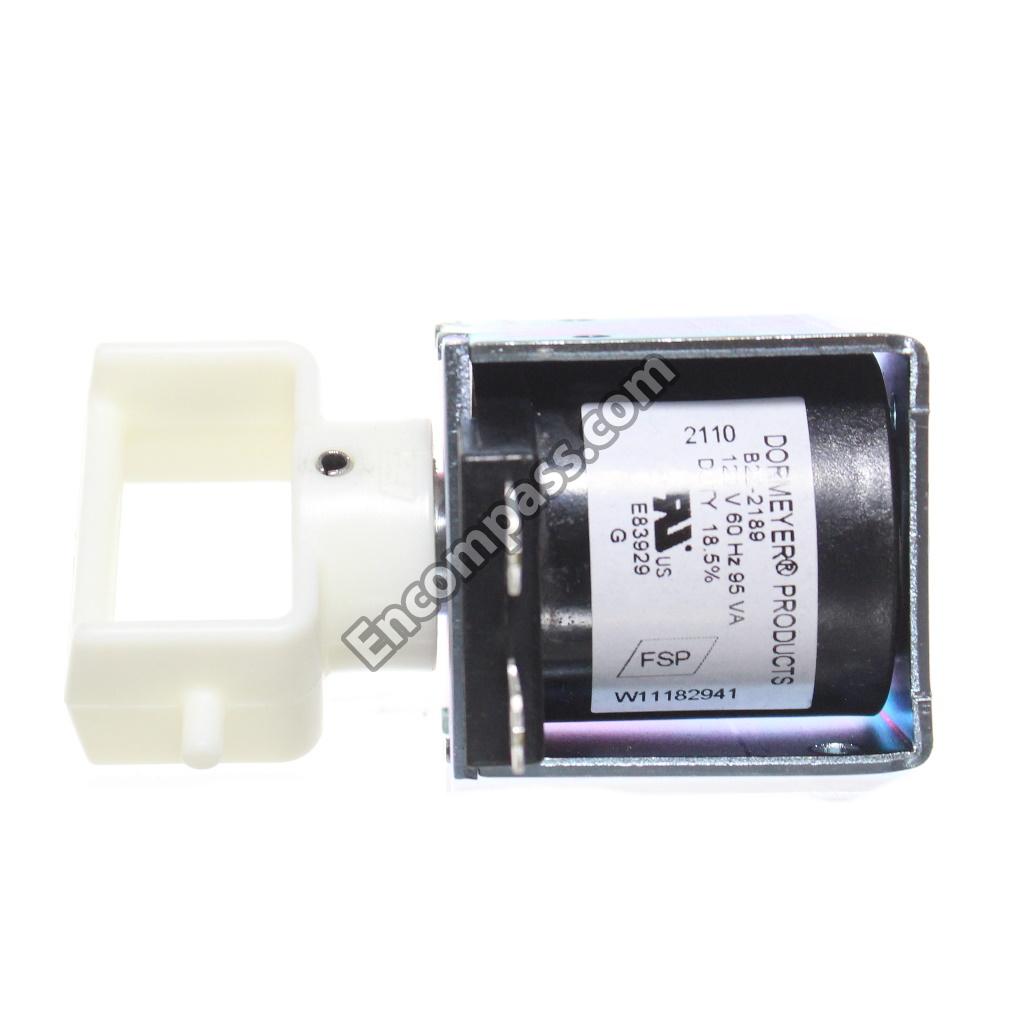

WPW10309866 WPW10309866 REFRIGERATOR ICE DISPENSER SOLENOID

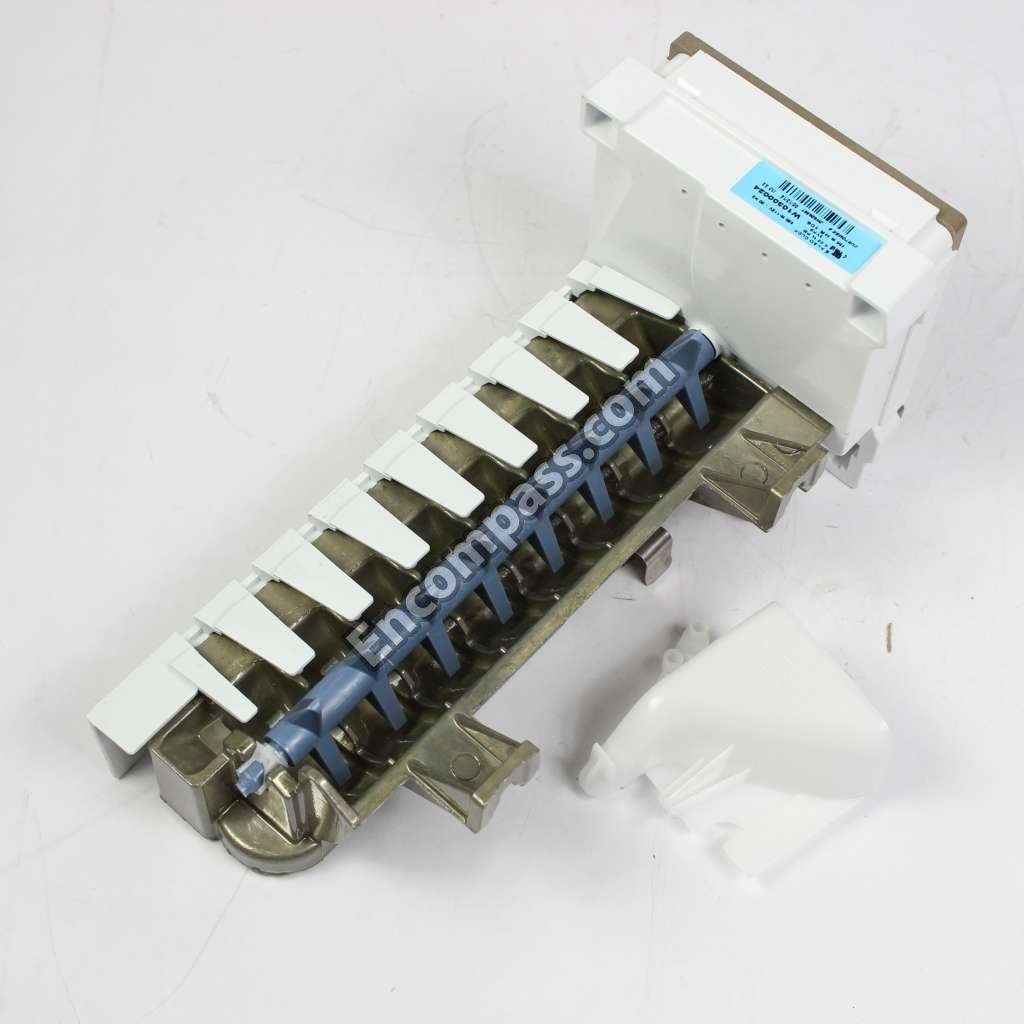

WPW10300024 WPW10300024 REFRIGERATOR ICE MAKER ASSEMBLY

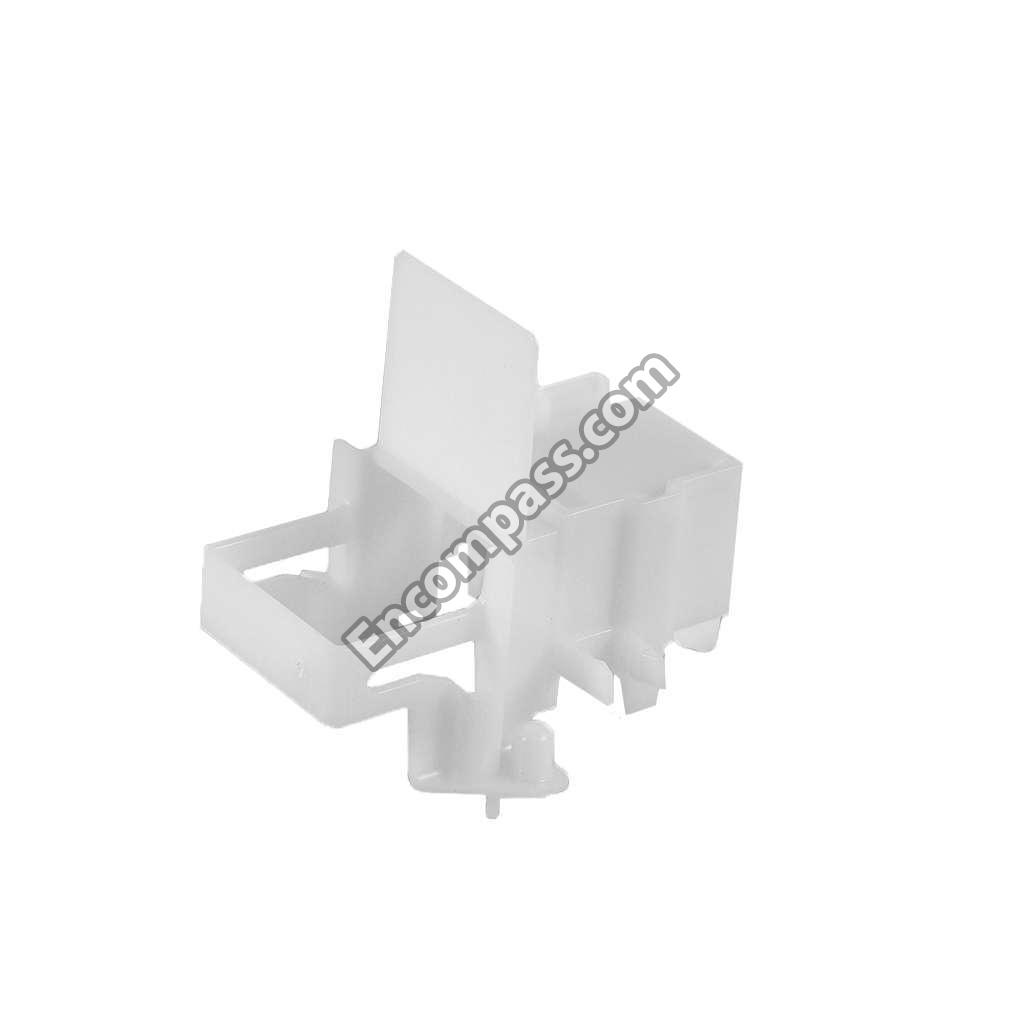

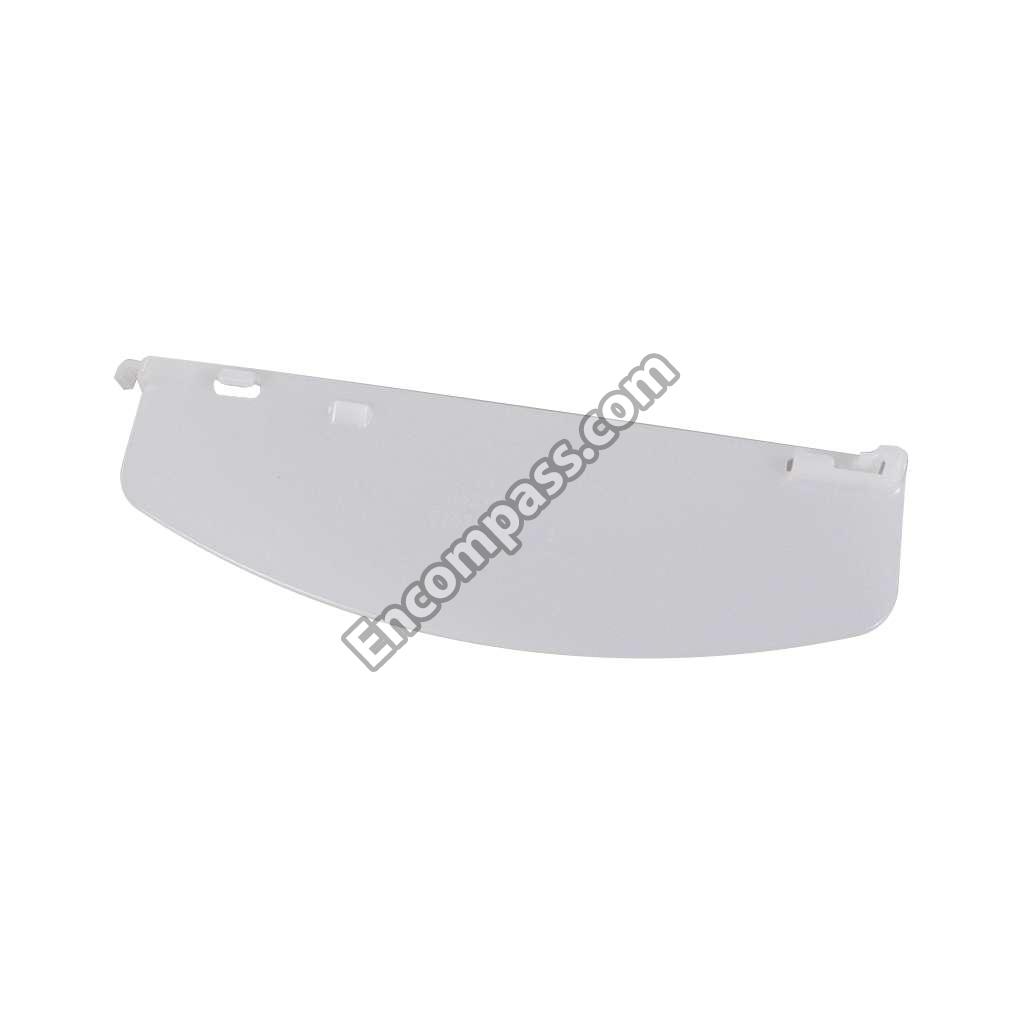

WPW10312691 WPW10312691 REFRIGERATOR ICE MAKER BAFFLE
W10884722 W10884722 REFRIGERATOR ICE MAKER COVER
W11529245 W11529245 REFRIGERATOR ICE MAKER EVAPORATOR FAN
8003RP 8003RP REFRIGERATOR ICE MAKER INSTALLATION KIT
WPW10351019 WPW10351019 REFRIGERATOR ICE MAKER SHUT-OFF ARM LEVER
WP1117510 WP1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH

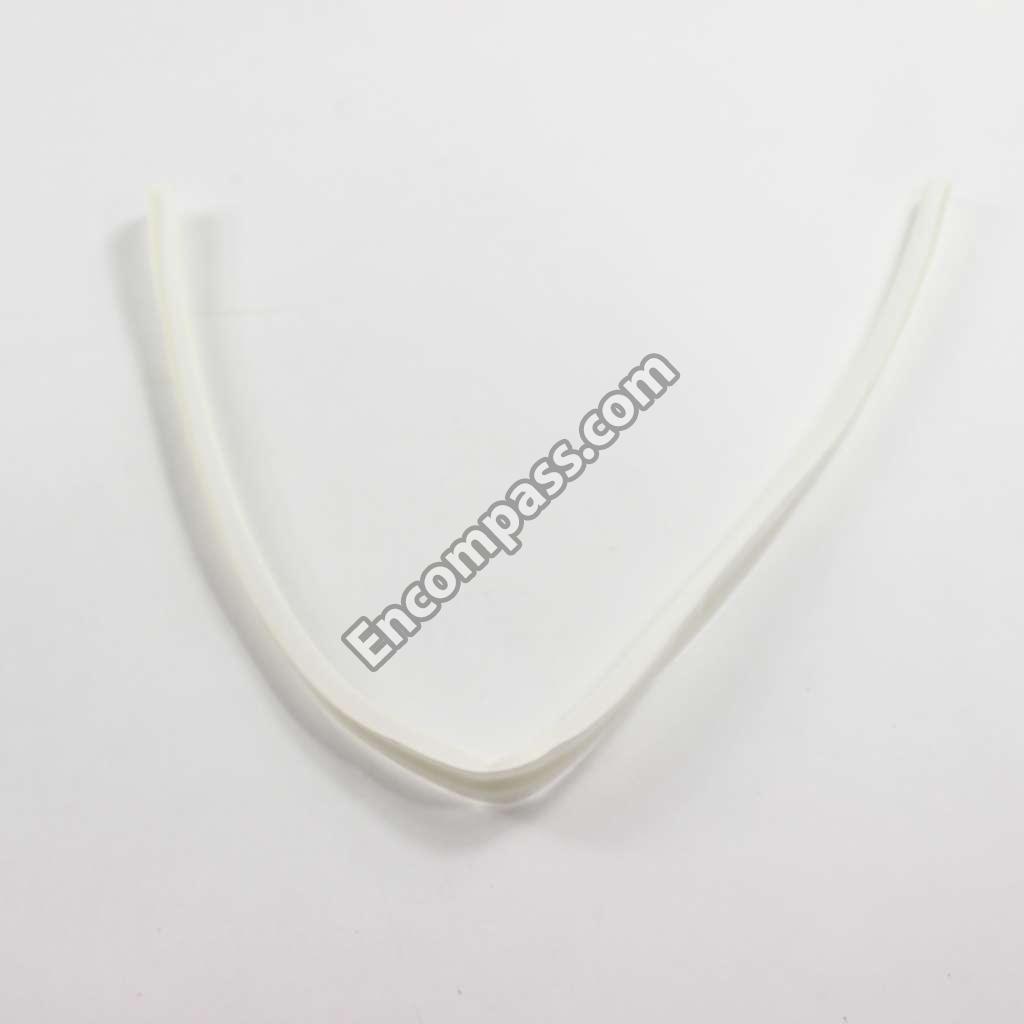

WP67006341 WP67006341 REFRIGERATOR ICE ROOM DAMPER GASKET

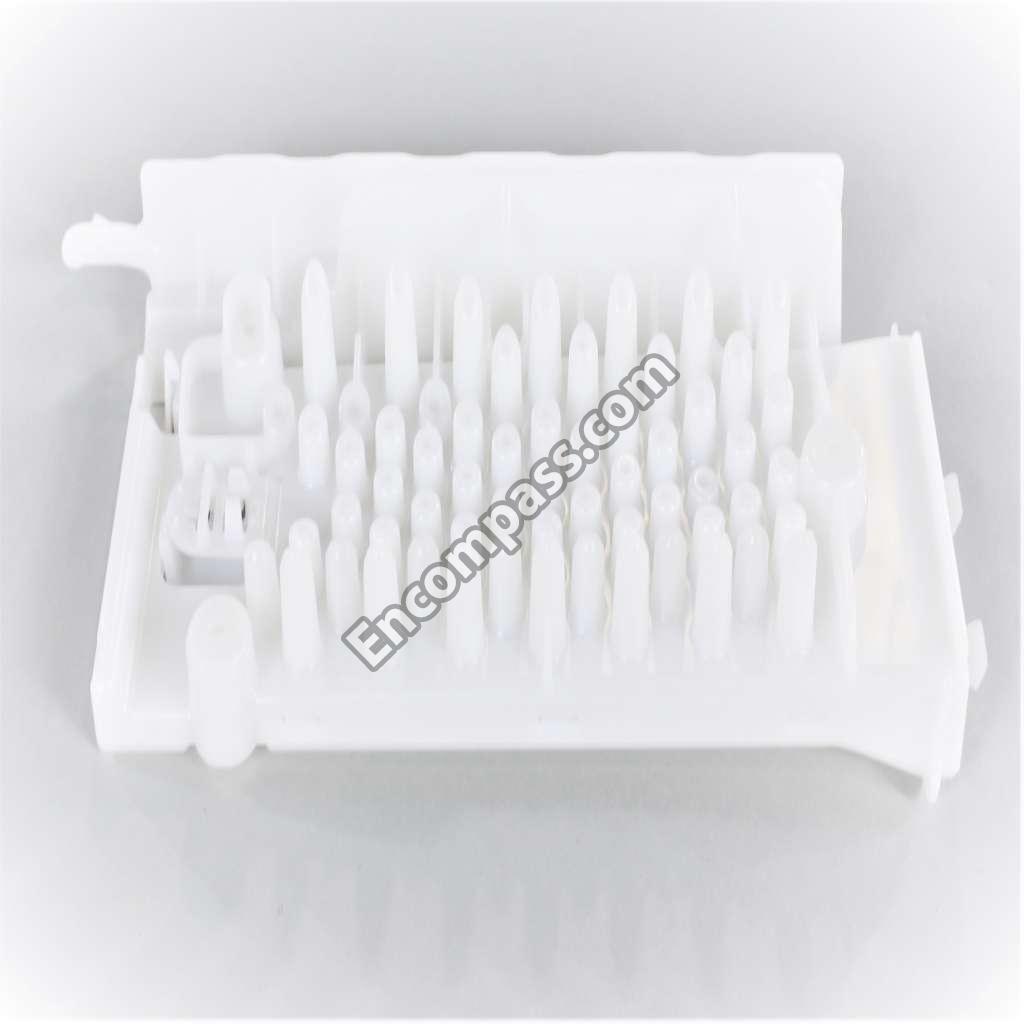

W10121282 W10121282 REFRIGERATOR INSERT
W11676504 W11676504 REFRIGERATOR INSERT
W11553819 W11553819 REFRIGERATOR INSULATION
W10251966 W10251966 REFRIGERATOR LADDER
W10251965 W10251965 REFRIGERATOR LADDER
W10273464 W10273464 REFRIGERATOR LADDER
W11290115 W11290115 REFRIGERATOR LED DISPLAY BOARD
WPW10141622 WPW10141622 REFRIGERATOR LEVELING LEG
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
WP12722815AP WP12722815AP REFRIGERATOR MULLION HEATER
67002329 67002329 REFRIGERATOR PANTRY DRAWER AIR DUCT GASKET
W10827015 W10827015 REFRIGERATOR PANTRY DRAWER DOOR
W10874836 W10874836 REFRIGERATOR PANTRY DRAWER END CAP SET
12656202 12656202 REFRIGERATOR PANTRY DRAWER TEMPERATURE CONTROL ...
WP67003793 WP67003793 REFRIGERATOR PANTRY DRAWER TEMPERATURE CONTROL ...
212643 212643 REFRIGERATOR PERMAGUM SEALER
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
W11727651 W11727651 REFRIGERATOR PLATE
WPW10515763 WPW10515763 REFRIGERATOR ROLLER
WPW10515762 WPW10515762 REFRIGERATOR ROLLER
WP67005149 WP67005149 REFRIGERATOR ROLLER
67006434 67006434 REFRIGERATOR ROLLER WHEEL AXLE PIN
WPW10350564 WPW10350564 REFRIGERATOR RUN CAPACITOR
WP8281196 WP8281196 REFRIGERATOR SCREW
WP489349 WP489349 REFRIGERATOR SCREW
67006564 67006564 REFRIGERATOR SCREW
WPW10141645 WPW10141645 REFRIGERATOR SCREW
WP489474 WP489474 REFRIGERATOR SCREW
WP98165 WP98165 REFRIGERATOR SCREW
67006425 67006425 REFRIGERATOR SCREW
W11311945 W11311945 REFRIGERATOR SCREW
W11366418 W11366418 REFRIGERATOR SCREW
WP67006908 WP67006908 REFRIGERATOR SCREW
W10829281 W10829281 REFRIGERATOR SCREW
W10709798 W10709798 REFRIGERATOR SCREW
WP67006415 WP67006415 REFRIGERATOR SCREW
978027 978027 REFRIGERATOR SERVICE VALVE
WP978025 WP978025 REFRIGERATOR SERVICE VALVE
978029 978029 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
W11173556 W11173556 REFRIGERATOR SHAFT
W11197490 W11197490 REFRIGERATOR SHELF
WP13062602 WP13062602 REFRIGERATOR SHELF SUPPORT
12999502 12999502 REFRIGERATOR SHIM

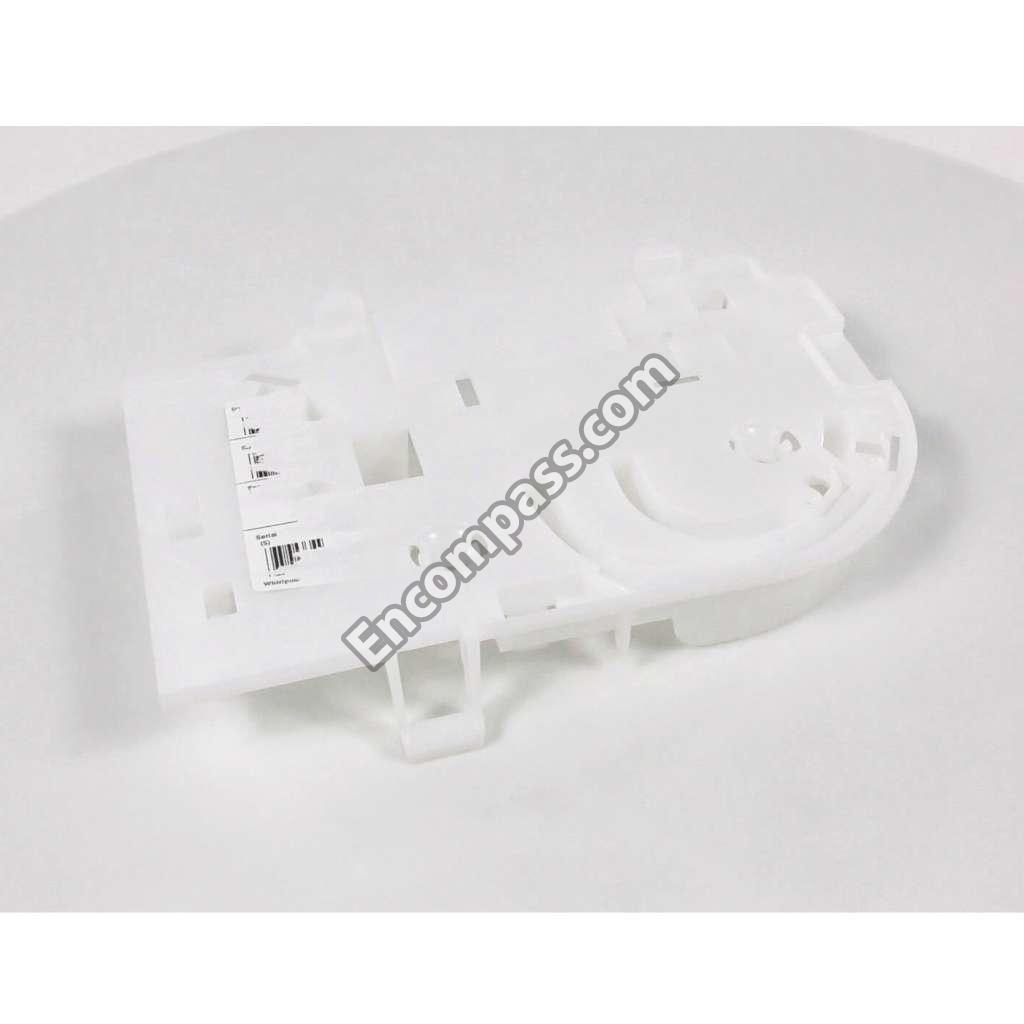

W11700329 W11700329 REFRIGERATOR SHROUD EVAPORATOR
W11703060 W11703060 REFRIGERATOR STOP
W10236396 W10236396 REFRIGERATOR STRAP
WP67003924 WP67003924 REFRIGERATOR TEMPERATURE SENSOR
W10316760 W10316760 REFRIGERATOR TEMPERATURE SENSOR KIT

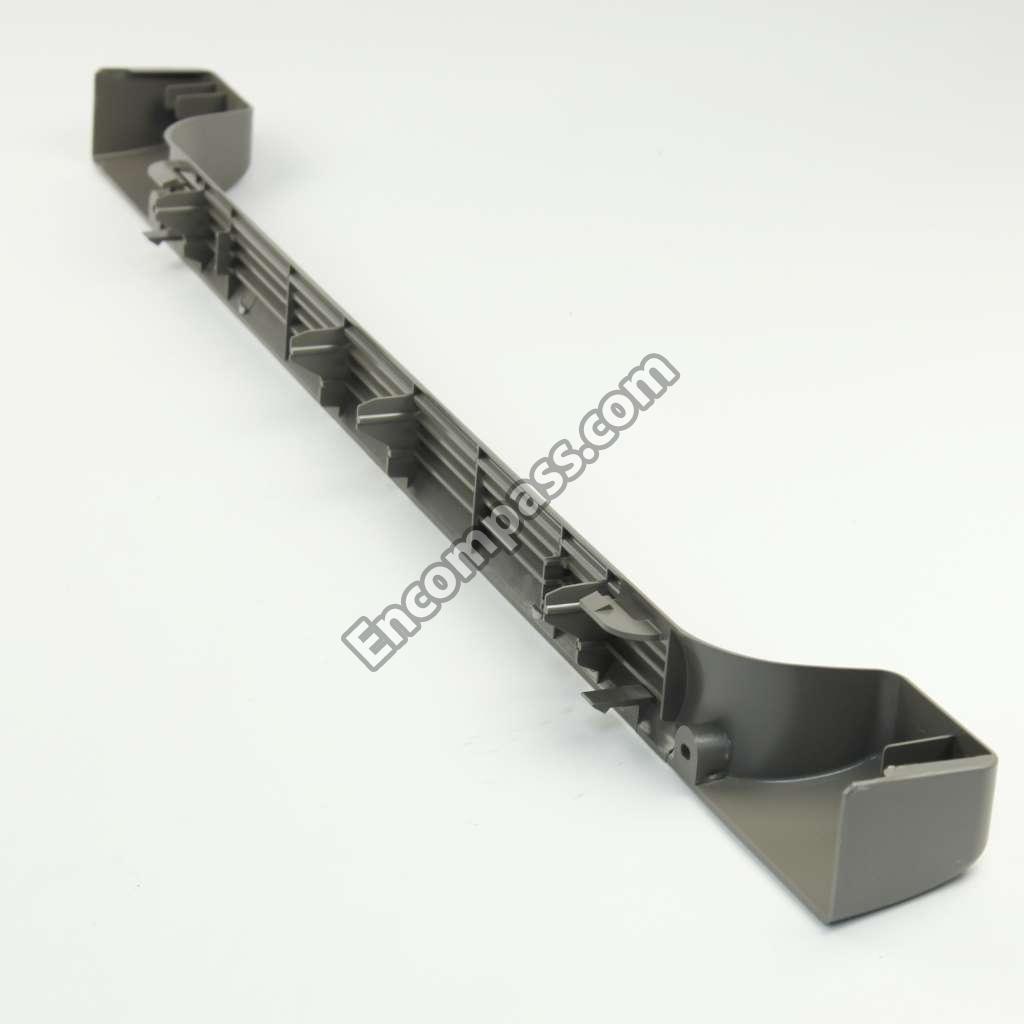

WPW10534155 WPW10534155 REFRIGERATOR TOE GRILLE (GRAY)
WPW10143759 WPW10143759 REFRIGERATOR UV FILTER DRYER
W11238399 W11238399 REFRIGERATOR VINYL TAPE

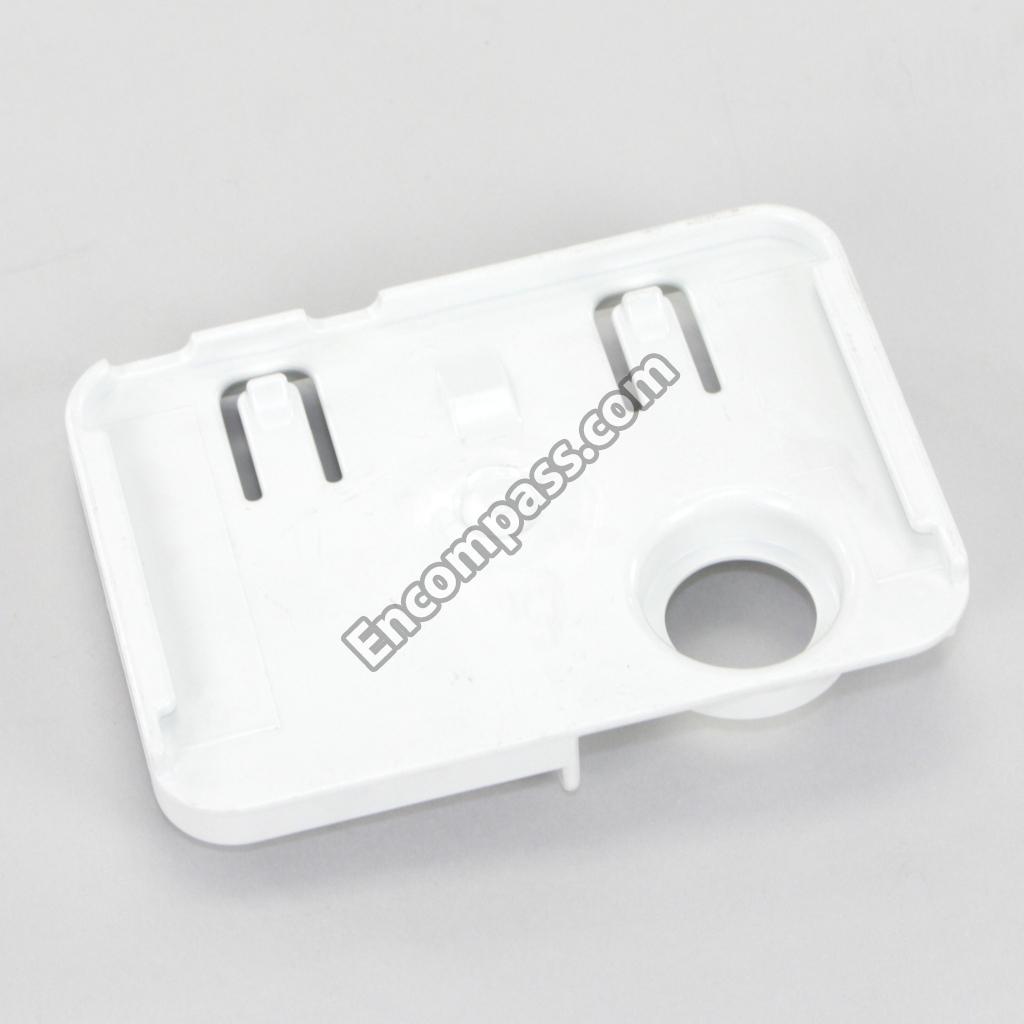

67006329 67006329 REFRIGERATOR WATER COVER
W11395888 W11395888 REFRIGERATOR WATER FILTER BYPASS
WP67006331 WP67006331 REFRIGERATOR WATER FILTER HOUSING

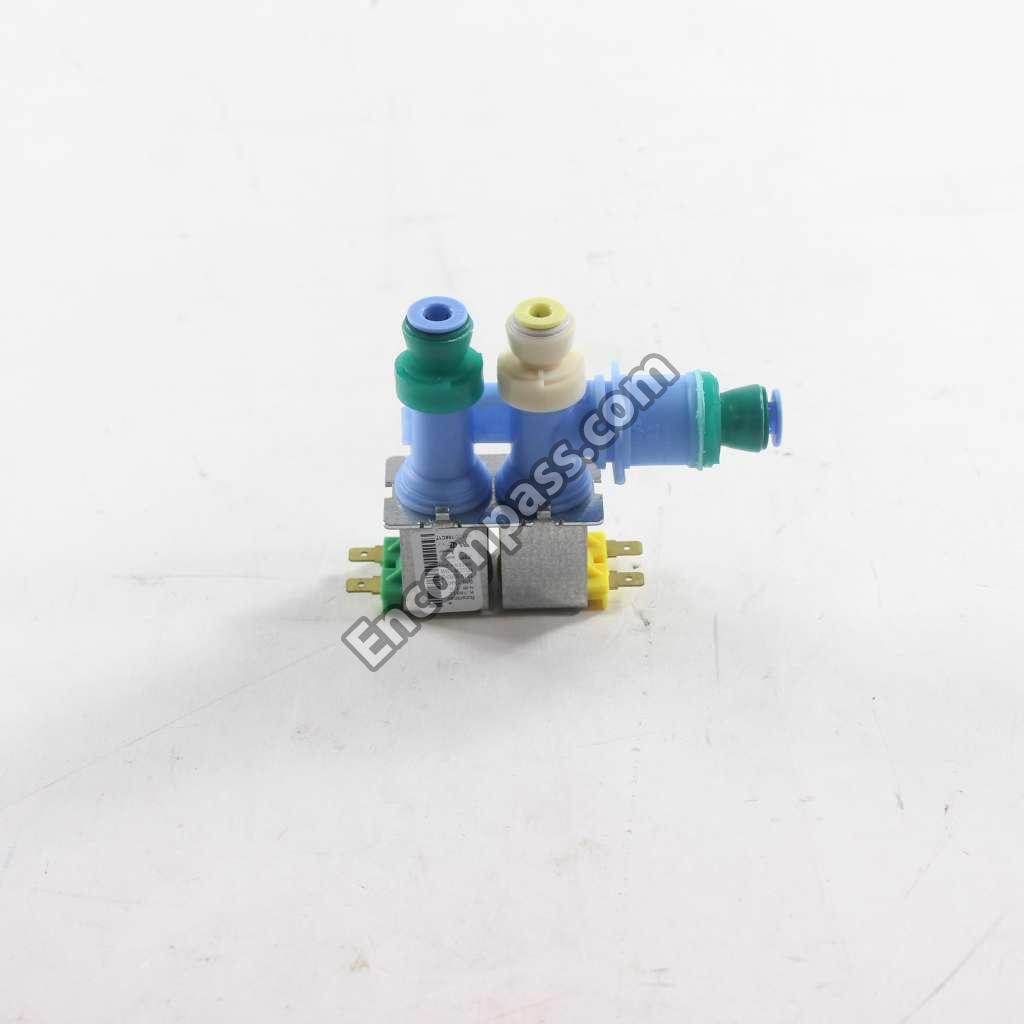

W11043013 W11043013 REFRIGERATOR WATER INLET VALVE
W11346622 W11346622 REFRIGERATOR WATER RESERVOIR AND FILTER HEAD AS...

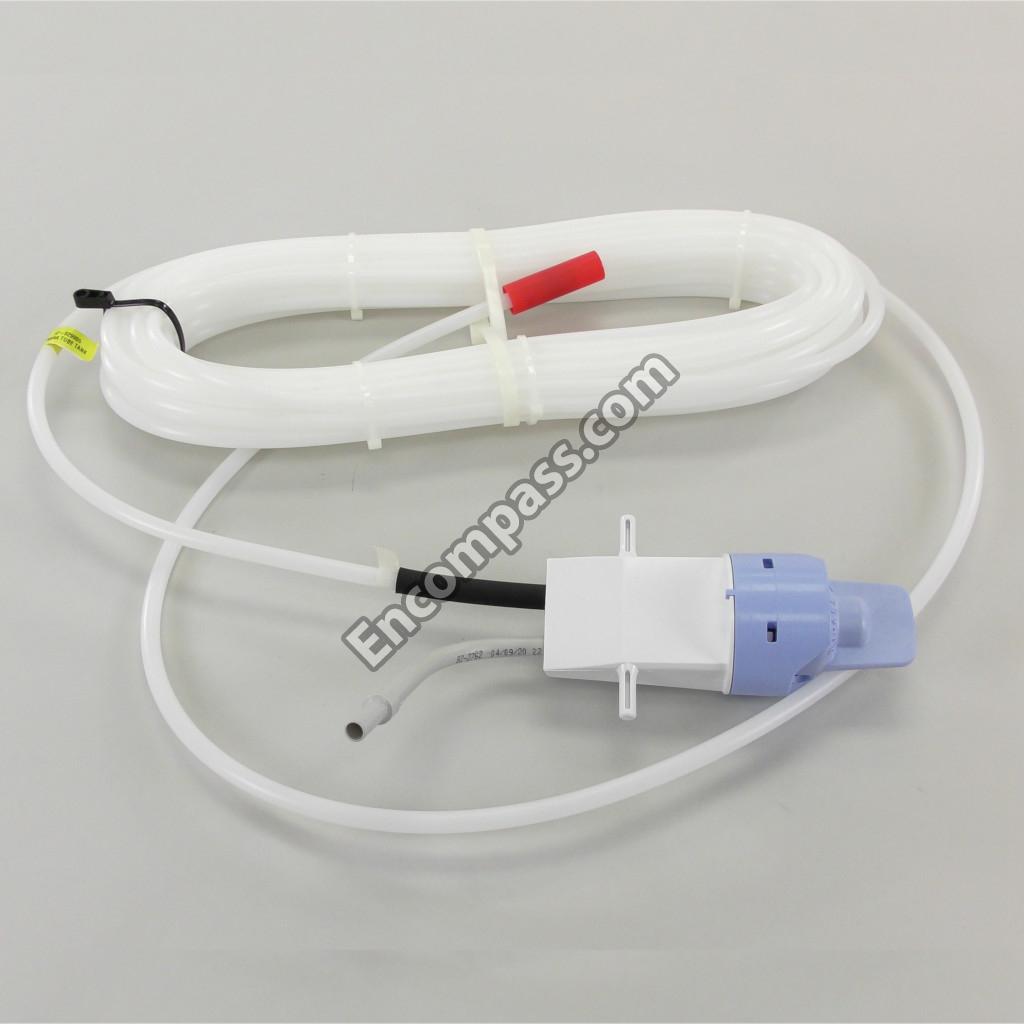

W11415785 W11415785 REFRIGERATOR WATER TUBING
WPW10123444K WPW10123444K REFRIGERATOR WHEEL
12961602 12961602 REFRIGERATOR WIRE COVER
W10296541 W10296541 REFRIGERATOR WIRE COVER
WPM0104106 WPM0104106 REFRIGERATOR WIRE RETAINER
W11573362 W11573362 SCREW
12992301 12992301 SCREW
W11686675 W11686675 SCREW, SM/HE
W11658402 W11658402 SLIDE
W11227371 W11227371 SPIGOT
W11050317 W11050317 TECH SHEET (ENGLISH)
W11050318 W11050318 TECH SHEET (FRENCH)
W11298866 W11298866 USE AND CARE GUIDE
W11666461 W11666461 WATERLINE CA
W11677733 W11677733 WATERLINE, DOOR
EDR4RXD1 EDR4RXD1 WHIRLPOOL EVERYDROP 4 REFRIGERATOR WATER FILTER
