Model Image
Manufacturer

Whirlpool

Model Number

WRF560SEYB00

Description

30 Inch French Door Refrigerator With 19.5 Cu. Ft.

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10397636 WPW10397636 ADAPTOR, FREEZER (LEFT HAND)
WPW10397635 WPW10397635 ADAPTOR, FREEZER (RIGHT HAND)
W11508229 W11508229 AIR-TOWER
W11227949 W11227949 AIR-TOWER
W10311524 W10311524 ANTIBACTERIAL FILTER
W11285509 W11285509 ARM-SHUT
W10465298 W10465298 ASSEMBLY, DISPENSER WIRE
WPW10321158 WPW10321158 ASSEMBLY, EVAPORATOR
W11692845 W11692845 ASSEMBLY, FLIPPER MULLION (BLACK)
WPW10624450 WPW10624450 ASSEMBLY, FLIPPER MULLION (GREY)
WPW10624451 WPW10624451 ASSEMBLY, FLIPPER MULLION (WHITE)
W10830130 W10830130 ASSEMBLY, HANDLE (BLACK)
W10686483 W10686483 ASSEMBLY, HANDLE (BLACK)
W11459378 W11459378 ASSEMBLY, HANDLE (STAINLESS)
W10865840 W10865840 ASSEMBLY, HANDLE (WHITE)
WPW10424230 WPW10424230 ASSEMBLY, LOW VOLTAGE WIRE
8201515 8201515 ASSEMBLY, MODULE AND MOTOR
WPW10397907 WPW10397907 ASSEMBLY, PANTRY DELI PAN

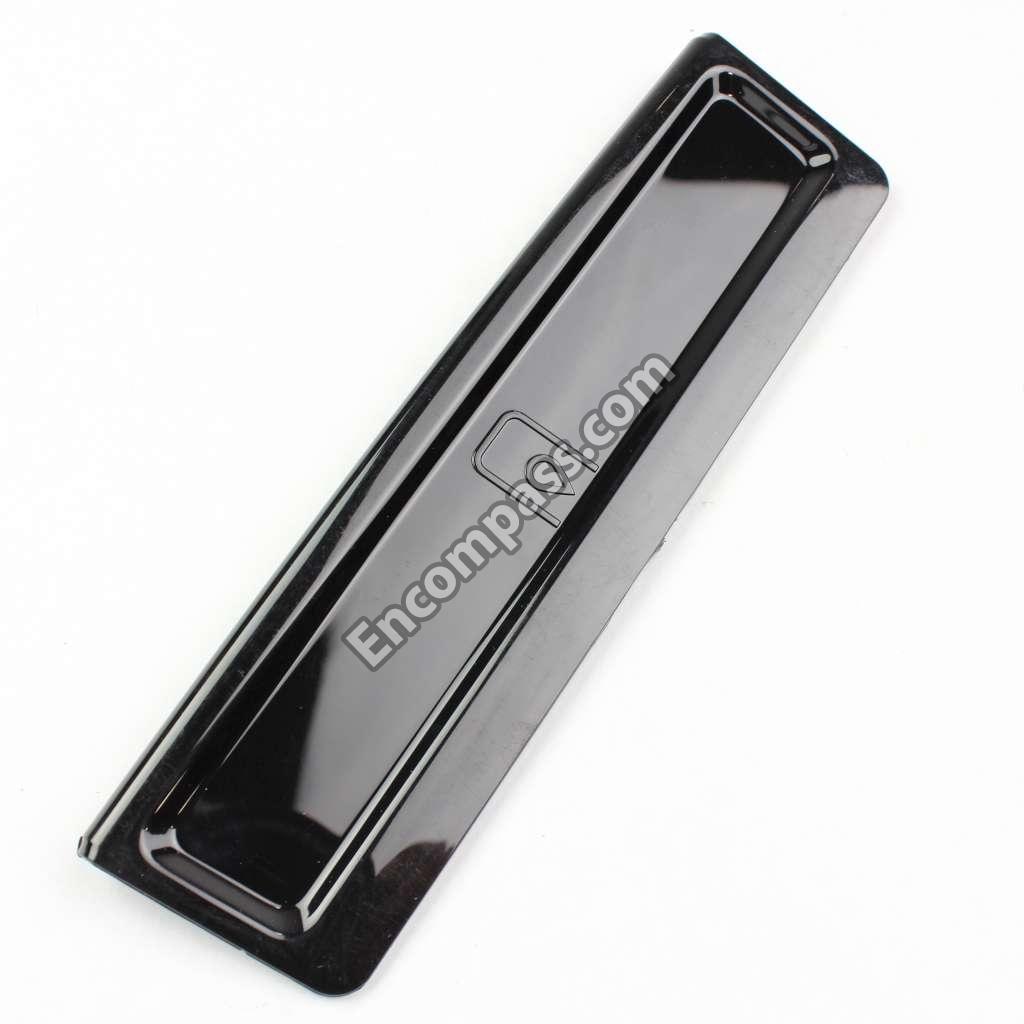

W10433546 W10433546 ASSEMBLY, SINGLE PAD (BLACK)

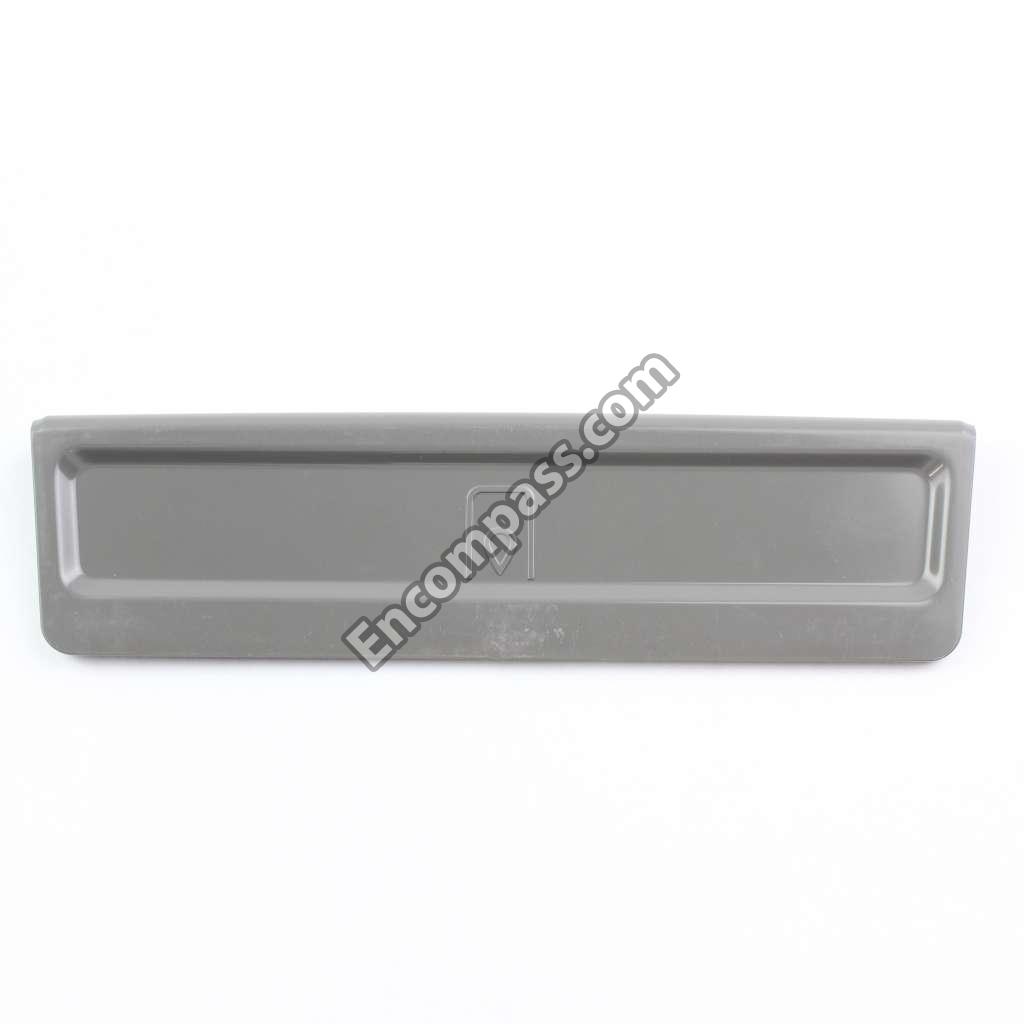

W11715936 W11715936 ASSEMBLY, SINGLE PAD (GREY)

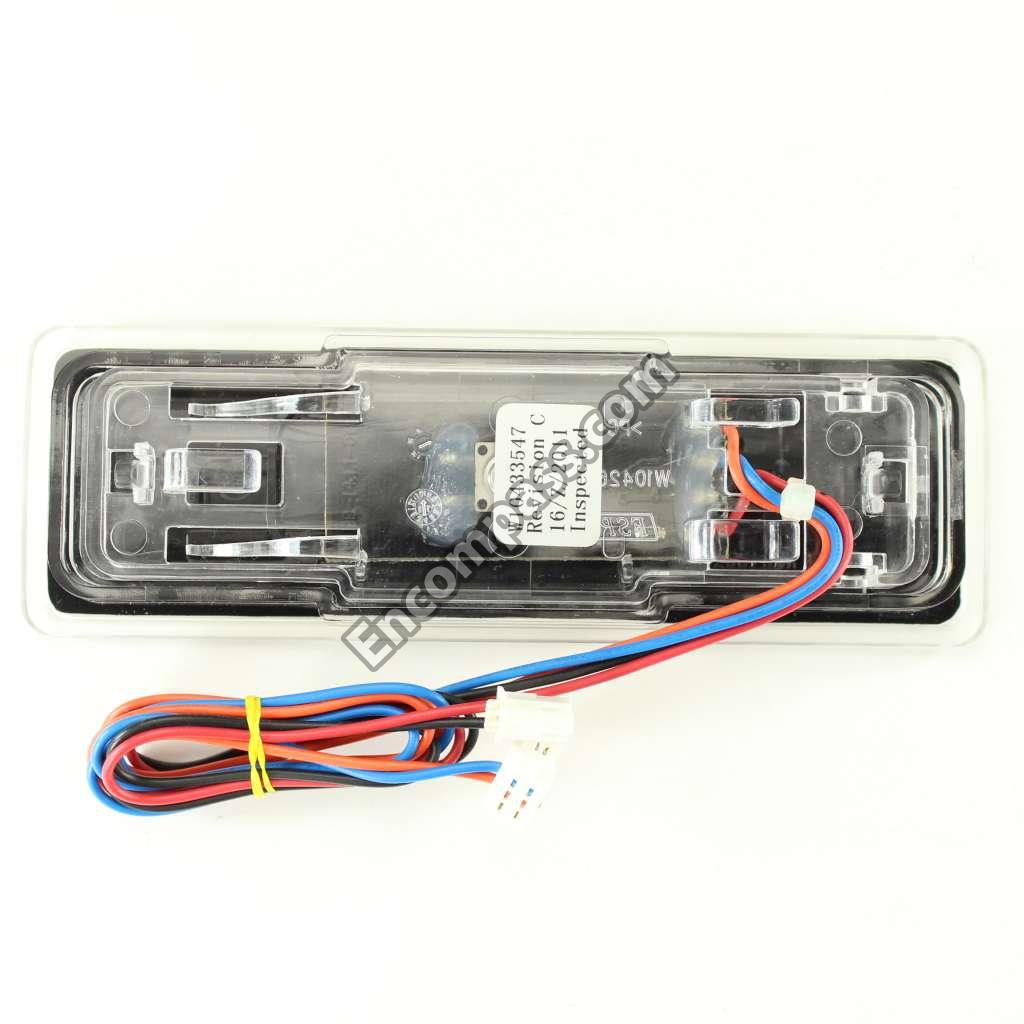

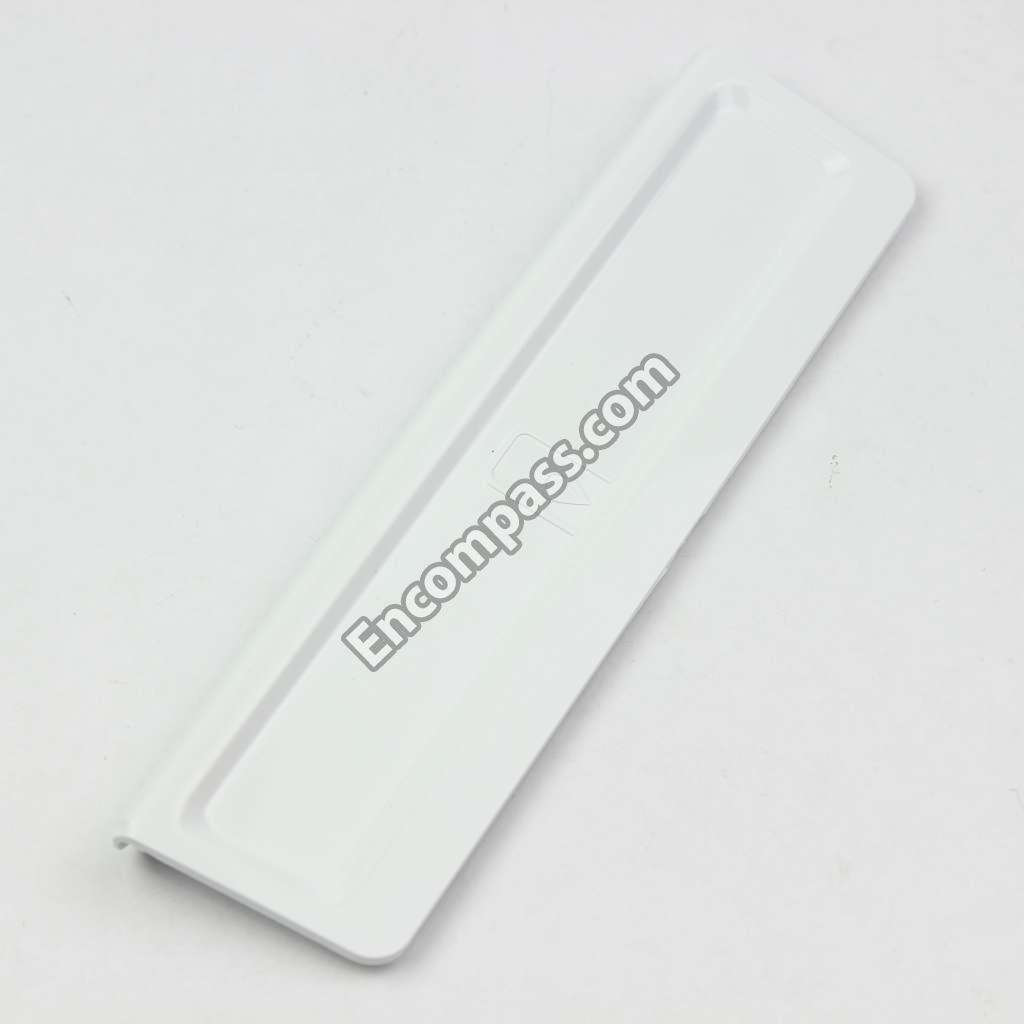

W10433547 W10433547 ASSEMBLY, SINGLE PAD (WHITE)
W11594405 W11594405 AXLE
WPW10257246 WPW10257246 AXLE, ROLLER
WPW10393264 WPW10393264 BADGE, WHIRLPOOL (GREY)
W11178521 W11178521 BADGE, WHIRLPOOL (WHITE)
WP2315541 WP2315541 BAFFLE-AIR
W10300116 W10300116 BASEPLATE
WPW10317289 WPW10317289 BASKET, LOWER FREEZER
WPW10308869 WPW10308869 BIN, MEDIUM

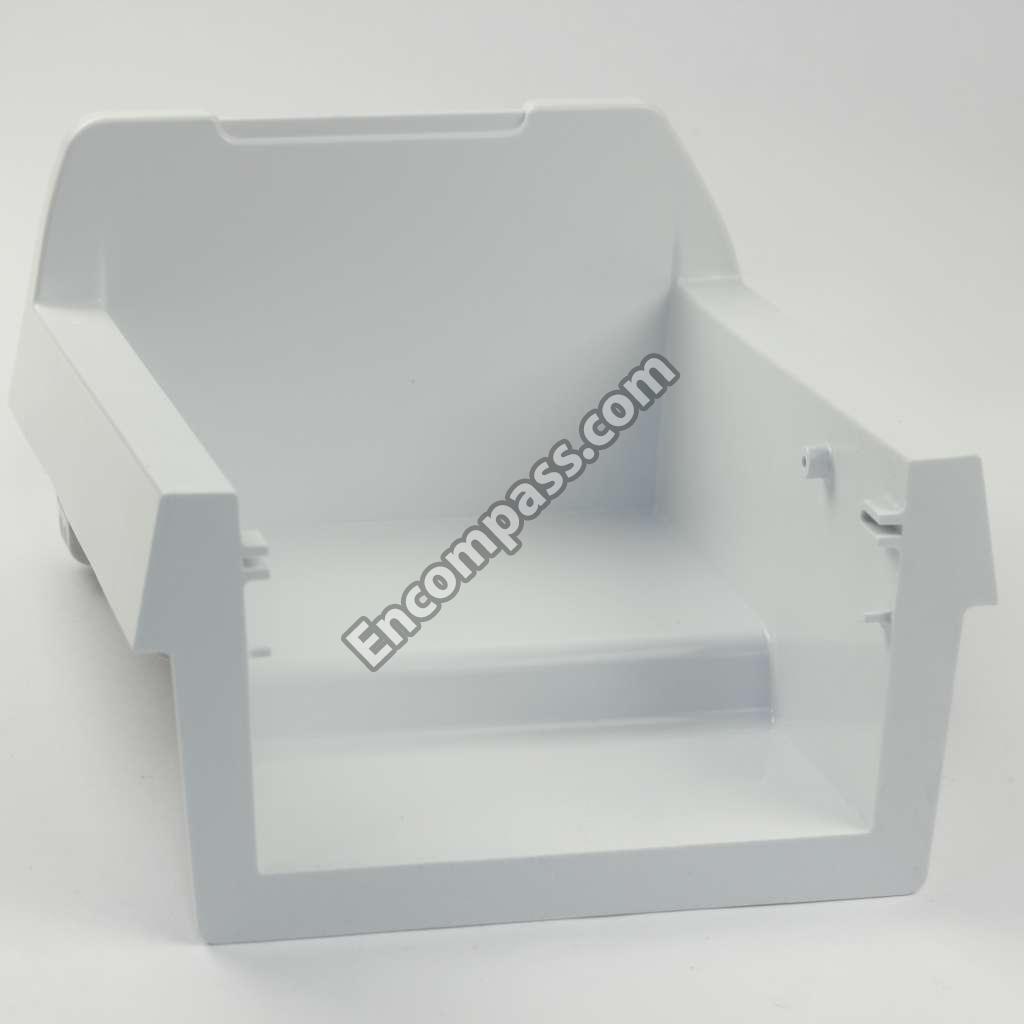

WPW10326335 WPW10326335 BIN, SHALLOW
WPW10139483 WPW10139483 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
W11745278 W11745278 BRACKET
WP2183805 WP2183805 BRACKET, DOOR STOP (LEFT HAND)
WPW10397055 WPW10397055 BRACKET, DOOR STOP (RIGHT HAND)
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
W10847867 W10847867 BRACKET, WATER VALVE

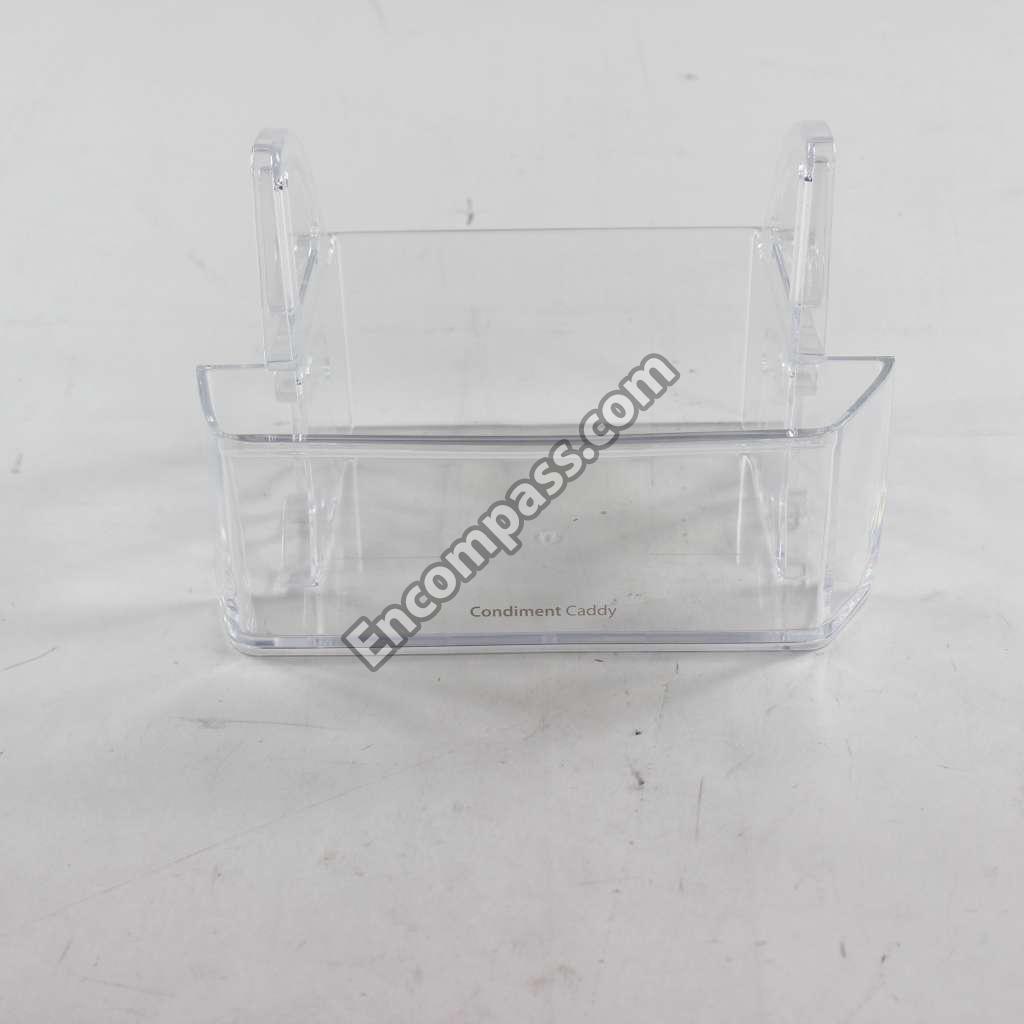

W11106787 W11106787 CADDY, CONDIMENT
WPW10470155 WPW10470155 CAM-DOOR
WPW10313918 WPW10313918 CAMERA LENS-LIGHT
WPW10662129 WPW10662129 CAPACITOR
549193 549193 CLAMP, POWER CORD
WP488366 WP488366 CLAMP, TUBE
WP488878 WP488878 CLAMP, TUBE
W10296661 W10296661 CLIP, BOTTOM COVER
W10683556 W10683556 CLIP, CONDENSER
2210495 2210495 CLIP, WATER VALVE
WPW10277361 WPW10277361 COLLAR, GEAR
WPW10317224 WPW10317224 COMPARTMENT, UTILITY
WPW10466675 WPW10466675 COMPRESSOR
WPW10342567 WPW10342567 CONDENSER
WPW10271543 WPW10271543 CONNECTOR
WP2300868 WP2300868 CONNECTOR, UNION

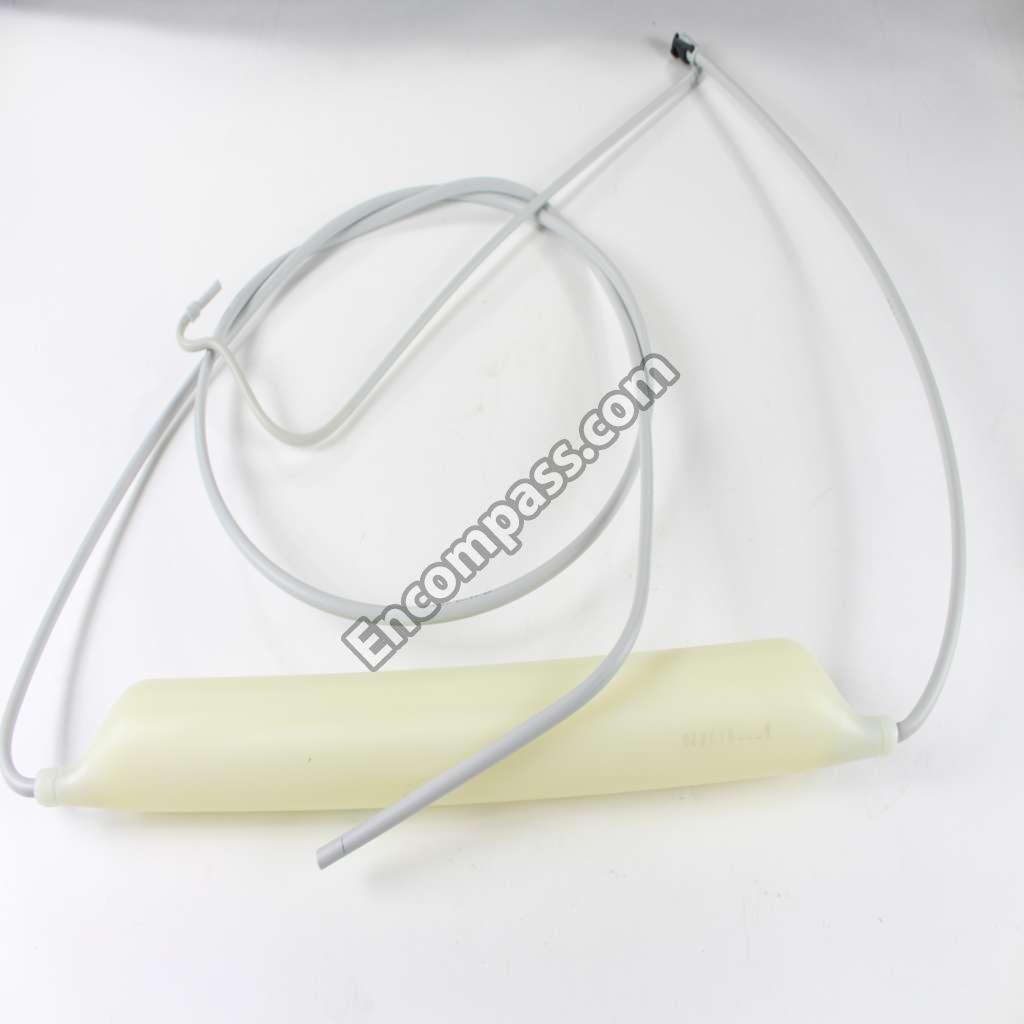

W10798439 W10798439 CONTAINER, WATER RESERVOIR

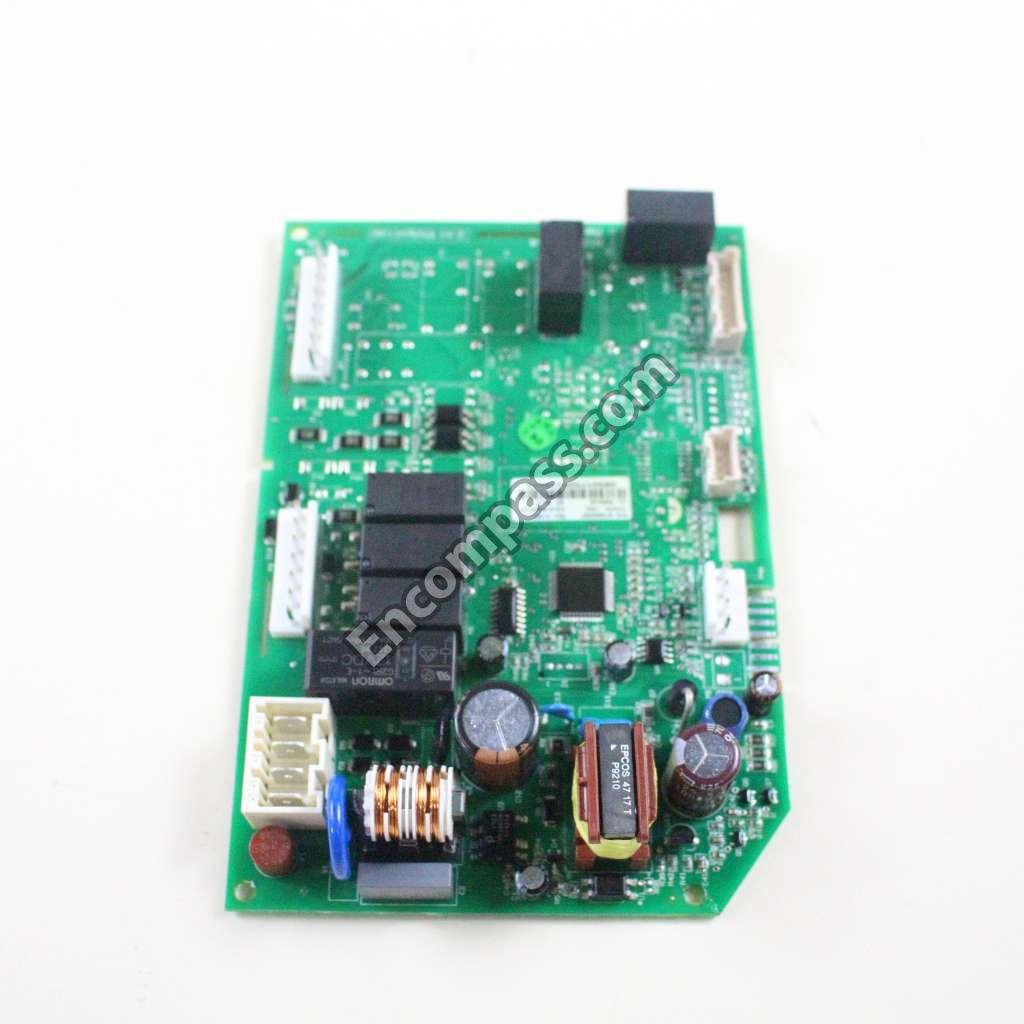

W11034366 W11034366 CONTROL BOARD
W11590562 W11590562 CONTROL, HUMIDITY

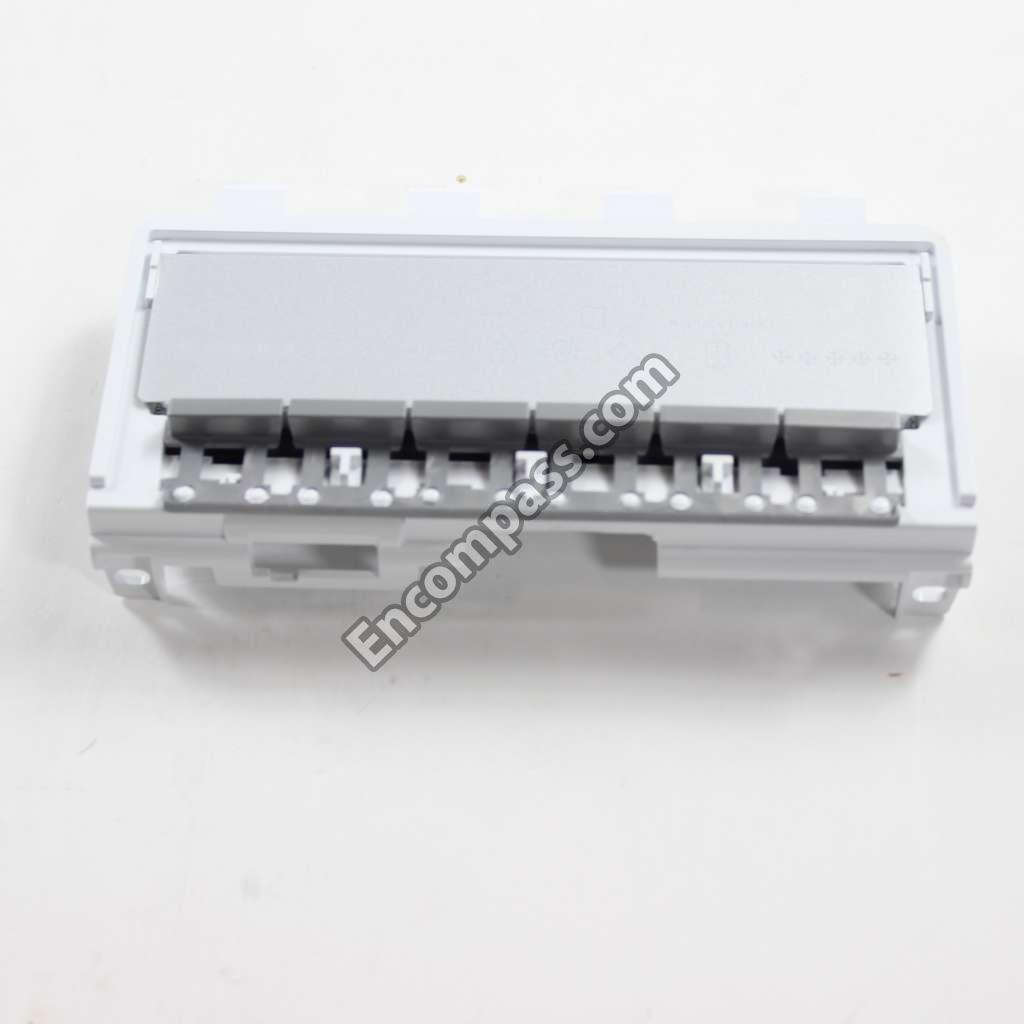

W10411411 W10411411 CONTROL, TEMPERATURE
WPW10356895 WPW10356895 COVER
WPW10425252 WPW10425252 COVER
W10413160 W10413160 COVER
W10404442 W10404442 COVER
W11133099 W11133099 COVER
W10336009 W10336009 COVER
WPW10513681 WPW10513681 COVER GLASS, PANTRY
W10349514 W10349514 COVER, CONDENSER BOTTOM
W10313215 W10313215 COVER, ELECTRONIC CONTROL
W10300900 W10300900 COVER, EVAPORATOR
W10465771 W10465771 COVER, HINGE (LEFT HAND (BLACK))
W10465768 W10465768 COVER, HINGE (LEFT HAND (GREY))
W10465765 W10465765 COVER, HINGE (LEFT HAND (WHITE))
W10465770 W10465770 COVER, HINGE (RIGHT HAND (BLACK))
W10406928 W10406928 COVER, HINGE (RIGHT HAND (GREY))
W10465764 W10465764 COVER, HINGE (RIGHT HAND (WHITE))
W10356029 W10356029 COVER, SEPARATOR (CHROMIUM FROST)
W10353930 W10353930 COVER, TOE GRILLE (BLACK)
WPW10353932 WPW10353932 COVER, TOE GRILLE (GREY)
WPW10339257 WPW10339257 COVER, TOE GRILLE (WHITE)
W10636716 W10636716 COVER, UNIT
WPW10306392 WPW10306392 COVER, WATER FILTER
W10459385 W10459385 COVER-FRNT
W10122561 W10122561 CUP, WATER FILL
WPW10257451 WPW10257451 DAMPER

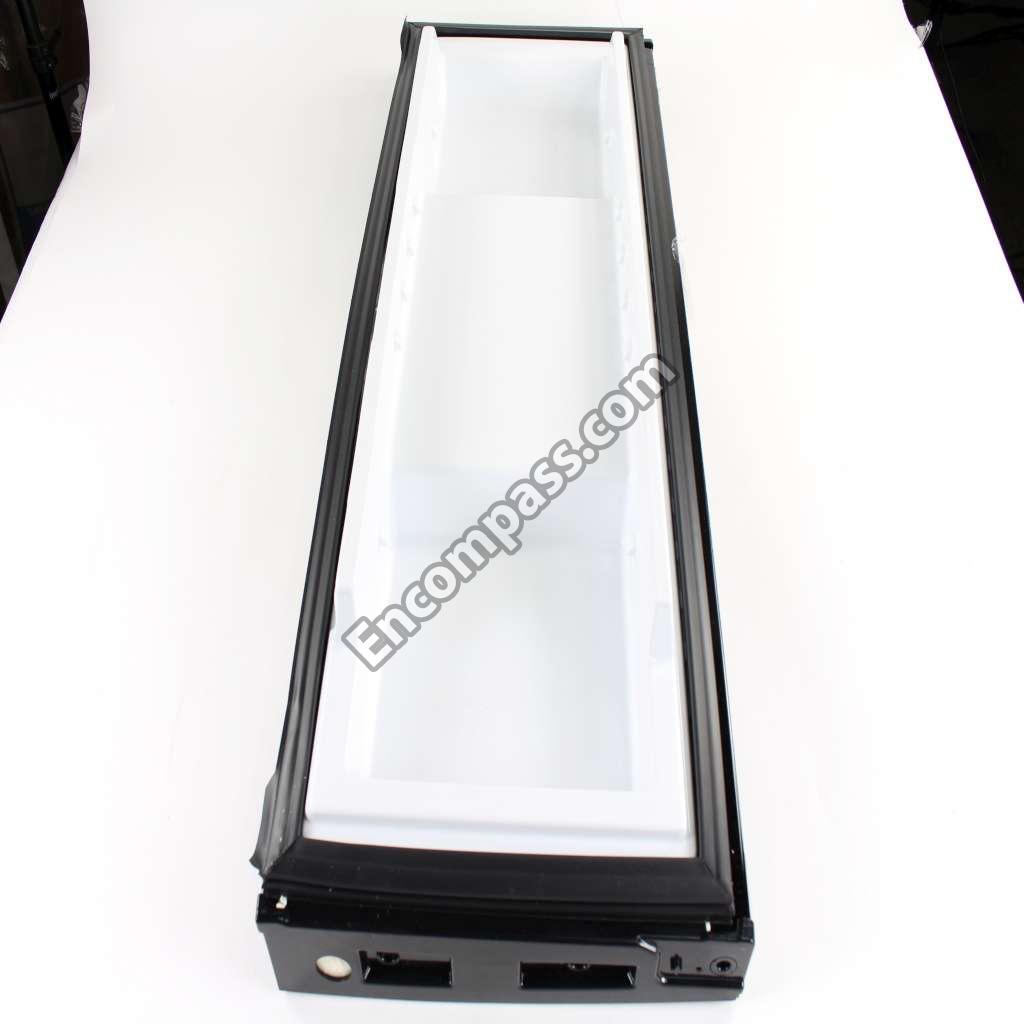

LW10406595 LW10406595 DOOR ASSEMBLY BL
LW10406934 LW10406934 DOOR ASSEMBLY MS
LW10359401 LW10359401 DOOR ASSEMBLY WH
WPW10521409 WPW10521409 DOOR HINGE
WPW10521411 WPW10521411 DOOR HINGE
LW10433607 LW10433607 DOOR, FREEZER (INCLUDES ITEMS 2 & 3) (BLACK)
LW10433608 LW10433608 DOOR, FREEZER (INCLUDES ITEMS 2 & 3) (STAINLESS)
LW10433606 LW10433606 DOOR, FREEZER (INCLUDES ITEMS 2 & 3) (WHITE)
LW10413518 LW10413518 DOOR, REFRIGERATOR (INCLUDES #8) (RIGHT HAND (BLACK))
LW10413519 LW10413519 DOOR, REFRIGERATOR (INCLUDES #8) (RIGHT HAND (STAINLESS))
LW10353181 LW10353181 DOOR, REFRIGERATOR (INCLUDES #8) (RIGHT HAND (WHITE))
WPW10143759 WPW10143759 DRIER
WP627843 WP627843 EJECTOR
2323186 2323186 ENCLOSURE, ELECTRONIC CONTROL
WP2315539 WP2315539 EVAPORATOR MOTOR

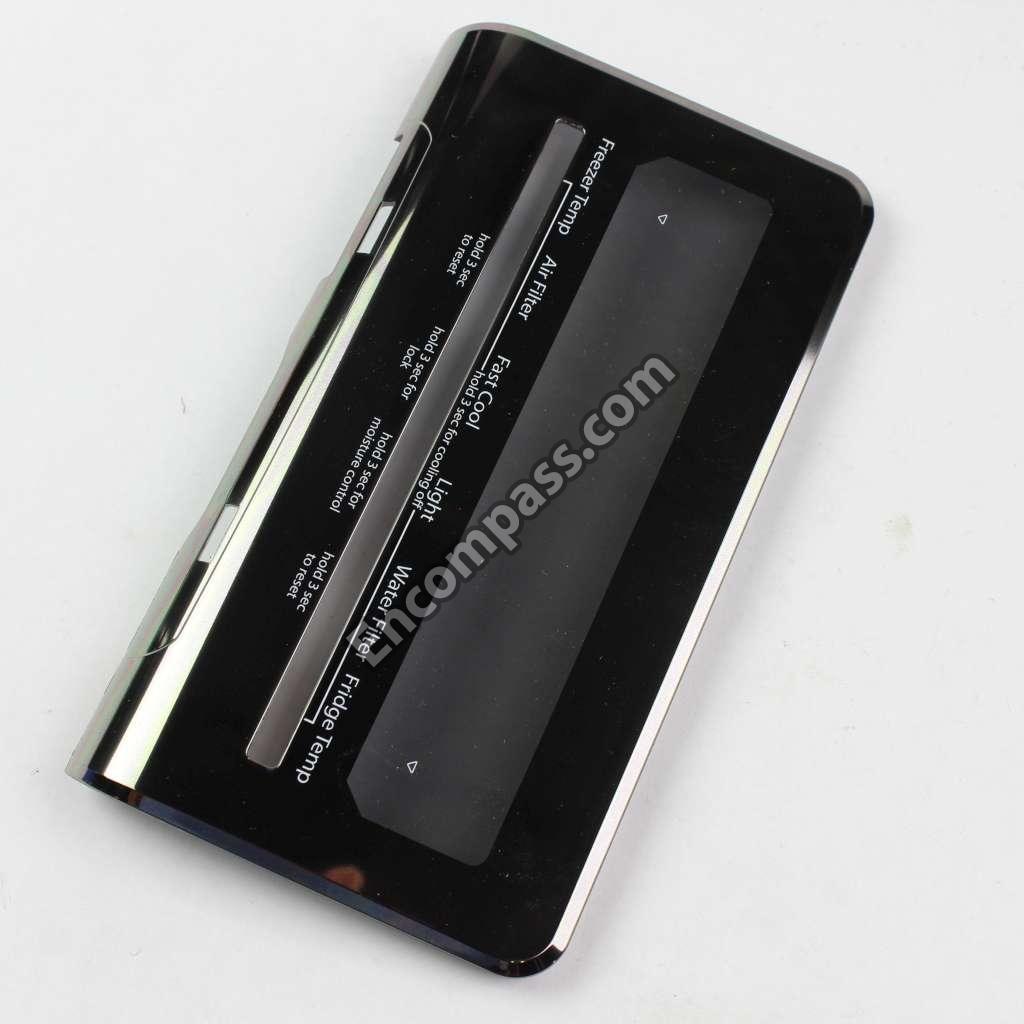

W10435576 W10435576 FASCIA, SPARSH (BLACK)
W10435575 W10435575 FASCIA, SPARSH (SILVER MIRROR)

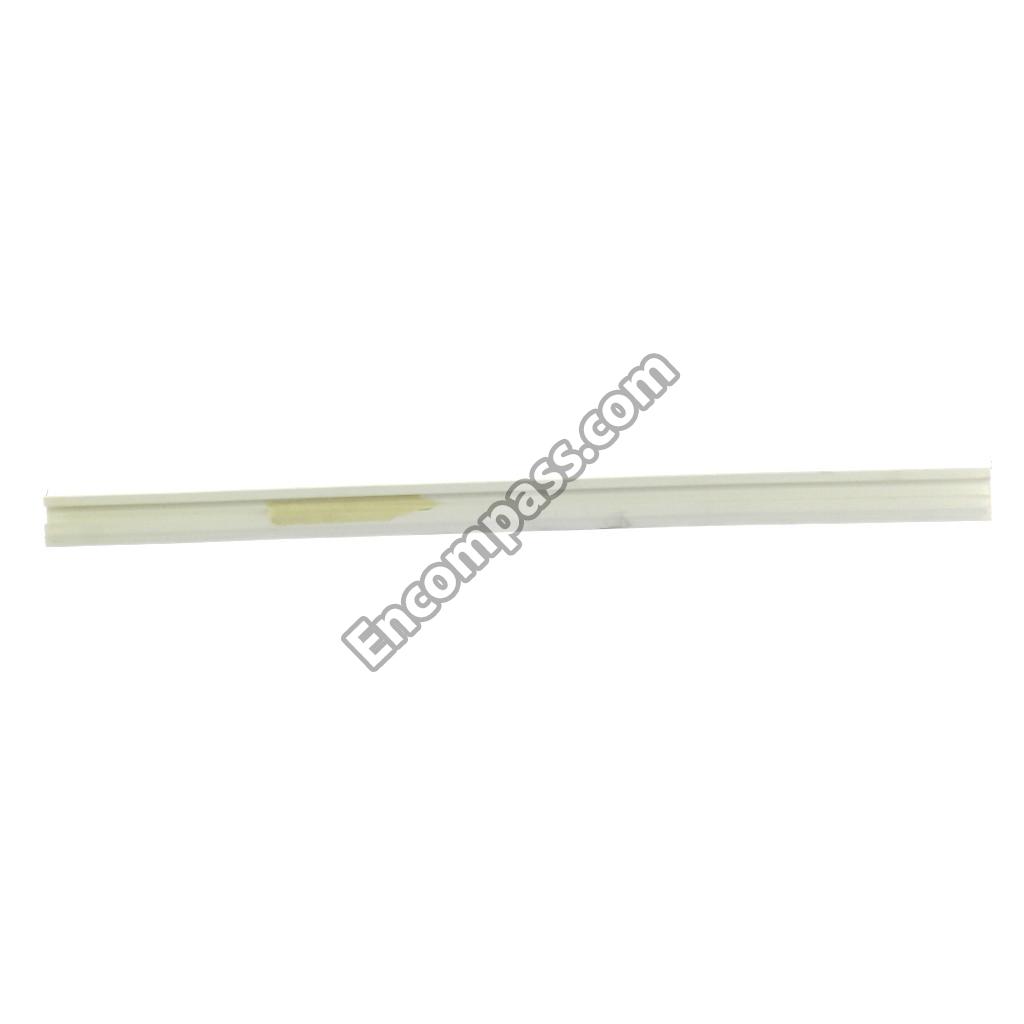

W10851579 W10851579 FILLER
W11252732 W11252732 FILLER, CORNER (BLACK)
WPW10283959 WPW10283959 FILLER, CORNER (WHITE)
EDR1RXD1 EDR1RXD1 FILTER, WATER
WP2196157 WP2196157 FITTING
WPW10555437 WPW10555437 FREEZER BIN, UPPER
WPW10289690 WPW10289690 FRONT COVER
WP2254360 WP2254360 GASKET
W10836785 W10836785 GASKET ASSEMBLY
W10460612 W10460612 GASKET, DOOR (BEIGE)
W10460610 W10460610 GASKET, DOOR (BLACK)
W11625017 W11625017 GASKET, DOOR (BLACK)
WPW10460580 WPW10460580 GASKET, DOOR (GREY)
W10460611 W10460611 GASKET, DOOR (WHITE)
WP1106508 WP1106508 GASKET, SEAL
WPW10486290 WPW10486290 GLASS SHELF
WPW10330850 WPW10330850 GRILLE
WPW10353933 WPW10353933 GRILLE (BLACK)
WPW10353935 WPW10353935 GRILLE (GREY)
WPW10300127 WPW10300127 GRILLE (WHITE)
WPW10169124 WPW10169124 GROMMET
WP2264462 WP2264462 GROMMET
W10852725 W10852725 GROMMET, CONDENSER
W10830136 W10830136 HANDLE
W10830683 W10830683 HANDLE
W10309399 W10309399 HARNESS, WIRING
W10421353 W10421353 HARNS-WIRE
WPW10436849 WPW10436849 HEATER, DEFROST
W10546298 W10546298 HINGE, TOP LEFT HAND
W11573371 W11573371 HINGE, TOP RIGHT HAND
W11605789 W11605789 HOLDER, PRODUCE FILTER

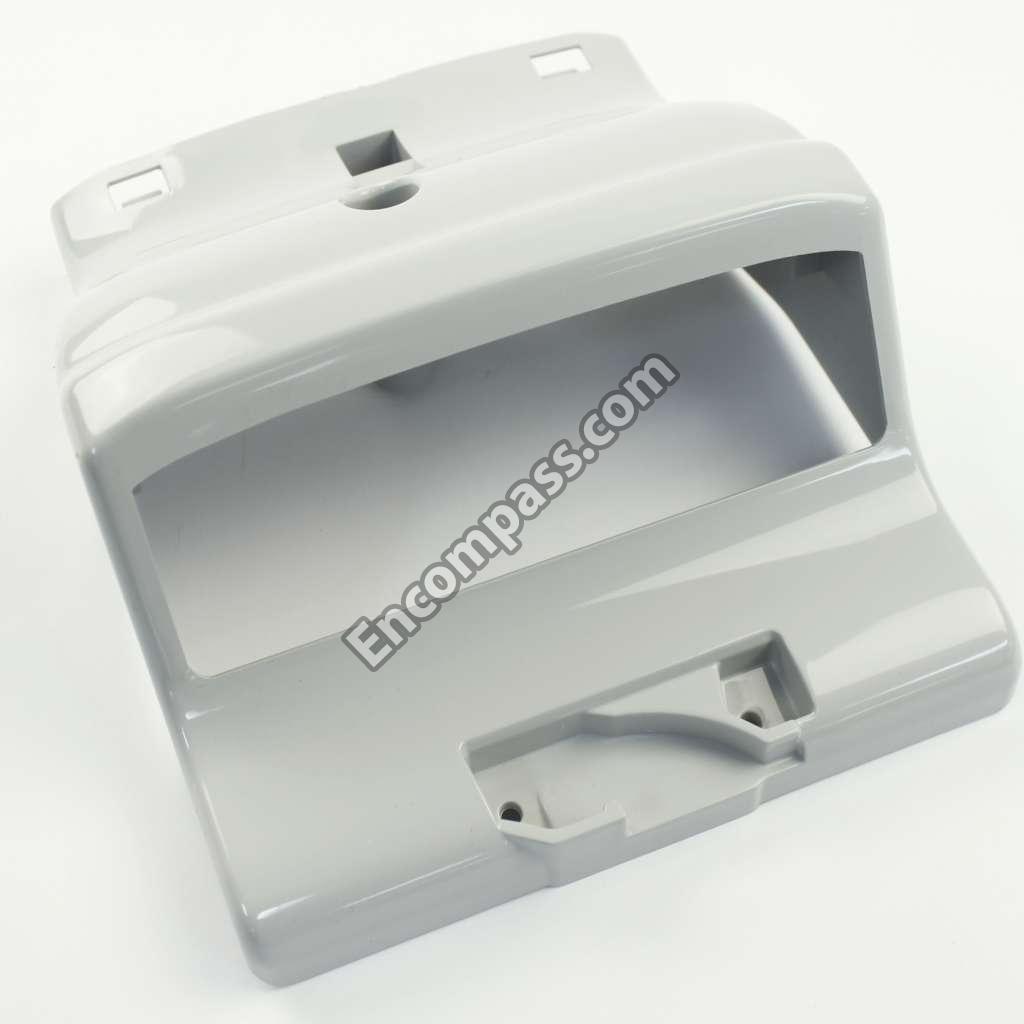

WPW10314204 WPW10314204 HOUSING
WPW10313917 WPW10313917 HOUSING
WPW10453580 WPW10453580 HOUSING
W10469878 W10469878 HOUSING
W10844267 W10844267 HOUSING, WATER FILTER
4317943 4317943 ICEMAKER ASSEMBLY (COMPLETE)
2225623 2225623 ICEMAKER SERVICE SHEET
4387491 4387491 INSERT, TUBE
WPW10141622 WPW10141622 LEVELER

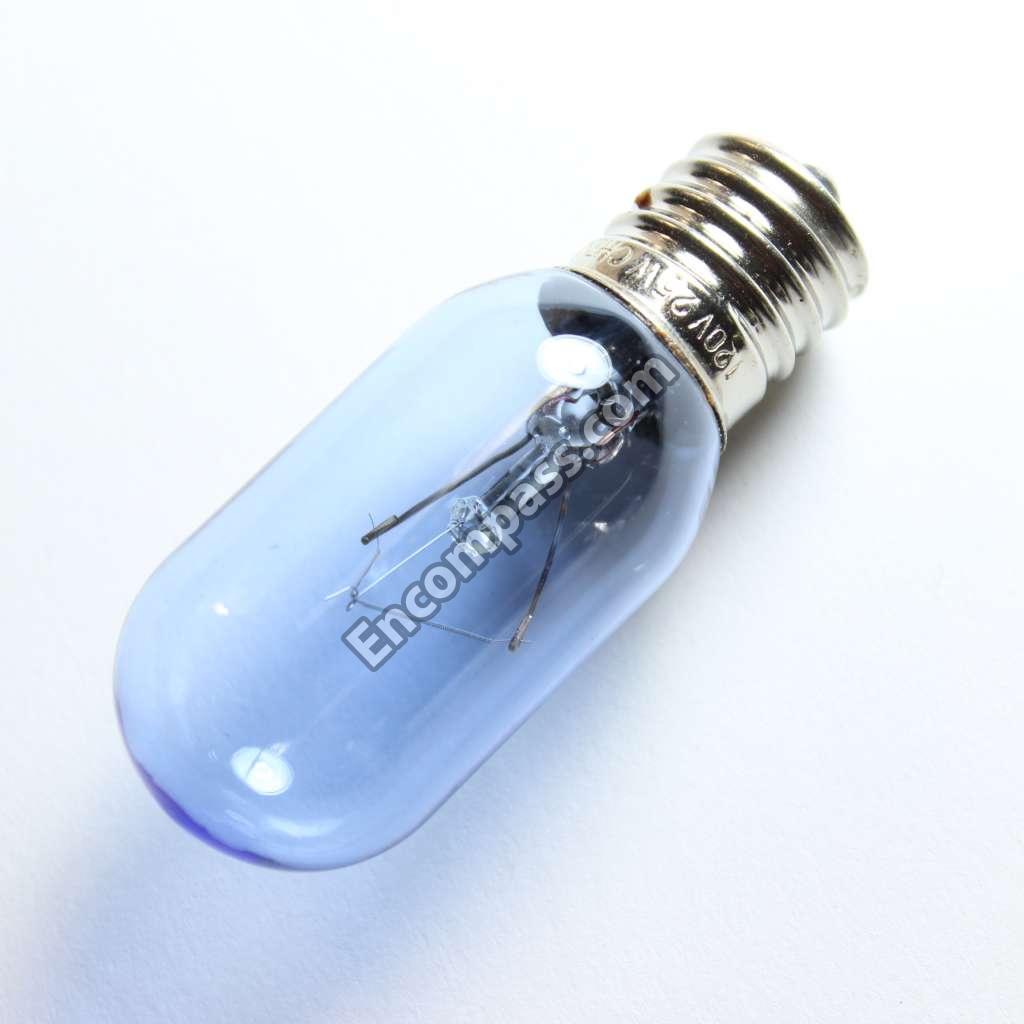

WPW10406725 WPW10406725 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" X 48")
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2")
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS, TAPE, VINYL (3/4 X 108")
WPW10360497 WPW10360497 MODULE
WP2188874 WP2188874 MOTOR-COND
W10850162 W10850162 ORIFICE
799344 799344 PAINT, BULK (1 QT. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10370327 WPW10370327 PAN, CRISPER (16")
WPW10317184 WPW10317184 PAN, CRISPER (8")
WPW10378263 WPW10378263 PAN, ICE
W10890667 W10890667 PAN-DRIP
N_P N_P RAIL, CENTER (NOT SERVICED)
W11581314 W11581314 RAIL, PANTRY (LEFT HAND)
W11210990 W11210990 RAIL, PANTRY (RIGHT HAND)
W10356017 W10356017 RING, TRIM
W11164152 W11164152 ROLLER
WPW10359256 WPW10359256 ROLLER, FRONT (LEFT HAND)
WPW10359255 WPW10359255 ROLLER, FRONT (RIGHT HAND)
WPW10475495 WPW10475495 ROLLER-CAB
WP489128 WP489128 SCREW
WP488163 WP488163 SCREW
WP488729 WP488729 SCREW
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
W10854958 W10854958 SCREW
W11501418 W11501418 SCREW
8533917 8533917 SCREW
WPW10171469 WPW10171469 SCREW
WP489464 WP489464 SCREW
WP489478 WP489478 SCREW
WP489427 WP489427 SCREW
WP681249 WP681249 SCREW
489136 489136 SCREW
WPW10068250 WPW10068250 SCREW
WP488787 WP488787 SCREW
WP503695 WP503695 SEALER
W11616802 W11616802 SEPARATOR
W10371538 W10371538 SHAFT, RACK
WPW10313893 WPW10313893 SHELF, 2/3 FLIP
WPW10502933 WPW10502933 SHELF, 2/3 FLIP
WPW10314195 WPW10314195 SHIELD
WPW10450363 WPW10450363 SHIM, CENTER HINGE
WPW10191429 WPW10191429 SOCKET
WP2305235 WP2305235 SPIGOT

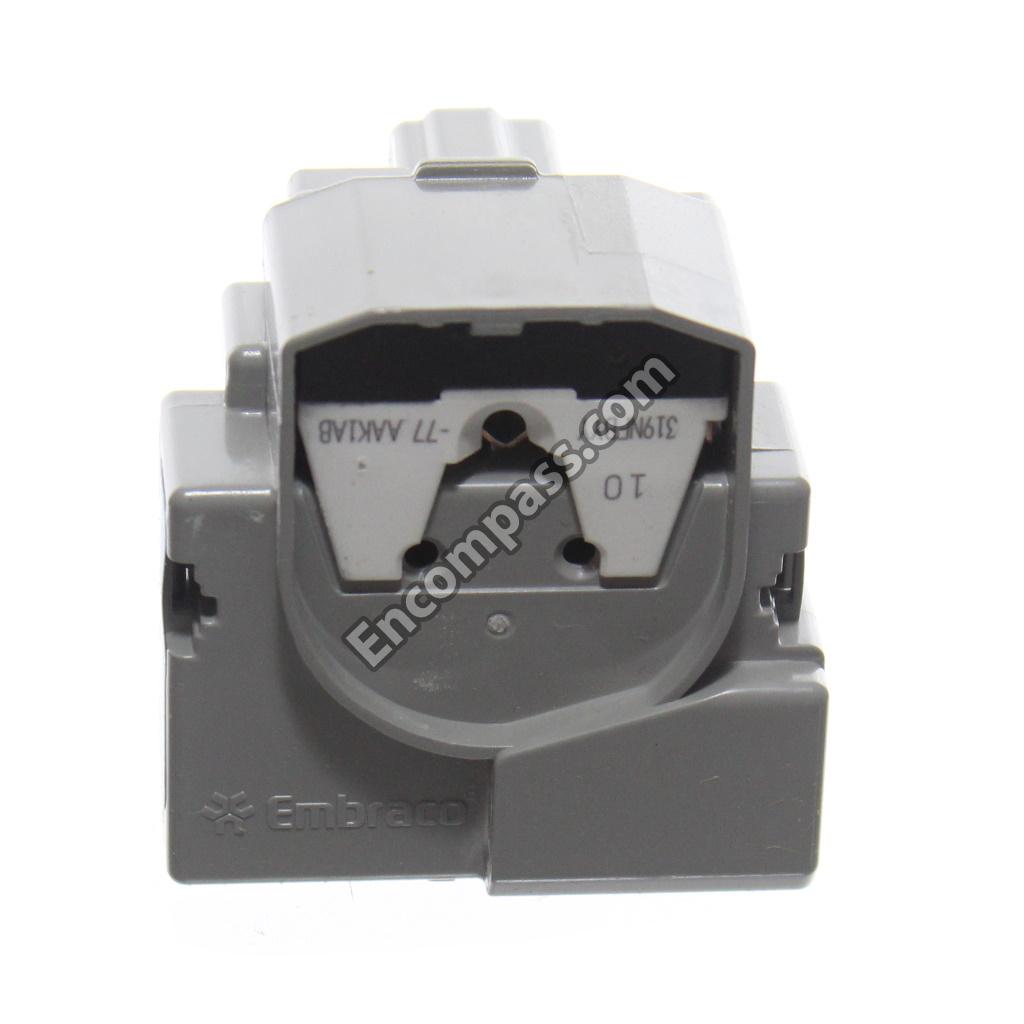

WPW10194431 WPW10194431 START-DEV
W10204187 W10204187 STRAP, BALE
W10236396 W10236396 STRAP, COMPRESSOR
WPW10122563 WPW10122563 STRIPPER, ICE

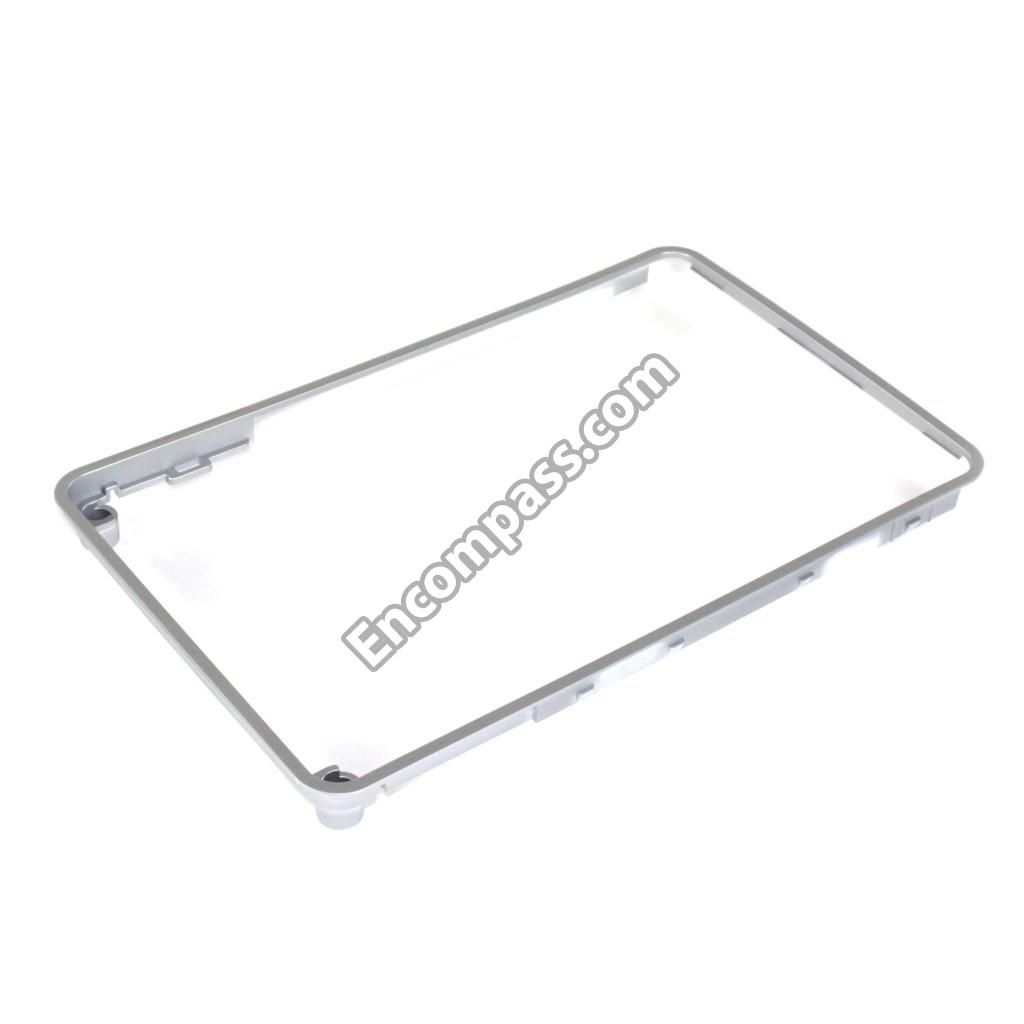

W10397911 W10397911 SUPPORT ASSEMBLY, PANTRY COVER
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
WPW10383615 WPW10383615 THERMISTOR
W11189115 W11189115 THIMBLE (BLACK)
W11544568 W11544568 THIMBLE (WHITE)
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WPW10468557 WPW10468557 TRACK RAIL, CENTER
WPW10468555 WPW10468555 TRACK RAIL, LEFT HAND
WPW10468556 WPW10468556 TRACK RAIL, RIGHT HAND
WPW10356019 WPW10356019 TRAY-DRIP
WPW10356018 WPW10356018 TRAY-DRIP
WPW10300448 WPW10300448 TRAY-DRIP
W11190084 W11190084 TUBE, DRAIN
WPW10449619 WPW10449619 TUBE, FILTER INLET
W10801011 W10801011 TUBE, FILTER OUTLET
2154109 2154109 TUBE, PROCESS

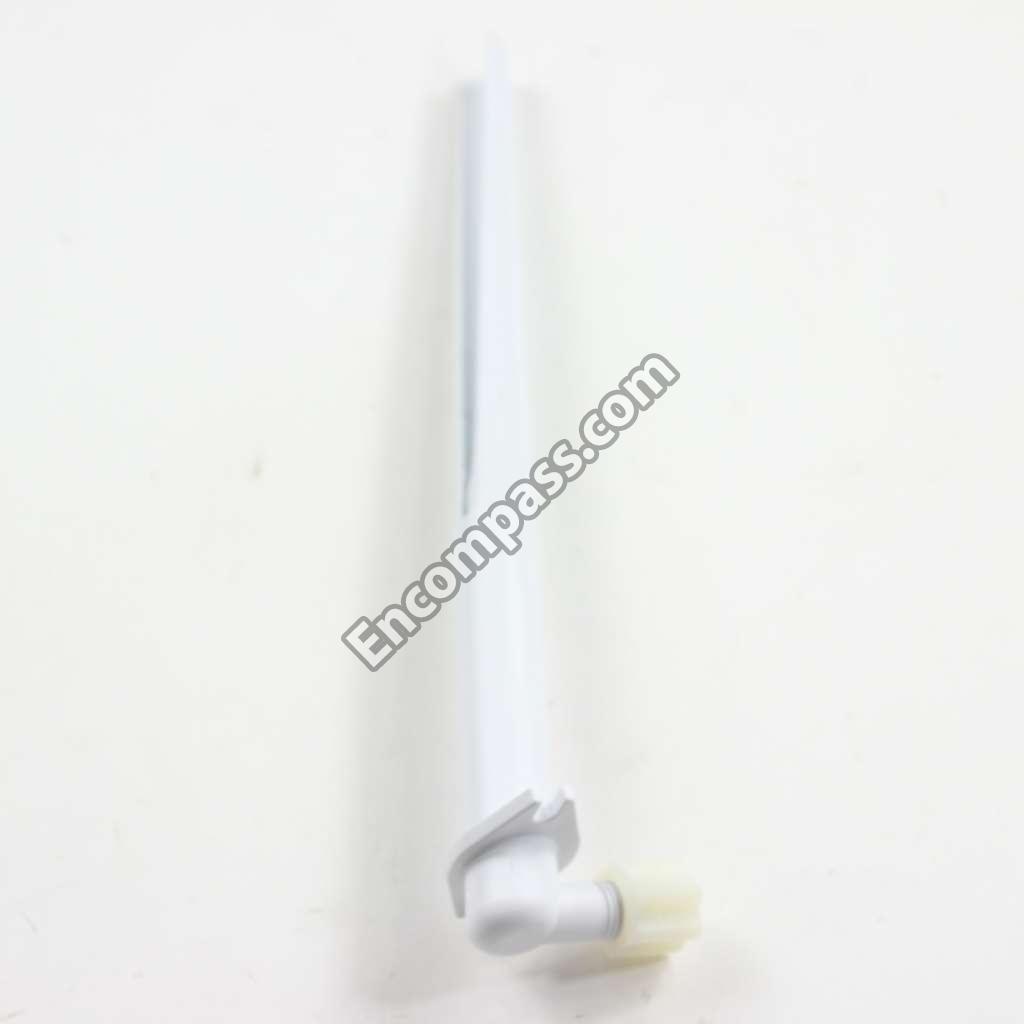

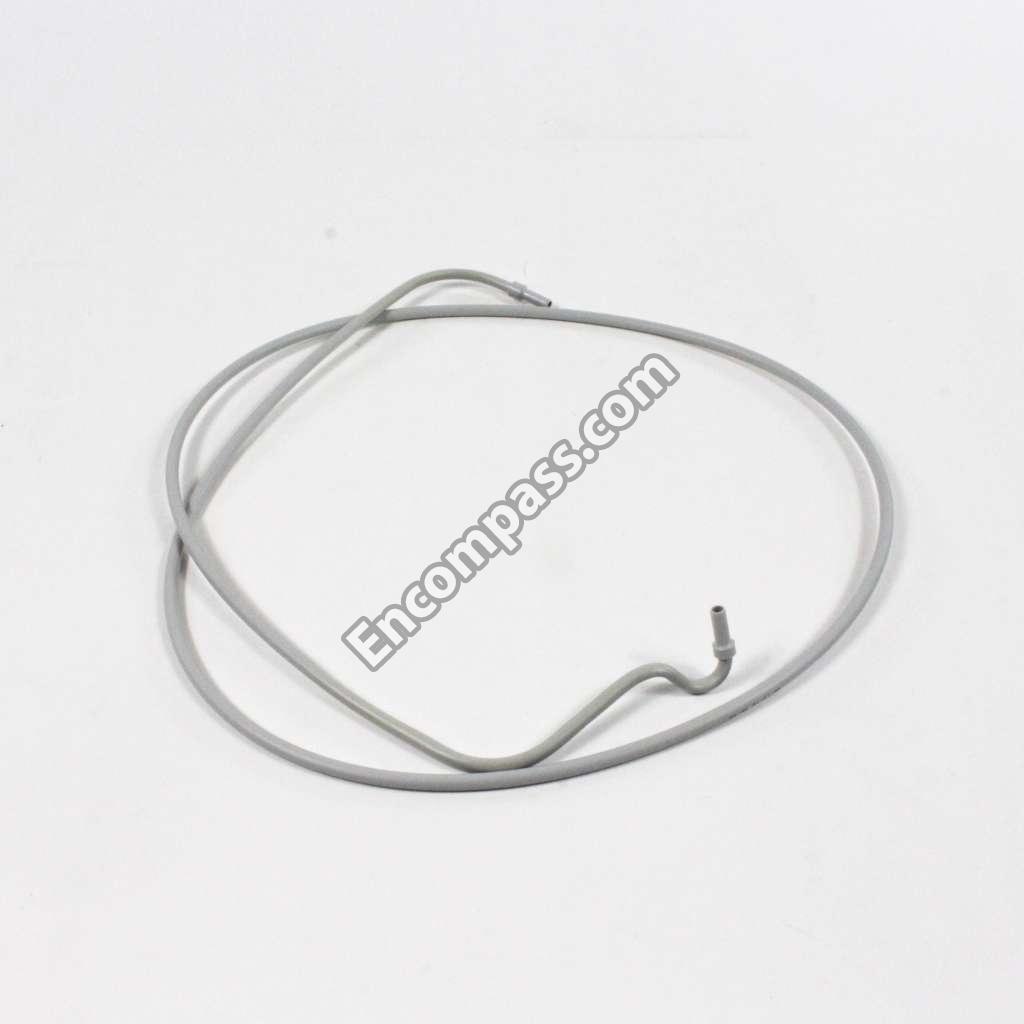

WPW10238092 WPW10238092 TUBE, WATER
WP2174755 WP2174755 TUBE, WATER INLET
W11082783 W11082783 UI ASSEMBLY, SPARSH
W10360467 W10360467 USE AND CARE GUIDE
WP978025 WP978025 VALVE

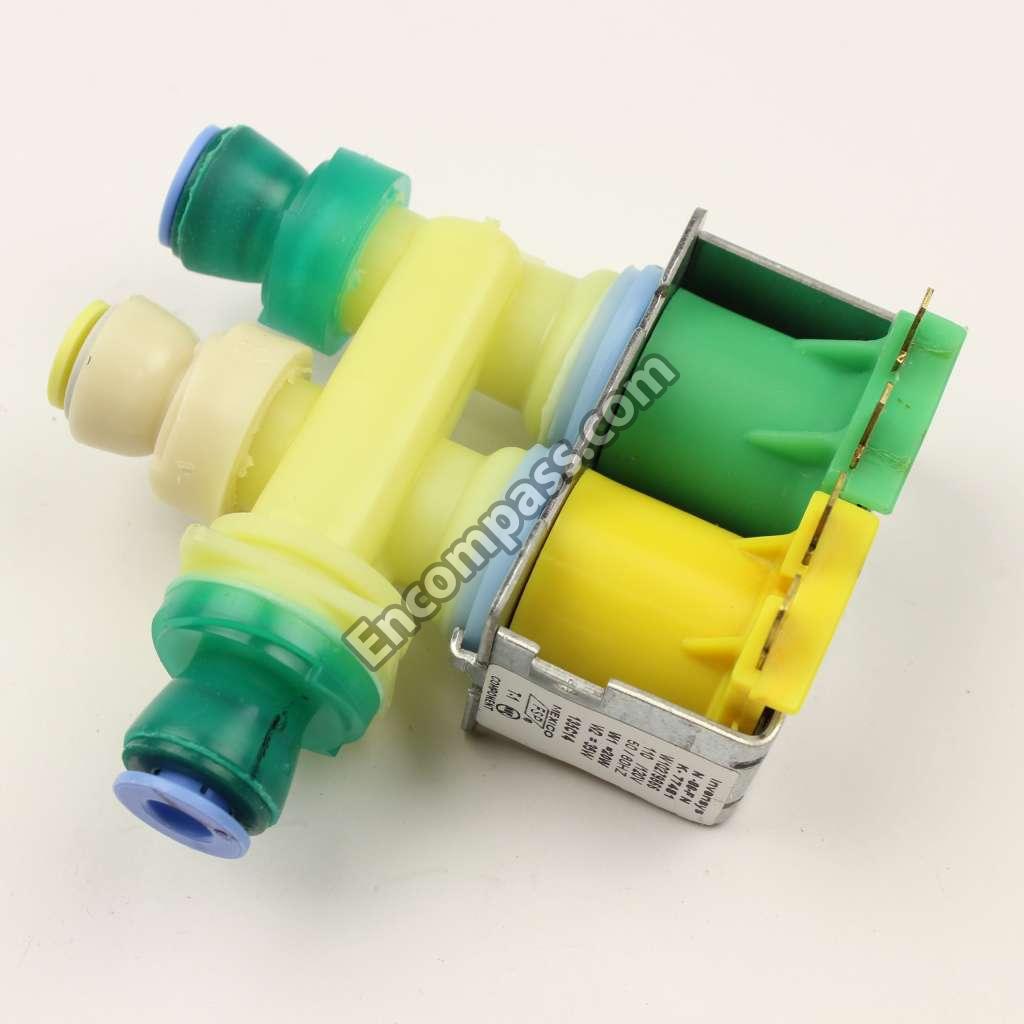

WPW10279866 WPW10279866 VALVE SOLENOID (ASSEMBLY, DUAL VALVE)
WPW10238100 WPW10238100 VALVE SOLENOID (VALVE, INLET)
978028 978028 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978026 978026 VALVE, ACCESS
876764 876764 VALVE, ACCESS
W10854438 W10854438 WIRE HARNESS
WPW10283809 WPW10283809 WIRE HARNESS
