Model Image
Manufacturer

Whirlpool

Model Number

WRFC9636RV00

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
W11506625 W11506625 3 NK MS 00 (3-WAY VALVE TO RC CAPILLARY TUBE - CUT/SPLICE NEAR OLD VALVE BODY)
W11504450 W11504450 4/1.8 NR MS 00 (CAPILLARY TUBE TO EVAPORATOR)
W11506623 W11506623 5 NK MS 00 (HIGH SIDE TO CONDENSER)
W11504445 W11504445 5/4 NR MS 00 (HEAT LOOP TO CONDENSER)
W11506621 W11506621 6 NK MS 00 (CHARGING TUBE TO COMPRESSOR)
W11504431 W11504431 7/5 NR MS 00 (COMPRESSOR TO CONDENSER)
W11506620 W11506620 8 NK AL 00 (SUCTION LINE TO EVAPORATOR)
W11506619 W11506619 8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
W11504415 W11504415 8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR)

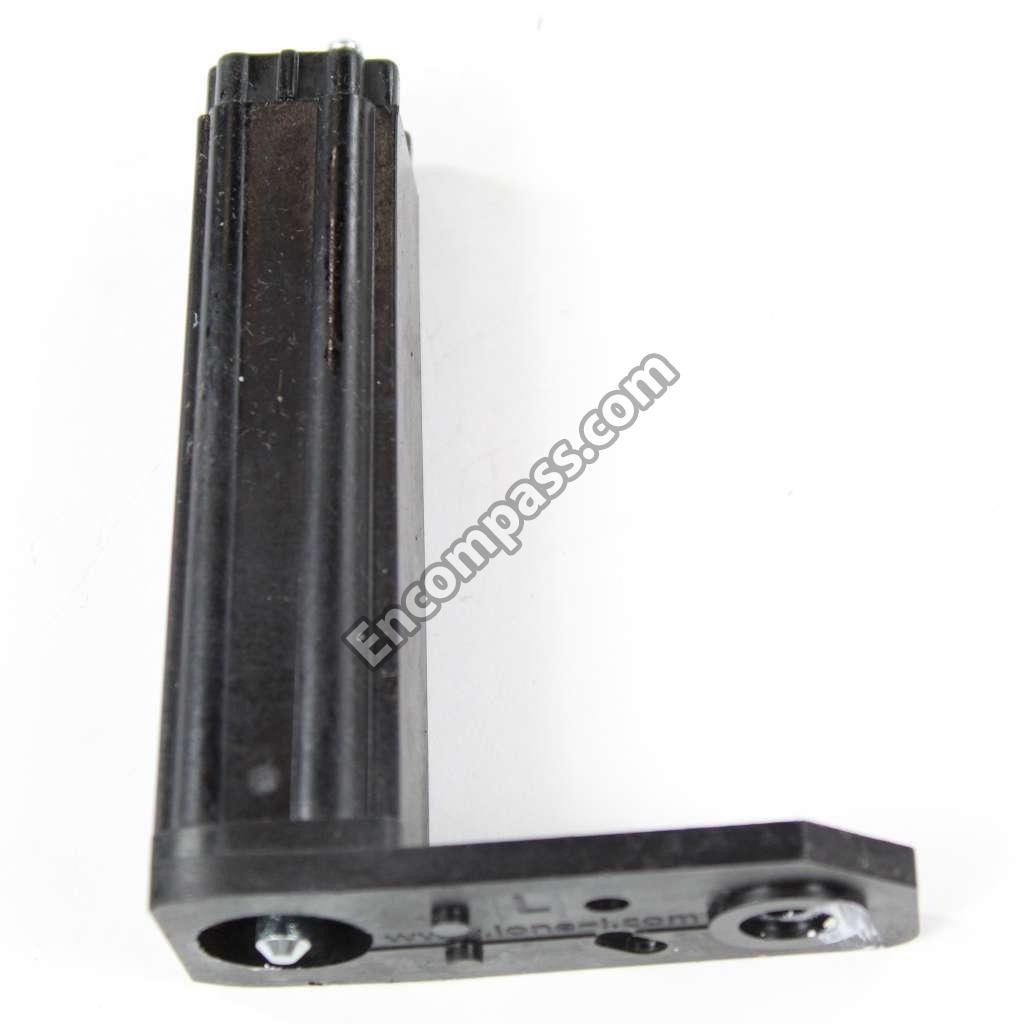

W11114790 W11114790 ADAPTER ASSEMBLY-FC.SLIDE (LEFT HAND)

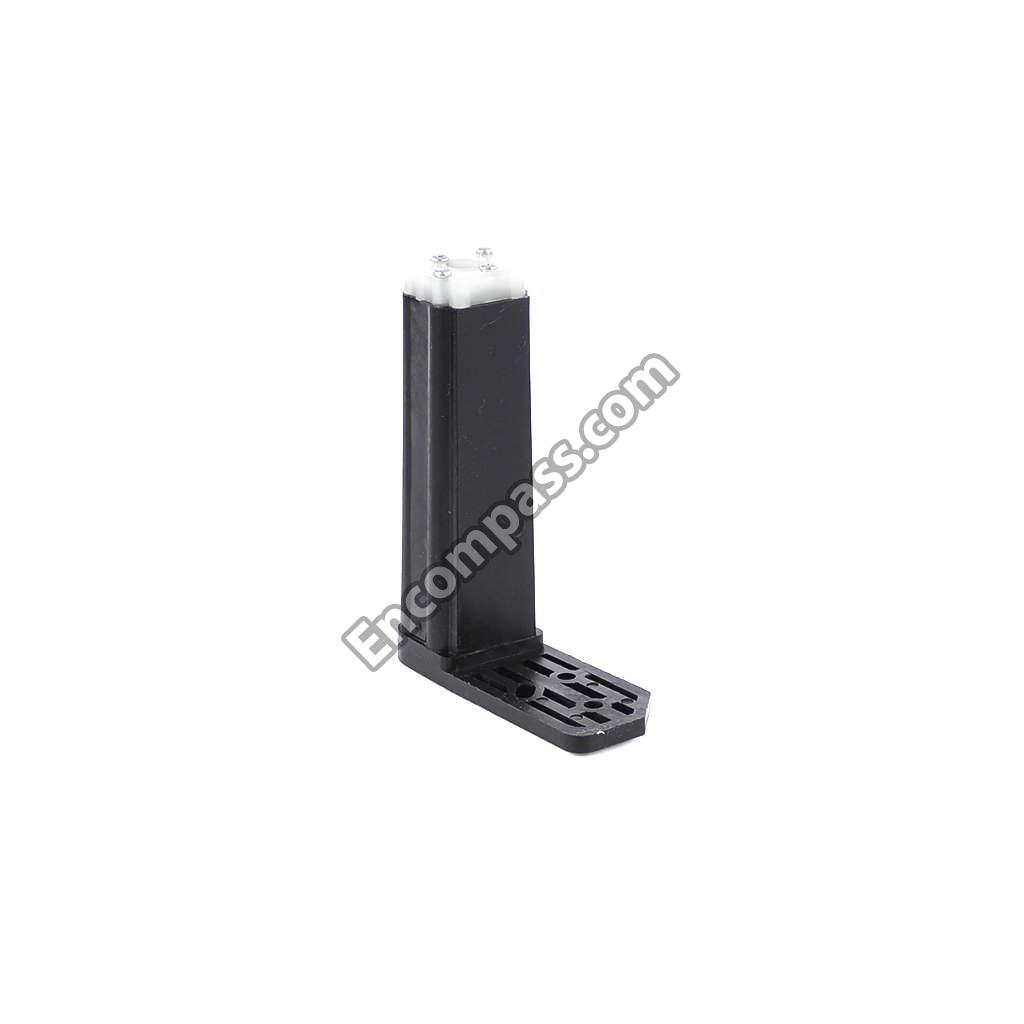

W11114789 W11114789 ADAPTER ASSEMBLY-FC.SLIDE (RIGHT HAND)
W11312192 W11312192 AIR-TOWER
W10311524 W10311524 ANTIBACTERIAL FILTER
W10680037 W10680037 ARM, WATER PADDLE
W10753430 W10753430 ASSEMBLY, BLOCK (FRONT LEFT/BACK RIGHT)
W10753431 W10753431 ASSEMBLY, BLOCK (FRONT RIGHT/BACK LEFT)
W10795850 W10795850 ASSEMBLY, BOTTOM PAN
W10880762 W10880762 ASSEMBLY, CENTER SUPPORT
W10503218 W10503218 ASSEMBLY, DRAIN FUNNEL
W10911358 W10911358 ASSEMBLY, EVAPORATOR JUMPER WIRE
W11347066 W11347066 ASSEMBLY, FILTER DOOR
W11090564 W11090564 ASSEMBLY, HEAT SHIELD
W11535396 W11535396 ASSEMBLY, HINGE WIRE
W10835557 W10835557 ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) (BLACK)
W10835554 W10835554 ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) (BLACK)
W10704135 W10704135 ASSEMBLY, PADDLE JUMPER WIRE
W11084045 W11084045 ASSEMBLY, ROLLER (LEFT HAND)
W11084046 W11084046 ASSEMBLY, ROLLER (RIGHT HAND)
W11128244 W11128244 ASSEMBLY, TOP PAN
W11440889 W11440889 ASSEMBLY, VALVE WIRE
W11573594 W11573594 AXLE
67006434 67006434 AXLE, ROLLER (2)
W10794250 W10794250 BAR, SUPPORT
W10697812 W10697812 BAR, SUPPORT
W11084906 W11084906 BASE
W10716179 W10716179 BASE, TOWER COVER
W11449163 W11449163 BASEPLATE
W11213874 W11213874 BIN CONTROL LEVER
W11099662 W11099662 BIN CONTROL LEVER
W10840310 W10840310 BLOCK, PIVOT
W11189600 W11189600 BRACKET
W10757499 W10757499 BRACKET, USER INTERFACE ADAPTER
W10391376 W10391376 BRACKET, VALVE
W10846099 W10846099 BRAKE, ROLLER
W10407187 W10407187 BUMPER, DOOR (BLACK)
100000 100000 CABINET (NOT A SERVICABLE PART)
W11189114 W11189114 CAP-FILTER
W11233642 W11233642 CLAMP
W11456069 W11456069 CLAMP
W11459749 W11459749 CLIP, DEFROST HEATER
10623002 10623002 CLIP, EVAPORATOR
W11493401 W11493401 CLIP, EVAPORATOR HEATER
W11315302 W11315302 CLIP, TUBE
W11188796 W11188796 CLOSER
W11163783 W11163783 CLOSER
WPW10277361 WPW10277361 COLLAR
W11578205 W11578205 COMPRESSOR
W11567329 W11567329 CONDENSER
W11567409 W11567409 CONTROL BOARD
W10865834 W10865834 CONTROL BOARD
W11664342 W11664342 CONTROL BOARD
W11656966 W11656966 COVER
W11594711 W11594711 COVER
W10704470 W10704470 COVER, AIR FILTER
W10718061 W10718061 COVER, COOLING DUCT
67003485 67003485 COVER, CORNER (BLK)
W11307147 W11307147 COVER, FILTER
W11198954 W11198954 COVER, HOUSING
W11502635 W11502635 COVER, UNIT
W10208592 W10208592 COVER, VALVE
W10900010 W10900010 COVER, WATER VALVE
W10834719 W10834719 COVER, WIRING HARNESS
W11394920 W11394920 COVER-EVAP
W11611001 W11611001 COVER-EVAP
W11099786 W11099786 CRISPER PAN
W11099781 W11099781 CRISPER PAN
W11483265 W11483265 DAM, AIR (LEFT HAND)
W10668198 W10668198 DAM, AIR (RIGHT HAND)
W10878920 W10878920 DIVIDER, AIR (BOTTOM)
W11449545 W11449545 DIVIDER, AIR (REAR (SHORT))
LW11039248 LW11039248 DOOR ASSEMBLY
LW11039241 LW11039241 DOOR ASSEMBLY
WP2223877 WP2223877 DOOR LATCH
W11518045 W11518045 DOOR, REFRIGERATOR LEFT HAND (BLACK STAINLESS (ALSO ORDER ITEM # 18))
W11189145 W11189145 DOOR-ICE
W11594925 W11594925 DOOR-ICE
W11656921 W11656921 DRAWER SLIDE RAIL
W11109499 W11109499 DRIER-TUBE
W11565768 W11565768 EVAPORATOR
W11567406 W11567406 EVAPORATOR
W11745619 W11745619 EXTENSION
W11574308 W11574308 FAN
W11407678 W11407678 FAN
EDR2RXD1 EDR2RXD1 FILTER
W10738041 W10738041 FILTER, EMI
W10840918 W10840918 FLANGE, SIDE SUPPORT
W10864907 W10864907 FOIL, DISPENSER WELL
W10878157 W10878157 FRAME, CRISPER COVER
W11625084 W11625084 GASKET
W11159756 W11159756 GASKET
W11312190 W11312190 GASKET
W11594710 W11594710 GASKET ASSEMBLY
W10683708 W10683708 GASKET, CONDENSER FAN
W10720073 W10720073 GASKET, COOLING DUCT
W10831765 W10831765 GASKET, DISPENSER TRIM
W10917312 W10917312 GASKET, DOOR (BLACK)
W10683540 W10683540 GASKET, DRIP TRAY REAR
W10818463 W10818463 GASKET, EVAPORATOR AIR DAM
W10882291 W10882291 GASKET, FOAM
W10415341 W10415341 GASKET, HV BOX
W10696713 W10696713 GASKET, USER INTERFACE ADAPTER
WPB8381501 WPB8381501 GASKET- DR
W11099787 W11099787 GLASS SHELF
W11099780 W11099780 GLASS SHELF
W11099777 W11099777 GLASS SHELF
W11251739 W11251739 GLASS SHELF
W11099737 W11099737 GLASS SHELF
W10892559 W10892559 GLIDE, CRISPER (LEFT HAND)
W10892561 W10892561 GLIDE, CRISPER (RIGHT HAND)
W11417674 W11417674 GLIDE, PLATTER (LEFT HAND)
W11417675 W11417675 GLIDE, PLATTER (RIGHT HAND)
WP542638 WP542638 GREASE
W10887785 W10887785 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET
W10717577 W10717577 HANDLE
W11099665 W11099665 HANDLE
W11043764 W11043764 HANDLE
W11440595 W11440595 HARNESS, UNIT (CONDENSER FAN)
W11567407 W11567407 HEATER
W11024084 W11024084 HEATER
W11384694 W11384694 HEATER, DEFROST
W10752689 W10752689 HEATER, DISPENSER
W11223833 W11223833 HING-BUSHG
W10691674 W10691674 HINGE, CENTER LEFT HAND (BLACK)
W10691700 W10691700 HINGE, CENTER RIGHT HAND (BLACK)
W11032616 W11032616 HINGE, TOP (LEFT HAND)
W11032620 W11032620 HINGE, TOP (RIGHT HAND)
W11451366 W11451366 HOUSING, WATER FILTER (INCLUDES FILTER HEATER AND SEALING GASKETS)
W10708473 W10708473 HOUSING, WATER TANK
W11594192 W11594192 ICE-CONTNR
W11557000 W11557000 ICEMAKER
W11084829 W11084829 INSULATION
W11553819 W11553819 INSULATION
W11706809 W11706809 INSULATION
W11688554 W11688554 INSULATION
W11348541 W11348541 INSULATION, UNDER FILTER
W10673897 W10673897 INSULATOR, FOAM
W11578028 W11578028 INVRTR-BOX
W10840922 W10840922 KNOB, SIDE SUPPORT
W10768379 W10768379 LID, HV
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11401419 W11401419 MODULE
W11483116 W11483116 MODULE
W11442049 W11442049 MODULE
W10822606 W10822606 MOTOR
W11223753 W11223753 NAMEPLATE
W10663699 W10663699 PAD, SOUND
W11102448 W11102448 PADDLE, ICE DISPENSER (BLACK)
W11102429 W11102429 PADDLE, WATER DISPENSER (BLACK)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
W11099778 W11099778 PAN-UTILTY
W11594194 W11594194 PANEL-UI
W11594193 W11594193 PANEL-UI
W10682175 W10682175 PLATE, ICE CHUTE
W11451365 W11451365 RESERVOIR, WATER (INCLUDES FILTER HEATER, WIRE TIES, AND SEALING GASKETS)
W10705239 W10705239 RETAINER, DOOR
W10720065 W10720065 RETAINER, DOOR DUCT
W10757512 W10757512 RING, TRIM (CHROME)
W10774846 W10774846 ROLLER
W10874021 W10874021 ROLLER, PAN
WP8281163 WP8281163 SCREW
WPW10272364 WPW10272364 SCREW
W10847999 W10847999 SCREW
WP3400065 WP3400065 SCREW
W10709798 W10709798 SCREW
W11417341 W11417341 SCREW
W10820084 W10820084 SCREW
WPW10141625 WPW10141625 SCREW
WP489443 WP489443 SCREW
W11366418 W11366418 SCREW
W11449276 W11449276 SCREW
W11311945 W11311945 SCREW
WPW10238319 WPW10238319 SCREW
WP489474 WP489474 SCREW
WP67006908 WP67006908 SCREW
W10119266 W10119266 SCREW
W11686675 W11686675 SCREW
WPW10141645 WPW10141645 SCREW
W11214483 W11214483 SCREW
W11126052 W11126052 SCREW
W11573362 W11573362 SCREW
WP98165 WP98165 SCREW
W10854958 W10854958 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPW10291905 WPW10291905 SEAL
W10770923 W10770923 SEAL, CRISP FRONT
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W11086000 W11086000 SEPERATOR (BLACK)
W11228132 W11228132 SHAFT
W11173556 W11173556 SHAFT
W11483266 W11483266 SHEILD, FC HEAT
W11099779 W11099779 SHELF
W10910632 W10910632 SLEEVE
W11109505 W11109505 SPRING
W10672578 W10672578 SPRING, TORSION
W11243377 W11243377 STOP-DOOR
WPW10485089 WPW10485089 STOP-PAN
WPW10485096 WPW10485096 STOP-PAN
W11677723 W11677723 SUPPORT
W10794289 W10794289 SUPPORT, PANTRY
W10794252 W10794252 SUPPORT, SIDE (LEFT HAND)
W10794258 W10794258 SUPPORT, SIDE (RIGHT HAND)
W11087492 W11087492 SWITCH
W11384469 W11384469 SWITCH
W11608968 W11608968 SWITCH
W11624280 W11624280 TECH SHEET (ENGLISH)
W11624281 W11624281 TECH SHEET (FRENCH)
W11695087 W11695087 TECH SHEET, ENERGY GUIDE
W11509210 W11509210 TECH SHEET, OWNERS MANUAL
W11318270 W11318270 THERMISTOR
W11708100 W11708100 THERMISTOR
W11724692 W11724692 THERMISTOR
72032 72032 TOUCH-UP PAINT (BLACK)
W11026725 W11026725 TRAY, DISPENSER SLIDE (BLACK)
W11490557 W11490557 TRAY, EVAPORATOR
W11209885 W11209885 TRAY-DRIP
W11188797 W11188797 TRIVET
W11646687 W11646687 TUBE
W11506635 W11506635 TUBE, CHARGING (1/4 IN W/ SCHRADER VALVE)
W11518276 W11518276 TUBE, DISPENSER WATER
W11391304 W11391304 TUBE, DISPENSER WATER (INCLUDES SEAL)
W11518273 W11518273 TUBE, ICEMAKER WATER (INCLUDES SEAL)
W11574310 W11574310 VALVE
W11567408 W11567408 VALVE
W11567335 W11567335 VALVE
W11085969 W11085969 WALL, DISPENSER FALSE (BLACK)
W11727946 W11727946 WATER TUBE
W11744510 W11744510 WIRE HARNESS
W11715973 W11715973 WIRE HARNESS
