Model Image
Manufacturer

Whirlpool

Model Number

WRR56X18FW01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10574272 W10574272 AIR TOWER
W11594405 W11594405 AXLE
WP2315541 WP2315541 BAFFLE-AIR
W10574470 W10574470 BALE STRAP
WPW10139483 WPW10139483 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
W10628869 W10628869 BRACKET, DOOR STOP
67001141 67001141 BUCKET (2) SMALL
WP67001021 WP67001021 BUCKET- ME
WPW10520304 WPW10520304 BUTTON-PLG
N_P N_P CABINET (NOT A SERVICEABLE PART)
W10569269 W10569269 CAMERA LENS, CONTROL BOX
WPW10350564 WPW10350564 CAPACITOR
549193 549193 CLAMP, POWER CORD
W10683556 W10683556 CLIP
W10815861 W10815861 CLIP, BOTTOM COVER
13058002 13058002 CLIP, EVAPORATOR MOTOR
W11125124 W11125124 COMPRESSOR
W11507065 W11507065 CONDENSER

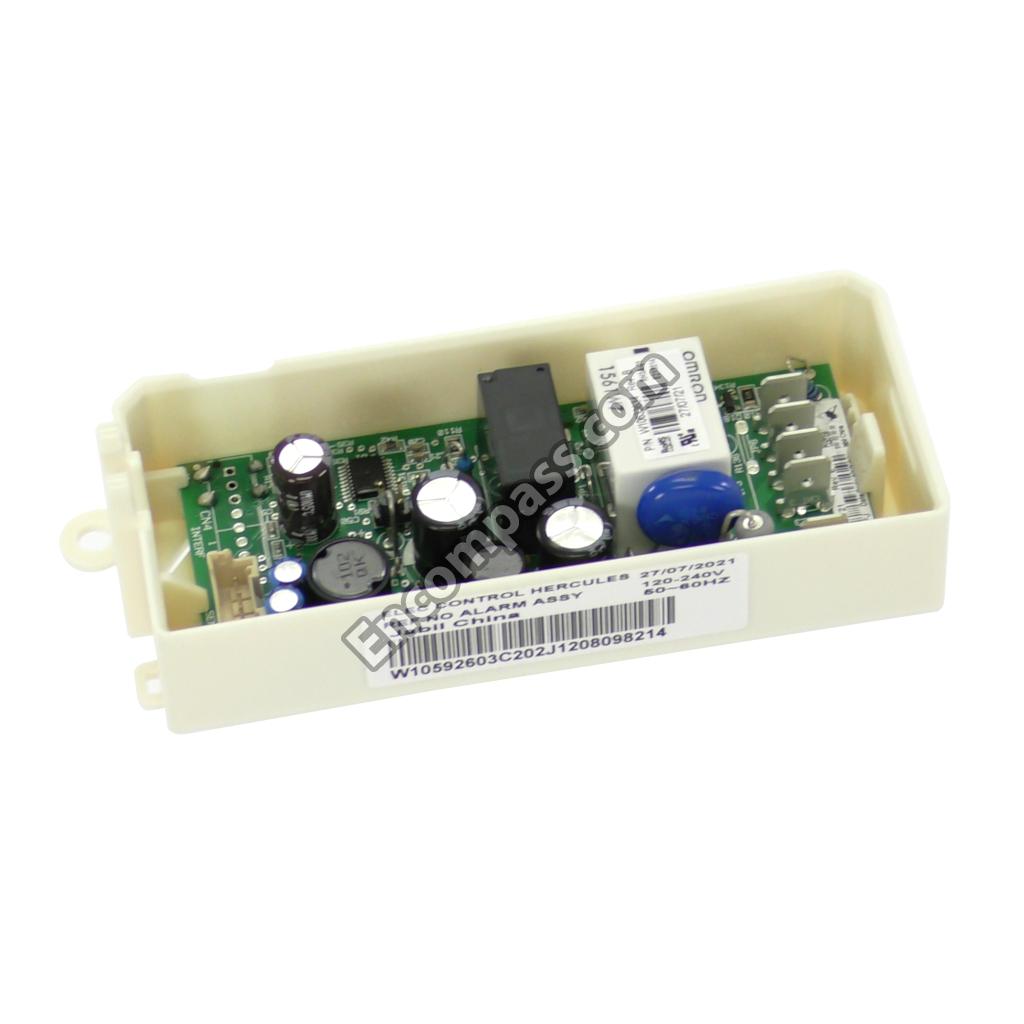

W11382530 W11382530 CONTROL BOARD
WP2213360 WP2213360 COVER
W10574274 W10574274 COVER, EVAPORATOR FAN
W10608692 W10608692 COVER, THERMISTOR
W10574323 W10574323 COVER, UNIT
W11551256 W11551256 COVER-EVAP
W10591310 W10591310 CRISPER COVER, BOTTOM
W10581573 W10581573 CRISPER COVER, TOP
W10654387 W10654387 CRISPER PAN, BOTTOM
W10654386 W10654386 CRISPER PAN, TOP
W10856583 W10856583 DOOR GASKET
WP2261963 WP2261963 DOOR HINGE
W10574673 W10574673 DOOR, PIZZA SHELF
W10869751 W10869751 DOR-FMD
W10574291 W10574291 DRAIN PAN, EVAPORATOR
WPW10143759 WPW10143759 DRIER-UV
W10915252 W10915252 ENERGY GUIDE
W11507067 W11507067 EVAPORATOR
WPW10359880 WPW10359880 EVAPORATOR MOTOR
WPW10574368 WPW10574368 GASKET
W11428833 W11428833 GLASS SHELF
W11430589 W11430589 GLASS SHELF
WP542638 WP542638 GREASE
WPW10534166 WPW10534166 GRILLE-FRT
W11661108 W11661108 GROMMET
W11690160 W11690160 GROMMET
W10858385 W10858385 HANDLE
W11244436 W11244436 HARNESS
WPW10316428 WPW10316428 HEATER
W10574264 W10574264 HINGE PLATE, BOTTOM (WHITE)
W11676609 W11676609 HINGE-PIN
WPW10141622 WPW10141622 LEVELER
W10612074 W10612074 LID
W11216993 W11216993 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11578915 W11578915 MOTOR-COND
W11178521 W11178521 NAMEPLATE
8171358 8171358 PAINT, BULK (1 QT. GRAPHITE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
W10134625 W10134625 PAINT, TOUCH-UP (1/2OZ. APOLLO GREY)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10574278 W10574278 PAN, COMPRESSOR
67001139 67001139 RETAINER, DOOR
WPW10475495 WPW10475495 ROLLER-CAB
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W11544659 W11544659 SCREW
W11501418 W11501418 SCREW
W11661574 W11661574 SCREW
WPW10661886 WPW10661886 SCREW
WP489497 WP489497 SCREW
W11233072 W11233072 SCREW
3400524 3400524 SCREW (6)
67006564 67006564 SCREW (8)
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
WPW10314195 WPW10314195 SHIELD
W10574450 W10574450 SHIELD, CAPACITOR
W10574469 W10574469 SHROUD, EVAPORATOR FAN
W10873801 W10873801 START-DEV
W10861955 W10861955 SUCTION TUBE
W10755325 W10755325 SWITCH, LIGHT
W11238399 W11238399 TAPE
W10653921 W10653921 TECH SHEET
WPW10383615 WPW10383615 THERMISTOR
WPW10384183 WPW10384183 THERMISTOR
WP2314293 WP2314293 THIMBLE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP67001279 WP67001279 TRAY- DAIR
W11673435 W11673435 TUBE-DRAIN
W10882914 W10882914 USE & CARE GUIDE
W10572629 W10572629 WIRE HARNESS (INCLUDES POWER CORD)
