Model Image
Manufacturer

Whirlpool

Model Number

WRS311SDHW00

Description

22.1 Cu. Ft. Bottom Freezer Refrigerator White

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11596045 W11596045 ARM, CONTROL
W11559683 W11559683 ARM, SHUT OFF
W11687636 W11687636 ASSEMBLY, BOTTOM HINGE (FREEZER)
W11399415 W11399415 ASSEMBLY, BOTTOM HINGE (REFRIGERATOR)
W10897565 W10897565 ASSEMBLY, BRACKET
W11632924 W11632924 ASSEMBLY, CONDENSER
WPW10179146 WPW10179146 ASSEMBLY, FILTER VALVE
WPW10194474 WPW10194474 ASSEMBLY, HEAT SHIELD AND DRAIN PAN
W11676779 W11676779 ASSEMBLY, ICE DISPENSER WIRING
WPW10304660 WPW10304660 ASSEMBLY, ROLLER (LEFT HAND)
WPW10304659 WPW10304659 ASSEMBLY, ROLLER (RIGHT HAND)
W11423786 W11423786 ASSEMBLY, SEPARATOR (BISCUIT)
W11678840 W11678840 ASSEMBLY, SEPARATOR (BLACK)
W11678839 W11678839 ASSEMBLY, SEPARATOR (NEPTUNE FROST)
W11678841 W11678841 ASSEMBLY, SEPARATOR (WHITE)
W11188040 W11188040 ASSEMBLY, SHELF
W11223328 W11223328 ASSEMBLY, SHELF STUD
WP2152713 WP2152713 ASSEMBLY, SOLENOID
W10905940 W10905940 ASSEMBLY, UNIT COVER (BOTTOM)
W11580023 W11580023 ASSEMBLY, UNIT WIRE
W11203289 W11203289 ASSEMBLY, USER INTERFACE (BLACK)
W11203376 W11203376 ASSEMBLY, USER INTERFACE (DESERT SPARKLE)
W11163765 W11163765 ASSEMBLY, WATER FITTING
WPW10295082 WPW10295082 AUGER
W11594405 W11594405 AXLE, ROLLER
W11223753 W11223753 BADGE
W10896764 W10896764 BAFFLE, AIR
W10852691 W10852691 BAFFLE, FLOATING
W11239961 W11239961 BIN, DOOR
WP2169142 WP2169142 BLADE, FAN
8201630 8201630 BLADE, FAN
W10181990 W10181990 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
W11458267 W11458267 BLADE-FAN
W10138203 W10138203 BLOCK, BLADE
489340 489340 BOLT
W11557261 W11557261 BRACKET, DOOR STOP (BLACK)
WP2181929 WP2181929 BRACKET, FAN MOUNTING
WPW10284487 WPW10284487 BRACKET, MOTOR
W10407203 W10407203 BUMPER, DOOR (BISCUIT)
W10407187 W10407187 BUMPER, DOOR (BLACK)
W11573367 W11573367 BUMPER, DOOR (GREY)
W11687672 W11687672 BUMPER, DOOR (WHITE)
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10350564 WPW10350564 CAPACITOR
549193 549193 CLAMP, POWER CORD
489396 489396 CLIP
2215823 2215823 CLIP, AIR DUCT
W10683556 W10683556 CLIP, CONDENSER
WP2161324 WP2161324 CLIP, DEFROST HEATER
WP2155013 WP2155013 CLIP, GRILLE
1119021 1119021 CLIP, RETAINER (DISPENSER ROD)
W11679635 W11679635 CLOSER, DOOR (FREEZER)
WPW10300022 WPW10300022 COMPLETE ICEMAKER ASSEMBLY
W10309988 W10309988 COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
WP2300868 WP2300868 CONNECTOR, UNION
W11203272 W11203272 CONTROL, ELECTRONIC
W10749708 W10749708 COUPLING, ICE CONVEYOR
WPW10169511 WPW10169511 COUPLING, MOTOR
W11697465 W11697465 COVER, CRISPER
W11429207 W11429207 COVER, EVAPORATOR
WPW10289690 WPW10289690 COVER, ICEMAKER
W10900030 W10900030 COVER, LIGHT
W11613262 W11613262 COVER, UNIT
WPW10130299 WPW10130299 CUP, SHELF
WP1119017 WP1119017 DEFLECTER, ICE
WPW10197428 WPW10197428 DEVICE, COMBINATION START (START RELAY AND OVERLOAD)
W11216945 W11216945 DIFFUSER, AIR
LW10912313 LW10912313 DOOR ASSEMBLY
LW10912383 LW10912383 DOOR ASSEMBLY
LW10912374 LW10912374 DOOR ASSEMBLY
W11398787 W11398787 DOOR CLOSER, LOWER CAM
WP2256101 WP2256101 DOOR, COMPARTMENT
LW11025547 LW11025547 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BISCUIT)
LW11025545 LW11025545 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
LW11026328 LW11026328 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
LW11025546 LW11025546 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
W10912383 W10912383 DOOR, REFRIGERATOR (INCLUDES ITEM 4) (BISCUIT)
W10912374 W10912374 DOOR, REFRIGERATOR (INCLUDES ITEM 4) (BLACK)
W10912313 W10912313 DOOR, REFRIGERATOR (INCLUDES ITEM 4) (STAINLESS STEEL)
LW10912366 LW10912366 DOOR, REFRIGERATOR (INCLUDES ITEM 4) (WHITE)
WPW10143759 WPW10143759 DRIER
4388736 4388736 DRUM
W11099844 W11099844 DUCT, FREEZER AIR
W11099844 W11099844 DUCT, FREEZER AIR
W11090522 W11090522 ENERGY GUIDE
WP2188822 WP2188822 EVAPORATOR
WPW10153550 WPW10153550 EXTENSION, DRAIN FITTING
W10283958 W10283958 FILLER, WRAPPER (BISCUIT)
W11252732 W11252732 FILLER, WRAPPER (BLACK)
W10851579 W10851579 FILLER, WRAPPER (GREY)
WPW10283959 WPW10283959 FILLER, WRAPPER (WHITE)
EDR1RXD1 EDR1RXD1 FILTER, WATER
W11566763 W11566763 FITTING, DRAIN
W10905880 W10905880 FRAME, UNIT MOUNTING
W10905880 W10905880 FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING RAIL)
WP2309758 WP2309758 FREEZER BIN
W10189274 W10189274 FRONT COVER, ICE CONTAINER
4388500 4388500 GASKET
WP2304241 WP2304241 GASKET
2159073 2159073 GASKET, DOOR (BEIGE)
2159072 2159072 GASKET, DOOR (BEIGE)
2159081 2159081 GASKET, DOOR (BLACK)
2159080 2159080 GASKET, DOOR (BLACK)
W10136732 W10136732 GASKET, DOOR (GREY)
W10136733 W10136733 GASKET, DOOR (GREY)
WP2155789 WP2155789 GASKET, SCROLL ASSEMBLY
W11184754 W11184754 GRILLE (BISCUIT)
W11282556 W11282556 GRILLE (BLACK)
W11282548 W11282548 GRILLE (GREY)
W11282549 W11282549 GRILLE (WHITE)
W10836504 W10836504 GROMMET, COMPRESSOR
WP2176759 WP2176759 GROMMET, MOTOR
W10850503 W10850503 GUIDE, SOLENOID
W11203274 W11203274 HANDLE (BISCUIT)
W11450221 W11450221 HANDLE (BLACK)
W11163764 W11163764 HANDLE (STAINLESS)
W11432251 W11432251 HANDLE (WHITE)
WPW10300794 WPW10300794 HARDWR PAK
W11545823 W11545823 HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUSE)
W10838084 W10838084 HARNESS, ICEMAKER
WPW10495967 WPW10495967 HEATER, DEFROST
W10922219 W10922219 HINGE, TOP (BISCUIT (FREEZER))
W10922218 W10922218 HINGE, TOP (BISCUIT (REFRIGERATOR))
W10922217 W10922217 HINGE, TOP (BLACK (FREEZER))
W10922216 W10922216 HINGE, TOP (BLACK (REFRIGERATOR))
W11579508 W11579508 HINGE, TOP (GREY (FREEZER))
WPW10185018 WPW10185018 HOUSING, CRUSHER
W11184828 W11184828 HOUSING, WATER FILTER (BISCUIT)
W11172791 W11172791 HOUSING, WATER FILTER (BLACK)
W11162042 W11162042 HOUSING, WATER FILTER (GREY)
W11162041 W11162041 HOUSING, WATER FILTER (WHITE)
W10850492 W10850492 ICE CONTAINER
WPW10558424 WPW10558424 ICE CONTAINER, COMPLETE
W11690902 W11690902 ICE DOOR
W11700559 W11700559 ICEMAKER
W11338583 W11338583 LAMP, LED
W11239891 W11239891 LENS, LIGHT
WP2171706 WP2171706 LENS, LIGHT
W10782423 W10782423 LOCKING RING (1/4)
W10782424 W10782424 LOCKING RING (5/16)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP503695 WP503695 MISCELLANEOUS, CORK, SEALER
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS, TAPE, VINYL (3/4 X 108")
W11578915 W11578915 MOTOR, CONDENSER FAN
WPW10317991 WPW10317991 MOTOR, DISPENSER
WP2315549 WP2315549 MOTOR, FAN
WP1119018 WP1119018 NUT, BEARING
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11162443 W11162443 PAN, CRISPER
W11368751 W11368751 PAN, HOLDER
W11162446 W11162446 PAN, MEAT
489229 489229 PIN, ROLL
W10904380 W10904380 PLATE, SCREW (FREEZER)
W11036715 W11036715 PLATE, SCREW (REFRIGERATOR)
W10905882 W10905882 RAIL, UNIT MOUNTING
W10905882 W10905882 RAIL, UNIT MOUNTING
W11700295 W11700295 RETAINER, FAN MOTOR
WP489236 WP489236 RING, RETAINER
WPW10475495 WPW10475495 ROLLER
W11661574 W11661574 SCREW
W11544561 W11544561 SCREW
W10803534 W10803534 SCREW
WP489500 WP489500 SCREW
WP489128 WP489128 SCREW
WP489497 WP489497 SCREW
W10856122 W10856122 SCREW
WP488488 WP488488 SCREW
WP489464 WP489464 SCREW
WPW10141645 WPW10141645 SCREW
WP489483 WP489483 SCREW
798639 798639 SCREW
WP3-24004-109 WP3-24004-109 SCREW
718257 718257 SCREW
W10142289 W10142289 SCREW
WP489399 WP489399 SCREW
WP488787 WP488787 SCREW
WPW10296816 WPW10296816 SCREW
WPW10170540 WPW10170540 SCREW
WPW10296804 WPW10296804 SCREW
WP489478 WP489478 SCREW
WP693995 WP693995 SCREW
WP8533993 WP8533993 SCREW
WP489427 WP489427 SCREW
W11544659 W11544659 SCREW
876811 876811 SCREW
WPW10308751 WPW10308751 SCREW (BLACK)
WP98008545 WP98008545 SCREW (BLACK)
WPW10308489 WPW10308489 SCREW (GREY)
WPW10308750 WPW10308750 SCREW (WHITE)
WPW10142283 WPW10142283 SCREW (WHITE)
W11254898 W11254898 SCROLL, FAN
WPW10318952 WPW10318952 SHELF, WIRE
WPW10318953 WPW10318953 SHELF, WIRE
WPW10318960 WPW10318960 SHELF, WIRE (SHORT)
W11661094 W11661094 SLEEVE
W10845585 W10845585 SLIDE, ICE CONTAINER (LEFT)
W10845583 W10845583 SLIDE, ICE CONTAINER (RIGHT)
W11447232 W11447232 SOCKET, LIGHT
W10138206 W10138206 SPACER - CRUSHER HOUSING
W11032808 W11032808 SPACER, FLAT
W11032812 W11032812 SPACER, STEP
1119020 1119020 SPRING, RETURN
2212996 2212996 STRAP, BALE
4388405 4388405 STUD, SUPPORT
4388358 4388358 SUPPORT, FAN SCROLL (LEFT HAND)
W11384469 W11384469 SWITCH, ROCKER ARM
W11457217 W11457217 SWITCH, ROCKER ARM (FREEZER)
W10714129 W10714129 TECH SHEET
WPW10384183 WPW10384183 THERMISTOR
WP2182181 WP2182181 THIMBLE
W11397972 W11397972 THIMBLE, CAM
W11661926 W11661926 THIMBLE, CAM
WPW10339879 WPW10339879 TIE, WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11164129 W11164129 TRAY, EVAPORATOR
WP2309717 WP2309717 TRIM, DOOR
WPW10307490 WPW10307490 TRIM, DOOR SHELF
W11512417 W11512417 TRIVET
WP2309941 WP2309941 TRIVET
W11678305 W11678305 TUBE
W11162040 W11162040 TUBE, FILTER INLET
W11162036 W11162036 TUBE, FILTER OUTLET
W10858105 W10858105 TUBE, PROCESS
W10745338 W10745338 TUBE, SUCTION
W10745338 W10745338 TUBE, SUCTION
W10823511 W10823511 TUBE, WATER

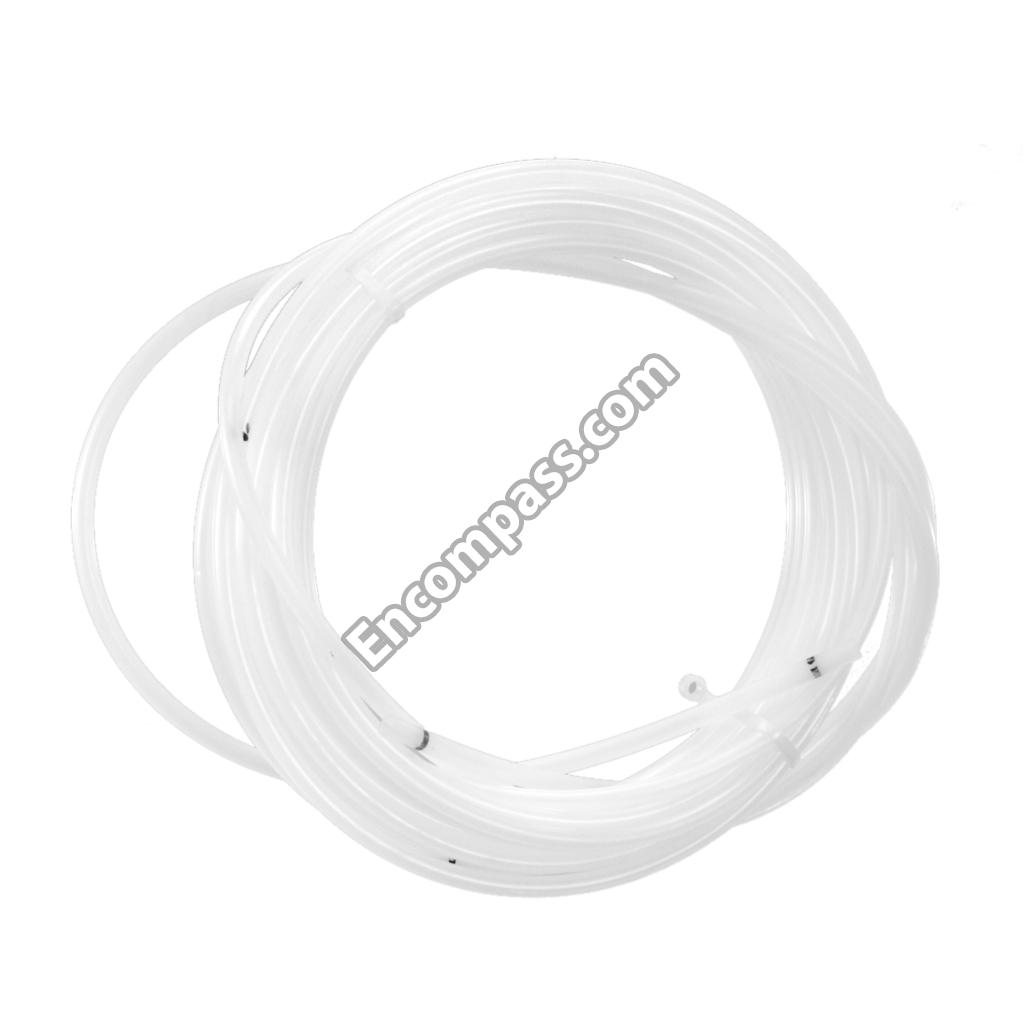

W11162434 W11162434 TUBING, WATER RESERVOIR
W11105301 W11105301 USE AND CARE GUIDE
WP978025 WP978025 VALVE, ACCESS (1/4")
876764 876764 VALVE, ACCESS (3/16")
978030 978030 VALVE, ACCESS (3/4")
978027 978027 VALVE, ACCESS (3/8")
978026 978026 VALVE, ACCESS (5/16")
978029 978029 VALVE, ACCESS (5/8")
489234 489234 WASHER, PLAIN UPPER CAM
