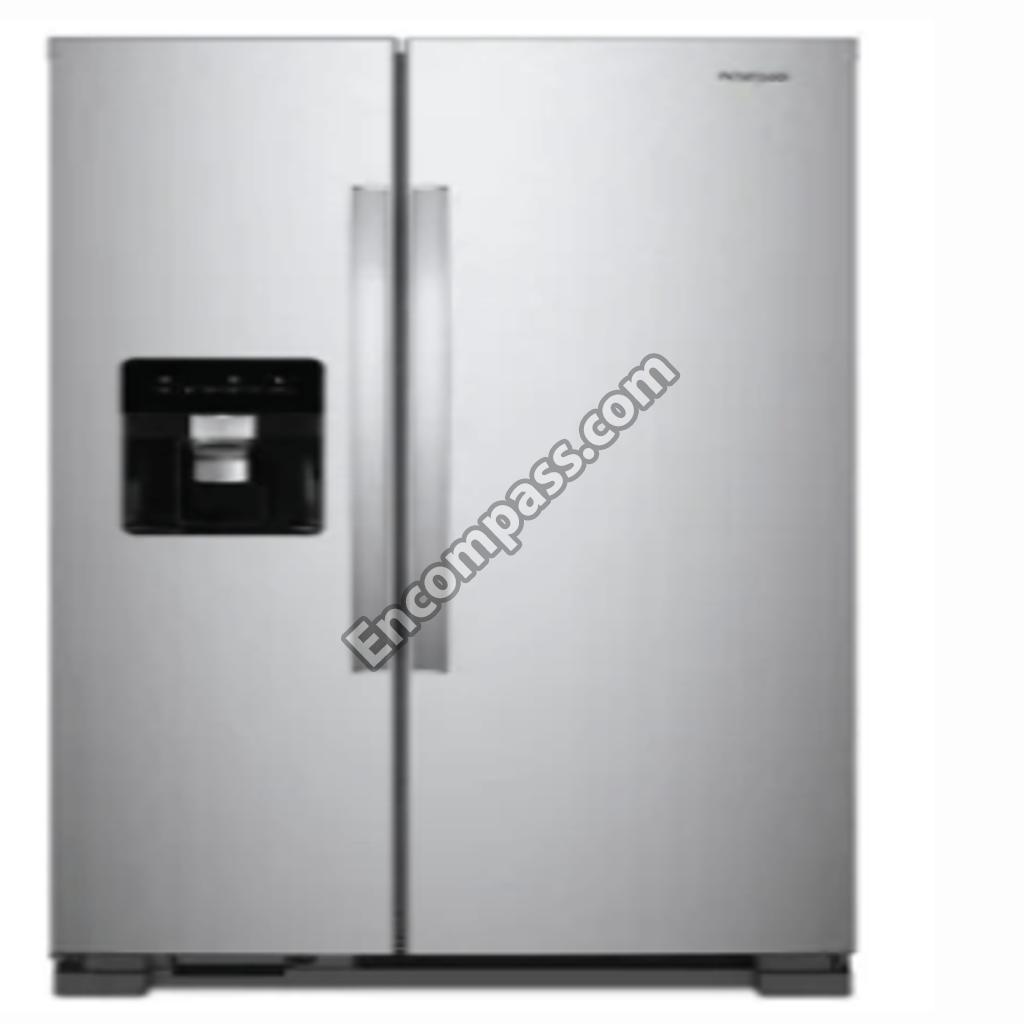

Model Image
Manufacturer

Whirlpool

Model Number

WRS315SDHZ04

Description

Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11380595 W11380595 AIR DIFFUSER
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
W10134625 W10134625 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (APOLLO GRAY)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W11676779 W11676779 ASSEMBLY, ICE DISPENSER WIRING
W11559683 W11559683 ASSEMBLY, SHUT OFF ARM
W11580023 W11580023 ASSEMBLY, UNIT WIRE (INCLUDES POWER CORD)
W11577967 W11577967 BIN-FREEZR
W11458267 W11458267 BLADE-COND F
W10138203 W10138203 BLOCK ASSY-C
W11557261 W11557261 BRACKET, DOOR STOP (BLACK)
W11715972 W11715972 BRACKET, MOTOR
W11687672 W11687672 BUMPER-DOR
N_P N_P CABINET (NOT A SERVICABLE PART)
W11234470 W11234470 CLAMP, POWER CORD
W11679635 W11679635 CLOSER, DOOR (FREEZER)
W11091654 W11091654 CONNECTOR, DOUBLE LOCK
W11203924 W11203924 CONTROL BOX
W11219639 W11219639 CORNER FILLE
W11219641 W11219641 CORNER FILLE
W11311797 W11311797 COVER
W11311798 W11311798 COVER
W11311799 W11311799 COVER
W11311800 W11311800 COVER
W11311903 W11311903 COVER
W11311905 W11311905 COVER
W10897560 W10897560 COVER ASSY-U
W11697465 W11697465 COVER CRISPE
718257 718257 DISHWASHER SCREW
W11398787 W11398787 DOOR CLOSER-
LW11025560 LW11025560 DOOR KIT
LW11025561 LW11025561 DOOR KIT
LW11025562 LW11025562 DOOR KIT
W11423786 W11423786 DOOR-ICE
W11252188 W11252188 DOUBLE LOCK RING (1/4)
WPW10143759 WPW10143759 DRIER TUBE
W11203289 W11203289 ELECTRONIC CONTROL BOARD
W11512417 W11512417 EXTENSION-DR
W11219640 W11219640 FILLER, WRAPPER (BISCUIT)
W11219642 W11219642 FILLER, WRAPPER (GREY)
W10900446 W10900446 FRAME, UNIT MOUNTING
W11427505 W11427505 FREEZER AIR DUCT
W11282545 W11282545 GRILLE
W11282543 W11282543 GRILLE
W11450221 W11450221 HANDLE ASSY-
W11423779 W11423779 HANDLE ASSY-
W11399989 W11399989 HEAT PROBE
W11611126 W11611126 HEAT-PROBE
W11602886 W11602886 HEMERA 30 DE
W11505709 W11505709 HINGE ASSY R
W10922219 W10922219 HINGE, TOP (BISCUIT (FREEZER))
W10922218 W10922218 HINGE, TOP (BISCUIT (REFRIGERATOR))
W10922217 W10922217 HINGE, TOP (BLACK (FREEZER))
W10922216 W10922216 HINGE, TOP (BLACK (REFRIGERATOR))
W11579508 W11579508 HINGE, TOP (WHITE (FREEZER))
W11397167 W11397167 HOSE RETAINE
W11661892 W11661892 ICE DOOR
W10861184 W10861184 ICE MAKER VENT TUBE CLAMP
LW10912135 LW10912135 KIT DOOR SER
W11678575 W11678575 LOCKING RING (5/16)
W11671282 W11671282 MOTOR
W11223753 W11223753 NAMEPLATE
4392900 4392900 PAINT, BSQ
W11263195 W11263195 PARTS LIST
W11678305 W11678305 PRECOOLER AS
W10900442 W10900442 RAIL, UNIT MOUNTING
W10896764 W10896764 REFRIGERATOR AIR BAFFLE
2215823 2215823 REFRIGERATOR AIR DAMPER CONTROL CLIP
4388736 4388736 REFRIGERATOR AUGER DRUM
WPW10169511 WPW10169511 REFRIGERATOR AUGER MOTOR COUPLER
1119021 1119021 REFRIGERATOR AUGER ROD CLIP
W10852691 W10852691 REFRIGERATOR AUGER SHAFT BAFFLE
W10749708 W10749708 REFRIGERATOR AUGER SHAFT COUPLING
W11661170 W11661170 REFRIGERATOR BALE STRAP
W10181990 W10181990 REFRIGERATOR BLADE
W11036715 W11036715 REFRIGERATOR BOTTOM HINGE
W10904380 W10904380 REFRIGERATOR BOTTOM HINGE
W10897565 W10897565 REFRIGERATOR BRACKET ASSEMBLY
W10407203 W10407203 REFRIGERATOR BUMPER ASSEMBLY
489396 489396 REFRIGERATOR CLIP
W10812039 W10812039 REFRIGERATOR CLIP
W10233960 W10233960 REFRIGERATOR COMPRESSOR
876811 876811 REFRIGERATOR COMPRESSOR GROMMET
W10836504 W10836504 REFRIGERATOR COMPRESSOR GROMMET
489340 489340 REFRIGERATOR COMPRESSOR RAIL BRACKET SCREW
WPW10197428 WPW10197428 REFRIGERATOR COMPRESSOR START RELAY
W11632924 W11632924 REFRIGERATOR CONDENSER
W10683556 W10683556 REFRIGERATOR CONDENSER COIL SUPPORT
W11578915 W11578915 REFRIGERATOR CONDENSER FAN MOTOR
WP2181929 WP2181929 REFRIGERATOR CONDENSER FAN MOTOR BRACKET
W11162443 W11162443 REFRIGERATOR CRISPER DRAWER
W11368751 W11368751 REFRIGERATOR CRISPER DRAWER COVER FRAME
W11223328 W11223328 REFRIGERATOR CRISPER DRAWER COVER SUPPORT POST
WP2256101 WP2256101 REFRIGERATOR DAIRY BIN COVER
W11164129 W11164129 REFRIGERATOR DEFROST DRAIN PAN
WP2323198 WP2323198 REFRIGERATOR DEFROST HEATER
WP2161324 WP2161324 REFRIGERATOR DEFROST HEATER BRACKET
W11162446 W11162446 REFRIGERATOR DELI DRAWER
WPW10295082 WPW10295082 REFRIGERATOR DISPENSER AUGER
LW10912126 LW10912126 REFRIGERATOR DOOR ASSEMBLY (BLACK)
LW11255366 LW11255366 REFRIGERATOR DOOR ASSEMBLY (STAINLESS)
LW10912118 LW10912118 REFRIGERATOR DOOR ASSEMBLY (WHITE)
W11239961 W11239961 REFRIGERATOR DOOR BIN
W10407187 W10407187 REFRIGERATOR DOOR BUMPER
W11573367 W11573367 REFRIGERATOR DOOR BUMPER
2159075 2159075 REFRIGERATOR DOOR GASKET
2159083 2159083 REFRIGERATOR DOOR GASKET (BLACK)
W11432251 W11432251 REFRIGERATOR DOOR HANDLE
W11163764 W11163764 REFRIGERATOR DOOR HANDLE (STAINLESS)
WPW10661886 WPW10661886 REFRIGERATOR DOOR HANDLE MOUNTING SCREW
WP2182181 WP2182181 REFRIGERATOR DOOR HINGE BUSHING
WP2176759 WP2176759 REFRIGERATOR DOOR HINGE BUSHING
W11397972 W11397972 REFRIGERATOR DOOR HINGE PIN
WPW10308751 WPW10308751 REFRIGERATOR DOOR HINGE SCREW (BLACK)
W11399415 W11399415 REFRIGERATOR DOOR HINGE, LOWER
WP2309941 WP2309941 REFRIGERATOR DOOR SHELF RAIL
WPW10307490 WPW10307490 REFRIGERATOR DOOR SHELF RAIL
W11384469 W11384469 REFRIGERATOR DOOR SWITCH
W11566763 W11566763 REFRIGERATOR DRAIN TUBE GROMMET
WP2188823 WP2188823 REFRIGERATOR EVAPORATOR
WPW10463013 WPW10463013 REFRIGERATOR EVAPORATOR COVER
WP2169142 WP2169142 REFRIGERATOR EVAPORATOR FAN BLADE
WP2315549 WP2315549 REFRIGERATOR EVAPORATOR FAN MOTOR
WP2304241 WP2304241 REFRIGERATOR EVAPORATOR FAN MOTOR COVER SEAL
W11545823 W11545823 REFRIGERATOR EVAPORATOR FAN MOTOR WIRE HARNESS ...
W10194475 W10194475 REFRIGERATOR EVAPORATOR SHIELD
4388358 4388358 REFRIGERATOR FAN SHROUD AIR DIVERTER, LEFT
WP2155789 WP2155789 REFRIGERATOR FAN SHROUD SEAL
W11163765 W11163765 REFRIGERATOR FITTING
4388500 4388500 REFRIGERATOR FREEZER AIR DUCT GASKET
LW11255360 LW11255360 REFRIGERATOR FREEZER DOOR ASSEMBLY (STAINLESS)
2159074 2159074 REFRIGERATOR FREEZER DOOR GASKET
2159082 2159082 REFRIGERATOR FREEZER DOOR GASKET (BLACK)
W10136735 W10136735 REFRIGERATOR FREEZER DOOR GASKET (GRAY)
WP2309718 WP2309718 REFRIGERATOR FREEZER DOOR SHELF RAIL
WPW10144409 WPW10144409 REFRIGERATOR FREEZER DRAWER
WPW10318948 WPW10318948 REFRIGERATOR FREEZER WIRE SHELF
WPW10318947 WPW10318947 REFRIGERATOR FREEZER WIRE SHELF
WPW10318961 WPW10318961 REFRIGERATOR FREEZER WIRE SHELF
W11188040 W11188040 REFRIGERATOR GLASS SHELF
W11687636 W11687636 REFRIGERATOR HINGE ASSEMBLY
W11172791 W11172791 REFRIGERATOR HOUSING
W11184828 W11184828 REFRIGERATOR HOUSING
WPW10670845 WPW10670845 REFRIGERATOR ICE CONTAINER
WPW10558423 WPW10558423 REFRIGERATOR ICE CONTAINER ASSEMBLY
W11427433 W11427433 REFRIGERATOR ICE CONTAINER FRONT COVER
WP1119017 WP1119017 REFRIGERATOR ICE CONTAINER ICE DEFLECTOR
W10845583 W10845583 REFRIGERATOR ICE CONTAINER SLIDE RAIL
W10845585 W10845585 REFRIGERATOR ICE CONTAINER SLIDE RAIL, LEFT
WP1119018 WP1119018 REFRIGERATOR ICE CRUSHER BEARING NUT
W10278731 W10278731 REFRIGERATOR ICE CRUSHER BLADE
489229 489229 REFRIGERATOR ICE CRUSHER BLADE BLOCK ROLL PIN
WPW10185018 WPW10185018 REFRIGERATOR ICE CRUSHER HOUSING
WP489236 WP489236 REFRIGERATOR ICE CRUSHER HOUSING RETAINER RING
W10278732 W10278732 REFRIGERATOR ICE CRUSHER ROTARY BLADE
W10278733 W10278733 REFRIGERATOR ICE CRUSHER ROTARY BLADE
1119020 1119020 REFRIGERATOR ICE DISPENSER ACTUATOR SPRING
WP2152713 WP2152713 REFRIGERATOR ICE DISPENSER SOLENOID
WPW10300022 WPW10300022 REFRIGERATOR ICE MAKER ASSEMBLY
489234 489234 REFRIGERATOR ICE MAKER CRUSHER HOUSING WASHER
W11505385 W11505385 REFRIGERATOR ICE MAKER FILL TUBE
W11500948 W11500948 REFRIGERATOR ICE MAKER LEVELING BRACKET
WPW10289690 WPW10289690 REFRIGERATOR ICE MAKER MODULE COVER
W11596045 W11596045 REFRIGERATOR ICE MAKER SHUT-OFF ARM
WP1117510 WP1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
W10838084 W10838084 REFRIGERATOR ICE MAKER WIRE HARNESS
W11553819 W11553819 REFRIGERATOR INSULATION
W11239891 W11239891 REFRIGERATOR LIGHT COVER
W11613261 W11613261 REFRIGERATOR MACHINE COMPARTMENT COVER
W11676611 W11676611 REFRIGERATOR RETAINER CLIP, 1/4-IN
WPW10304660 WPW10304660 REFRIGERATOR ROLLER
WPW10304659 WPW10304659 REFRIGERATOR ROLLER
WPW10475495 WPW10475495 REFRIGERATOR ROLLER
W11594405 W11594405 REFRIGERATOR ROLLER WHEEL AXLE CLIP
WPW10350564 WPW10350564 REFRIGERATOR RUN CAPACITOR
WPW10141645 WPW10141645 REFRIGERATOR SCREW
WP489128 WP489128 REFRIGERATOR SCREW
WP489483 WP489483 REFRIGERATOR SCREW
WP489497 WP489497 REFRIGERATOR SCREW
W10803534 W10803534 REFRIGERATOR SCREW
WP489464 WP489464 REFRIGERATOR SCREW
W10141518 W10141518 REFRIGERATOR SCREW
WPW10191952 WPW10191952 REFRIGERATOR SCREW
WP489399 WP489399 REFRIGERATOR SCREW
WPW10296816 WPW10296816 REFRIGERATOR SCREW
WPW10308489 WPW10308489 REFRIGERATOR SCREW
WPW10296804 WPW10296804 REFRIGERATOR SCREW
WP8281163 WP8281163 REFRIGERATOR SCREW
WP489478 WP489478 REFRIGERATOR SCREW
WP8533993 WP8533993 REFRIGERATOR SCREW
WP489427 WP489427 REFRIGERATOR SCREW
WP978025 WP978025 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978029 978029 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
WPW10130299 WPW10130299 REFRIGERATOR SHELF SUPPORT
4388405 4388405 REFRIGERATOR SHELF SUPPORT
W11661094 W11661094 REFRIGERATOR SLEEVE
W10138206 W10138206 REFRIGERATOR SPACER
W11032812 W11032812 REFRIGERATOR STEP SPACER
WPW10384183 WPW10384183 REFRIGERATOR TEMPERATURE SENSOR
W11282544 W11282544 REFRIGERATOR TOE GRILLE
W11282546 W11282546 REFRIGERATOR TOE GRILLE (BLACK)
WP2155013 WP2155013 REFRIGERATOR TOE GRILLE CLIP
W11162041 W11162041 REFRIGERATOR WATER FILTER HOUSING
W11162042 W11162042 REFRIGERATOR WATER FILTER HOUSING
W11162040 W11162040 REFRIGERATOR WATER FILTER INLET WATER TUBING
WPW10179146 WPW10179146 REFRIGERATOR WATER INLET VALVE
WP2300868 WP2300868 REFRIGERATOR WATER TUBE FITTING
W11162036 W11162036 REFRIGERATOR WATER TUBING
W10823511 W10823511 REFRIGERATOR WATER TUBING
4387491 4387491 REFRIGERATOR WATER TUBING INSERT
W11566768 W11566768 RESERVOIR
W11661574 W11661574 SCREW
W11544659 W11544659 SCREW
WP488787 WP488787 SCREW
WP3-24004-109 WP3-24004-109 SCREW
W11544561 W11544561 SCREW
W11678841 W11678841 SEPARATOR AS
W11678840 W11678840 SEPARATOR AS
W11678839 W11678839 SEPARATOR AS
W11032808 W11032808 SPACER, FLAT
W11457217 W11457217 SWITCH-ROCKE
W11248697 W11248697 TECH SHEET
W11661926 W11661926 THIMBLE, CAM
STD610805 STD610805 THREAD-FORMING SCREW, 8-PACK
W11676464 W11676464 TUBE
W11183387 W11183387 TUBE-SUCTION
W11366704 W11366704 USE AND CARE GUIDE
W11700295 W11700295 W10188846
WPW10339879 WPW10339879 WASHER CABLE TIE
WP693995 WP693995 WASHER SCREW
EDR1RXD1 EDR1RXD1 WHIRLPOOL EVERYDROP 1 REFRIGERATOR WATER FILTER
W10898319 W10898319 WIRE HARNESS
Main Menu x
