WHI

Model Number

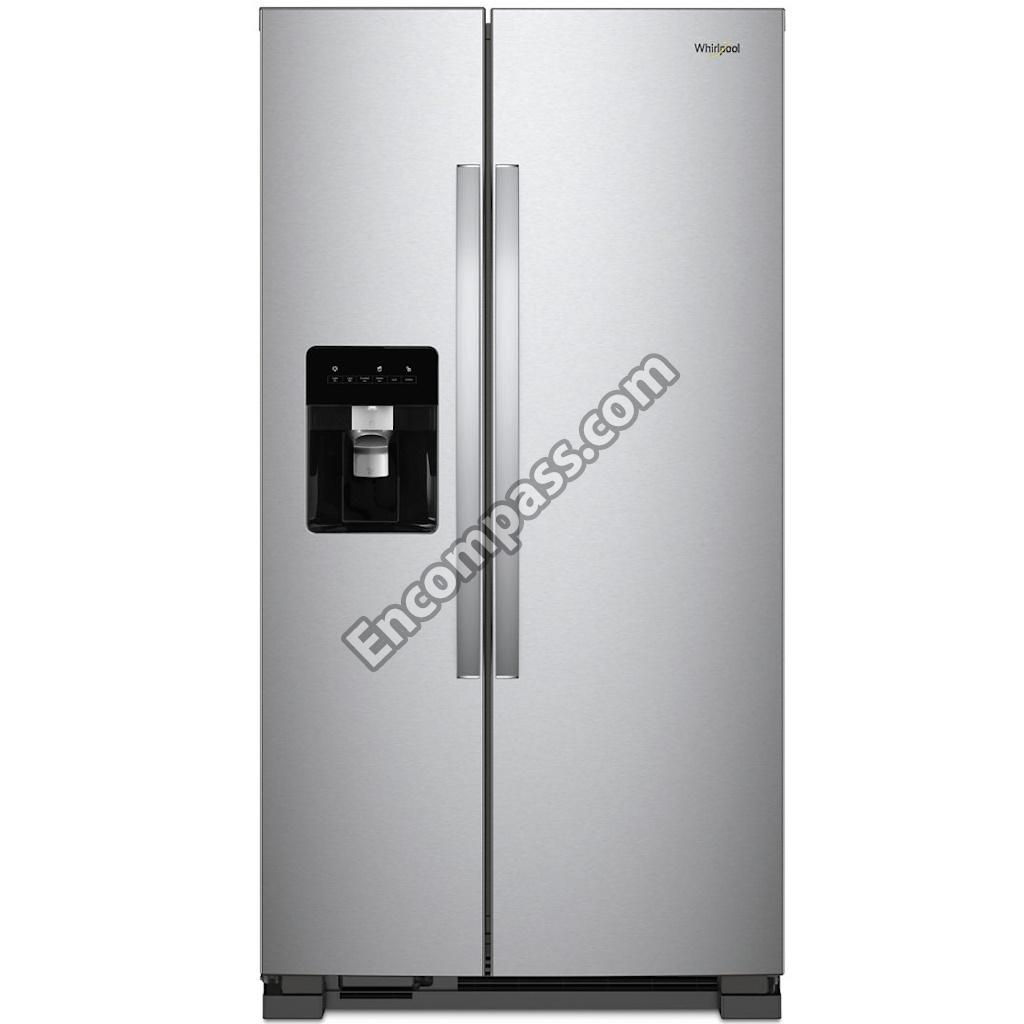

WRS315SDHZ08

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part W11504449
Whirlpool
W11504449
4/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR)
Checking…
View Product
Part W11506623
Whirlpool
W11506623
5 NK MS 00 (3-WAY VALVE TO DRIER)
Checking…
View Product
Part W11504447
Whirlpool
W11504447
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
Checking…
View Product
Part W11504445
Whirlpool
W11504445
5/4 NR MS 00 (3-WAY VALVE TO DRIER)
Checking…
View Product
Part W11504433
Whirlpool
W11504433
6/4 NR MS 00 (HEAT LOOP TO DRIER)
Checking…
View Product
Part W11504431
Whirlpool
W11504431
7/5 NR MS 00 (SUCTION LINE TO CONDENSER)
Checking…
View Product
Part W11506619
Whirlpool
W11506619
8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
Checking…
View Product
Part W11504415
Whirlpool
W11504415
8.5/8 NR MS 00 (HIGH PRESSURE SIDE TO COMPRESSOR)
Checking…
View Product
Part W11596045
Whirlpool
W11596045
ARM, CONTROL
Checking…
View Product
Part W11687636
Whirlpool
W11687636
ASSEMBLY, BOTTOM HINGE (FREEZER)
Checking…
View Product
Part W11399415
Whirlpool
W11399415
ASSEMBLY, BOTTOM HINGE (REFRIGERATOR - ALSO INCLUDES DOOR CAM)
Checking…
View Product
Part W10897565
Whirlpool
W10897565
ASSEMBLY, BRACKET
Checking…
View Product
Part W11632924
Whirlpool
W11632924
ASSEMBLY, CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W11546690
Whirlpool
W11546690
ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CONTROL)
Checking…
View Product
Part W11613261
Whirlpool
W11613261
ASSEMBLY, COVER
Checking…
View Product
Part W11697465
Whirlpool
W11697465
ASSEMBLY, COVER
Checking…
View Product
Part W11650661
Whirlpool
W11650661
ASSEMBLY, DEFROST HEATER AND EVAPORATOR FAN HARNESS (INCLUDES THERMAL FUSE)
Checking…
View Product
Part W11645245
Whirlpool
W11645245
ASSEMBLY, FILTER VALVE
Checking…
View Product
Part W11400740
Whirlpool
W11400740
ASSEMBLY, HEAT SHIELD AND DRAIN PAN
Checking…
View Product
Part W11676779
Whirlpool
W11676779
ASSEMBLY, ICE DISPENSER WIRING
Checking…
View Product
Part SCREW
Whirlpool
SCREW
ASSEMBLY, PRECOOLER FORMED
Checking…
View Product
Part W11678305
Whirlpool
W11678305
ASSEMBLY, PRECOOLER FORMED
Checking…
View Product
Part WPW10304660
Whirlpool
WPW10304660
ASSEMBLY, ROLLER (LEFT HAND)
Checking…
View Product
Part WPW10304659
Whirlpool
WPW10304659
ASSEMBLY, ROLLER (RIGHT HAND)
Checking…
View Product
Part W11678839
Whirlpool
W11678839
ASSEMBLY, SEPARATOR (NEPTUNE FROST)
Checking…
View Product
Part W11188040
Whirlpool
W11188040
ASSEMBLY, SHELF
Checking…
View Product
Part W11223328
Whirlpool
W11223328
ASSEMBLY, SHELF STUD
Checking…
View Product
Part WP2152713
Whirlpool
WP2152713
ASSEMBLY, SOLENOID
Checking…
View Product
Part W10897560
Whirlpool
W10897560
ASSEMBLY, UNIT COVER (BOTTOM)
Checking…
View Product
Part W11661849
Whirlpool
W11661849
ASSEMBLY, UNIT WIRE (INCLUDES POWER CORD)
Checking…
View Product
Part W11203289
Whirlpool
W11203289
ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
Checking…
View Product
Part W11163765
Whirlpool
W11163765
ASSEMBLY, WATER FITTING
Checking…
View Product
Part WPW10295082
Whirlpool
WPW10295082
AUGER
Checking…
View Product
Part W11594405
Whirlpool
W11594405
AXLE, ROLLER
Checking…
View Product
Part W11223753
Whirlpool
W11223753
BADGE
Checking…
View Product
Part W10896764
Whirlpool
W10896764
BAFFLE, AIR
Checking…
View Product
Part W10852691
Whirlpool
W10852691
BAFFLE, FLOATING
Checking…
View Product
Part W11239961
Whirlpool
W11239961
BIN, DOOR
Checking…
View Product
Part W11577967
Whirlpool
W11577967
BIN, FREEZER
Checking…
View Product
Part WP2169142
Whirlpool
WP2169142
BLADE, FAN
Checking…
View Product
Part W11458267
Whirlpool
W11458267
BLADE, FAN
Checking…
View Product
Part W10181990
Whirlpool
W10181990
BLADE, FIXED
Checking…
View Product
Part W10278731
Whirlpool
W10278731
BLADE, ROTARY A
Checking…
View Product
Part W10278732
Whirlpool
W10278732
BLADE, ROTARY B
Checking…
View Product
Part W10278733
Whirlpool
W10278733
BLADE, ROTARY C
Checking…
View Product
Part W10138203
Whirlpool
W10138203
BLOCK, BLADE
Checking…
View Product
Part 489340
Whirlpool
489340
BOLT
Checking…
View Product
Part W11557261
Whirlpool
W11557261
BRACKET, DOOR STOP (BLACK)
Checking…
View Product
Part WP2181929
Whirlpool
WP2181929
BRACKET, FAN MOUNTING
Checking…
View Product
Part W11715972
Whirlpool
W11715972
BRACKET, MOTOR
Checking…
View Product
Part W11573367
Whirlpool
W11573367
BUMPER, DOOR (GREY)
Checking…
View Product
Part WPW10662129
Whirlpool
WPW10662129
CAPACITOR
Checking…
View Product
Part W11645360
Whirlpool
W11645360
CHUTE, WATER
Checking…
View Product
Part W11234470
Whirlpool
W11234470
CLAMP, POWER CORD
Checking…
View Product
Part W10861184
Whirlpool
W10861184
CLAMP, TUBE
Checking…
View Product
Part 489396
Whirlpool
489396
CLIP
Checking…
View Product
Part 2215823
Whirlpool
2215823
CLIP, AIR DUCT
Checking…
View Product
Part W10683556
Whirlpool
W10683556
CLIP, CONDENSER
Checking…
View Product
Part 1119021
Whirlpool
1119021
CLIP, RETAINER (DISPENSER ROD)
Checking…
View Product
Part W10812039
Whirlpool
W10812039
CLIP, WIRE
Checking…
View Product
Part W11679635
Whirlpool
W11679635
CLOSER, DOOR (FREEZER)
Checking…
View Product
Part W11398787
Whirlpool
W11398787
CLOSER, LOWER CAM DOOR (REFRIGERATOR)
Checking…
View Product
Part W11700250
Whirlpool
W11700250
COMPLETE ICEMAKER ASSEMBLY
Checking…
View Product
Part W11580057
Whirlpool
W11580057
COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W10901826
Whirlpool
W10901826
CONNECTING ROD
Checking…
View Product
Part W11091654
Whirlpool
W11091654
CONNECTOR, DOUBLE LOCK
Checking…
View Product
Part WP2300868
Whirlpool
WP2300868
CONNECTOR, UNION
Checking…
View Product
Part WPW10670845
Whirlpool
WPW10670845
CONTAINER, ICE
Checking…
View Product
Part W10749708
Whirlpool
W10749708
COUPLING, ICE CONVEYOR
Checking…
View Product
Part WPW10169511
Whirlpool
WPW10169511
COUPLING, MOTOR
Checking…
View Product
Part W11311799
Whirlpool
W11311799
COVER, DISPENSER FRONT (BLACK (LEFT HAND))
Checking…
View Product
Part W11311800
Whirlpool
W11311800
COVER, DISPENSER FRONT (BLACK (RIGHT HAND))
Checking…
View Product
Part WPW10463013
Whirlpool
WPW10463013
COVER, EVAPORATOR
Checking…
View Product
Part W11427433
Whirlpool
W11427433
COVER, ICE CONTAINER FRONT
Checking…
View Product
Part WPW10130299
Whirlpool
WPW10130299
CUP, SHELF
Checking…
View Product
Part WP1119017
Whirlpool
WP1119017
DEFLECTER, ICE
Checking…
View Product
Part W11547180
Whirlpool
W11547180
DEVICE, COMBINATION START (START RELAY AND OVERLOAD)
Checking…
View Product
Part W11380595
Whirlpool
W11380595
DIFFUSER, AIR
Checking…
View Product
Part WP2256101
Whirlpool
WP2256101
DOOR, COMPARTMENT
Checking…
View Product
Part LW11255360
Whirlpool
LW11255360
DOOR, FREEZER (INCLUDES DOOR GASKET AND DISPENSER PARTS) (STAINLESS)
Checking…
View Product
Part LW11255366
Whirlpool
LW11255366
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
Checking…
View Product
Part W11252188
Whirlpool
W11252188
DOUBLE LOCK RING
Checking…
View Product
Part W11109499
Whirlpool
W11109499
DRIER (SERVICE DRIER WITHOUT DYE) (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part 4388736
Whirlpool
4388736
DRUM
Checking…
View Product
Part W11427505
Whirlpool
W11427505
DUCT, FREEZER AIR
Checking…
View Product
Part W11387675
Whirlpool
W11387675
ENERGY GUIDE
Checking…
View Product
Part W11546692
Whirlpool
W11546692
EVAPORATOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W11512417
Whirlpool
W11512417
EXTENSION, DRAIN FITTING
Checking…
View Product
Part W11219642
Whirlpool
W11219642
FILLER, WRAPPER (GREY)
Checking…
View Product
Part EDR1RXD1
Whirlpool
EDR1RXD1
FILTER, WATER
Checking…
View Product
Part W11566763
Whirlpool
W11566763
FITTING, DRAIN
Checking…
View Product
Part N/P
Whirlpool
N/P
FOLLOWING PARTS NOT ILLUSTRATED
Checking…
View Product
Part W10900446
Whirlpool
W10900446
FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING RAIL)
Checking…
View Product
Part WP2304241
Whirlpool
WP2304241
GASKET
Checking…
View Product
Part WP2155789
Whirlpool
WP2155789
GASKET
Checking…
View Product
Part 4388500
Whirlpool
4388500
GASKET, AIR DUCT
Checking…
View Product
Part W10136735
Whirlpool
W10136735
GASKET, DOOR (GREY)
Checking…
View Product
Part WPW10136734
Whirlpool
WPW10136734
GASKET, DOOR (GREY)
Checking…
View Product
Part W11282544
Whirlpool
W11282544
GRILLE (GREY)
Checking…
View Product
Part W11678963
Whirlpool
W11678963
GROMMET, COMPRESSOR
Checking…
View Product
Part WP2176759
Whirlpool
WP2176759
GROMMET, MOTOR
Checking…
View Product
Part W11542651
Whirlpool
W11542651
HANDLE (STAINLESS)
Checking…
View Product
Part W10898319
Whirlpool
W10898319
HARNESS, WIRE
Checking…
View Product
Part W11611126
Whirlpool
W11611126
HEAT PROBE
Checking…
View Product
Part W11505709
Whirlpool
W11505709
HINGE, TOP (LEFT HAND)
Checking…
View Product
Part W11505710
Whirlpool
W11505710
HINGE, TOP (RIGHT HAND)
Checking…
View Product
Part W11368751
Whirlpool
W11368751
HOLDER, PAN
Checking…
View Product
Part WPW10185018
Whirlpool
WPW10185018
HOUSING, CRUSHER
Checking…
View Product
Part WPW10282880
Whirlpool
WPW10282880
HOUSING, HUMIDITY
Checking…
View Product
Part W11162042
Whirlpool
W11162042
HOUSING, WATER FILTER (GREY)
Checking…
View Product
Part WPW10558423
Whirlpool
WPW10558423
ICE CONTAINER, COMPLETE
Checking…
View Product
Part W11661892
Whirlpool
W11661892
ICE DOOR
Checking…
View Product
Part 4387491
Whirlpool
4387491
INSERT, TUBE
Checking…
View Product
Part W11553819
Whirlpool
W11553819
INSULATION, SOUND DEADENING
Checking…
View Product
Part W11239891
Whirlpool
W11239891
LENS, LIGHT (INCLUDES GASKET)
Checking…
View Product
Part W11602886
Whirlpool
W11602886
LIGHT MODULE, LED
Checking…
View Product
Part W11676611
Whirlpool
W11676611
LOCKING RING (1/4)
Checking…
View Product
Part W11678575
Whirlpool
W11678575
LOCKING RING (5/16)
Checking…
View Product
Part W11578915
Whirlpool
W11578915
MOTOR, CONDENSER FAN
Checking…
View Product
Part W11671282
Whirlpool
W11671282
MOTOR, DISPENSER
Checking…
View Product
Part WP2315549
Whirlpool
WP2315549
MOTOR, FAN
Checking…
View Product
Part WP1119018
Whirlpool
WP1119018
NUT, BEARING
Checking…
View Product
Part 4392900
Whirlpool
4392900
PAINT, BULK (1 QT. BISCUIT/BISQUE)
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT, BULK (1 QT. WHITE (UNCUT))
Checking…
View Product
Part 4392901
Whirlpool
4392901
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
Checking…
View Product
Part 285006
Whirlpool
285006
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLACK)
Checking…
View Product
Part 350942
Whirlpool
350942
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
Checking…
View Product
Part 350930
Whirlpool
350930
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
Checking…
View Product
Part 4392899
Whirlpool
4392899
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
Checking…
View Product
Part 72017
Whirlpool
72017
PAINT, TOUCH-UP (1/2OZ. WHITE)
Checking…
View Product
Part W11162443
Whirlpool
W11162443
PAN, CRISPER
Checking…
View Product
Part W11162446
Whirlpool
W11162446
PAN, MEAT
Checking…
View Product
Part 489229
Whirlpool
489229
PIN, ROLL
Checking…
View Product
Part W10904380
Whirlpool
W10904380
PLATE, SCREW (FREEZER)
Checking…
View Product
Part W11036715
Whirlpool
W11036715
PLATE, SCREW (REFRIGERATOR)
Checking…
View Product
Part W10900442
Whirlpool
W10900442
RAIL, UNIT MOUNTING
Checking…
View Product
Part W11700295
Whirlpool
W11700295
RETAINER, FAN MOTOR
Checking…
View Product
Part W11397167
Whirlpool
W11397167
RETAINER, SEPARATOR HOSE
Checking…
View Product
Part WP489236
Whirlpool
WP489236
RING, RETAINER
Checking…
View Product
Part WPW10475495
Whirlpool
WPW10475495
ROLLER
Checking…
View Product
Part WPW10141645
Whirlpool
WPW10141645
SCREW
Checking…
View Product
Part WP489483
Whirlpool
WP489483
SCREW
Checking…
View Product
Part WP489497
Whirlpool
WP489497
SCREW
Checking…
View Product
Part W11544561
Whirlpool
W11544561
SCREW
Checking…
View Product
Part WP489464
Whirlpool
WP489464
SCREW
Checking…
View Product
Part W10141518
Whirlpool
W10141518
SCREW
Checking…
View Product
Part WP3-24004-109
Whirlpool
WP3-24004-109
SCREW
Checking…
View Product
Part 718257
Whirlpool
718257
SCREW
Checking…
View Product
Part WP489399
Whirlpool
WP489399
SCREW
Checking…
View Product
Part WP488787
Whirlpool
WP488787
SCREW
Checking…
View Product
Part WPW10296816
Whirlpool
WPW10296816
SCREW
Checking…
View Product
Part WPW10661886
Whirlpool
WPW10661886
SCREW
Checking…
View Product
Part WPW10296804
Whirlpool
WPW10296804
SCREW
Checking…
View Product
Part WP489478
Whirlpool
WP489478
SCREW
Checking…
View Product
Part WP693995
Whirlpool
WP693995
SCREW
Checking…
View Product
Part WP8533993
Whirlpool
WP8533993
SCREW
Checking…
View Product
Part WP489427
Whirlpool
WP489427
SCREW
Checking…
View Product
Part W11544659
Whirlpool
W11544659
SCREW
Checking…
View Product
Part W11417341
Whirlpool
W11417341
SCREW
Checking…
View Product
Part WPW10308489
Whirlpool
WPW10308489
SCREW (GREY)
Checking…
View Product
Part WP8281163
Whirlpool
WP8281163
SCREW (STAINLESS)
Checking…
View Product
Part W11579735
Whirlpool
W11579735
SCREW, HINGE
Checking…
View Product
Part W11263195
Whirlpool
W11263195
SCROLL, FAN
Checking…
View Product
Part WPW10318948
Whirlpool
WPW10318948
SHELF, WIRE
Checking…
View Product
Part WPW10318947
Whirlpool
WPW10318947
SHELF, WIRE
Checking…
View Product
Part WPW10318961
Whirlpool
WPW10318961
SHELF, WIRE
Checking…
View Product
Part 2264838
Whirlpool
2264838
SLEEVE
Checking…
View Product
Part W11661094
Whirlpool
W11661094
SLEEVE
Checking…
View Product
Part W11746089
Whirlpool
W11746089
SLIDE
Checking…
View Product
Part W11676506
Whirlpool
W11676506
SLIDE, HUMIDITY
Checking…
View Product
Part W10845585
Whirlpool
W10845585
SLIDE, ICE CONTAINER (LEFT)
Checking…
View Product
Part W10845583
Whirlpool
W10845583
SLIDE, ICE CONTAINER (RIGHT)
Checking…
View Product
Part W10901827
Whirlpool
W10901827
SLIDER
Checking…
View Product
Part W10901825
Whirlpool
W10901825
SLIDER, HOUSING
Checking…
View Product
Part W10138206
Whirlpool
W10138206
SPACER - CRUSHER HOUSING
Checking…
View Product
Part W11032808
Whirlpool
W11032808
SPACER, FLAT
Checking…
View Product
Part W11032812
Whirlpool
W11032812
SPACER, STEP
Checking…
View Product
Part 1119020
Whirlpool
1119020
SPRING, RETURN
Checking…
View Product
Part W11577799
Whirlpool
W11577799
STRAP, BALE
Checking…
View Product
Part 4388405
Whirlpool
4388405
STUD, SUPPORT
Checking…
View Product
Part 4388358
Whirlpool
4388358
SUPPORT, FAN SCROLL (LEFT HAND)
Checking…
View Product
Part W11384469
Whirlpool
W11384469
SWITCH
Checking…
View Product
Part W11396033
Whirlpool
W11396033
SWITCH, LIGHT
Checking…
View Product
Part W11123941
Whirlpool
W11123941
SWITCH, ROCKER
Checking…
View Product
Part W11248697
Whirlpool
W11248697
TECH SHEET
Checking…
View Product
Part WPW10384183
Whirlpool
WPW10384183
THERMISTOR
Checking…
View Product
Part WP2182181
Whirlpool
WP2182181
THIMBLE
Checking…
View Product
Part W11397972
Whirlpool
W11397972
THIMBLE, CAM
Checking…
View Product
Part W11661926
Whirlpool
W11661926
THIMBLE, CAM
Checking…
View Product
Part WPW10339879
Whirlpool
WPW10339879
TIE, WIRE
Checking…
View Product
Part WP1117510
Whirlpool
WP1117510
TORX SCREW WRENCH, TORX KEY
Checking…
View Product
Part W10134625
Whirlpool
W10134625
TOUCH-UP PAINT (APOLLO GREY)
Checking…
View Product
Part 72032
Whirlpool
72032
TOUCH-UP PAINT (BLACK)
Checking…
View Product
Part W11164129
Whirlpool
W11164129
TRAY, EVAPORATOR
Checking…
View Product
Part WPW10307490
Whirlpool
WPW10307490
TRIM, DOOR SHELF
Checking…
View Product
Part WP2309941
Whirlpool
WP2309941
TRIVET
Checking…
View Product
Part WP2309718
Whirlpool
WP2309718
TRIVET
Checking…
View Product
Part W11162040
Whirlpool
W11162040
TUBE, FILTER INLET
Checking…
View Product
Part W11162036
Whirlpool
W11162036
TUBE, FILTER OUTLET
Checking…
View Product
Part W10858105
Whirlpool
W10858105
TUBE, PROCESS
Checking…
View Product
Part W11386791
Whirlpool
W11386791
TUBE, SUCTION
Checking…
View Product
Part W10823511
Whirlpool
W10823511
TUBE, WATER
Checking…
View Product
Part W11566768
Whirlpool
W11566768
TUBING, WATER RESERVOIR
Checking…
View Product
Part W11484052
Whirlpool
W11484052
USE & CARE GUIDE
Checking…
View Product
Part 489234
Whirlpool
489234
WASHER, PLAIN UPPER CAM
Checking…
View Product
    Main Menu x
