Model Image
Manufacturer

Whirlpool

Model Number

WRS321SDHZ08

Description

33-inch Wide Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11504449 W11504449 4/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR)
W11506623 W11506623 5 NK MS 00 (3-WAY VALVE TO DRIER)
W11504447 W11504447 5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
W11504445 W11504445 5/4 NR MS 00 (3-WAY VALVE TO DRIER)
W11504433 W11504433 6/4 NR MS 00 (HEAT LOOP TO DRIER)
W11504431 W11504431 7/5 NR MS 00 (SUCTION LINE TO CONDENSER)
W11506619 W11506619 8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
W11504415 W11504415 8.5/8 NR MS 00 (HIGH PRESSURE SIDE TO COMPRESSOR)
W11596045 W11596045 ARM, CONTROL
W11645127 W11645127 ASSEMBLY, AIR DIFFUSER (INCLUDES RC & FC THERMISTORS)
W11687636 W11687636 ASSEMBLY, BOTTOM HINGE (FREEZER)
W11399415 W11399415 ASSEMBLY, BOTTOM HINGE (REFRIGERATOR - ALSO INCLUDES DOOR CAM)
W10897565 W10897565 ASSEMBLY, BRACKET
W11632924 W11632924 ASSEMBLY, CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
W11697465 W11697465 ASSEMBLY, COVER
W11650660 W11650660 ASSEMBLY, DEFROST SCREW BRACKET, FAN MOUNTING ASSEMBLY, DEFROST
W11645245 W11645245 ASSEMBLY, FILTER VALVE
W11546608 W11546608 ASSEMBLY, HEAT SHIELD AND DRAIN PAN
W11676779 W11676779 ASSEMBLY, ICE DISPENSER WIRING
SCREW SCREW ASSEMBLY, PRECOOLER FORMED
W11678305 W11678305 ASSEMBLY, PRECOOLER FORMED
WPW10304660 WPW10304660 ASSEMBLY, ROLLER (LEFT HAND)
WPW10304659 WPW10304659 ASSEMBLY, ROLLER (RIGHT HAND)
W11678833 W11678833 ASSEMBLY, SEPARATOR (BLACK)
W11678832 W11678832 ASSEMBLY, SEPARATOR (GREY)
W11678834 W11678834 ASSEMBLY, SEPARATOR (WHITE)
W11188040 W11188040 ASSEMBLY, SHELF
W11223328 W11223328 ASSEMBLY, SHELF STUD
WP2152713 WP2152713 ASSEMBLY, SOLENOID
W10905940 W10905940 ASSEMBLY, UNIT COVER (BOTTOM)
W11565110 W11565110 ASSEMBLY, UNIT WIRE
W11518204 W11518204 ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
W11163765 W11163765 ASSEMBLY, WATER FITTING
WPW10295082 WPW10295082 AUGER
W11594405 W11594405 AXLE, ROLLER
W11223753 W11223753 BADGE
W10896764 W10896764 BAFFLE, AIR
W10852691 W10852691 BAFFLE, FLOATING
W11239961 W11239961 BIN, DOOR
WP2309758 WP2309758 BIN, FREEZER
WP2169142 WP2169142 BLADE, FAN
W11458267 W11458267 BLADE, FAN
W10181990 W10181990 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
W10138203 W10138203 BLOCK, BLADE
489340 489340 BOLT
2323186 2323186 BOX, CONTROL
W11557261 W11557261 BRACKET, DOOR STOP (BLACK)
WP2181929 WP2181929 BRACKET, FAN MOUNTING
W11307588 W11307588 BRACKET, MOTOR
W10407187 W10407187 BUMPER, DOOR (BLACK)
W11573367 W11573367 BUMPER, DOOR (GREY)
W11687672 W11687672 BUMPER, DOOR (WHITE)
WPW10662129 WPW10662129 CAPACITOR
W11645360 W11645360 CHUTE, WATER
W11234470 W11234470 CLAMP, POWER CORD
W10861184 W10861184 CLAMP, TUBE
489396 489396 CLIP
2215823 2215823 CLIP, AIR DUCT
W10683556 W10683556 CLIP, CONDENSER
WP2161324 WP2161324 CLIP, DEFROST HEATER
W11546684 W11546684 CLIP, EVAPORATOR THERMISTOR
WP2155013 WP2155013 CLIP, GRILLE
1119021 1119021 CLIP, RETAINER (DISPENSER ROD)
W11679635 W11679635 CLOSER, DOOR (FREEZER)
W11398787 W11398787 CLOSER, LOWER CAM DOOR (REFRIGERATOR)
W11700250 W11700250 COMPLETE ICEMAKER ASSEMBLY
W11580057 W11580057 COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
W11091654 W11091654 CONNECTOR, DOUBLE LOCK
WP2300868 WP2300868 CONNECTOR, UNION
W10850492 W10850492 CONTAINER, ICE
W11742389 W11742389 CONTROL, ELECTRONIC
W10749708 W10749708 COUPLING, ICE CONVEYOR
WPW10169511 WPW10169511 COUPLING, MOTOR
W11048608 W11048608 COVER, AIR DIFFUSER
W11311799 W11311799 COVER, DISPENSER FRONT (BLACK (LEFT HAND))
W11311800 W11311800 COVER, DISPENSER FRONT (BLACK (RIGHT HAND))
W10313215 W10313215 COVER, ELECTRONIC CONTROL
W11429207 W11429207 COVER, EVAPORATOR
W10189274 W10189274 COVER, ICE CONTAINER FRONT
W11613262 W11613262 COVER, UNIT
WPW10130299 WPW10130299 CUP, SHELF
WP1119017 WP1119017 DEFLECTER, ICE
W11547180 W11547180 DEVICE, COMBINATION START (START RELAY AND OVERLOAD)
WP2256101 WP2256101 DOOR, COMPARTMENT
LW11026359 LW11026359 DOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK STAINLESS)
LW11026356 LW11026356 DOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK)
LW10918659 LW10918659 DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLESS)
LW11026357 LW11026357 DOOR, FREEZER (INCLUDES DOOR GASKET) (WHITE)
W11690902 W11690902 DOOR, ICE
LW10912381 LW10912381 DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK STAINLESS)
LW10912374 LW10912374 DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
LW10913407 LW10913407 DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
LW10912366 LW10912366 DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WHITE)
W11109499 W11109499 DRIER (SERVICE DRIER WITHOUT DYE) (ALSO ORDER THE FOLLOWING LOKRING PARTS)
4388736 4388736 DRUM
W11099844 W11099844 DUCT, FREEZER AIR
W11387660 W11387660 ENERGY GUIDE
W11546605 W11546605 EVAPORATOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
W11512417 W11512417 EXTENSION, DRAIN FITTING
W11219641 W11219641 FILLER, WRAPPER (BLACK)
W11219642 W11219642 FILLER, WRAPPER (GREY)
W11219639 W11219639 FILLER, WRAPPER (WHITE)
EDR1RXD1 EDR1RXD1 FILTER, WATER
W11566763 W11566763 FITTING, DRAIN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10905880 W10905880 FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING RAIL)
W11311797 W11311797 FRONT COVER, DISPENSER (WHITE (LEFT HAND))
W11311798 W11311798 FRONT COVER, DISPENSER (WHITE (RIGHT HAND))
4388500 4388500 GASKET
WP2304241 WP2304241 GASKET
2159073 2159073 GASKET, DOOR (BEIGE)
2159072 2159072 GASKET, DOOR (BEIGE)
2159081 2159081 GASKET, DOOR (BLACK)
2159080 2159080 GASKET, DOOR (BLACK)
W10136732 W10136732 GASKET, DOOR (GREY)
W10136733 W10136733 GASKET, DOOR (GREY)
WP2155789 WP2155789 GASKET, SCROLL ASSEMBLY
W11282556 W11282556 GRILLE (BLACK)
W11282548 W11282548 GRILLE (GREY)
W11282549 W11282549 GRILLE (WHITE)
WPW10169124 WPW10169124 GROMMET
WP2176759 WP2176759 GROMMET, MOTOR
W10850503 W10850503 GUIDE, SOLENOID
W11450223 W11450223 HANDLE (BLACK STAINLESS)
W11450221 W11450221 HANDLE (BLACK)
W11542651 W11542651 HANDLE (STAINLESS)
W11432251 W11432251 HANDLE (WHITE)

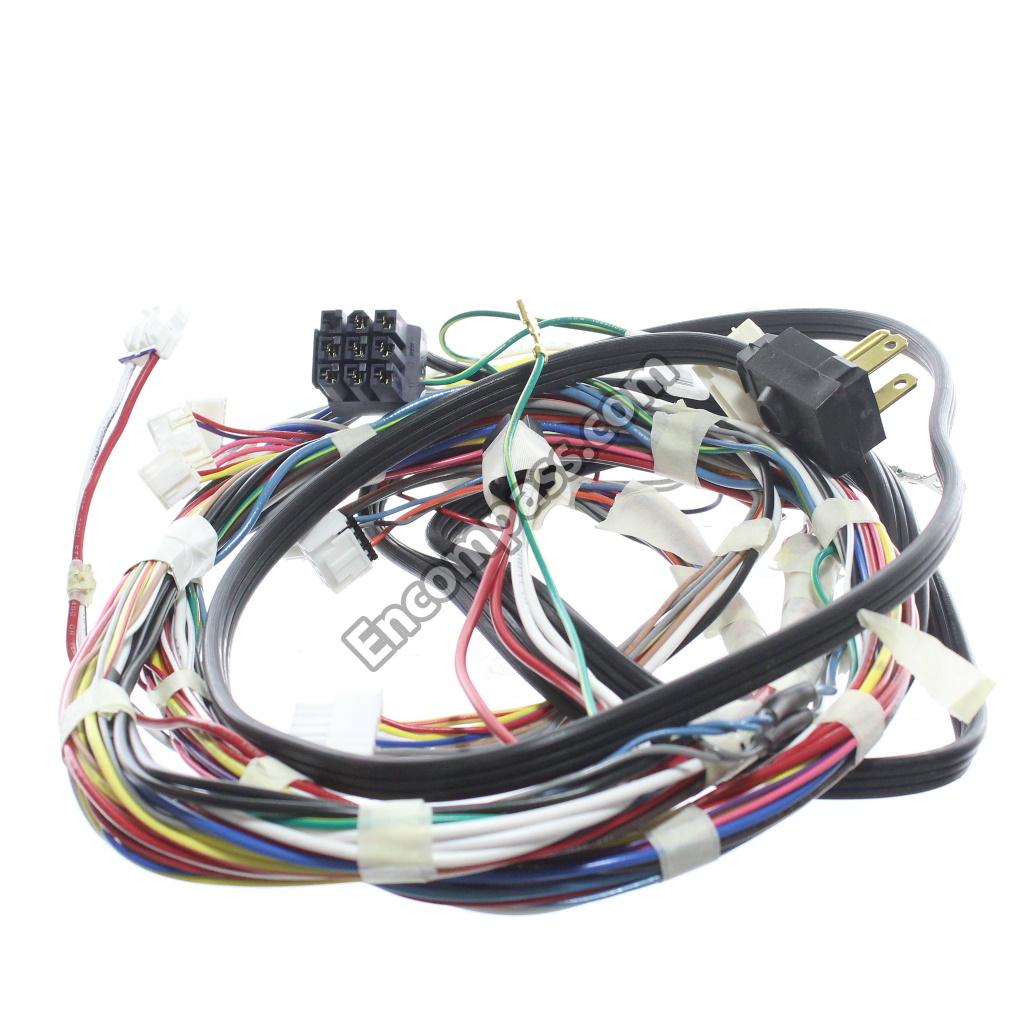

W10913117 W10913117 HARNESS, WIRE
W11611126 W11611126 HEAT PROBE
W11505709 W11505709 HINGE, TOP (LEFT HAND)
W11505710 W11505710 HINGE, TOP (RIGHT HAND)
W11368751 W11368751 HOLDER, PAN
W11371713 W11371713 HOLDER, SNACK PAN
WPW10185018 WPW10185018 HOUSING, CRUSHER
WPW10282880 WPW10282880 HOUSING, HUMIDITY
W11172791 W11172791 HOUSING, WATER FILTER (BLACK)
W11162042 W11162042 HOUSING, WATER FILTER (GREY)
W11162041 W11162041 HOUSING, WATER FILTER (WHITE)
WPW10558424 WPW10558424 ICE CONTAINER, COMPLETE
4387491 4387491 INSERT, TUBE
W11553819 W11553819 INSULATION, SOUND DEADENING
W11239891 W11239891 LENS, LIGHT (INCLUDES GASKET)
W11602886 W11602886 LIGHT MODULE, LED
W11676611 W11676611 LOCKING RING (1/4)
W11678575 W11678575 LOCKING RING (5/16)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP503695 WP503695 MISCELLANEOUS, CORK, SEALER
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
WPW10300794 WPW10300794 MISCELLANEOUS, KIT, HANDLE INSTALLATION
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS, TAPE, VINYL (3/4 X 108-INCH)
W11578915 W11578915 MOTOR, CONDENSER FAN
W11671282 W11671282 MOTOR, DISPENSER

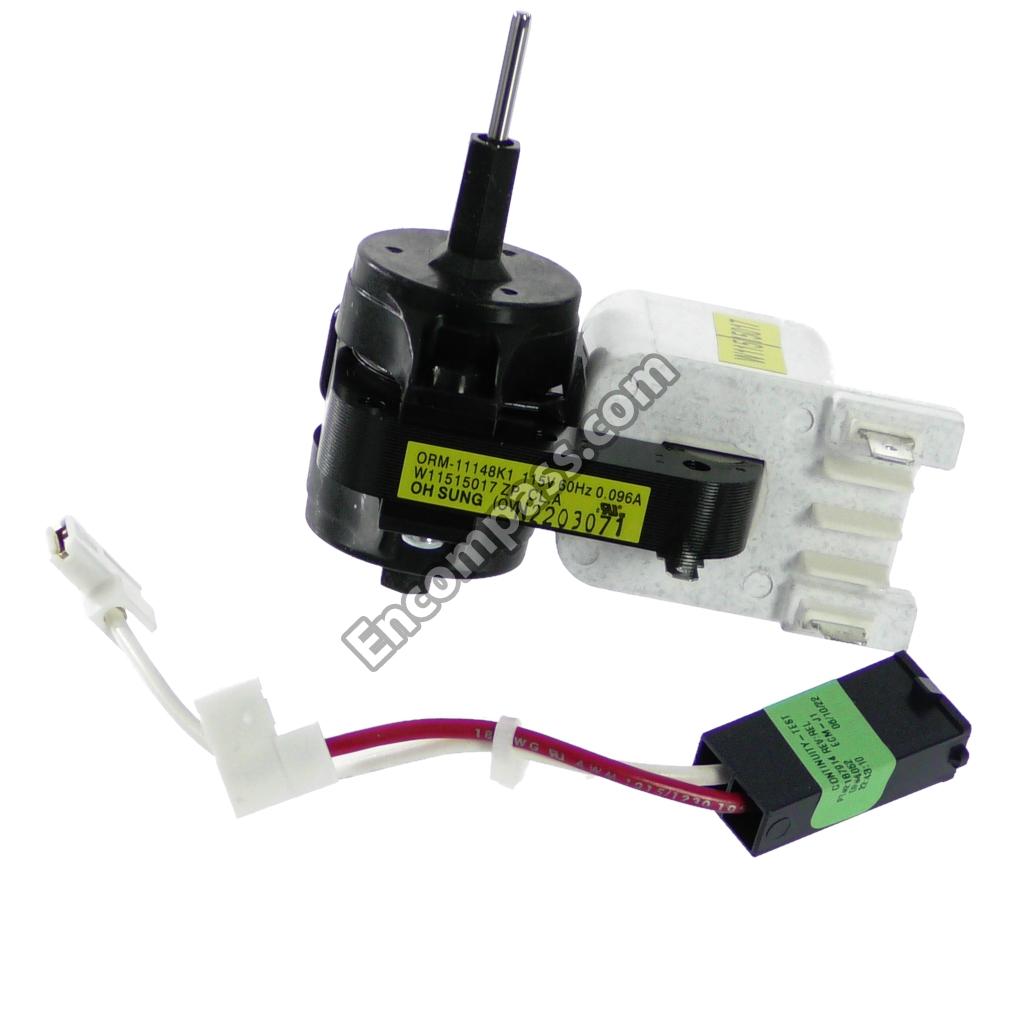

W11559968 W11559968 MOTOR, FAN
WP1119018 WP1119018 NUT, BEARING
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11162443 W11162443 PAN, CRISPER
W11162446 W11162446 PAN, MEAT
W11162448 W11162448 PAN, SNACK
489229 489229 PIN, ROLL
W10904380 W10904380 PLATE, SCREW (FREEZER)
W11036715 W11036715 PLATE, SCREW (REFRIGERATOR)
W11517647 W11517647 RACK, CAN
W10905882 W10905882 RAIL, UNIT MOUNTING
W11700295 W11700295 RETAINER, FAN MOTOR
8282566 8282566 RETAINER, PUSH-IN
W11397167 W11397167 RETAINER, SEPARATOR HOSE
WP489236 WP489236 RING, RETAINER
WPW10475495 WPW10475495 ROLLER
W11544561 W11544561 SCREW
WP489500 WP489500 SCREW
WP489128 WP489128 SCREW
WP489497 WP489497 SCREW
WP489464 WP489464 SCREW
WPW10141645 WPW10141645 SCREW
WP489483 WP489483 SCREW
W10141518 W10141518 SCREW
WP3-24004-109 WP3-24004-109 SCREW
718257 718257 SCREW
W10142289 W10142289 SCREW
WP489399 WP489399 SCREW
WP488787 WP488787 SCREW
WPW10296816 WPW10296816 SCREW
WPW10661886 WPW10661886 SCREW
WPW10296804 WPW10296804 SCREW
WP489478 WP489478 SCREW
WP693995 WP693995 SCREW
WP8533993 WP8533993 SCREW
WP489427 WP489427 SCREW
W11544659 W11544659 SCREW
W11661574 W11661574 SCREW
WPW10171469 WPW10171469 SCREW
WP98008545 WP98008545 SCREW (BLACK)
WPW10308489 WPW10308489 SCREW (GREY)
WPW10142283 WPW10142283 SCREW (WHITE)
W11579735 W11579735 SCREW, HINGE
W11254898 W11254898 SCROLL, FAN
W11546979 W11546979 SHELF, GLASS (BOTTOM)
W11194631 W11194631 SHELF, GLASS (MIDDLE)
W11194634 W11194634 SHELF, GLASS (TOP)
W11449889 W11449889 SHELF, SNACK
W11661094 W11661094 SLEEVE
W11746089 W11746089 SLIDE
W11676506 W11676506 SLIDE, HUMIDITY
W10845585 W10845585 SLIDE, ICE CONTAINER (LEFT)
W10845583 W10845583 SLIDE, ICE CONTAINER (RIGHT)
W10138206 W10138206 SPACER - CRUSHER HOUSING
W11032808 W11032808 SPACER, FLAT
W11032812 W11032812 SPACER, STEP
1119020 1119020 SPRING, RETURN
W11577799 W11577799 STRAP, BALE
4388405 4388405 STUD, SUPPORT
4388358 4388358 SUPPORT, FAN SCROLL (LEFT HAND)
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH, LIGHT
W11123941 W11123941 SWITCH, ROCKER
W11212322 W11212322 TECH SHEET
WPW10384183 WPW10384183 THERMISTOR
WP2182181 WP2182181 THIMBLE
W11397972 W11397972 THIMBLE, CAM
W11661926 W11661926 THIMBLE, CAM
WPW10339879 WPW10339879 TIE, WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10134625 W10134625 TOUCH-UP PAINT (APOLLO GREY)
72032 72032 TOUCH-UP PAINT (BLACK)
W11164129 W11164129 TRAY, EVAPORATOR
WP2309717 WP2309717 TRIM, DOOR
WPW10307490 WPW10307490 TRIM, DOOR SHELF
WP2309941 WP2309941 TRIVET
W11162040 W11162040 TUBE, FILTER INLET
W11162036 W11162036 TUBE, FILTER OUTLET
W10858105 W10858105 TUBE, PROCESS
W11506458 W11506458 TUBE, SUCTION
W10823511 W10823511 TUBE, WATER
W11579182 W11579182 TUBING, WATER RESERVOIR
W11484052 W11484052 USE & CARE GUIDE
489234 489234 WASHER, PLAIN UPPER CAM
