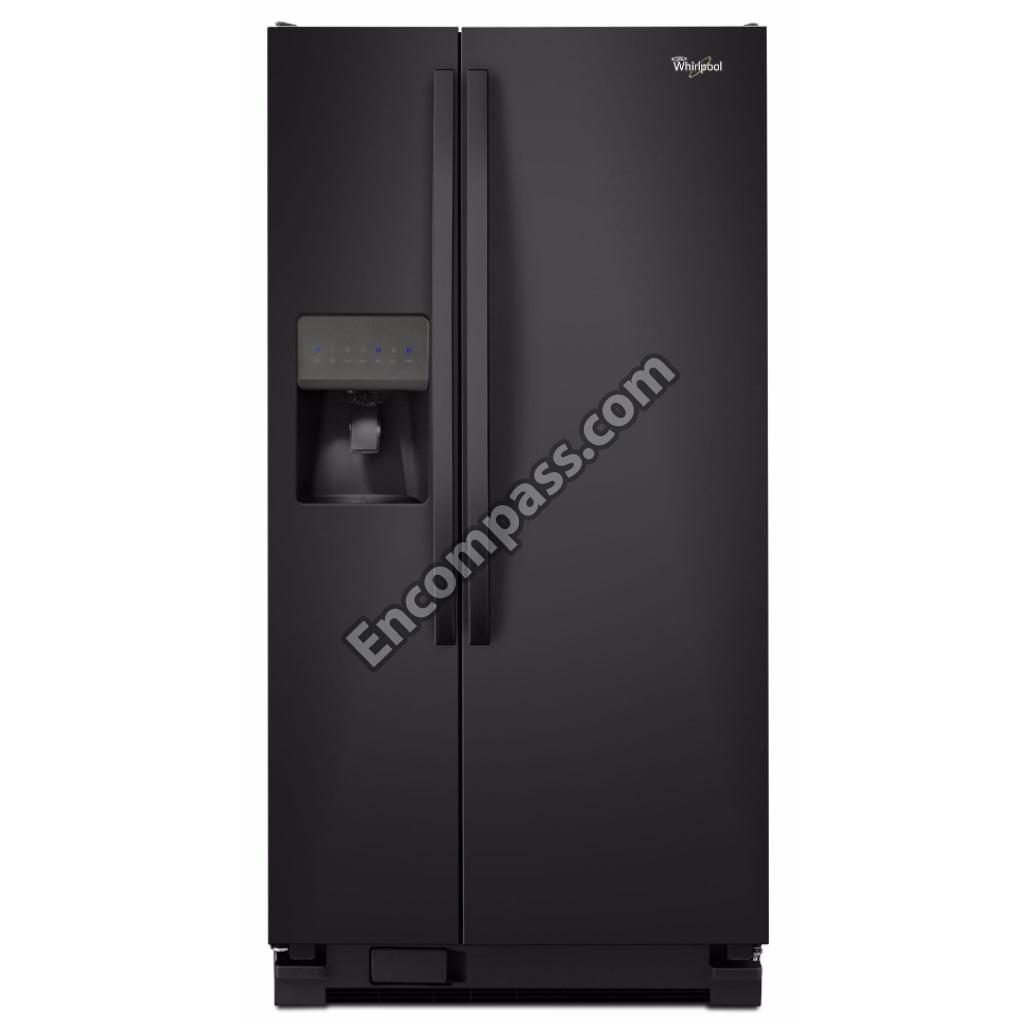

Model Image
Manufacturer

Whirlpool

Model Number

WRS322FDAB04

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11596045 W11596045 Whirlpool ARM-CONTRL
W10318914 W10318914 Whirlpool ARM-EJECTR
W11256541 W11256541 Whirlpool ARM-PIVOT
W11342242 W11342242 Whirlpool ARM-SHUT
WPW10122563 WPW10122563 Whirlpool ARM-STRIPR
2324712 2324712 Whirlpool ASSEMBLY, CONDENSER
WPW10295082 WPW10295082 Whirlpool AUGER-ICE
W11594405 W11594405 Whirlpool AXLE
W10852691 W10852691 Whirlpool BAFFLE
W10332806 W10332806 Whirlpool BAFFLE-AIR
WP2196003 WP2196003 Whirlpool BARRIER
WP1119018 WP1119018 Whirlpool BEARING
WP2321258 WP2321258 Whirlpool BIMETL-DEF
WPW10321304 WPW10321304 Whirlpool BIN CONTROL LEVER
WP2309758 WP2309758 Whirlpool BIN-FREEZR
W10278731 W10278731 Whirlpool BLADE
W10278733 W10278733 Whirlpool BLADE
W10181990 W10181990 Whirlpool BLADE
W10278732 W10278732 Whirlpool BLADE
W11458267 W11458267 Whirlpool BLADE-FAN
WP2169142 WP2169142 Whirlpool BLADE-FAN
W10138203 W10138203 Whirlpool BLOCK-BLAD
1110560 1110560 Whirlpool BODY, BEARING
WP2179343 WP2179343 Whirlpool BODY-CNTRL
489340 489340 Whirlpool BOLT
WP2181929 WP2181929 Whirlpool BRACKET
WPW10219801 WPW10219801 Whirlpool BRACKET
WPW10397979 WPW10397979 Whirlpool BRACKET
2306940 2306940 Whirlpool BRACKET, DOOR STOP (SILVER)
2311611 2311611 Whirlpool BRACKET, MOUNTING
N_P N_P Whirlpool CABINET (NOT A SERVICABLE PART)
WP2182195 WP2182195 Whirlpool CAM
WP2223752 WP2223752 Whirlpool CAM-DOOR
WP2182179 WP2182179 Whirlpool CAM-DOOR
WP2223751 WP2223751 Whirlpool CAM-DOOR
2200096 2200096 Whirlpool CAMERA LENS, LIGHT
WPW10350564 WPW10350564 Whirlpool CAPACITOR
W11505385 W11505385 Whirlpool CHUTE
W10861184 W10861184 Whirlpool CLAMP
549193 549193 Whirlpool CLAMP, POWER CORD
WP2315522 WP2315522 Whirlpool CLIP
WP628379 WP628379 Whirlpool CLIP
489396 489396 Whirlpool CLIP
WP2161324 WP2161324 Whirlpool CLIP
W10683556 W10683556 Whirlpool CLIP
W10812039 W10812039 Whirlpool CLIP
WP2196062 WP2196062 Whirlpool CLIP
WP1115374 WP1115374 Whirlpool CLIP
WP2155013 WP2155013 Whirlpool CLIP
1119021 1119021 Whirlpool CLIP, RETAINER (DISPENSER ROD)
2215823 2215823 Whirlpool CLIP-AIR, DUCT
W10309988 W10309988 Whirlpool COMPRESSOR
2311631 2311631 Whirlpool CONNECTING ROD
W10850492 W10850492 Whirlpool CONTAINER
W10553058 W10553058 Whirlpool CONTRL-BOX
WPW10366605 WPW10366605 Whirlpool CONTROL BOARD
WPW10397957 WPW10397957 Whirlpool CONTROL BOARD
WPW10397956 WPW10397956 Whirlpool CONTROL BOARD
W10749708 W10749708 Whirlpool COUPLING
WPW10169511 WPW10169511 Whirlpool COUPLING
W10508993 W10508993 Whirlpool COVER
W10914556 W10914556 Whirlpool COVER
W10189274 W10189274 Whirlpool COVER
2152019 2152019 Whirlpool COVER, AIR DIFFUSER
W11429207 W11429207 Whirlpool COVER-EVAP
WP2188756 WP2188756 Whirlpool COVER-UNIT
W10466699 W10466699 Whirlpool COVER-UNIT
W10252495 W10252495 Whirlpool COVER-WIRE
WP2188656 WP2188656 Whirlpool CRISPER PAN
WPW10130299 WPW10130299 Whirlpool CUP
W11676540 W11676540 Whirlpool CUP-FILL
WP1119017 WP1119017 Whirlpool DEFLECTOR
WPW10151374 WPW10151374 Whirlpool DIFFUSER
LW10651091 LW10651091 Whirlpool DOOR ASSEMBLY
LW10651093 LW10651093 Whirlpool DOOR ASSEMBLY
LW10763103 LW10763103 Whirlpool DOOR ASSEMBLY
LW10637826 LW10637826 Whirlpool DOOR ASSEMBLY
LW10407738 LW10407738 Whirlpool DOOR ASSEMBLY BL
LW10407707 LW10407707 Whirlpool DOOR ASSEMBLY BT
LW10424384 LW10424384 Whirlpool DOOR ASSEMBLY SS
LW10428790 LW10428790 Whirlpool DOOR ASSEMBLY WH
2159081 2159081 Whirlpool DOOR GASKET, MAGNETIC
2159073 2159073 Whirlpool DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
W11049959 W11049959 Whirlpool DOOR HINGE
W11164088 W11164088 Whirlpool DOOR HINGE
W11579508 W11579508 Whirlpool DOOR HINGE
WPW10307490 WPW10307490 Whirlpool DOOR TRIM
WP2309717 WP2309717 Whirlpool DOOR TRIM
WP2309941 WP2309941 Whirlpool DOOR TRIM
2159080 2159080 Whirlpool DOOR, GASKET MAGNETIC
2159072 2159072 Whirlpool DOOR, GASKET MAGNETIC
WP2256101 WP2256101 Whirlpool DOOR-COMP
W11093842 W11093842 Whirlpool DOOR-ICE
WPW10714976 WPW10714976 Whirlpool DOOR-ICE
W11093828 W11093828 Whirlpool DOOR-ICE
W11195669 W11195669 Whirlpool DOOR-ICE
W10406979 W10406979 Whirlpool DOOR-ICE
WPW10143759 WPW10143759 Whirlpool DRIER-UV
4388736 4388736 Whirlpool DRUM
W10166220 W10166220 Whirlpool DUCT-AIR
W10725059 W10725059 Whirlpool ENERGY GUIDE
WP2188822 WP2188822 Whirlpool EVAPORATOR
WPW10236142 WPW10236142 Whirlpool EVAPORATOR MOTOR
W11254898 W11254898 Whirlpool FAN-SCROLL
489285 489285 Whirlpool FASTENER, PUSH-ON
W10851579 W10851579 Whirlpool FILLER
WPW10283959 WPW10283959 Whirlpool FILLER
W10283958 W10283958 Whirlpool FILLER
W11252732 W11252732 Whirlpool FILLER
WP2300868 WP2300868 Whirlpool FITTING
WPW10397435 WPW10397435 Whirlpool FITTING
W11566763 W11566763 Whirlpool FITTING
2304903 2304903 Whirlpool FRAME, UNIT MOUNTING
WPW10289690 WPW10289690 Whirlpool FRONT COVER
WP2304241 WP2304241 Whirlpool GASKET
4388500 4388500 Whirlpool GASKET
W10136733 W10136733 Whirlpool GASKET ASSEMBLY
W10136732 W10136732 Whirlpool GASKET ASSEMBLY
WPW10276348 WPW10276348 Whirlpool GLASS SHELF
WPW10276341 WPW10276341 Whirlpool GLASS SHELF
W10864399 W10864399 Whirlpool GLASS SHELF
WP542638 WP542638 Whirlpool GREASE
WPW10397395 WPW10397395 Whirlpool GRILLE
WPW10397992 WPW10397992 Whirlpool GRILLE
WPW10397394 WPW10397394 Whirlpool GRILLE
WPW10397392 WPW10397392 Whirlpool GRILLE
WPW10393046 WPW10393046 Whirlpool GRILLE
WPW10393044 WPW10393044 Whirlpool GRILLE
WPW10393045 WPW10393045 Whirlpool GRILLE
WPW10169124 WPW10169124 Whirlpool GROMMET
WP2176759 WP2176759 Whirlpool GROMMET
W10850503 W10850503 Whirlpool GUIDE
W10899551 W10899551 Whirlpool HANDLE
WPW10398789 WPW10398789 Whirlpool HANDLE
W10805245 W10805245 Whirlpool HANDLE
W10848410 W10848410 Whirlpool HANDLE
W10417930 W10417930 Whirlpool HARNS-DISP
W10667067 W10667067 Whirlpool HARNS-WIRE
WPW10495967 WPW10495967 Whirlpool HEATER
W10646418 W10646418 Whirlpool HINGE BOTTOM FC
WPW10185018 WPW10185018 Whirlpool HOUSING
W10862461 W10862461 Whirlpool HOUSING
W10861696 W10861696 Whirlpool HOUSING
W10862460 W10862460 Whirlpool HOUSING
W10862456 W10862456 Whirlpool HOUSING
W11416813 W11416813 Whirlpool HOUSING
WP2195914 WP2195914 Whirlpool HOUSING-IM
WPW10558424 WPW10558424 Whirlpool ICE-CONTNR
WPW10300022 WPW10300022 Whirlpool ICEMAKER
WPW10179146 WPW10179146 Whirlpool INLET VALVE
4387491 4387491 Whirlpool INSERT, TUBE
2311615 2311615 Whirlpool KNOB, CONTROL
W10723843 W10723843 Whirlpool KNOB, THERMOSTAT
WPW10515058 WPW10515058 Whirlpool LIGHT
WPW10515057 WPW10515057 Whirlpool LIGHT
8201651 8201651 Whirlpool LOUVER-CAB
WP4317852 WP4317852 Whirlpool MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
833938 833938 Whirlpool MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP Whirlpool MISCELLANEOUS, KIT, WATER INLET
212643 212643 Whirlpool MISCELLANEOUS, SEALER, GUM (4 FEET)
8201515 8201515 Whirlpool MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10300025 WPW10300025 Whirlpool MOLD-ICE
WPW10317991 WPW10317991 Whirlpool MOTOR
WP2188874 WP2188874 Whirlpool MOTOR-COND
WPW10511972 WPW10511972 Whirlpool NAMEPLATE
WPW10511975 WPW10511975 Whirlpool NAMEPLATE
4392900 4392900 Whirlpool PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 Whirlpool PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 Whirlpool PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 Whirlpool PAINT, SPRAY (WHITE)
4392899 4392899 Whirlpool PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
WP2188664 WP2188664 Whirlpool PAN-MEAT
WP2309517 WP2309517 Whirlpool PAN-SNACK
489229 489229 Whirlpool PIN, ROLL
WP2174706 WP2174706 Whirlpool PIN-HITCH
WP2304249 WP2304249 Whirlpool PLATE
W10207512 W10207512 Whirlpool RAIL-UNIT
WPW10276792 WPW10276792 Whirlpool RESERVOIR
W11700295 W11700295 Whirlpool RETAINER
W10204187 W10204187 Whirlpool RETAINER
WP489236 WP489236 Whirlpool RING-E
WPW10304659 WPW10304659 Whirlpool ROLLER-CAB
WPW10475495 WPW10475495 Whirlpool ROLLER-CAB
WPW10304660 WPW10304660 Whirlpool ROLLER-CAB
WPW10141625 WPW10141625 Whirlpool SCREW
WP488163 WP488163 Whirlpool SCREW
W11544659 W11544659 Whirlpool SCREW
WP489427 WP489427 Whirlpool SCREW
WP8533993 WP8533993 Whirlpool SCREW
WP965173 WP965173 Whirlpool SCREW
489392 489392 Whirlpool SCREW
627068 627068 Whirlpool SCREW
WP489478 WP489478 Whirlpool SCREW
WP3196557 WP3196557 Whirlpool SCREW
WP3400012 WP3400012 Whirlpool SCREW
WPW10661886 WPW10661886 Whirlpool SCREW
WP488787 WP488787 Whirlpool SCREW
WP489399 WP489399 Whirlpool SCREW
WPW10191952 WPW10191952 Whirlpool SCREW
WP3-24004-109 WP3-24004-109 Whirlpool SCREW
798639 798639 Whirlpool SCREW
WP489483 WP489483 Whirlpool SCREW
WPW10141645 WPW10141645 Whirlpool SCREW
WP489464 WP489464 Whirlpool SCREW
WP488488 WP488488 Whirlpool SCREW
W10856122 W10856122 Whirlpool SCREW
WPW10308751 WPW10308751 Whirlpool SCREW
WPW10308750 WPW10308750 Whirlpool SCREW
WP489497 WP489497 Whirlpool SCREW
WP489128 WP489128 Whirlpool SCREW
WP489500 WP489500 Whirlpool SCREW
W11544561 W11544561 Whirlpool SCREW
W11417341 W11417341 Whirlpool SCREW
W10759522 W10759522 Whirlpool SCREW
WP693995 WP693995 Whirlpool SCREW
W10001280 W10001280 Whirlpool SCREW
W10001240 W10001240 Whirlpool SCREW
W10142289 W10142289 Whirlpool SCREW 8-18 X 5/8
718257 718257 Whirlpool SCREW, 8-18 X 1.38
WP503695 WP503695 Whirlpool SEALER
WP505587 WP505587 Whirlpool SEALER
W10714129 W10714129 Whirlpool SERVICE AND WIRING SHEET
WPW10318960 WPW10318960 Whirlpool SHELF-WIRE
WPW10318952 WPW10318952 Whirlpool SHELF-WIRE
WPW10318953 WPW10318953 Whirlpool SHELF-WIRE
WPW10194474 WPW10194474 Whirlpool SHIELD
W11661094 W11661094 Whirlpool SLEEVE
WP2179342 WP2179342 Whirlpool SLIDE
W10845585 W10845585 Whirlpool SLIDE, ICE CONTAINER (LEFT)
W10845583 W10845583 Whirlpool SLIDE, ICE CONTAINER (RIGHT)
WP2152713 WP2152713 Whirlpool SOLENOID
W10189661 W10189661 Whirlpool SPACER
W11032808 W11032808 Whirlpool SPACER, FLAT
489203 489203 Whirlpool SPRING WASHER
1119020 1119020 Whirlpool SPRING, RETURN
WPW10194431 WPW10194431 Whirlpool START-DEV
4388405 4388405 Whirlpool STUD-SHELF
W11527119 W11527119 Whirlpool STUD-SHELF
W11223328 W11223328 Whirlpool STUD-SHELF
4388358 4388358 Whirlpool SUPPORT KIT (CONTAINS RIGHT AND LEFT)
WP2149705 WP2149705 Whirlpool SWITCH
W11457217 W11457217 Whirlpool SWITCH
W11238399 W11238399 Whirlpool TAPE
WPW10583801 WPW10583801 Whirlpool THERMOSTAT
WP2182181 WP2182181 Whirlpool THIMBLE
WPW10339879 WPW10339879 Whirlpool TIE-WIRE
WP1117510 WP1117510 Whirlpool TORX SCREW WRENCH, TORX KEY
WPW10614158 WPW10614158 Whirlpool TRAY-EVAP
WP2179243 WP2179243 Whirlpool TRIM-PAN
W10861746 W10861746 Whirlpool TRIM-PAN
W11035574 W11035574 Whirlpool TRIM-PAN
W11512417 W11512417 Whirlpool TRIVET
W10858105 W10858105 Whirlpool TUBE
2205764 2205764 Whirlpool TUBE SUCTION
W10407342 W10407342 Whirlpool USE CARE
WP978025 WP978025 Whirlpool VALVE
876764 876764 Whirlpool VALVE, ACCESS
978030 978030 Whirlpool VALVE, ACCESS
978029 978029 Whirlpool VALVE, ACCESS
978028 978028 Whirlpool VALVE, ACCESS
978027 978027 Whirlpool VALVE, ACCESS
978026 978026 Whirlpool VALVE, ACCESS
489234 489234 Whirlpool WASHER, PLAIN UPPER CAM
EDR1RXD1 EDR1RXD1 Whirlpool WATER FILTER
W10823511 W10823511 Whirlpool WATER TUBE
WPW10350007 WPW10350007 Whirlpool WATER TUBE
WPW10350006 WPW10350006 Whirlpool WATER TUBE
W10838084 W10838084 Whirlpool WIRE HARNESS
W11580023 W11580023 Whirlpool WIRE HARNESS
W10853646 W10853646 Whirlpool WIRE HARNESS
W11225843 W11225843 Whirlpool WIRE HARNESS
Main Menu x
