Model Image
Manufacturer

Whirlpool

Model Number

WRS588FIHZ04

Description

36-inch Wide Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description

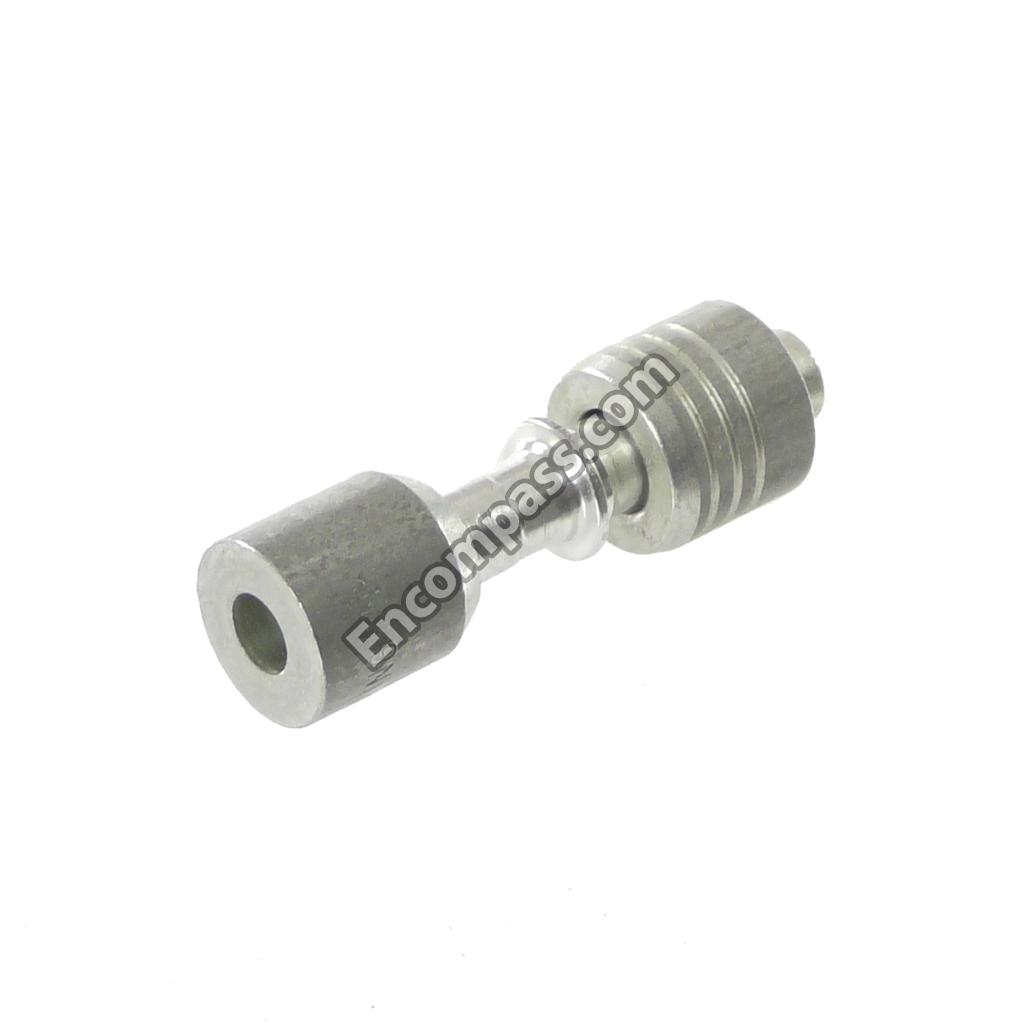

W11506623 W11506623 5 NK MS 00 (3-WAY VALVE TO DRIER)
W11504448 W11504448 5/1.8 NR AL 00 (CAPILLARY TUBE TO DRIER)
W11504447 W11504447 5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
W11504445 W11504445 5/4 NR MS 00 (3-WAY VALVE TO DRIER)
W11504433 W11504433 6/4 NR MS 00 (HEAT LOOP TO DRIER)
W11504431 W11504431 7/5 NR MS 00 (SUCTION LINE TO CONDENSER)
W11506620 W11506620 8 NK AL 00 (CAPILLARY TUBE TO EVAPORATOR - CUT/SPLICE ON ALUMINUM OF OLD EVAP)
W11506619 W11506619 8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
W11504415 W11504415 8.5/8 NR MS 00 (HIGH PRESSURE SIDE TO COMPRESSOR)
W11236851 W11236851 ASSEMBLY, AIR DIFFUSER
W10499011 W10499011 ASSEMBLY, BRACKET
WPW10463650 WPW10463650 ASSEMBLY, COVER

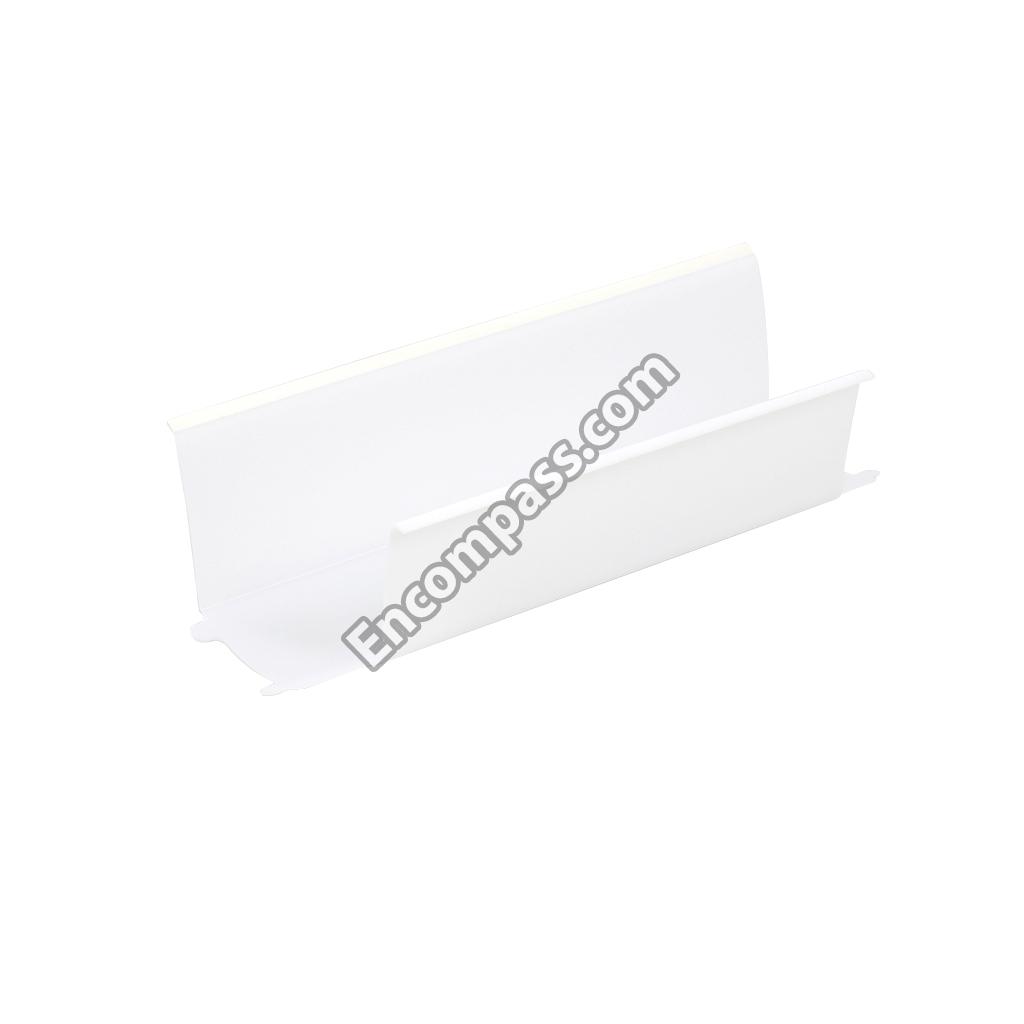

W11130204 W11130204 ASSEMBLY, COVER

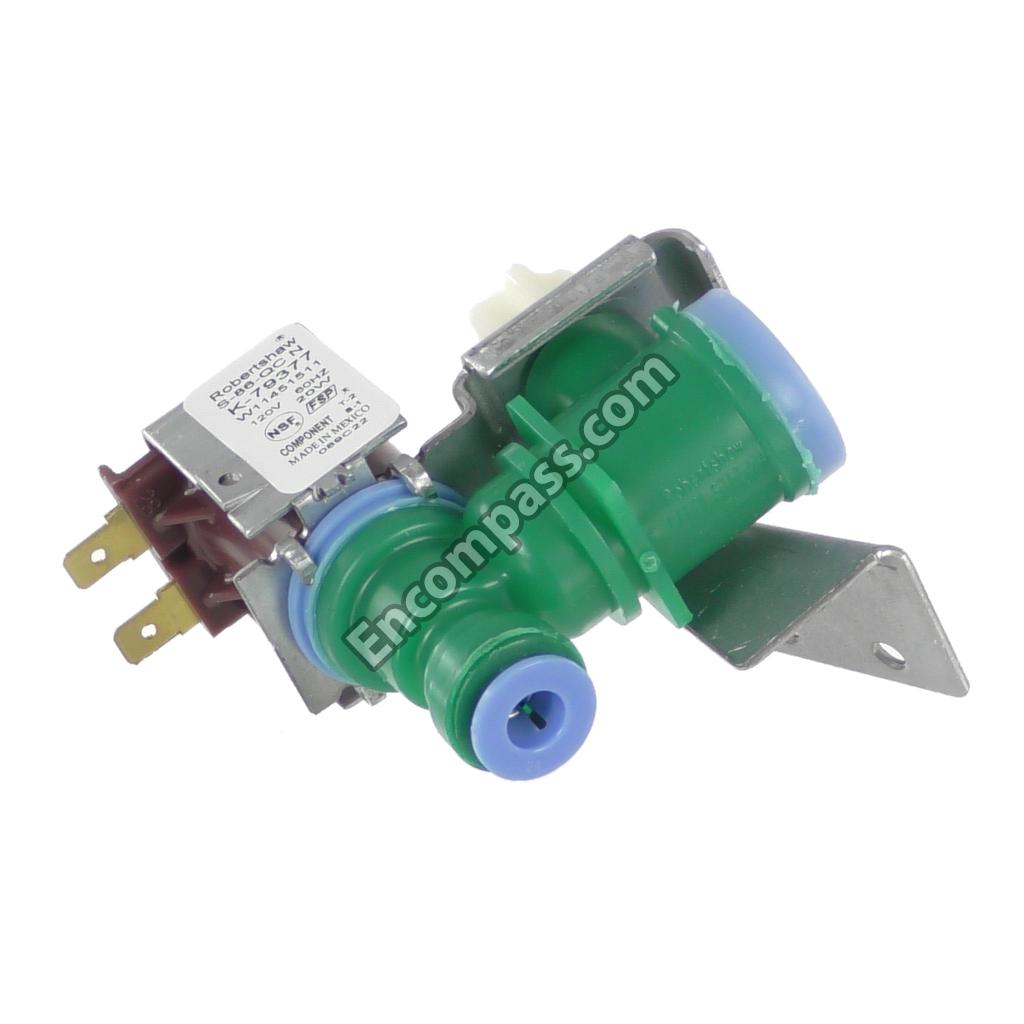

WPW10341320 WPW10341320 ASSEMBLY, DUAL WATER VALVE
W11566892 W11566892 ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)

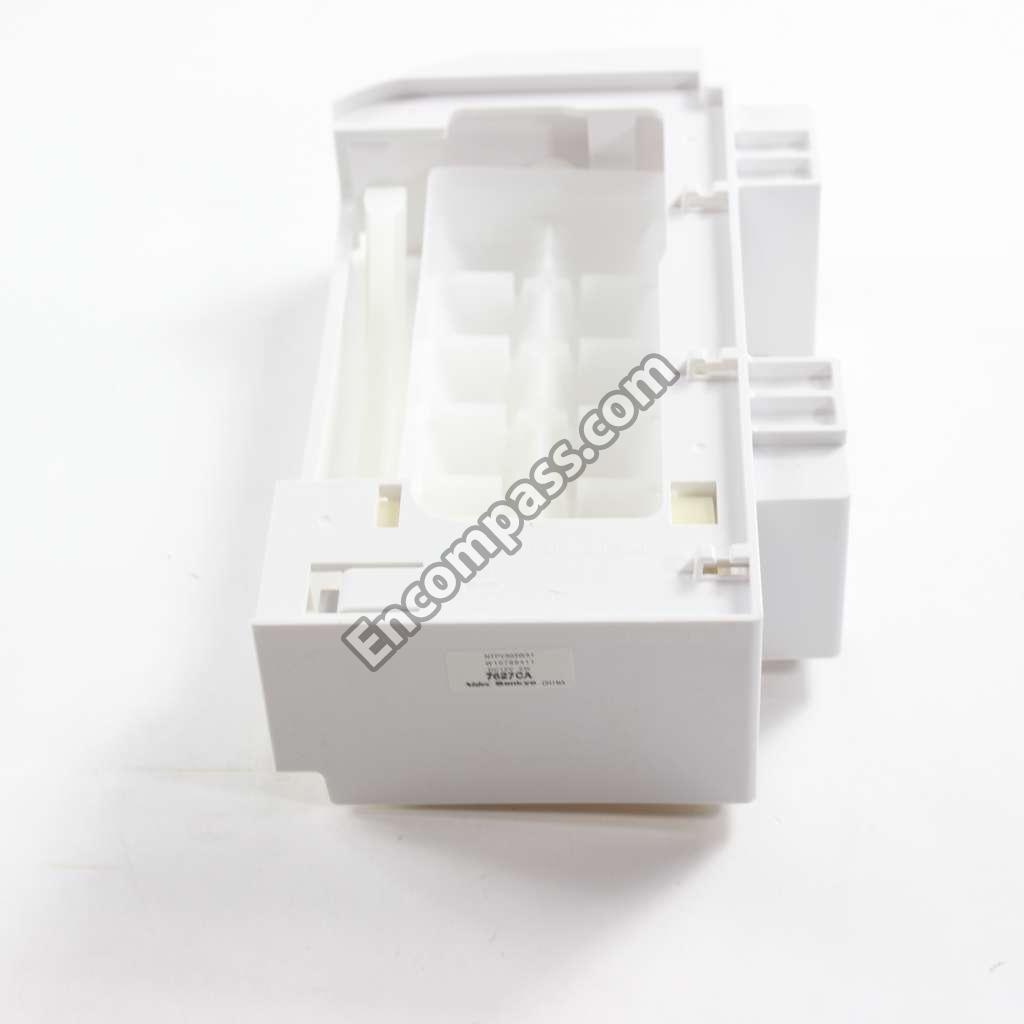

W10873791 W10873791 ASSEMBLY, ICE MAKER
W11567494 W11567494 ASSEMBLY, INVERTER BOX
W11652042 W11652042 ASSEMBLY, LATCH
W11290115 W11290115 ASSEMBLY, LED
W11130212 W11130212 ASSEMBLY, LOWER SHELF

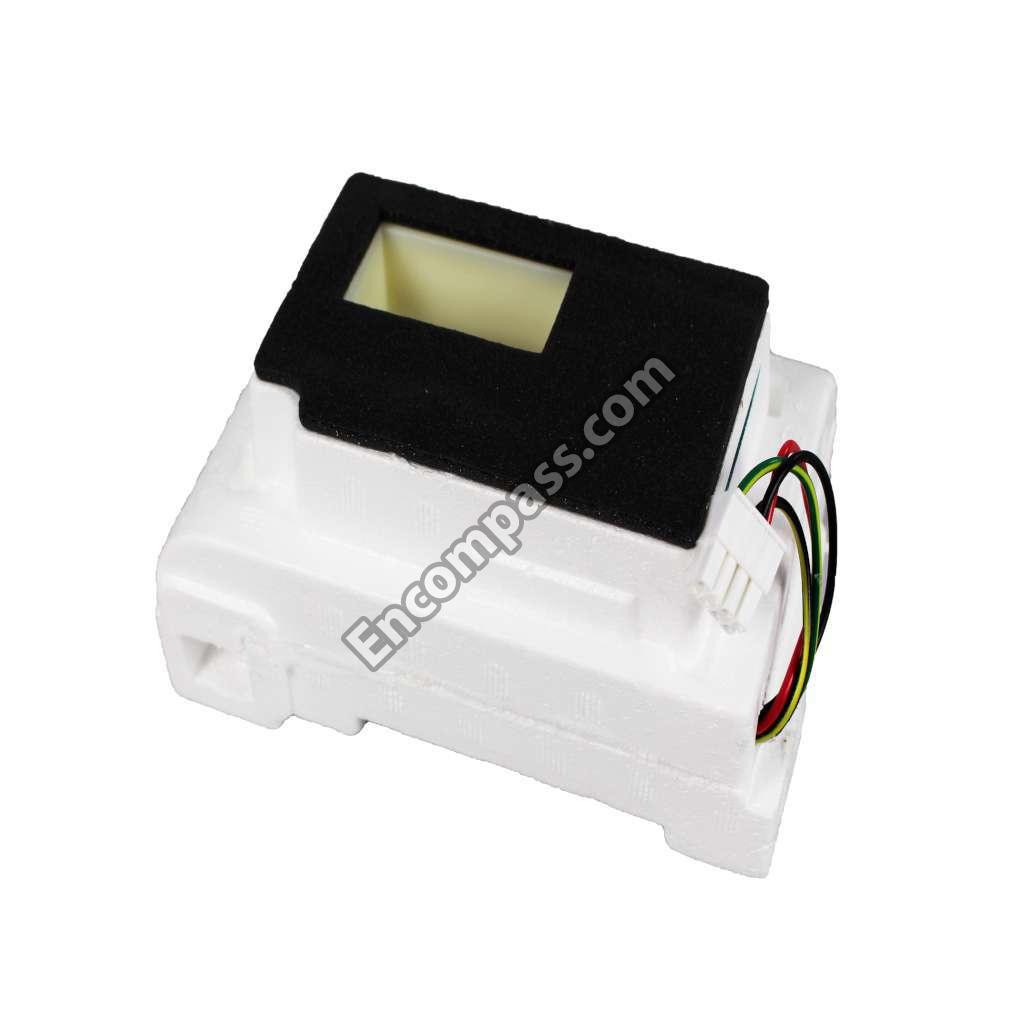

W11678273 W11678273 ASSEMBLY, MOTOR BOX
W11573761 W11573761 ASSEMBLY, MOUNTING PLATE
SCREW SCREW ASSEMBLY, PRECOOLER FORMED
W11098702 W11098702 ASSEMBLY, SEPARATOR
W11130214 W11130214 ASSEMBLY, SHELF
W11566894 W11566894 ASSEMBLY, STEALTH USER INTERFACE
W11700341 W11700341 ASSEMBLY, UNIT WIRE
W11130205 W11130205 ASSEMBLY, UPPER SHELF
W11684619 W11684619 ASSEMBLY, WIRE JUMPER SWITCH

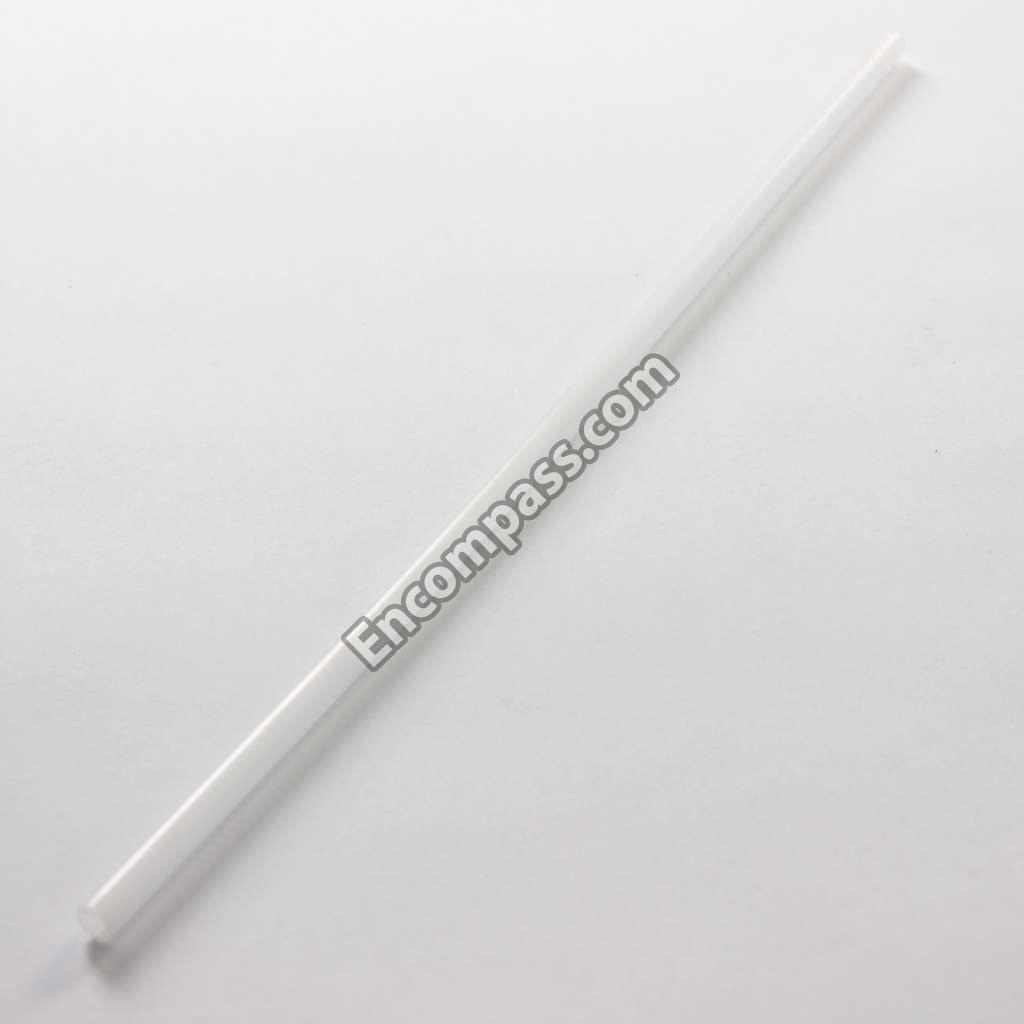

67006434 67006434 AXLE, ROLLER
W11175807 W11175807 AXLE, ROLLER
W11223753 W11223753 BADGE
WPW10251467 WPW10251467 BAFFLE, AIR
W10680691 W10680691 BASEPLATE

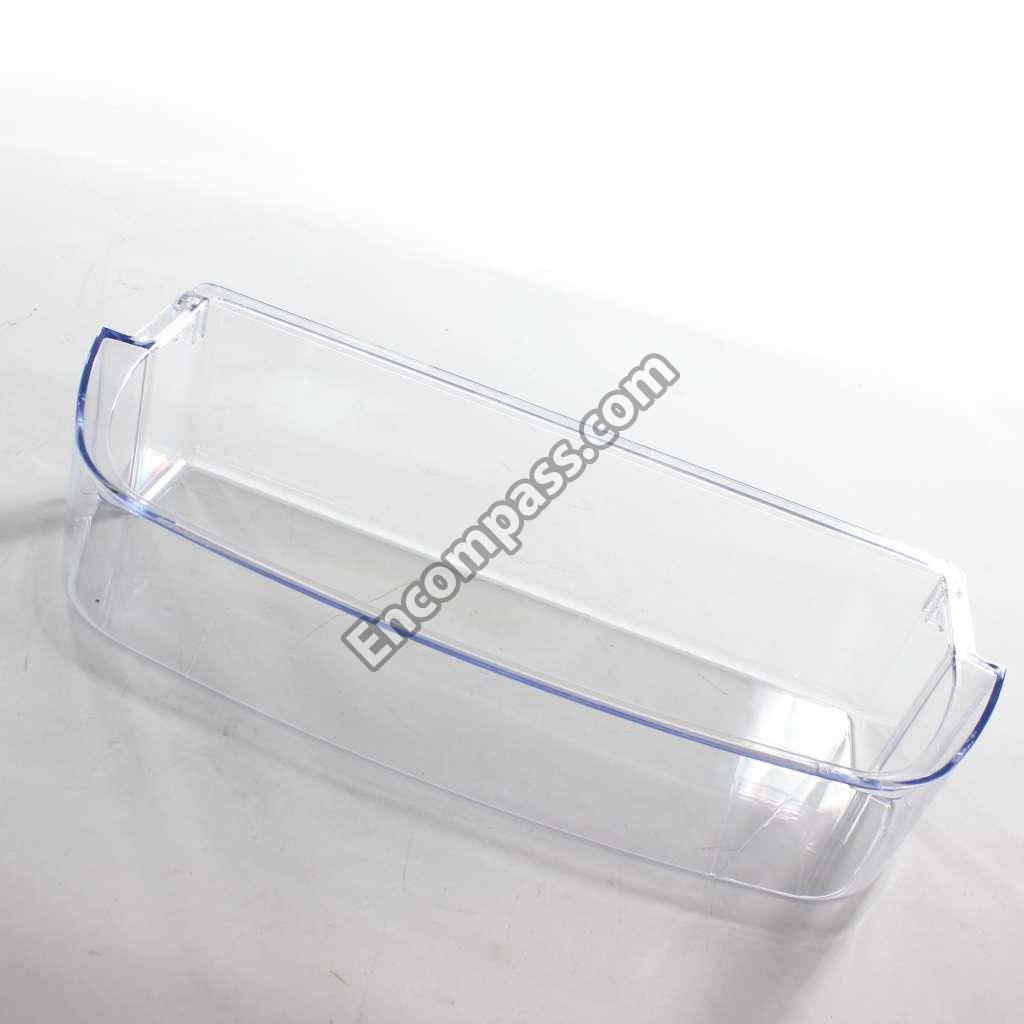

WPW10430639 WPW10430639 BIN, DOOR
WPW10710203 WPW10710203 BIN, GALLON DOOR
WP2169142 WP2169142 BLADE, FAN
W11458267 W11458267 BLADE, FAN
WP2210509 WP2210509 BODY, VALVE TUBE
WP2305382 WP2305382 BOOT, RUBBER

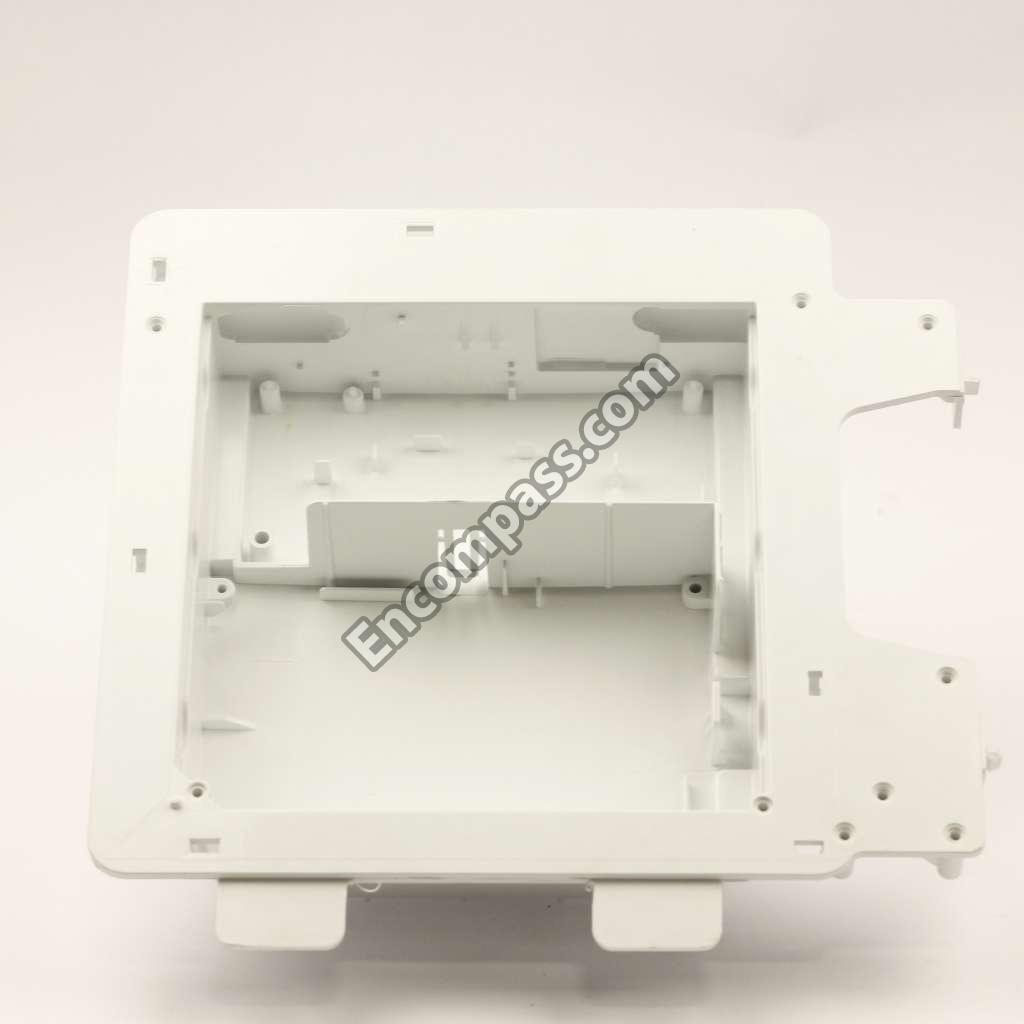

WPW10247993 WPW10247993 BOX, CONTROL
W11037957 W11037957 BRACKET, DOOR STOP
W11266052 W11266052 BRACKET, FOOT
W10174827 W10174827 BRACKET, ICE DOOR
W10847867 W10847867 BRACKET, WATER VALVE
WPW10141622 WPW10141622 BRAKE, ROLLER

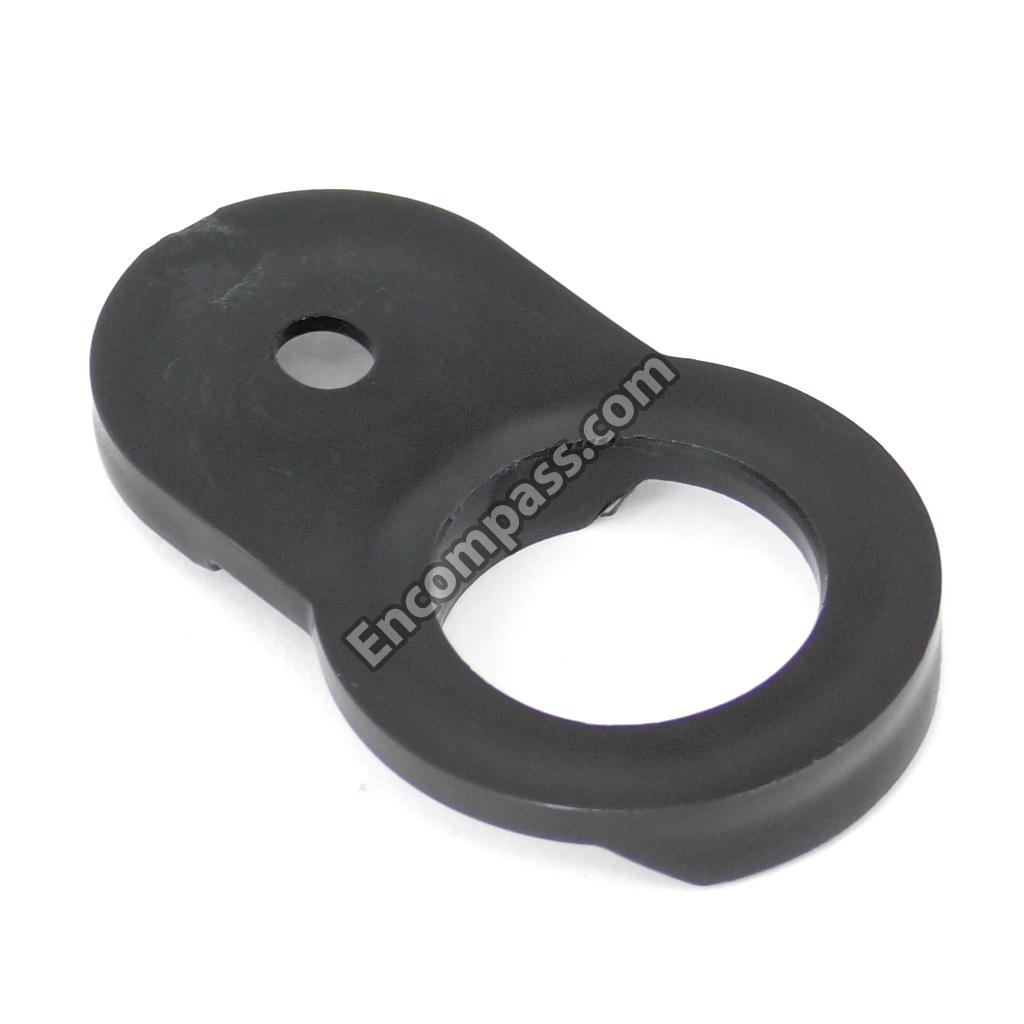

W10407187 W10407187 BUMPER, DOOR (BLACK)
W11573367 W11573367 BUMPER, DOOR (GREY)
W11687672 W11687672 BUMPER, DOOR (WHITE)
W11234470 W11234470 CLAMP, PLASTIC
W10331728 W10331728 CLIP, AIR DUCT
W11545866 W11545866 CLIP, AXLE RETAINER
W10815861 W10815861 CLIP, BOTTOM COVER
W10683556 W10683556 CLIP, CONDENSER
W11232019 W11232019 CLIP, EVAPORATOR COVER
W11546684 W11546684 CLIP, EVAPORATOR THERMISTOR
W10770895 W10770895 CLOSER, DOOR (FREEZER) (BLACK)
W10876191 W10876191 CLOSER, DOOR (FREEZER) (GREY)
W10876198 W10876198 CLOSER, DOOR (FREEZER) (WHITE)
W11311686 W11311686 CLOSER, DOOR (REFRIGERATOR) (BLACK)
W11311687 W11311687 CLOSER, DOOR(REFRIGERATOR) (GREY)
W11311685 W11311685 CLOSER, DOOR(REFRIGERATOR) (WHITE)
W11607100 W11607100 CLOSER, UPPER CAM DOOR (BLACK)
WPW10257206 WPW10257206 CLOSER, UPPER CAM DOOR (GREY)
WPW10248015 WPW10248015 CLOSER, UPPER CAM DOOR (WHITE)
W11557671 W11557671 COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
W11673437 W11673437 CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)

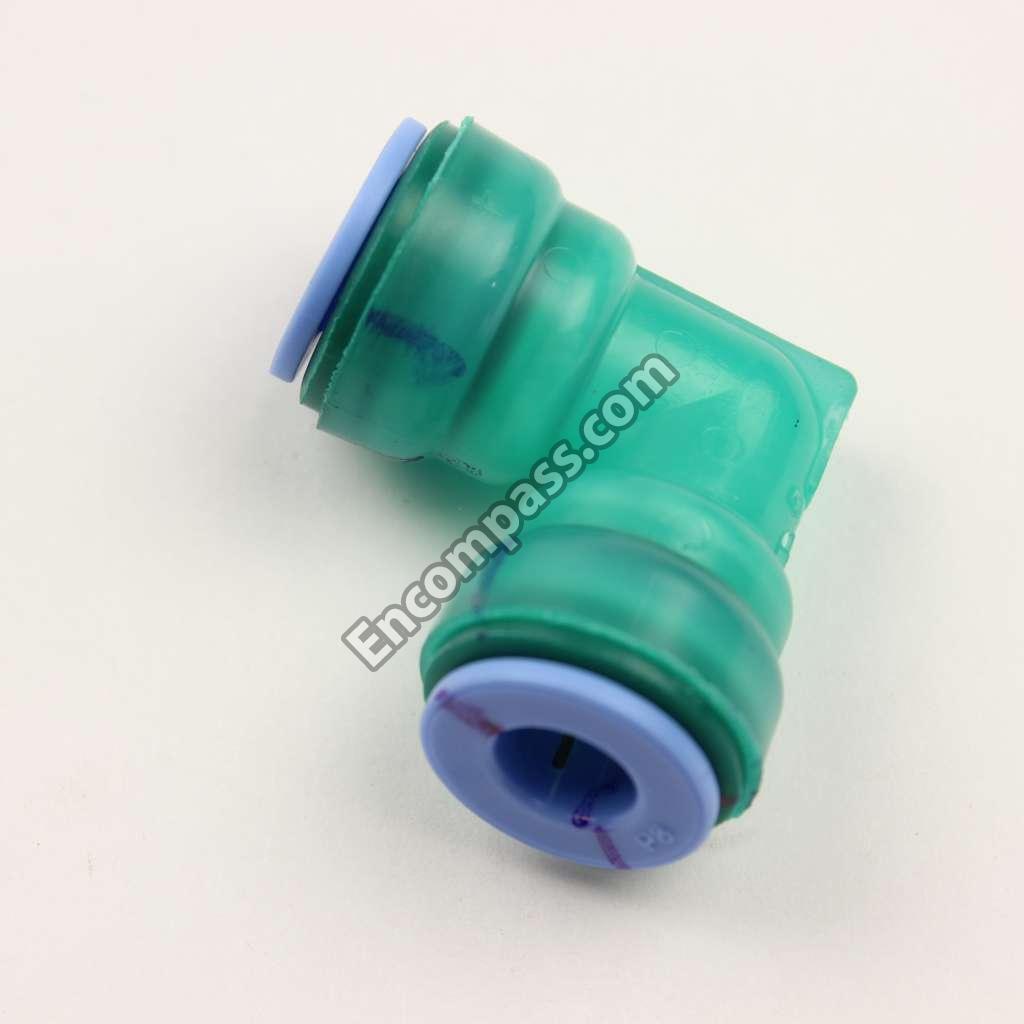

WPW10277958 WPW10277958 CONNECTOR, WATER
WPW10271543 WPW10271543 CONNECTOR, WATER TUBE
W11347840 W11347840 CONTAINER, ICE (COMPLETE)
W11595219 W11595219 CONTROL, ELECTRONIC
WPW10242407 WPW10242407 CORD, POWER
WP2220458 WP2220458 COUPLING, BOTTOM
WPW10457601 WPW10457601 COVER, AIR DIFFUSER
WPW10457603 WPW10457603 COVER, AIR FILTER
W10278140 W10278140 COVER, CONDENSER (BOTTOM)
W11558186 W11558186 COVER, CONTAINER
67003485 67003485 COVER, CORNER (BLACK)
WP12587703AP WP12587703AP COVER, CORNER (GREY)
12587703W 12587703W COVER, CORNER (WHITE)
W10632060 W10632060 COVER, DOOR STOP (BLACK)
WPW10632062 WPW10632062 COVER, DOOR STOP (GREY)

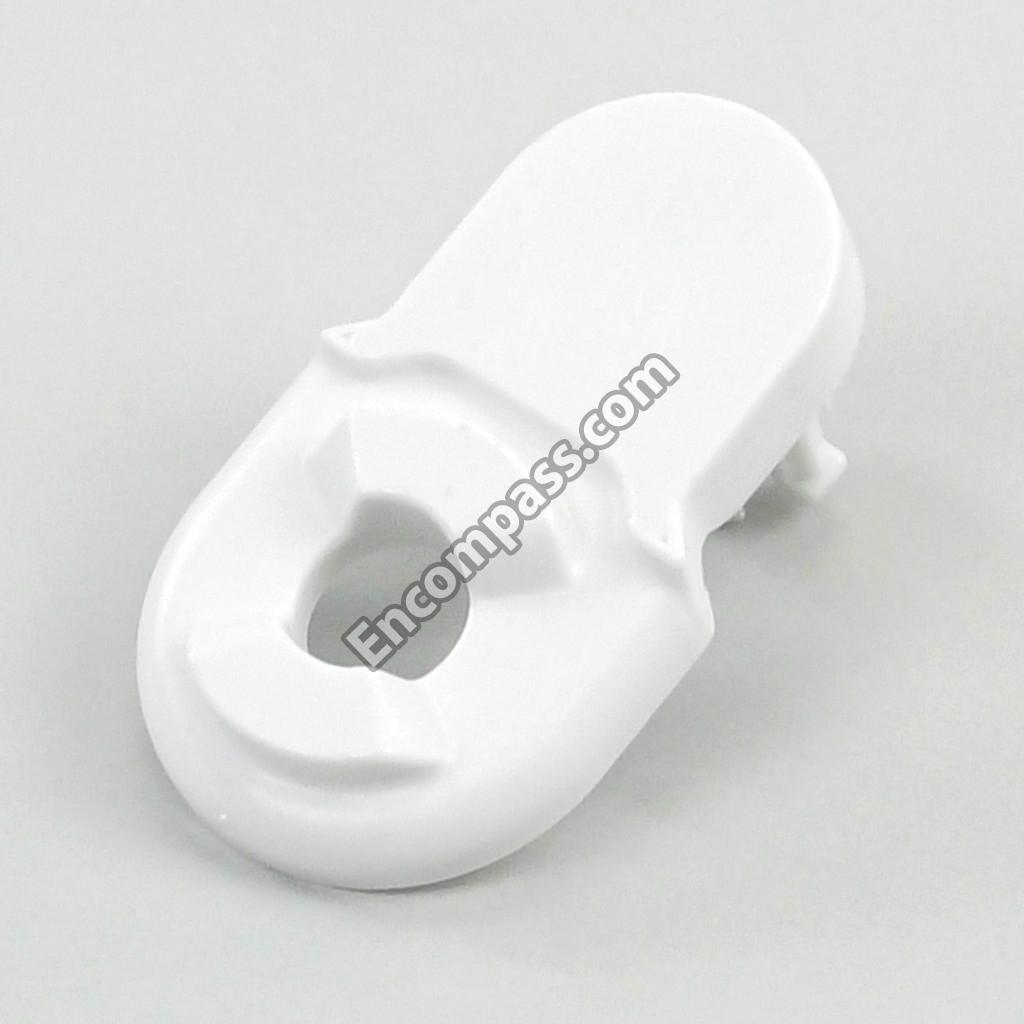

W10632059 W10632059 COVER, DOOR STOP (WHITE)
WPW10388269 WPW10388269 COVER, EVAPORATOR
W10458867 W10458867 COVER, FRONT (BLACK)

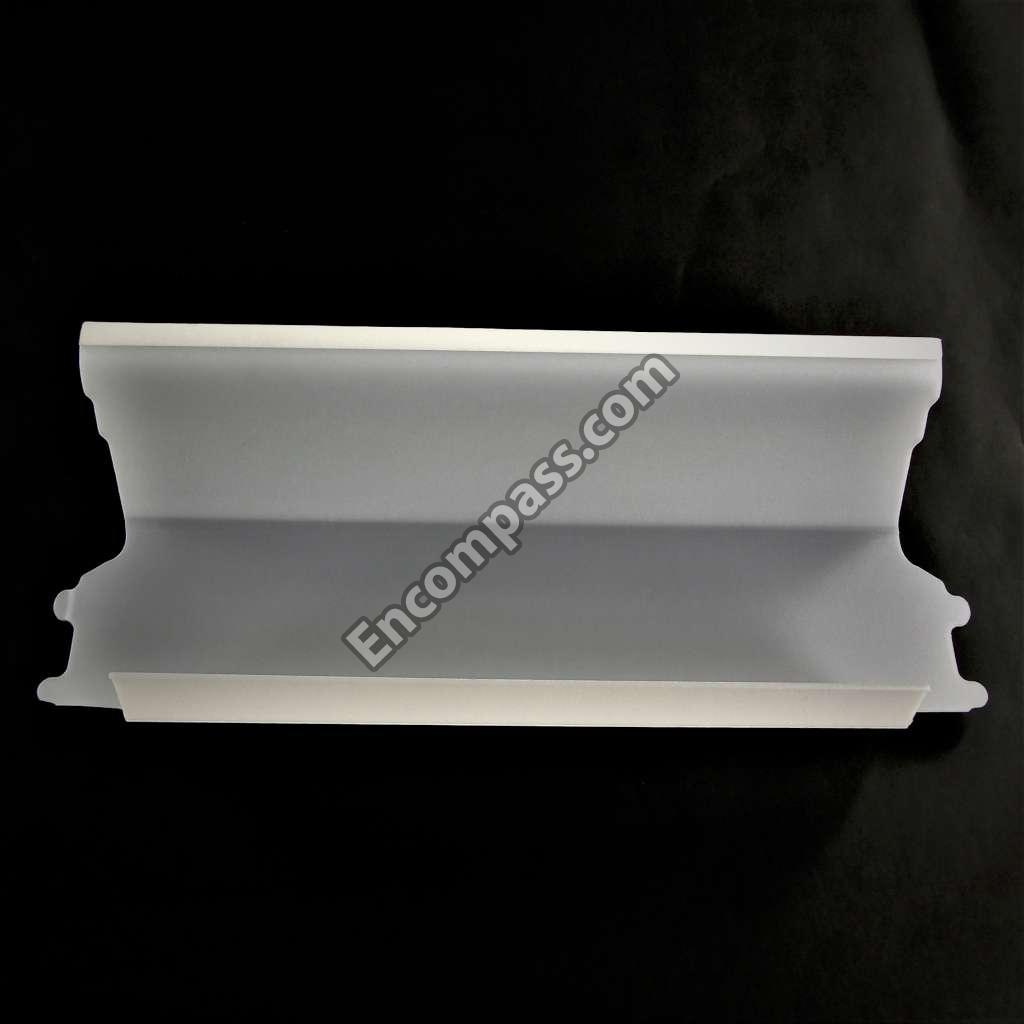

W10893232 W10893232 COVER, LIGHT
W10260382 W10260382 COVER, LIGHT
WPW10425252 WPW10425252 COVER, THERMISTOR
W11453073 W11453073 COVER, UNIT
W11501035 W11501035 COVER, WATER FILTER
W10323148 W10323148 COVER, WIRE
W10254255 W10254255 DISPENSER, FALSE WALL (BLACK)
W10276226 W10276226 DISPENSER, FALSE WALL (SATINA)
W10254254 W10254254 DISPENSER, FALSE WALL (WHITE)
W11566703 W11566703 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK STAINLESS)
W11566702 W11566702 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
W11566705 W11566705 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
W11566701 W11566701 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
LW11038910 LW11038910 DOOR, REFRIGERATOR (INCLUDES ITEM 5) (BLACK STAINLESS)
LW11038911 LW11038911 DOOR, REFRIGERATOR (INCLUDES ITEM 5) (BLACK)
LW11037738 LW11037738 DOOR, REFRIGERATOR (INCLUDES ITEM 5) (STAINLESS)
LW11038913 LW11038913 DOOR, REFRIGERATOR (INCLUDES ITEM 5) (WHITE)
W11109499 W11109499 DRIER (SERVICE DRIER WITHOUT DYE) (ALSO ORDER THE FOLLOWING LOKRING PARTS)
W10260384 W10260384 DUCT, FREEZER AIR
W11040868 W11040868 DUCT, UPPER AIR
W11746091 W11746091 DUCT-AIR
W11387630 W11387630 ENERGY GUIDE
W11566897 W11566897 EVAPORATOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
W10749467 W10749467 FILLER, EPS ICEMAKER COVER
EDR1RXD1 EDR1RXD1 FILTER, WATER
W10370680 W10370680 FITTING, DRAIN
W11205489 W11205489 FOAM
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10291905 WPW10291905 GASKET
W10166854 W10166854 GASKET
WPW10247884 WPW10247884 GASKET, DOOR (BEIGE)
WPW10247885 WPW10247885 GASKET, DOOR (BEIGE)
WPW10249912 WPW10249912 GASKET, DOOR (BLACK)
WPW10249913 WPW10249913 GASKET, DOOR (BLACK)
W10355582 W10355582 GASKET, DOOR (GREY)
WPW10355585 WPW10355585 GASKET, DOOR (GREY)
W10240370 W10240370 GASKET, EVAPORATOR COVER
WPW10400435 WPW10400435 GASKET, FOAM

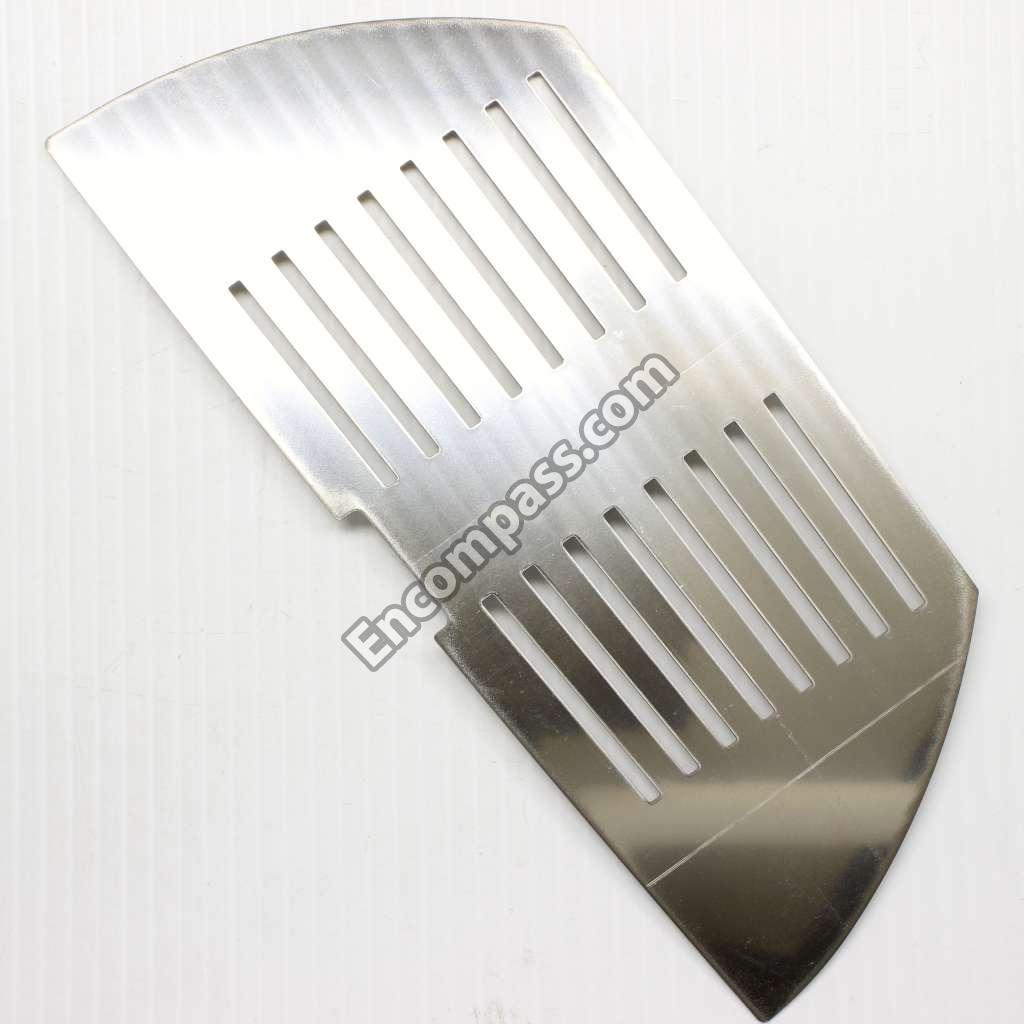

WPW10276209 WPW10276209 GRATE, DRIP TRAY (STAINLESS)
WPW10713158 WPW10713158 GRILLE (BLACK)
WPW10713153 WPW10713153 GRILLE (GREY)
WPW10713160 WPW10713160 GRILLE (WHITE)
WPW10169124 WPW10169124 GROMMET
W11669856 W11669856 GROMMET, MOTOR
WPW10435760 WPW10435760 GUIDE, ICE
W11450223 W11450223 HANDLE (BLACK STAINLESS)
W11450221 W11450221 HANDLE (BLACK)
W11542651 W11542651 HANDLE (STAINLESS)
W11432251 W11432251 HANDLE (WHITE)

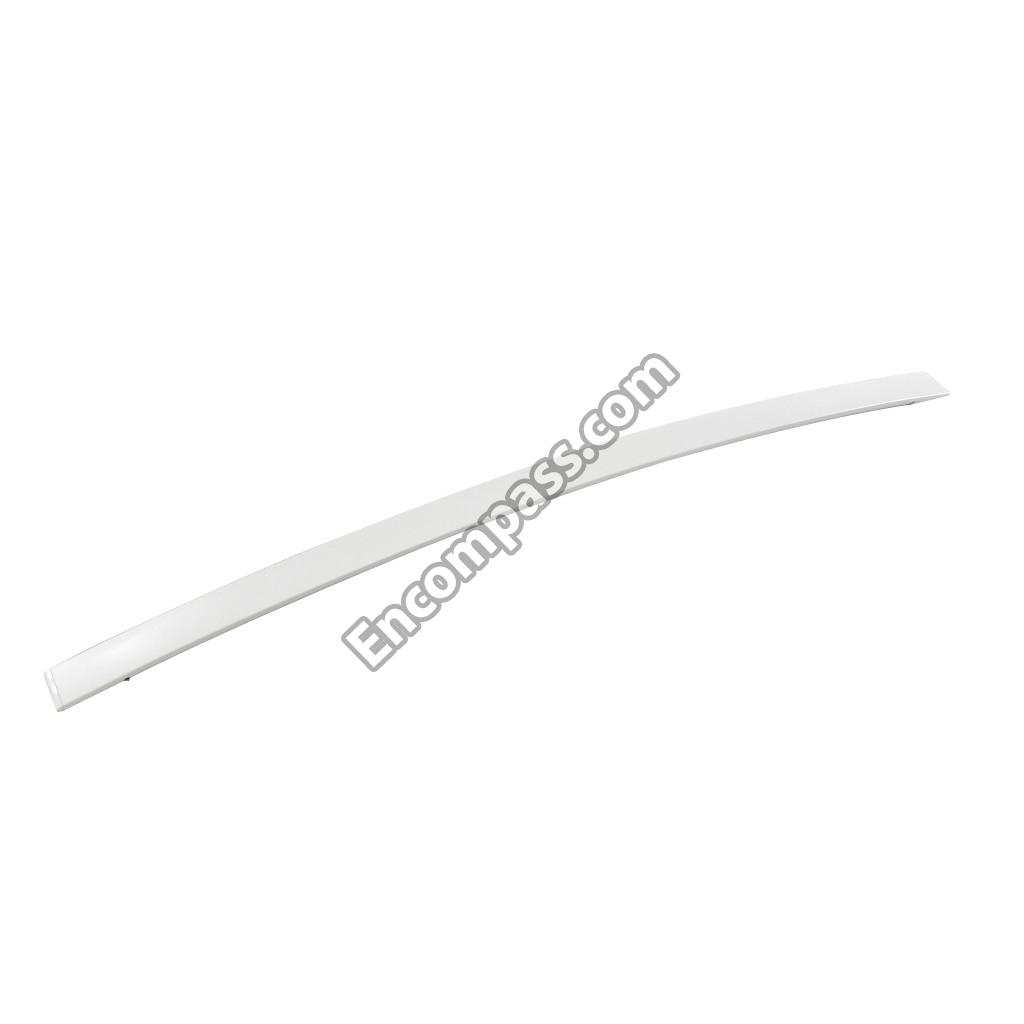

W11214888 W11214888 HANDLE, TRIM
W11214890 W11214890 HANDLE, TRIM
W11553297 W11553297 HEAT PROBE
W11400742 W11400742 HEAT SHIELD
W11567493 W11567493 HEATER, DEFROST
W11269265 W11269265 HINGE, BOTTOM (FREEZER) (BLACK)
W11293374 W11293374 HINGE, BOTTOM (FREEZER) (GREY)
W11293373 W11293373 HINGE, BOTTOM (FREEZER) (WHITE)
W11311416 W11311416 HINGE, BOTTOM (REFRIGERATOR - ALSO INCLUDES DOOR CAM) (BLACK)
W11292872 W11292872 HINGE, BOTTOM (REFRIGERATOR - ALSO INCLUDES DOOR CAM) (GRAY)
W11320488 W11320488 HINGE, BOTTOM (REFRIGERATOR - ALSO INCLUDES DOOR CAM) (WHITE)
W10901052 W10901052 HINGE, TOP (FREEZER) (BLACK)

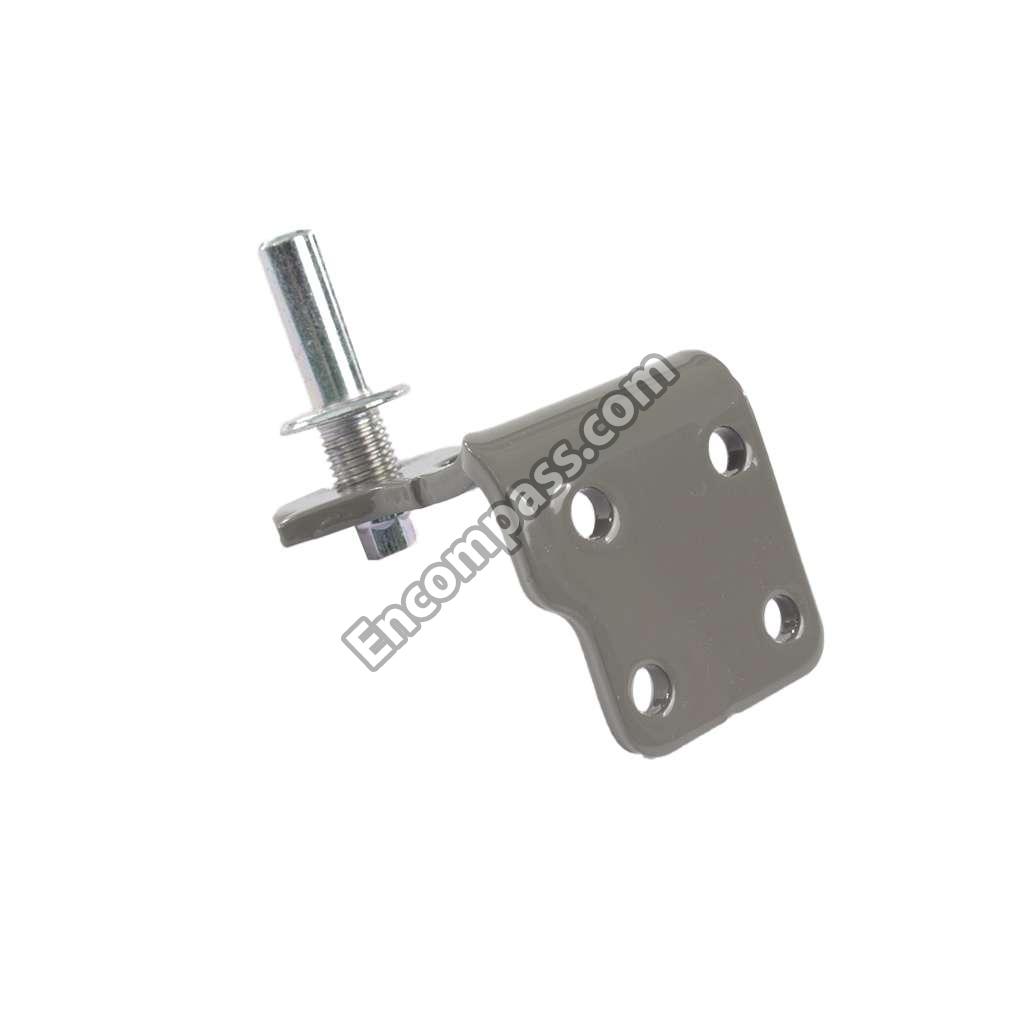

W11590581 W11590581 HINGE, TOP (FREEZER) (GRAY)
W10901051 W10901051 HINGE, TOP (FREEZER) (WHITE)
W11568758 W11568758 HINGE, TOP (REFRIGERATOR) (BLACK)
W11409290 W11409290 HINGE, TOP (REFRIGERATOR) (GRAY)
W11573587 W11573587 HINGE, TOP (REFRIGERATOR) (WHITE)

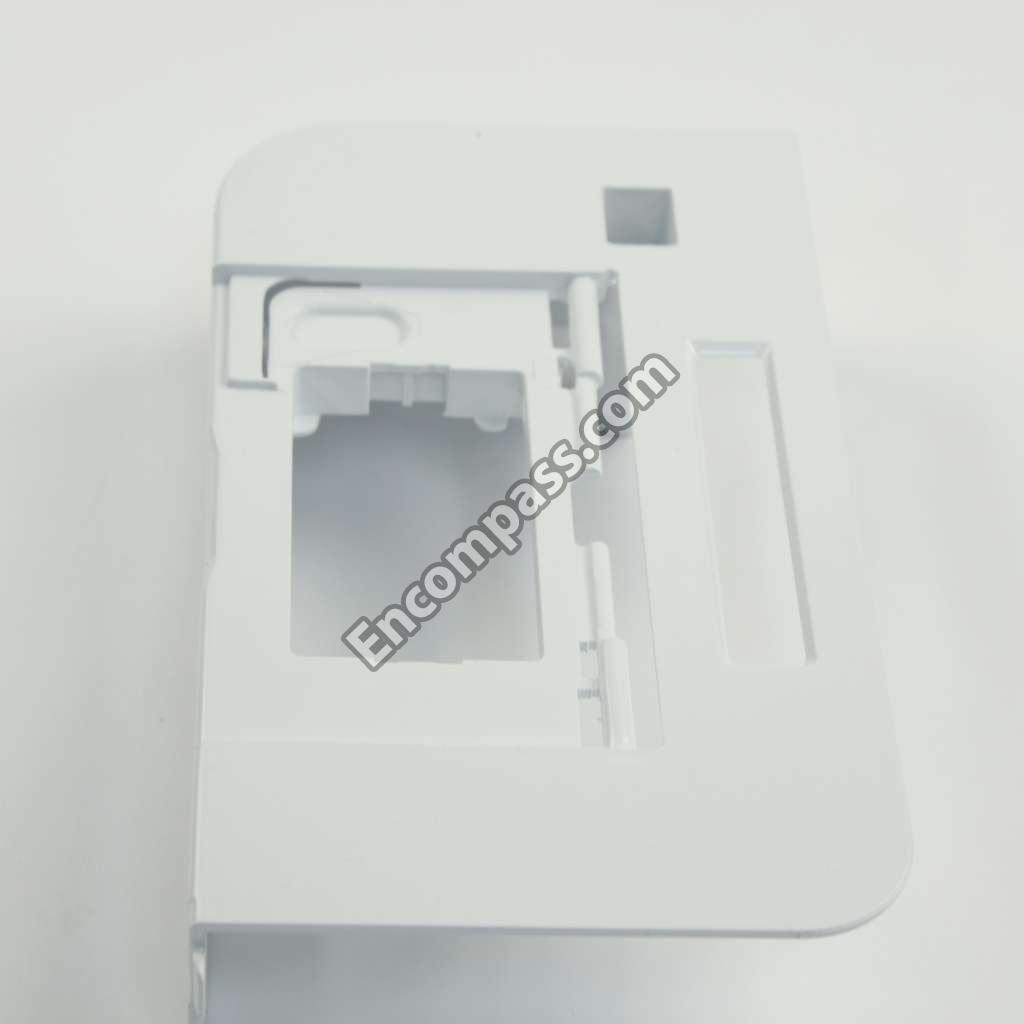

WPW10282880 WPW10282880 HOUSING, HUMIDITY

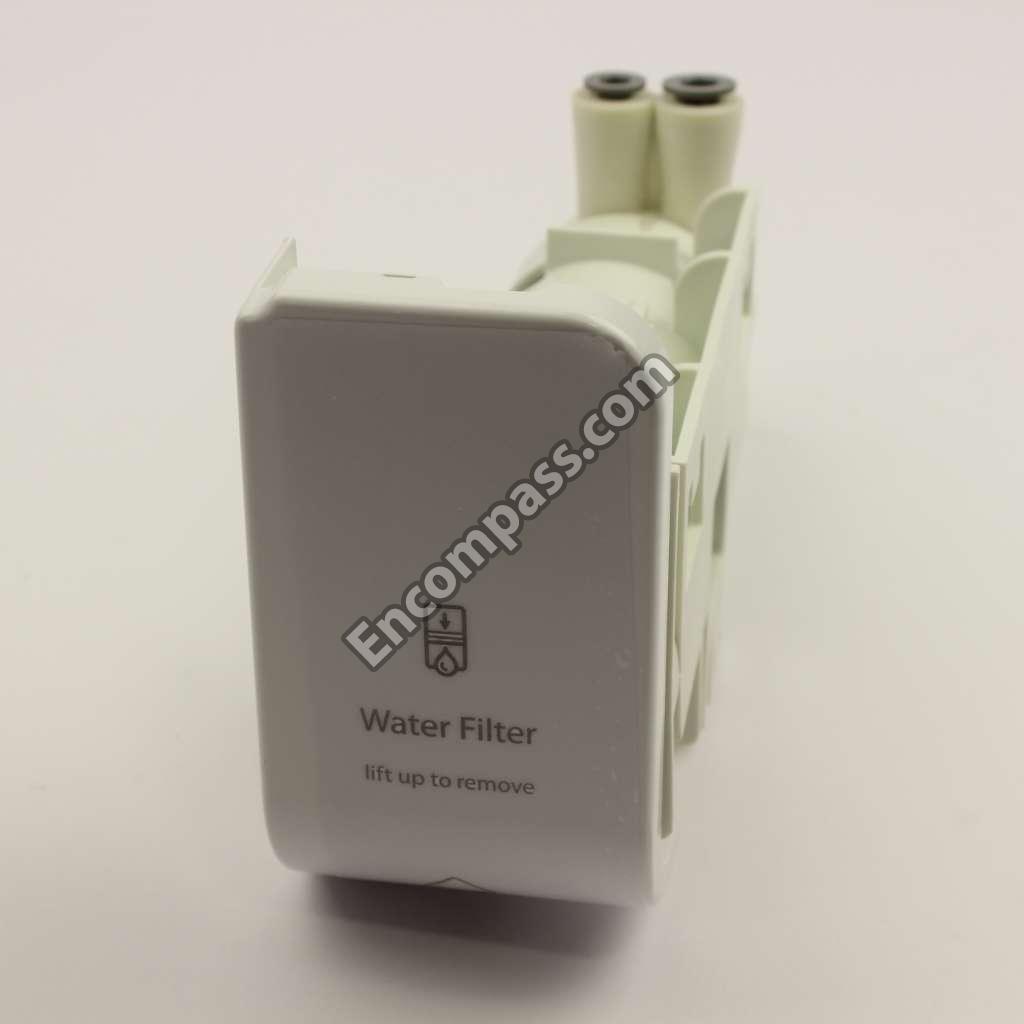

WPW10394053 WPW10394053 HOUSING, WATER FILTER
W11553819 W11553819 INSULATION, SOUND
W11216993 W11216993 LAMP, LED
W11130215 W11130215 LENS
WPW10269099 WPW10269099 LENS, LIGHT
W11226688 W11226688 LID, HV BOX
W11676611 W11676611 LOCKING RING (1/4)
W11678575 W11678575 LOCKING RING (5/16)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)

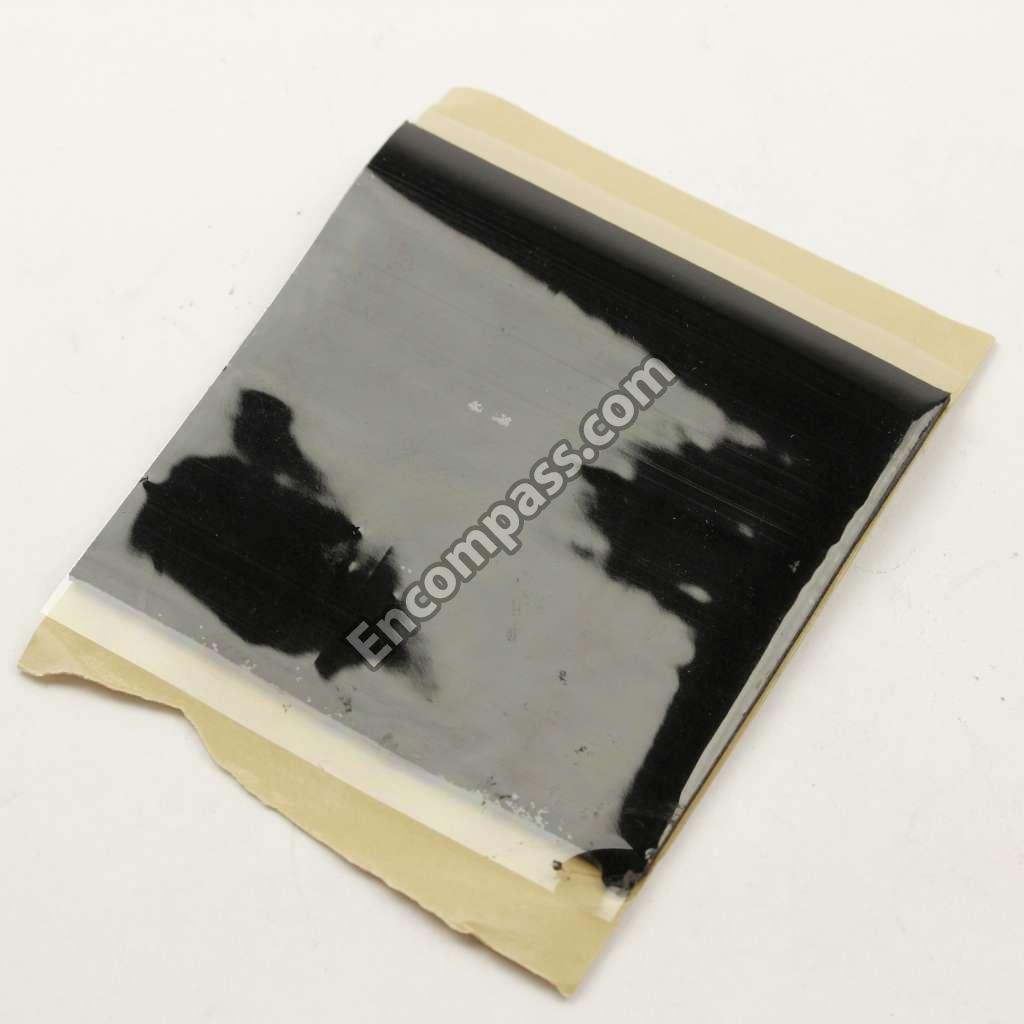

WP503695 WP503695 MISCELLANEOUS, CORK, SEALER
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
WPW10300794 WPW10300794 MISCELLANEOUS, KIT, HANDLE INSTALLATION
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
4318168 4318168 MISCELLANEOUS, SEALER
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS, TAPE, VINYL (3/4 X 108-INCH)
W11127829 W11127829 MOTOR, CONDENSER FAN

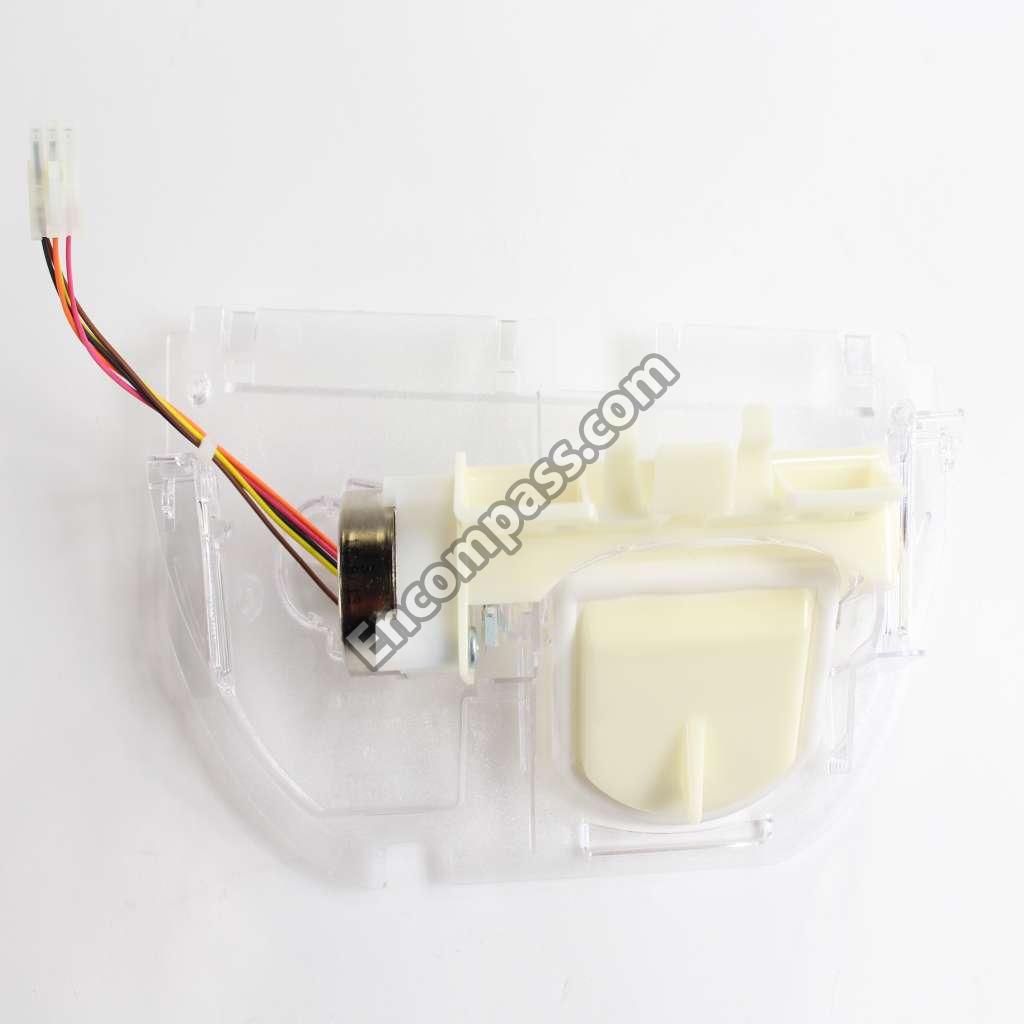

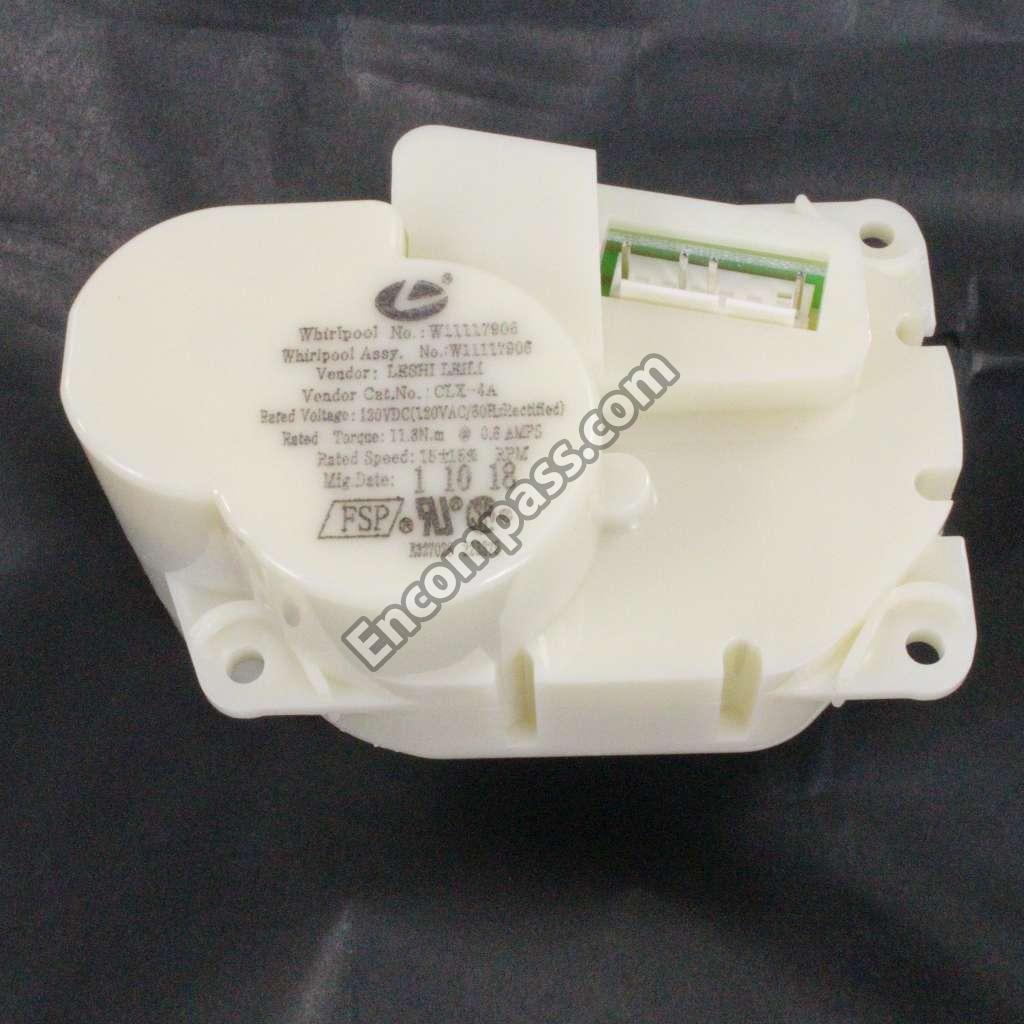

W11202789 W11202789 MOTOR, DISPENSER
WPW10205978 WPW10205978 MOTOR, DISPENSER

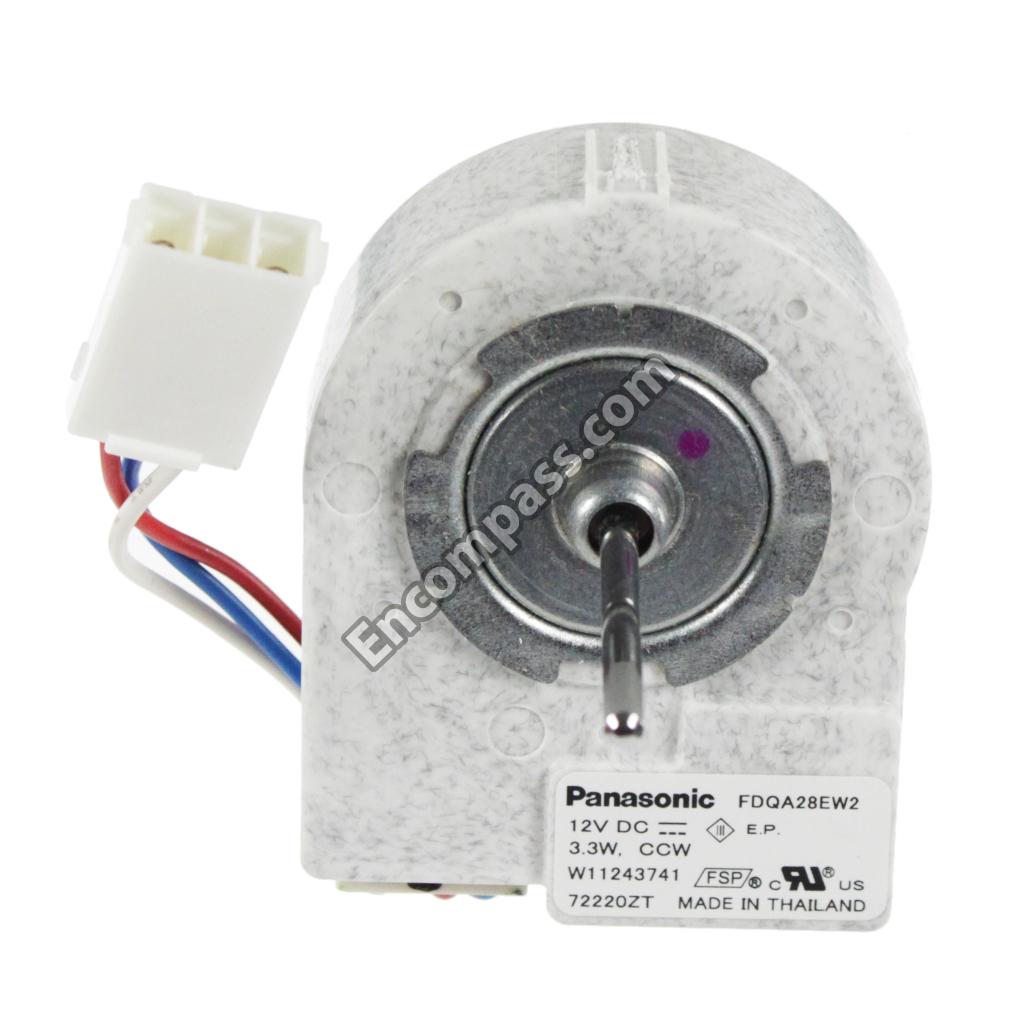

W11396715 W11396715 MOTOR, FAN
W10370577 W10370577 PAD, ICE AND WATER (BLACK)
W11624941 W11624941 PAD, ICE AND WATER (GREY)
W10370583 W10370583 PAD, ICE AND WATER (WHITE)
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
8171358 8171358 PAINT, BULK (1 QT. GRAPHITE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLACK)
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)

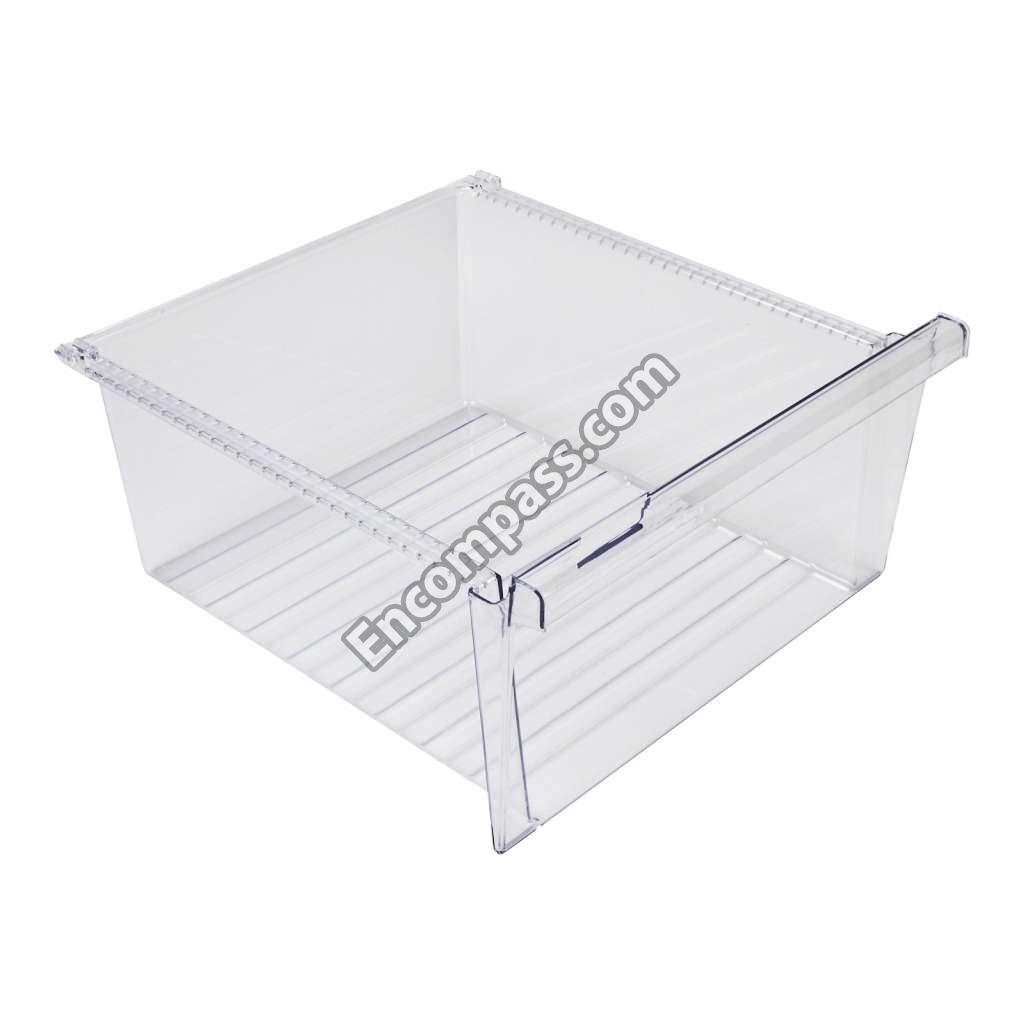

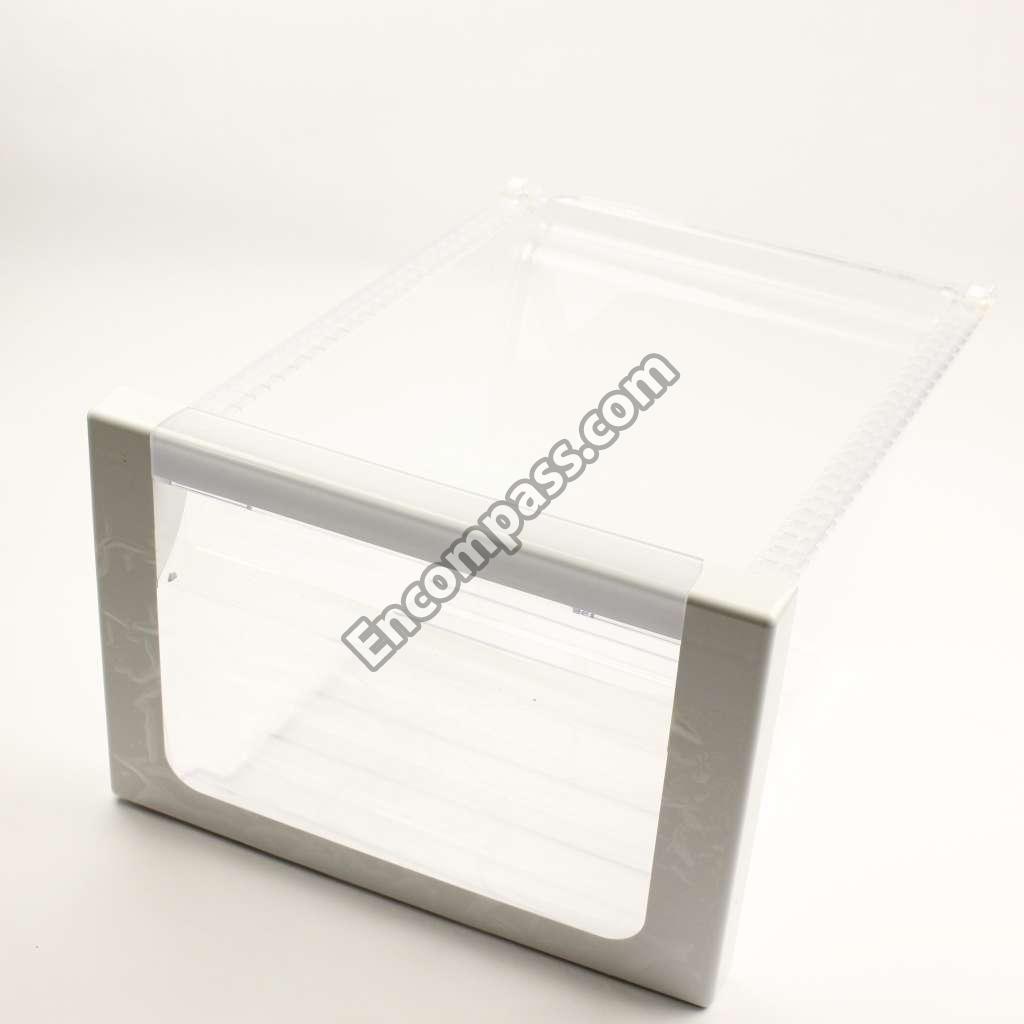

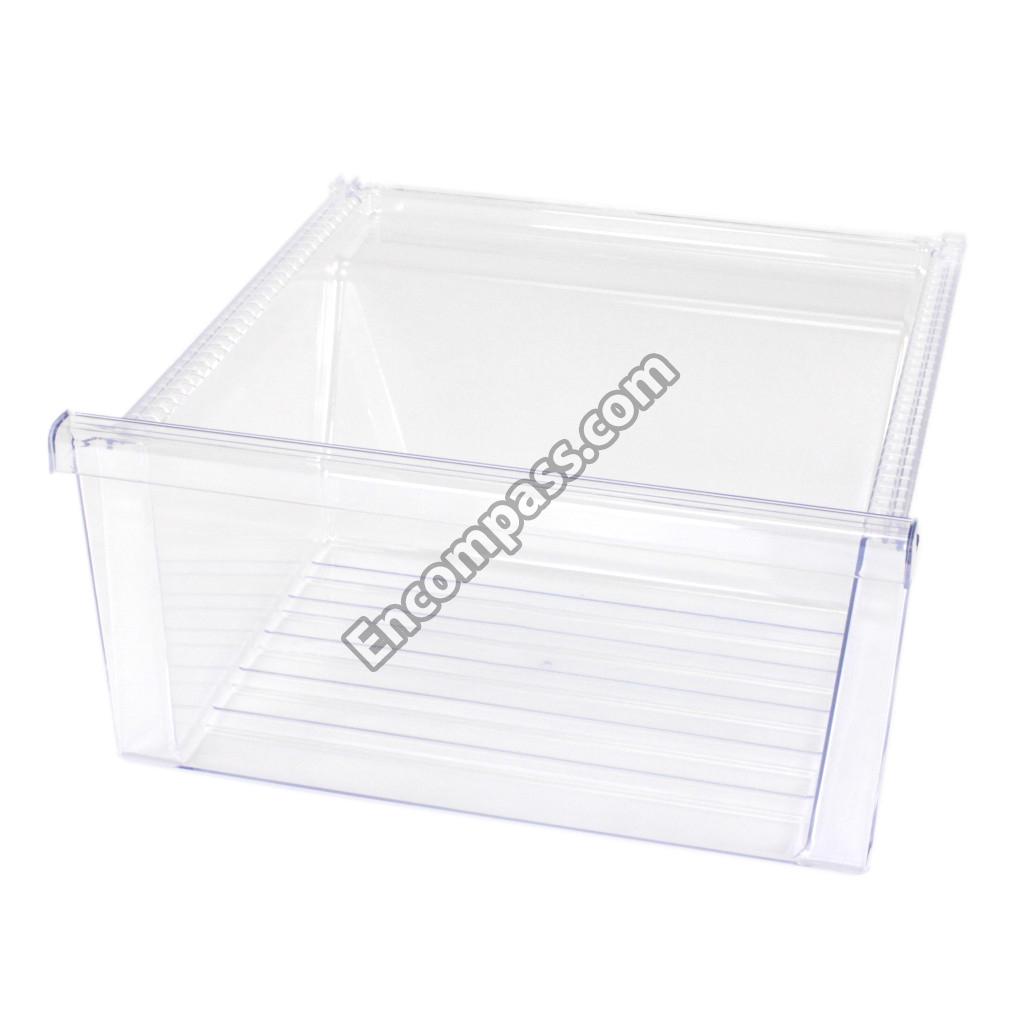

WPW10278653 WPW10278653 PAN, CRISPER
WPW10322649 WPW10322649 PAN, FREEZER LOWER (INCLUDES ITEMS 7 & 8)
WPW10322653 WPW10322653 PAN, FREEZER UPPER (INCLUDES ITEMS 7 & 8)

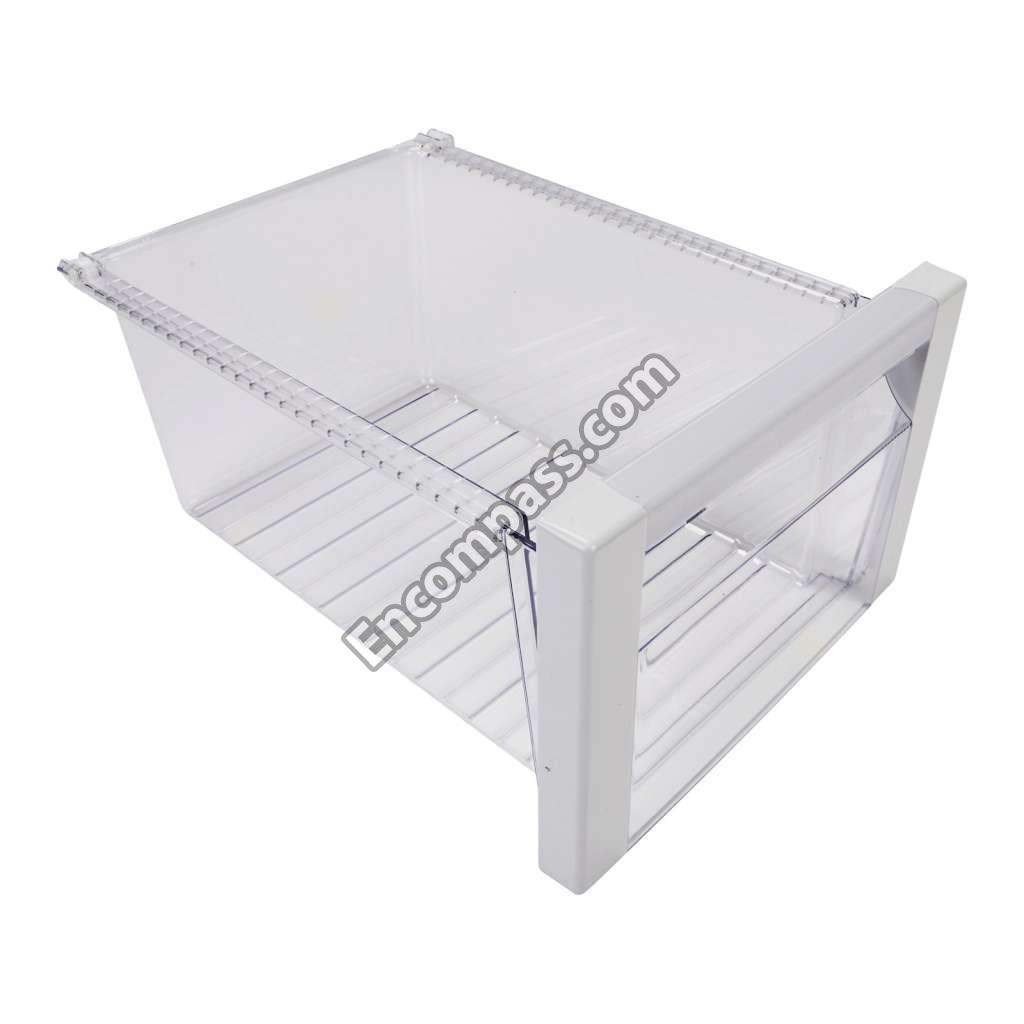

WPW10256774 WPW10256774 PAN, MEAT
W11629711 W11629711 PAN, SNACK
W11341247 W11341247 PLATE, SWITCH
W10335549 W10335549 RING, TRIM (BLACK)
W11087882 W11087882 RING, TRIM (CHROMIUM FROST)

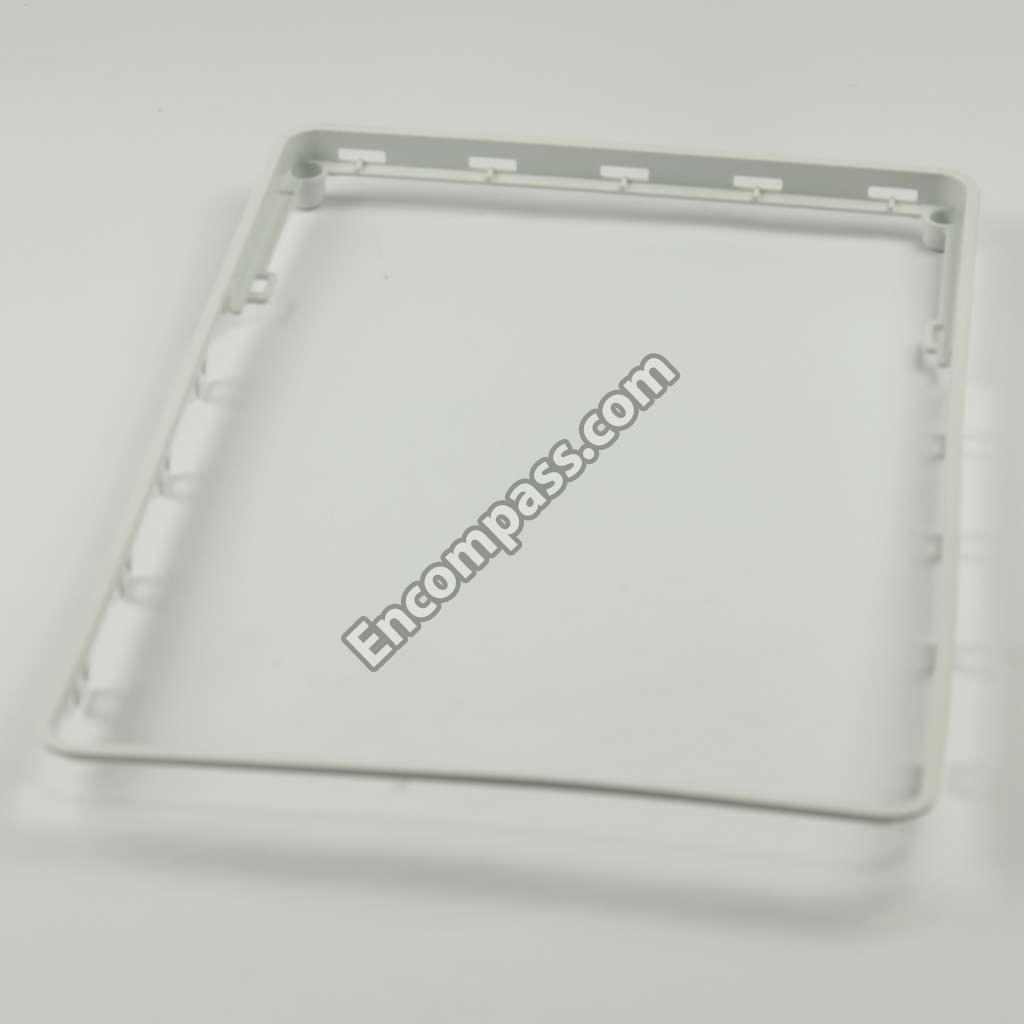

W10276265 W10276265 RING, TRIM (WHITE)

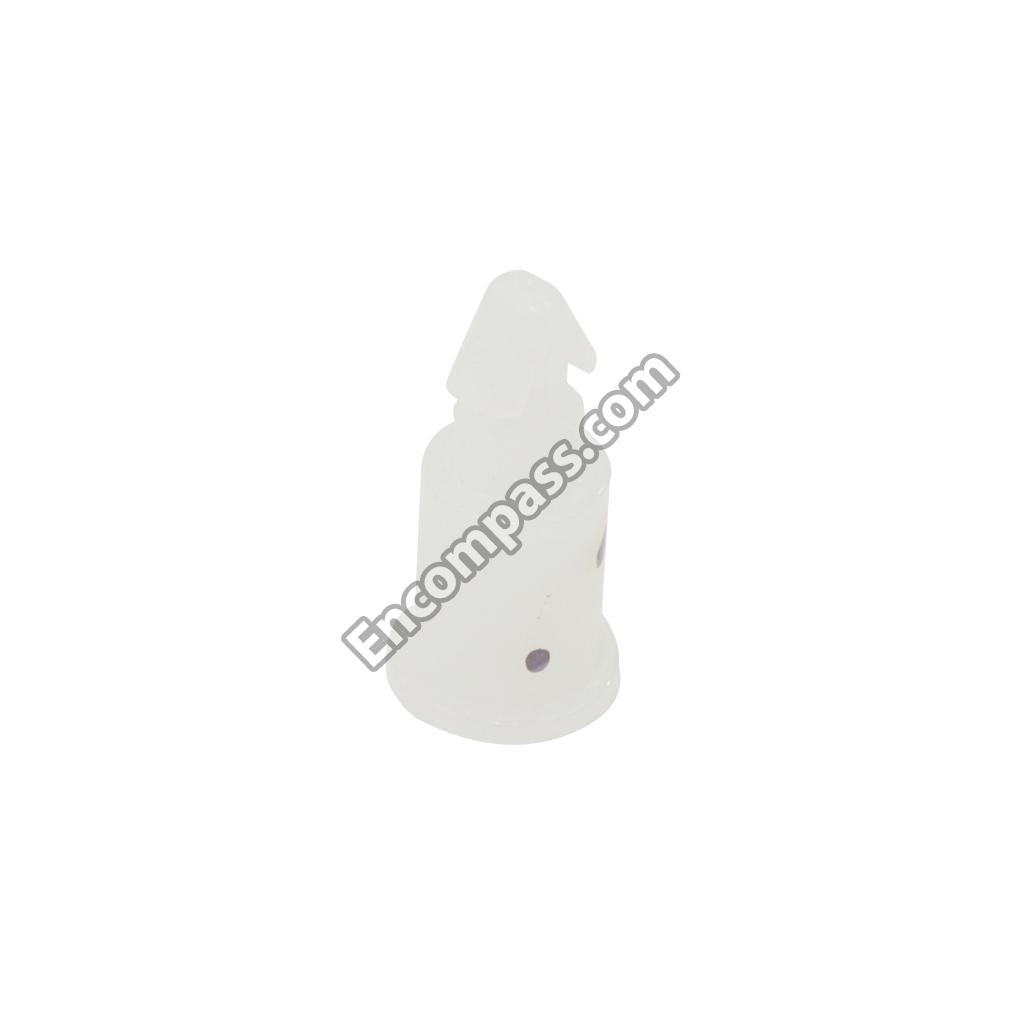

W11208384 W11208384 RIVET, ROLLER
WPW10475495 WPW10475495 ROLLER
WP67005149 WP67005149 ROLLER
W11164152 W11164152 ROLLER, PAN
WPW10297485 WPW10297485 SCREW
WPW10141645 WPW10141645 SCREW
WP489483 WP489483 SCREW
WP489464 WP489464 SCREW
WPW10141625 WPW10141625 SCREW
WPW10661886 WPW10661886 SCREW
WPW10296816 WPW10296816 SCREW
WPW10296804 WPW10296804 SCREW
WP4449745 WP4449745 SCREW
WP489478 WP489478 SCREW
WP693995 WP693995 SCREW
W10142255 W10142255 SCREW
WPW10171469 WPW10171469 SCREW
3400524 3400524 SCREW
W11417341 W11417341 SCREW
WP98008545 WP98008545 SCREW (BLACK)
WPW10308489 WPW10308489 SCREW (GREY)
WPW10142283 WPW10142283 SCREW (WHITE)
W11579735 W11579735 SCREW, HINGE
W10251462 W10251462 SCROLL, FAN
W11366418 W11366418 SET SCREW (SILVER)
WPW10258544 WPW10258544 SHAFT, DRIVE
WPW10463648 WPW10463648 SHELF, SNACK PAN

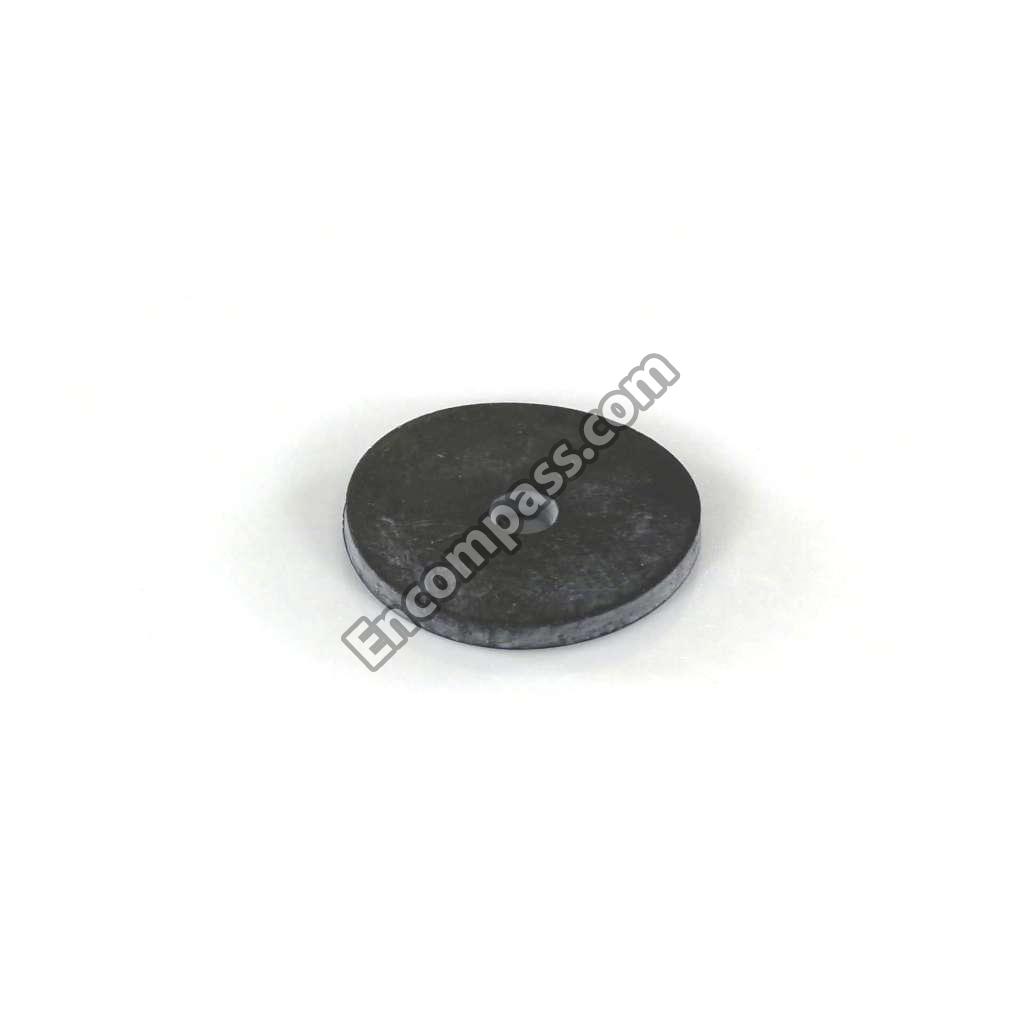

W10709916 W10709916 SHIM
W11505165 W11505165 SLEEVE
W11661094 W11661094 SLEEVE
W11746089 W11746089 SLIDE
W11676506 W11676506 SLIDE, HUMIDITY
4387478 4387478 SOCKET, LIGHT
W11606038 W11606038 SOCKET, LIGHT
W10852956 W10852956 SPRING, COUPLING
WPW10346124 WPW10346124 SUPPORT, ICE DOOR
W11384469 W11384469 SWITCH
W11469740 W11469740 SWITCH, ENERGY SAVER
W11396033 W11396033 SWITCH, LIGHT
W11123941 W11123941 SWITCH, ROCKER
W11123943 W11123943 SWITCH, ROCKER ARM
W11575236 W11575236 TECH SHEET
W11724692 W11724692 THERMISTOR
W10316760 W10316760 THERMISTOR
WPW10384183 WPW10384183 THERMISTOR
WP2182181 WP2182181 THIMBLE, TOP
WPW10339879 WPW10339879 TIE, WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10134625 W10134625 TOUCH-UP PAINT (APOLLO GREY)
72032 72032 TOUCH-UP PAINT (BLACK)
W11298166 W11298166 TRAY, EVAPORATOR (INCLUDES GASKET)
W10254259 W10254259 TRAY, HOUSING (BLACK)
W10276225 W10276225 TRAY, HOUSING (SATINA)
W10254258 W10254258 TRAY, HOUSING (WHITE)
W11293072 W11293072 TUBE, DRAIN
W11567542 W11567542 TUBE, DUAL DISPENSER WATER
WPW10279882 WPW10279882 TUBE, FILTER INLET
WPW10279884 WPW10279884 TUBE, FILTER OUTLET
W11558176 W11558176 TUBE, PROCESS
W11505003 W11505003 TUBE, SUCTION
WPW10238092 WPW10238092 TUBE, WATER
WPW10279831 WPW10279831 TUBE, WATER
W11613294 W11613294 TUBING, WATER RESERVOIR
W11484052 W11484052 USE & CARE GUIDE
W11512399 W11512399 VALVE, INLET
W11678253 W11678253 WIRE ASSEMBLY, HEATER
W11293361 W11293361 WIRE, JUMPER
Main Menu x
