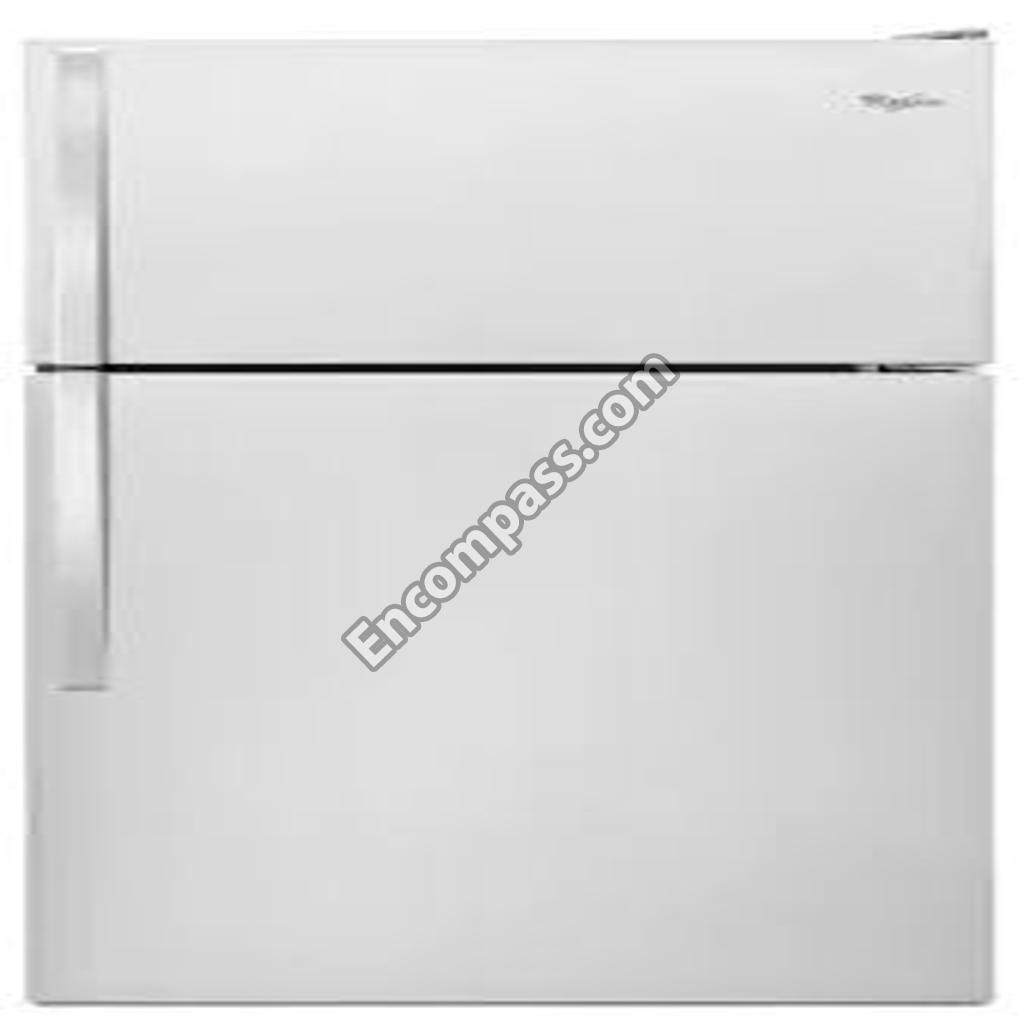

Model Image
Manufacturer

Whirlpool

Model Number

WRT108FZDM01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W11594405 W11594405 AXLE
W11175807 W11175807 AXLE-ROLL
W11736795 W11736795 BAFFLE-AIR
606755 606755 BAG
WPW10139483 WPW10139483 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
W11402852 W11402852 BRACKET
W11745278 W11745278 BRACKET
W10314197 W10314197 BRACKET
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
WP2212649 WP2212649 BUTTON-PLG
WP2254517 WP2254517 BUTTON-PLG
WP2212651 WP2212651 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WPW10520306 WPW10520306 BUTTON-PLG
WPW10520307 WPW10520307 BUTTON-PLG
WPW10520305 WPW10520305 BUTTON-PLG
WPW10520304 WPW10520304 BUTTON-PLG
N_P N_P CABINET (NOT SERVICED)
W10849198 W10849198 CAP-SCREW
W10853677 W10853677 CAP-SCREW
W10846529 W10846529 CAP-SCREW
W10679138 W10679138 CAP-SCREW
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
549193 549193 CLAMP, POWER CORD
W10812039 W10812039 CLIP
W11661170 W11661170 CLIP
2219077 2219077 CLIP, HARNESS
W10233960 W10233960 COMPRESSOR
W11512423 W11512423 CONDENSER
W10628683 W10628683 CONTRL-BOX
W11244470 W11244470 CONTROL
WPW10643378 WPW10643378 CONTROL BOARD
W11353813 W11353813 CONTROL BOX
W10838316 W10838316 COVER
WPW10672338 WPW10672338 COVER
W10854527 W10854527 COVER
W10853622 W10853622 COVER
WP2213363 WP2213363 COVER
WP2213360 WP2213360 COVER
W11256504 W11256504 COVER
W10677275 W10677275 COVER
W10628697 W10628697 COVER
W10672341 W10672341 COVER
W10300902 W10300902 COVER
2213364 2213364 COVER, HINGE (BISCUIT/BISQUE)
W11024683 W11024683 COVER-EVAP
WPW10339203 WPW10339203 COVER-TUBE
W11476772 W11476772 COVER-UNIT
W10860753 W10860753 CRISPER PAN
W11026417 W11026417 DAMPER-AIR
W10861170 W10861170 DIFFUSER
LW10685311 LW10685311 DOOR ASSEMBLY
LW10638683 LW10638683 DOOR ASSEMBLY
LW10668875 LW10668875 DOOR ASSEMBLY
LW10636409 LW10636409 DOOR ASSEMBLY
LW10685309 LW10685309 DOOR ASSEMBLY
LW10638684 LW10638684 DOOR ASSEMBLY
LW10668874 LW10668874 DOOR ASSEMBLY
LW10636410 LW10636410 DOOR ASSEMBLY
W10861499 W10861499 DOOR GASKET
W10838574 W10838574 DOOR GASKET
WP2254618 WP2254618 DOOR HINGE
WP2261963 WP2261963 DOOR HINGE
W10691128 W10691128 DOOR REVERSAL KIT, BISCUIT MODEL
W10676240 W10676240 DOOR REVERSAL KIT, STAINLESS MODEL
WP2218113 WP2218113 DOOR-COMP
WP2188234 WP2188234 DOOR-SHELF
W10843121 W10843121 DRIER-TUBE
W10919804 W10919804 DUCT-AIR
WP2156003 WP2156003 ENDCAP
W11519504 W11519504 ENDCAP-HDL
W10709339 W10709339 ENERGY LABEL
W10836706 W10836706 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
W10646247 W10646247 EXTENSION
W10849448 W10849448 GASKET
W11036546 W11036546 GASKET-DOR
W11028007 W11028007 GASKET-DOR
W11229610 W11229610 GASKET-DOR
W11625056 W11625056 GASKET-DOR
W11625057 W11625057 GASKET-DOR
W11240749 W11240749 GASKET-DOR

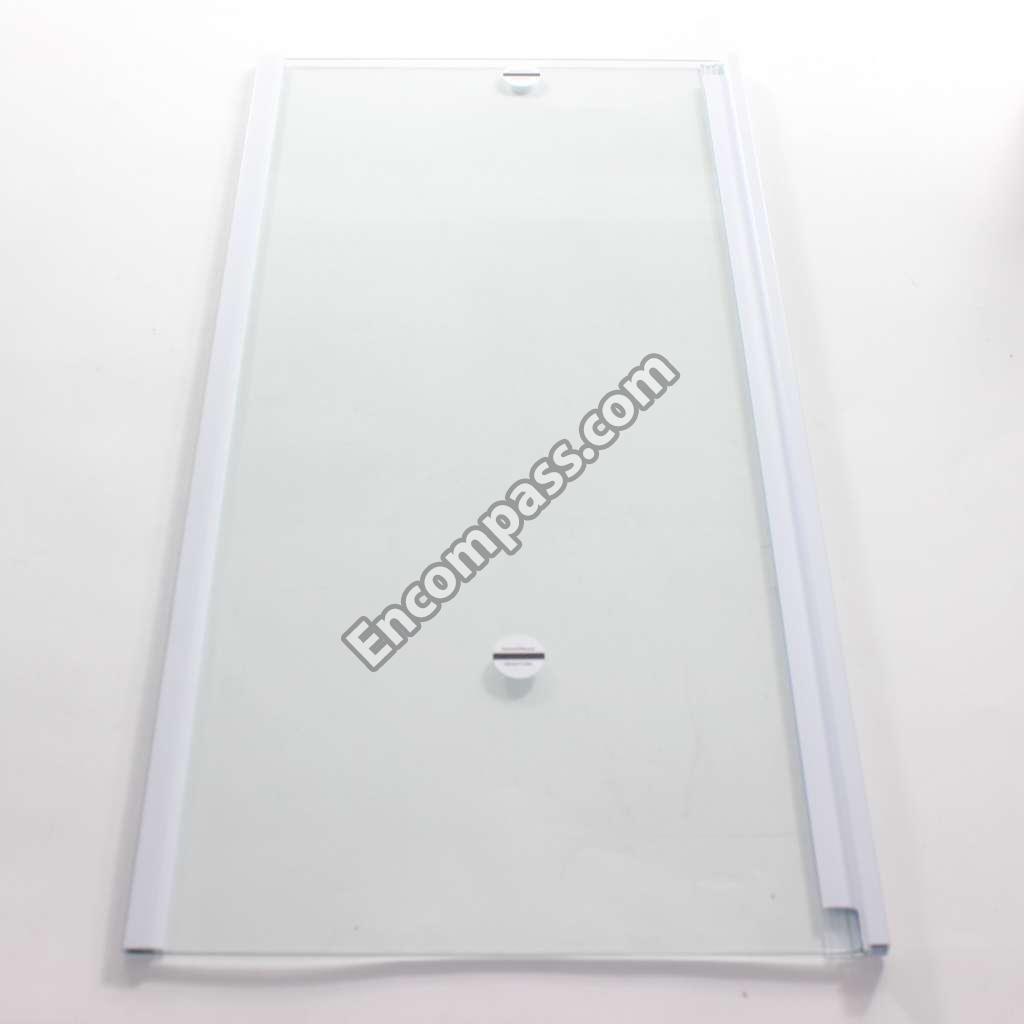

WPW10628710 WPW10628710 GLASS SHELF
WP542638 WP542638 GREASE
W10638176 W10638176 GRILLE
W11661108 W11661108 GROMMET
WP2264462 WP2264462 GROMMET
W10859918 W10859918 HANDLE
W10806512 W10806512 HANDLE
WPW10672334 WPW10672334 HANDLE
WPW10672333 WPW10672333 HANDLE
W11436564 W11436564 HARNS-WIRE
W11502499 W11502499 HARNS-WIRE
W10856574 W10856574 HEAT-PROBE
WPW10316428 WPW10316428 HEATER
W11026307 W11026307 HINGE-PIN
WPW10279909 WPW10279909 INLET VALVE
W11553819 W11553819 INSULATION
833938 833938 KIT, TERMINAL CONNECTOR
8003RP 8003RP KIT, WATER INLET
W11416038 W11416038 KIT-DOOR
W11415957 W11415957 KIT-DOOR
W10920316 W10920316 LENS-LIGHT
W10854419 W10854419 LEVELER
W11679940 W11679940 LIGHT BULB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
W11127829 W11127829 MOTOR-COND
W11178521 W11178521 NAMEPLATE
W10850162 W10850162 ORIFICE
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10861806 W10861806 PAN-MEAT
WP2174706 WP2174706 PIN-HITCH
W10830982 W10830982 PLUG-HNDLE
W10830983 W10830983 PLUG-HNDLE
W10830984 W10830984 PLUG-HNDLE
W10830981 W10830981 PLUG-HNDLE
W11164152 W11164152 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
W11256723 W11256723 ROLLER-CAB
W11096015 W11096015 ROLLER-CAB
WP489478 WP489478 SCREW
WP489128 WP489128 SCREW
WP488921 WP488921 SCREW
WP8281206 WP8281206 SCREW
WP489357 WP489357 SCREW
WP3400065 WP3400065 SCREW
W11544659 W11544659 SCREW
WP488163 WP488163 SCREW
WP489497 WP489497 SCREW
WP489442 WP489442 SCREW
W10829281 W10829281 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
W10770168 W10770168 SERVICE & WIRING SHEET
W10310934 W10310934 SHELF-WIRE
W10628714 W10628714 SHELF-WIRE
WPW10314195 WPW10314195 SHIELD
W11169703 W11169703 SHIM
WP2183852 WP2183852 SHIM
W11590562 W11590562 SLIDE
WPW10448874 WPW10448874 START-DEV
W10718082 W10718082 SUPPORT
W10624648 W10624648 SUPPORT PLATE, COMPRESSOR
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10383615 WPW10383615 THERMISTOR
W11438736 W11438736 THERMISTOR
WP2183003 WP2183003 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11595235 W11595235 TRACK
W11595232 W11595232 TRACK
W11595233 W11595233 TRACK
W10633582 W10633582 TRAY-EVAP
W11170805 W11170805 TRIM-DOOR
W11129820 W11129820 TRIM-DOOR
W11106290 W11106290 TRIM-DOOR
W11126055 W11126055 TRIM-DOOR
W11097831 W11097831 TRIM-DOOR
W10628685 W10628685 TRIM-SHELF
W11167827 W11167827 TRIM-SHELF
W11676464 W11676464 TUBE
W10633577 W10633577 TUBE
W10633584 W10633584 TUBE
W10633573 W10633573 TUBE-DRAIN
W10669181 W10669181 USE & CARE GUIDE
WP978025 WP978025 VALVE
876764 876764 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978026 978026 VALVE, ACCESS
W10847959 W10847959 WASHER
WP489467 WP489467 WASHER
W11611445 W11611445 WIRE HARNESS
