Model Image
Manufacturer

Whirlpool

Model Number

WRT111SFDB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"

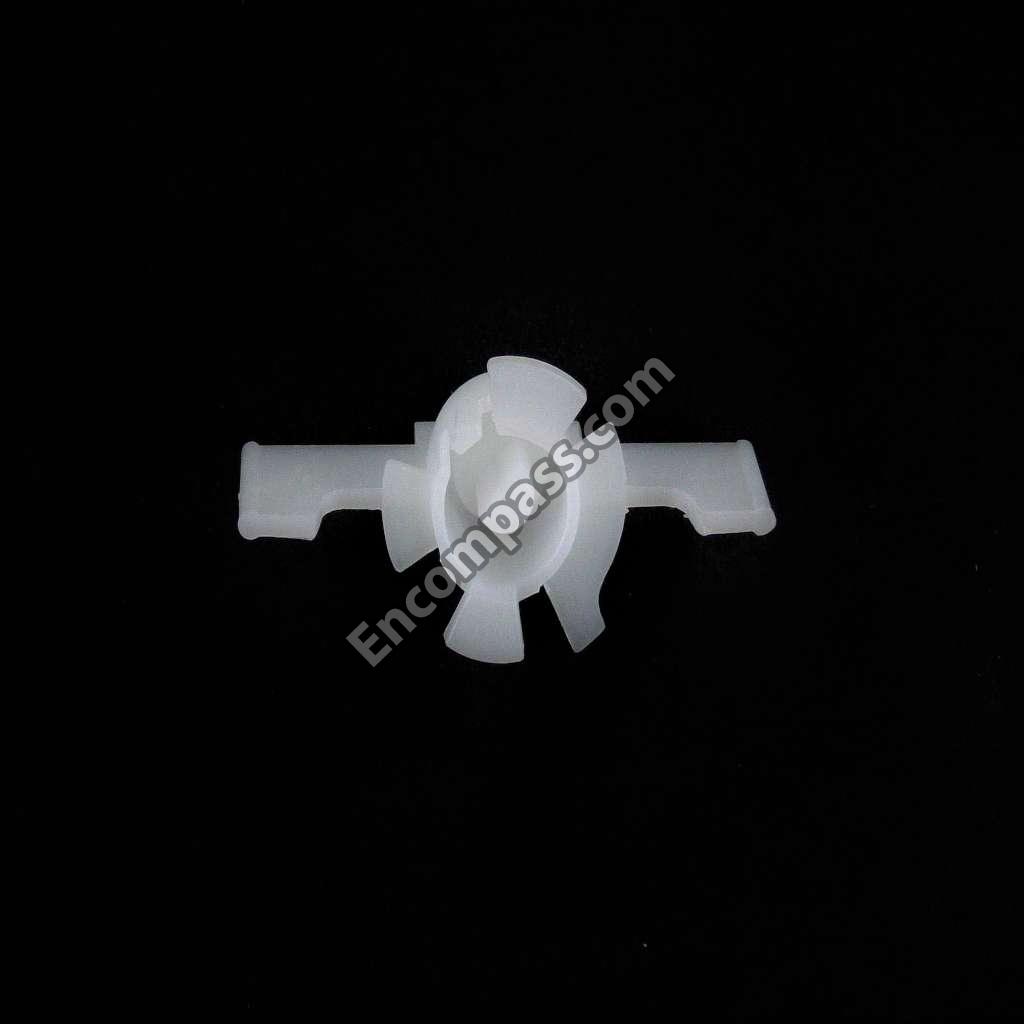

W11594405 W11594405 AXLE

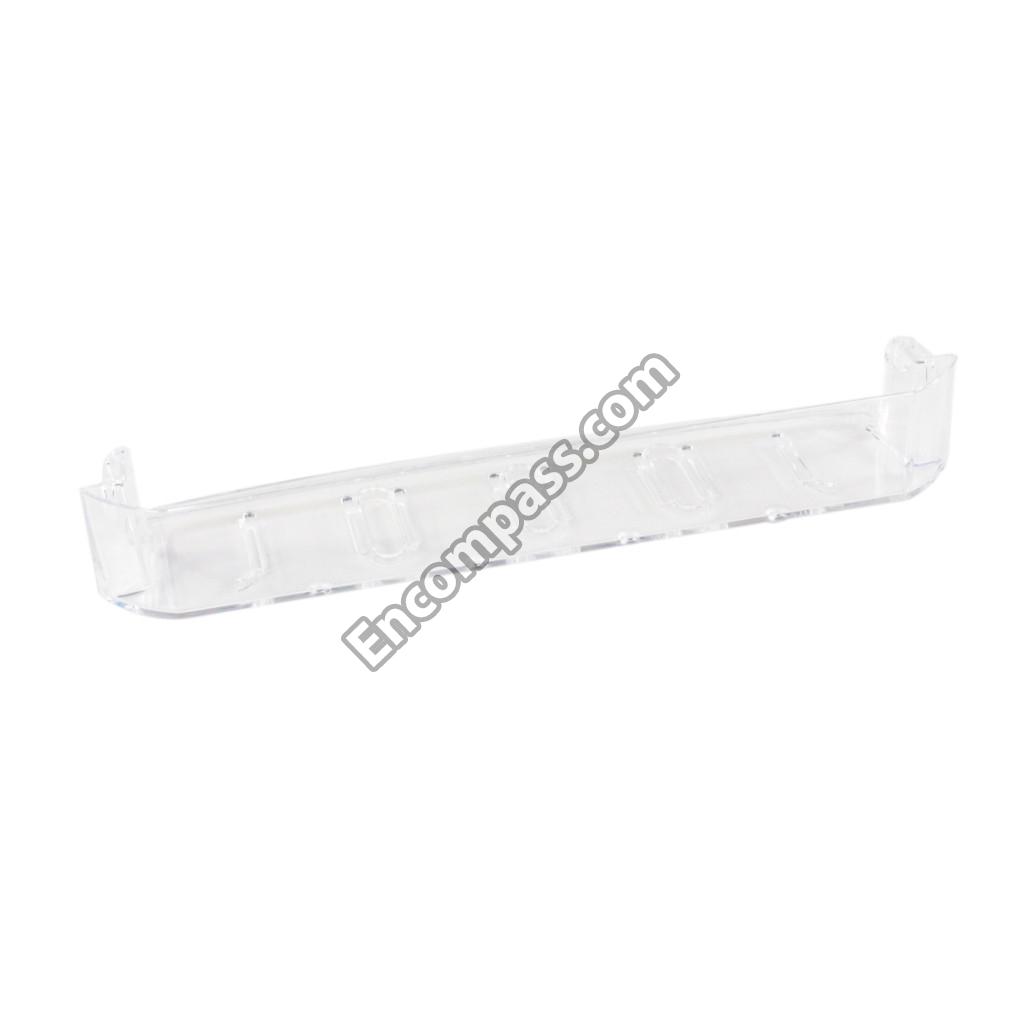

W10675407 W10675407 BARRIER
WPW10225581 WPW10225581 BIMETL-DEF
WPW10370890 WPW10370890 BIN CONTROL LEVER
WPW10364007 WPW10364007 BIN CONTROL LEVER
WPW10489075 WPW10489075 BIN CONTROL LEVER
WP2163777 WP2163777 BLADE-FAN
W10435530 W10435530 BODY-CNTRL
W11745278 W11745278 BRACKET
WPW10261254 WPW10261254 BRACKET
W10492012 W10492012 BRACKET
W10286974 W10286974 BRACKET
WP2254517 WP2254517 BUTTON-PLG
WP2212651 WP2212651 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WPW10520307 WPW10520307 BUTTON-PLG
WPW10520305 WPW10520305 BUTTON-PLG
WPW10520304 WPW10520304 BUTTON-PLG
W10260016 W10260016 CAP-SCREW
549193 549193 CLAMP, POWER CORD
W11661170 W11661170 CLIP
2219077 2219077 CLIP, HARNESS
W11480426 W11480426 COMPRESSOR
W10731988 W10731988 COMPRESSOR
W10439364 W10439364 CONDENSER
W10716875 W10716875 CONTRL-BOX
W10854527 W10854527 COVER
W10431229 W10431229 COVER

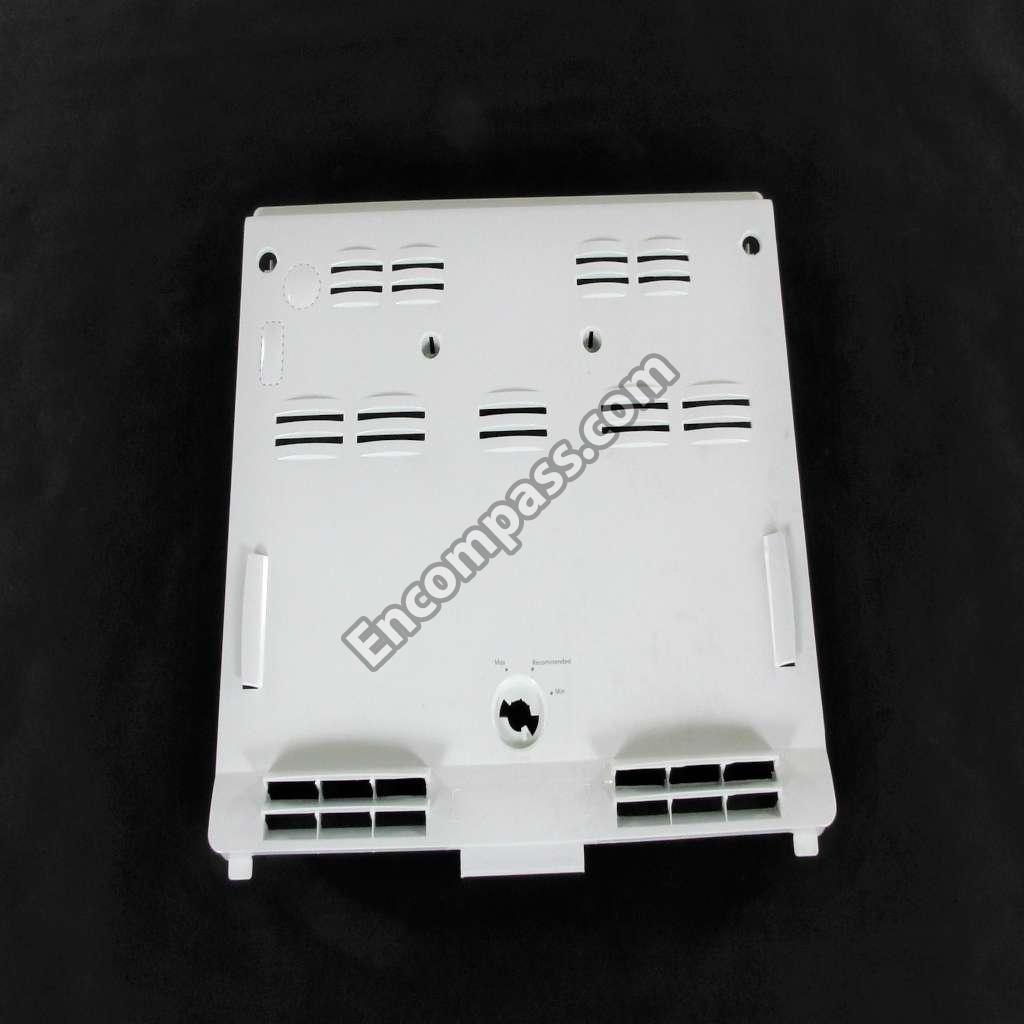

W11170274 W11170274 COVER-EVAP
W10716874 W10716874 COVER-EVAP
W10225835 W10225835 DAMPER
W10261263 W10261263 DEFLECTOR
LW10751123 LW10751123 DOOR ASSEMBLY
LW10751121 LW10751121 DOOR ASSEMBLY
LW10751124 LW10751124 DOOR ASSEMBLY
LW10751126 LW10751126 DOOR ASSEMBLY
LW10751125 LW10751125 DOOR ASSEMBLY
LW10751127 LW10751127 DOOR ASSEMBLY
W10837711 W10837711 DOOR HINGE
W10843121 W10843121 DRIER-TUBE
W10735172 W10735172 ENERGY GUIDE
W11122867 W11122867 EVAPORATOR

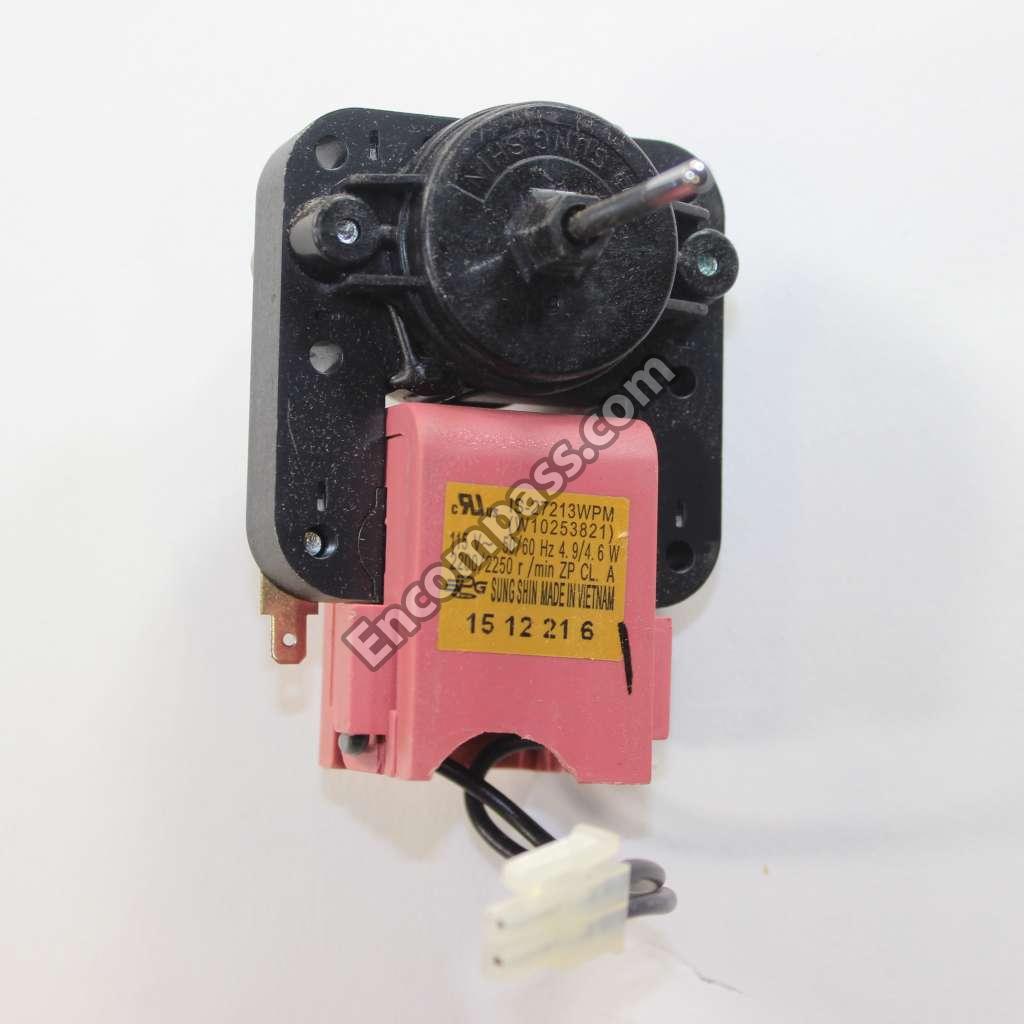

WPW10253821 WPW10253821 EVAPORATOR MOTOR
W10429302 W10429302 FILLER
W10439615 W10439615 FILLER
W10447119 W10447119 FILLER
W11625036 W11625036 GASKET-FIP
W11625037 W11625037 GASKET-FIP
W11625051 W11625051 GASKET-FIP
W11228130 W11228130 GASKET-FIP
W11625052 W11625052 GASKET-FIP
W11625055 W11625055 GASKET-FIP

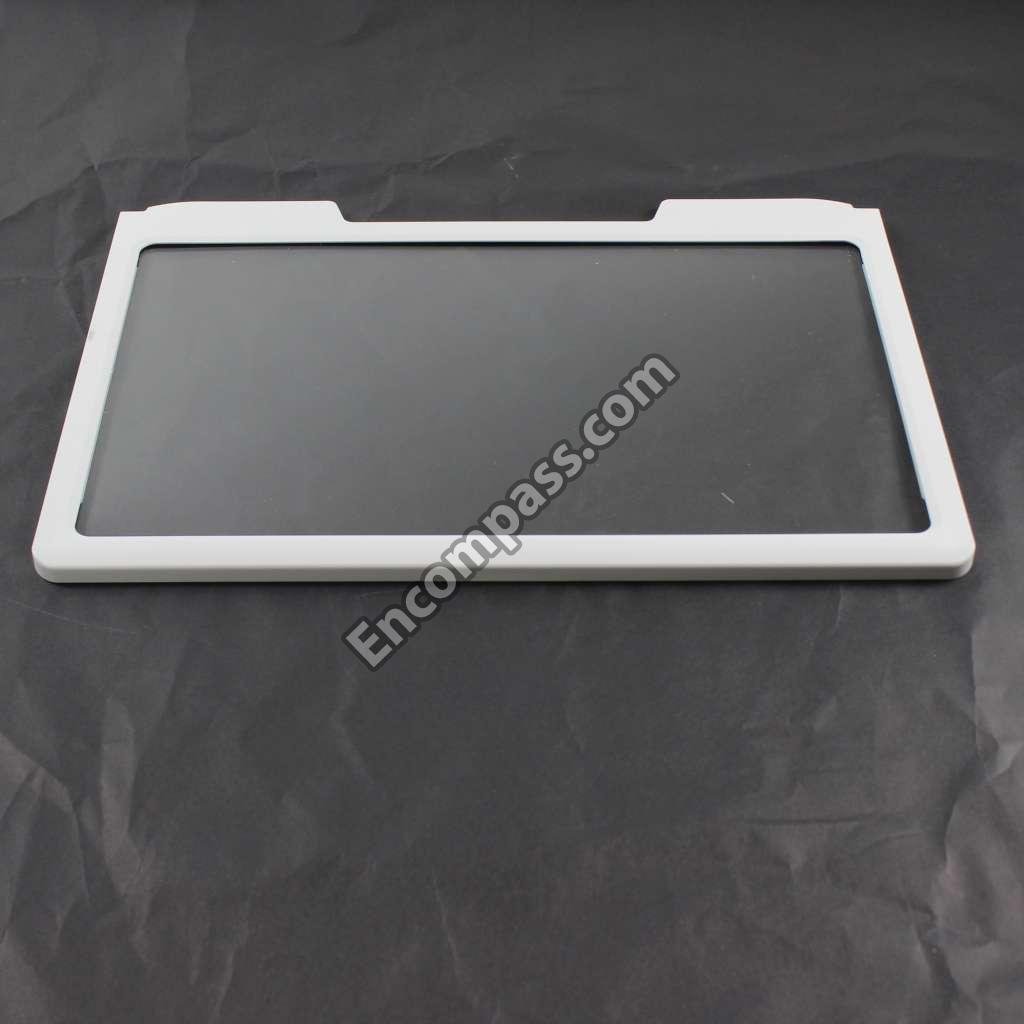

WPW10337637 WPW10337637 GLASS SHELF
WP542638 WP542638 GREASE
WPW10169124 WPW10169124 GROMMET
W10225833 W10225833 GROMMET

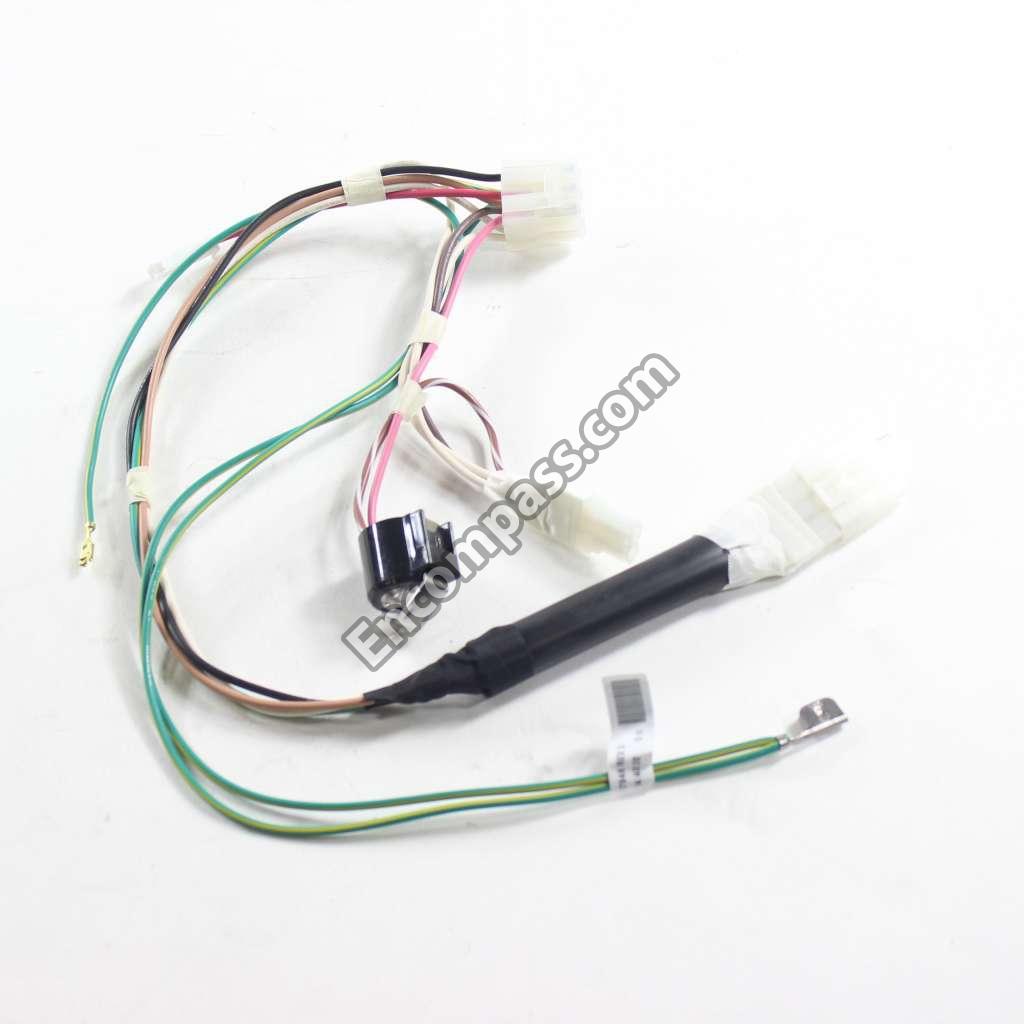

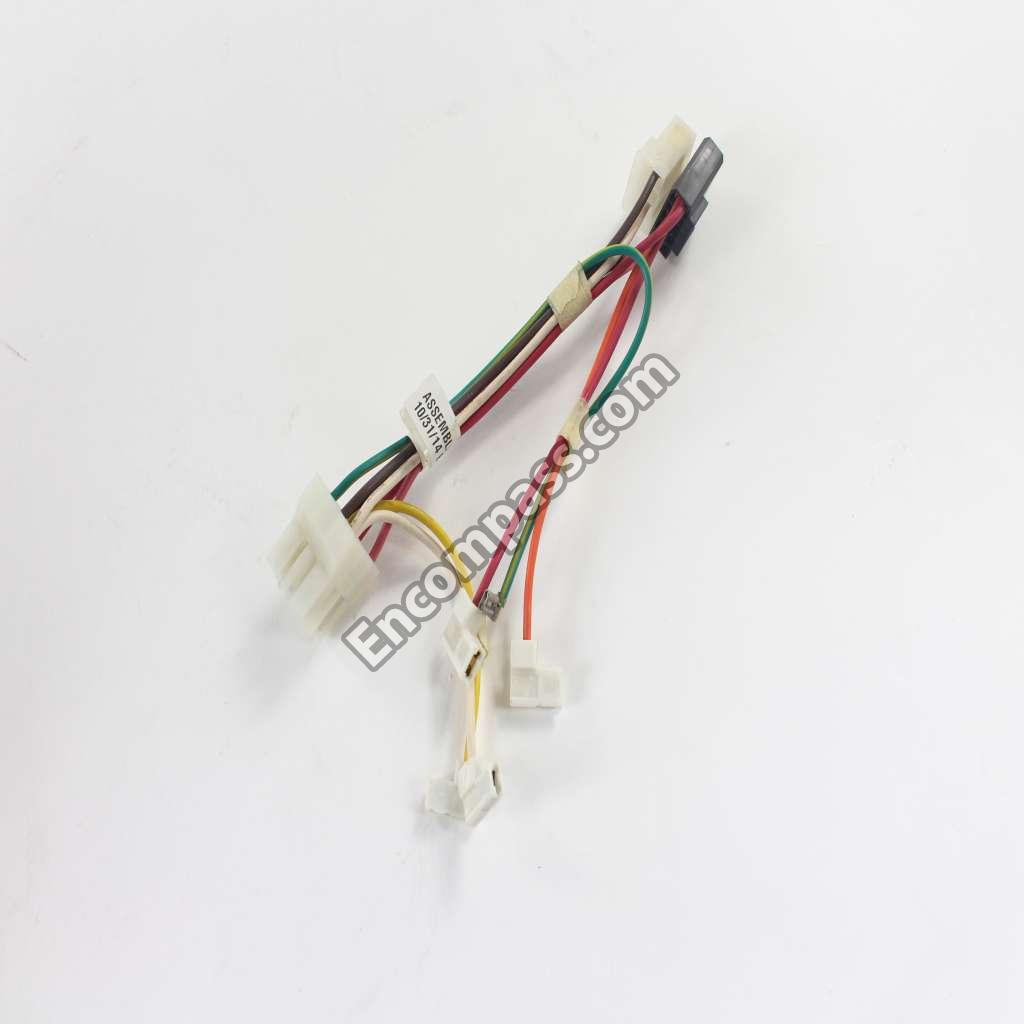

W11164040 W11164040 HARNS-WIRE
W10714891 W10714891 HARNS-WIRE
W10659093 W10659093 HARNS-WIRE

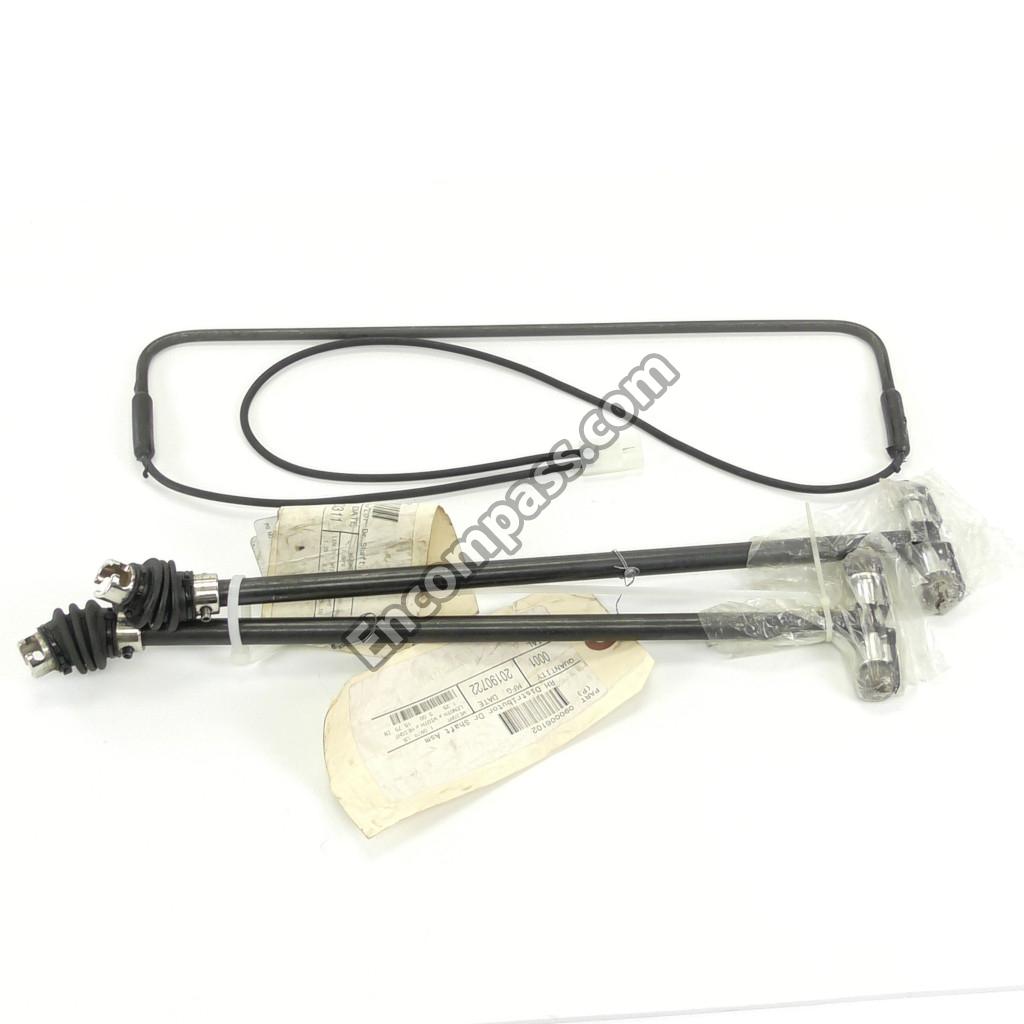

W11193825 W11193825 HEATER

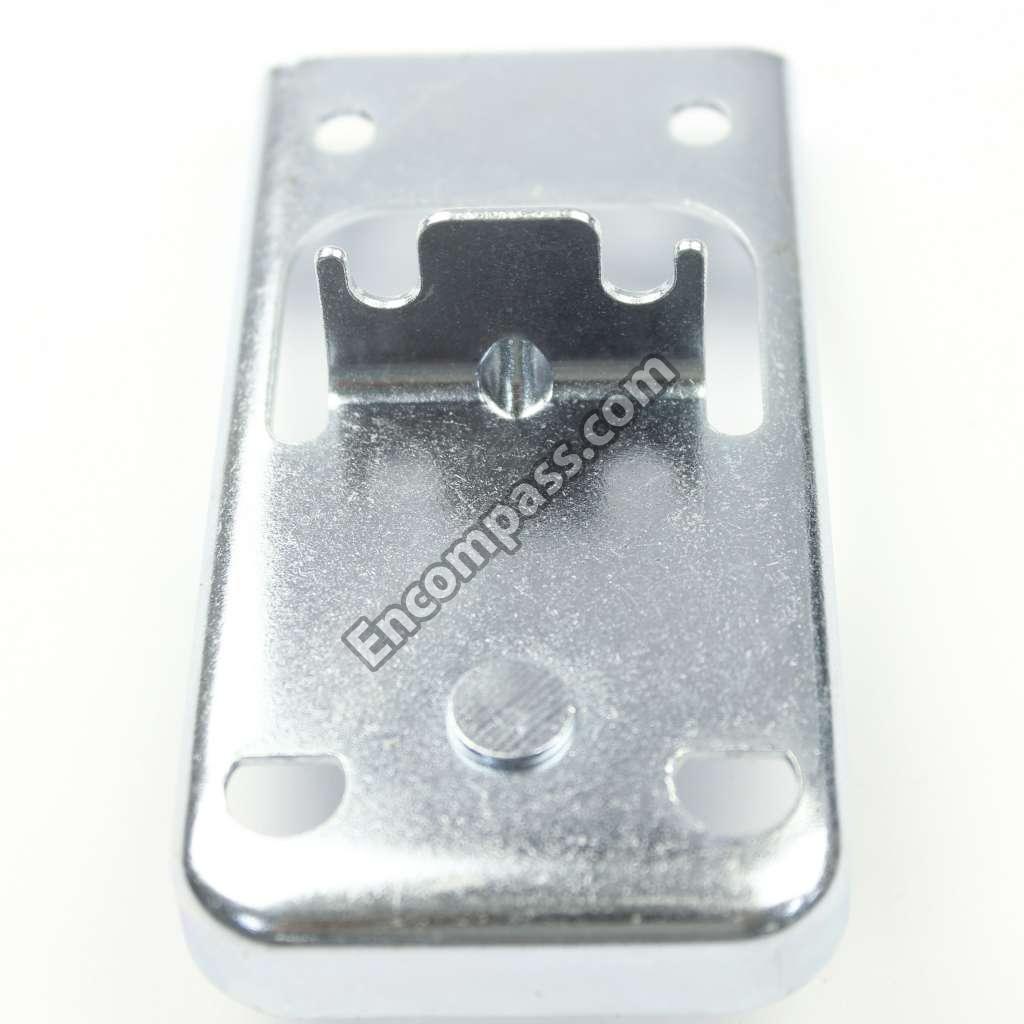

W10346928 W10346928 HINGE-DOOR
W10492014 W10492014 HINGE-DOOR

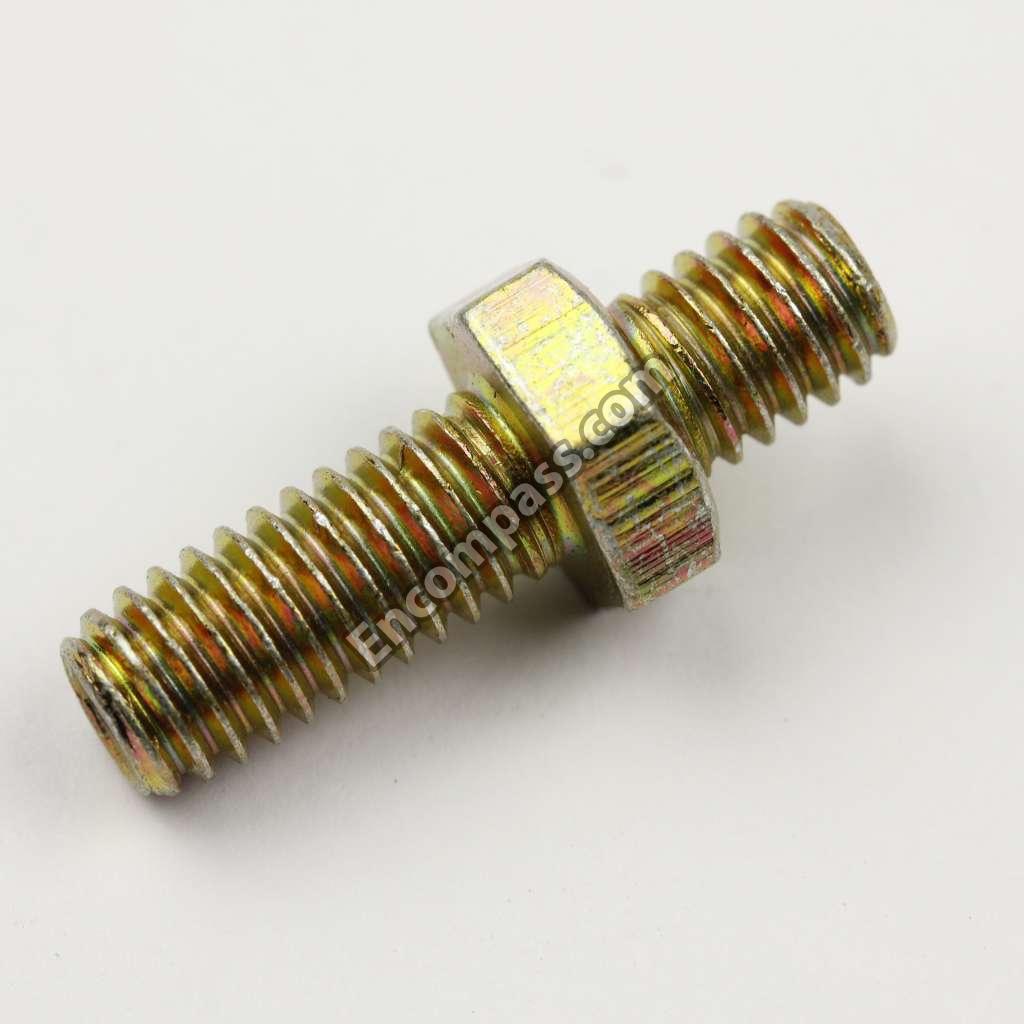

WP2325483 WP2325483 HINGE-PIN

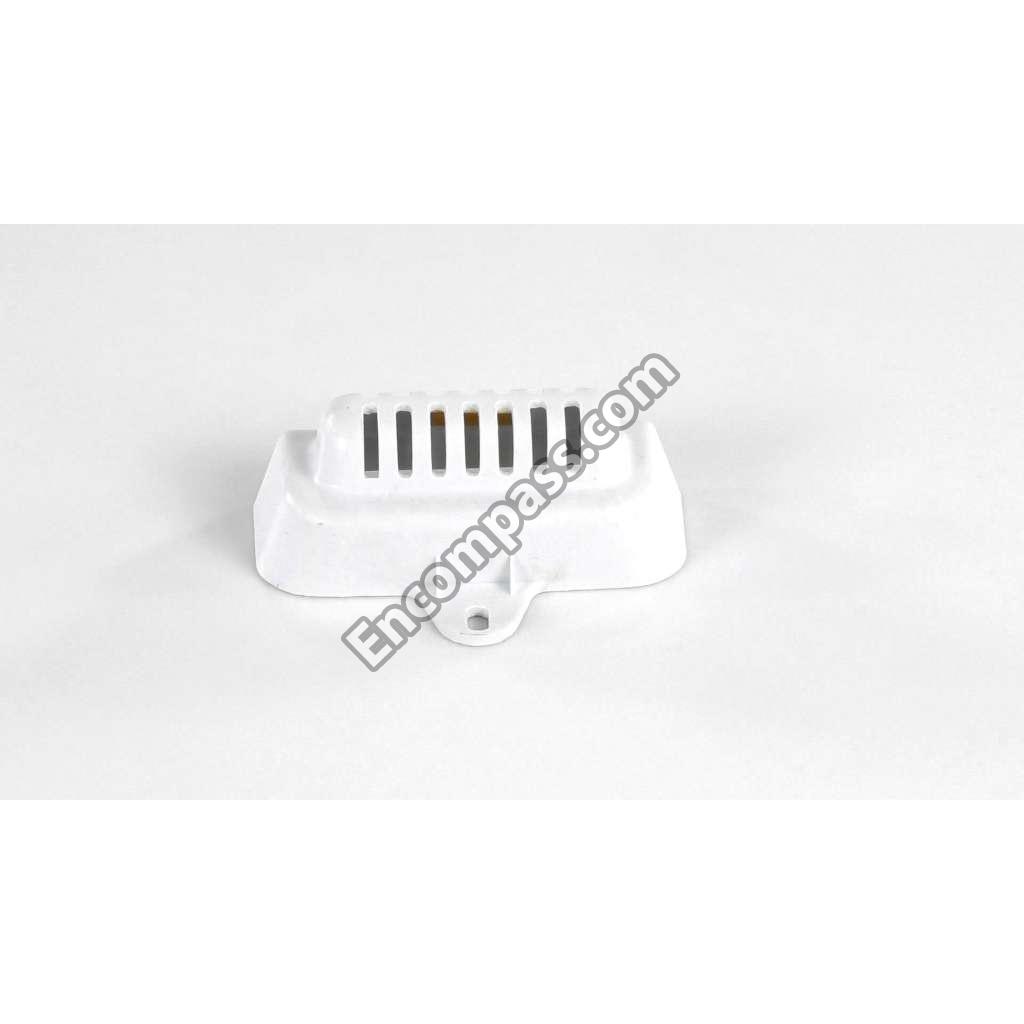

W10286060 W10286060 HOUSING

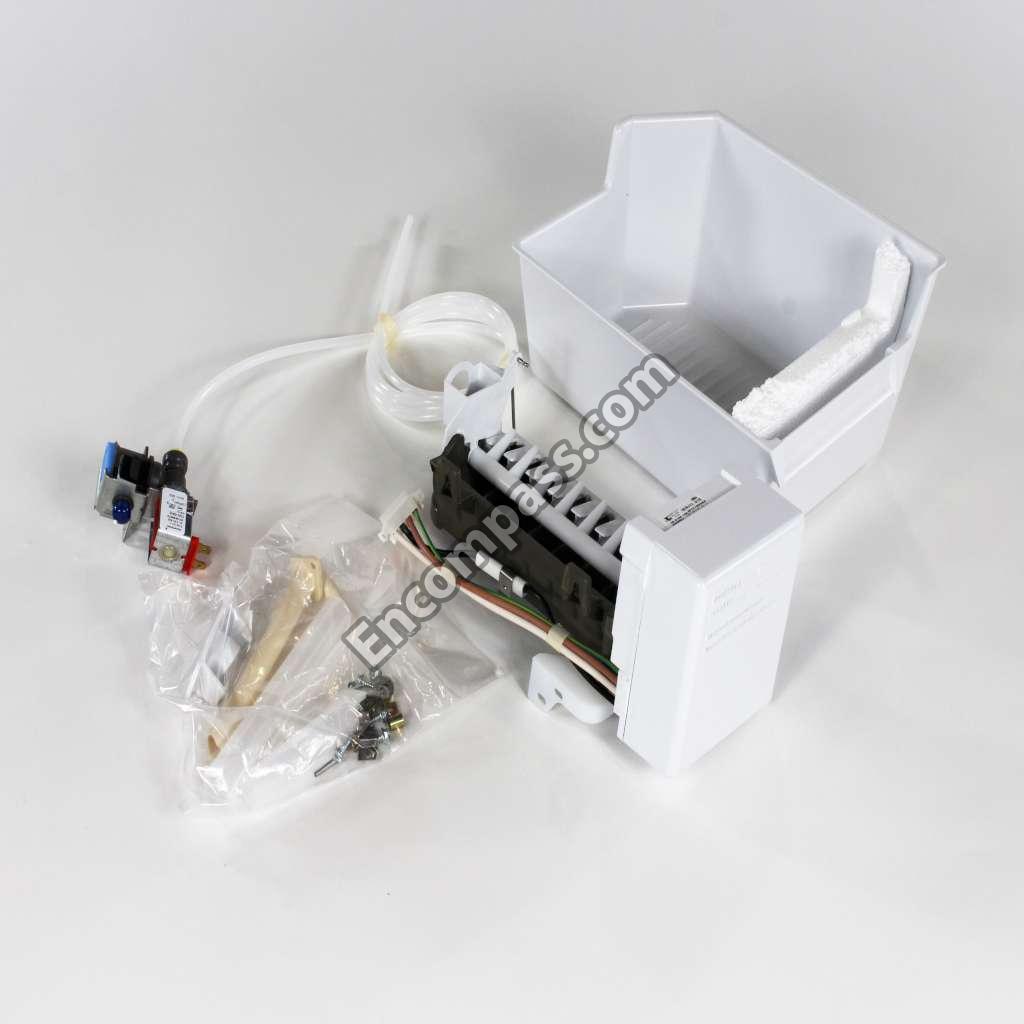

WPW10315447 WPW10315447 ICEMAKER
W11553819 W11553819 INSULATION

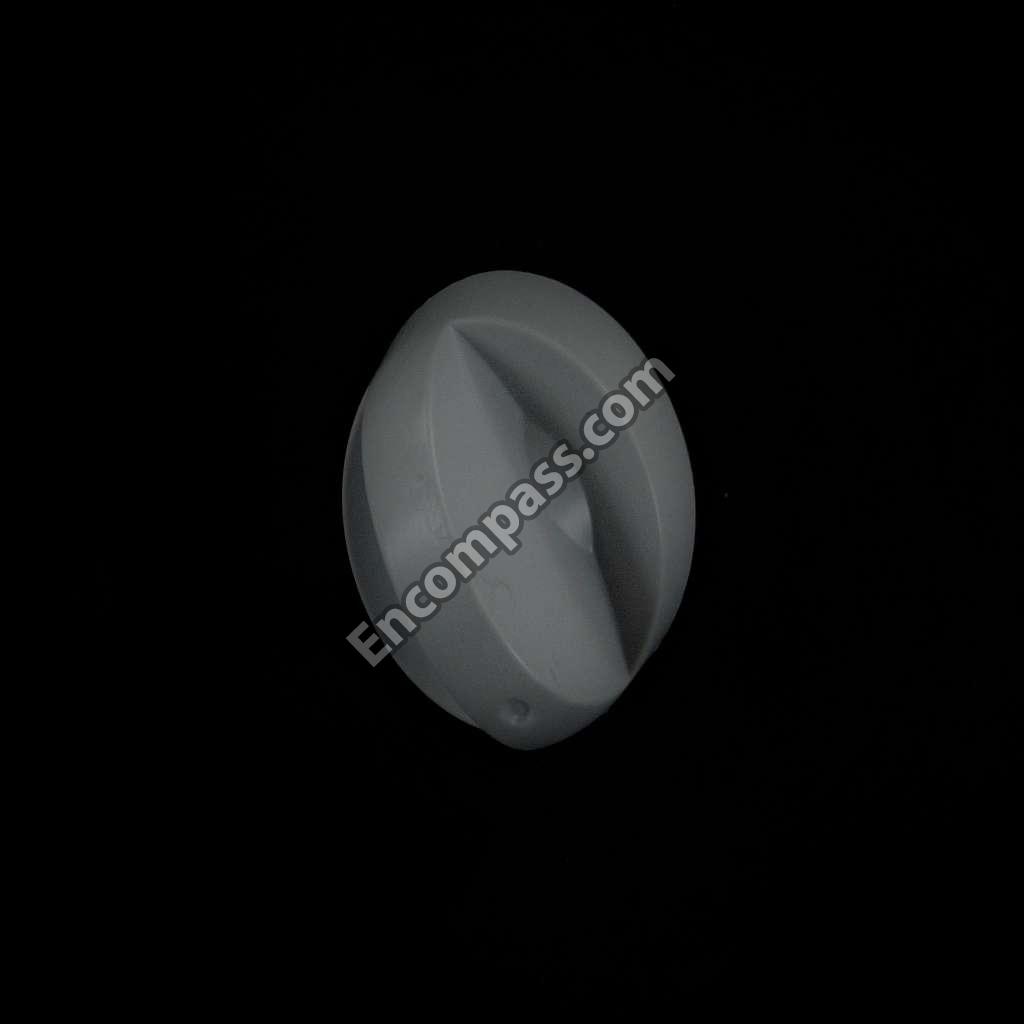

W10465177 W10465177 KNOB-THERM
W10465179 W10465179 KNOB-THERM
W10734573 W10734573 LENS-LIGHT

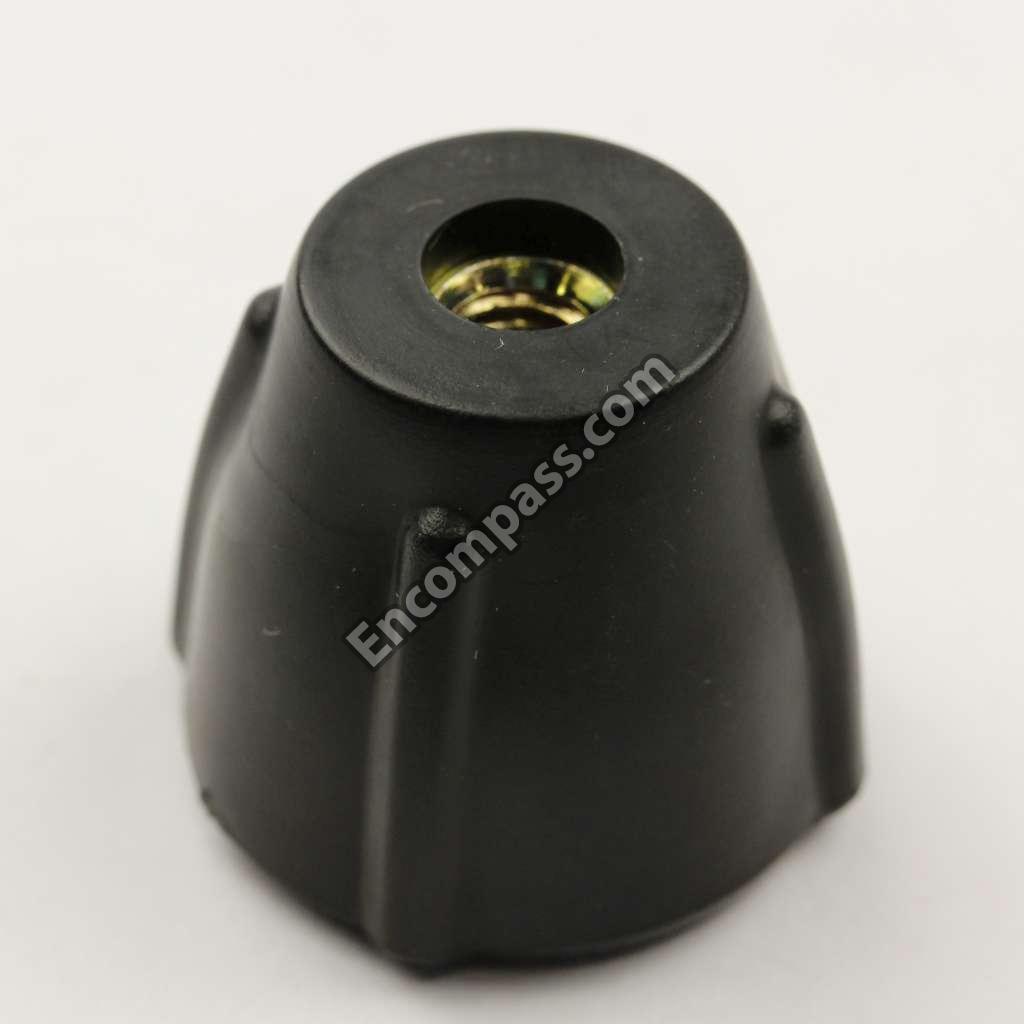

WPW10340017 WPW10340017 LEVELER
WPR-30039 WPR-30039 LEVELER
W11518235 W11518235 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11178521 W11178521 NAMEPLATE
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
8171357 8171357 PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
8212473 8212473 PAINT, TOUCH-UP (1/2OZ. UNIVERSAL SILVER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11027667 W11027667 PAN-CRISPR
N_P N_P RAIL, CENTER (NOT SERVICED)
WPW10475495 WPW10475495 ROLLER-CAB
WP489174 WP489174 SCREW
W10837731 W10837731 SCREW
WP489478 WP489478 SCREW
WP487353 WP487353 SCREW
WP489442 WP489442 SCREW
WP8533993 WP8533993 SCREW
WP489497 WP489497 SCREW
WP681249 WP681249 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W10738165 W10738165 SERVICE AND WIRING SHEET

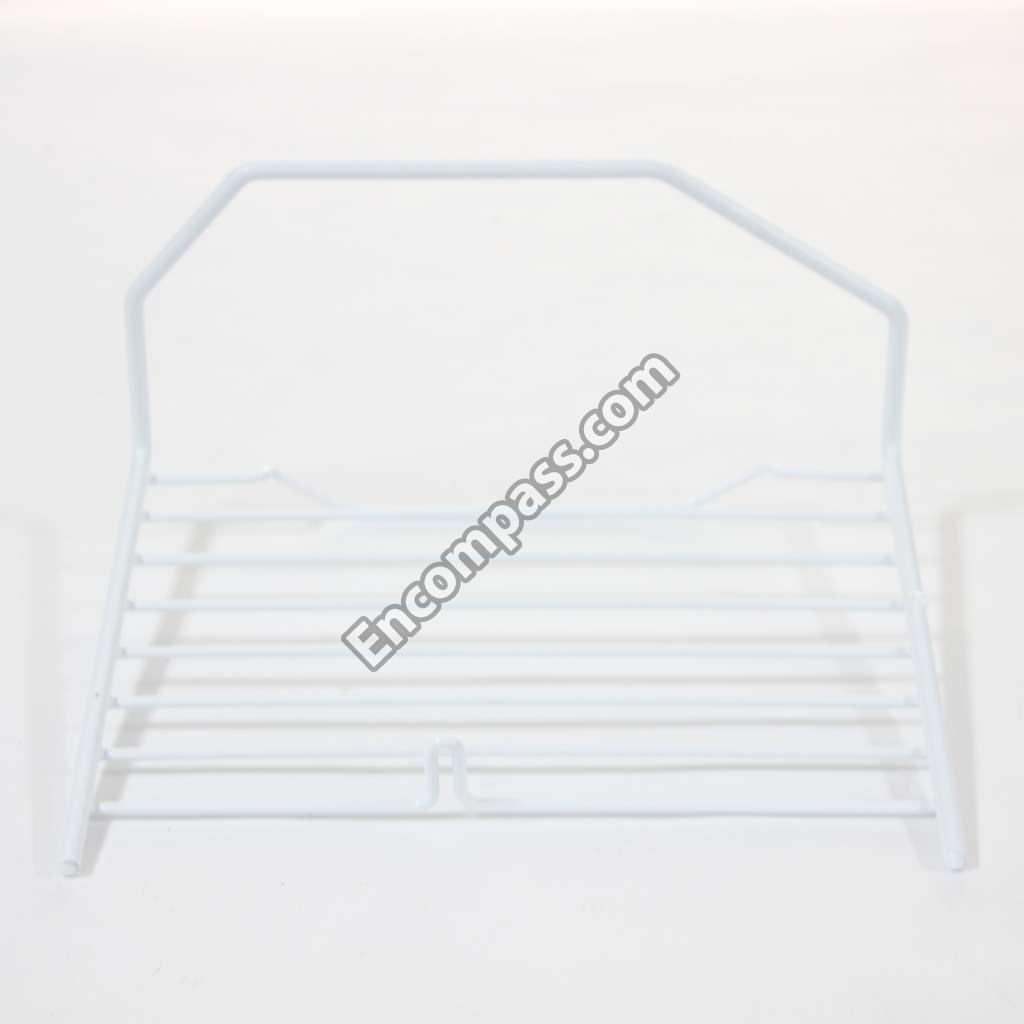

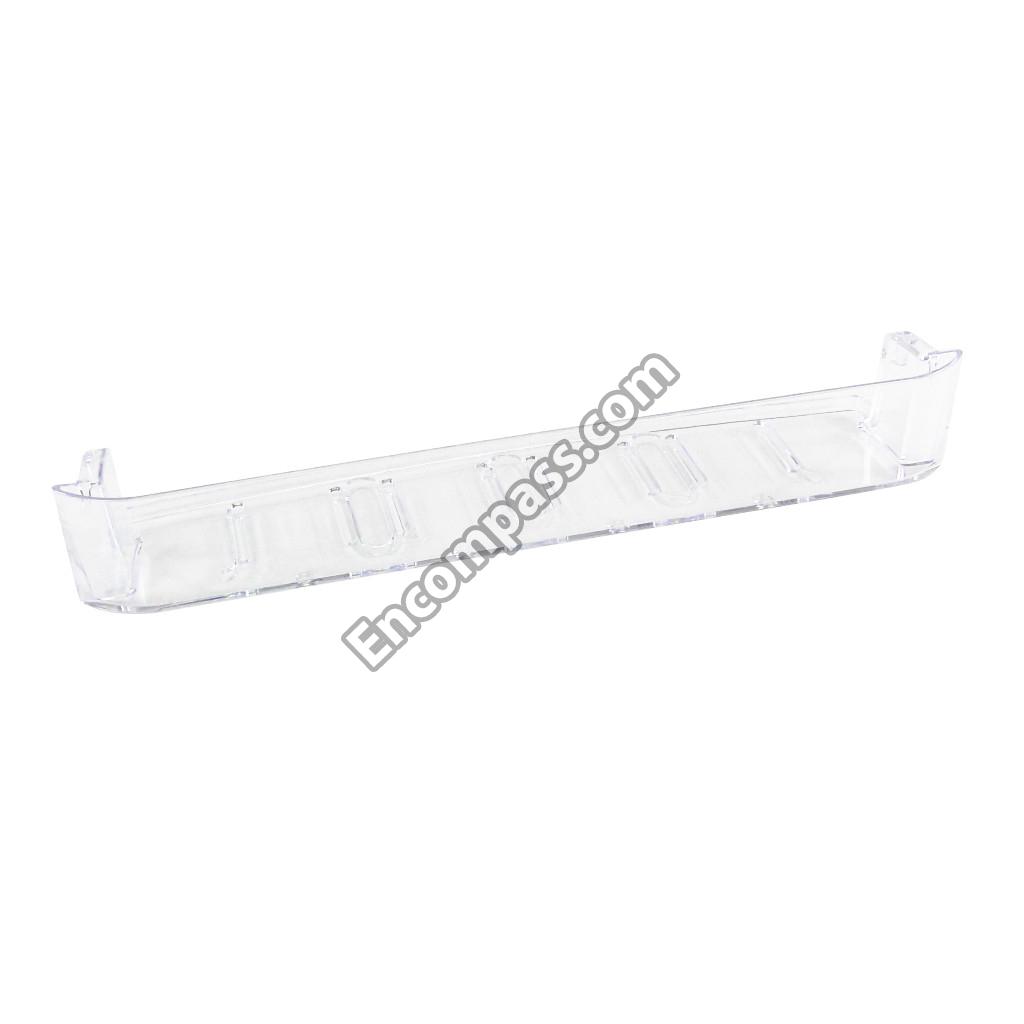

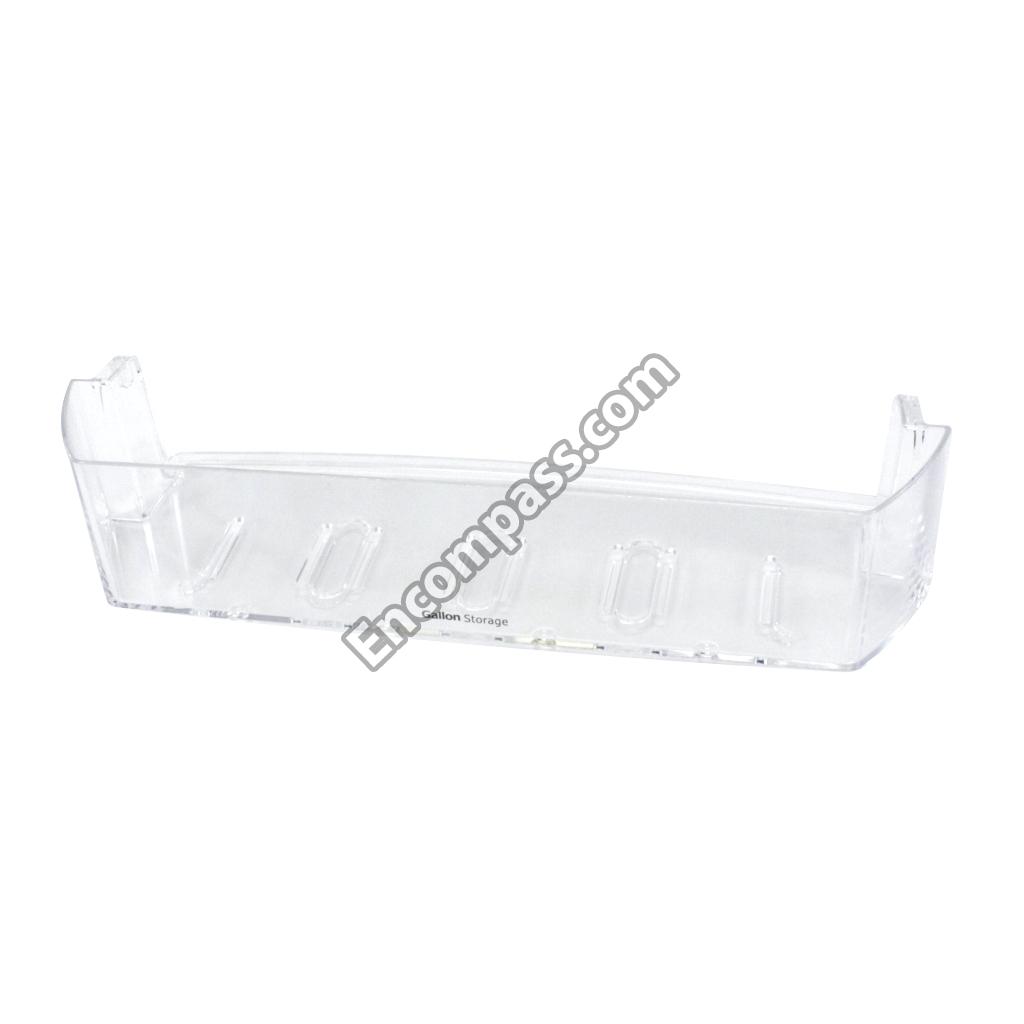

WPW10455635 WPW10455635 SHELF
W10345815 W10345815 SHIELD
W10399311 W10399311 SHIM-HINGE
W10399313 W10399313 SHIM-HINGE
W11269182 W11269182 SHIM-HINGE
W10545295 W10545295 SOCKET, LIGHT
WPW10448874 WPW10448874 START-DEV
WP326020544 WP326020544 SUPPORT
W10251274 W10251274 SUPPORT
W10378704 W10378704 SUPPORT
W10261299 W10261299 SUPPORT-EV
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10530058 WPW10530058 THERMOSTAT
W11189115 W11189115 THIMBLE
W10492018 W10492018 THIMBLE
W11676573 W11676573 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
4388931 4388931 TIMER-DEF
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11035419 W11035419 TRAY-EVAP
R-30680 R-30680 TRAY-ICE
W11199415 W11199415 TRIVET
W11661102 W11661102 TUBE
W10679680 W10679680 TUBE
W10732527 W10732527 USE AND CARE GUIDE
WP978025 WP978025 VALVE
978029 978029 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978026 978026 VALVE, ACCESS
876764 876764 VALVE, ACCESS

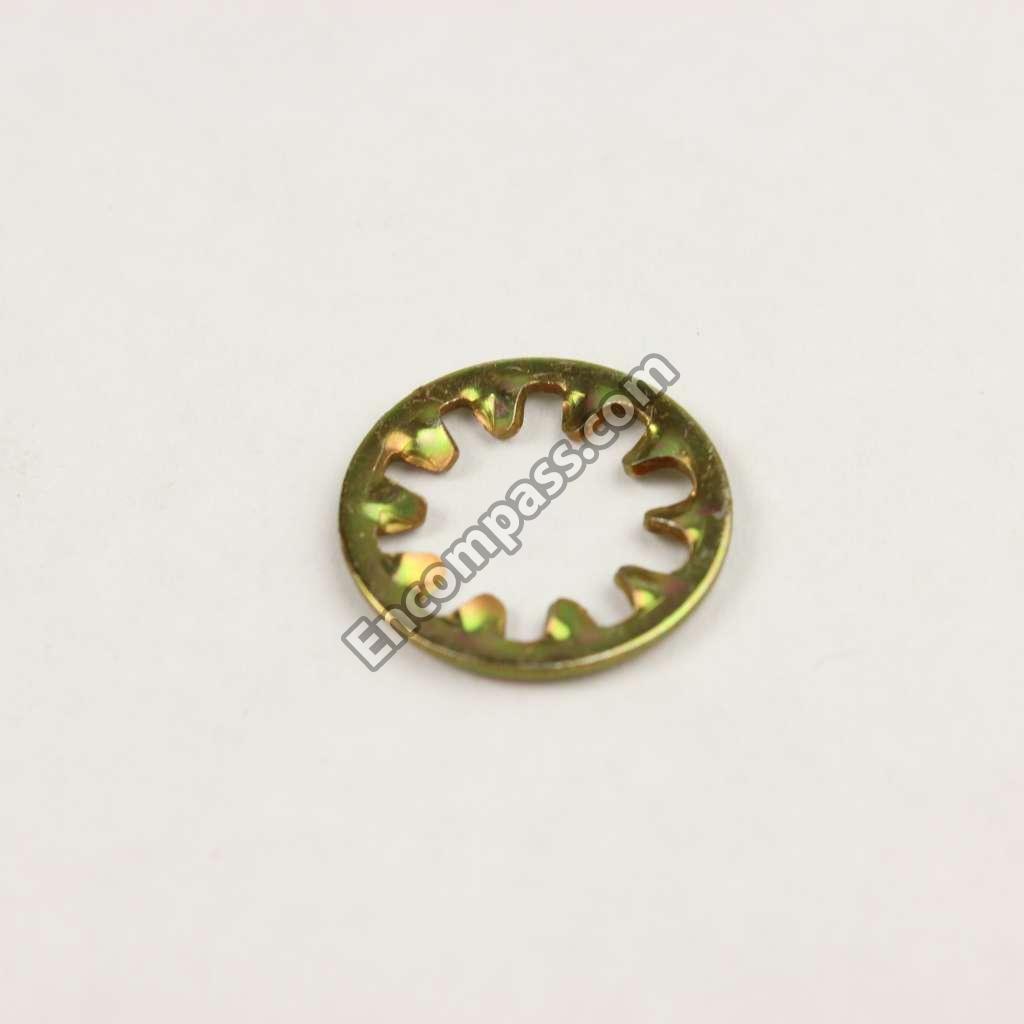

WPR-30268 WPR-30268 WASHER
WP489467 WP489467 WASHER
WP487576 WP487576 WASHER
W10260017 W10260017 WASHER
