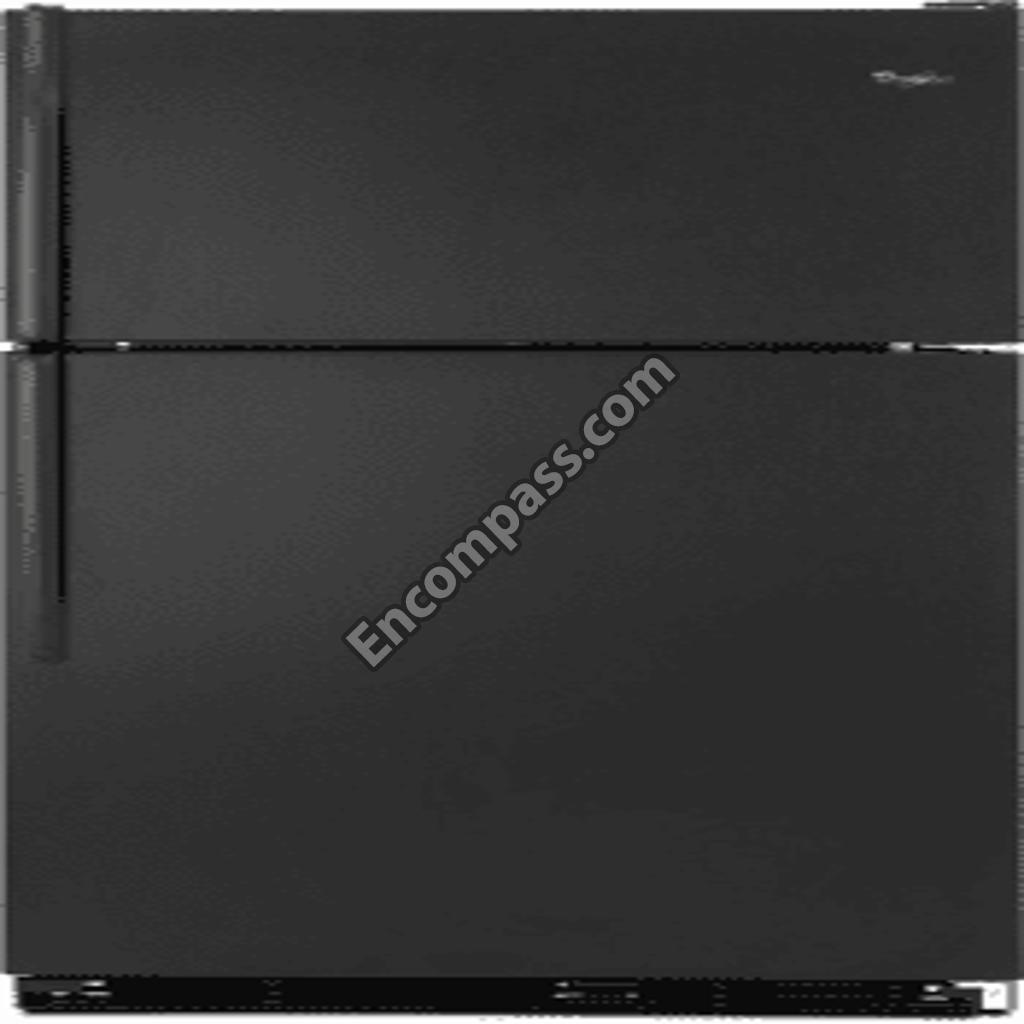

Model Image
Manufacturer

Whirlpool

Model Number

WRT138TFYB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10396926 WPW10396926 AIR-TOWER
WPW10305174 WPW10305174 AIR-TOWER
W11594405 W11594405 AXLE
WP2315541 WP2315541 BAFFLE-AIR
WP2196003 WP2196003 BARRIER
WPW10392132 WPW10392132 BIMETL-DEF
WPW10139483 WPW10139483 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
W11745278 W11745278 BRACKET
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
WP2212651 WP2212651 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP488366 WP488366 CLAMP
549193 549193 CLAMP, POWER CORD
WP2189356 WP2189356 CLIP
W10174383 W10174383 CLIP
2254385 2254385 CLIP, GRILLE
W10233960 W10233960 COMPRESSOR
WPW10342567 WPW10342567 CONDENSER
W10316941 W10316941 CONTRL-BOX
WPW10352689 WPW10352689 CONTROL BOARD
WP2202819B WP2202819B COVER
WP2202819W WP2202819W COVER
WPW10305175 WPW10305175 COVER
WP2213363 WP2213363 COVER
WP2213360 WP2213360 COVER
W10336009 W10336009 COVER
W10636716 W10636716 COVER, UNIT
W10385128 W10385128 COVER-EVAP
WPW10339203 WPW10339203 COVER-TUBE
WPW10373941 WPW10373941 CRISPER PAN
WPW10373936 WPW10373936 CRISPER PAN
WPW10376137 WPW10376137 DIFFUSER
L2200710 L2200710 DOOR ASSEMBLY BL
L2182487 L2182487 DOOR ASSEMBLY WH
L2183948 L2183948 DOOR ASSEMBLY WH
2177304 2177304 DOOR GASKET, MAGNETIC (BLACK)
2177305 2177305 DOOR GASKET, MAGNETIC (BLACK)
2159327 2159327 DOOR GASKET, MAGNETIC (MIST BEIGE)
2159057 2159057 DOOR GASKET, MAGNETIC (MIST BEIGE)
WP2254473 WP2254473 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
WP2261963 WP2261963 DOOR HINGE
WPW10421484 WPW10421484 DOOR TRIM
WPW10463615 WPW10463615 DOOR TRIM
WPW10463614 WPW10463614 DOOR TRIM
WPW10464028 WPW10464028 DOOR TRIM
WP2201061 WP2201061 DOOR TRIM
WPW10463613 WPW10463613 DOOR TRIM
WP2218113 WP2218113 DOOR-COMP
W10843121 W10843121 DRIER-TUBE
WP2156003 WP2156003 ENDCAP
WP2195915 WP2195915 ENDCAP
W10417749 W10417749 ENERGY LABEL
WPW10314205 WPW10314205 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
WPW10283959 WPW10283959 FILLER
W11252732 W11252732 FILLER
N_P N_P FITTING, WATER TUBE (NOT SERVICED)
W10849448 W10849448 GASKET
WPW10486290 WPW10486290 GLASS SHELF
WP542638 WP542638 GREASE
WP2254386 WP2254386 GRILLE
WP2254388 WP2254388 GRILLE
WPW10169124 WPW10169124 GROMMET
WP2264462 WP2264462 GROMMET
W10551713 W10551713 GUIDE, USE & CARE
WP2202806W WP2202806W HANDLE
WP2202806B WP2202806B HANDLE
WP2221946W WP2221946W HANDLE
WP2326169B WP2326169B HANDLE
W10318068 W10318068 HARNS-WIRE
W10339627 W10339627 HARNS-WIRE
WPW10316428 WPW10316428 HEATER
W10356940 W10356940 KNOB-THERM
W10887190 W10887190 LIGHT BULB
833938 833938 MISCELLANEOUS (KIT, TERMINAL CONNECTOR)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3``X 24`` X 48``)
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP2188874 WP2188874 MOTOR-COND
W11178521 W11178521 NAMEPLATE
W10850162 W10850162 ORIFICE
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10890667 W10890667 PAN-DRIP
WPW10310944 WPW10310944 PAN-MEAT
W10300116 W10300116 PLATE
WP2189009 WP2189009 PLUG-HNDLE
WP2189000 WP2189000 PLUG-HNDLE
L2213386 L2213386 REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 11) (BLACK)
WP2210509 WP2210509 RELEAS-VAC
WPW10475495 WPW10475495 ROLLER-CAB
W10849386 W10849386 ROLLER-CAB
WP489128 WP489128 SCREW
W11501418 W11501418 SCREW
WP488921 WP488921 SCREW
WP8281206 WP8281206 SCREW
WP8281146 WP8281146 SCREW
WP489357 WP489357 SCREW
WP488163 WP488163 SCREW
WP489478 WP489478 SCREW
WP489427 WP489427 SCREW
WP488729 WP488729 SCREW
WP489497 WP489497 SCREW
W10850698 W10850698 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W10404596 W10404596 SERVICE & WIRING SHEET
W10477088 W10477088 SHELF-WIRE
WPW10314195 WPW10314195 SHIELD
WP2183852 WP2183852 SHIM
W11169703 W11169703 SHIM
W10892065 W10892065 START-DEV
W10236396 W10236396 STRAP
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10584888 WPW10584888 THERMOSTAT
WP2314293 WP2314293 THIMBLE
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
WPW10468555 WPW10468555 TRACK
WPW10468556 WPW10468556 TRACK
WPW10468557 WPW10468557 TRACK
W11676464 W11676464 TUBE
W10510988 W10510988 TUBE
WP978025 WP978025 VALVE
978027 978027 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978030 978030 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978029 978029 VALVE, ACCESS
WP487576 WP487576 WASHER
WP489467 WP489467 WASHER
W11625681 W11625681 WIRE HARNESS
