Model Image
Manufacturer

Whirlpool

Model Number

WRT318FMDM02

Description

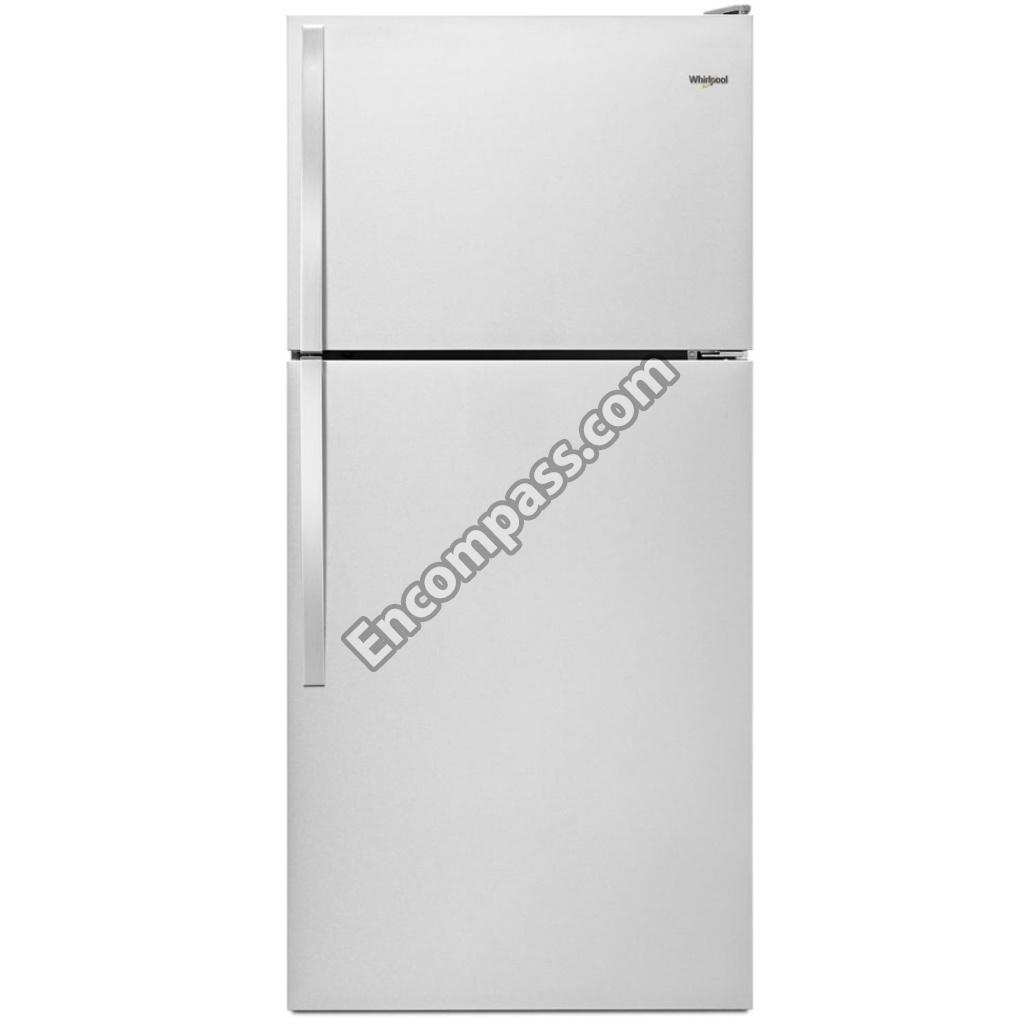

30-inch Wide Top Freezer Refrigerator - 18 Cu. Ft.

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10646481 W10646481 ARM, SHUT OFF
W10861170 W10861170 ASSEMBLY, AIR DIFFUSER
W11353813 W11353813 ASSEMBLY, BOX CONTROL
W10860753 W10860753 ASSEMBLY, CRISPER PAN
W10836706 W10836706 ASSEMBLY, EVAPORATOR
W11551368 W11551368 ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)
W10919804 W10919804 ASSEMBLY, EVAPORATOR PLENUM

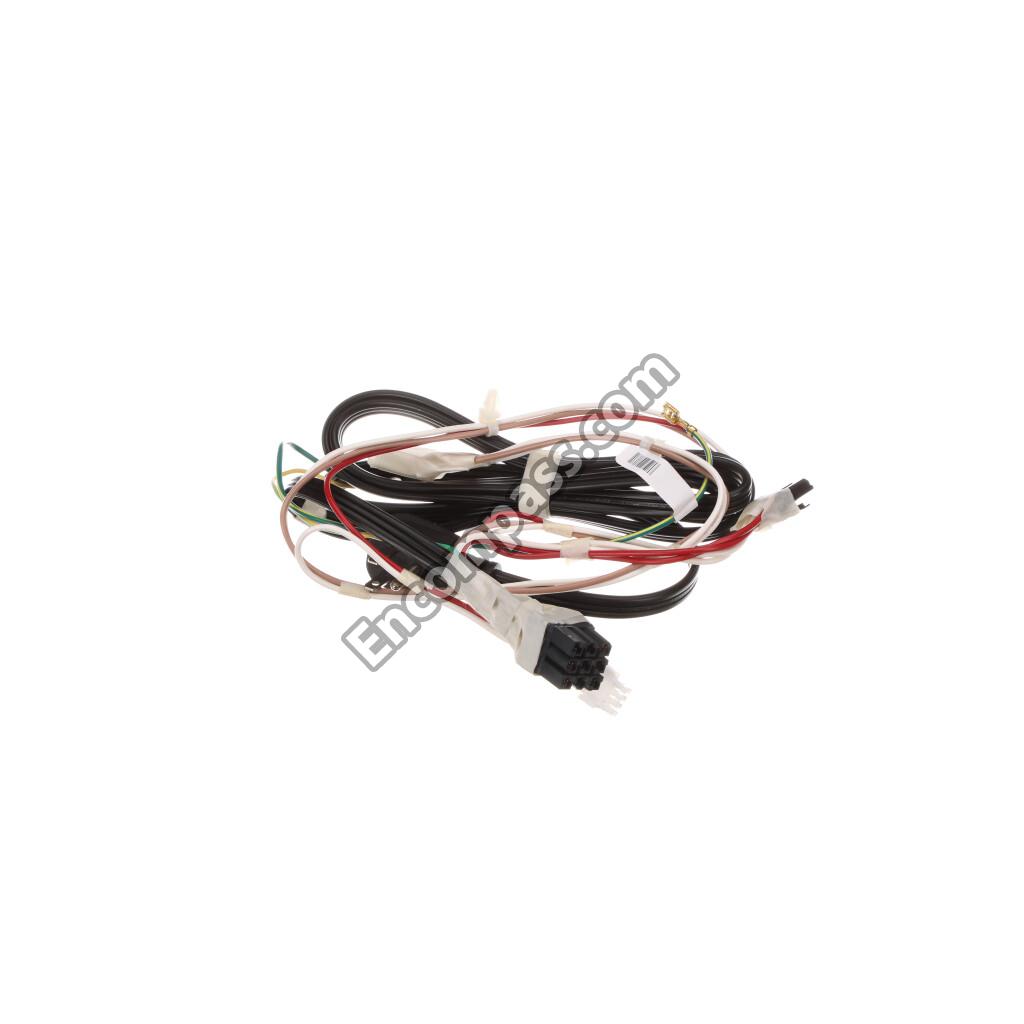

W11643622 W11643622 ASSEMBLY, ICE MAKER WIRE
4317943 4317943 ASSEMBLY, ICEMAKER
W11256723 W11256723 ASSEMBLY, ROLLER

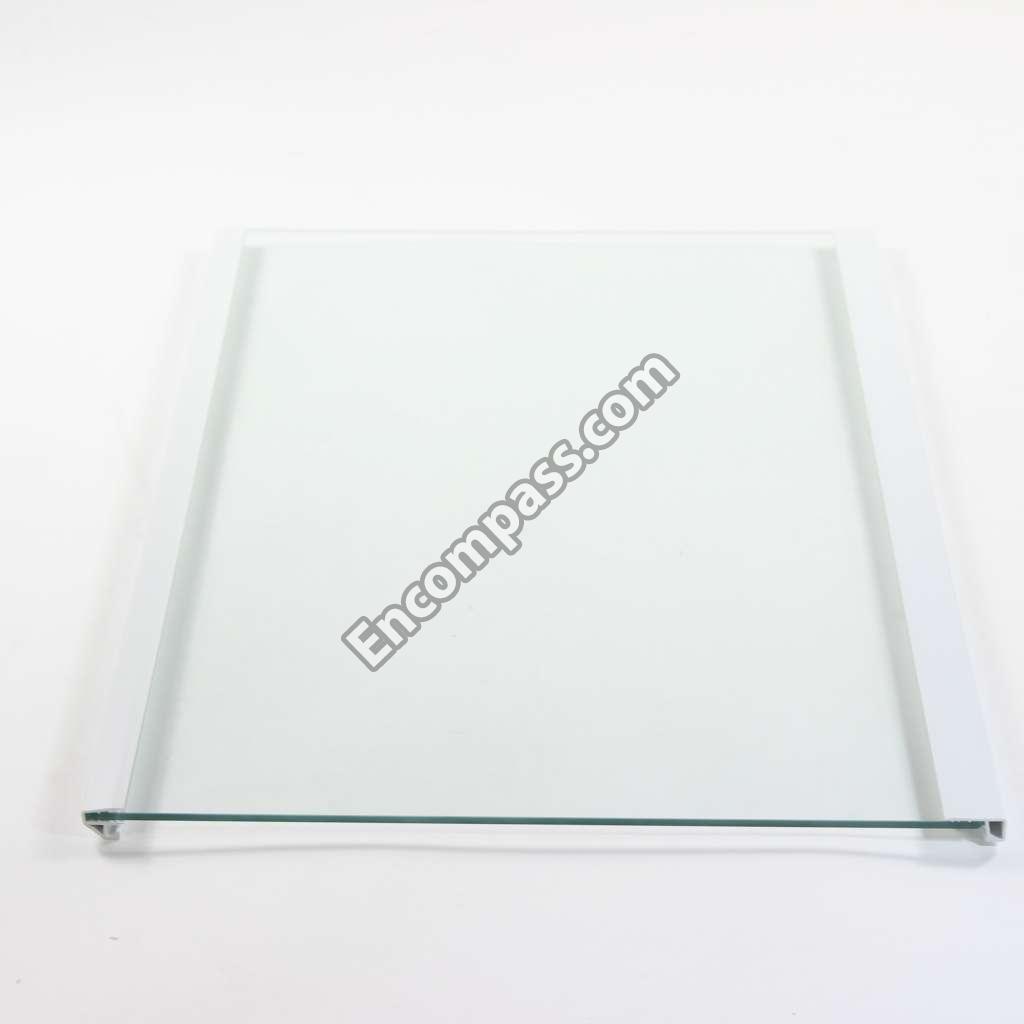

WPW10628707 WPW10628707 ASSEMBLY, SHELF
W11674475 W11674475 ASSEMBLY, SHELF
W11674478 W11674478 ASSEMBLY, SHELF
W11674479 W11674479 ASSEMBLY, SHELF FC
WP2261963 WP2261963 ASSEMBLY, TOP HINGE
W11594405 W11594405 AXLE, ROLLER
W11175807 W11175807 AXLE, ROLLER
W11244470 W11244470 BAFFLE, AIR MANUAL
606755 606755 BAG

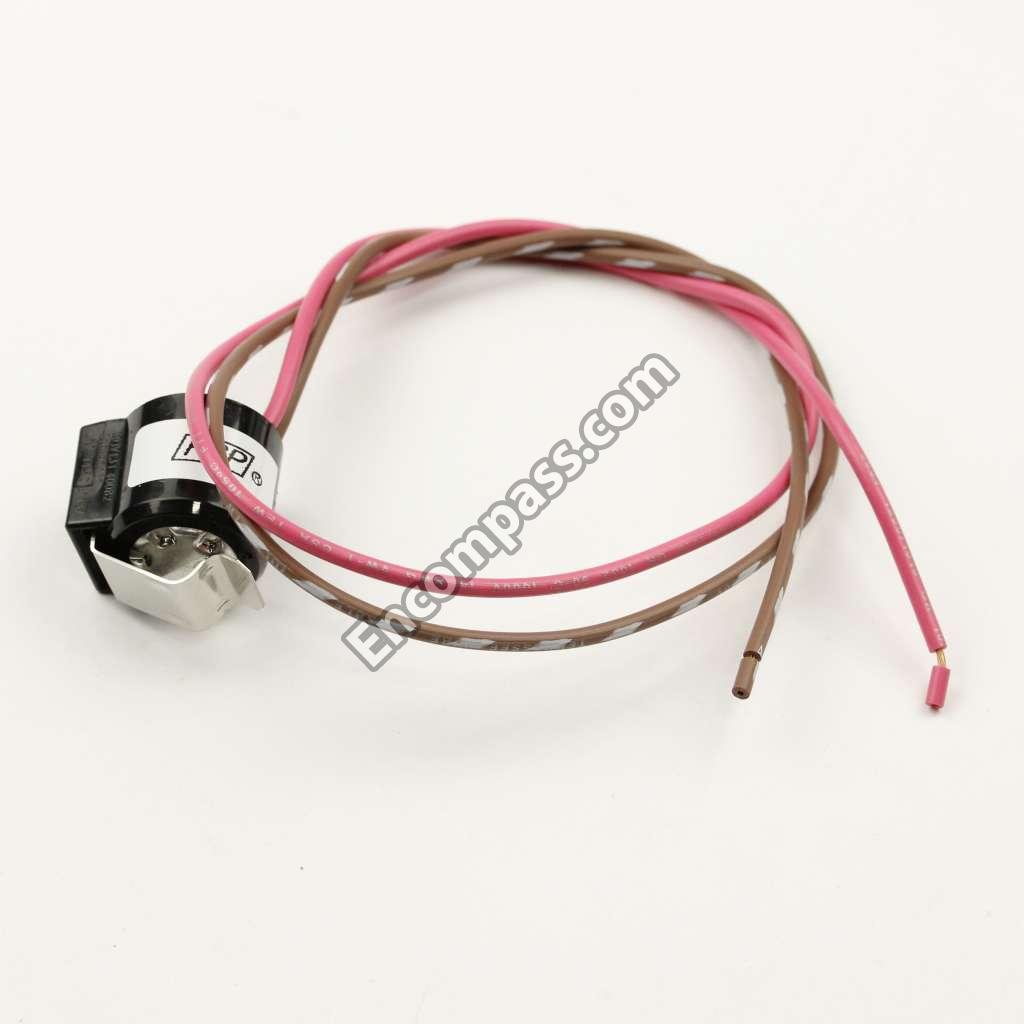

WPW10392132 WPW10392132 BI-METAL, DEFROST
WP2163777 WP2163777 BLADE, FAN
W11193484 W11193484 BLADE, FAN
W11745278 W11745278 BRACKET
WP2183805 WP2183805 BRACKET, DOOR STOP
W11402852 W11402852 BRACKET, DOOR STOP
W10314197 W10314197 BRACKET, EVAPORATOR
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
W11736795 W11736795 BRACKET, FAN
W10850162 W10850162 BRACKET, FAN MOTOR
W11500948 W11500948 BRACKET, ICEMAKER MOUNTING
N_P N_P CABINET (NOT SERVICED)
WPW10662129 WPW10662129 CAPACITOR
549193 549193 CLAMP, POWER CORD
W10861184 W10861184 CLAMP, TUBE
2219077 2219077 CLIP, HARNESS
WP2174706 WP2174706 CLIP, ROLLER
W10812039 W10812039 CLIP, WIRE
W11209866 W11209866 COMPRESSOR
W11512423 W11512423 CONDENSER
WPW10643378 WPW10643378 CONTROL, ELECTRONIC
W11590562 W11590562 CONTROL, HUMIDITY
W11256504 W11256504 COVER, AIR DIFFUSER
W11024683 W11024683 COVER, EVAPORATOR
W10300902 W10300902 COVER, HEATER
WP2213363 WP2213363 COVER, HINGE (BLACK)
W10853622 W10853622 COVER, HINGE (GREY)
WP2213360 WP2213360 COVER, HINGE (WHITE)
W10763751 W10763751 COVER, HOLE
WPW10289690 WPW10289690 COVER, ICEMAKER
W10854527 W10854527 COVER, SCREW
W11476772 W11476772 COVER, UNIT
W10638176 W10638176 CUP, AIR DIFFUSER
W11092533 W11092533 DEVICE, START
W10853677 W10853677 DOME CAP (BLACK)
W10849198 W10849198 DOME CAP (GREY)
W10846529 W10846529 DOME CAP (WHITE)
W10847959 W10847959 DOME CAP, WASHER
W11240749 W11240749 DOOR GASKET, MAGNETIC (BLACK)
W11229610 W11229610 DOOR GASKET, MAGNETIC (BLACK)
W11028007 W11028007 DOOR GASKET, MAGNETIC (GREY)
W11036546 W11036546 DOOR GASKET, MAGNETIC (GREY)
W10838574 W10838574 DOOR GASKET, MAGNETIC (WHITE)
W10861499 W10861499 DOOR GASKET, MAGNETIC (WHITE)
W10676240 W10676240 DOOR REVERSAL KIT STAINLESS MODEL
W10691128 W10691128 DOOR REVERSAL KIT, BISCUIT MODEL
W11415957 W11415957 DOOR REVERSAL KIT, BLACK MODEL
W11416038 W11416038 DOOR REVERSAL KIT, WHITE MODEL
WP2218113 WP2218113 DOOR, COMPARTMENT
WP2188234 WP2188234 DOOR, FLIP UP
W10843121 W10843121 DRIER
WP2156003 WP2156003 ENDCAP, TRIM
W10750524 W10750524 ENERGY LABEL
W10646247 W10646247 EXTENSION, DRAIN TUBE
WPW10601149 WPW10601149 FITTING, WATER TUBE
LW10668875 LW10668875 FREEZER DOOR (INCLUDES ILLUSTRATION 12) (BLACK)
LW10638683 LW10638683 FREEZER DOOR (INCLUDES ILLUSTRATION 12) (STAINLESS)
LW10636409 LW10636409 FREEZER DOOR (INCLUDES ILLUSTRATION 12) (WHITE)
W10849448 W10849448 GASKET, EVAPORATOR COVER
WP1106508 WP1106508 GASKET, SEAL
W11661108 W11661108 GROMMET
WP2264462 WP2264462 GROMMET
4388295 4388295 GROMMET
WPW10672334 WPW10672334 HANDLE, DOOR (BLACK)
W10806512 W10806512 HANDLE, DOOR (STAINLESS)
WPW10672333 WPW10672333 HANDLE, DOOR (WHITE)
W10838316 W10838316 HANDLE, TRIM (BLACK)
W11519504 W11519504 HANDLE, TRIM (GREY)
WPW10672338 WPW10672338 HANDLE, TRIM (WHITE)
W11611445 W11611445 HARNESS, UNIT
W10856574 W10856574 HEAT PROBE
WPW10316428 WPW10316428 HEATER, DEFROST
W11026307 W11026307 HINGE PIN
WP2254618 WP2254618 HINGE, CENTER
W10861519 W10861519 HOLDER, MEAT PAN
WPW10520305 WPW10520305 HOLE PLUG (BLACK)
W10830983 W10830983 HOLE PLUG (BLACK)
WPW10520307 WPW10520307 HOLE PLUG (GREY)
W10830982 W10830982 HOLE PLUG (GREY)
WPW10520304 WPW10520304 HOLE PLUG (WHITE)
WP941839 WP941839 HOLE PLUG (WHITE)
W10830984 W10830984 HOLE PLUG (WHITE)
W11700559 W11700559 ICE MAKER ASSEMBLY (ECKMFEZ2)
4387491 4387491 INSERT, TUBE
W11553819 W11553819 INSULATION, SOUND
W11026417 W11026417 KNOB, AIR CONTROL
W10854419 W10854419 LEVELER
W11679940 W11679940 LIGHT BULB
8009 8009 LIGHT BULB
W11096015 W11096015 LOWER HINGE AND ROLLER ASSEMBLY
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP503695 WP503695 MISCELLANEOUS, CORK, SEALER
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
876370 876370 MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 5/8")
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2")
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
W11238399 W11238399 MISCELLANEOUS, TAPE, VINYL (3/4 X 108")
W11127829 W11127829 MOTOR, CONDENSER FAN
WP2315539 WP2315539 MOTOR, EVAPORATOR FAN
W11178521 W11178521 NAMEPLATE (WHITE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
W11625904 W11625904 PAN, ICE CUBE
W10861806 W10861806 PAN, MEAT
WP2212651 WP2212651 PLUG, HOLE (BLACK)
WP2254517 WP2254517 PLUG, HOLE (GREY)
WP2212648 WP2212648 PLUG, HOLE (WHITE)
W11595232 W11595232 RAIL, TRACK (LEFT HAND)
W11595233 W11595233 RAIL, TRACK (RIGHT HAND)
LW10668874 LW10668874 REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (BLACK)
LW10638684 LW10638684 REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (STAINLESS)
LW10636410 LW10636410 REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (WHITE)
WPW10475495 WPW10475495 ROLLER
W11164152 W11164152 ROLLER, PAN
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
WP488163 WP488163 SCREW
W11544659 W11544659 SCREW
WP489478 WP489478 SCREW
WP489357 WP489357 SCREW
WP8281206 WP8281206 SCREW
WP488921 WP488921 SCREW
WP489128 WP489128 SCREW
W10829281 W10829281 SCREW
WP3400065 WP3400065 SCREW (STAINLESS)
WPW10314195 WPW10314195 SHIELD, HEAT
WP2183852 WP2183852 SHIM, HINGE CENTER
W11169703 W11169703 SHIM, TOP HINGE (WHITE)
4387478 4387478 SOCKET, LIGHT
W11092534 W11092534 STRAP, BALE
W10624648 W10624648 SUPPORT PLATE, COMPRESSOR
W11384469 W11384469 SWITCH, ROCKER ARM
W10870802 W10870802 TECH SHEET
W11438736 W11438736 THERMISTOR, REFRIGERATOR

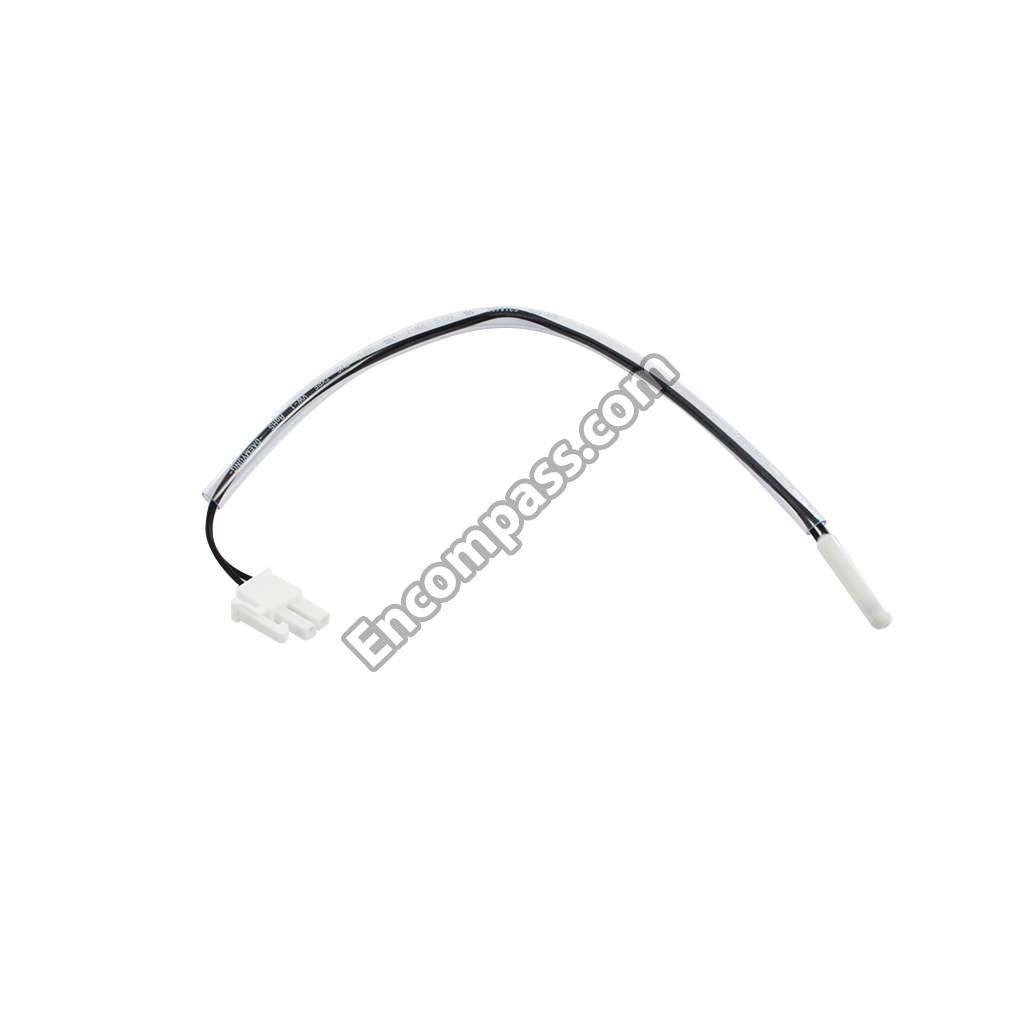

WPW10384183 WPW10384183 THERMISTOR, REFRIGERATOR COMPARTMENT
WP2183003 WP2183003 THIMBLE
WPW10339879 WPW10339879 TIE, WIRE
W11595235 W11595235 TRACK, RAIL CENTER
W10633582 W10633582 TRAY, EVAPORATOR
W11097831 W11097831 TRIM, DOOR
W11129820 W11129820 TRIM, DOOR
W11170805 W11170805 TRIM, DOOR
W11126055 W11126055 TRIM, DOOR
W11106290 W11106290 TRIM, SHELF DOOR

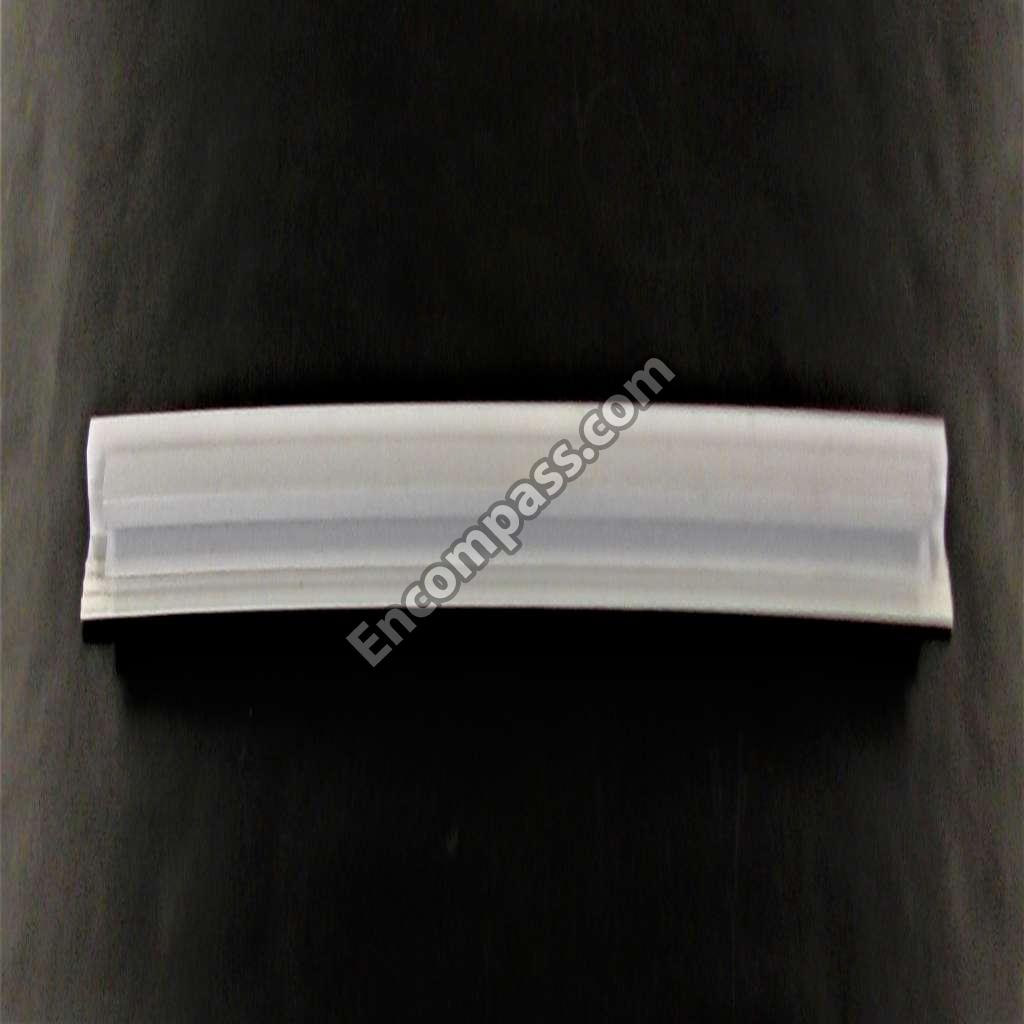

W10809774 W10809774 TRIM, SHELF FRONT
W10628680 W10628680 TRIM, SHELF FRONT
W10809773 W10809773 TRIM, SHELF FRONT
W11167827 W11167827 TRIM, SHELF REAR
W10628681 W10628681 TRIM, SHELF REAR
W11167828 W11167828 TRIM, SHELF REAR
W10810952 W10810952 TUBE, DISCHARGE
W10633573 W10633573 TUBE, DRAIN
W11676464 W11676464 TUBE, PROCESS
W11407403 W11407403 TUBE, SUCTION
W10823511 W10823511 TUBE, WATER
W10849805 W10849805 USE & CARE GUIDE
978029 978029 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978026 978026 VALVE, ACCESS
WP978025 WP978025 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978030 978030 VALVE, ACCESS
WPW10279909 WPW10279909 VALVE, INLET
WP489467 WP489467 WASHER, PLASTIC
W11436564 W11436564 WIRE ASSEMBLY, CONTROL BOX
