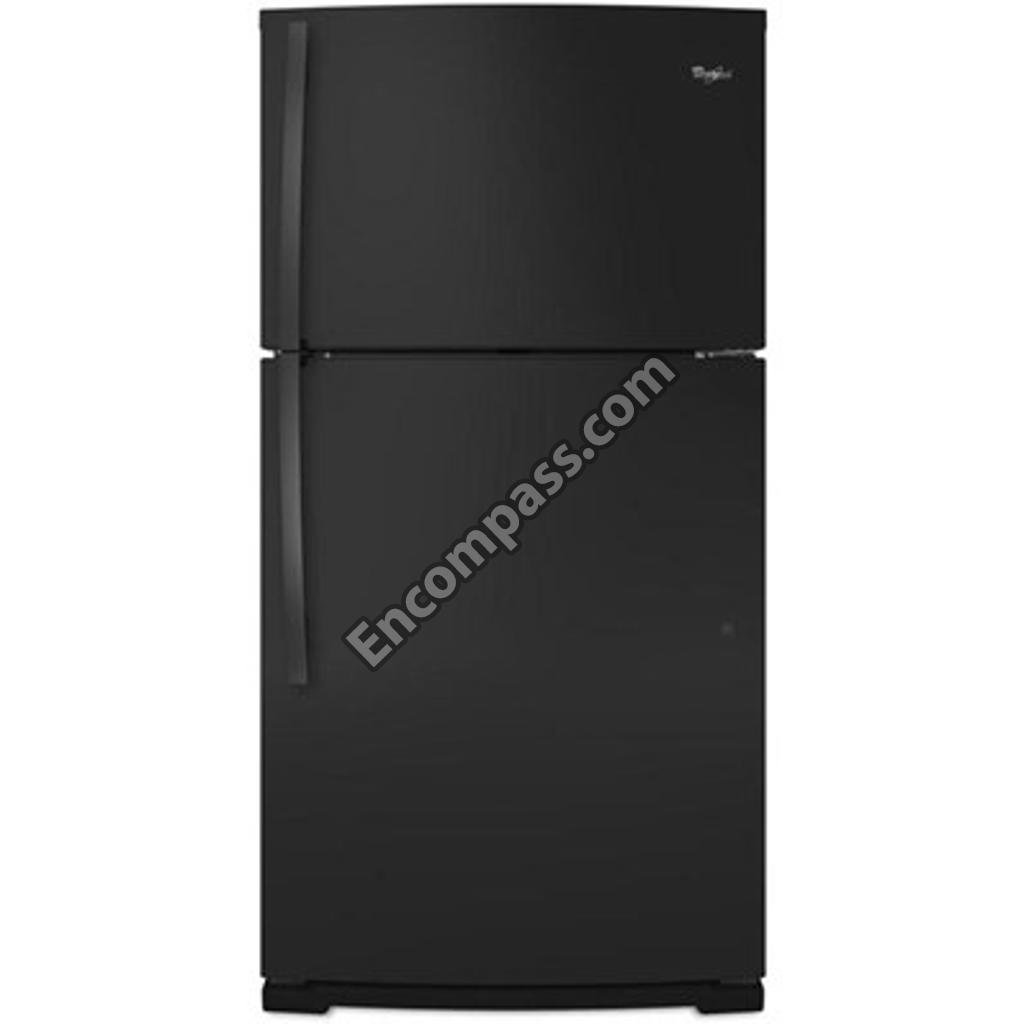

Model Image
Manufacturer

Whirlpool

Model Number

WRT3L1SZYB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10305174 WPW10305174 AIR-TOWER
WPW10396926 WPW10396926 AIR-TOWER
W11594405 W11594405 AXLE
WP2315541 WP2315541 BAFFLE-AIR
W10349515 W10349515 BAFFLE-AIR
606755 606755 BAG
WP2196003 WP2196003 BARRIER
WPW10392132 WPW10392132 BIMETL-DEF
WPW10308869 WPW10308869 BIN CONTROL LEVER
WPW10308868 WPW10308868 BIN CONTROL LEVER
WPW10139483 WPW10139483 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
W11745278 W11745278 BRACKET
W10314197 W10314197 BRACKET
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
WPW10511911 WPW10511911 BUSHING
WP2212648 WP2212648 BUTTON-PLG
WP2212651 WP2212651 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WPW10520305 WPW10520305 BUTTON-PLG
WPW10520304 WPW10520304 BUTTON-PLG
WPW10313918 WPW10313918 CAMERA LENS-LIGHT
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11456069 W11456069 CLAMP
549193 549193 CLAMP, POWER CORD
W10812038 W10812038 CLIP
W10683556 W10683556 CLIP
W11661170 W11661170 CLIP
W10331226 W10331226 CLIP
W10296661 W10296661 CLIP
WPW10507886 WPW10507886 COMPRESSOR
WPW10342567 WPW10342567 CONDENSER
W10316941 W10316941 CONTRL-BOX
WPW10352689 WPW10352689 CONTROL BOARD
WPW10348614 WPW10348614 COVER
WPW10305175 WPW10305175 COVER
W10336009 W10336009 COVER
W10345375 W10345375 COVER
W10310927 W10310927 COVER
W10385132 W10385132 COVER-EVAP
WPW10339203 WPW10339203 COVER-TUBE
WPW10384414 WPW10384414 COVER-UNIT
WPW10373943 WPW10373943 CRISPER PAN
WPW10373936 WPW10373936 CRISPER PAN
4392901 4392901 CUSTOMER TOUCH-UP MATERIAL (BISCUIT/BISQUE)
4392899 4392899 CUSTOMER TOUCH-UP MATERIAL (BISCUIT/BISQUE)
72032 72032 CUSTOMER TOUCH-UP MATERIAL (BLACK)
72017 72017 CUSTOMER TOUCH-UP MATERIAL (WHITE)
WPW10376137 WPW10376137 DIFFUSER
LW10406240 LW10406240 DOOR ASSEMBLY BL
LW10406261 LW10406261 DOOR ASSEMBLY BL
LW10406239 LW10406239 DOOR ASSEMBLY WH
LW10406259 LW10406259 DOOR ASSEMBLY WH
2177311 2177311 DOOR GASKET, MAGNETIC (BLACK)
2177310 2177310 DOOR GASKET, MAGNETIC (BLACK)
2159061 2159061 DOOR GASKET, MAGNETIC (MIST BEIGE)
2159060 2159060 DOOR GASKET, MAGNETIC (MIST BEIGE)
WP2254473 WP2254473 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
WPW10300065 WPW10300065 DOOR HINGE
WPW10469911 WPW10469911 DOOR TRIM
WPW10469912 WPW10469912 DOOR TRIM
WPW10308843 WPW10308843 DOOR-COMP
W10843121 W10843121 DRIER-TUBE
WPW10308871 WPW10308871 ENDCAP
WPW10338485 WPW10338485 ENDCAP
WPW10339257 WPW10339257 ENDCAP-GRL
W10353930 W10353930 ENDCAP-GRL
W10381059 W10381059 ENDCAP-GRL
W10381060 W10381060 ENDCAP-GRL
W10352352 W10352352 ENERGY LABEL
WPW10314205 WPW10314205 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
WPW10283959 WPW10283959 FILLER
W11252732 W11252732 FILLER
N_P N_P FITTING, WATER TUBE (NOT SERVICED)
WP2254360 WP2254360 GASKET
WPW10486291 WPW10486291 GLASS SHELF
WPW10486289 WPW10486289 GLASS SHELF
WP542638 WP542638 GREASE
WPW10300129 WPW10300129 GRILLE
WPW10353939 WPW10353939 GRILLE
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET
WP2264462 WP2264462 GROMMET
WPW10498430 WPW10498430 HANDLE
WPW10498429 WPW10498429 HANDLE
W10318068 W10318068 HARNS-WIRE
W11561072 W11561072 HARNS-WIRE
W10856574 W10856574 HEAT-PROBE
WPW10316428 WPW10316428 HEATER
WPW10308845 WPW10308845 HOLDER-BEV
WPW10308809 WPW10308809 HOUSING
WPW10313917 WPW10313917 HOUSING
W11700559 W11700559 ICEMAKER
WPW10279909 WPW10279909 INLET VALVE
W11553819 W11553819 INSULATION
876029 876029 KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
W10356940 W10356940 KNOB-THERM
W11518235 W11518235 LIGHT BULB
W10887190 W10887190 LIGHT BULB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2188874 WP2188874 MOTOR-COND
W11178521 W11178521 NAMEPLATE
W10850162 W10850162 ORIFICE
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, SPRAY (12-OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
W10890667 W10890667 PAN-DRIP
WPW10308849 WPW10308849 PAN-MEAT
WP2174706 WP2174706 PIN-HITCH
W11396825 W11396825 PLATE
4392900 4392900 REFINISHING MATERIAL (BISCUIT/BISQUE)
799344 799344 REFINISHING MATERIAL (WHITE)
833938 833938 REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR
WP2210509 WP2210509 RELEAS-VAC
WPW10475495 WPW10475495 ROLLER-CAB
W10849386 W10849386 ROLLER-CAB
WP2166108 WP2166108 ROLLER-CAB
WP489128 WP489128 SCREW
W11544659 W11544659 SCREW
W11501418 W11501418 SCREW
WP489357 WP489357 SCREW
WPW10170540 WPW10170540 SCREW
WP489478 WP489478 SCREW
WP488163 WP488163 SCREW
WP488729 WP488729 SCREW
WP489497 WP489497 SCREW
WP489427 WP489427 SCREW
W10850698 W10850698 SCREW
3400524 3400524 SCREW
WP681249 WP681249 SCREW
W10278738 W10278738 SCREW, SET
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
W10712371 W10712371 SERVICE AND WIRING SHEET
WPW10314195 WPW10314195 SHIELD
W10300161 W10300161 SHIELD
WP2183852 WP2183852 SHIM
W10883637 W10883637 SHIM-HINGE
W11590562 W11590562 SLIDE
W11661565 W11661565 SOCKET
WPW10448874 WPW10448874 START-DEV
W10236396 W10236396 STRAP
W11395919 W11395919 SUPPORT
W11395921 W11395921 SUPPORT
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10584888 WPW10584888 THERMOSTAT
W11189115 W11189115 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WPW10468555 WPW10468555 TRACK
WPW10468556 WPW10468556 TRACK
WPW10468557 WPW10468557 TRACK
W11676464 W11676464 TUBE
W10510988 W10510988 TUBE
W11190084 W11190084 TUBE-DRAIN
W10551713 W10551713 USE AND CARE GUIDE
WP978025 WP978025 VALVE
876764 876764 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978028 978028 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978027 978027 VALVE, ACCESS
WP487576 WP487576 WASHER
WP489467 WP489467 WASHER
W11625681 W11625681 WIRE HARNESS
