Model Image
Manufacturer

Whirlpool

Model Number

WRT518SZFB00

Description

Top-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10702120 W10702120 AIR DIFFUSER GASKET
W11178521 W11178521 APPLIANCE NAMEPLATE
WP542638 WP542638 APPLIANCE SILICONE LUBRICANT
511873 511873 APPLIANCE TOUCH-UP PAINT, 2-OZ (WHITE)
W11666272 W11666272 ASSEMBLY, EVAPORATOR PLENUM
W11745278 W11745278 BRACKET
N_P N_P CABINET (NOT SERVICED)
W10861184 W10861184 CLAMP
549193 549193 CLAMP
W10573847 W10573847 COMPRESSOR SUPPORT
W11722672 W11722672 CONDENSER
W11387533 W11387533 CONTROL BOARD
W10569265 W10569265 CONTROL BOX
W11371382 W11371382 CONTROL BOX
W11573591 W11573591 CORNER FILLE
WP2319263B WP2319263B DOOR GASKET, MAGNETIC (BLACK)
W11661186 W11661186 DOOR GASKET, MAGNETIC (GREY)
W11416038 W11416038 DOOR REVERSAL KIT (WHITE)
W11208347 W11208347 DUCT-AIR

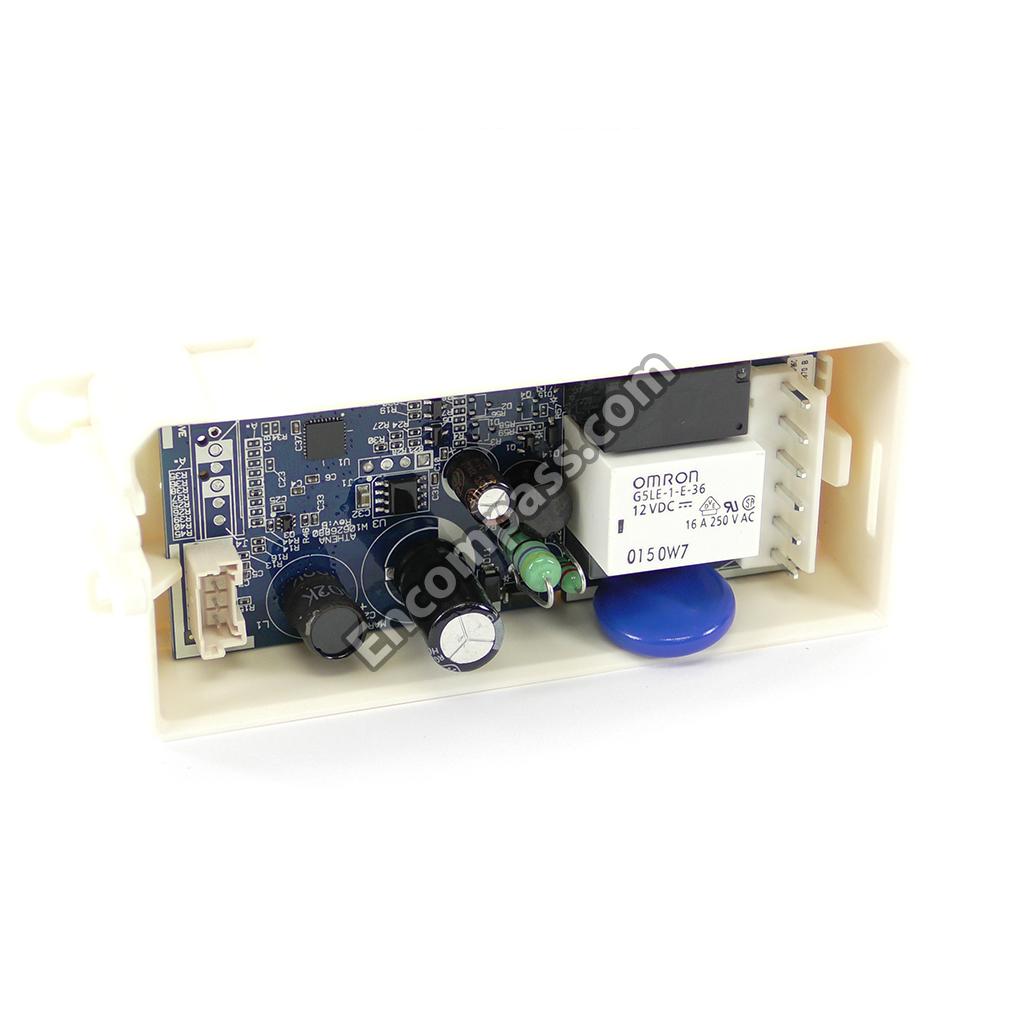

W11105824 W11105824 ELECTRONIC CONTROL BOARD
W11110734 W11110734 ENERGY GUIDE
W10565417 W10565417 EVAPORATOR TRAY
W11292468 W11292468 FITTING
876029 876029 FOAM SLAB
WP1106508 WP1106508 GASKET
W11735896 W11735896 GLASS SHELF
W11105826 W11105826 GLASS SHELF
W11735897 W11735897 GLASS SHELF
W10856574 W10856574 HEAT PROBE
W11220371 W11220371 HEATER
W11026307 W11026307 HINGE-PIN
2321148 2321148 HOUSING, THERMISTOR
4387491 4387491 INSERT, TUBE
W11415957 W11415957 KIT REVERS.
W10676240 W10676240 KIT REVERS.
W11216993 W11216993 LIGHT BULB
W11256433 W11256433 MEAT PAN
W11131816 W11131816 OVERLAY
W11577970 W11577970 PRECOOLER
W11026417 W11026417 REFRIGERATOR AIR DAMPER CONTROL KNOB
WP4317852 WP4317852 REFRIGERATOR ALUMILASTIC ADHESIVE
W11661170 W11661170 REFRIGERATOR BALE STRAP
W10314197 W10314197 REFRIGERATOR BRACKET
WPW10520305 WPW10520305 REFRIGERATOR CABINET HOLE PLUG (BLACK)
WPW10520307 WPW10520307 REFRIGERATOR CABINET HOLE PLUG (GRAY)
W10846529 W10846529 REFRIGERATOR CAP SCREW
W10853677 W10853677 REFRIGERATOR CAP SCREW
W10849198 W10849198 REFRIGERATOR CAP SCREW
W11179313 W11179313 REFRIGERATOR CAPACITOR
2219077 2219077 REFRIGERATOR CLIP
W10812039 W10812039 REFRIGERATOR CLIP
WPW10507886 WPW10507886 REFRIGERATOR COMPRESSOR
WPW10448874 WPW10448874 REFRIGERATOR COMPRESSOR START RELAY
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
WPW10570380 WPW10570380 REFRIGERATOR CONDENSER
W11127829 W11127829 REFRIGERATOR CONDENSER FAN MOTOR
W10854527 W10854527 REFRIGERATOR COVER
W11307292 W11307292 REFRIGERATOR COVER UNIT
WP2256704 WP2256704 REFRIGERATOR CRISPER DRAWER
WP2222031 WP2222031 REFRIGERATOR CRISPER DRAWER COVER FRAME
WP2212446 WP2212446 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL BODY
WP2176222 WP2176222 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL BODY
W11199204 W11199204 REFRIGERATOR DIFFUSER
LW10803941 LW10803941 REFRIGERATOR DOOR ASSEMBLY (STAINLESS)
606755 606755 REFRIGERATOR DOOR BAG INSULATION
WP2319264W WP2319264W REFRIGERATOR DOOR GASKET
WP2319264B WP2319264B REFRIGERATOR DOOR GASKET
WPW10300065 WPW10300065 REFRIGERATOR DOOR HINGE
WP2166037 WP2166037 REFRIGERATOR DOOR HINGE
W10492018 W10492018 REFRIGERATOR DOOR HINGE BUSHING (WHITE)
WP2325483 WP2325483 REFRIGERATOR DOOR HINGE PIN
WP2325482 WP2325482 REFRIGERATOR DOOR HINGE, LOWER
WPW10520304 WPW10520304 REFRIGERATOR DOOR HOLE PLUG
WP2212648 WP2212648 REFRIGERATOR DOOR HOLE PLUG
WP2212651 WP2212651 REFRIGERATOR DOOR HOLE PLUG
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
WP2266727 WP2266727 REFRIGERATOR DOOR SHELF RAIL
WPW10234241 WPW10234241 REFRIGERATOR DOOR SHELF RAIL
WP2156003 WP2156003 REFRIGERATOR DOOR SHELF RAIL END CAP
WP2183805 WP2183805 REFRIGERATOR DOOR STOP
W10492012 W10492012 REFRIGERATOR DOOR STOP BRACKET
WP488921 WP488921 REFRIGERATOR DOOR STOP SCREW
W10582029 W10582029 REFRIGERATOR DRAIN TUBE
W11033109 W11033109 REFRIGERATOR ENERGY GUIDE
W10836706 W10836706 REFRIGERATOR EVAPORATOR
W10875836 W10875836 REFRIGERATOR EVAPORATOR COVER
W10579698 W10579698 REFRIGERATOR EVAPORATOR COVER GASKET
WP941839 WP941839 REFRIGERATOR EVAPORATOR COVER HOLE PLUG
WP2163777 WP2163777 REFRIGERATOR EVAPORATOR FAN BLADE
WP2315539 WP2315539 REFRIGERATOR EVAPORATOR FAN MOTOR
2254454 2254454 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET, REAR
WP2264462 WP2264462 REFRIGERATOR EVAPORATOR FAN MOTOR GROMMET
W11204896 W11204896 REFRIGERATOR FAN BLADE
W10859322 W10859322 REFRIGERATOR FILLER
W11500943 W11500943 REFRIGERATOR FILLER
W10843121 W10843121 REFRIGERATOR FILTER DRYER
W11578847 W11578847 REFRIGERATOR FORM-IN-PLACE GASKET
WP2319263W WP2319263W REFRIGERATOR FREEZER DOOR GASKET
WP2262441 WP2262441 REFRIGERATOR GLASS SHELF
WP2163786 WP2163786 REFRIGERATOR GROMMET
W10852725 W10852725 REFRIGERATOR GROMMET
W10570572 W10570572 REFRIGERATOR HEAT SHIELD
W10300902 W10300902 REFRIGERATOR HEATER COVER
8003RP 8003RP REFRIGERATOR ICE MAKER INSTALLATION KIT
W11700559 W11700559 REFRIGERATOR ICE MAKER KIT
W11553819 W11553819 REFRIGERATOR INSULATION
W11338583 W11338583 REFRIGERATOR LED LIGHT BULB
WPW10133299 WPW10133299 REFRIGERATOR LEVELING LEG
WPW10119935 WPW10119935 REFRIGERATOR LIGHT SOCKET
W11384469 W11384469 REFRIGERATOR LIGHT SWITCH
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
W11679644 W11679644 REFRIGERATOR MEAT PAN HOLDER
W10850162 W10850162 REFRIGERATOR ORIFICE
W10851772 W10851772 REFRIGERATOR OVERLAY
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
212643 212643 REFRIGERATOR PERMAGUM SEALER
WP2264756 WP2264756 REFRIGERATOR RIVET
WPW10142530 WPW10142530 REFRIGERATOR ROLLER
WPW10475495 WPW10475495 REFRIGERATOR ROLLER
WP489442 WP489442 REFRIGERATOR SCREW
WP489497 WP489497 REFRIGERATOR SCREW
WP488163 WP488163 REFRIGERATOR SCREW
W11544659 W11544659 REFRIGERATOR SCREW
8533919 8533919 REFRIGERATOR SCREW
WP489478 WP489478 REFRIGERATOR SCREW
WPW10171469 WPW10171469 REFRIGERATOR SCREW
LW10852095 LW10852095 REFRIGERATOR SERVICE KIT
LW10803934 LW10803934 REFRIGERATOR SERVICE KIT
LW10852088 LW10852088 REFRIGERATOR SERVICE KIT
LW10803965 LW10803965 REFRIGERATOR SERVICE KIT
WP978025 WP978025 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
978028 978028 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978029 978029 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
W10847166 W10847166 REFRIGERATOR SHELF TRIM, FRONT
2166043 2166043 REFRIGERATOR SHIM
WP2258681W WP2258681W REFRIGERATOR SHIM
W10843219 W10843219 REFRIGERATOR TECHNICAL SHEET
W10316760 W10316760 REFRIGERATOR TEMPERATURE SENSOR
WPW10384183 WPW10384183 REFRIGERATOR TEMPERATURE SENSOR
W11189115 W11189115 REFRIGERATOR THIMBLE
W11676464 W11676464 REFRIGERATOR TUBE
W10843051 W10843051 REFRIGERATOR USE AND CARE GUIDE
W11238399 W11238399 REFRIGERATOR VINYL TAPE
WP489467 WP489467 REFRIGERATOR WASHER
WP487576 WP487576 REFRIGERATOR WASHER
WPW10279909 WPW10279909 REFRIGERATOR WATER INLET VALVE
WPW10339203 WPW10339203 REFRIGERATOR WATER TUBE COVER
W11676611 W11676611 RING
LW10803963 LW10803963 SERVICE KIT
W10894082 W10894082 SHELF TRIM, FRONT
W10804340 W10804340 SHELF TRIM, REAR
W10847182 W10847182 SHELF TRIM, REAR
W10883637 W10883637 SHIM HINGE B
2215385 2215385 SHIM, HINGE (CENTER) (BLACK)
W11606038 W11606038 SOCKET
W11396724 W11396724 SUCTION TUBE
W11724692 W11724692 THERMISTOR
W11230940 W11230940 TRIVET
W11661102 W11661102 TUBE
W11209377 W11209377 USE & CARE GUIDE
W11190821 W11190821 W10805890
W10847959 W10847959 WASHER
WPW10339879 WPW10339879 WASHER CABLE TIE
W10823511 W10823511 WATER TUBE
W11203361 W11203361 WIRE ASSEMBLY, CONTROL BOX

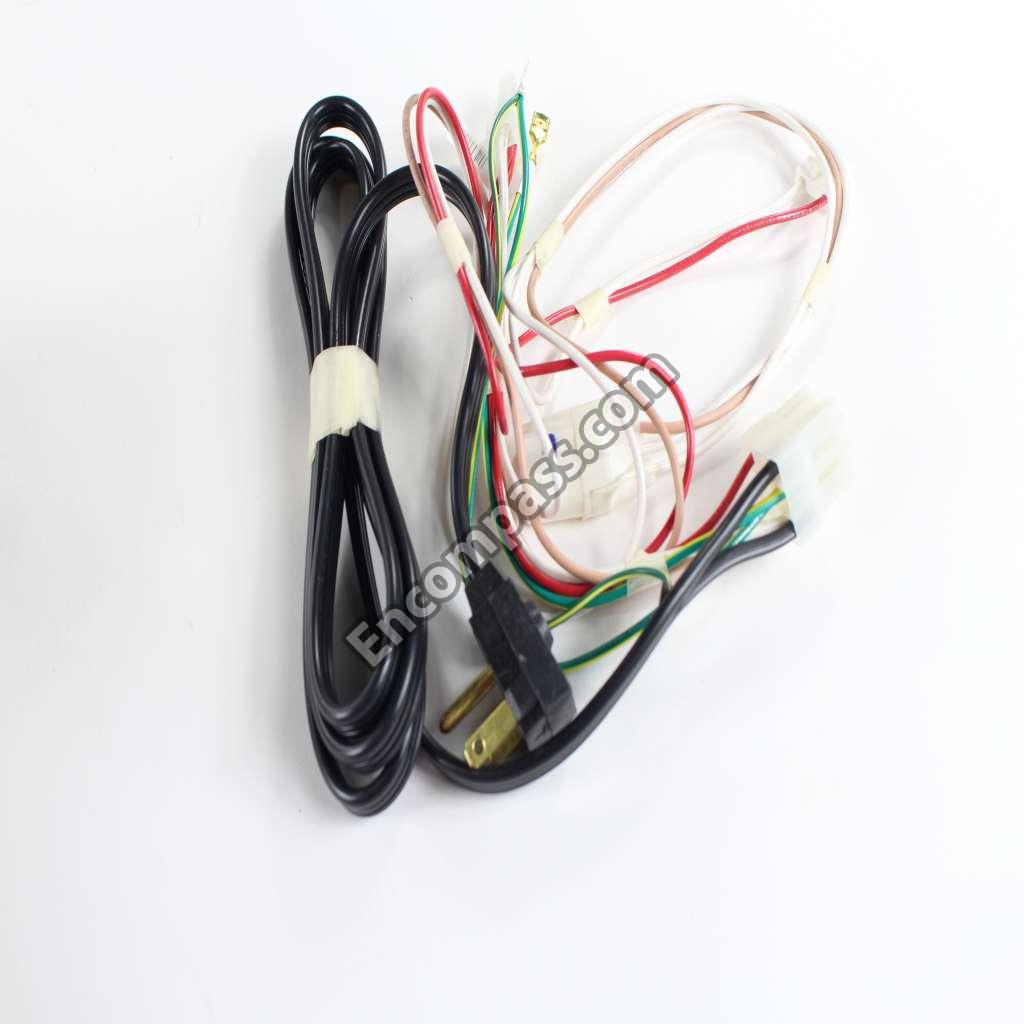

W11677726 W11677726 WIRE HARNESS
W10862098 W10862098 WIRE HARNESS
W11502499 W11502499 WIRE HARNESS
W11222985 W11222985 WIRE HARNESS
