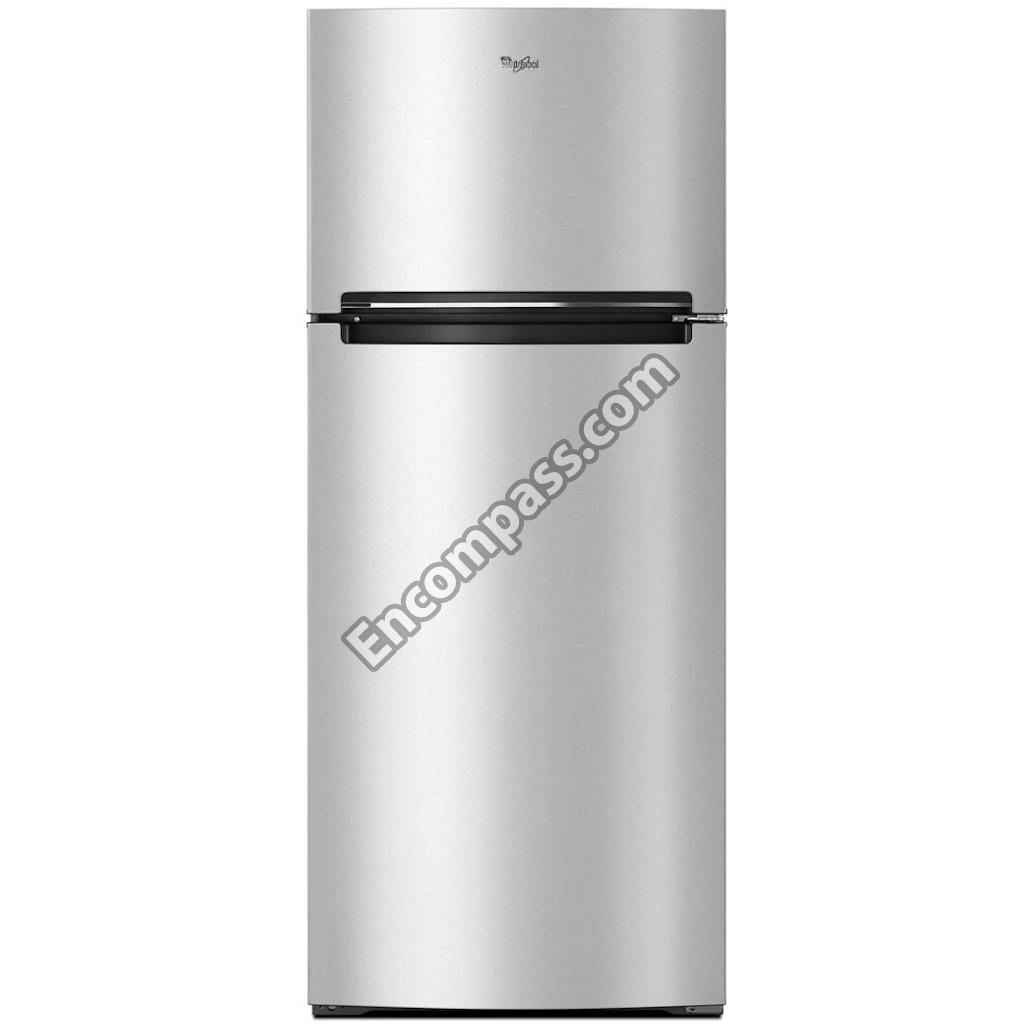

Model Image
Manufacturer

WHI

Model Number

WRT518SZFM02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part W11504450
Whirlpool
W11504450
4/1.8 NR MS 00 (CAPILLARY TUBE TO EVAPORATOR)
Checking…
View Product
Part W11504447
Whirlpool
W11504447
5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
Checking…
View Product
Part W11504445
Whirlpool
W11504445
5/4 NR MS 00 (3-WAY VALVE TO DRIER)
Checking…
View Product
Part W11504432
Whirlpool
W11504432
6/5 NR MS 00 (HEAT LOOP TO CONDENSER)
Checking…
View Product
Part W11504430
Whirlpool
W11504430
7/6 NR MS 00 (HIGH PRESSURE SIDE TO COMPRESSOR)
Checking…
View Product
Part W11506620
Whirlpool
W11506620
8 NK AL 00 (CAPILLARY TUBE TO EVAPORATOR - CUT/SPLICE ON ALUMINUM OF OLD EVAP)
Checking…
View Product
Part W11506619
Whirlpool
W11506619
8 NK MS 00 (SUCTION LINE TO EVAPORATOR)
Checking…
View Product
Part W11504415
Whirlpool
W11504415
8.5/8 NR MS 00 (HIGH PRESSURE SIDE TO COMPRESSOR)
Checking…
View Product
Part W11199204
Whirlpool
W11199204
ASSEMBLY, AIR DIFFUSER
Checking…
View Product
Part W10569265
Whirlpool
W10569265
ASSEMBLY, CONTROL BOX
Checking…
View Product
Part W11595220
Whirlpool
W11595220
ASSEMBLY, CONTROL BOX
Checking…
View Product
Part W11579351
Whirlpool
W11579351
ASSEMBLY, EVAPORATOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W11609822
Whirlpool
W11609822
ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES THERMAL FUSE)
Checking…
View Product
Part W11666272
Whirlpool
W11666272
ASSEMBLY, EVAPORATOR PLENUM
Checking…
View Product
Part W11392905
Whirlpool
W11392905
ASSEMBLY, GLASS SHELF
Checking…
View Product
Part WP2166037
Whirlpool
WP2166037
ASSEMBLY, HINGE (CENTER)
Checking…
View Product
Part WPW10142530
Whirlpool
WPW10142530
ASSEMBLY, ROLLER
Checking…
View Product
Part WPW10300065
Whirlpool
WPW10300065
ASSEMBLY, TOP RIGHT HINGE
Checking…
View Product
Part WP2264756
Whirlpool
WP2264756
AXLE, ROLLER
Checking…
View Product
Part W11178521
Whirlpool
W11178521
BADGE
Checking…
View Product
Part 606755
Whirlpool
606755
BAG
Checking…
View Product
Part WP2163777
Whirlpool
WP2163777
BLADE, FAN
Checking…
View Product
Part W11204896
Whirlpool
W11204896
BLADE, FAN
Checking…
View Product
Part WP2212446
Whirlpool
WP2212446
BODY, HUMIDITY CONTROL
Checking…
View Product
Part W11745278
Whirlpool
W11745278
BRACKET
Checking…
View Product
Part WP2183805
Whirlpool
WP2183805
BRACKET, DOOR STOP
Checking…
View Product
Part W10492012
Whirlpool
W10492012
BRACKET, DOOR STOP
Checking…
View Product
Part W11340313
Whirlpool
W11340313
BRACKET, EVAPORATOR
Checking…
View Product
Part 2254454
Whirlpool
2254454
BRACKET, EVAPORATOR FAN REAR
Checking…
View Product
Part W10850162
Whirlpool
W10850162
BRACKET, FAN MOTOR
Checking…
View Product
Part W10853677
Whirlpool
W10853677
CAP, DOME (BLACK)
Checking…
View Product
Part W10849198
Whirlpool
W10849198
CAP, DOME (GREY)
Checking…
View Product
Part W10846529
Whirlpool
W10846529
CAP, DOME (WHITE)
Checking…
View Product
Part W10847959
Whirlpool
W10847959
CAP, WASHER DOME
Checking…
View Product
Part WPW10662129
Whirlpool
WPW10662129
CAPACITOR
Checking…
View Product
Part W11234470
Whirlpool
W11234470
CLAMP, POWER CORD
Checking…
View Product
Part W10861184
Whirlpool
W10861184
CLAMP, TUBE
Checking…
View Product
Part 2219077
Whirlpool
2219077
CLIP, HARNESS
Checking…
View Product
Part W10812039
Whirlpool
W10812039
CLIP, WIRE
Checking…
View Product
Part W11729596
Whirlpool
W11729596
COMPLETE ICE MAKER KIT
Checking…
View Product
Part W11580057
Whirlpool
W11580057
COMPRESSOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W11722672
Whirlpool
W11722672
CONDENSER
Checking…
View Product
Part W11577970
Whirlpool
W11577970
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W11599786
Whirlpool
W11599786
CONTROL, ELECTRONIC
Checking…
View Product
Part W11307292
Whirlpool
W11307292
COVER UNIT
Checking…
View Product
Part W10570480
Whirlpool
W10570480
COVER, AIR DIFFUSER
Checking…
View Product
Part WP2222031
Whirlpool
WP2222031
COVER, CRISPER
Checking…
View Product
Part W11634632
Whirlpool
W11634632
COVER, EVAPORATOR
Checking…
View Product
Part W10854527
Whirlpool
W10854527
COVER, SCREW
Checking…
View Product
Part W11562261
Whirlpool
W11562261
COVER, WATER TUBE
Checking…
View Product
Part W11547180
Whirlpool
W11547180
DEVICE, COMBINATION START (START RELAY AND OVERLOAD)
Checking…
View Product
Part W10676240
Whirlpool
W10676240
DOOR REVERSAL KIT STAINLESS MODEL
Checking…
View Product
Part W11415957
Whirlpool
W11415957
DOOR REVERSAL KIT, BLACK MODEL
Checking…
View Product
Part W11416038
Whirlpool
W11416038
DOOR REVERSAL KIT, WHITE MODEL
Checking…
View Product
Part W11109499
Whirlpool
W11109499
DRIER (SERVICE DRIER WITHOUT DYE) (ALSO ORDER THE FOLLOWING LOKRING PARTS)
Checking…
View Product
Part W11208347
Whirlpool
W11208347
DUCT, AIR
Checking…
View Product
Part WP2156003
Whirlpool
WP2156003
ENDCAP, TRIM
Checking…
View Product
Part W11110734
Whirlpool
W11110734
ENERGY GUIDE
Checking…
View Product
Part W10582029
Whirlpool
W10582029
EXTENSION, DRAIN TUBE
Checking…
View Product
Part W11500943
Whirlpool
W11500943
FILLER, CORNER (BLACK)
Checking…
View Product
Part W11573591
Whirlpool
W11573591
FILLER, CORNER (GREY)
Checking…
View Product
Part W10859322
Whirlpool
W10859322
FILLER, CORNER (WHITE)
Checking…
View Product
Part W11292468
Whirlpool
W11292468
FITTING, WATER TUBE
Checking…
View Product
Part N/P
Whirlpool
N/P
FOLLOWING PARTS NOT ILLUSTRATED
Checking…
View Product
Part LW10803963
Whirlpool
LW10803963
FREEZER DOOR (INCLUDES ILLUSTRATION 6) (BLACK)
Checking…
View Product
Part LW10803965
Whirlpool
LW10803965
FREEZER DOOR (INCLUDES ILLUSTRATION 6) (STAINLESS)
Checking…
View Product
Part LW10852088
Whirlpool
LW10852088
FREEZER DOOR (INCLUDES ILLUSTRATION 6) (WHITE)
Checking…
View Product
Part W10702120
Whirlpool
W10702120
GASKET, AIR DIFFUSER
Checking…
View Product
Part WP2319264B
Whirlpool
WP2319264B
GASKET, DOOR (BLACK)
Checking…
View Product
Part WP2319263B
Whirlpool
WP2319263B
GASKET, DOOR (BLACK)
Checking…
View Product
Part W11578847
Whirlpool
W11578847
GASKET, DOOR (GREY)
Checking…
View Product
Part W11661186
Whirlpool
W11661186
GASKET, DOOR (GREY)
Checking…
View Product
Part WP2319264W
Whirlpool
WP2319264W
GASKET, DOOR (WHITE)
Checking…
View Product
Part WP2319263W
Whirlpool
WP2319263W
GASKET, DOOR (WHITE)
Checking…
View Product
Part W10579698
Whirlpool
W10579698
GASKET, EVAPORATOR COVER
Checking…
View Product
Part WP1106508
Whirlpool
WP1106508
GASKET, SEAL
Checking…
View Product
Part W11735896
Whirlpool
W11735896
GLASS SHELF
Checking…
View Product
Part WP2262441
Whirlpool
WP2262441
GLASS, SHELF
Checking…
View Product
Part WP2264462
Whirlpool
WP2264462
GROMMET
Checking…
View Product
Part W11678963
Whirlpool
W11678963
GROMMET, COMPRESSOR
Checking…
View Product
Part W11677726
Whirlpool
W11677726
HARNESS, UNIT
Checking…
View Product
Part W11579349
Whirlpool
W11579349
HEATER, DEFROST
Checking…
View Product
Part W11026307
Whirlpool
W11026307
HINGE PIN
Checking…
View Product
Part WP2325482
Whirlpool
WP2325482
HINGE, BOTTOM
Checking…
View Product
Part W11679644
Whirlpool
W11679644
HOLDER, MEAT PAN
Checking…
View Product
Part WP941839
Whirlpool
WP941839
HOLE PLUG (WHITE)
Checking…
View Product
Part 2321148
Whirlpool
2321148
HOUSING, THERMISTOR
Checking…
View Product
Part 4387491
Whirlpool
4387491
INSERT, TUBE
Checking…
View Product
Part W11553819
Whirlpool
W11553819
INSULATION, SOUND
Checking…
View Product
Part W11026417
Whirlpool
W11026417
KNOB, AIR CONTROL
Checking…
View Product
Part WPW10133299
Whirlpool
WPW10133299
LEVELER
Checking…
View Product
Part W11676611
Whirlpool
W11676611
LOCKING RING (1/4)
Checking…
View Product
Part WP4317852
Whirlpool
WP4317852
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
Checking…
View Product
Part WP503695
Whirlpool
WP503695
MISCELLANEOUS, CORK, SEALER
Checking…
View Product
Part WP542638
Whirlpool
WP542638
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
Checking…
View Product
Part 876370
Whirlpool
876370
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2-INCH X 35 1/2-INCH X 2 5/8-INCH)
Checking…
View Product
Part 876029
Whirlpool
876029
MISCELLANEOUS, KIT, FOAM SLAB (30-INCH X 32 1/2-INCH X 1 1/2-INCH)
Checking…
View Product
Part 833938
Whirlpool
833938
MISCELLANEOUS, KIT, TERMINAL CONNECTOR
Checking…
View Product
Part 8003RP
Whirlpool
8003RP
MISCELLANEOUS, KIT, WATER INLET
Checking…
View Product
Part 212643
Whirlpool
212643
MISCELLANEOUS, SEALER, GUM (4 FEET)
Checking…
View Product
Part WP505587
Whirlpool
WP505587
MISCELLANEOUS, SEALER, MASTIC (1 QT)
Checking…
View Product
Part W11238399
Whirlpool
W11238399
MISCELLANEOUS, TAPE, VINYL (3/4 X 108-INCH)
Checking…
View Product
Part W11502762
Whirlpool
W11502762
MODULE, LED
Checking…
View Product
Part W11127829
Whirlpool
W11127829
MOTOR, CONDENSER FAN
Checking…
View Product
Part WP2315539
Whirlpool
WP2315539
MOTOR, EVAPORATOR FAN
Checking…
View Product
Part W11190821
Whirlpool
W11190821
MOVABLE, BIN
Checking…
View Product
Part 511873
Whirlpool
511873
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
Checking…
View Product
Part WP2256704
Whirlpool
WP2256704
PAN, CRISPER
Checking…
View Product
Part W11256433
Whirlpool
W11256433
PAN, MEAT
Checking…
View Product
Part WPW10520305
Whirlpool
WPW10520305
PLUG, HOLE (BLACK)
Checking…
View Product
Part WP2212651
Whirlpool
WP2212651
PLUG, HOLE (BLACK)
Checking…
View Product
Part WPW10520307
Whirlpool
WPW10520307
PLUG, HOLE (GREY)
Checking…
View Product
Part WP2254517
Whirlpool
WP2254517
PLUG, HOLE (GREY)
Checking…
View Product
Part WPW10520304
Whirlpool
WPW10520304
PLUG, HOLE (WHITE)
Checking…
View Product
Part WP2212648
Whirlpool
WP2212648
PLUG, HOLE (WHITE)
Checking…
View Product
Part LW10803934
Whirlpool
LW10803934
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 2) (BLACK)
Checking…
View Product
Part LW10803941
Whirlpool
LW10803941
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 2) (STAINLESS)
Checking…
View Product
Part LW10852095
Whirlpool
LW10852095
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 2) (WHITE)
Checking…
View Product
Part WPW10475495
Whirlpool
WPW10475495
ROLLER
Checking…
View Product
Part WP489442
Whirlpool
WP489442
SCREW
Checking…
View Product
Part WP489497
Whirlpool
WP489497
SCREW
Checking…
View Product
Part WP488163
Whirlpool
WP488163
SCREW
Checking…
View Product
Part W11544659
Whirlpool
W11544659
SCREW
Checking…
View Product
Part WP488921
Whirlpool
WP488921
SCREW
Checking…
View Product
Part 8533919
Whirlpool
8533919
SCREW
Checking…
View Product
Part WPW10171469
Whirlpool
WPW10171469
SCREW
Checking…
View Product
Part WPW10570380
Whirlpool
WPW10570380
SCROLL, FAN
Checking…
View Product
Part W11735897
Whirlpool
W11735897
SHELF PAN GLASS, MEAT
Checking…
View Product
Part W11105826
Whirlpool
W11105826
SHELF, GLASS
Checking…
View Product
Part W10570572
Whirlpool
W10570572
SHIELD, HEAT
Checking…
View Product
Part WP2258681W
Whirlpool
WP2258681W
SHIM, DOOR STOP (WHITE)
Checking…
View Product
Part WP2201567
Whirlpool
WP2201567
SHIM, HINGE (BOTTOM)
Checking…
View Product
Part 2215385
Whirlpool
2215385
SHIM, HINGE (CENTER) (BLACK)
Checking…
View Product
Part 2166043
Whirlpool
2166043
SHIM, HINGE (CENTER) (WHITE)
Checking…
View Product
Part W10883637
Whirlpool
W10883637
SHIM, TOP HINGE
Checking…
View Product
Part WP2176222
Whirlpool
WP2176222
SLIDE, HUMIDITY CONTROL
Checking…
View Product
Part W11416450
Whirlpool
W11416450
SPACER, BACK
Checking…
View Product
Part W11577799
Whirlpool
W11577799
STRAP, BALE
Checking…
View Product
Part W10573847
Whirlpool
W10573847
SUPPORT PLATE, COMPRESSOR
Checking…
View Product
Part W11384469
Whirlpool
W11384469
SWITCH
Checking…
View Product
Part W11123941
Whirlpool
W11123941
SWITCH, ROCKER
Checking…
View Product
Part W11511781
Whirlpool
W11511781
TECH SHEET
Checking…
View Product
Part W11724692
Whirlpool
W11724692
THERMISTOR
Checking…
View Product
Part WPW10384183
Whirlpool
WPW10384183
THERMISTOR
Checking…
View Product
Part W10316760
Whirlpool
W10316760
THERMISTOR, REFRIGERATOR
Checking…
View Product
Part W11189115
Whirlpool
W11189115
THIMBLE (BLACK)
Checking…
View Product
Part W11676573
Whirlpool
W11676573
THIMBLE (GREY)
Checking…
View Product
Part W10492018
Whirlpool
W10492018
THIMBLE (WHITE)
Checking…
View Product
Part WPW10339879
Whirlpool
WPW10339879
TIE, WIRE
Checking…
View Product
Part W10565417
Whirlpool
W10565417
TRAY, EVAPORATOR
Checking…
View Product
Part W10894082
Whirlpool
W10894082
TRIM SHELF, FRONT
Checking…
View Product
Part W10804340
Whirlpool
W10804340
TRIM SHELF, REAR
Checking…
View Product
Part WP2266727
Whirlpool
WP2266727
TRIM, DOOR
Checking…
View Product
Part WPW10234241
Whirlpool
WPW10234241
TRIM, DOOR SHELF
Checking…
View Product
Part W10847166
Whirlpool
W10847166
TRIM, SHELF FRONT
Checking…
View Product
Part W10847182
Whirlpool
W10847182
TRIM, SHELF REAR
Checking…
View Product
Part W11230940
Whirlpool
W11230940
TRIVET
Checking…
View Product
Part W11461499
Whirlpool
W11461499
TUBE, PROCESS
Checking…
View Product
Part W11518247
Whirlpool
W11518247
TUBE, SUCTION
Checking…
View Product
Part W10823511
Whirlpool
W10823511
TUBE, WATER
Checking…
View Product
Part W11507956
Whirlpool
W11507956
USE AND CARE GUIDE
Checking…
View Product
Part WPW10279909
Whirlpool
WPW10279909
VALVE, INLET
Checking…
View Product
Part WP489467
Whirlpool
WP489467
WASHER, PLASTIC
Checking…
View Product
Part WP487576
Whirlpool
WP487576
WASHER, PLASTIC
Checking…
View Product
Part W11203361
Whirlpool
W11203361
WIRE ASSEMBLY, CONTROL BOX
Checking…
View Product
    Main Menu x
